Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1)

Aim:-

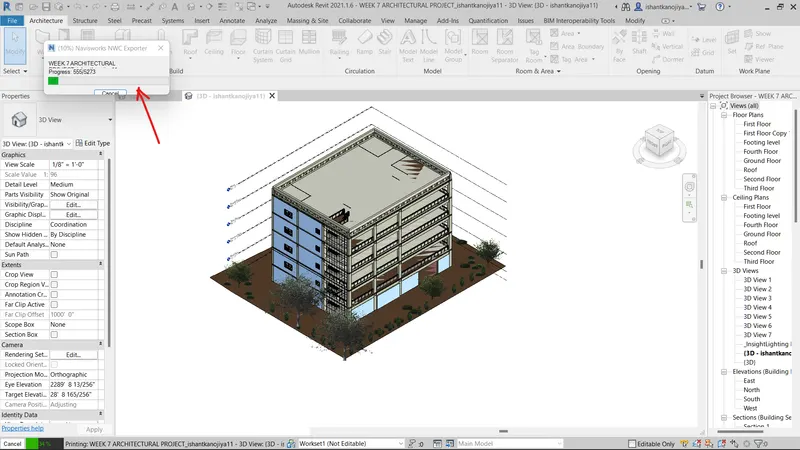

To export the Revit file into the Naviswork file.

Procedure:-

• First, install the Navsiworks Exporter same as Revit version

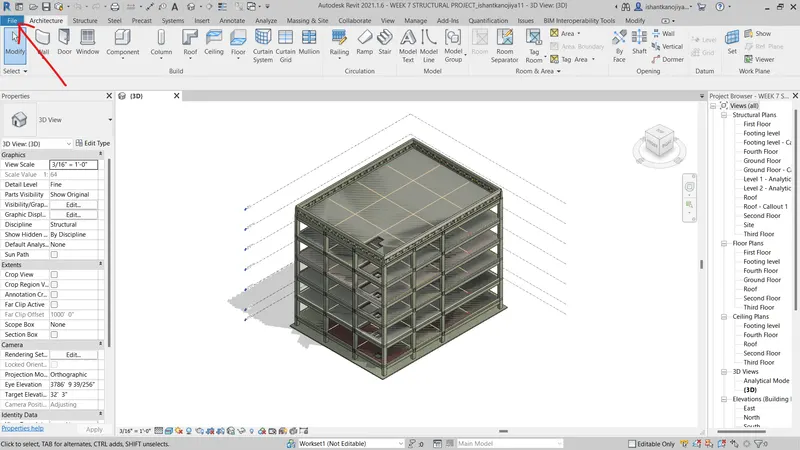

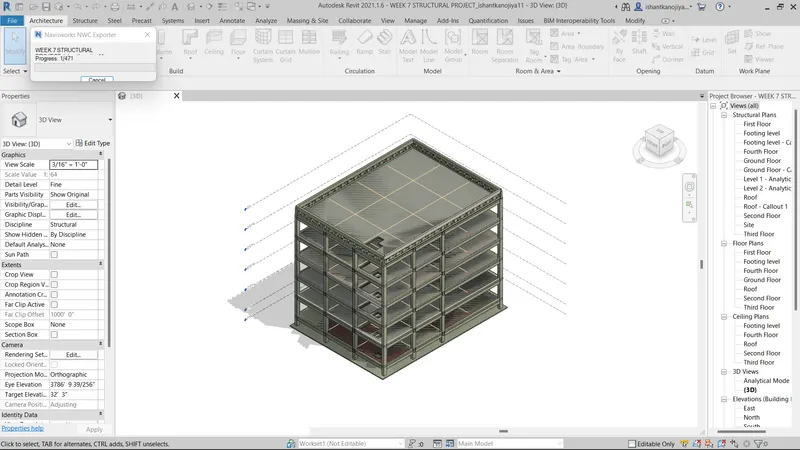

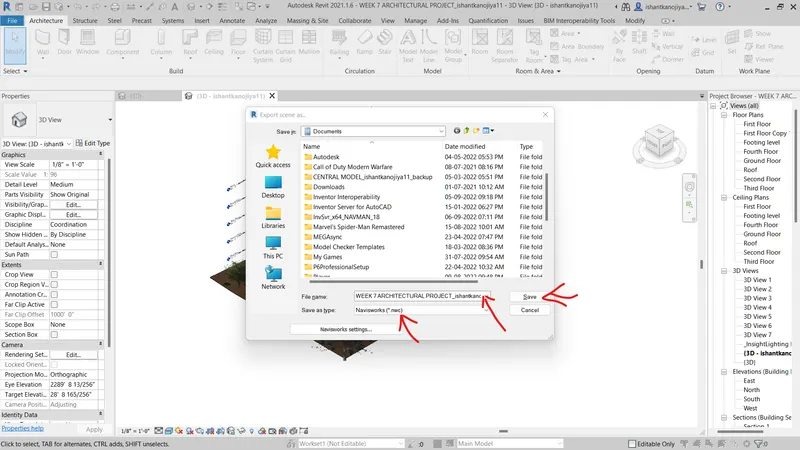

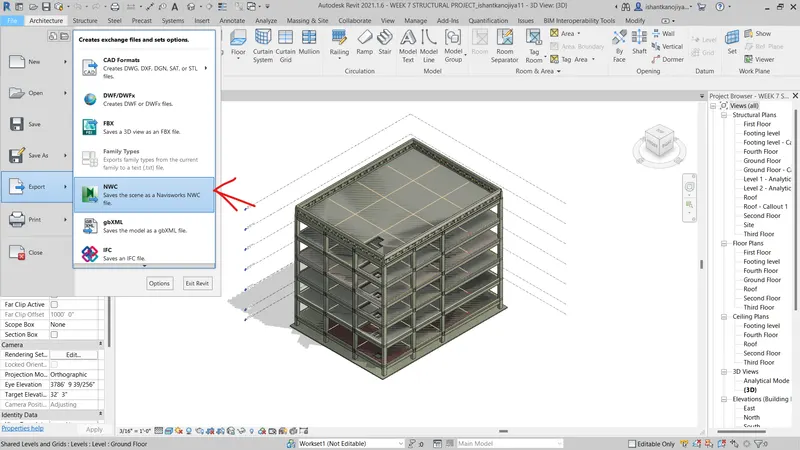

• Goto structural File of week 7 > open it > export to NWC. file

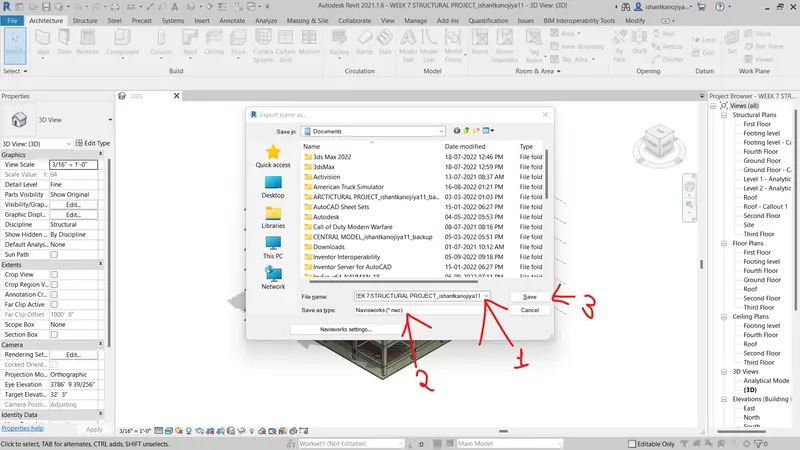

• then save it as NWC file

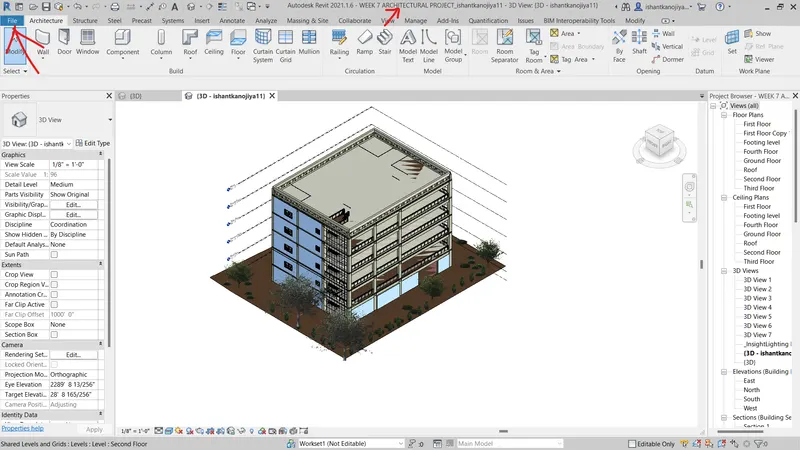

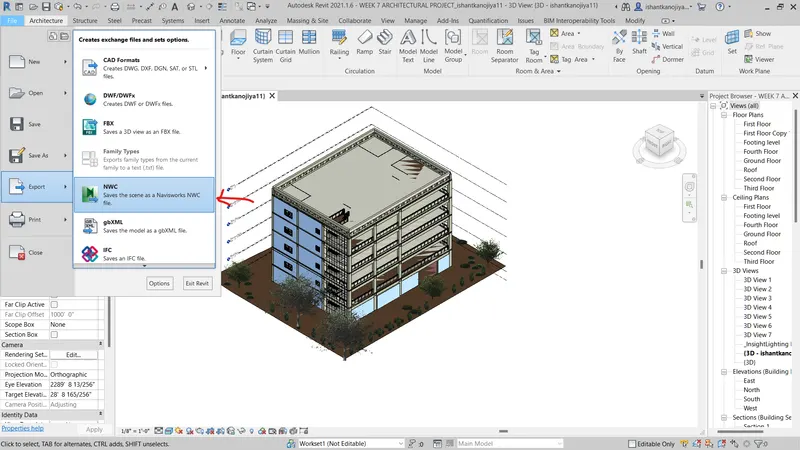

• Architectural file

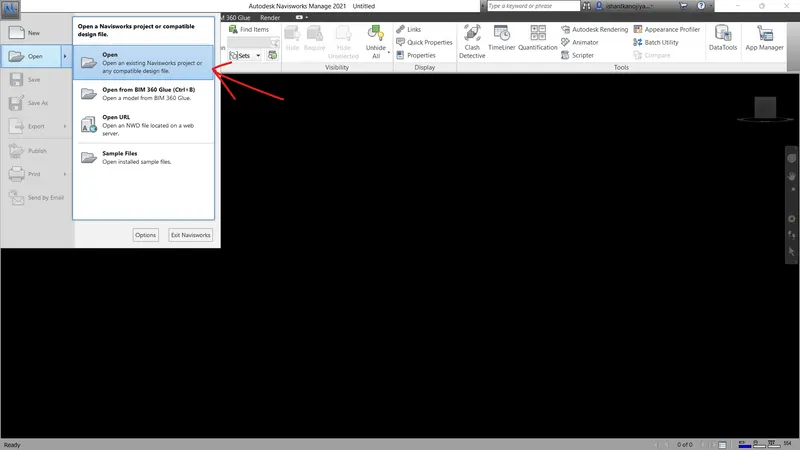

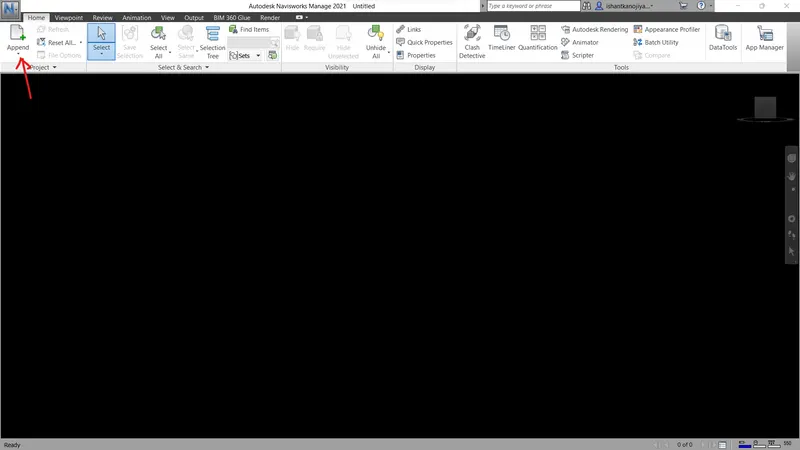

• Add file both structural and Architectural in naviswork

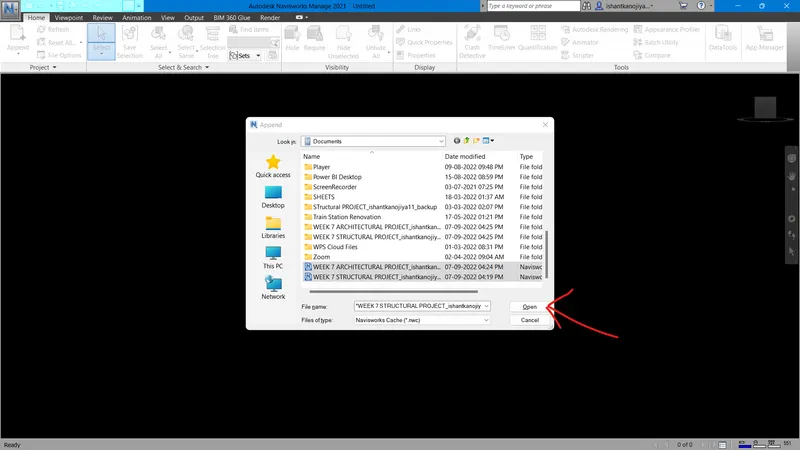

• go to menu / appendix > select architectural and then architectural file which is saved as nwc formate

Result:

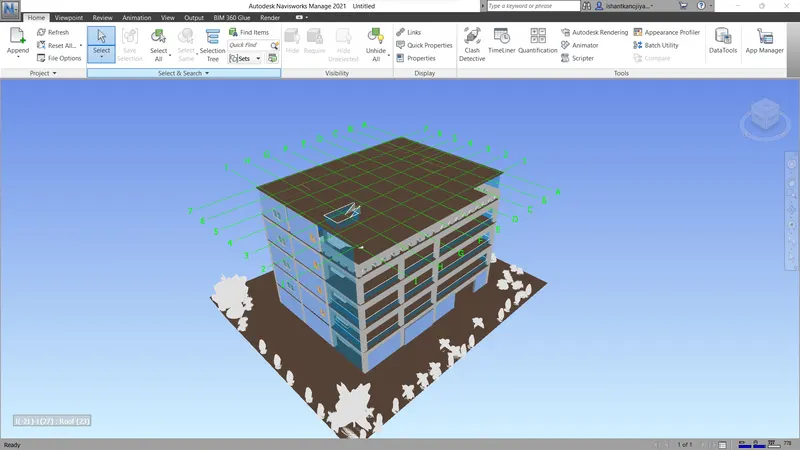

After following above steps, we have successfully exported architectural and structural model in Navisworks.

2)

Aim:-

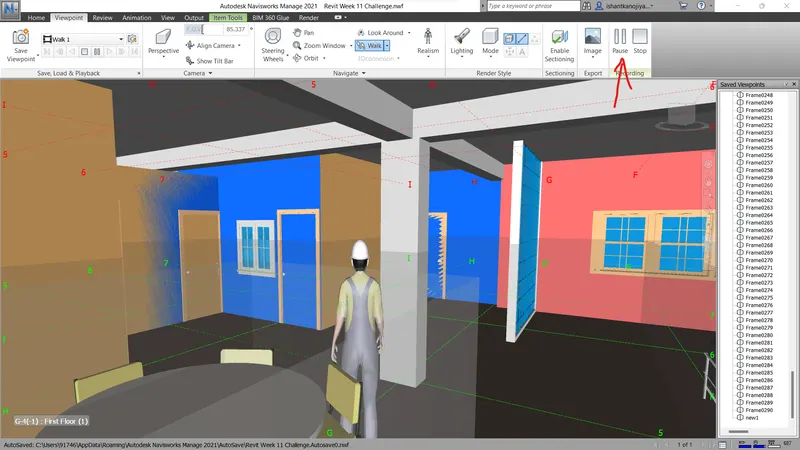

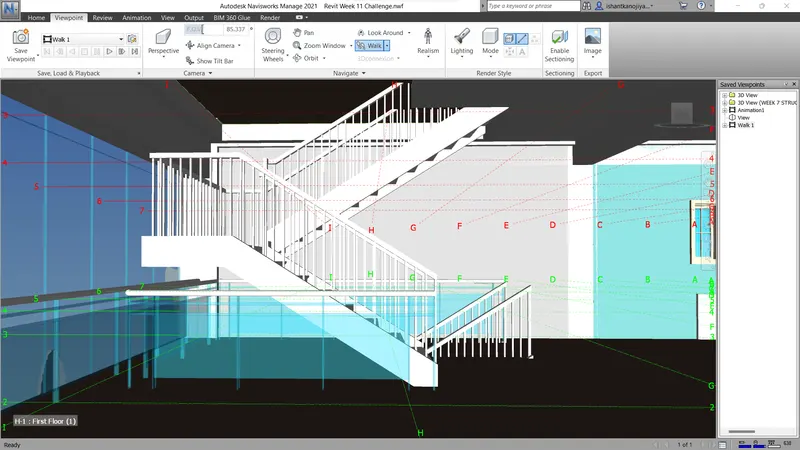

Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

Procedure:-

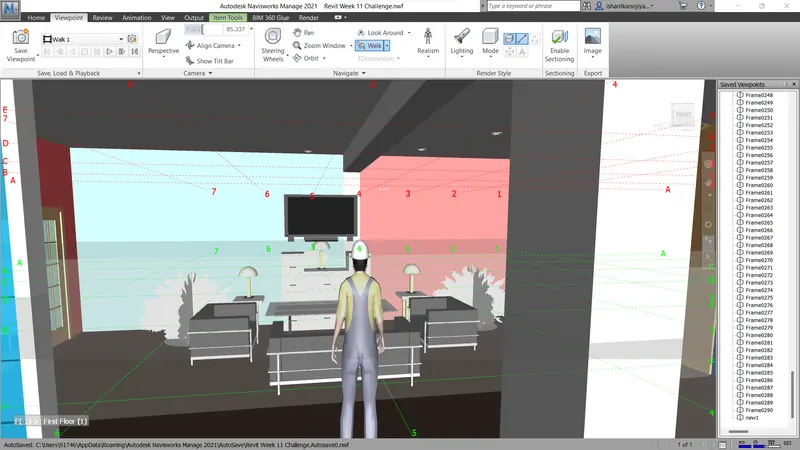

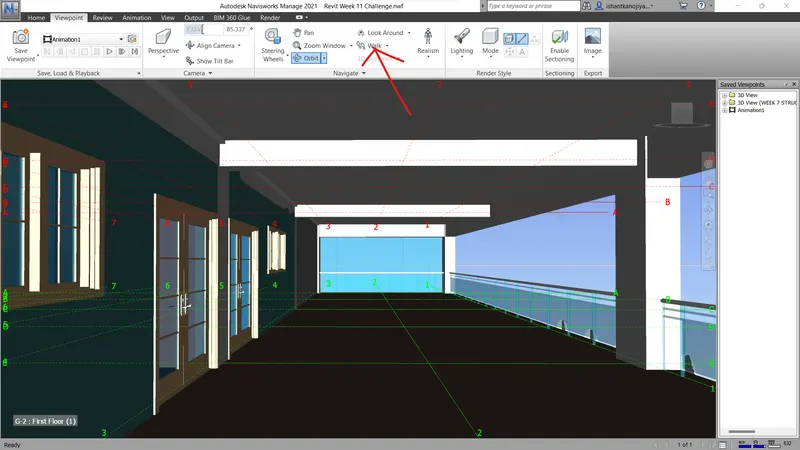

• Goto viewpoint tool bar > select Walk option > adjust the camera and Take picture of view and record your walk as your requirement

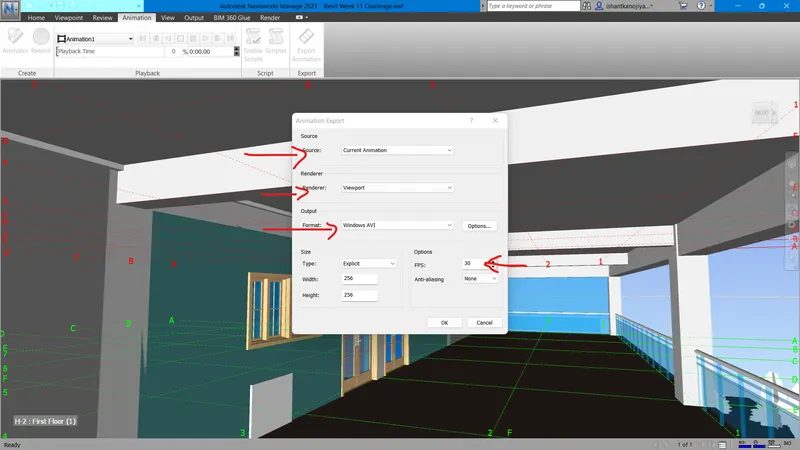

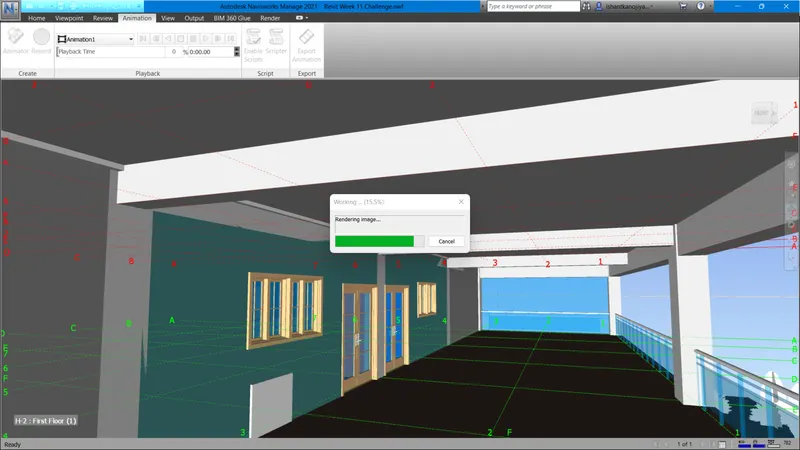

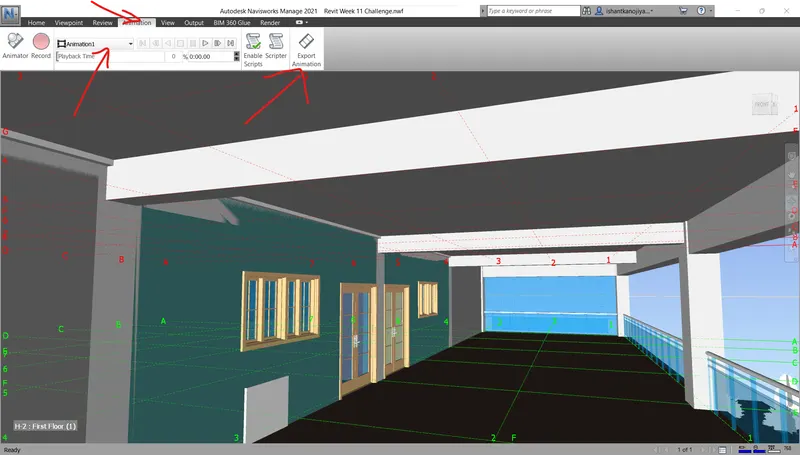

• Goto Animation tool bar> select Animation Recording > Select Export Animation option

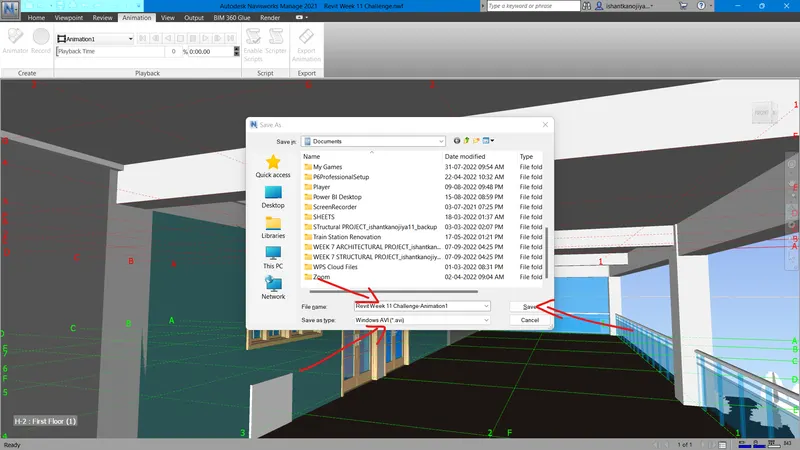

• Save it in local disk

RESULT:

After following the above steps, we successfully created a walk around and walk through the room with the help of the navigation tool in Navisworks.

3)

Aim:-

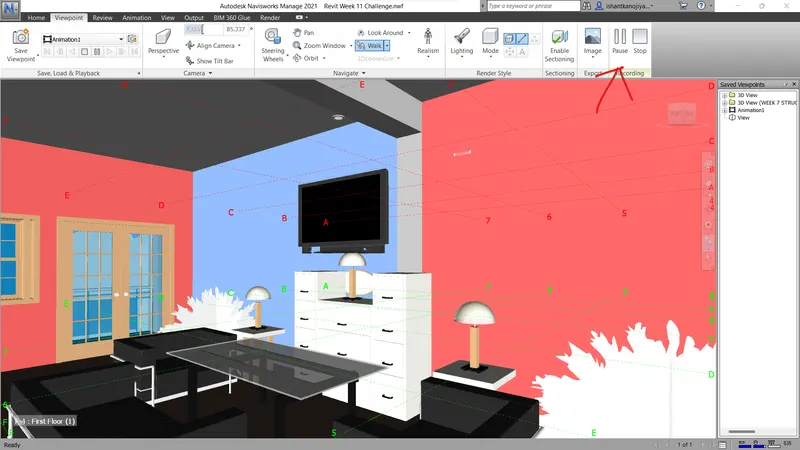

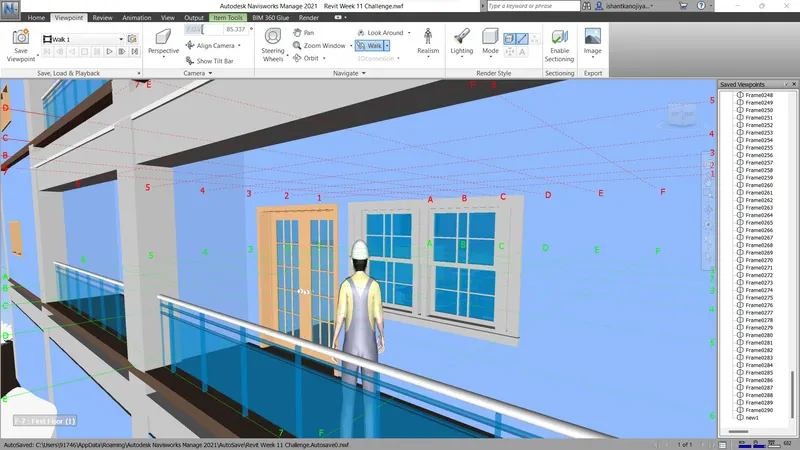

Using the Realism feature in Navigate tool to analyze and create moving animation of how the room looks after completion

Procedure:-

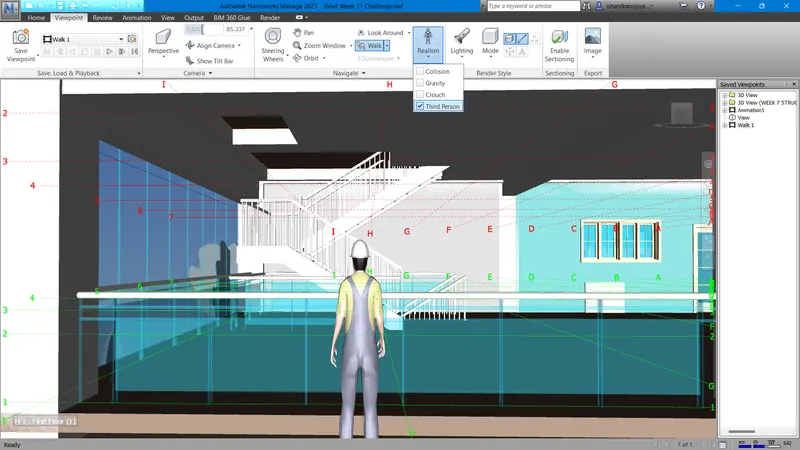

• Goto to viewpoint toolbar > select Realism option and adjust the camera > record it or save viewpoint options
• Select third person option

RESULT:

After following the above steps, we have successfully created a walk around with Realism with the help of the navigation tool in Navisworks.

4)

Aim:

Using Naviswork Identify Architectural and Structural Model Clash detection test.

Procedure:-

• Goto structural File of week 7 > open it > export to NWC. file
• then save it as NWC fileArchitectural fileAdd file both structural and Architectural in naviswork
• go to menu / appendix > select architectural and then architectural file which is saved as nwc formate

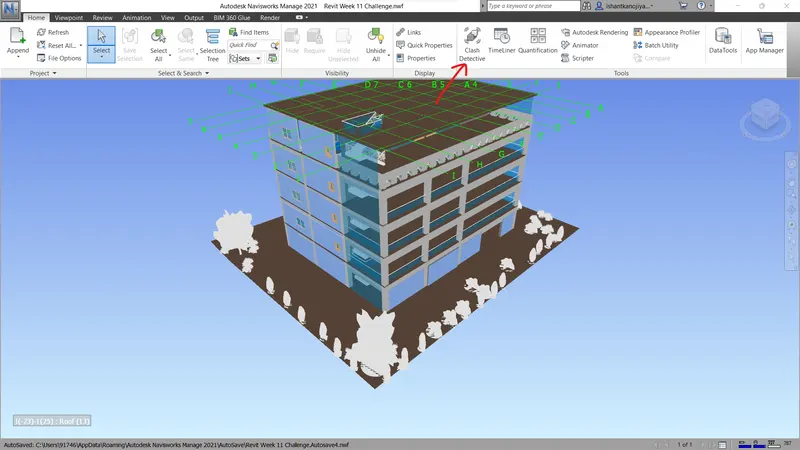

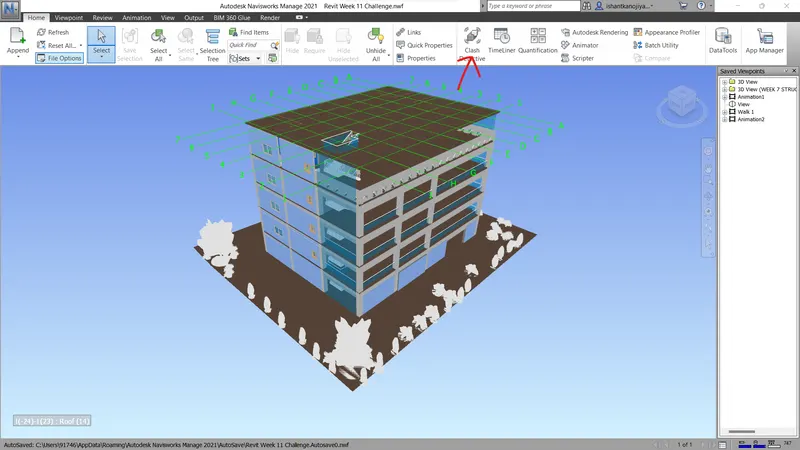

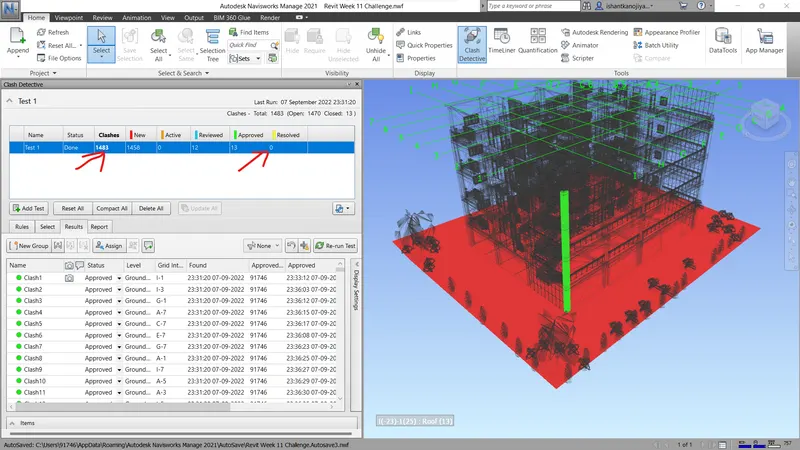

• Then goto home to tool bar> select Clash section test
• Then goto Add test

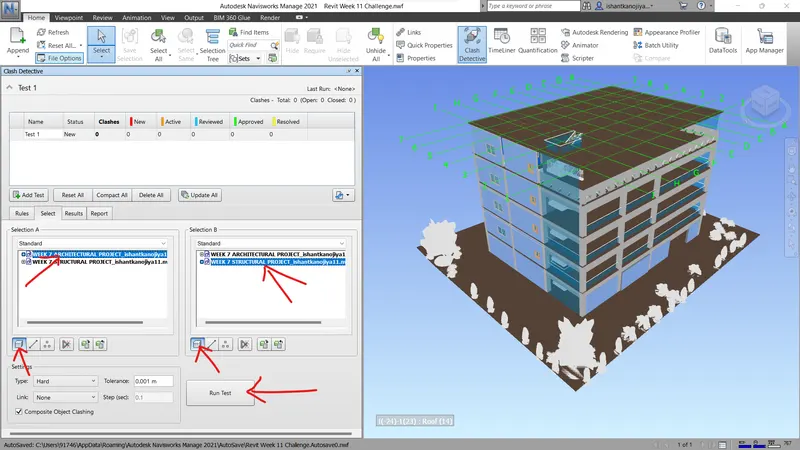

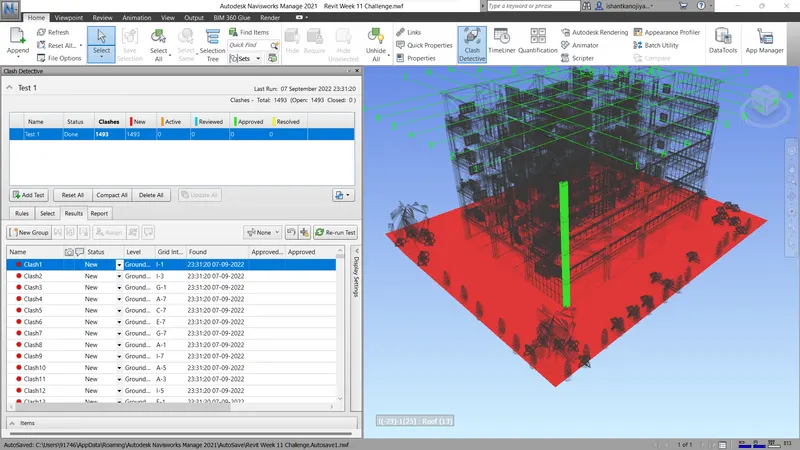

• Select one side Architectural and Structural file > press Run testS
• Select both side Surface

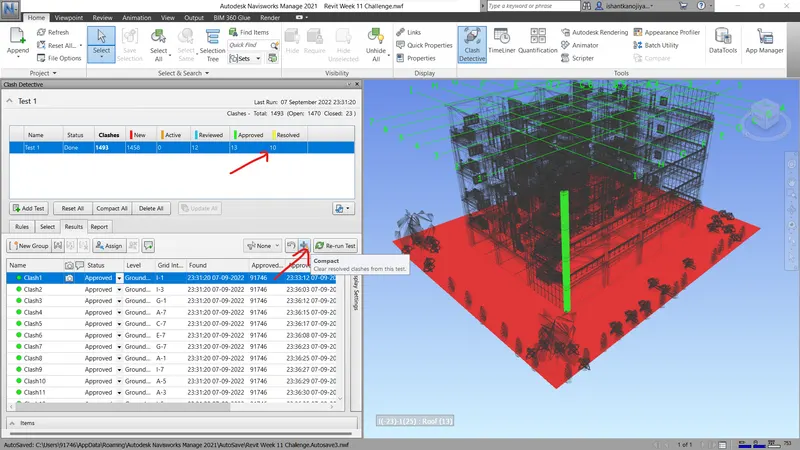

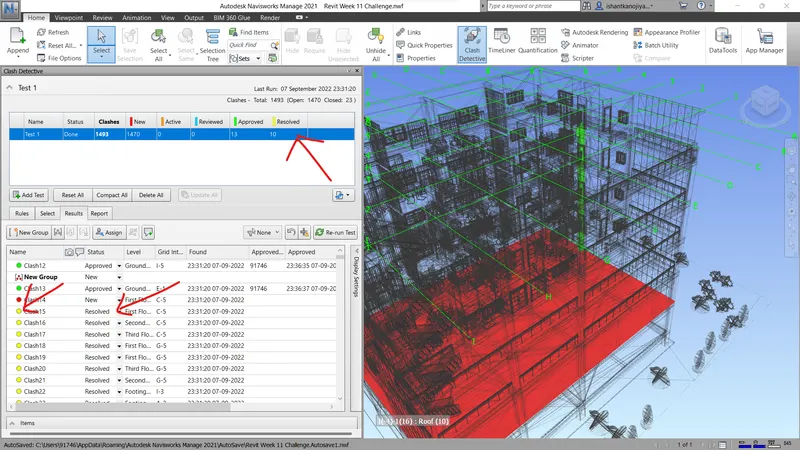

• Approved clashes

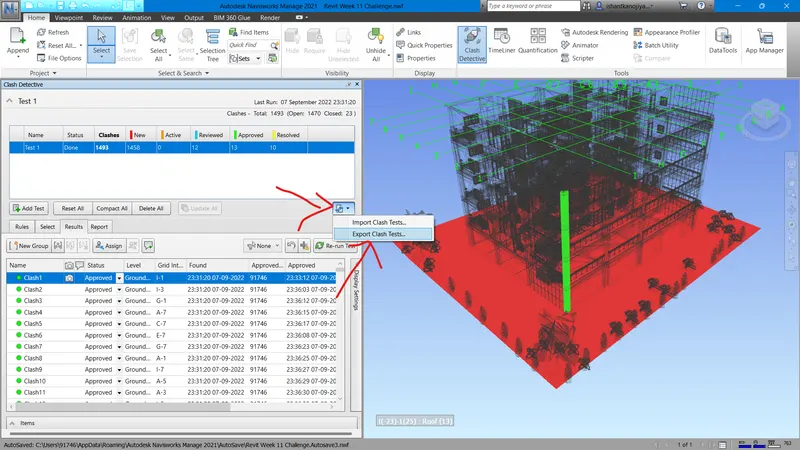

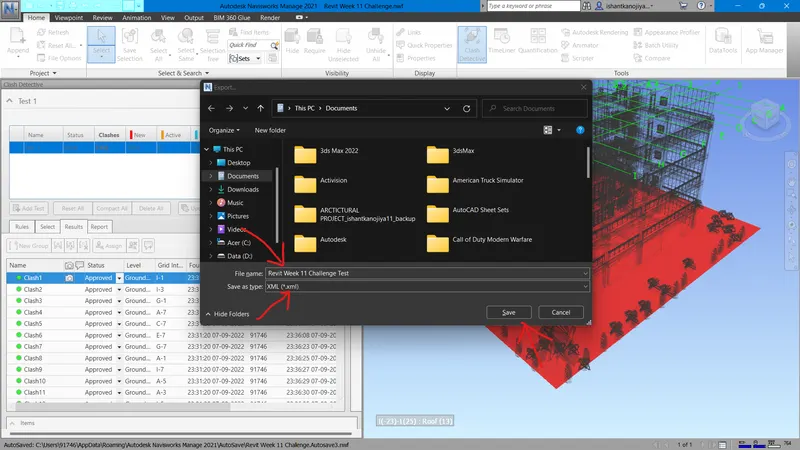

• Export Clash Detection Test
• Remove Resolve Clash detection test

RESULT:

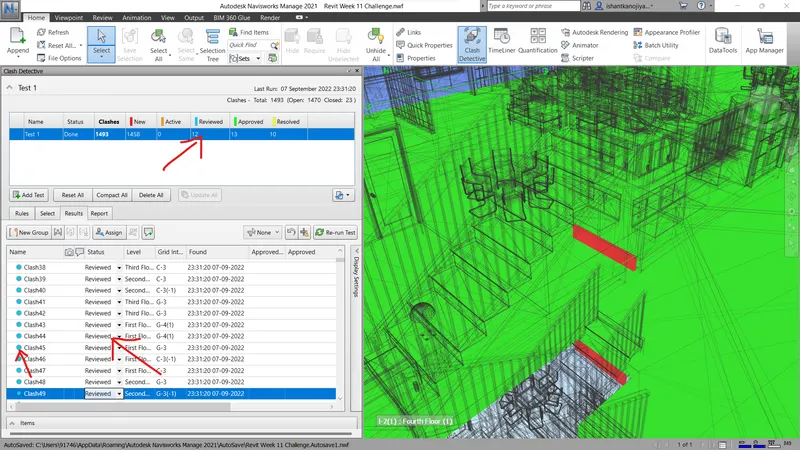

After following the above steps, we got the list of clashes from the architectural and structural models. We have studied and checked which all clashes can be approved, resolved or reviewed accordingly and finally export the clashes in .xml format

5)

Aim:-

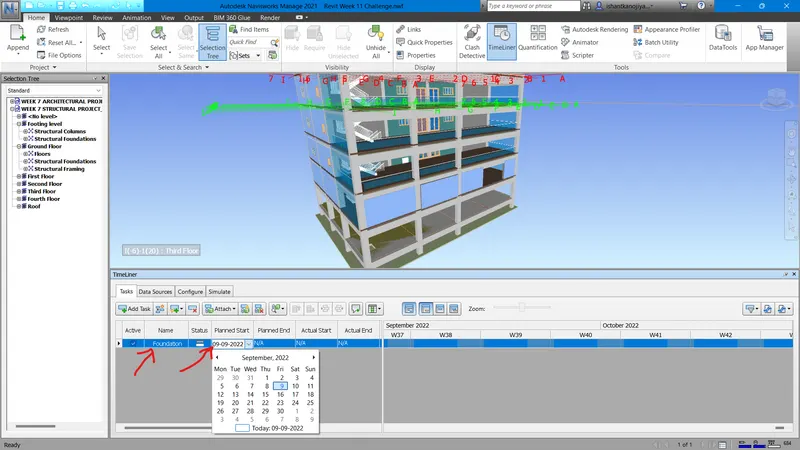

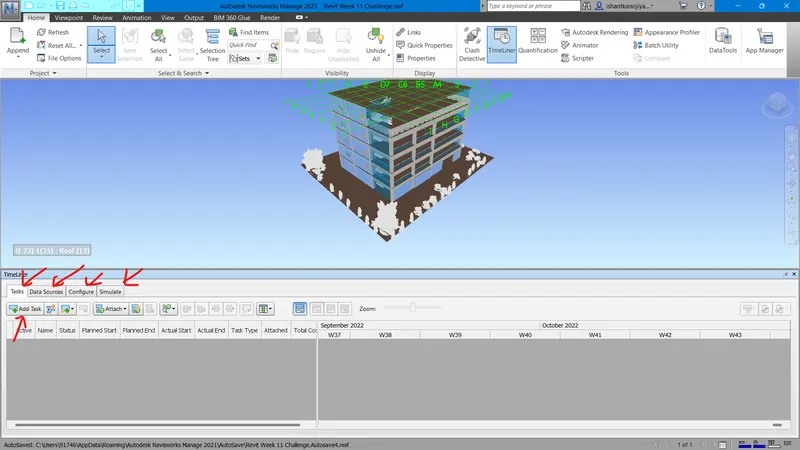

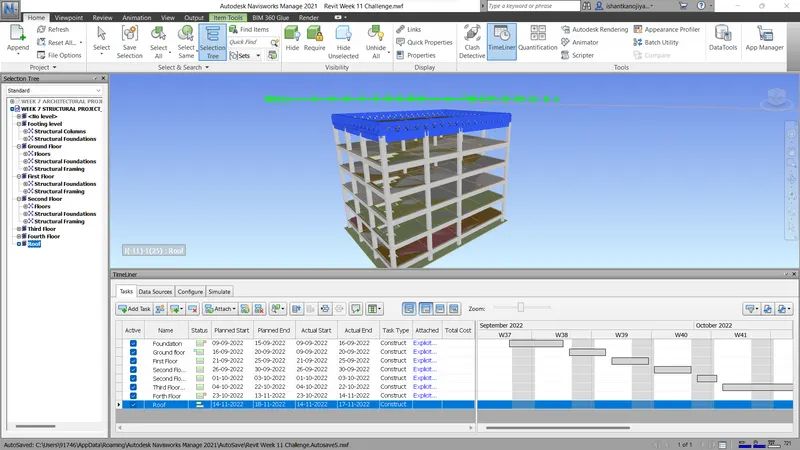

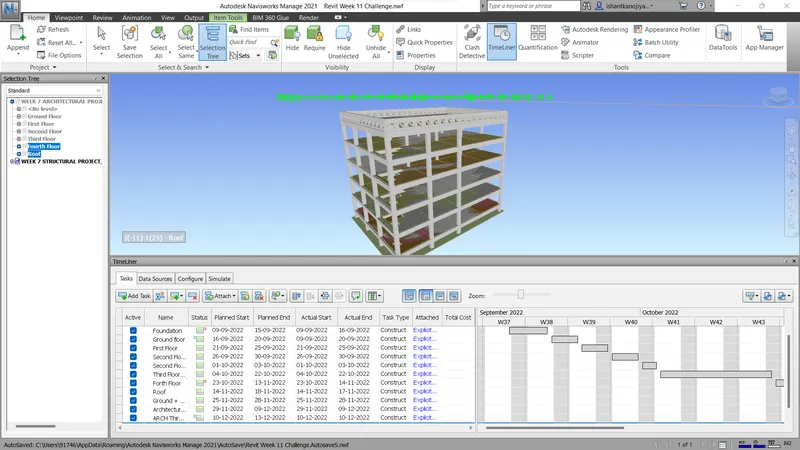

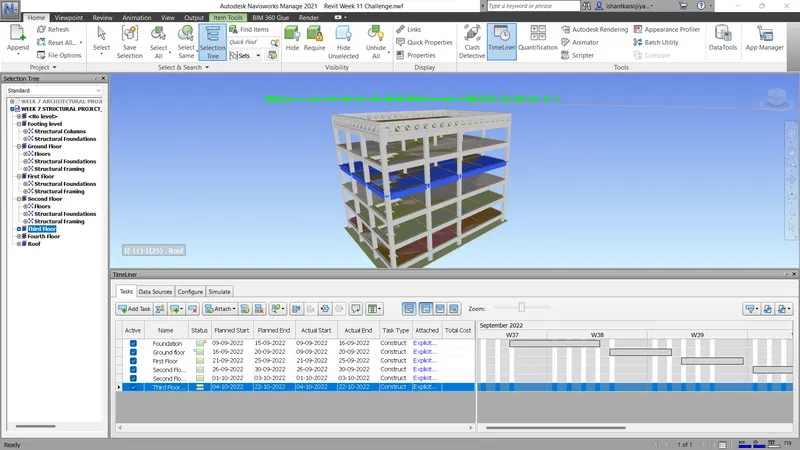

Prepared a schedule by using timeline feature in Navisworks and adding reasonable assumption of task start date and end date.

Procedure:-

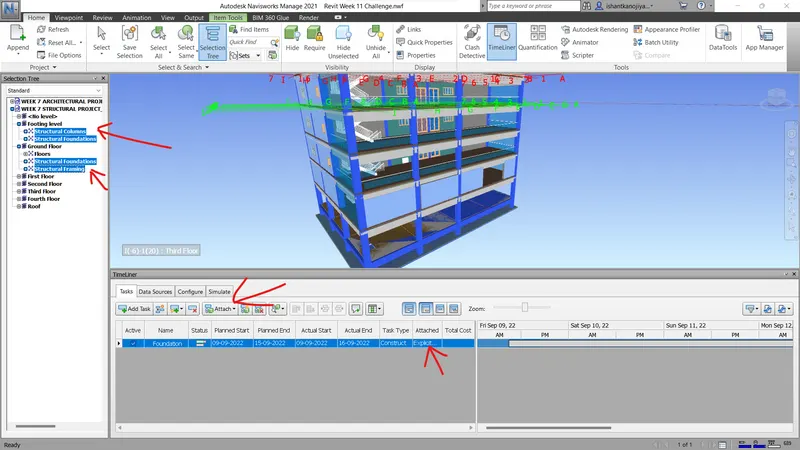

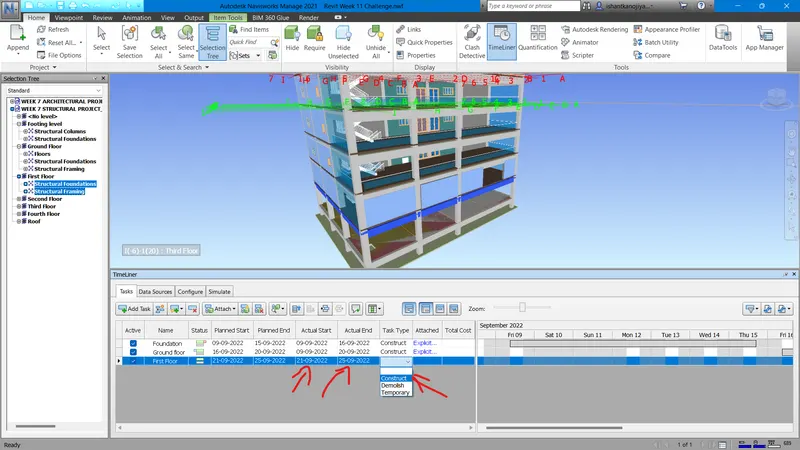

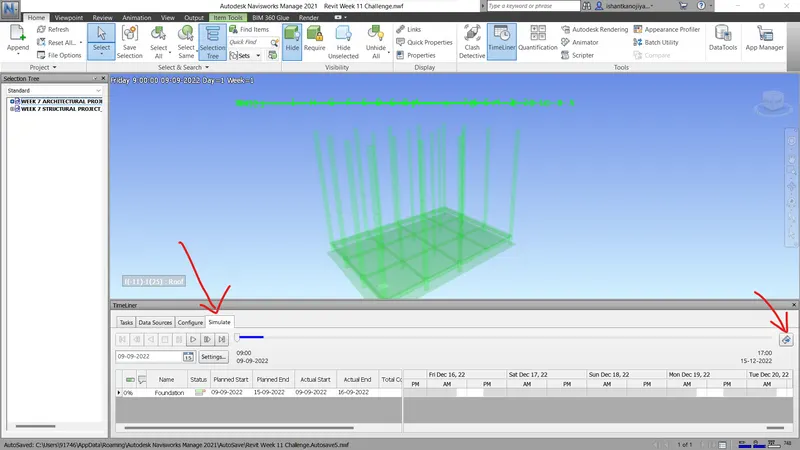

• Goto to home Toolbar > Select Timeliner optionGoto Attach option > Select Current Selection > Press ok
• Select Trace Type is Construction

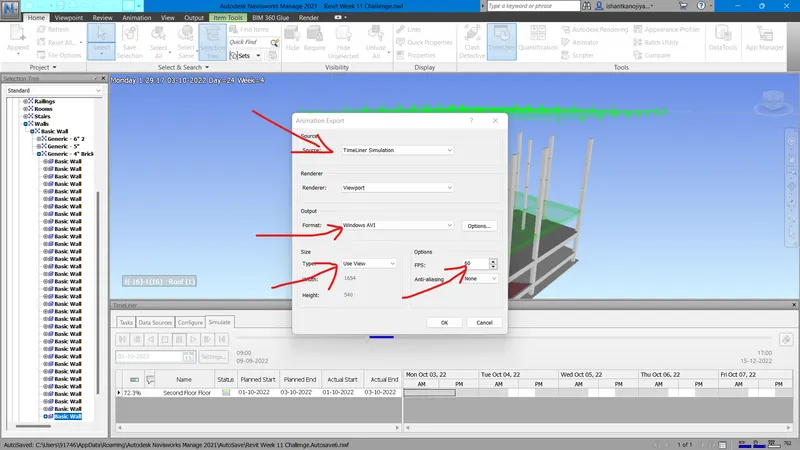

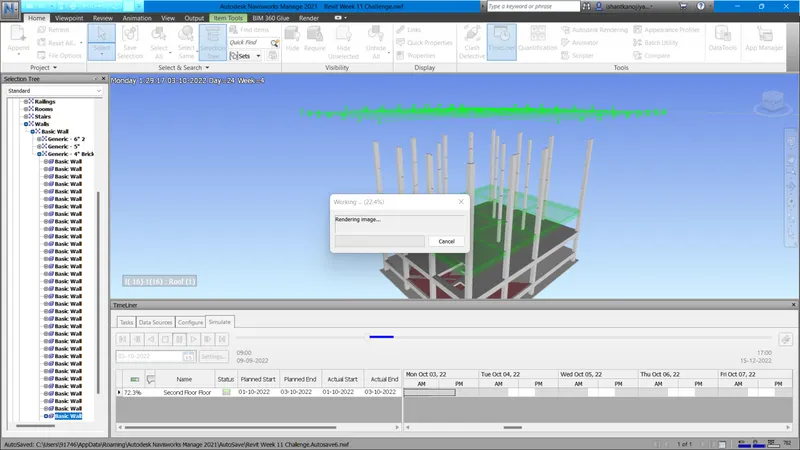

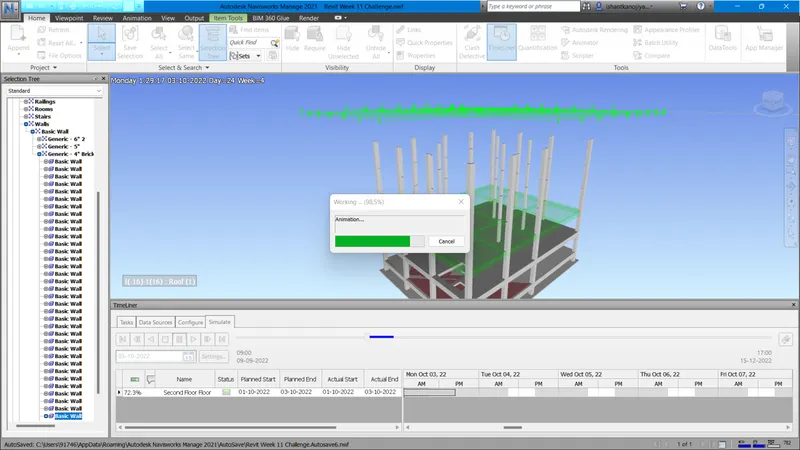

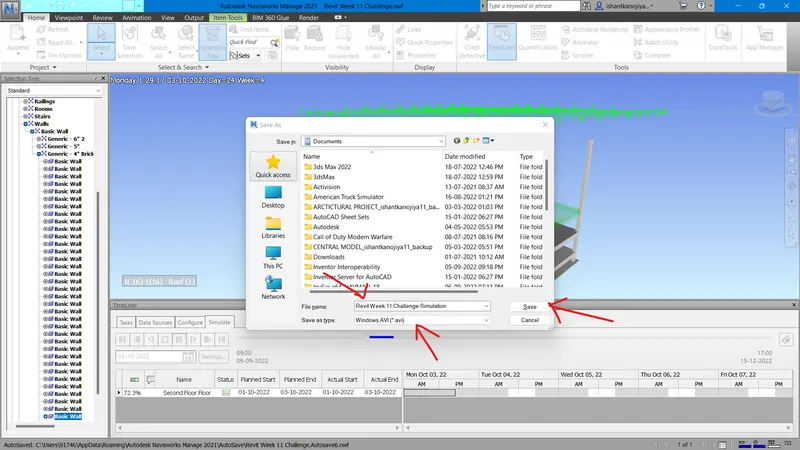

• Goto Simulation Option Select Export Animation Adjust the animation Setting as per request
• Save the Animation in local disk

RESULT:

After following the above steps, we have created the timeline schedule for the project which is including planned start date and end date of the project as well as the actual planned date and end date by using the Timeliner feature in Navisworks and saving the timeliner animation is Navisworks file
