Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork
Usage of Navigation tool, Timeliner, and Clash Detection test using Naviswork
1) Use the Architecture/ Structure Project file developed by you in weeks 6 to 8. Export the Revit architecture and structure model to the Navisworks Cache file following the export settings discussed in class
AIM:
To export the Revit architectural and structural model to the Naviswork cache file
INTRODUCTION:
Autodesk Navisworks Manage software is a comprehensive project review solution that supports coordination, analysis, and communication of design intent and constructability.
Multidisciplinary design data created in a broad range of Building Information Modeling (BIM), digital prototype, and process plant design applications can be combined into a single integrated project model. Interference management tools help design and construction professionals anticipate and minimize potential problems before construction begins, helping to reduce expensive delays and rework.
Navisworks Manage (also known as Navis) is integrated with Autodesk BIM 360 Coordinate software to help connect the entire project team and streamline BIM project review and coordination workflows. The software combines model coordination with project quantities and schedules to deliver simulation and quantification features, including time and cost analysis. Entire project models can be published and viewed using Autodesk Navisworks Freedom software.
PROCEDURE:
Step 1:
1. Open the Revit software and click on open
2. Open the architectural model that we created earlier
Step 2:
1. Now we have to export the Revit model to the Naviswork

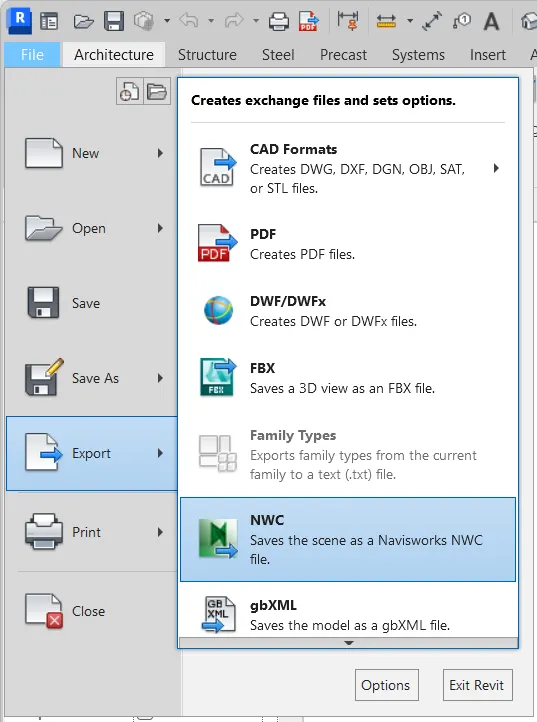

2. Click on the file tab and select the export option
3. Then click on the NWC option to Export the Architectural model into the NWC file
Step 3:

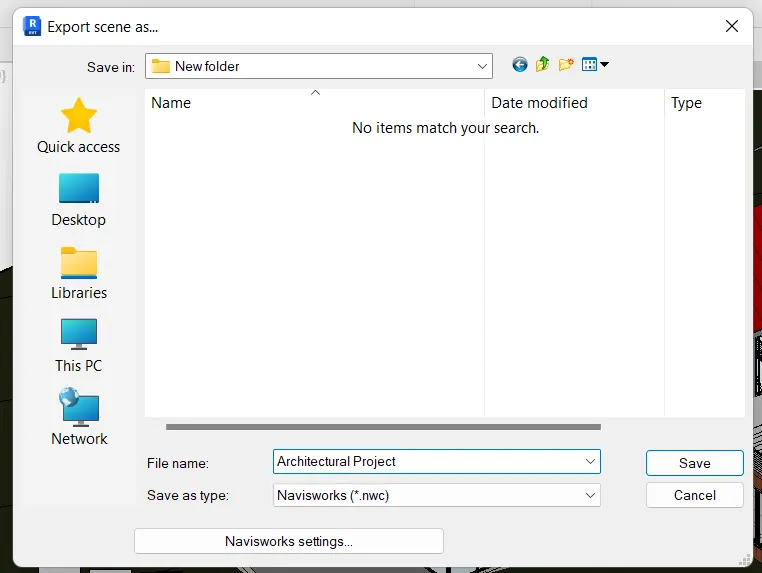

1. Then Select the folder that we want to save the NWC file
2. Give the name as Naviswork architectural project
Step 4:
1. Now we have to export the structural model to the Naviswork

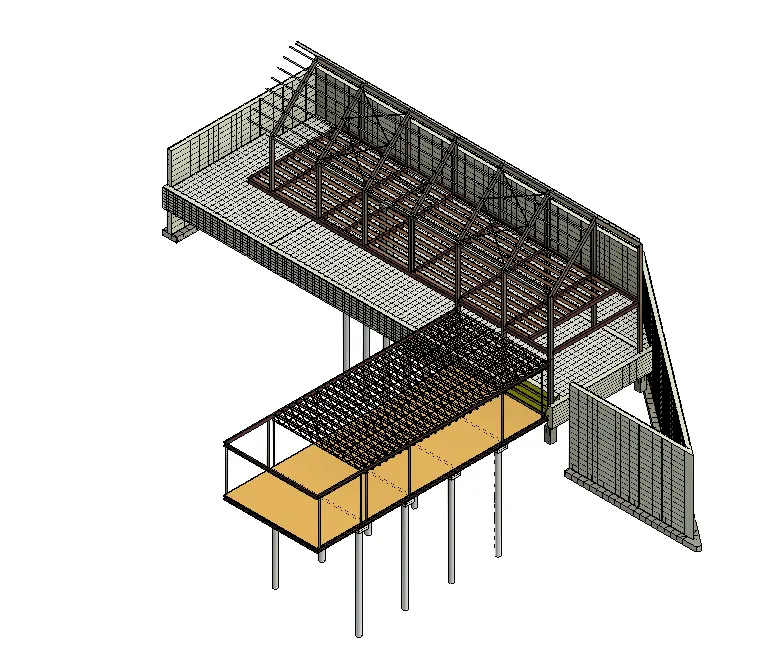

2. Open the Structural file that we created earlier
Step 5:

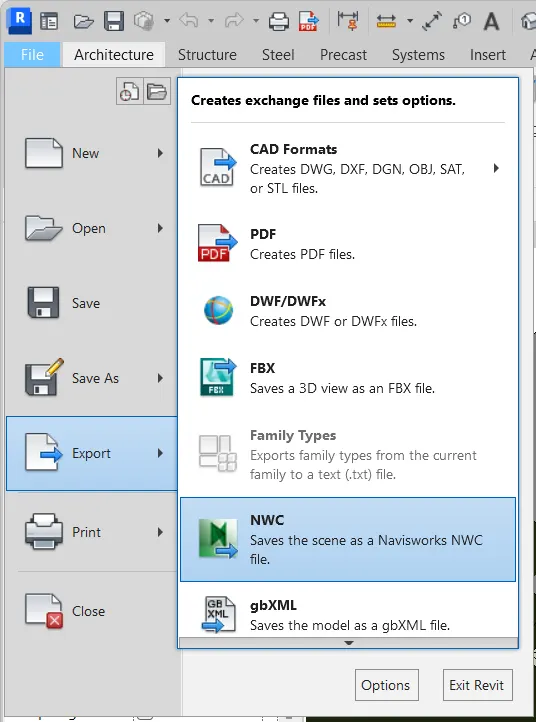

1. Click on the file tab and select the export option
2. Then click on the NWC option to Export the Architectural model into the NWC file
Step 6:

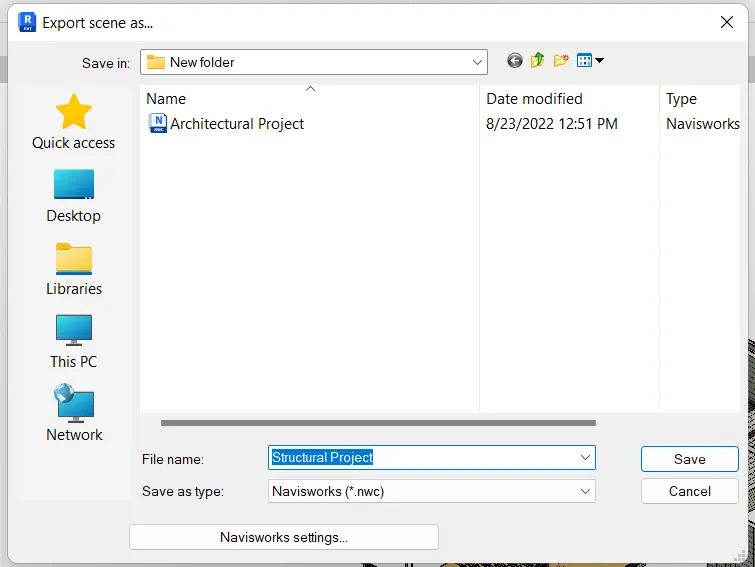

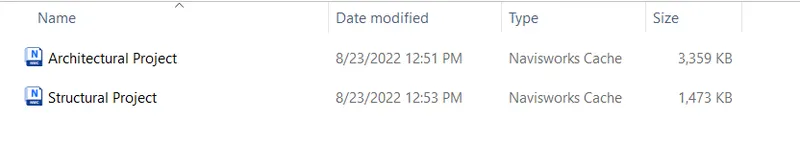

1. Then Select the folder that we want to save the NWC file
2. Give the name as Naviswork structural project
RESULT:
The Architectural and structural Revit files have been successfully exported to Naviswork (NWC) file
2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
AIM:
To use the Navigation tool to walk around the model and walk through the rooms created and record your moving as animation
INTRODUCTION:
With the Walk tool, we can navigate through a model as if were walking through it. There are different ways we can utilize its features and various navigation methods.
Here are the basic steps:
1. Select Walk from the Navigation Bar (Ctrl+2); the “feet” will appear on the screen.
2. With the left mouse button pressed, move your mouse in the direction you wish to go.
3. Move the mouse forward to go forward and move it left or right to turn.
4. Stop moving forward and only move the mouse left or right to look around; be sure to keep the left mouse button pressed to continue navigation.
5. Pull the mouse back to move in reverse.
6. Let go of the mouse button to stop walking.
PROCEDURE:
Step 1:

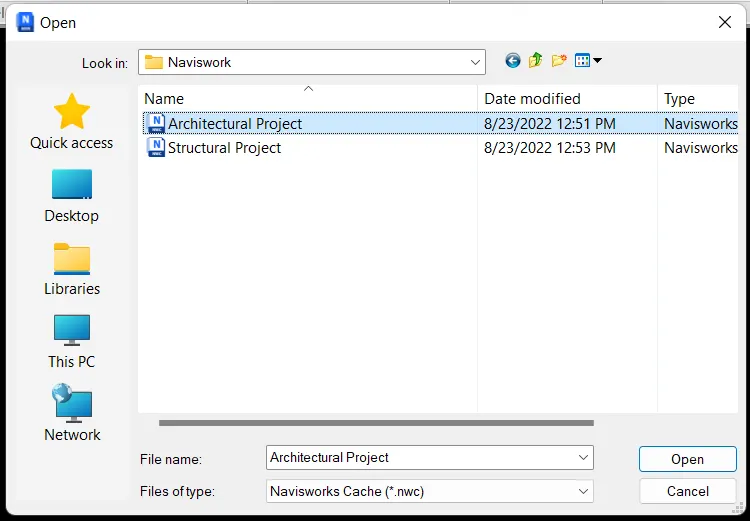

1. Open the Naviswork manage software and click on open
2. Open the Architectural file that we exported to the NWC file
Step 2:

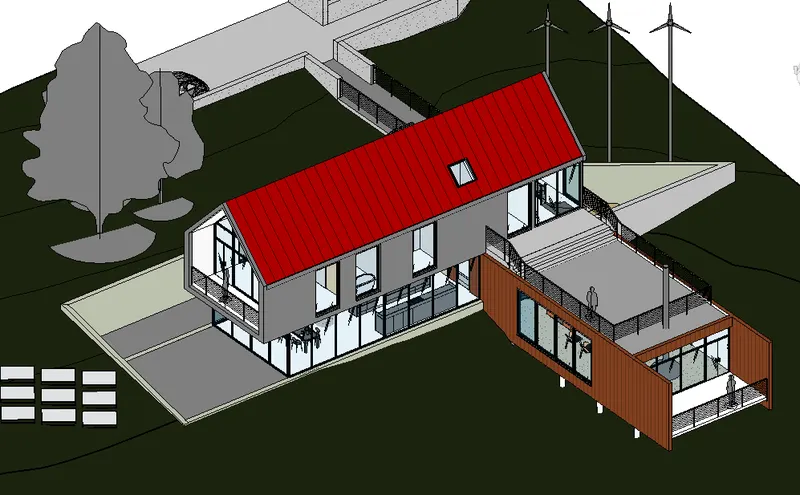

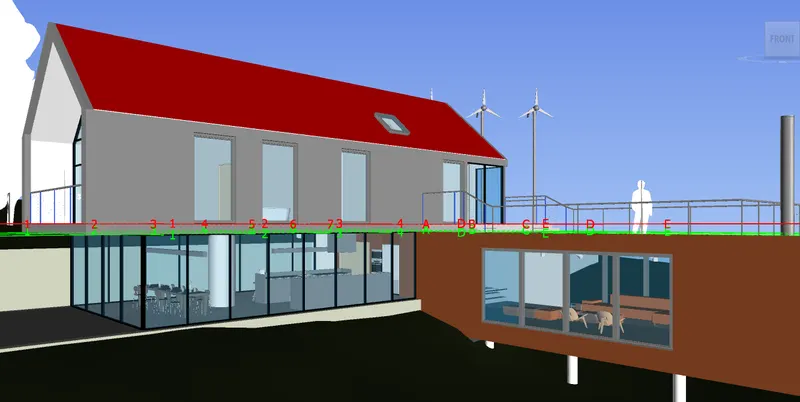

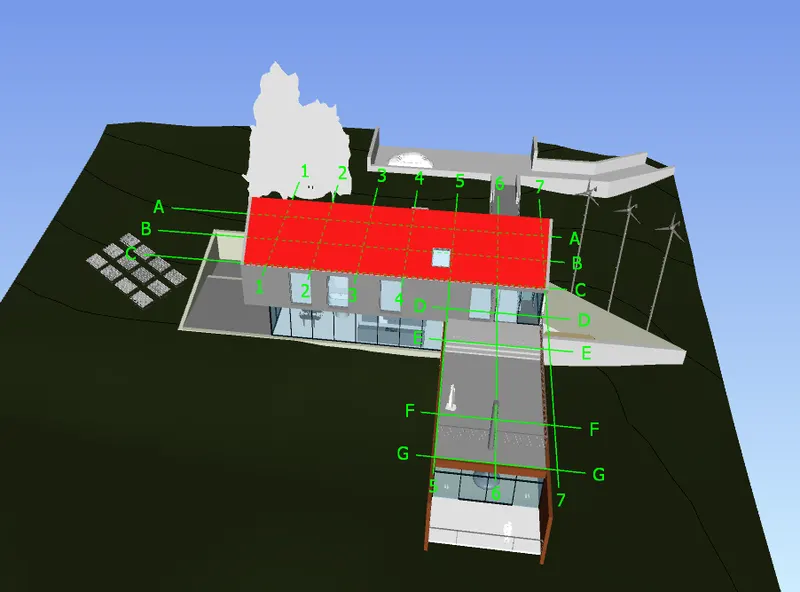

1. The Architectural NWC file has been loaded into the Naviswork software
Step 3:
1. Now we have to walk through the entire model

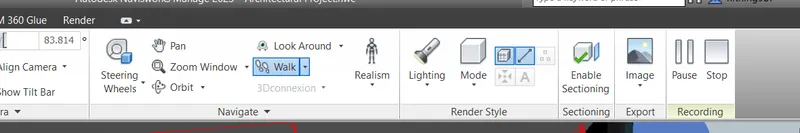

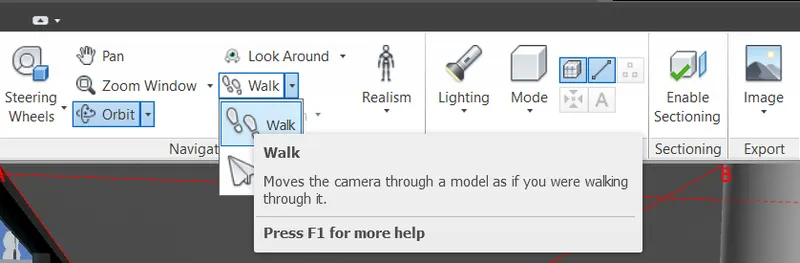

2. Go to the Viewpoint tab and select the walk tool option
Step 4:
1. Then click on the save viewpoint option to start recording
Step 5:

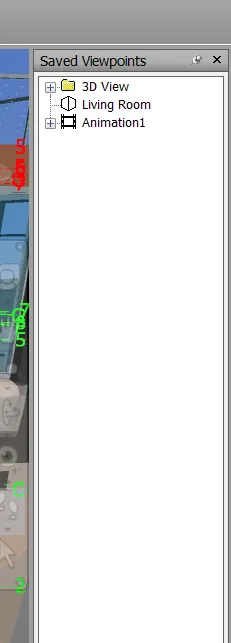

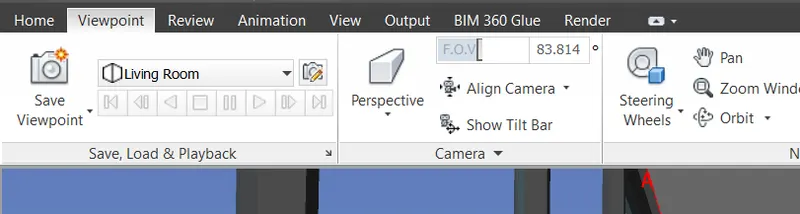

1. Change the Viewport name to the Living room as shown in the figure below
Step 6:

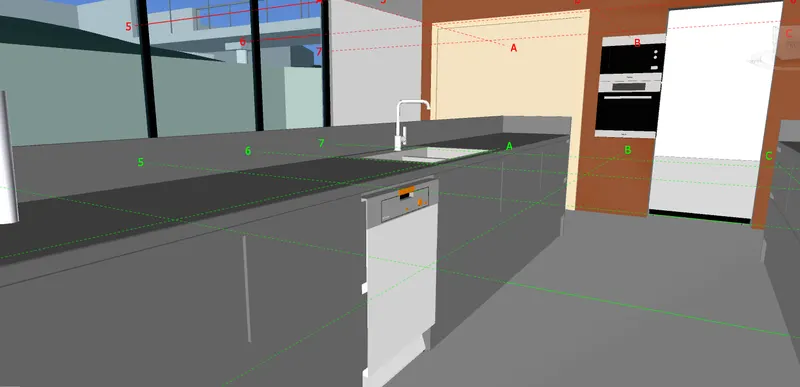

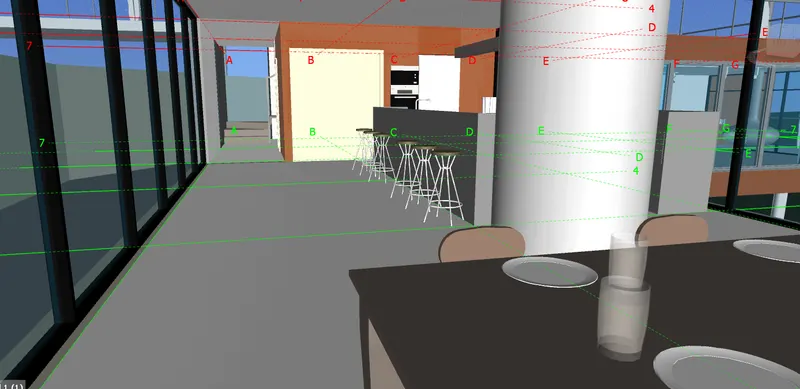

1. By using the mouse cursor, walk through the model as shown in the figure below
Step 7:

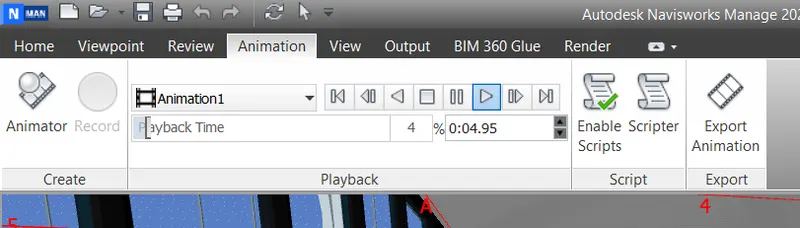

1. Then go to the animation tab and select the file that we recorded earlier
2. Click on export animation to export the video file
Step 8:

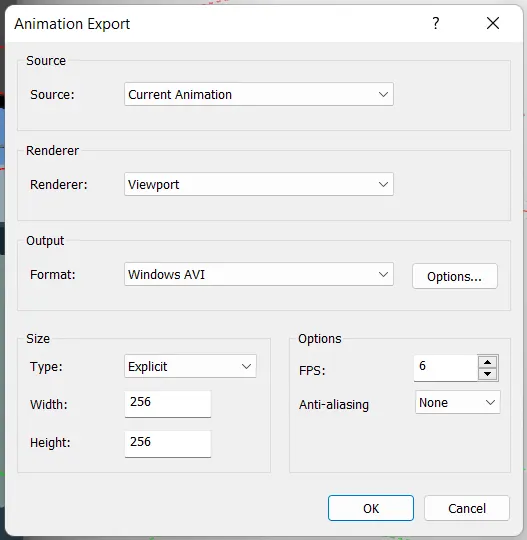

1. Now change the Format from JPEG to Windows AVI
2. Then click ok and select the destination folder to Export the video file
RESULT:
The Navigation tool to walk around the model and rooms has been completed and recorded the animated video successfully
3) Use Navigate tool to use the Realism feature to walk through the model and record your moving as animation in the Navisworks file
AIM:
To use Navigate tool to use the realism feature to walk through the model and record the moving as animation
INTRODUCTION:
This function allows us to navigate the scene from a third-person perspective. When the third person is activated, you will be able to see an avatar which is a representation of yourself within the 3D model. Whilst navigating you will be controlling the avatar's interaction with the current scene
When you navigate a 3D model, you can use the realism tools on the Viewpoint tab Navigate panel to control the speed and realism of your navigation. The realism tools are not available in a 2D workspace.
PROCEDURE:
Step 1:
1. Open the Naviswork manage software and click on open
2. Open the Architectural file that we exported to the NWC file
Step 2:
1. Now we have to walk through the entire model

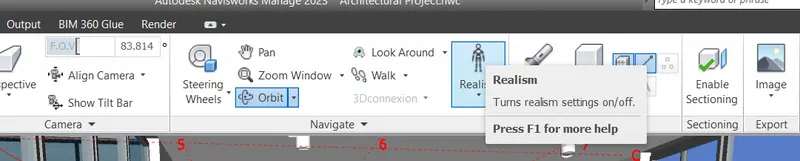

2. Go to the Viewpoint tab and select the Realism tool option
Step 3:
1. Then select the Human option from the realism

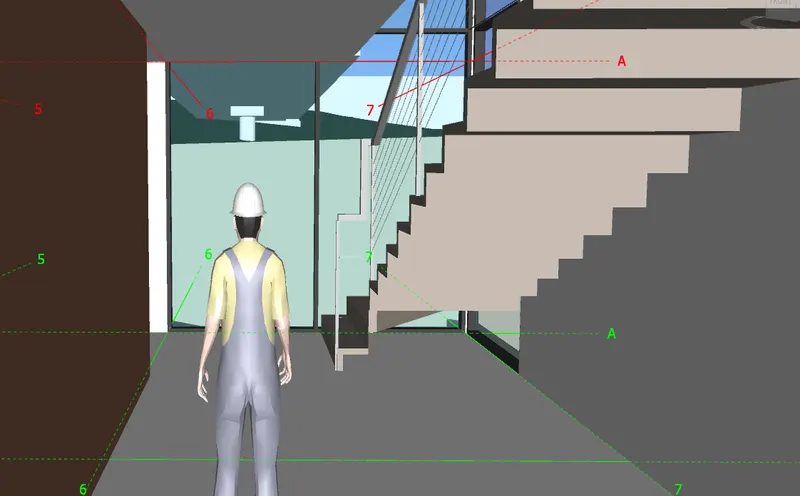

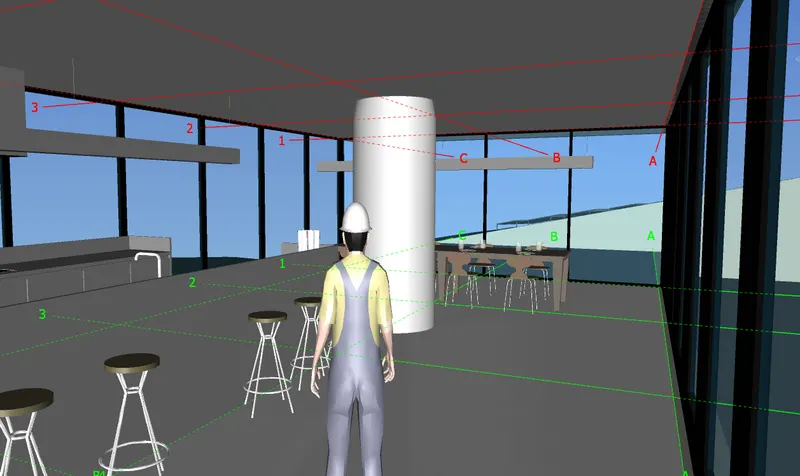

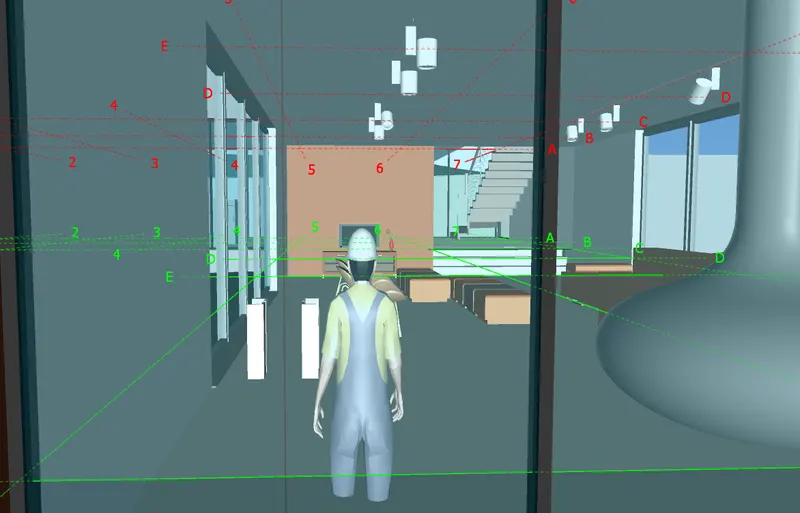

2. A 3D human will appear on the screen as shown in the figure below
Step 4:
1. Then click on the save viewpoint option to start recording

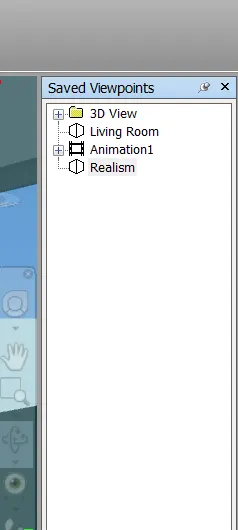

2. Change the Name of the viewpoint has Realism as shown in the figure below
Step 5:
1. Then click on the save viewpoint option to start recording
Step 6:

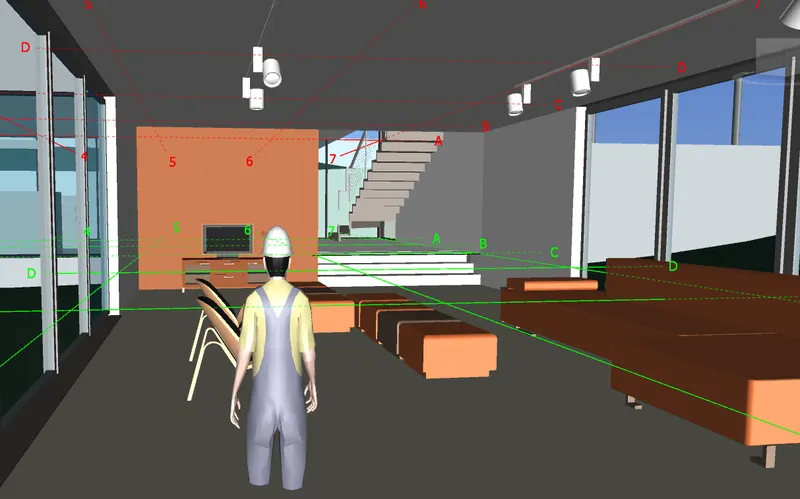

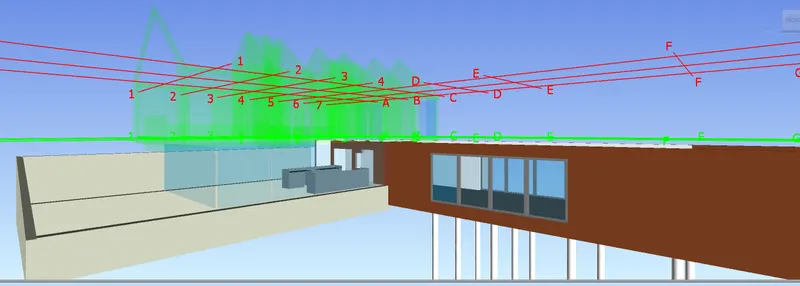

1. By using the mouse cursor, walk through the model as shown in the figure below
Step 7:
1. Then go to the animation tab and select the file that we recorded earlier
2. Click on export animation to export the video file
Step 8:
1. Now change the Format from JPEG to Windows AVI
2. Then click ok and select the destination folder to Export the video file
RESULT:
The Navigation tool to walk through the model has been completed and recorded the animation in Naviswork using the realism feature
4) Embed both architecture and structure .nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care of later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
AIM:
To run the clash detection test between the structural and architectural model
INTRODUCTION:
Navisworks clash detection tool is a construction project evaluation and simulation software by Autodesk that facilitates BIM (Building Information Modeling) coordination by combining design and construction data into a holistic framework and detecting and mitigating clash and obstruction issues before construction.
In a BIM workflow, clash detection entails detecting clashes and conflicts across various models or their components to rectify such issues before construction begins. Spatial overlap of models or their sections, representations in the same design with incompatible parameters, or an unusual time sequence in 4D BIM modeling are all examples of clashes & conflicts.
PROCEDURE:
Step 1:
1. Open the Naviswork software and load the architectural file into Naviswork
2. Then we have to open the structural file into the Naviswork

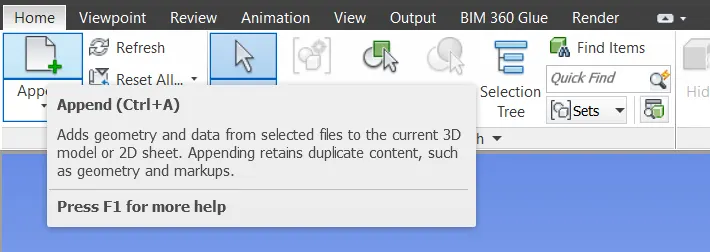

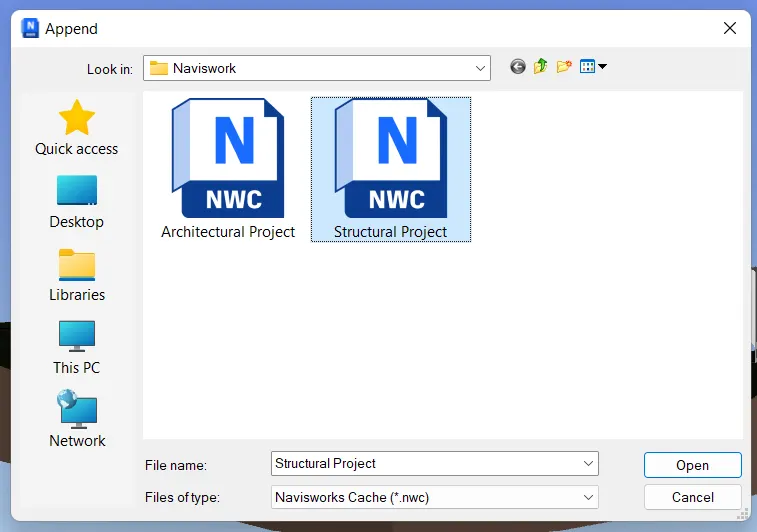

3. Go to the home tab and Select the append tool option
Step 2:
1. Select the Structural project and open it into the Naviswork software
Step 3:

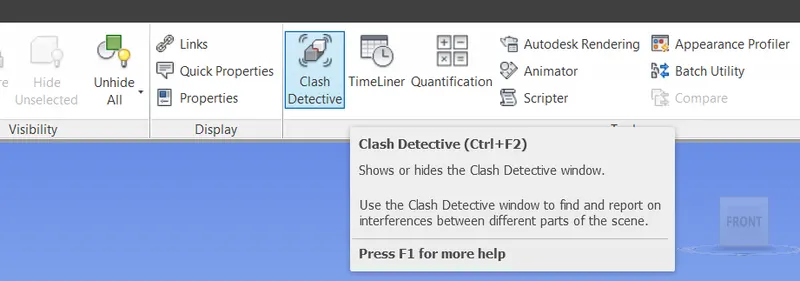

1. Go to the home tab again and select the clash detective tool
Step 4:

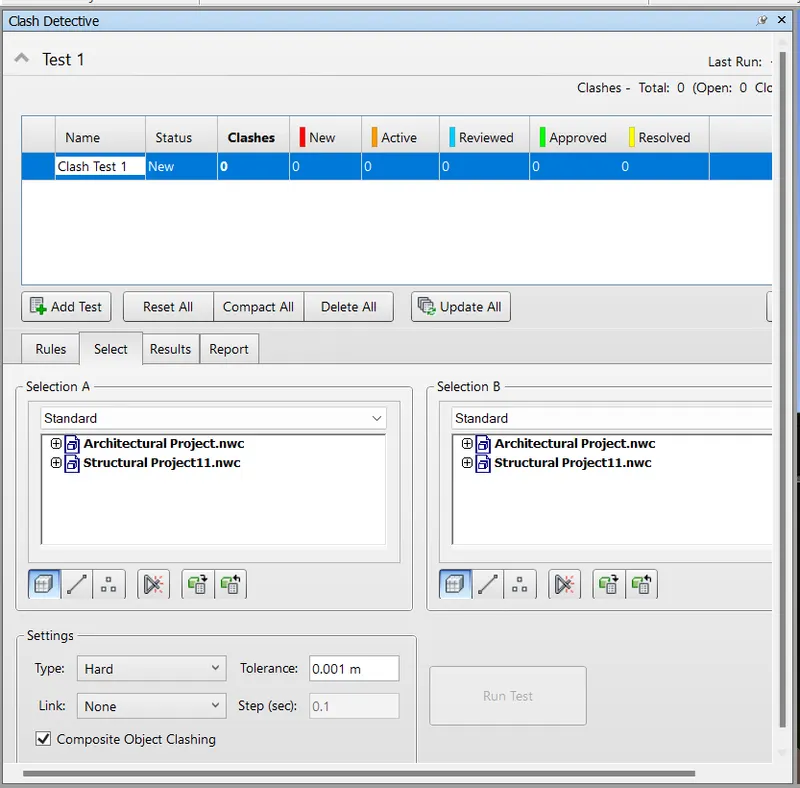

1. Select Run New test and give the test name as Clash test 1 as shown in the figure below
Step 5:

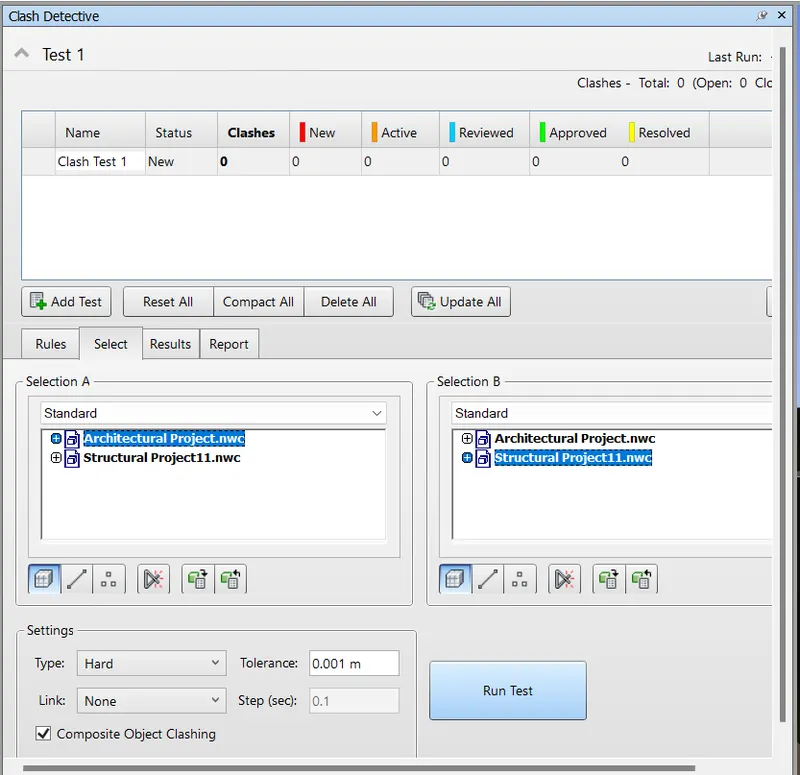

1. Select the Architectural Project from Section A and Structural Project from Section B
2. After Selecting the Projects, Click on the Run test option
Step 6:

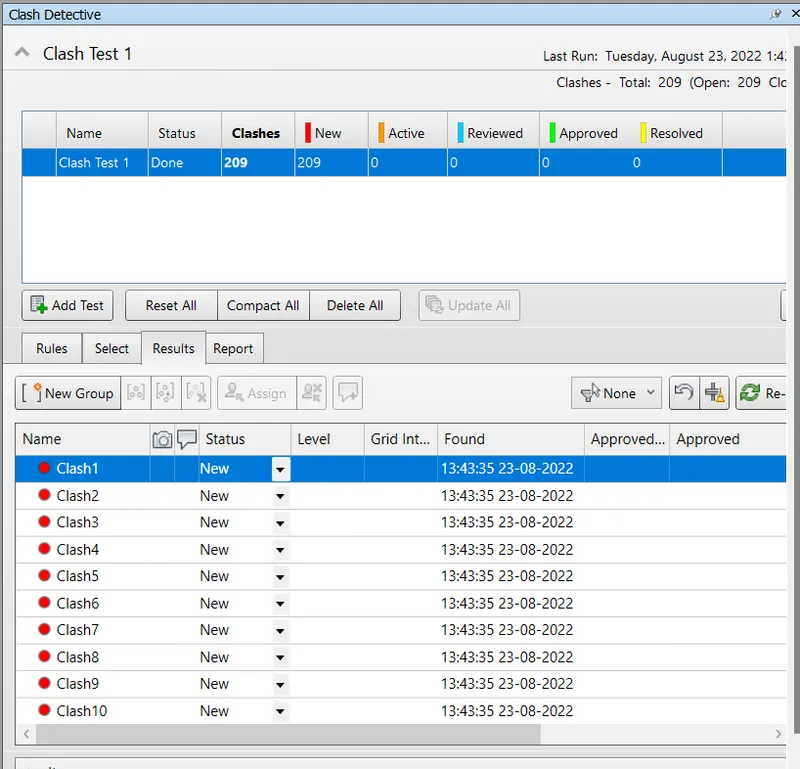

1. The Clash Test has been started and hence found 209 clashes
Step 7:

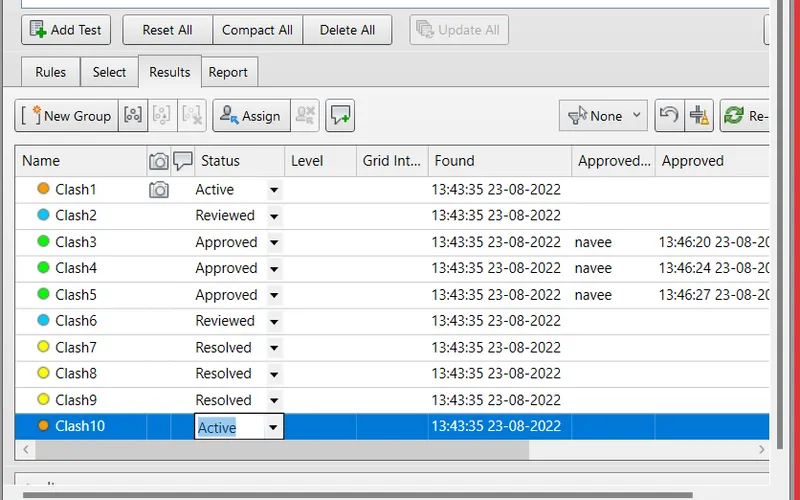

1. Select the clash one by one and review it according to the Status of the clash as shown in the figure below
RESULT:
The Clash detection test was completed successfully between the architectural and structural model
5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in weeks 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to the Navisworks file
AIM:
To use the Timeliner feature in Naviswork to prepare a schedule for the project
INTRODUCTION:
The TimeLiner tool adds schedule simulation to Autodesk Navisworks. timeline imports schedules from a variety of sources. You can then connect tasks in the schedule with objects in the model to create a simulation.
This allows you to see the effects of the schedule on the model, and compare planned dates against actual dates. Costs can also be assigned to tasks to track the cost of a project throughout its schedule. TimeLiner also allows the export of images and animations based on the results of the simulation. TimeLiner will automatically update the simulation if the model or schedule changes
Navisworks TimeLiner module allows construction professionals and BIM users to model the construction sequence. It can be difficult to link the schedule and map the correct set of columns. TimeLiner Simulator with Autodesk Navisworks, explains how to create the simulation using your topmost items, layers, as well as sets.
PROCEDURE:
Step 1:
1. Open the Naviswork software and load the architectural file
Step 2:

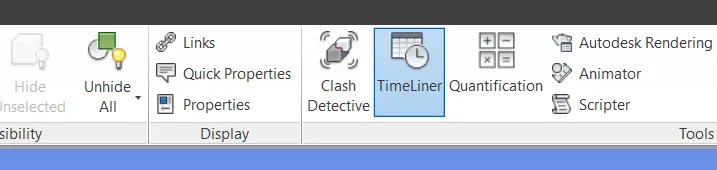

1. Go to the Home tab and select the TimeLiner option
Step 3:

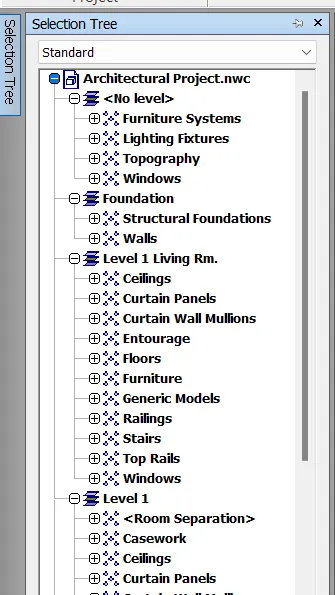

1. Then Turn on the selection tree option to sort between the selections
Step 4:

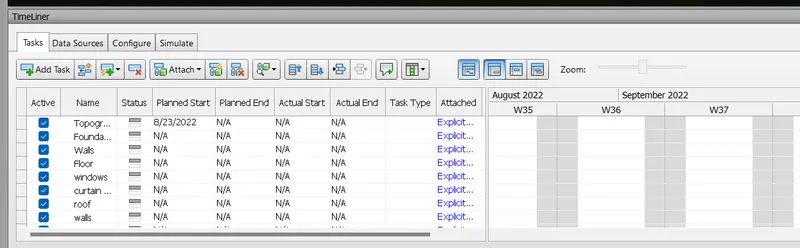

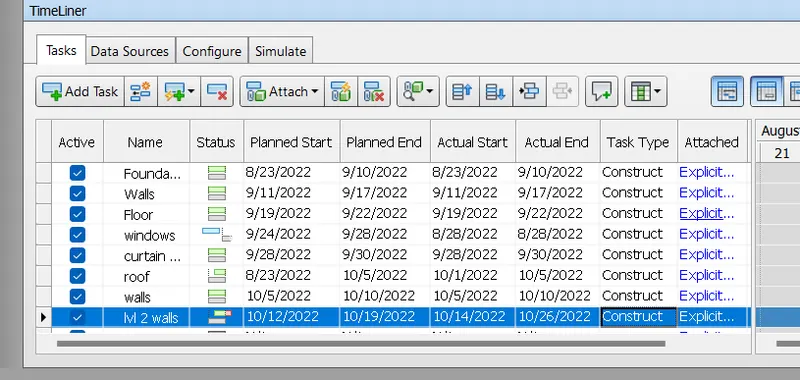

1. Click on Add task and add all the tasks with a planned start, planned end, actual start, and actual end dates
2. Select the respective tasks according to the assignment
Step 5:
1. After adding all the tasks, provide proper planned and actual dates according to the construction phase
2. Then Select the task type as Construct as shown in the figure below
Step 6:

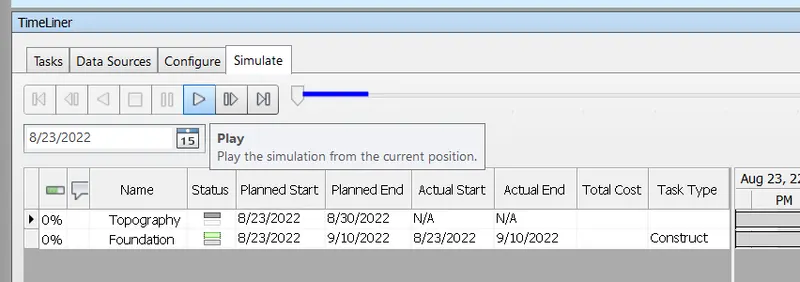

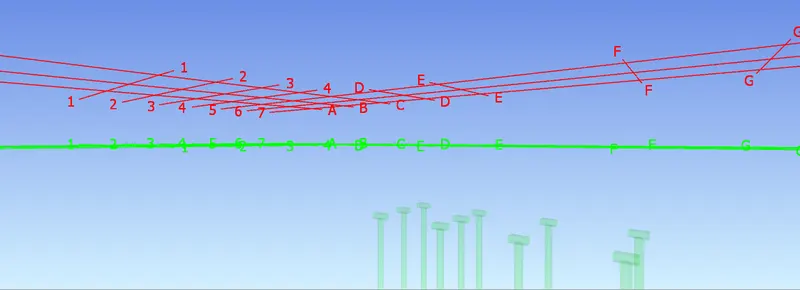

1. Go to the Simulate option and select the play option to play the simulation of the tasks that we assigned
RESULT:
The Timeliner feature in Naviswork to prepare a schedule for the project has been completed successfully
