Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork
TASK 1:
AIM:
To Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file.
PROCEDURE:
Open the Revit Projects of Architecture and Structure in 3D Views.
Click the File Option in Revit. In the File option Click Export Option, Click NWC.
Select the Folder to Save the File.
Save the File Name as Architecture/ Structure .nwc.
Click OK. Thus the Architecture File is Exported to Navisworks Cache file.

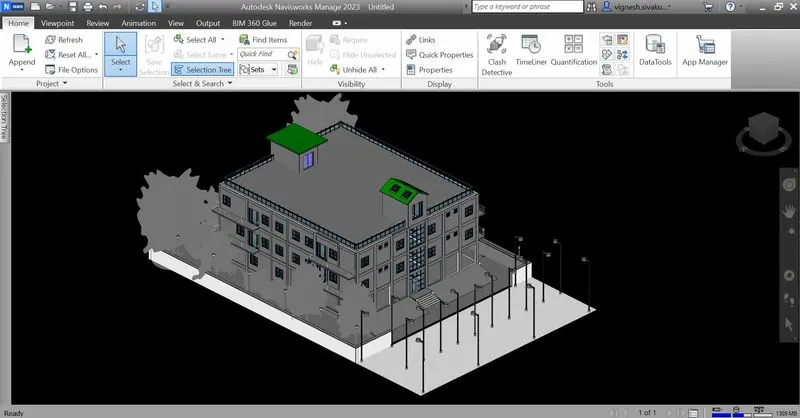

Now Open Navisworks Manage File.
Click File Option - Click Open - Select the .nwc file to Open.
Now We can see the Navis file on our window.
Do the Same for Structure File also.
Thus the Task 1 is Competed.
TASK 2:
AIM:

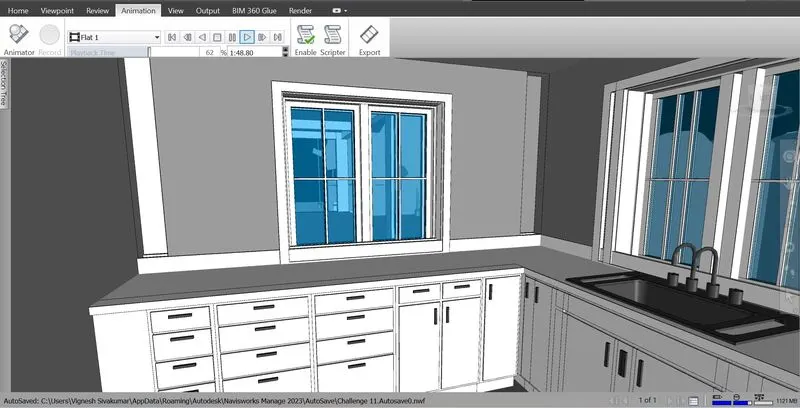

To walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.
PROCEDURE:
Open the navis file.
Click ViewPoint - and then Click Start Viewpoint.
After clicking the Start ViewPoint we will get the Saved Viewpoint tab on the right.
In that tab we can rename the Saved viewpoint to Animation.
Again click the Save viewpoint and click the Record option.
Next we can use Walk option in the ViewPoint tab.

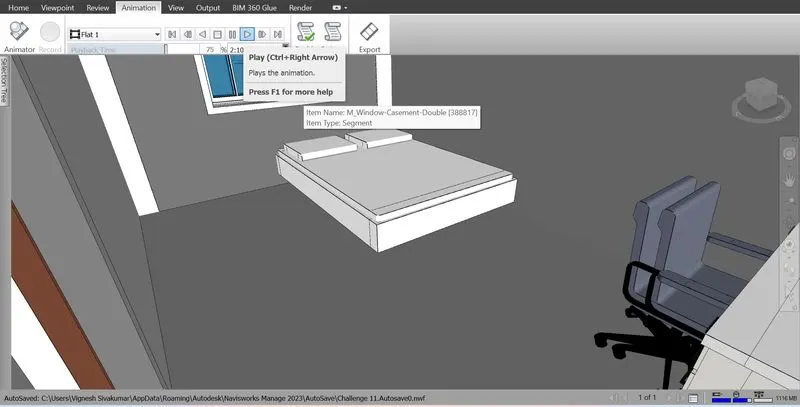

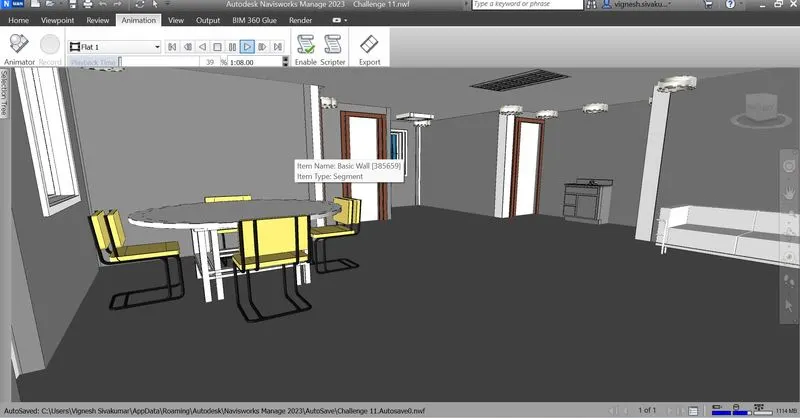

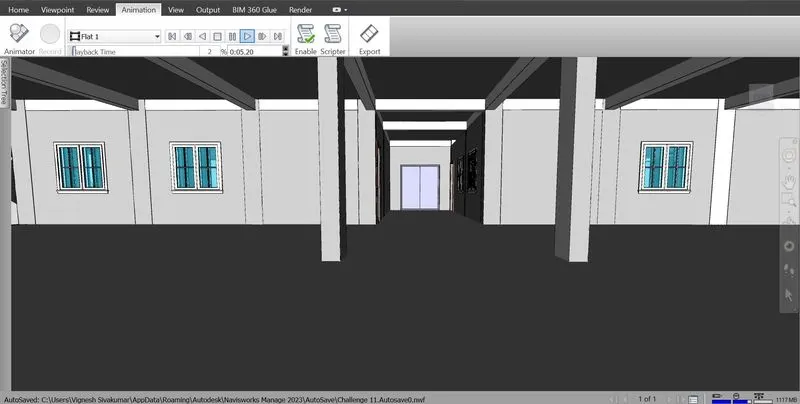

Now we can Walk around the Project using the Mouse cursor by moving.
After Finishing the Walkthrough we should stop the record option.
Atlast to save the Animation Video, Click Animation Tab and Click Export Animator.
In the Export Animator tab check for video Format and Click OK.
Thus our Animation video will be Created.
TASK 3:
AIM:
To use Realism feature to walk through the model and record your moving as animation in Navisworks file.
PROCEDURE:
Open the navis file.
Click ViewPoint - and then Click Start Viewpoint.
After clicking the Start ViewPoint we will get the Saved Viewpoint tab on the right.
In that tab we can rename the Saved viewpoint to Animation realism.
In the ViewPoint tab we will have an option called Realism.

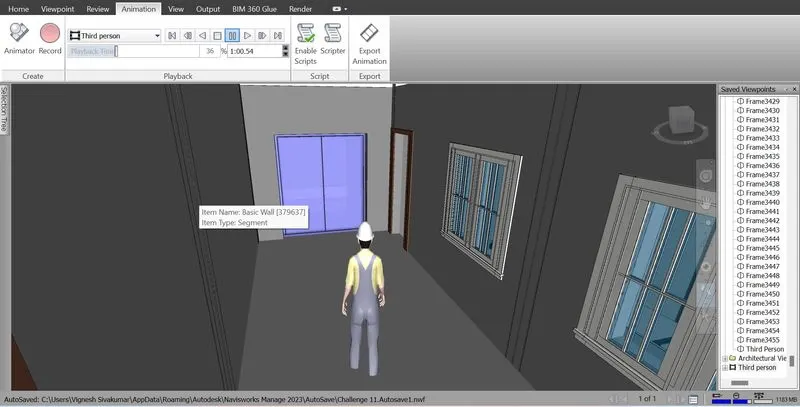

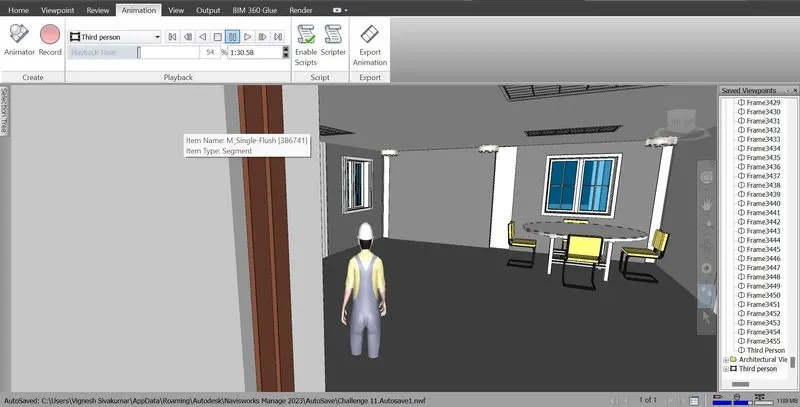

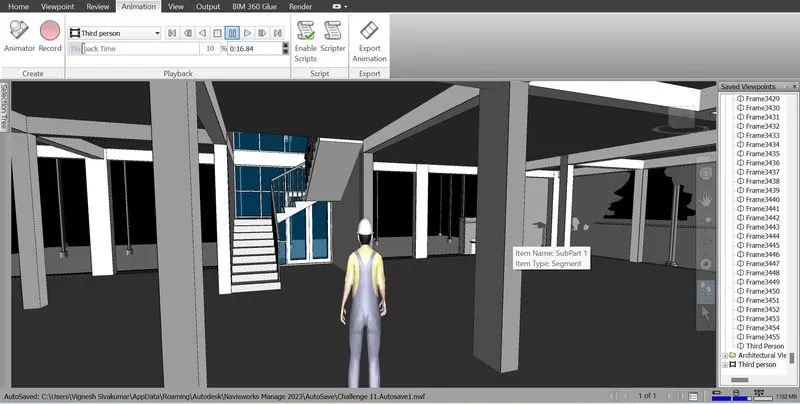

In the Realism option we can choose Third person Option. Now the man will appear on our screen.
Now we can click the Save viewpoint and click the Record option.
Next we can use Walk option in the ViewPoint tab.
Now we can Walk around the Project using the Mouse cursor by moving.
After Finishing the Walkthrough we should stop the record option.
Atlast to save the Animation Video, Click Animation Tab and Click Export Animator.
In the Export Animator tab check for video Format and Click OK.
Thus our Animation video with realism has been Created.
TASK 4:
AIM:
To create a clash detection test between the two models
a. Run the Clash Detection Test.
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
PROCEDURE:

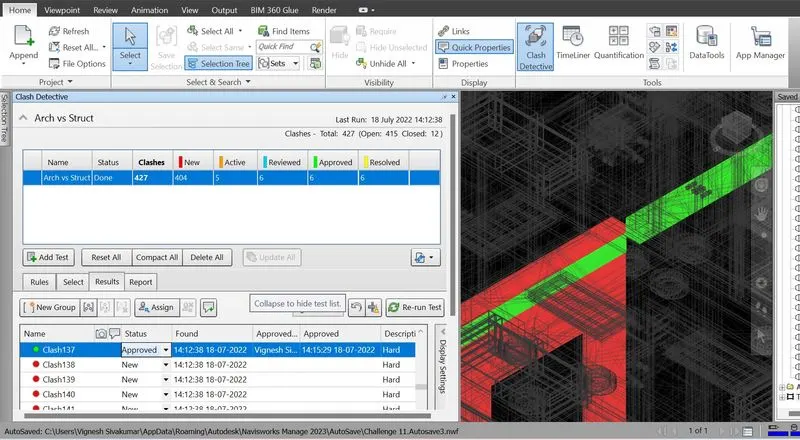

a. Run the Clash Detection Test.
Open Naviswork manage File.
Click File Option - Click Open - Select the .nwc file of Architecture & structure to Open.
Now We can see the Navis file on our window.

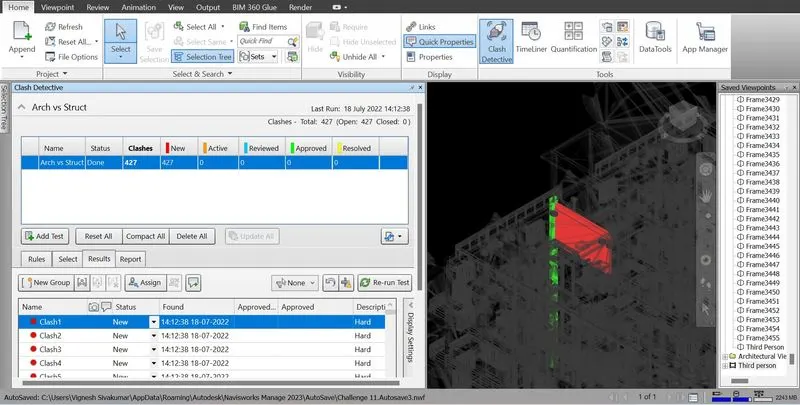

Click the Clash Detective Option on the above tool bar.
We will get the Clash Detective tab, In that Click Add Test Option on the Top Right Corner.
Rename the Test Name as Architecture Vs Structure.
Select the Architecture File as A and Structure File as B

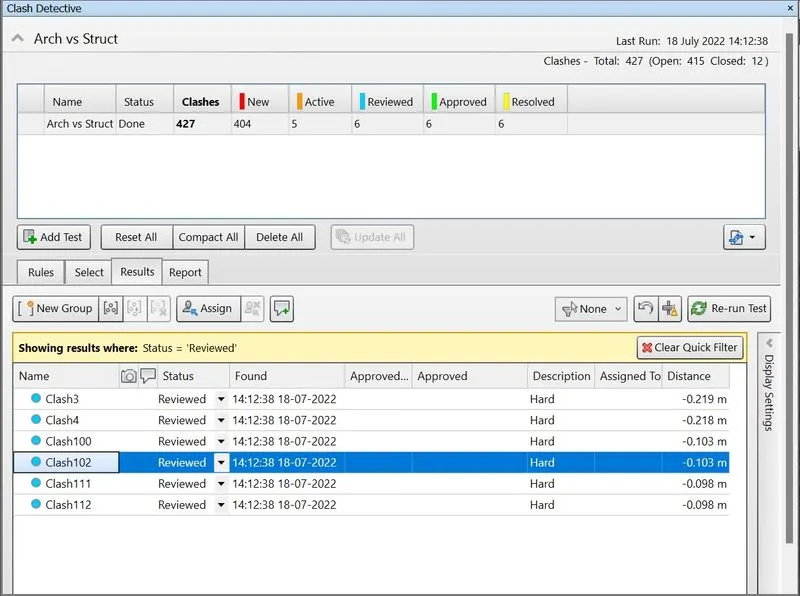

Now run the test, We will get the Clash Report, In Few Minutes.

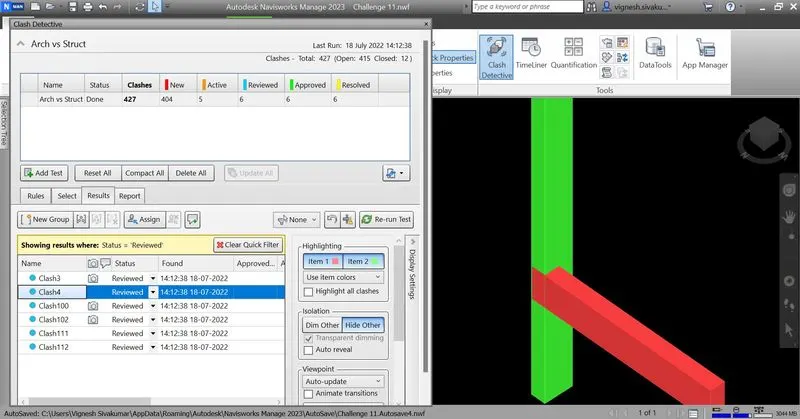

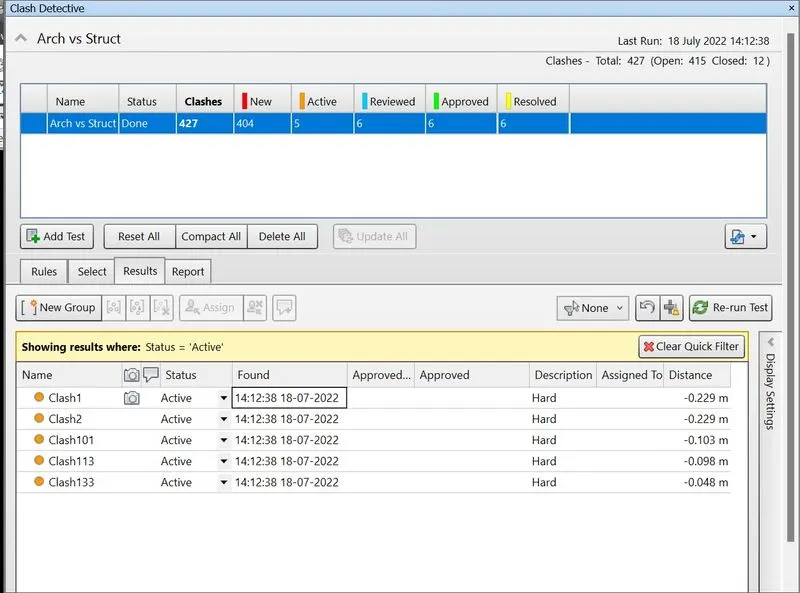

b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected

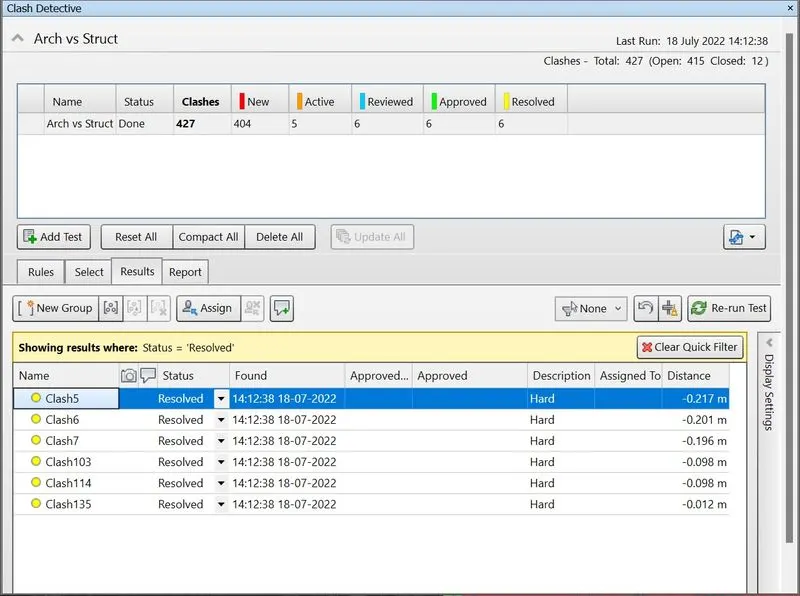

e. List which of the clashes can be resolved

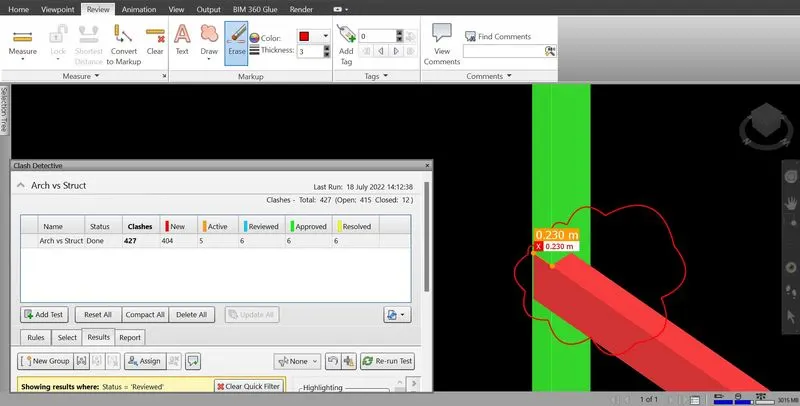

f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
Thus the Task 4 is completed.
TASK 5:
AIM:
To prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.
PROCEDURE:
Open Naviswork manage File.
Click File Option - Click Open - Select the .nwc file of Architecture & structure to Open.
Now We can see the Navis file on our window.

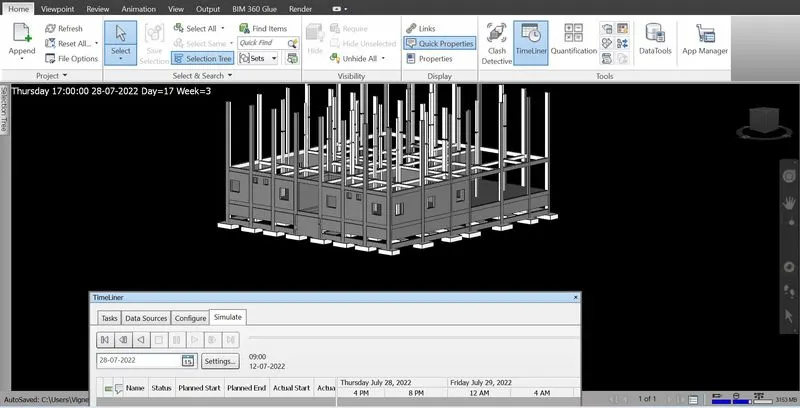

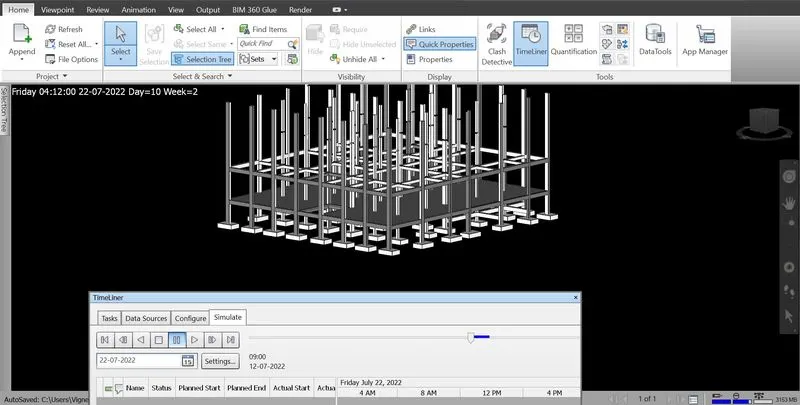

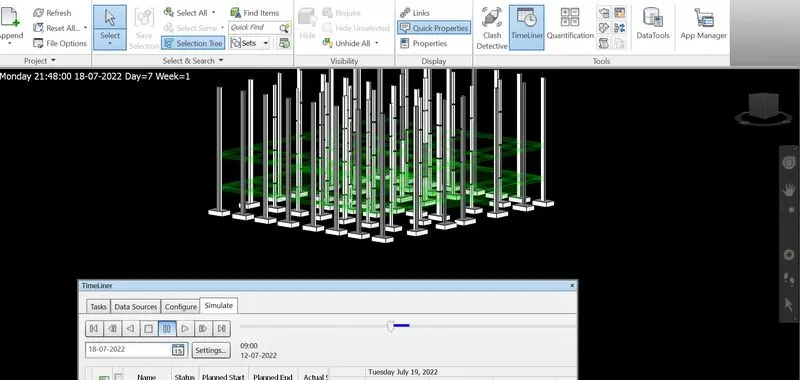

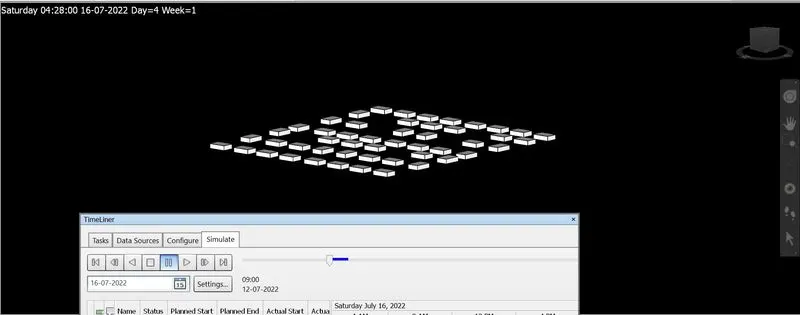

Click the Timeliner option on the above tool bar.
In the Timeliner tool bar We will have a option called Add Task
Click on it and add the Task name, Status, Plan Date, Starting Date & endding Date.
Similarly Do the same for the other task also.
Thus the Challenge 11 have been completed.
