Usage of Collaborate tool in REVIT
1.
Aim: -
- Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project
Procedure: -

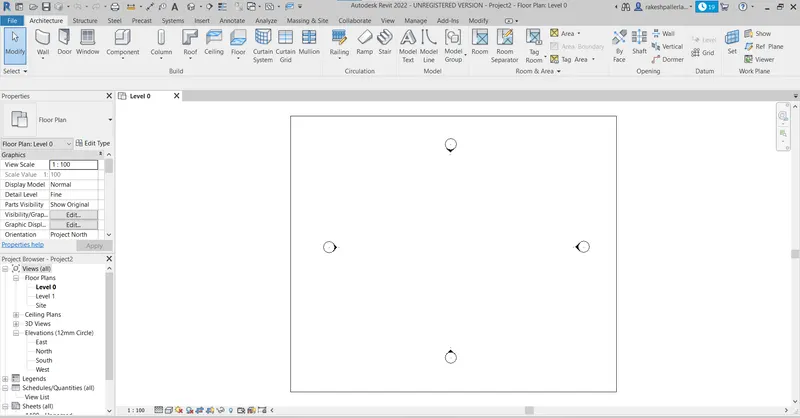

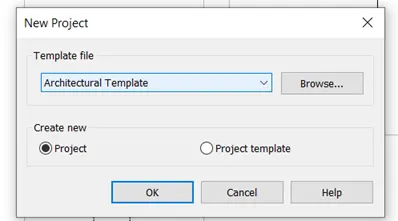

- Open the Revit Software and Create a New Project Using the Architectural Template

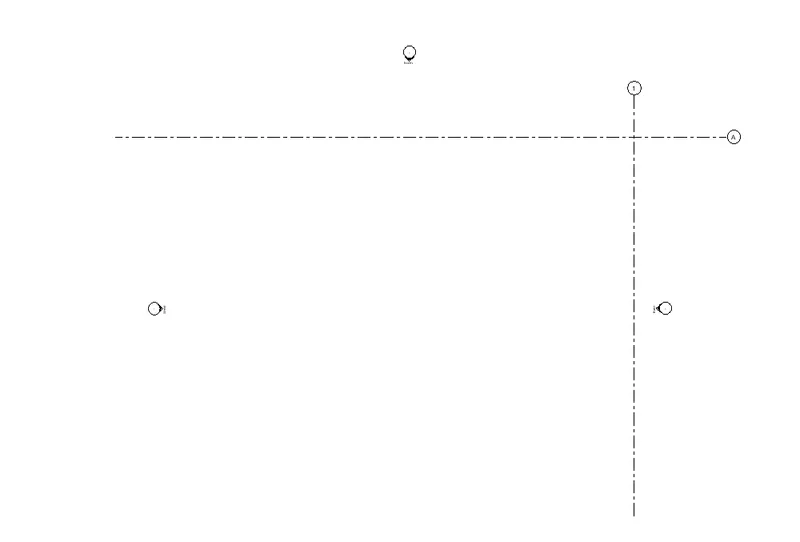

- Go to Architectural tab Select Grid Option Draw the Grid Lines

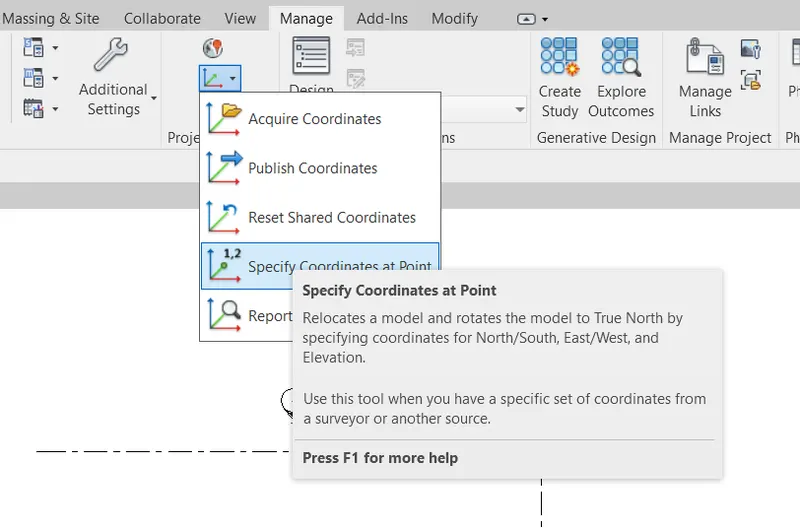

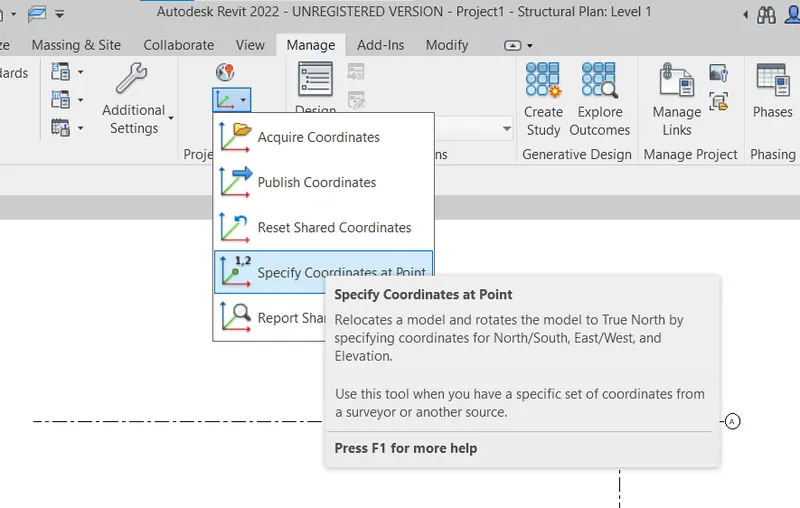

- Go to Manage tab Select the Specify Coordinates at Point

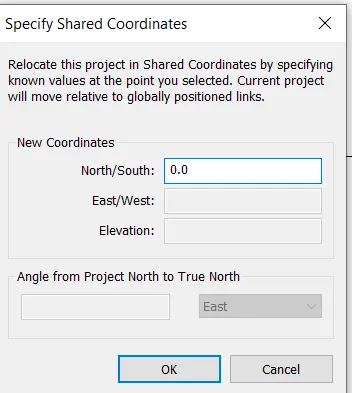

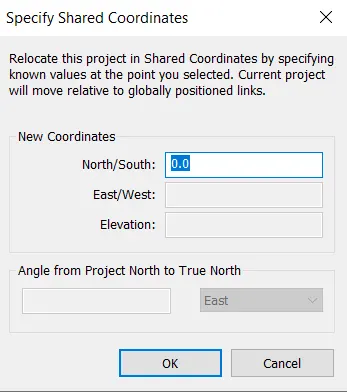

- Select Grid Lines and Specify the New Coordinates as 0' and Press Ok
- Save the Project as Per Choise as name
Result: -
- Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project
2.
Aim: -
Open another new file but with a structural template. Using the manage tab set project parameters the same as the architectural model
Procedure: -

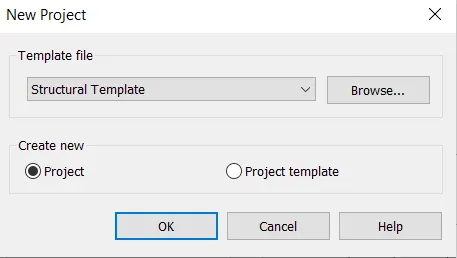

- Open the Revit Software and Create a New Project Using the Structural Template

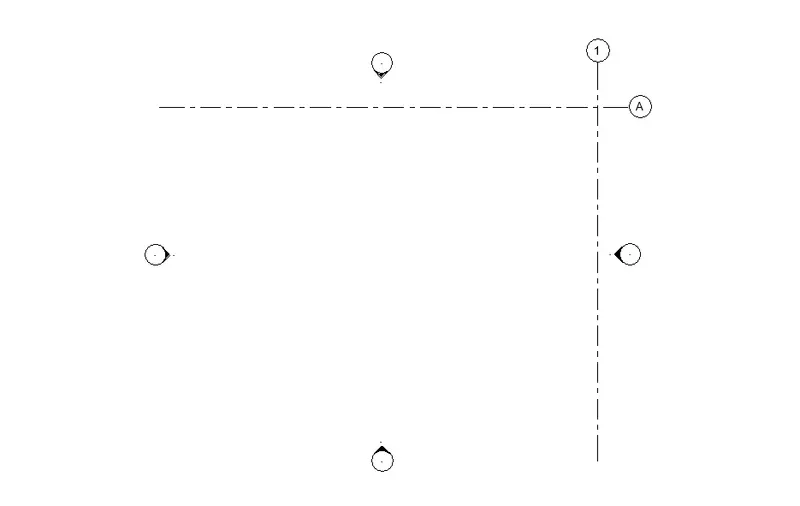

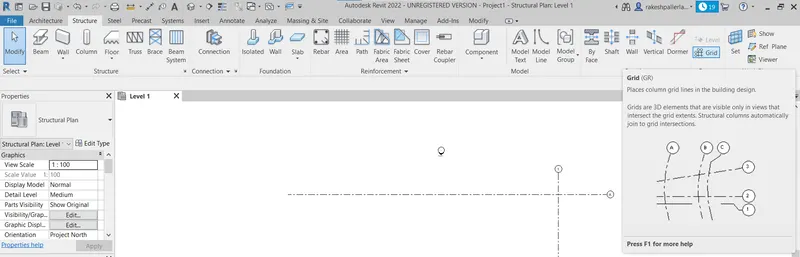

- Go to Architectural tab Select Grid Option Draw the Grid Lines
- Go to Manage tab Select the Specify Coordinates at Point
- Select Grid Lines and Specify the New Coordinates as 0' and Press Ok.
- Save the Project as Per Choise as name
Result: -
- Open the Revit Software and Create a New Project Using the Structural Template
3.
Aim: -
- Re-open the architectural model. Using the tools under the Collaborate tab make the architectural model a central model (enabling simultaneous working on the model)
Procedure: -
- Open Architectural Model Previously Created

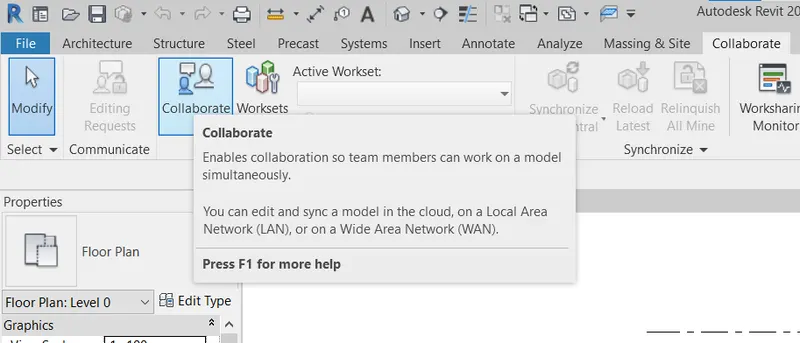

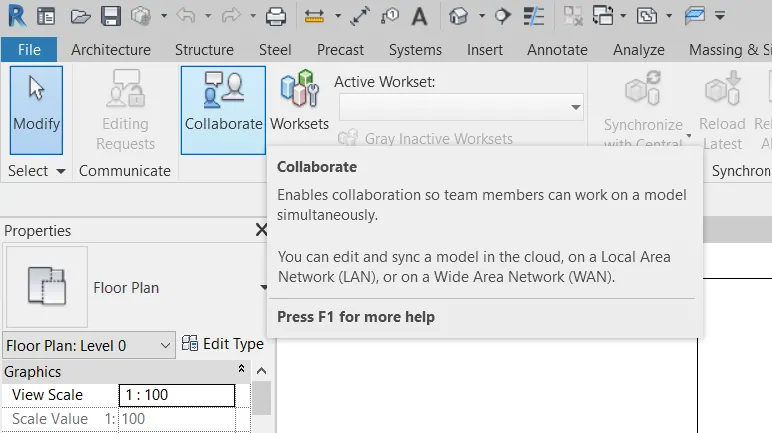

- Go to Collabrate tab Select the Collaborate Option

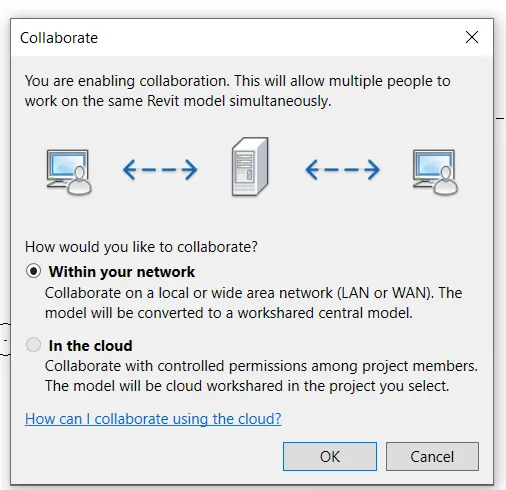

- A Pop Up Box Opened Select the With in Your Network Option Press Ok

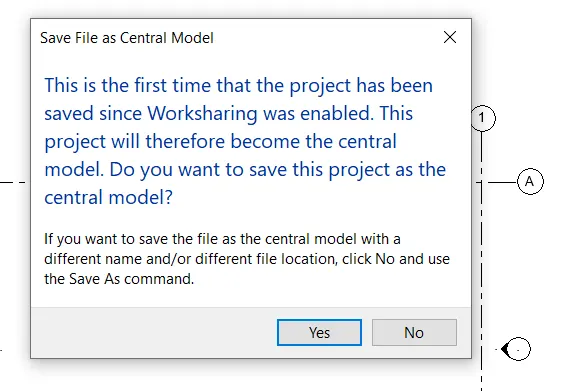

- Now save the Project as Central Model
Result: -
- Architectural model Using the tools under the Collaborate tab make the architectural model a central model (enabling simultaneous working on the model)
4.
Aim: -

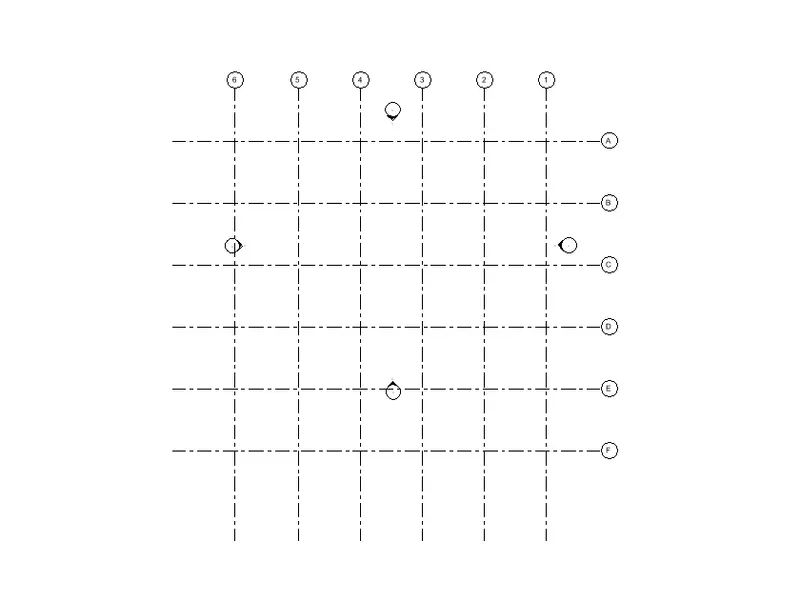

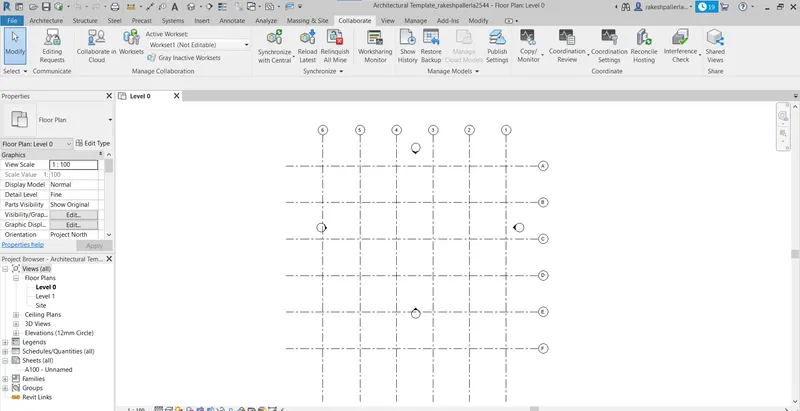

- Create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2
Procedure: -

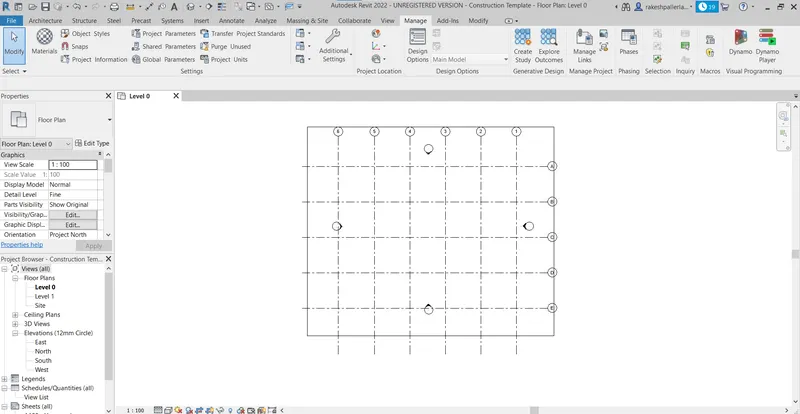

- Go to the architectural Tab and select the Grid Option

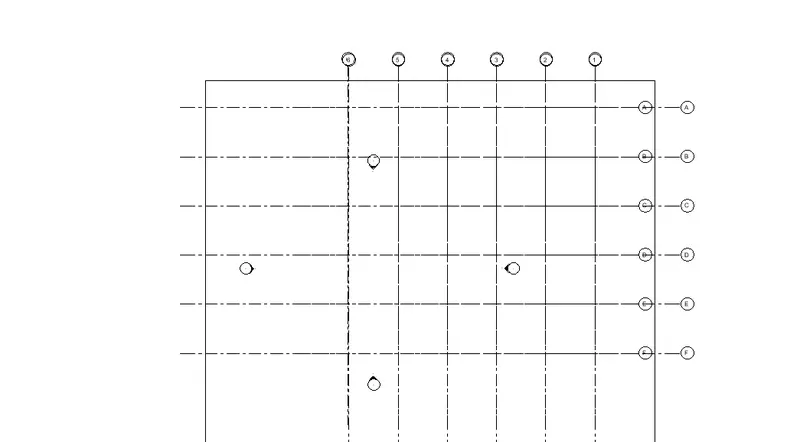

- Draw a Vertical and Horizontal Grids with Equal Space
Result: -
5.
Aim: -
- Synchronize the changes from the local copy to the central file of the architectural model.
Procedure: -
- Open the Central File of Architectural Template

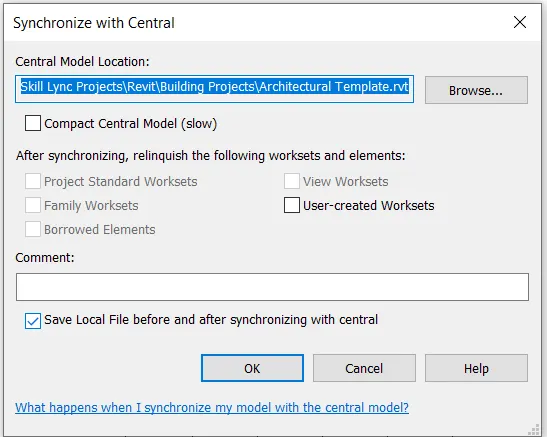

- Go to Collaborate tab ans Select the Synchronize With Central
- A Pop up Box Opens Press Ok
Result: -
- Synchronize the changes from the local copy to the central file of the architectural model.
6.
Aim: -
- Open the structural model and use the collaborate tools to save the model as a central file.
Procedure: -
- Open the Structural Model as Previously Created
- Go to Collabrate tab Select the Collaborate Option
- A Pop Up Box Opened Select the With in Your Network Option Press Ok
- Now save the Project as Central Model
Result: -
- The structural model and use the collaborate tools to save the model as a central file
7.
Aim: -

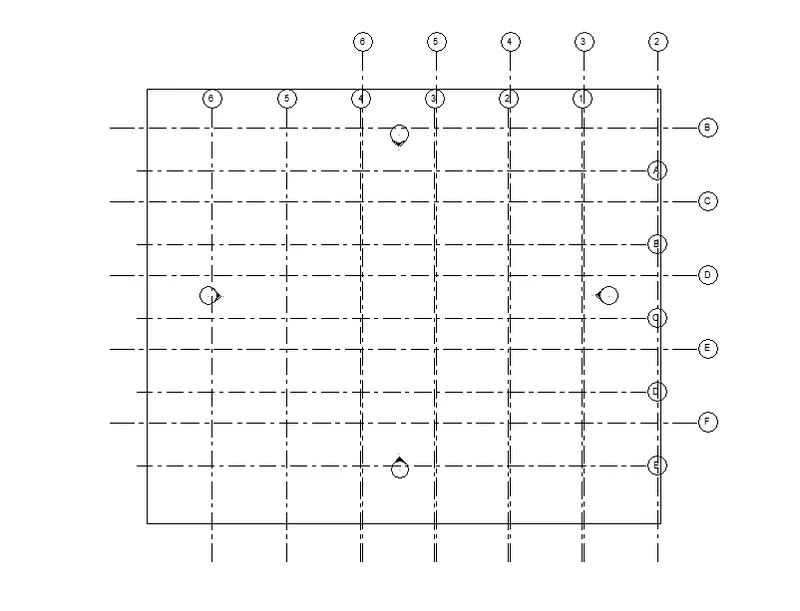

- Under the Collaborate tab, select the grids and levels from the architectural model, and using Copy Monitor try to copy the grids to the structural model. See what happens when the copy monitored grid is moved around in the structural model
Procedure: -
- Go to the architectural Tab and select the Grid Option
- Draw a Vertical and Horizontal Grids with Equal Space

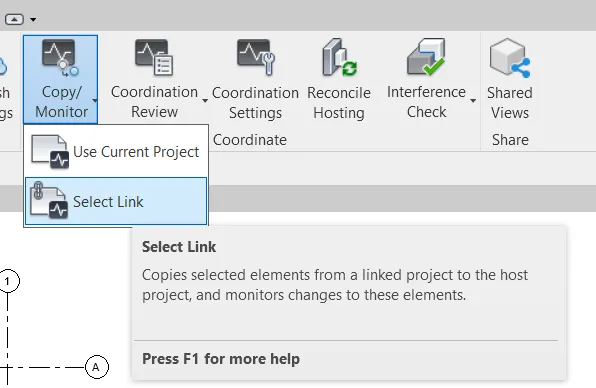

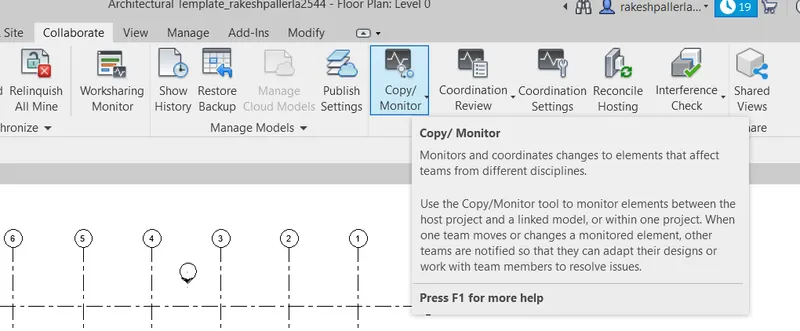

- Go to Collaborate tab and Select the Copy Monitor Oprtion then Select the Select Link Option
- Copy the Grid Lines Which we Need Press Enter
Result: -
8.
Aim: -
- Create another new file with a construction template. Save the new file as a central model. This file will include both architectural and structural model. Under the manage tab, Click manage links to link both architectural and structural files. Save the file and close all the files.
Procedure: -
- Open the Revit Software and Create a New Project Using the Construction Template
- Now the Project tab will be Opened
- Go to Collabrate tab Select the Collaborate Option
- A Pop Up Box Opened Select the With in Your Network Option Press Ok

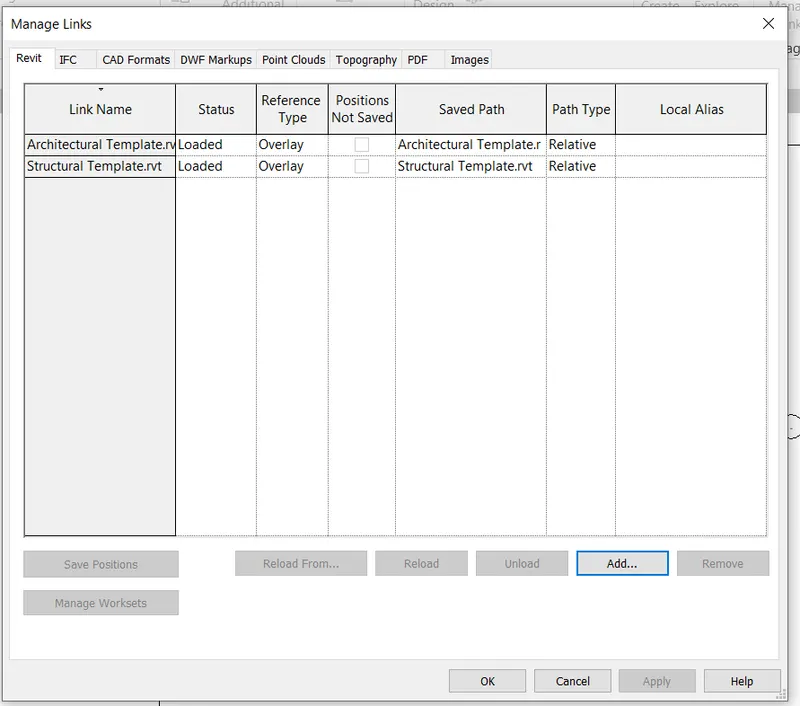

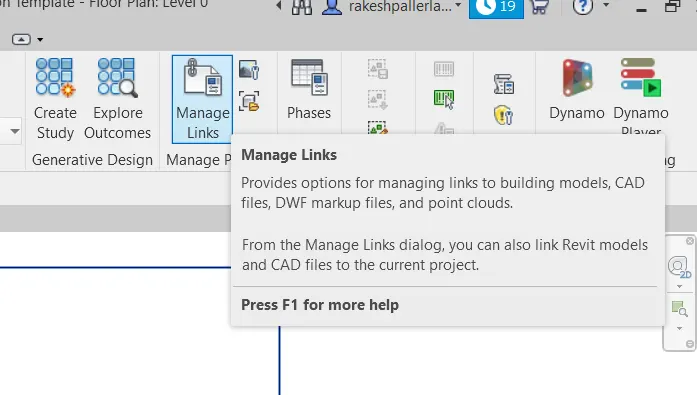

- Go to Manage tab and Select the Option Manage Links
- Go to the Add Oiption and add the architectural and Structural Drawings and Press Ok

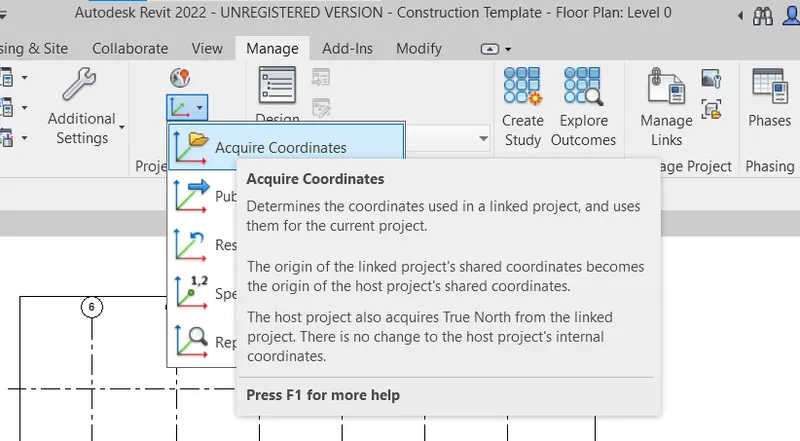

- Go to Manage tab and Select the Acquire Coordinates Option and Select the Object and Press Enter

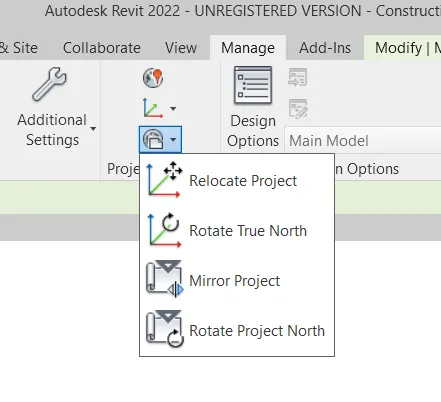

- In the Manage Tab select the Project Location and Select the Relocate Objecte Press Ok
- Now Both Architectural and Structural Models are Linked
- Now Save the Project as Suitable Name
Result: -
- Created another new file with a construction template. Save the new file as a central model. This file will include both architectural and structural model. Under the manage tab, Click manage links to link both architectural and structural files. Save the file and close all the files.

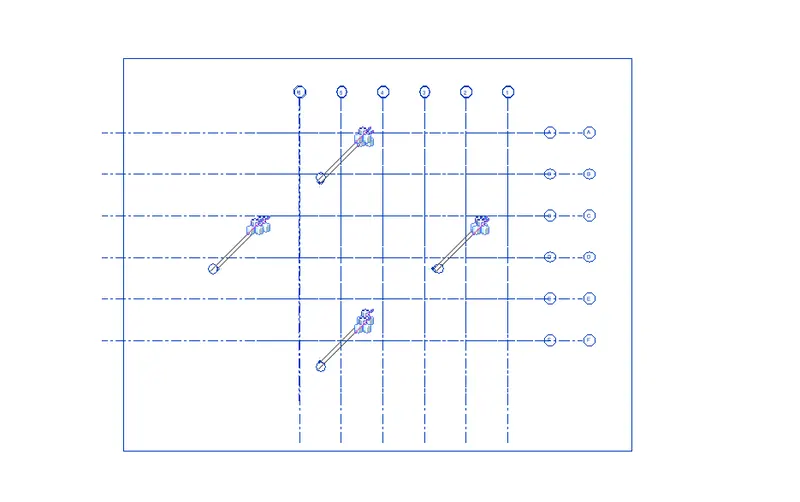

9. Yes grids from structural and architectural model matching in the construction template created
10.

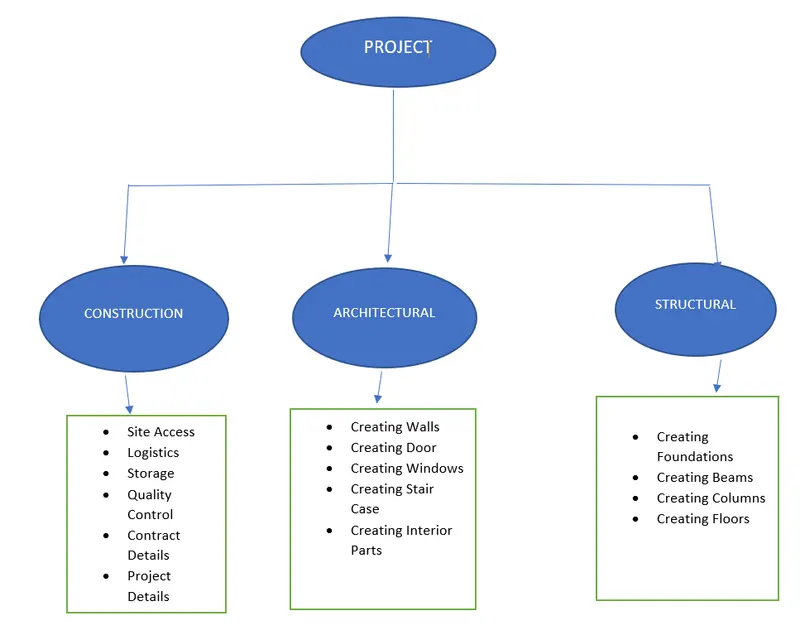

- List a flow chart of a project tree set up in terms of Construction model, Architecture & Structure model, in this exercise and understand how many people can work on the same project using Revit simultaneously
