Usage of Collaborate tool in REVIT

TASK 1:

AIM:

To open an architectural template, Set project base point and project shared coordinates for the project.

PROCEDURE:

• Open the Revit File - Click New Project - Open the Default Architectural Template - Click OK.
• Now Architectural Template has been opened.
• In the Ribbon Tool bar in the Architectural tab under Datum option Click Grids.

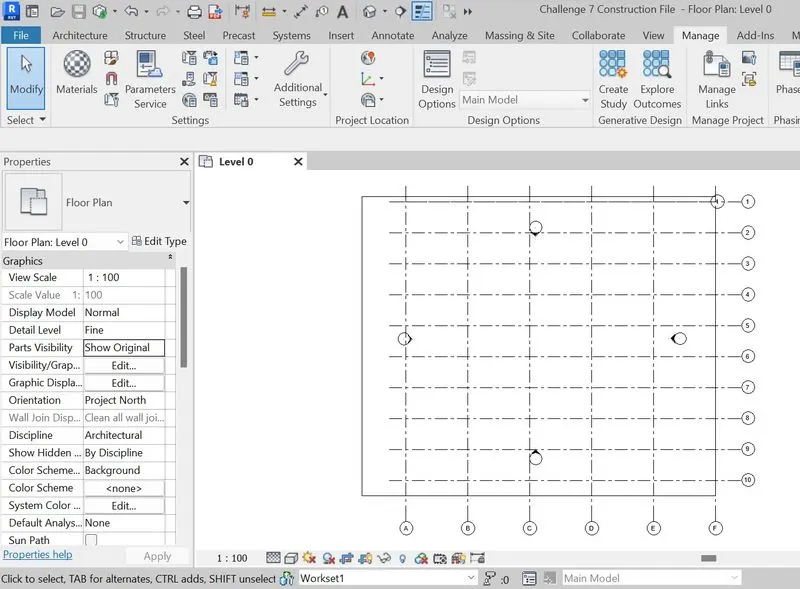

• Draw the Grids Transversely and Longitudinally.
• Click the Manage Tab in the Ribbon Tool Bar, Click the coordinates under the Location option.
• Now Click the intersection of the Grids to fix the shared Coordinates. And Specify the East Coordinates to be 0.0
• After fixing the Coordinates, In the Visibility Graphics, under the Model Categories Select the Site in that Check for the Project Base point. and Click apply and ok

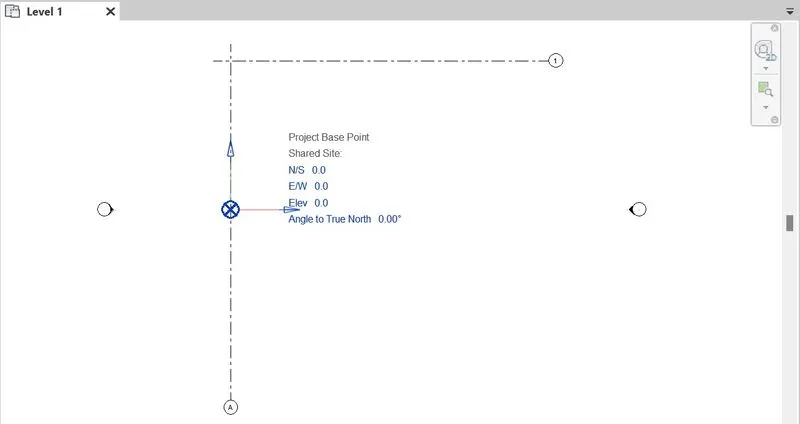

• Now Click and drag and Place it on the same place of the Shared coordinates and fix the North to 0.0.
• Thus the Setting of Project Base Point and Project Shared Coordinates is fixed for the Architectural Template.

TASK 2:

AIM:

To open an Structural template, Set project base point and project shared coordinates for the project.

PROCEDURE:

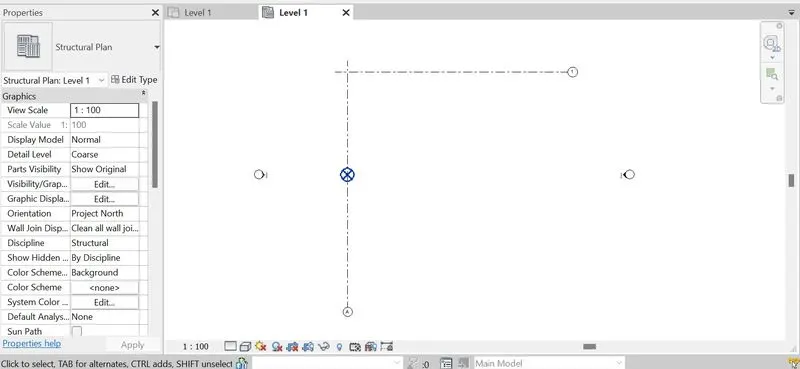

• Open the Revit File - Click New Project - Open the Default Structural Template - Click OK.
• Now Structural Template has been opened.
• In the Ribbon Tool bar in the Architectural tab under Datum option Click Grids.
• Draw the Grids Transversely and Longitudinally.
• Click the Manage Tab in the Ribbon Tool Bar, Click the coordinates under the Location option.
• Now Click the intersection of the Grids to fix the shared Coordinates. And Specify the East Coordinates to be 0.0
• After fixing the Coordinates, In the Visibility Graphics, under the Model Categories Select the Site in that Check for the Project Base point. And Click apply and OK.
• Now Click and drag and Place it on the same place of the Shared coordinates and fix the North to 0.0. Like we did for the Architectural Template.
• Thus the Setting of Project Base Point and Project Shared Coordinates is fixed for the Structural Template.



TASK 3:

AIM:

To make the Architectural model a central model.

PROCEDURE:

PROCEDURE:

• Open the Archictural Project File.
• Click the Collaborate tab in the ribbon tool bar.
• In the collaboration Tab under the Manage Collaboration, Click the Collaborate option.
• Collaborate Dialouge box will be opened. It that box select Within your Network.
• After Selecting Click OK. Now Save the File to make it as Central File.

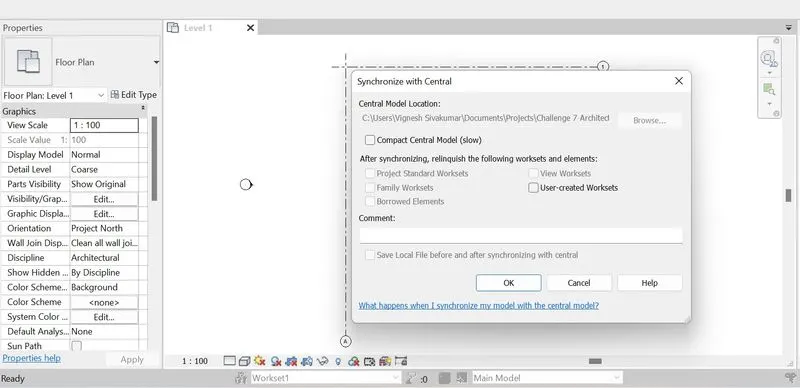

• After Saving the Project in the Collaboration tab Click Synchornize. To save the Project as Architectural File.

TASK 4:

AIM:

To create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2.

PROCEDURE:

• Open the Archictural Project File.
• In the Ribbon Tool bar in the Architectural tab under Datum option Click Grids.

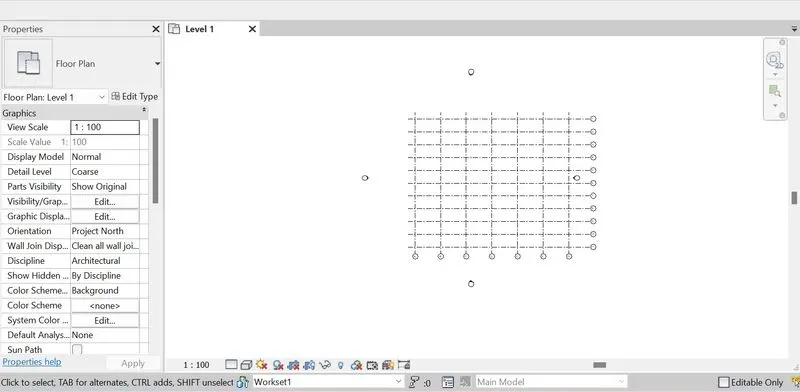

• Draw the Grids Transversely and Longitudinally one by one Using the Draw tool or Pick lines.
• Now change the Grid names in Alpha Numeric values in Transverse and Longitudinal directions.





TASK 5:

AIM:

To Synchronize the changes from the local copy to the central file of the architectural model.

PROCEDURE:

• In the Same project Where the Grids Longitudinal and Transverse pattern are created.
• Click the Collaborate tab in the ribbon tool bar.

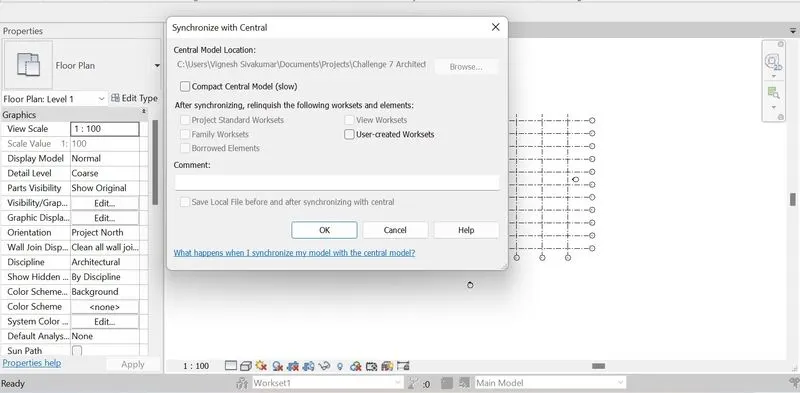

• In the Collaboration tab Click Synchornize. To save the Project as an Architectural File.



TASK 6:

AIM:

To make the Structural model a central model.

PROCEDURE:

• Open the Structural Project File.
• Click the Collaborate tab in the ribbon tool bar.
• In the collaboration Tab under the Manage Collaboration, Click the Collaborate option.
• Collaborate Dialouge box will be opened. It that box select Within your Network.
• After Selecting Click OK. Now Save the File to make it as Central File.

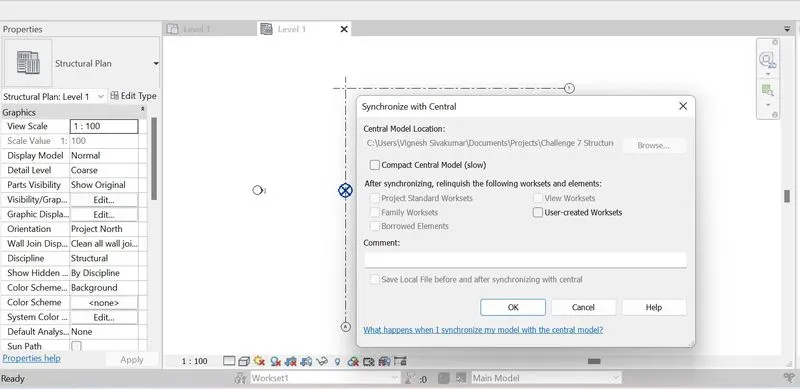

• After Saving the Project in the Collaboration tab Click Synchornize. To save the Project as Structural File.



TASK 7:

AIM:

To use Copy Monitor try to copy the grids to the structural model.

PROCEDURE:

• In the Structural Project File, Link the Architectural Project File. By using the Insert tab.

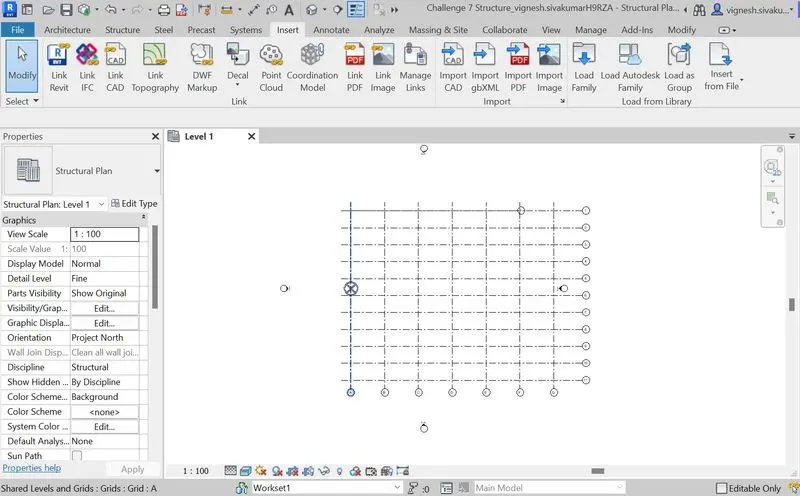

• In the Insert Tab, Click Revit Links - Select the Architectural Project File. After Selecting the File, Select the Project Positioning to Auto - Shared coordinates, Click OK.
• Now we can see the Architecture Project viewed on the Structural Project.
• In the Collaborate tab in the ribbon tool bar, Click Copy/Monitor under the Coordinate option.
• After clicking Copy/Monitor, Click Select Link, and Click the Architectural Project File.
• In the Copy/Monitor option Click Copy option and select the Grids, Click the Finish option which is under the Ribbon tool bar.
• After that in the Ribbon tool bar Click Finish Option.
• Thus the Architecture File is linked to the Structural Project File, and Saved as Central Model by Synchronizing the Project.

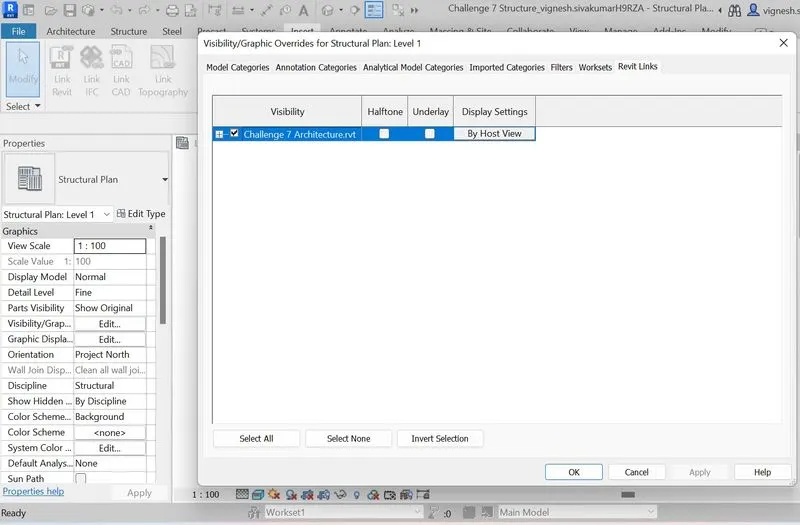

• We can check the Linked Architecture File by clicking the Visibility Graphics.
• In the Visibility Graphics Click the Revit Links.
• Finally the Project is Linked and Saved to Central Model.





TASK 1:

AIM:

To open a construction template and Link both the Architectural and Structural Project Files and save the project as Central Model.

PROCEDURE:

• Open the Revit File - Click New Project - Open the Construction Template - Click OK.
• Now Construction Template has been opened.
• In the Insert Tab, Click Revit Links - Select the Architectural and Structural Project Files. After Selecting the Files, Select the Project Positioning to Auto - Shared coordinates, Click OK.
• Now we can see both the Architecture and Structural Projects, Veiwed on the Consrtuction Project file.
• In the Collaborate tab in the ribbon tool bar, Click Copy/Monitor under the Coordinate option.
• After clicking Copy/Monitor, Click Select Link, and Click the Architectural and Structural Project File.
• In the Copy/Monitor option Click Copy option and select the Grids, Click the Finish option which is under the Ribbon tool bar.
• After that in the Ribbon tool bar Click Finish Option.
• Thus the Architecture and Structural Files is linked to the Construction Project File, and Saved as Central Model by Synchronizing the Project.

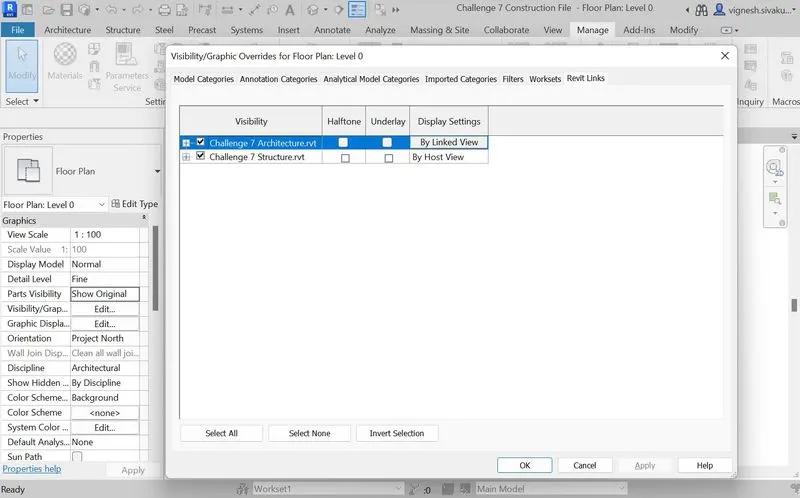

• We can check the Linked Architecture and Structural Files by clicking the Visibility Graphics.
• In the Visibility Graphics Click the Revit Links.
• Finally the Projects is Linked and Saved to Central Model.
• Thus both the Architectural and Structural Project Files are linked to the construction Project and saved the project as Central Model.







Question 9:

To Check the grids from structural and architectural model matching in the construction template created?

Answer:

Yes the grids from structural and architectural model matching in the construction template Which was created. and File is set for Project 2.

Question 10:

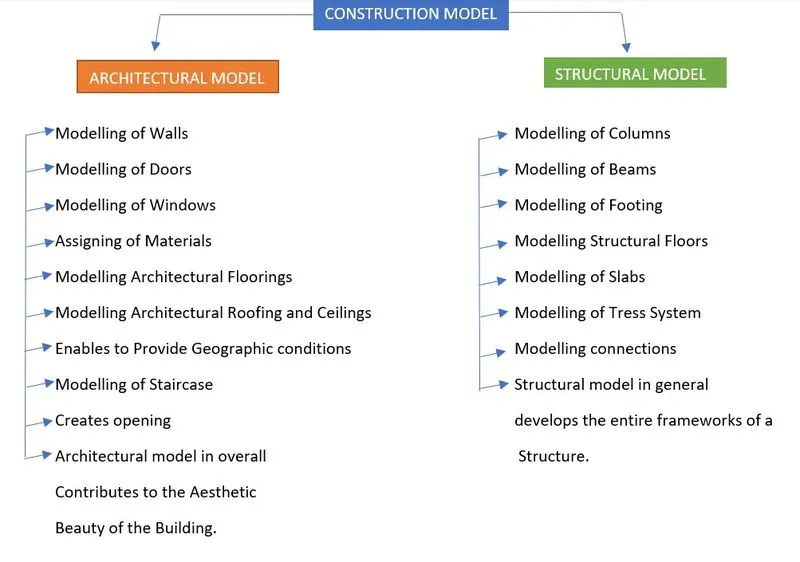

List a flow chart of a project tree set up in terms of Construction model, Architecture & Structure model, in this exercise and understand how many people can work on the same project using Revit simultaneously.

Answer:
