Usage of Collaborate tool in REVIT
Usage of Collaborate tool in REVIT
Jagadeep.M.M
1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project
AIM:
To set the project base point & project shared coordinaes for the project using manage tab in the architecural template.
INTRODUCTUIN:
- The project base point can be used to establish a reference for measuring distances & positioning objects in relation to the model.
- Initially, in stock templates, it identifies the origin (0,0,0) of the project coordinate system. Use the project base point as a reference point for measurements across the site.
PROCEDURE:

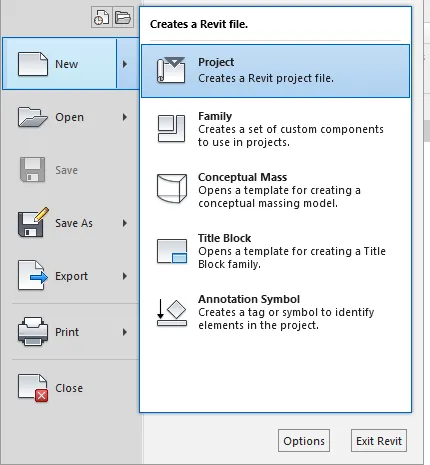

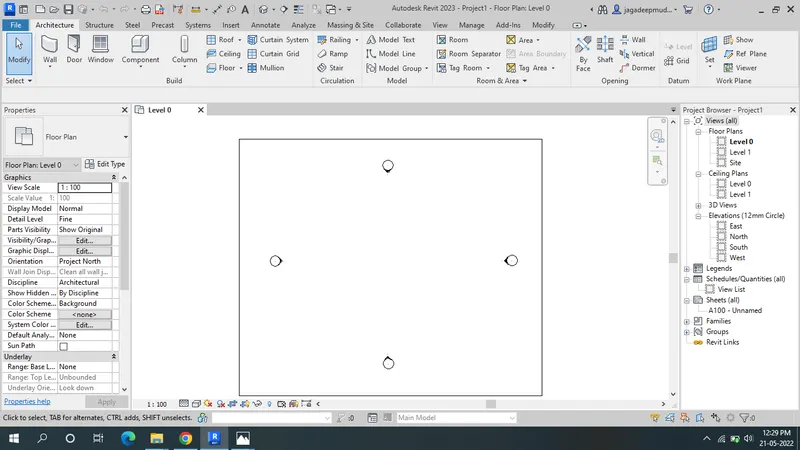

- First we open the revit.
- Next create the a project using the architectural templete.

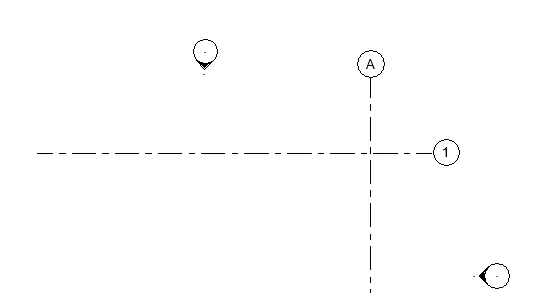

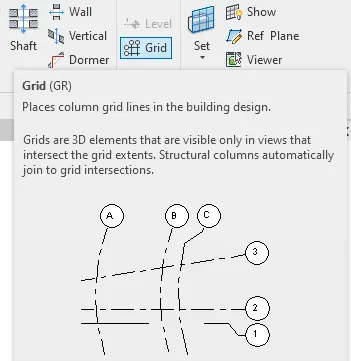

- Next we draw the horizontal & vertical gird line using grid toolbar.
- Intersecting each other & give the name for Horizontal grid as 1.
- Name the vertical grid as A.

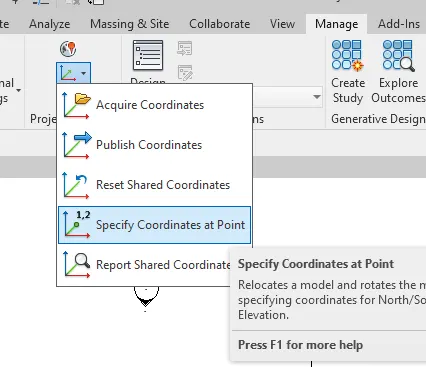

- Next we open the manage tab select the coordination option that we select the specify coordinates at point & click on the horizotal gride.

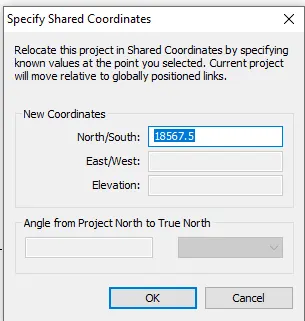

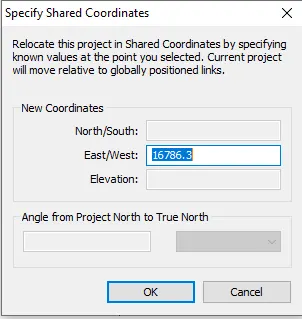

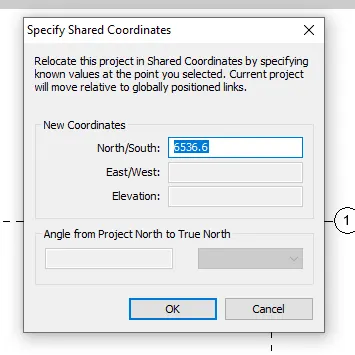

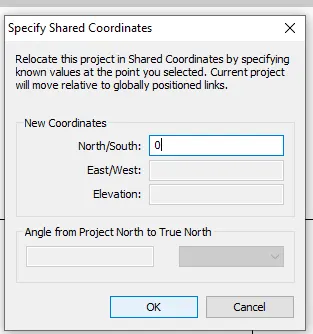

- After selecting the horizontal gride, the specify shared coordinates tab will be appears in the specify shared coordinates tab we need to enter the coordinates for north/south as 0 press ok.

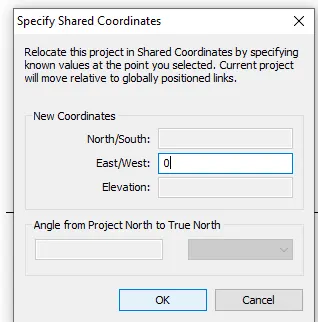

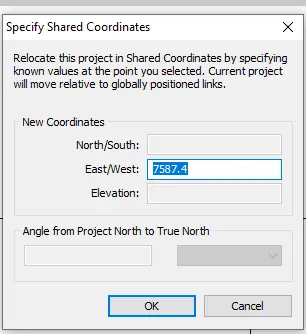

- Again select the specify coordunates at point select the vertical grid & chage the East/west as 0 then press ok.

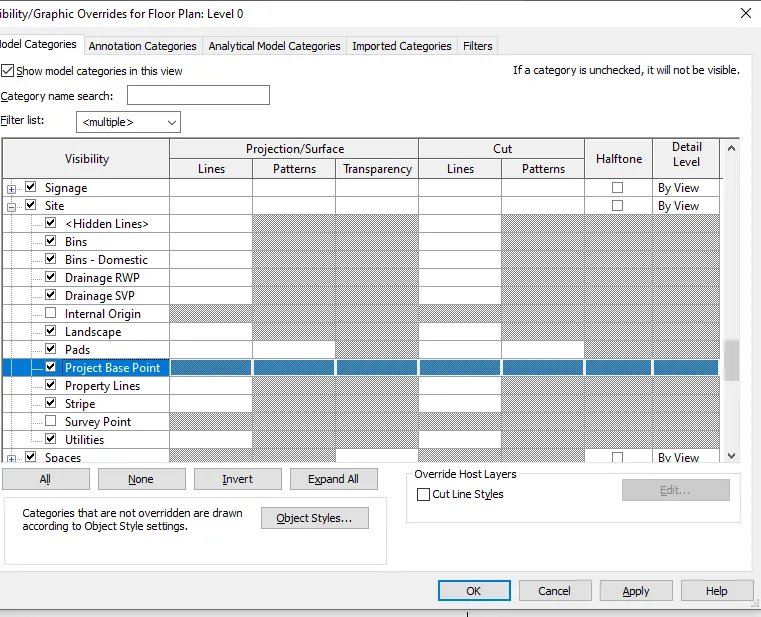

- open the the visibility/graphic in the model categories select the site & select the project base point click it & apply ten ok.

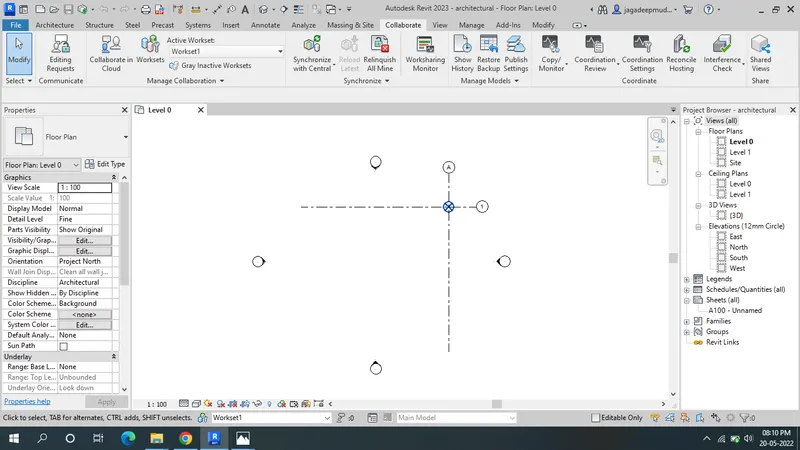

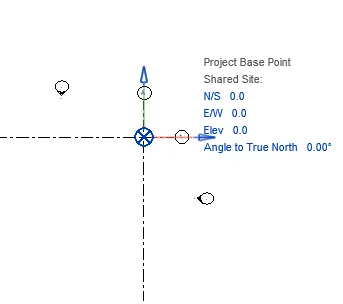

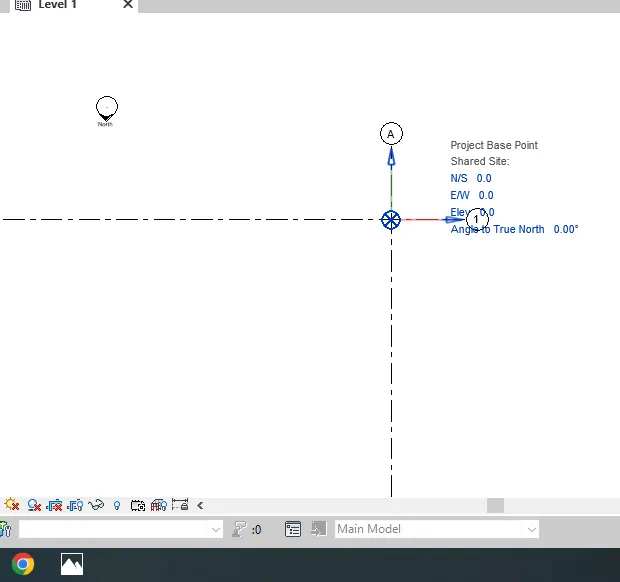

- Move the project base point in the two intersection gride & click it.

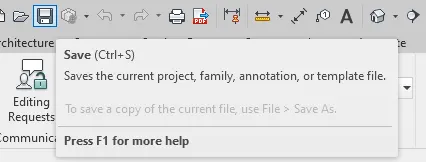

- Then it we ask to save the project & save the project as architectural.
RESULT:
- The project base point & shared cooordinates are created.
2) Open another new file but with a structural template. Using the manage tab set project parameters the same as the architectural model. Copy the parameters from the architectural model to the structural template or enter the parameters manually into the structural model
AIM:
To set the project base point & project shared coordinaes for the project using manage tab in the Structural template.
INTRODUCTUIN:
- The project base point can be used to establish a reference for measuring distances & positioning objects in relation to the model.
- Initially, in stock templates, it identifies the origin (0,0,0) of the project coordinate system. Use the project base point as a reference point for measurements across the site.
PROCEDURE:
- First we open the revit.
- Next create the a project using the structural templete.
- Next we draw the horizontal & vertical gird line using grid toolbar.
- Intersecting each other & give the name for Horizontal grid as 1.
- Name the vertical grid as A.
- Next we open the manage tab select the coordination option that we select the specify coordinates at point & click on the horizotal gride.
- After selecting the horizontal gride, the specify shared coordinates tab will be appears in the specify shared coordinates tab we need to enter the coordinates for north/south as 0 press ok.
- Again select the specify coordunates at point select the vertical grid & chage the East/west as 0 then press ok.
- open the the visibility/graphic in the model categories select the site & select the project base point click it & apply ten ok.

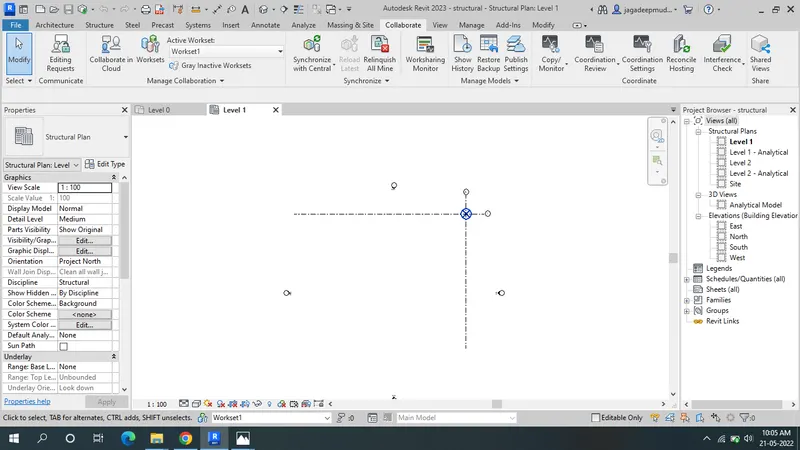

- Move the project base point in the two intersection gride & click it.

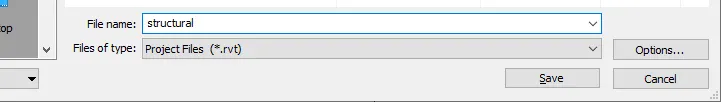

- Then save the project & save the project as structural.
RESULT:
- The project base point & shared cooordinates are created.
3) Re-open the architectural model. Using the tools under the Collaborate tab make the architectural model a central model (enabling simultaneous working on the model)
AIM:
To make the architectural model as a central model using the collaborare tab.
INTRODUCTUIN:
- With server-based work-sharing some of the task to manage the centeral model require a different approach that dile-based work-sharing.
- The central model is the master project file for a workshare project.
- The central model srores the currrent ownership information for all elements in the project, & acts as the distribution point for all changes published to the file.
- All team members save their own local couples of the central model,work locally,& then use the syncronize with central command to synchronize their edits to the model with the central model.
PROCEDURE:

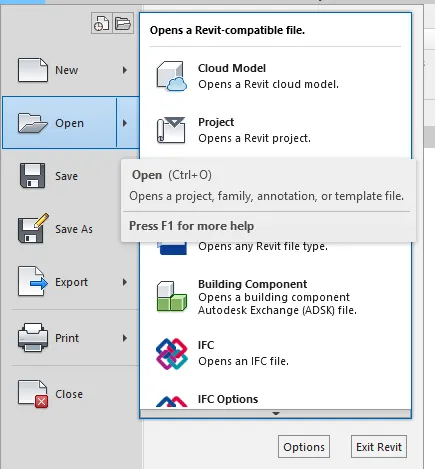

- First open the revit & open the architectural file.

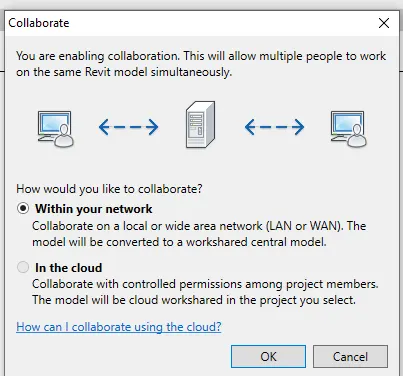

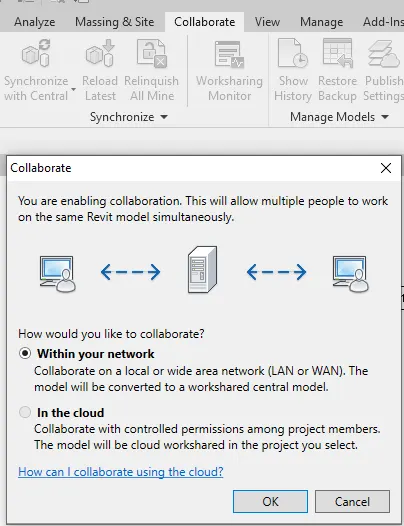

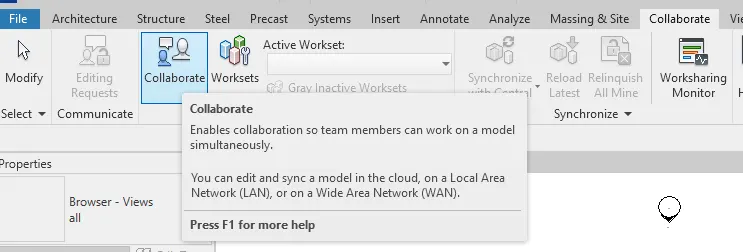

- Next click on the collaborate tab,then click the collaborate tool bar then the new tab will be appers.
- Then click on the ok.
- Next we see the another tab, & select save model & continue option,as shown below.

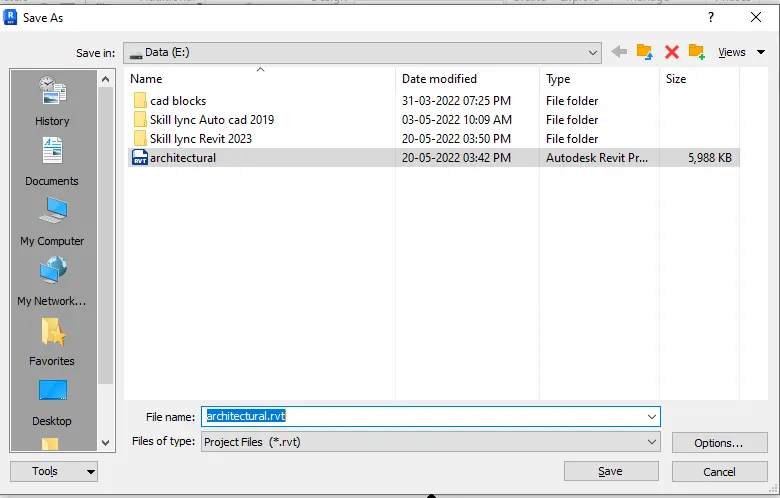

- Save the project as shown below.
- click the yes.

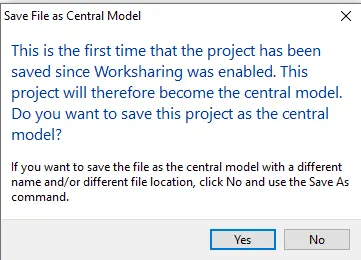

- Next we save the project file as a central model as shown below.
RESULT:
The created on architectural model as a central model using the collaborate tab.
4) Create the Grids Longitudinal and Transverse pattern for the project similar to the task done in Week 2
AIM:
To create the grids logitudinal & transverse pattern for the project similar to the task done in week 2.
INTRODUCTUIN:
- Grid lines are finite planes,we can drag their extents in elevation views so that they do not intersect level lines.
- This allows you to determine whether grid lines appear in each new plan view that you create for a project.
- Grids can be straight lines, arcs or multi-segmented.You can hide grid lines atter you add them.
- Use the grid tool to place column grid lines in the building design.We can that all columns along the column grid lines.
PROCEDURE:
- Open the central model of architectural dwawing.

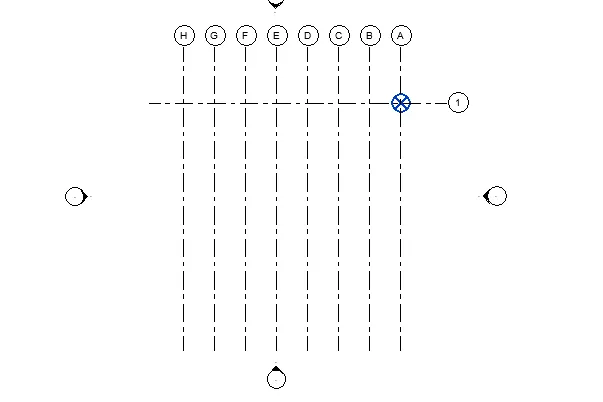

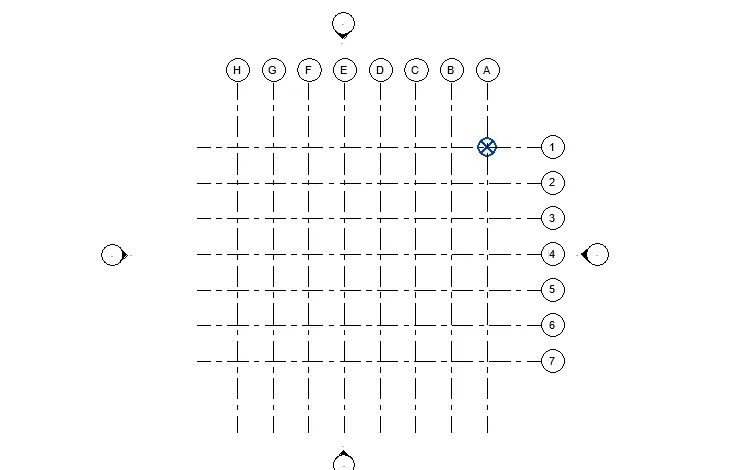

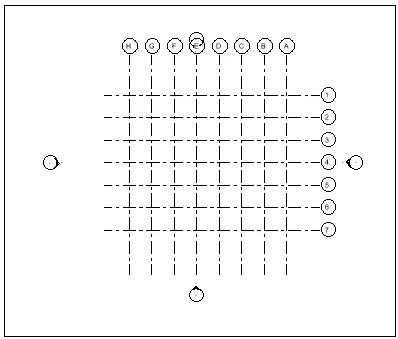

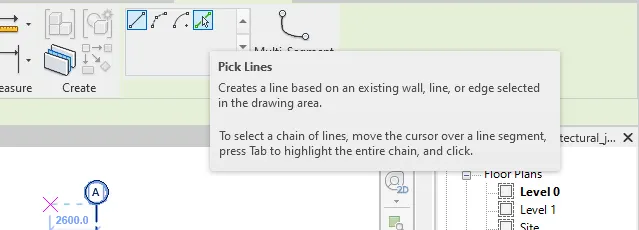

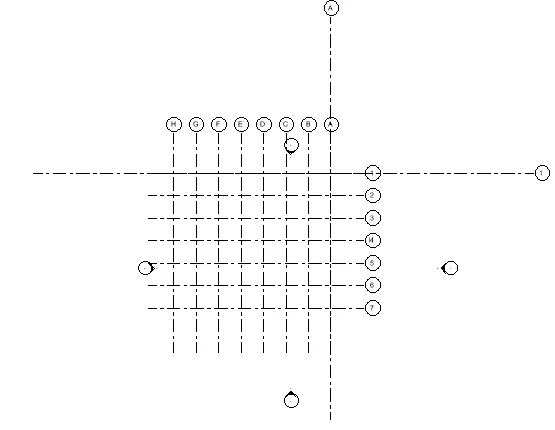

- create the vertical grid & horizontal grid as shown below.
- The vertical grid & Horizontal grid are created succesfully.
- Give the offset distance as 2000.
RESULT:
The grids longitudinal & transverse pattern for the project similar to the task done in week 2.
5) Synchronize the changes from the local copy to the central file of the architectural model.
AIM:
To synchronize the changes from the local copy to the central file of the model architectural.
INTRODUCTUIN:
- The synchronize with central process loads changes from other files to the central file, & then save local changes to the cental file, which are saved by default.
- The central file access pane of work-sharing monitor displays the progress of the synchronize with central operation, which involves several distinct steps.
PROCEDURE:

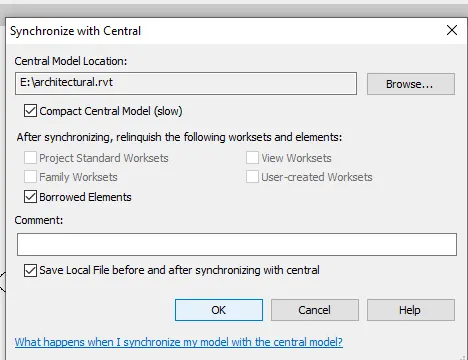

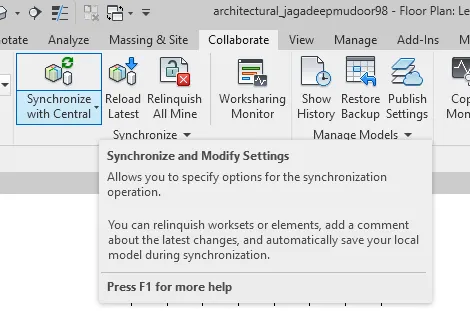

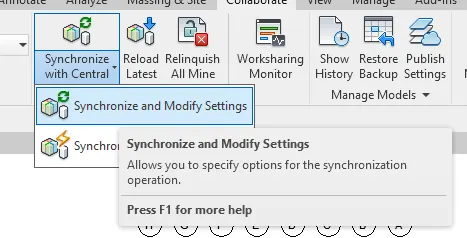

- Open the collabrate tab & press the sybchronize with central tool bar.
- Press the synchronize & modify setting.
- Another new tab will be appear click ok.
RESULT:
Synchronized the changes from the local copy to the central file of the architectural model.
6) Open the structural model and use the collaborate tools to save the model as a central file.
AIM:
To save the model as central file using the collaborate tool in the structural model.
INTRODUCTUIN:
- With server-based work-sharing some of the task to manage the centeral model require a different approach that dile-based work-sharing.
- The central model is the master project file for a workshare project.
- The central model srores the currrent ownership information for all elements in the project, & acts as the distribution point for all changes published to the file.
- All team members save their own local couples of the central model,work locally,& then use the syncronize with central command to synchronize their edits to the model with the central model.
PROCEDURE:
- Open the structural file.
- Next click on the collaborate tab,then click the collaborate tool bar then the new tab will be appers.
- Then click on the ok.
- Next we see the another tab, & select save model & continue option,as shown below.
- Save the project as shown below.
- click the yes.
RESULT:
The model as central file using collaborate tool in the structural model.
7) Under the Collaborate tab, select the grids and levels from the architectural model, and using Copy Monitor try to copy the grids to the structural model. See what happens when the copy monitored grid is moved around in the structural model
AIM:
To copy the gride from the architectural model to the structural model using Copy monitor option.
INTRODUCTUIN:
- When you start copy monitor tool, you can select use current project or select link.
- Then you can select Copy or monitor,copy:creates a copy of selected item & estabilshes a monitoring relationship between the copied element & the original element.
- If the original element changes,a warning alerts wnen you open the project or reload the linked model.
- Monitor estabilses a monitoring relationship between 2 elements of the same type ,if an element changes,a warning alerts when you open the project or reload the linked model.
PROCEDURE:

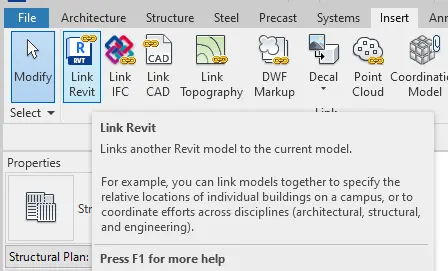

- open the structural project & click insert tab then select the link revit option.
- Click the select link option.

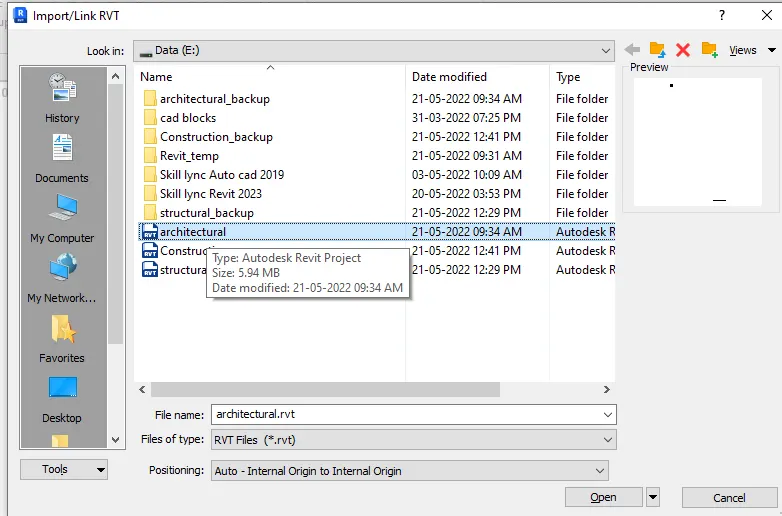

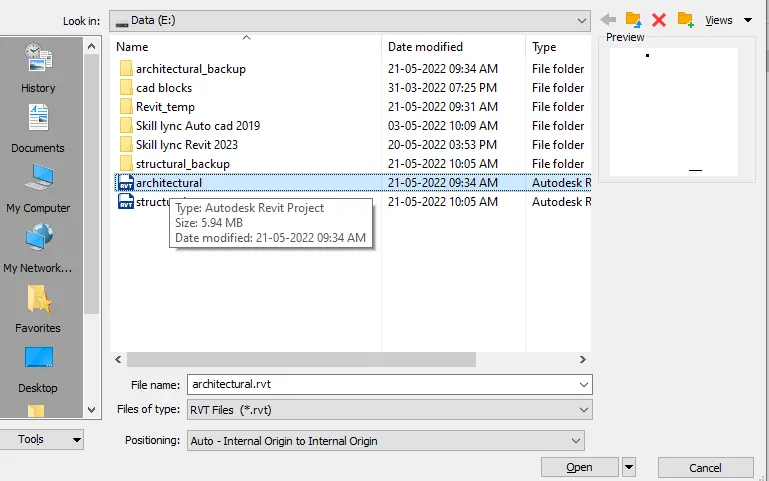

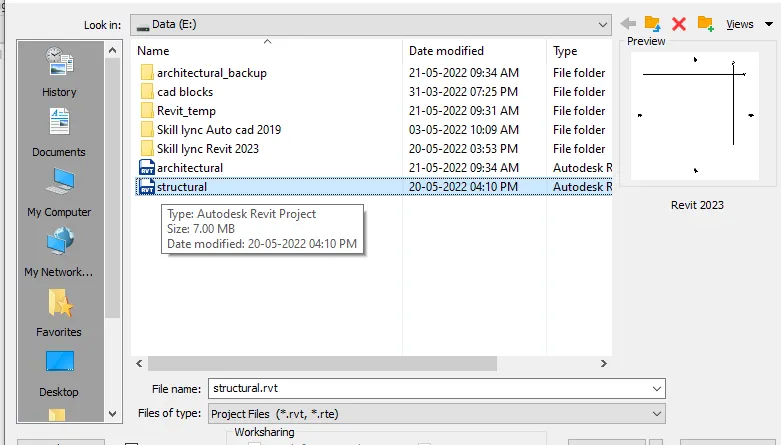

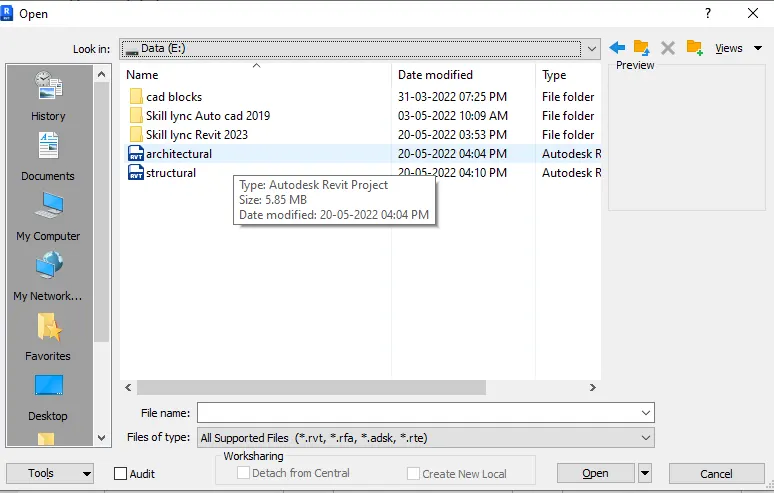

- Select the architectural project & press open.

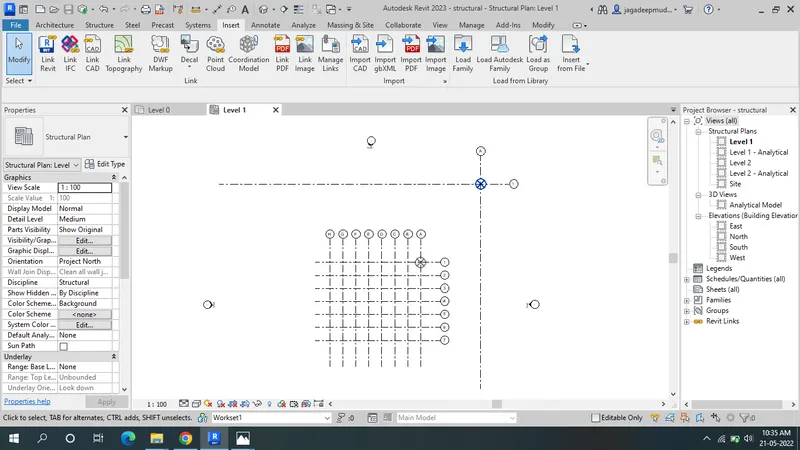

- The architectural project is linked with the structural project.

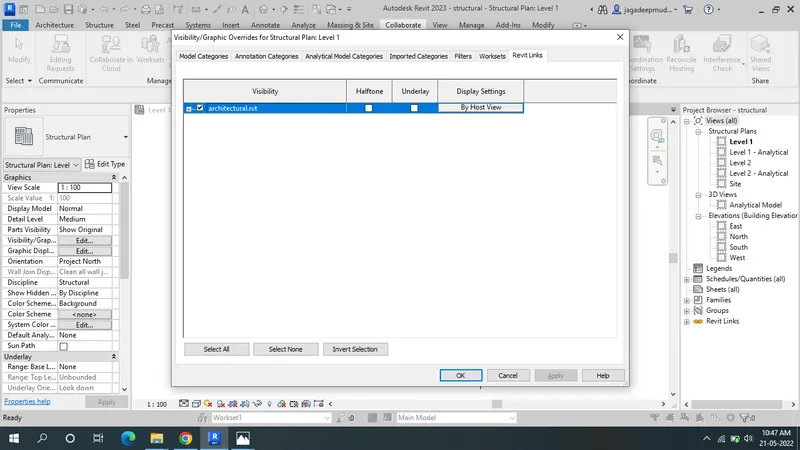

- It will be linked but it will not copy to cross check the VG command.

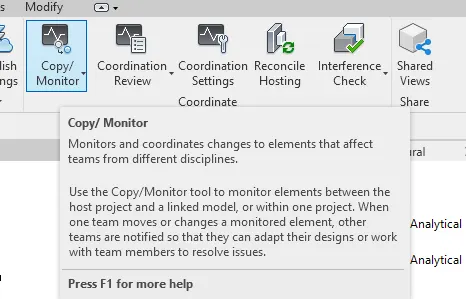

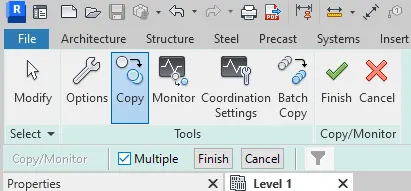

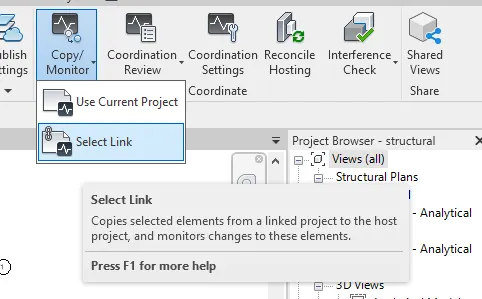

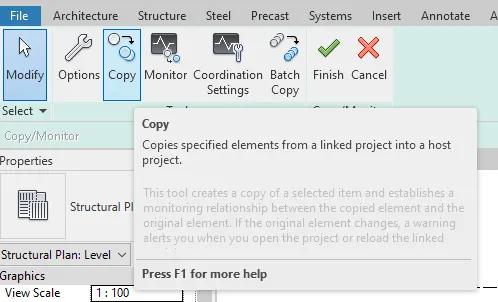

- Next press the copy /Monitor toolbar & select the select link option.
- selct the architectural link.
- Then press copy option.
- Click on the multiple & select the architectural project .

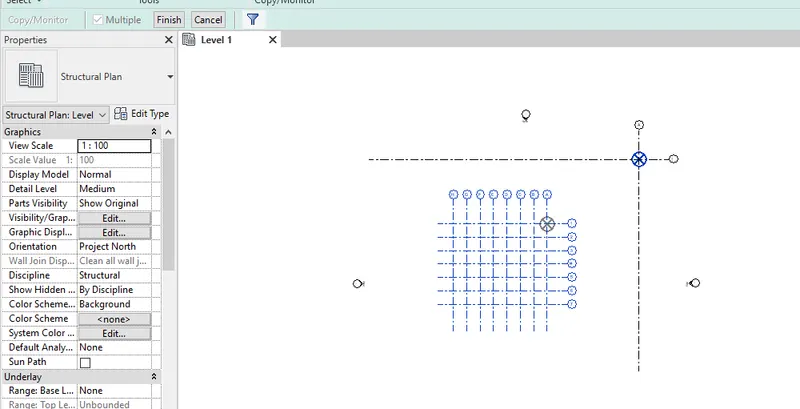

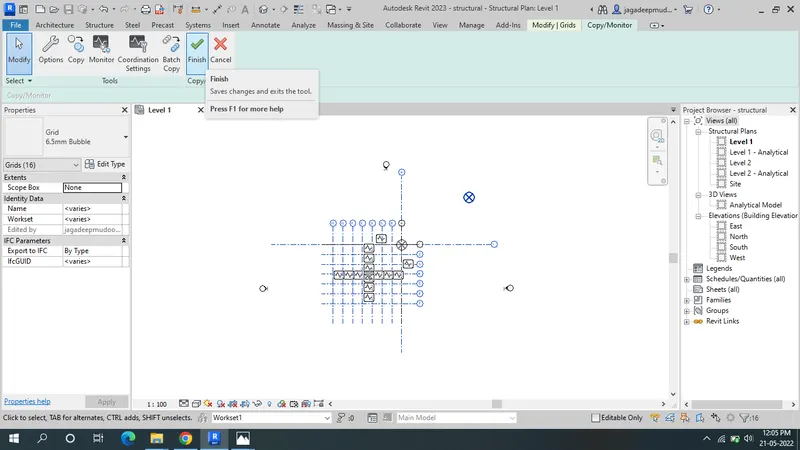

- Press the Finsh option & goto the copy/monitor & press tick mark.
RESULT:

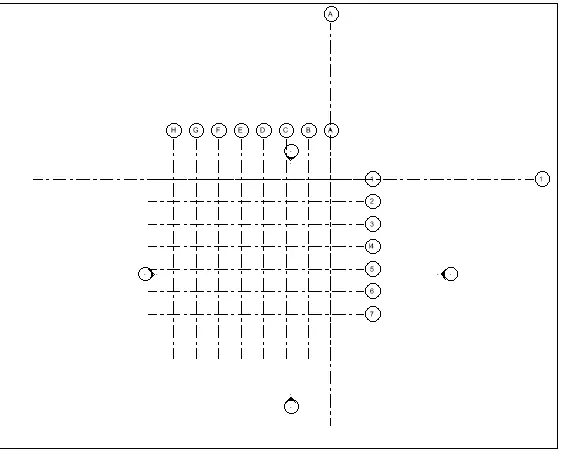

Successfully copy thegrids from the architectural model to the structural model using copy/monitor option.
8) Create another new file with a construction template. Save the new file as a central model. This file will include both architectural and structural model. Under the manage tab, Click manage links to link both architectural and structural files. Save the file and close all the files.
AIM:
To create new file with a construction template & need to save the new file as central model.To link both architectural & structural fies in a single project using the manage tool.
INTRODUCTUIN:
- To manage a link in the model select it in the manage links dialog,& use an appropriate tool.
- You can select multiple link to modify by pressing Ctrl & clicking on the number of the link in the dialog.
PROCEDURE:

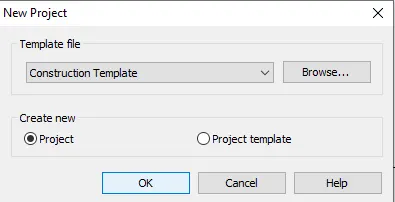

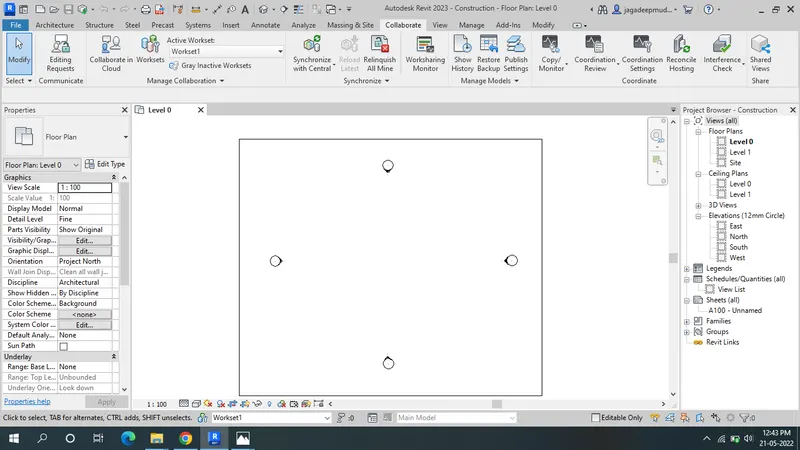

- First open the a new project using the construction template as shown below.
- click the collaborate tool & click on the collabrate option .

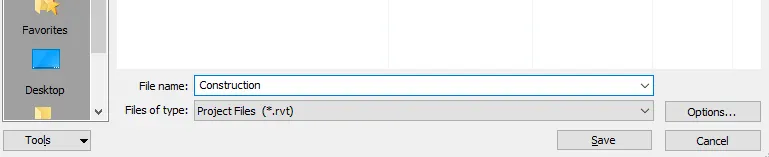

- Then save the file as construction.
- Next click the save option.
- Then press yes
- The project is converted in to central model.
- Click the Insert option & Link revit.
- Insert the architectural file in the construction file.
- Click the Insert option & Link revit.

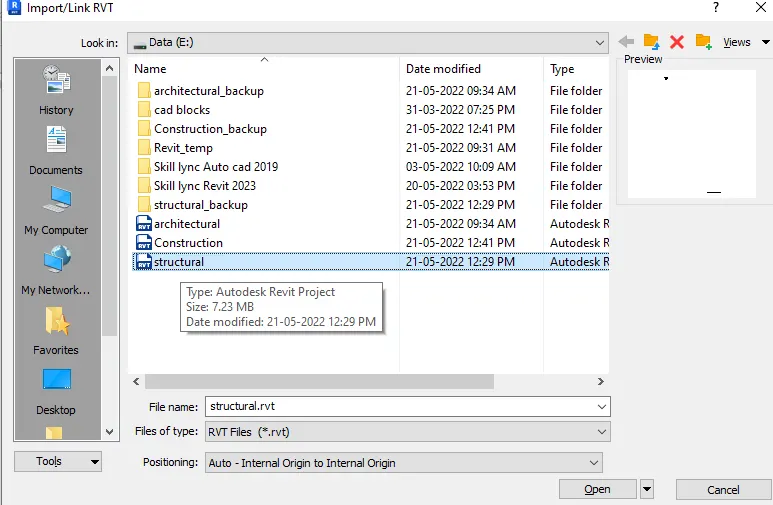

- Insert the structural file in the construction file.
- Both the structural & architectural model are linked.
RESULT:
Create the new file with construction & saved as entral model.Both the architectural & structural files are linked successfully in a single project.
9) Are the grids from structural and architectural model matching in the construction template created? If yes the model is set up for project 2. If not work on the shared parameters and linking options under Manage links
( Hint: origin to origin, by shared coordinates or by project base point to base point ) to link the models in an appropriate manner

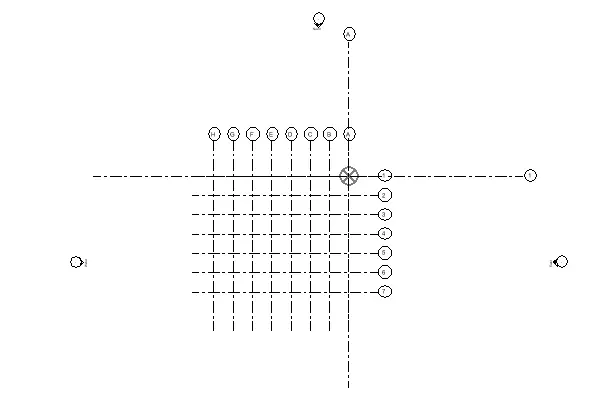

Yes ,the grids from architectural & structural model matching in the construction template created.If yes, the model is set up for project 2.

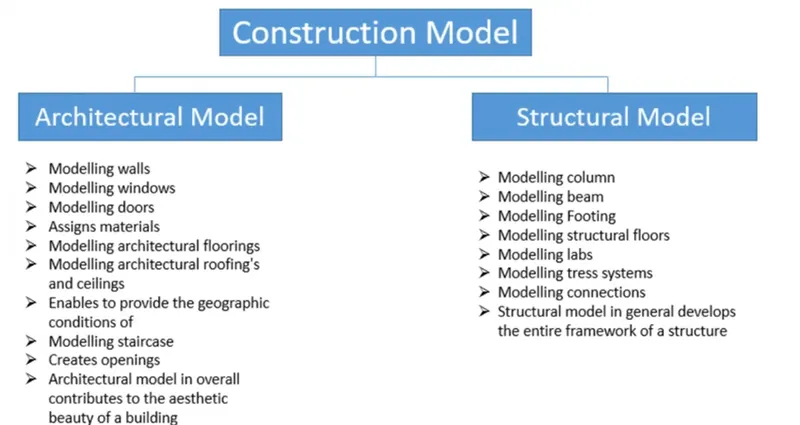

10) List a flow chart of a project tree set up in terms of Construction model, Architecture & Structure model, in this exercise and understand how many people can work on the same project using Revit simultaneously
For the construction model
- Site access
- Longistics & storage
- Quality control
- Outstanding contract details
- Outstanding design-related challenges
- Health & Safety
For Architectural model
- Modelling walls
- Modelling windows
- Modelling doors
- Assigns materials
- Modelling architectural floorings
- Modelling architectural roofings & ceilings
- Enables to provide the geographic conditions
- Modelling staircase
- Creates openings
- Architectural model in overall contributes to the aesthetic beauty of a building.
For Structural model
- Modelling column
- Modelling beam
- Modelling footing
- Modelling structural floor
- Modelling slabs
- Modelling Trus system
- Modelling connections
- Structural model in general develops the entire framework of a structure.
The primary objective of structural analysis & design is to produce a structure capable of resisting all applied loads without failure during its intended life.If improperly designed,elements of a structure would fall causing serious consequences such as large expenses or ultimately losses in lives which cannot be compared with any cost.
Once the aechitectural engineer sets the function & layout of the structure, the role of the structural engineer begins which can be summarized in the following steps to develop a safe, functional & economic structures.
The number of people work in one project depends on the type of project such as it is in which group A or group B etc.
