Understanding the concepts on Degrees of Freedom

1. A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration T_n and their corresponding mode shapes, φ_n has been derived

STEP-1

The fundamental period of vibration (T₁ = 2 seconds) and its associated mode shape:

The second mode of vibration (T₂ = 0.6852 seconds) and its associated mode shape:

The third mode of vibration (T₃ = 0.4346 seconds) and its associated mode shape:

The fourth mode of vibration (T₄ = 0.3383 seconds) and its associated mode shape:

The fifth mode of vibration (T₄ = 0.2966 seconds) and its associated mode shape:

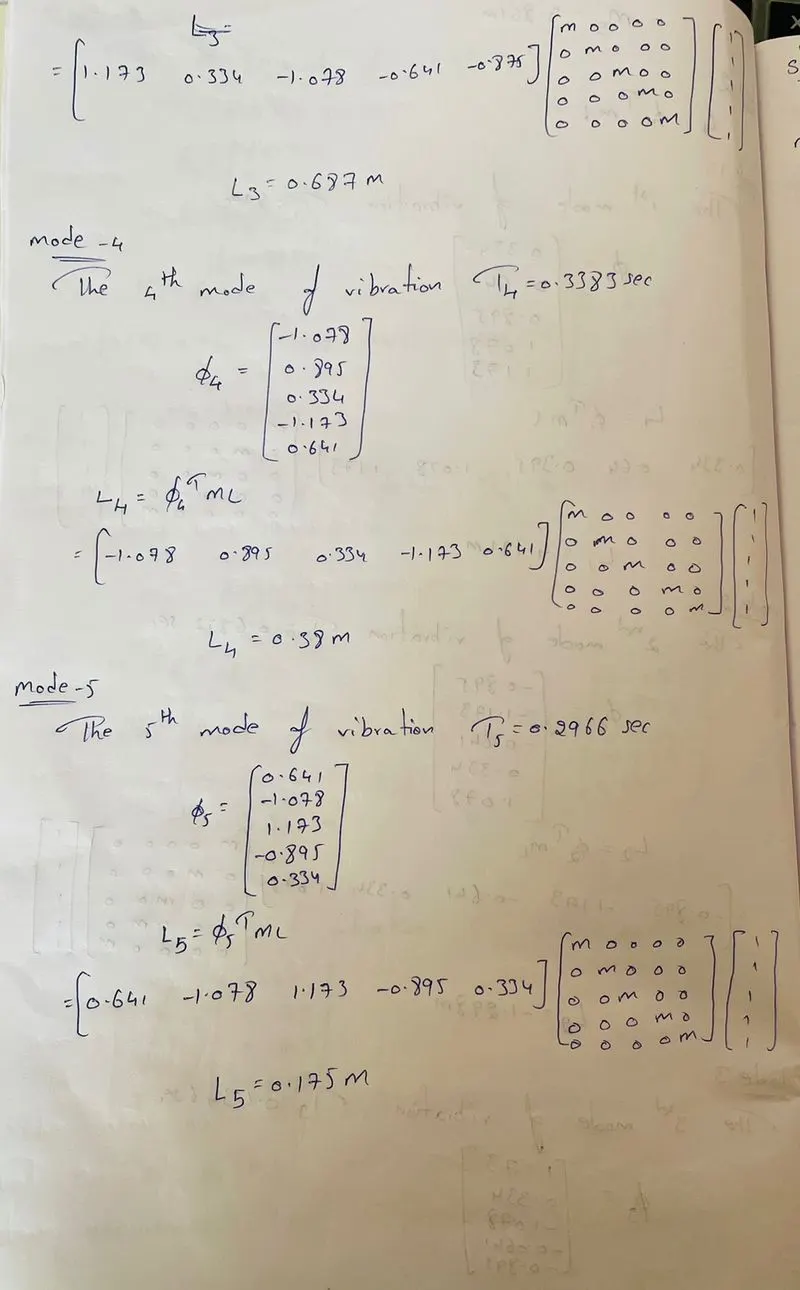

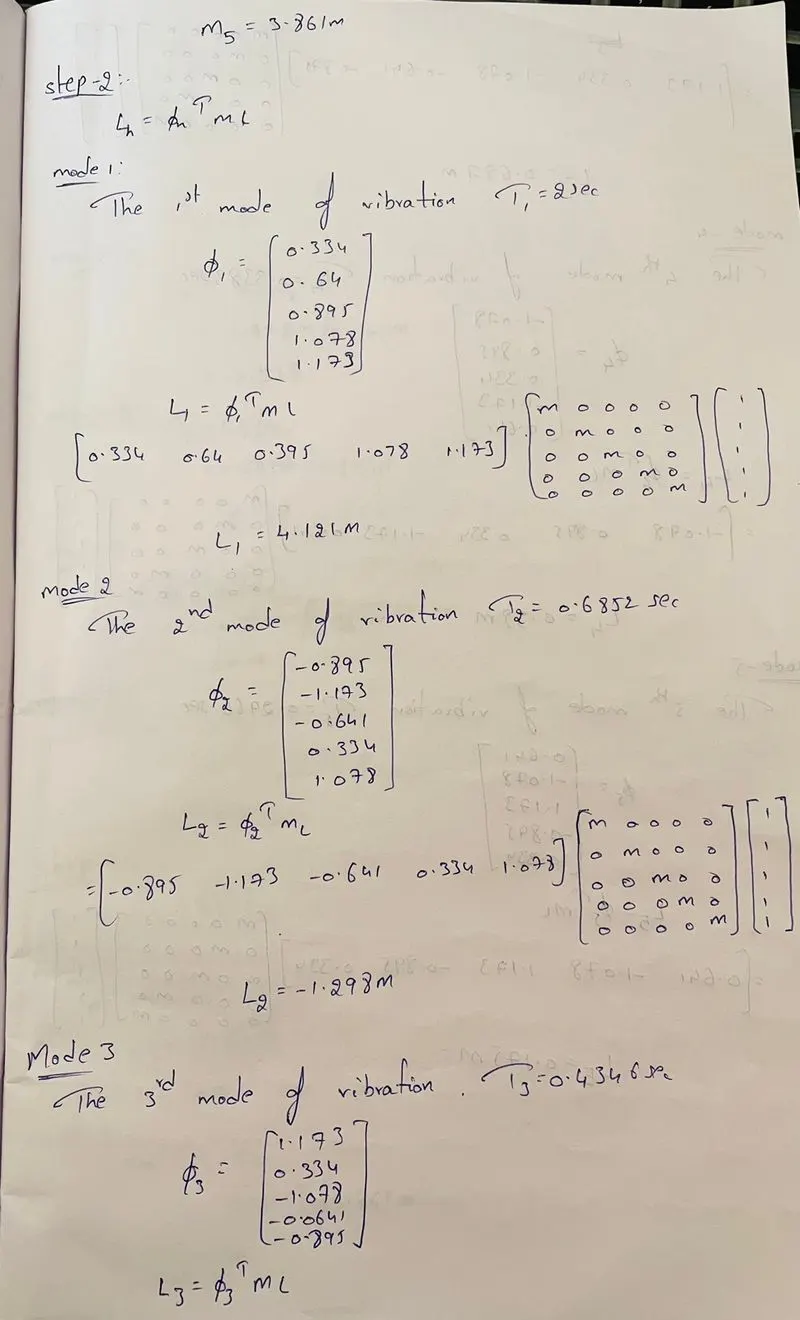

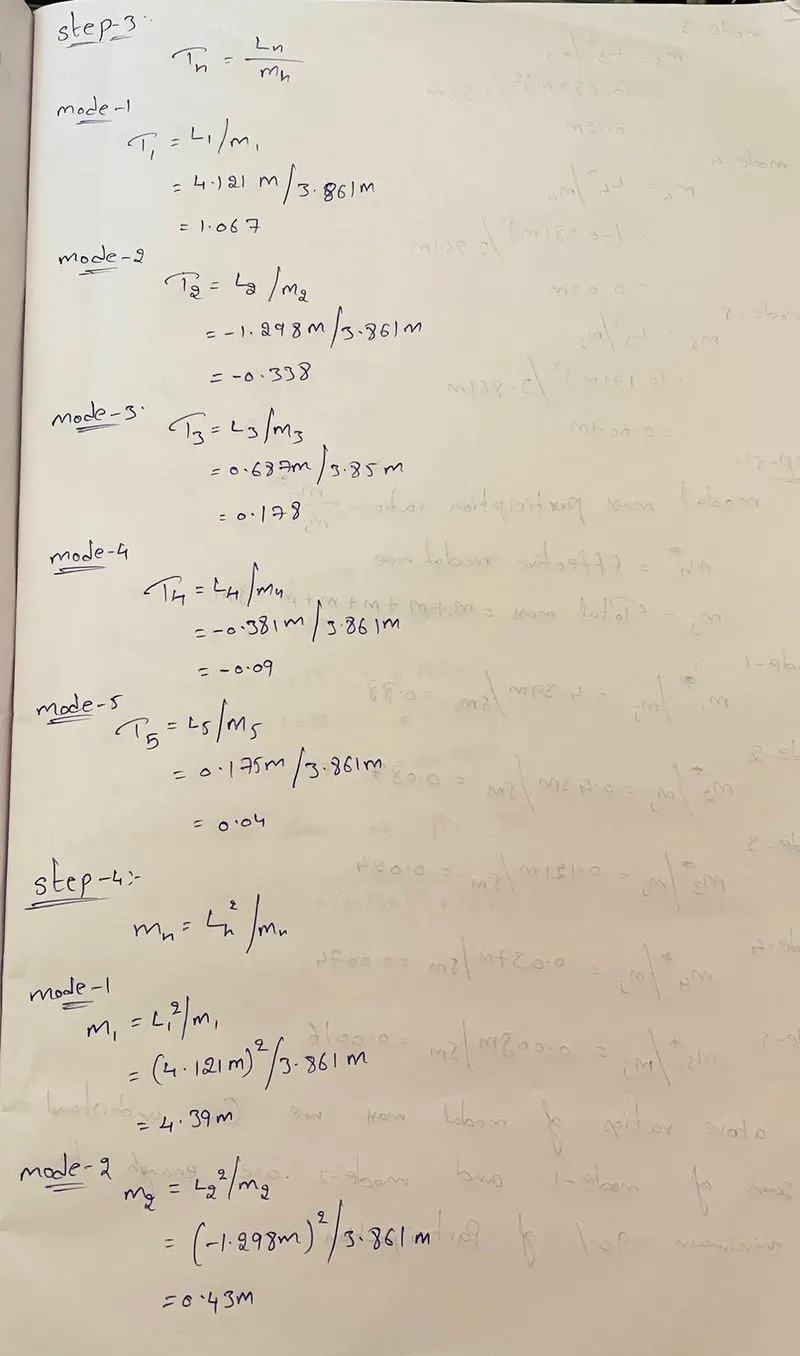

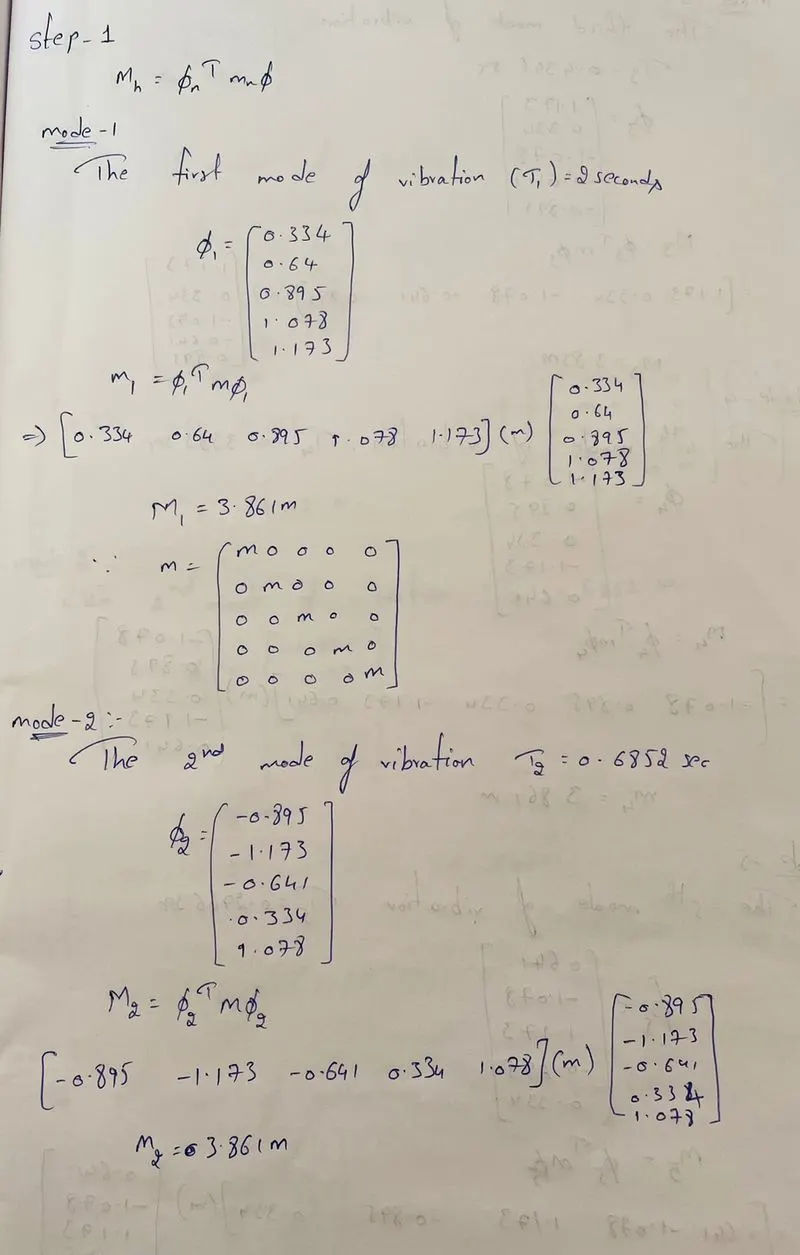

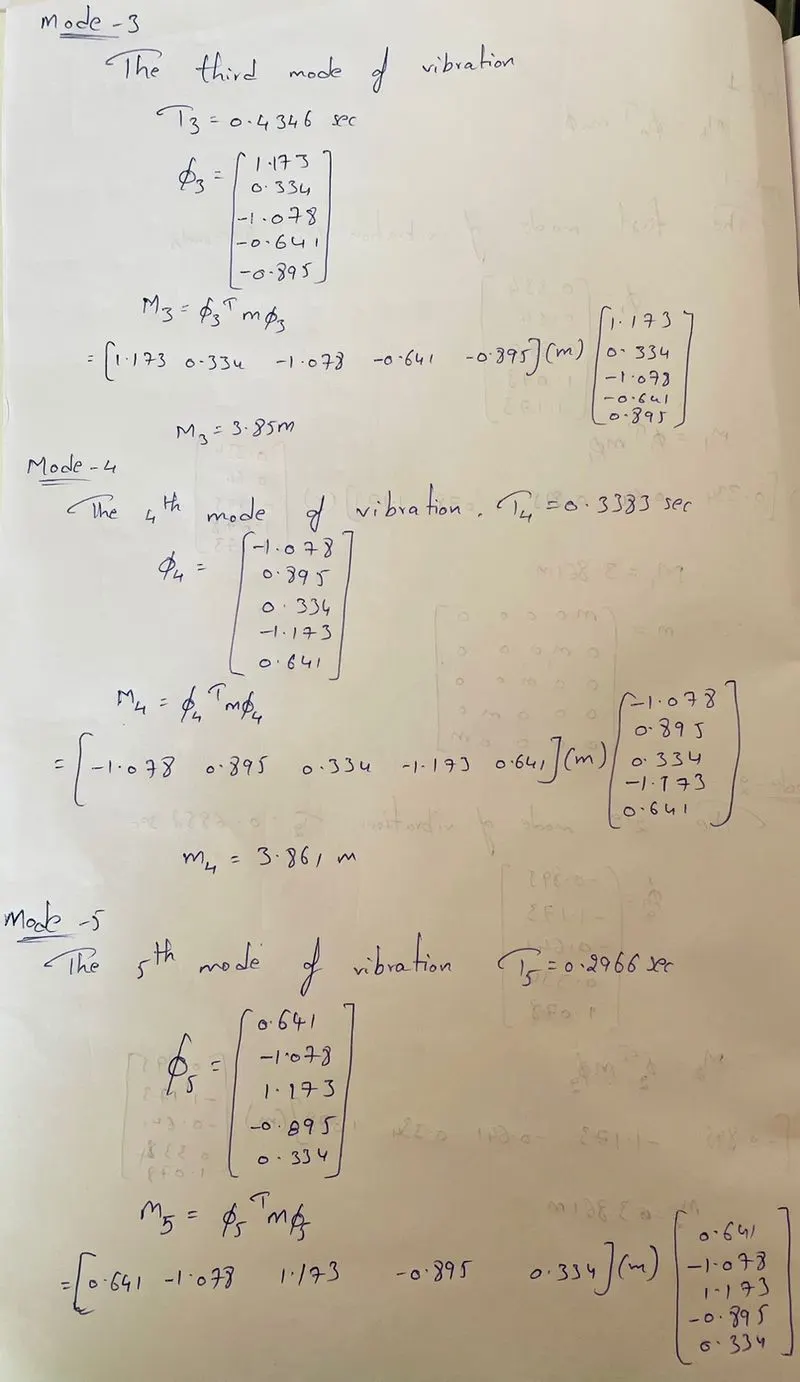

• Ln, Mn, Tn values are calculated for the 5 modes

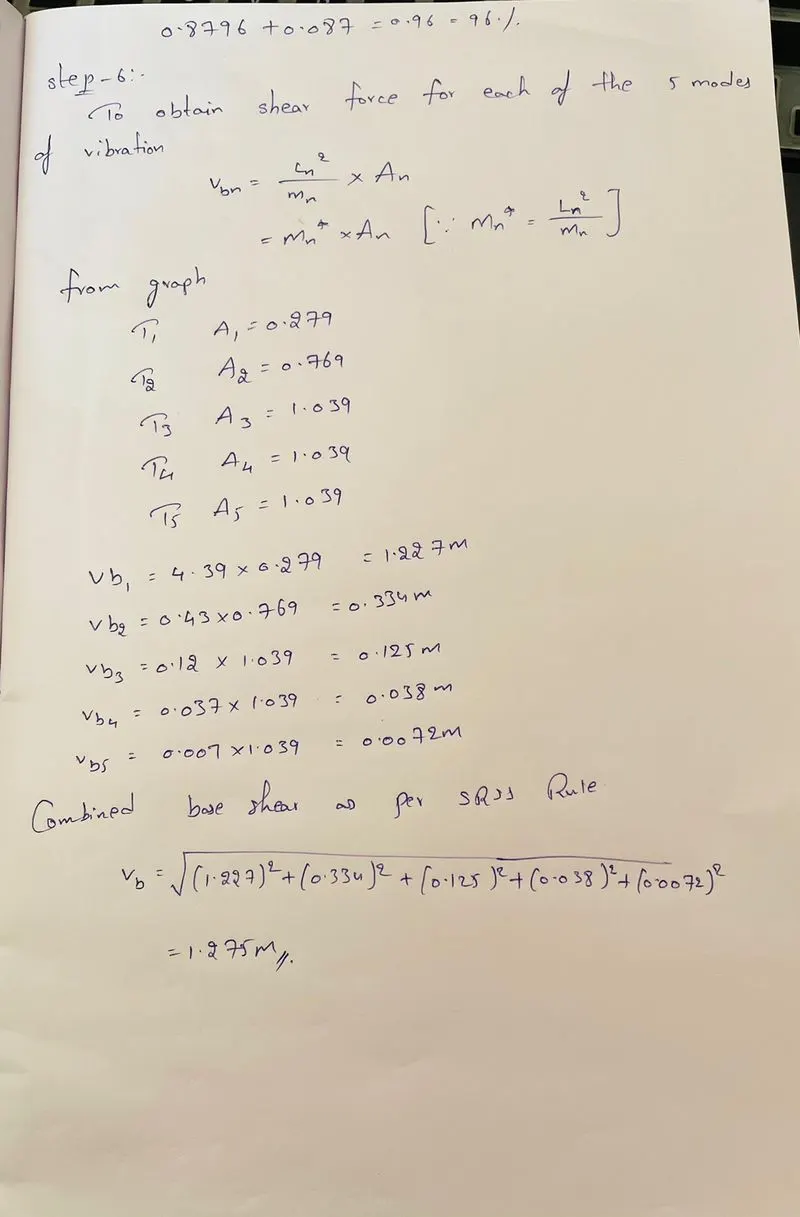

• The base shear force of the 5 modes is obtained.

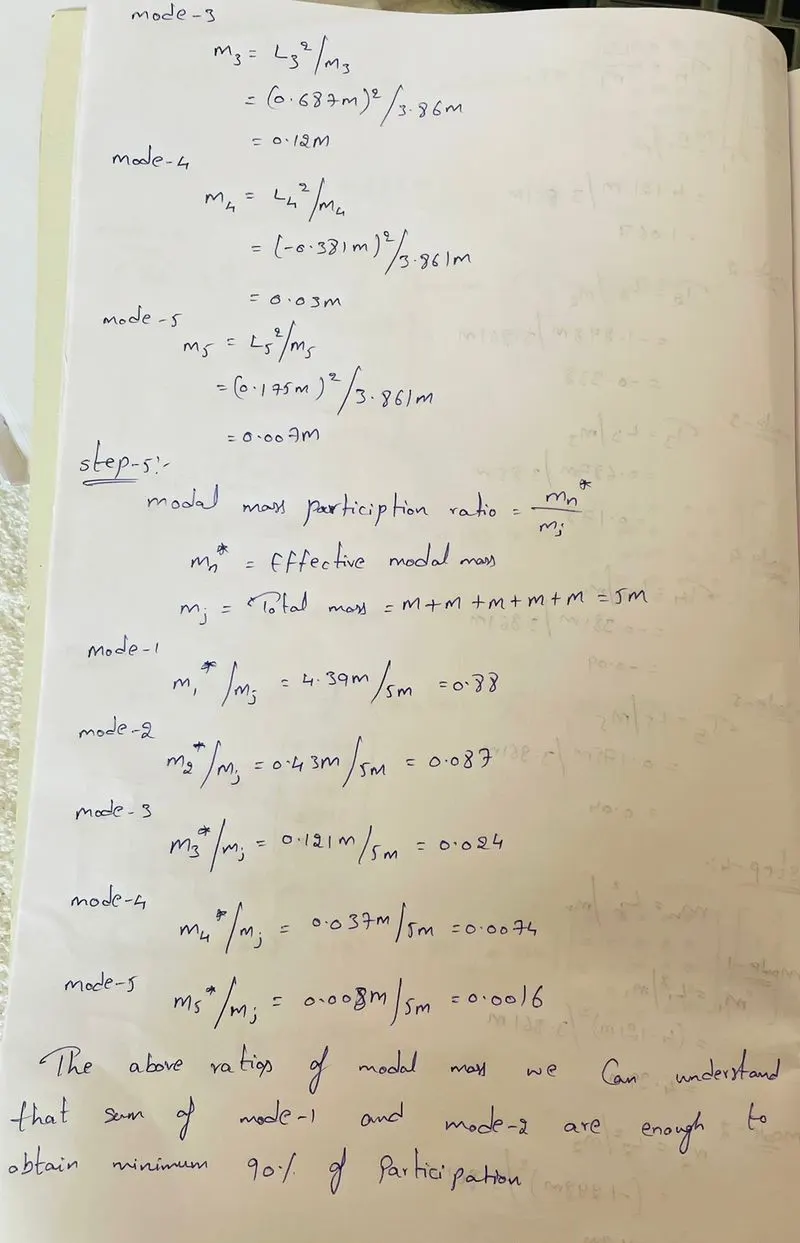

• Effective modal mass and the modal mass participating ratio for 5 modes are obtained
