Underbody Coating

UNDERBODY COATING

Underbody coating provides long term protection from corrosion to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

• It is a must to make sure the underbody is given a layer of protection from all grime and grit and annual clean up and touch up is necessary.
• Car Body is made up of several Metals such as Iron, Steel, Aluminum, Copper etc. Rusting is the common term for corrosion of iron and its alloys.
• Corrosion is the reaction of Iron and Oxygen, as may present in Water or Air Moisture.
• Any Iron MATERIAL when exposed to both oxygen and water is bound to rust, unless a preventive coating is applied on to it. A car’s underbody is exposed to the most wear and tear caused by muddy water, stones and other obstacles on the road.
• Because it’s not in plain sight, we often do not see the damage. Underbody Coating or Treatment offers a long term solution for issues related to corrosion and rust.
• The underbody of the car is exposed to most wear and tear caused by dirt grimes, bad roads, stones and muddy water. Since it is not visible in plain sight, we often do not see the damage. This treatment makes a corrosion resistant protection film on the underbody surface that protects it from rust and abrasives and covers under chassis and wheel arches.

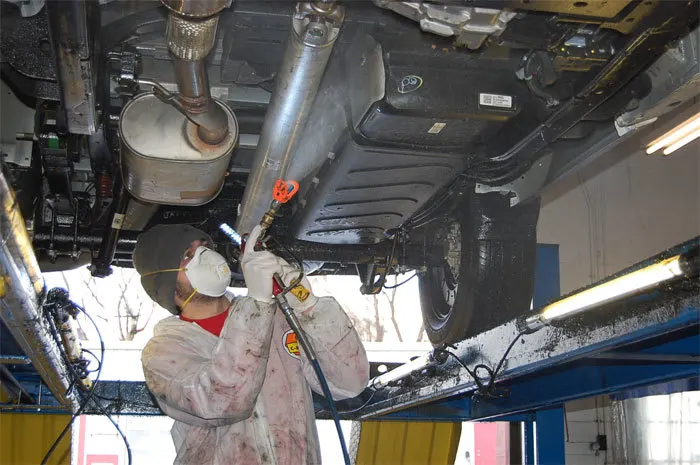

UNDERBODY COATING

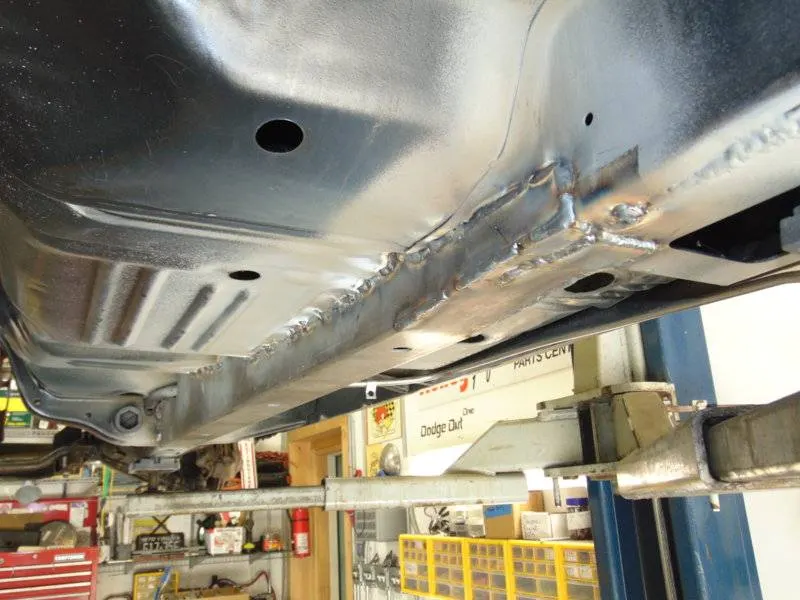

BEFORE

AFTER

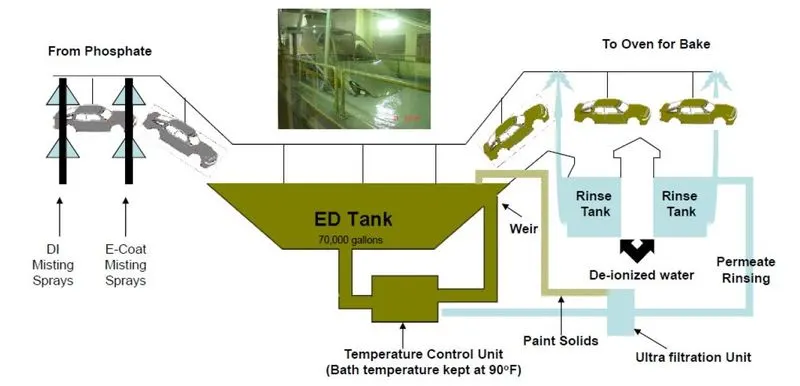

ELECTRO COATING

E-coating is an immersion wet paint finishing process that uses electrical current to attract the paint product to a metal surface. This process is also referred to as paint deposition.

TYPES OF UNDERBODY COATING

RUBBERIZED UNDERCOATING

Rubberized vehicle undercoating is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents. In addition to your undercarriage, rubberized undercoating is also safe to use on wheel wells and quarter panels, and dries to a soft rubbery finish that prevents further rust, damage, or moisture seeps. The coating can be painted over and, if necessary for bodywork, can be easily removed with an undercoating removal spray. Overall, rubberized coating is generally the best option for protecting your vehicle's undercarriage, as it provides the simplest and best protective measures against rust and moisture.

POLYURETHANE UNDERCOATING

The other option for undercoating your vehicle is to use a polyurethane-based sealant. This type of vehicle undercoating is a little bit quicker and easier to apply. Oftentimes, polyurethane undercoating will come in canisters ready to preload into an application gun. This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect unoxidized metal. It also sands quickly in case you'll need to perform bodywork and can be painted over. On the flipside, this type of car undercoating generally requires a little bit more surface prep work before applying -- sanding and applying an etching primer to bare metals before using are generally recommended.

WAX OR PARAFFIN-BASED UNDERCOATINGS

A paraffin-based undercoating will be the cheapest and quickest option available with which to protect the undercarriage of your vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year. Wax-based undercoatings never truly harden. During application, they drip or flow into seams and cracks to provide protective properties. They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.

ASPHALT-BASED UNDERCOATING

For standard vehicles, any of the aforementioned types of undercoating will provide sufficient protection. For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture. Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise. Generally sold in five gallon containers, this type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages.

ADVANTAGES

• Undercoating gives an extra layer of protection against rust and corrosion, protecting your car.
• Undercoating will eventually wear out, but you can get years of protection from it. Even vehicles in warmer climates gain protection as debris is repelled and kept away from eating at the vehicle.
• It can be self-applied.
• It minimizes the sound from underneath the car.
• It insulates the interior of the car from the extreme temperature from beneath the vehicle.
• The coating does not chip away when hit by stones

DISADVANTAGES

• Undercoating will not help you if corrosion already exists and the corrosion needs to be removed first before it can be applied, which can be expensive for you.
• It must be reapplied every 3 to 5 years for the best results
• It adds weight to the vehicle.
