Underbody Coating

UNDERBODY COATING:

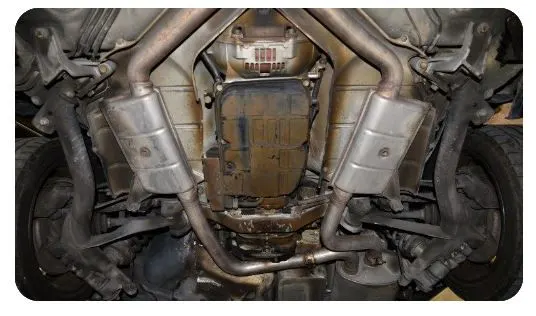

Underbody coating provides long term protection from corrosion to cars underbody.

it also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

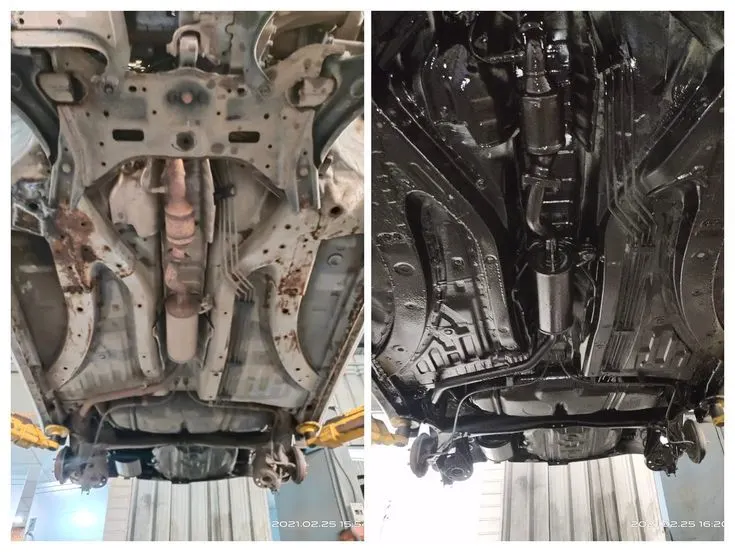

Under body coating is a thick cladding that is placed uniformly to the cars under side. coating is sprayed or painted on.

PURPOSE OF UNDERBODY COATING:

• Automotive coatingscontinue to evolve as they either satisfy or are anticipated to meet customer expectations & environmental regulations while also lowering manufacturing& manufacturing costs.
• Improve surface durability while under body coating done on a body
• protects against rust & corrosion
• Reduce Noise vibration harshness levels
• Prevents paint chipping, scratches
• work as heat insulation
• It expandes the cars lifetime

UNDERBODY COATING TYPES:

1. PRETREATMENT
2. ELECTRODEOPOSITION
3. RUST-PROOF MATERIALS: SEALER/PVC
4. PRIMER
5. TOPCOAT

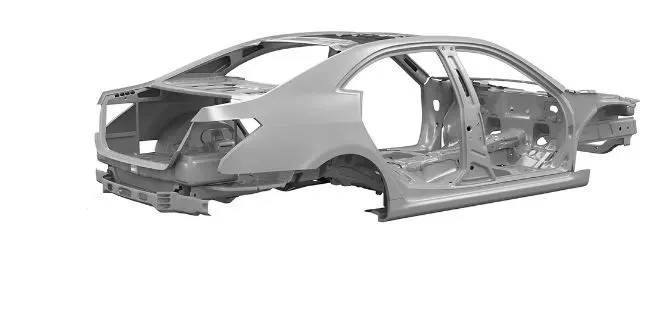

1. PRETREATMENT pretreatment is a first sequence in preparing the biw for subsequent coating is pretreatment. Pretreatment removes & clean excess metal & forms an appropriate surface structure enabling bonding of a corrosion protection layer.

pretreatment helps the primer to bond onto the metal. A Phospate treatment applies an inert layer of metal phospate, providing resistance to corrosion spread. The degreasing solution is composed of alkaline salts& surfactants& can includ caustic soda, sodium carbonate.

2.ELECTRODEOPOSITION

E-coating involves dipping automobile into the coating solution& passing an electric current through the body and the liquid ED paint solution.

During operation, a mixture of resin, binder,& a paste containing the pigments is fed into the ED tank. The autobile body is lowered into the tank,& an electric current applied; the solution in the tank consists of 80-90% deionised water & 10-20% paint solids

3.RUST-PROOF MATERIALS: SEALER/PVC

Underbody coating & seam sealing using PVC. lower door sections & rocker panel locations where pvc or urethenes are applid as an anti chipping protection.

4.PRIMER

Its involves the process of Clear coat, Base coat, Primer surfacer, Electo deposition coating,chemical treatment, substrate material

5.TOPCOAT

Top coat involes two coating process base coat, Clear coat

AUTOMOTIVE COATING PERFORMANCE

• COATING QUALITY
• Color: uniform condsistent color is essential to achieve the impression of a high quality finish & avoid customer complaints
• Corrosion Protection

PROS

• Minimizes sound from underneath the car resulting a noiseless, smooth experience
• Heat insulation it provides extreme temperatue absorbs comfortble cabin experience
• Anti chipping property protect form stone hit & exposure to water
• Its increases the car life
• Fights rust avoid rust possition on car underbody
• Absorbs noise

CONS

• Coating cost is high

Thank you
