Week 9 - Challenge 3 - Bumper

Week 9 - Challenge 3 - Bumper

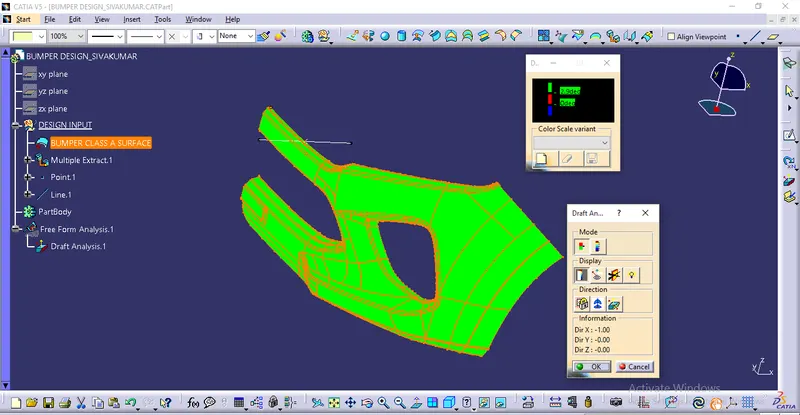

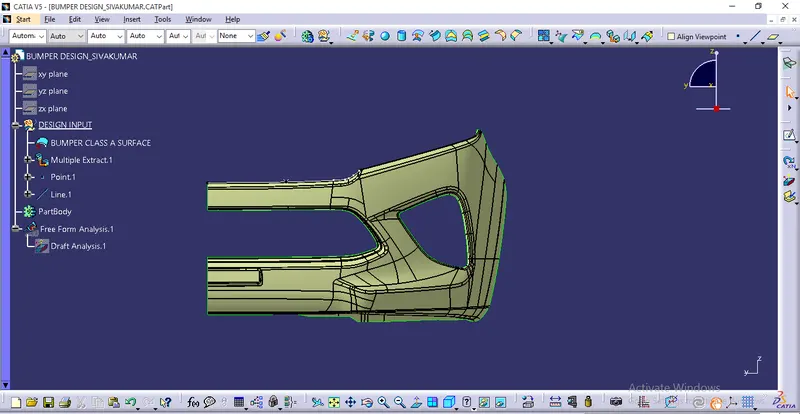

Draft analysis check 2.9 deg

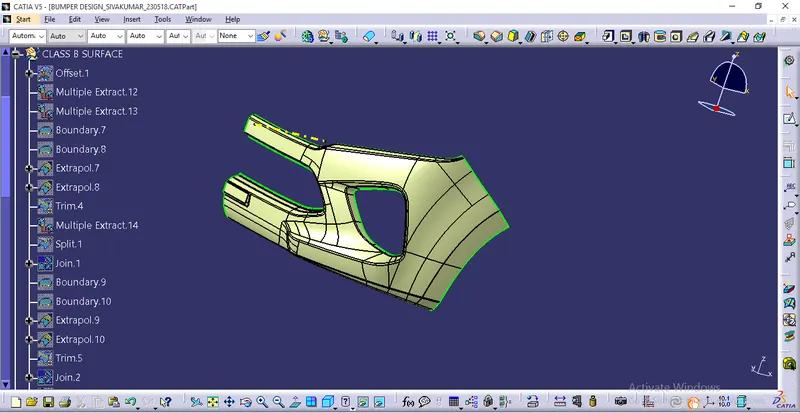

Based on class A surface offset 3mm Class B surface created

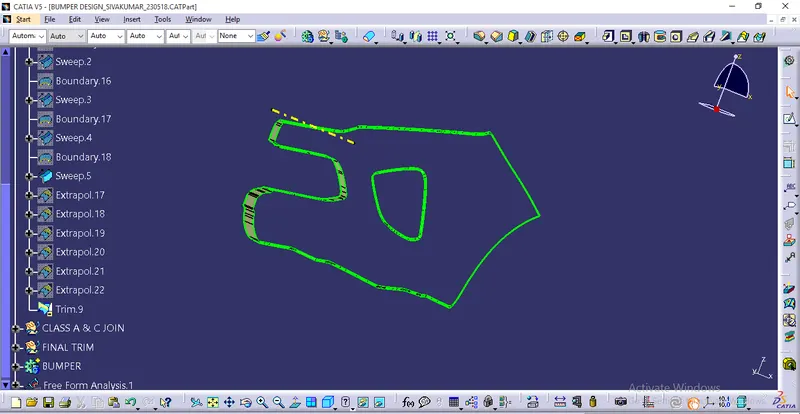

After created Class C Surface

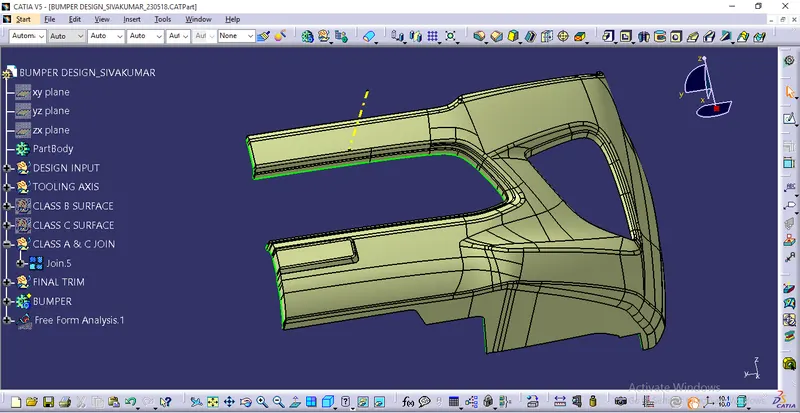

Class A & C Surface is Join by using join command

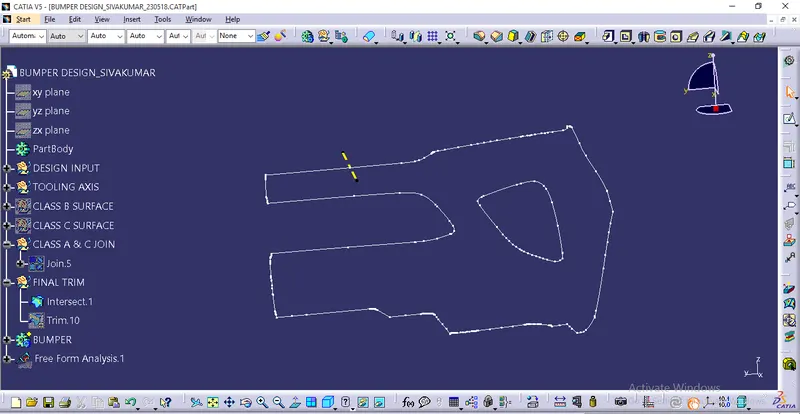

Intersect to identify the gap between Class A & C Join and Class B surface

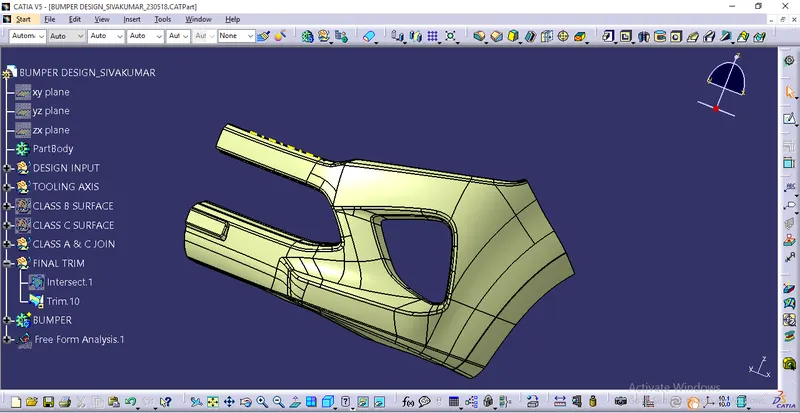

Final Trim

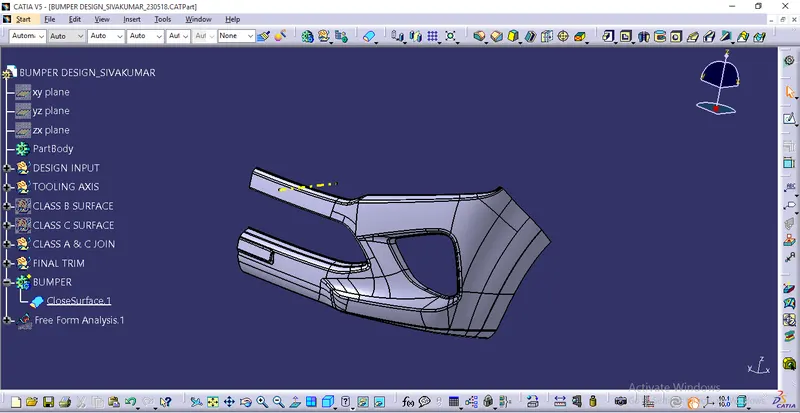

Close Body

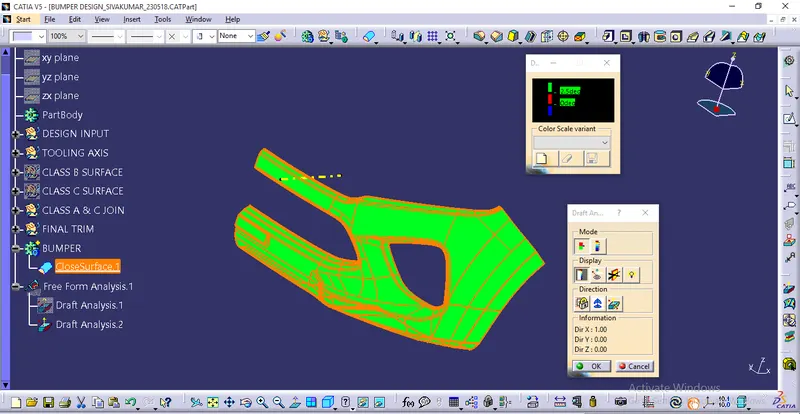

Finally Check the draft analysis solid body 2.5 Deg

Thank you
