Underbody Coating

UNDERBODY COATING :

Underbody coating is usually a dense cladding (often based on rubber) applied uniformly

to the undercarriage of the automobile. It is normally sprayed or painted on when the

car is just out of the dealership and is clean. But even if you are getting the

undercoating applied after a couple of years, it’s fine too. This is because it can

prevent further damage to the undercarriage.


The main purpose of undercoating is to check rust especially in the body components like

frame rails along with other exposed metal parts. Underbody coating can also reduce wear

and tear.

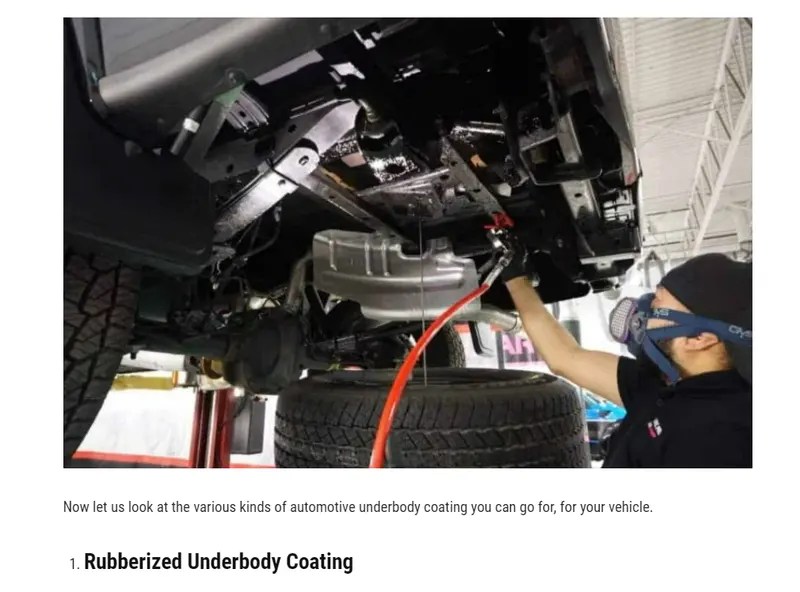

* Types of Underbody coating

- Rubberized Underbody Coating

This is generally thought of as the best underbody coating for your car. It preserves

the underbody well, protecting it from scratches. Applying this to the undercarriage is

not much of a hassle either.

- Wax Based Underbody Coating

This – more or less – ephemeral undercoating will wear away in a few months’ time. On

the upside, wax-based undercoating puts up a big fight against moisture. It is also the

most affordable option out there.

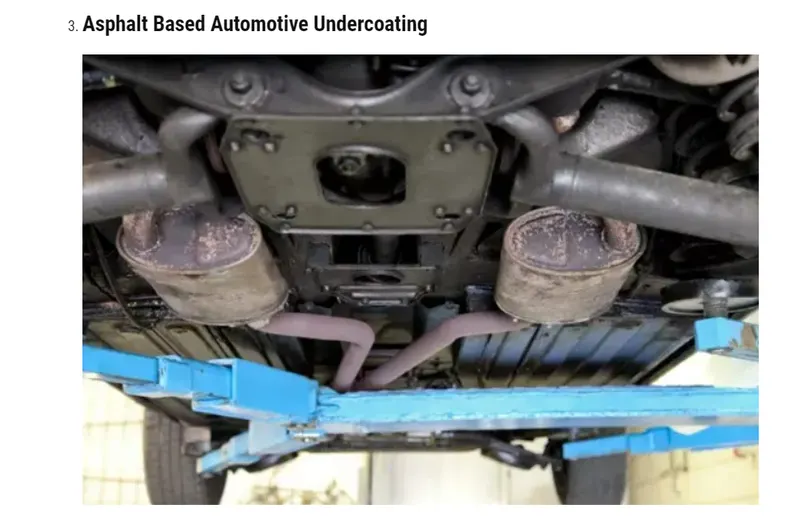

- Asphalt Based Automotive Undercoating

Best suited for lorries, trucks and large vehicles this provides a greater degree of

protection compared to rubber-based coatings. However, asphalt-based coatings contain

little amounts of rubber for sound-insulation purposes. The process of applying this

coating is a bit time-consuming though.

- Polyurethane Underbody Coating

This coating closes up splits and fractures on the underbody of the vehicle. It offers

up good protection against corrosion and also bonds with the metal. Unlike in the case

of asphalt-based coating, you can paint over the polyurethane coating.

* Advantages of Undercoating

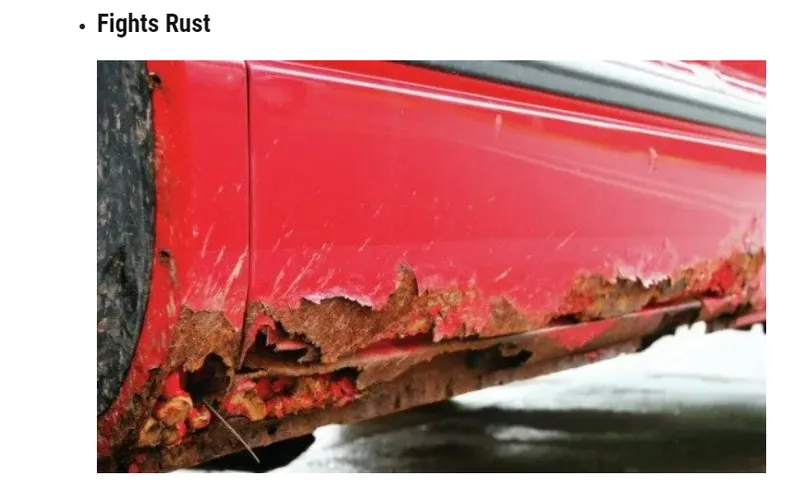

- Fights Rust

It plays an important role in keeping corrosion at bay. Underbody coating can come in

handy especially if you live near the sea, where there is too much humidity, and rusting

is just one of those everyday things. You should also seriously consider undercoating if

you reside in a place where it snows in winter.

- Absorbs Noise

The very thick undercoating can soften the noises that reach the cabin. Since the

undercoating is often made up of rubber it absorbs some of the rackets. The occupants of

the car could spare themselves of the road noises – at least up to a certain extend.

- Reinforcement

If your car comes with stock underbody coating, using another coating on top of it, is

not going to hurt. It will offer additional reinforcement, protecting the underbody from

water, road debris, gravel and small pebbles. There would also be a lesser chance for

the factory coat to flake away.

- Prolong Car’s Life

Good undercoating not only defends the underbody from corrosion but also protects the

engine and transmission as well! Less rusting coupled with slower wear and tear can

surely add years to the lifespan of your vehicle. There would be fewer dents, dings and

scratches on the undercarriage for you to fret about.

* Disadvantages of Underbpdy Coating

Nothing comes for free in this world. The same goes for undercoating. The undercoating

or rustproofing spray is heavy in pockets. However, it is nothing when you compare it

with the cost of replacing a vehicle after corrosion.
