Underbody Coating

UNDER-BODY COATING

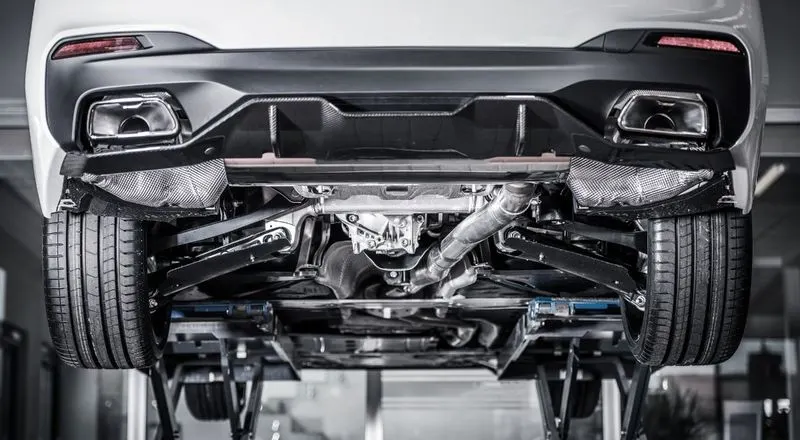

What is under body coating ?

• under-boady coating provides the long term production from corrosion car's under-bodyit also protects parts like body panel's,frame rails and other inner cavities hat are not physically accessible prone to corrosion.

Defination of Under-body coating ?

• Under-boady coating means coating labeled and formulated for application to wheel wells the inside of door panle's (or) fenders the uder side of trunk (or) hood (or)the under side of the motor vehicle.

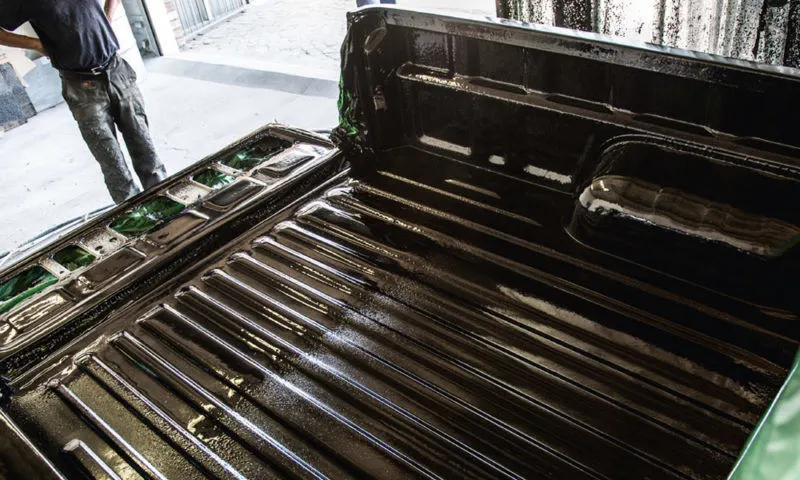

• Under-body coating is usually black,thick liqued that is sprayed on the underside (or) undercarriage of the car and is used to protect the metal from rust and corrosion.

Purpose of Under-Body coating:

• Under body coating can be sparyed an any tybe of car,truck(or) SUV.
• THe tybe one choosees to use is often determined by the level of damage your car.
• The extent to which you would like to protect its underbelly.

Types of Under-Body coating:

1. Wax (OR) paraffin-based under-body coating
2. Rubberized under-body coating
3. polyurethane under-body coating
4. Asphait-based under-body coating
5. Water-based under-body coating
6. petroleum-based under-coating

1.Wax (or) parrafin-based under-body coating

• sometimes referred to as Wax-based undercoating it provides sufficient guard for cars in fairly moist regions.

Advantages:

• Readily flows into seams to guarantee any exposed and prone surfaces are protected.
• the most inexpensive undercoating option.
• Conveniently avilable in spray guy canisters (or) aerosol cans.

Disadvantages:

• Wear off quicker in comparsion to other types.
• unlike the rubberized type,it does not really dry.
• needs to be stripped and reapplied at least onces a year as soon as signs of wear and tear to show..

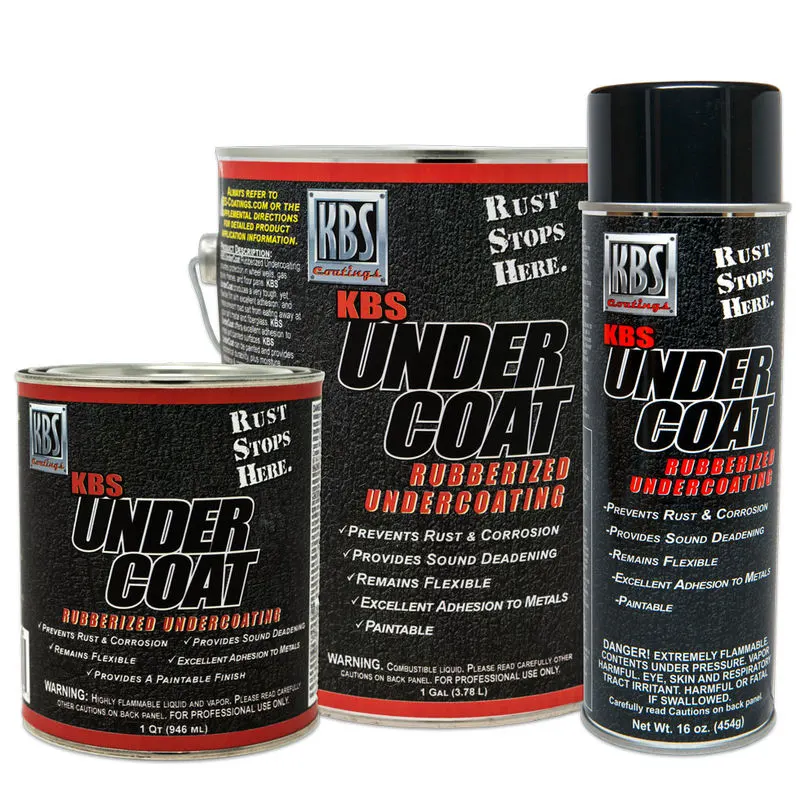

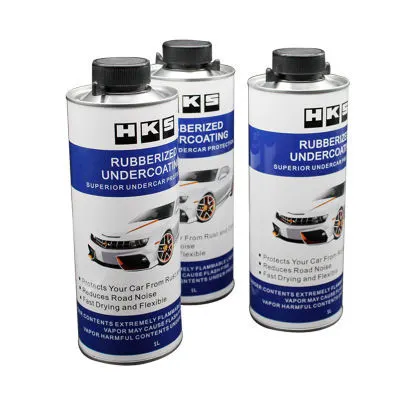

2. Rubberized under-body coating :

• ideals for cars driven in rough terrain as its name suggestes this undercarriage coating involesapplying a rubber agent to the underbelly to protect and cushionat against. dents,dust and moisture.
• it can also be applied around wheel wells and quarter panels considered the best option for standers vehicles.

Advantages:

• Easy to apply.
• Quickly applied with no fuss.
• Undercoat can be painted for a neat finish.
• provides satisfactory protection.
• the simplest way to undercoat your car.
• asfe to apply.
• Turly dries to a soft rubbery finsthat prevents further rust damage (or0 moisture seepage.

3.Polyurethane Under-body Coating:

• Usually polyurethane-based sealant that comes in canisters ready to be loadedinto a spray gun and sprayed to guard the undercarriage of your vehicle.
• The polyurethane used is a high quality and durable material that is perfect that is perfact for anty weather condition. it is for standerd vehicles.

Advantages:

• it has long lifespan and it's resisitant to wear an tear.
• Easily and quickly applicable.
• trickles into crakes and rusty spots present already presents on the underbelly of your car and fills them,hence protection the underlying metal.
• Quickly and simple to remove as it sands easily.
• Can be painted over.

Disadvantages:

• For better adherence needs undercarriage,needs undercarraige preparation before application.
• Requires time- consuming etching with primer to bare metals.

4. Asphalt-based under-body coating:

• unlike the rubberized wax-parrdfin basded and polyurethane undecoating this tybe is made of asphalt and generaly also contains some rubberized material that sets up firmly and helps saften from the engine .
• it rreportedly has the most damage resistant properties although asphalt-based undecoating is ideal for trucks,militory and all-terrain vehicles,it will also helps protect your car,truck,motorcycle,and heavy manchinery from the elements.
• it is aong and best for endurance vehicle that have to undergo heavy roads use.
• Whwn it comes to large trucks.heavy machinery,military and all-terrains vehicles,asphalt-based undercoating provides added durabilty aginst rockes chips and moisture .it's usually available from professional services shops.

Advantages:

• Formulated to protect from dirt,rust and corrosion it normally has a shelf life if up to two years sold in five-gallon containers.
• provies extra durability as it is the strongest and thickness undercoating available.

Disadvantages:

• it takes time to harrden and so requires mor cure time than the other three types .
• unike the other three it id also not panitabe as such not very aesthetically suitable for standerd vehicles.
• For best used only for the undercarriage of utility vehicles and trucks.
• The only type undercoating eith a limited warranty.

5. Water-based Undercoating:

• water-based nudercoating is a prodective layer helps your car stay protected from harsh weather condition .it is made from an advandced polymer that is non-taxic and envirmentally frindly.
• The protect can be applied to any surfsce including ,metal,plastic,rubberand glass it will keep your car protected from rust sait and moister. The under coating provides a prodective barrier that last for only a year depending on where you drive your car.
• when it comes to DIY (DO it yourself) undercoating this type is most popular coming in an aerosol canit can be purchased from automotive shop This ptoduct is easy to apply and can be done in a single day.

Advandages:

• Thin-set,it takes a short time to dry.
• can be done at home.

Disadvantage:

• It requires frequent repetition as it's not very durable.
• It cannot repel ice and water like petroleum-based undercoating.

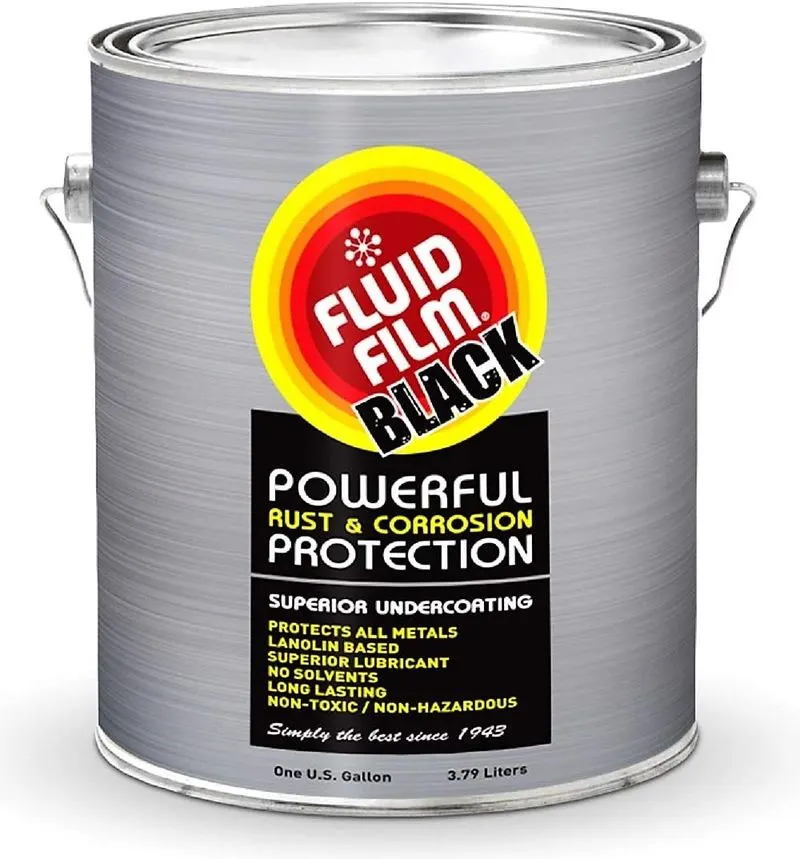

6. petroleum-based Undercoating:

• petroleum based undercoating is a heavy ,viscous oil-based liqued protect that provides an effective barrier against moister and corrosion.
• The liqued dires and hardness to provide though,durable and long-lasting protection against moister and corrosion. this is typically applied to the undercoating of automobiles,trucks and other vehicles.
• petroleum-based undercoating can be purchased from your proffesional vehicle servicing shops.

Advantages:

• Has greater deflective abilities for road salts and grime.
• repels ice and water because of petroleum base.

Disadvantages:

• Requiers annual replacement.

THANK YOU
