Tool Test-2

Tool Test 2 Video

AIM :

For the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

S.No	Quality Criteria	Value
1	Target/Average length	3
2	Minimum Length	1
3	Maximum Length	5

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

S.No	Quality Criteria	Value
1	Tet collapse	0.2

PROCEDURE :

* Import the ansa model into ANSA software

* do a Topo and a geometry cleanup to the model

* Defeature all the unnecessary features before meshing

* Give the max and min length in quality criteria by pressing F11 and average/target mesh in mesh parameters.

* Use ortho tria for the curve curved surfaces and tria for the rest of the surface

* enter the V.Mesh module and define the volume manually.

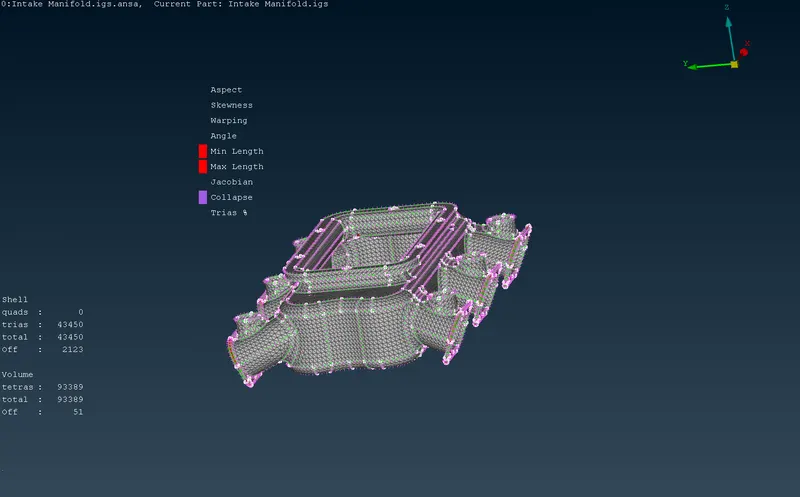

* Perform a tetra rapid/tetra FEM on the model.

* Check for tet collapse and fix the quality by Fix. Quality tool
