Tool Test-2

Aim: Deals with the development of a forward energy-based fuel consumption model of a conventional vehicle.objectives:Tabulate the fuel economy numbers (kmpl) for UDDS and HWFET cycle. This forms the baseline numbers for comparing with the future hybrid version.b. Plot the time trace for engine, transmission input, transmission…

AIM: To write a test plan test the feature of new mobile phone that needs to be implemented as per the requirements.Black-Box testing:Black-box testing is a method of software testing that examines the functionality of an application without peering into its internal structures or workings.Black Box Testing mainly focuses…

1.Prepare a table which includes materials & chemical reactions occurring at the anode and cathode of LCO, LMO, NCA, NMC, LFP and LTO type of lithium ion cells.Give your detailed explanation on it1.Lithium Cobalt oxide:Lithium Cobalt Oxide (LiCoO2) is a mature battery technology, characterized by a long cycle life…

Aim: In this project, we are reading the excel file into the MATLAB program. perform the interpolation in the range of -17.3:0.1:0.9 Generate the interactive plot for the interpolated data and store them in a text file. R=xlsread('VI'); % to read the excel v=R(:,1); % voltage data seperating i=R(:,2); % current data…

Fundamentals of Electrical System & Electrical Architecture 1 . Identify each of the major elements in the above automotive wiring diagram.  Battery : To supply electricity to the electrical systems in the circuit. Starter:  The starter motor give the crank shaft initial torque to start rotating. Ammeter:…

Objective: 1. To mesh the given bumper assembly with a mesh size of 6mm 2. To carry out simulations on the given crush tube model, so as to compare results as per the following requirements for each case: Run the crash tube model as it is. Change the Inacti=6 and run. Create the type 11 contact and run. Remove both notches…

Objective - To analyze different types of materials' properties and compare their results with the same boundary conditions. Law 2 (file: FAILURE_JOHNSON_0000.rad) - base simulation. Law 2 (file: FAILURE_JOHNSON_0000.rad) with Ifail_sh = 1, Dadv = 1, and Ixfem = 1. Law 2 (file: starter file for case 2) with fail/JOHNSON…

Objectives:The primary objective of this assignment is to compare two simulations with different shell element properties. The comparison would be between the one with default properties and one with the following properties.Parameters  Comment Ishell =24 QEPH 4 nodes shells are best combination…

Aim: To study the Starter file and Engine file in the RADIOSS user profile Change the parameters according to the requirement in Starter and Engine files Create Tetra Mesh for housing component and solve Tet-Collapse Create Hexa Mesh for Arm Bracket OBJECTIVES: 1. Check the material properties of the rail component and…

 Objective: To mesh the given components as per the given criteria after geometry cleanup and midsurfacing. The three components are: Practice Component Clip Repair Mounting Bracket The 2D mesh is to have a target length of 5 mm with a minimum of 3.5 mm and a maximum of 7 mm. The thickness will also need to be assigned…

Aim: To mesh the given rear suspension model in both 2D and 3D (according to the given quality criteria) after checking for and clearing geometrical errors. Also, to deploy appropriate connections as required between various parts of the assembly after which the model is symmetrically replicated using the reflect tool.…

Some of the elements are failed due to the feature capturing. Time taken: 4.5 hrs

Aim: To the given dashboard component, check for geometrical errors and mesh with the given element Quality criteria. After meshing the component the thickness has to be assigned. Quality criteria: S.No  Quality Criteria  Value  1 Target/Average length   4 2 Minimum Length  2 3 Maximum Length  6 4 Aspect  3 5 Warpage 15…

Aim:  There are several goals for this challenge, among them: 1. To apply the morphing techniques covered in the week 8 video to the Model-1 sheet metal part that has been provided. 2. To modify "Model-2" by raising the ribs and doghouses indicated in the next screenshot. Procedure: 1. We must "prepare" the component…

Aim: For the given Rear door FE model, Create and Apply different PIDs for different components. By using the same technique and the elements as shown in the video, Perform suitable connections.  Procedure: 1.  Firstly, in order to set up the more complex connections for the challenge, it is important to…

 Aim: For the given Plastic Bottle Cap model, check for the geometrical errors and take the mid surface by suitable mid surfacing techniques. PID and Thickness assignment has to be done for all the mid surfaces. Mesh the same with given element Quality criteria. Objective:  The given bottle cap has a various…

 Aim: To mesh the given rear view component and check the given quality criteria. Also perform the solid meshing by using tetra elements and check for the tet collapse. Procedure: 1. The beginning step is to check the topo of the given component. Topo is used to solve any single cons and any free edges are present in the…

Aim: For the given Hood model, Take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given element Quality criteria. Objective: for the given hood model check the geometry and take the midsurface and create a new PDI. mesh the extracted midsurface with target…

Objective : Obtain the proper mid surface of the given side door panel. To mesh the given side door panel with a target element size of 4mm and also element should pass the all quality criteria which was mentioned as per the requirement.  finally, apply the thickness to the component according to their varied thickness.…

Objective: To mesh the given panel geometry by extracting the mid surface, along with that have to maintain a proper mesh flow and low tria concentration. The elements should pass the given quality criteria. main CAD model:  Quality criteria: S.N Quality Criteria  Value  1 Aspect Ratio  5 2 Skewness 45 3 Warping 15 4 Taper …

Aim: To mesh the component with given quality criteria and create a connector and Attach the various parts of the given model.  Objective:  To mesh the component with suitable quality criteria. create connectors and attach the various parts. Procedure:  1. import the model  import model -    2. geometry clean-up by using…

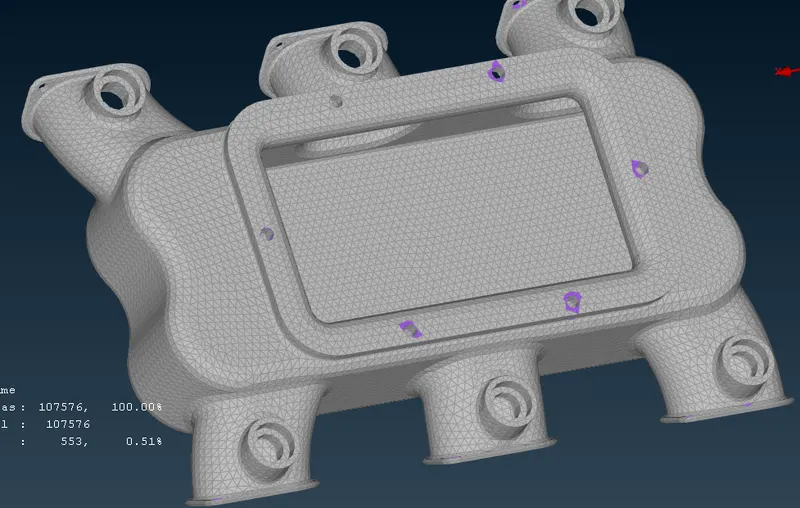

Aim: to create a 3d tetra mesh for the given models as per the given quality criteria. objective: To create a 3d tetra mesh for the given models .for each model has its own quality criteria. basic procedure for model1 housing 1. import : select import model 2. geometry clean up and 2d meshing after importing of model check…

Aim: Create a Rankine Cycle Simulator using MATLAB. objective:  To calculate the state points of the Rankine Cycle (any type of your choice) based on user inputs.  Then, plot the corresponding T-s and h-s plots for the given set of inputs. Title and axes labels are a must, while legends could be used if…

Aim: To study the genetic algorithm and calculate the global maxima for the stalagmite function using the genetic algorithm in Matlab.  objective:  1. To write a code in MATLAB to optimize the stalagmite function and find the global maxima of the function.  2. plot the graph for all the conditions.…

Aim: To mesh the given component with the given criteria and apply the thickness.  objectives: The main objective of the project is to mesh the given component as per the criteria. use the quad element for the meshing.  Procedure: Import the model. by checking the type of file it was. Delete the solid from the component.…

aim: To Mesh the Given component with the Size of 5 Units and Create 1D elements on the following component with the given cross-section and DOF. objectives:  To mesh the given model with given element size. To create the 1-D element for the component with specified degrees of freedom. 1. import the geometry : after…

https://youtu.be/dpLyeStToks clear all close all clc % inputs b=0.05; %damping co efficient l=1; %length of pendulum m=1; % mass of ball g=9.81; % acceleration due to gravity %initial condition theta_0=[0;3] % angular displacement and angular velocity % time points t_span=linspace(0,20,500) %ode solution [t,result]=ode45(@(t,theta)ode_func(t,theta,b,l,m,g),t_span,theta_0)…

  output https://youtu.be/V8_RksJyJXk  clear all close all clc % inputs l1 =2; l2 = 1; theta1=linspace(0,90,5) theta2=linspace(0,90,5) ct=1 for i=1:length(theta1) THETA1=theta1(i); for j=1:length(theta2) THETA2=theta2(j); %co-ordinates x0=0; y0=0; x1=l1*cosd(THETA1); y1=l1*sind(THETA1); x2=x1+l2*cosd(THETA2);…
