Tool Test-2

Aim :

To mesh the given component using Tetramesh and to check for the tet collapse in the ANSA software.

Objective :

To mesh the components in 3D meshing by using Tetramesh option and to satisfy the given tet collapse value 0.2.

Procedure :

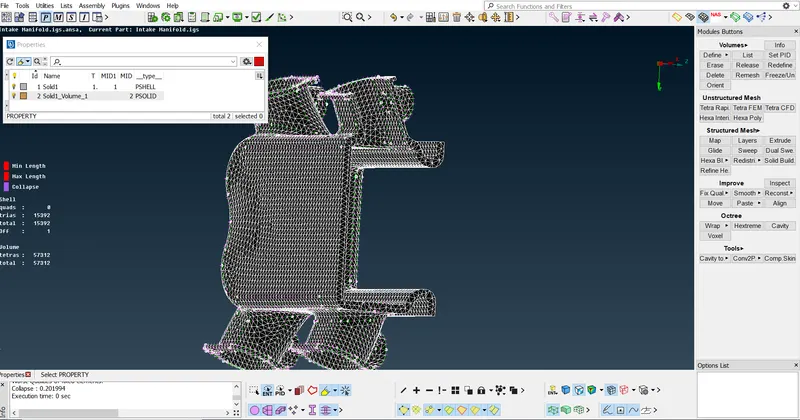

1. Import the model to the graphical workspace.
2. To check the component for geometry clean-up.
3. To apply mesh on the component by selecting 3D Menu – Tetramesh.
4. In volumemesh choose define (volume) - right click and opt remesh - Tetra FEM.

Result :

The meshing of given components is meshed using Tetramesh successfully using Hyperworks software and it also satisfies the given criteria.
