Tool Test-2

Aim

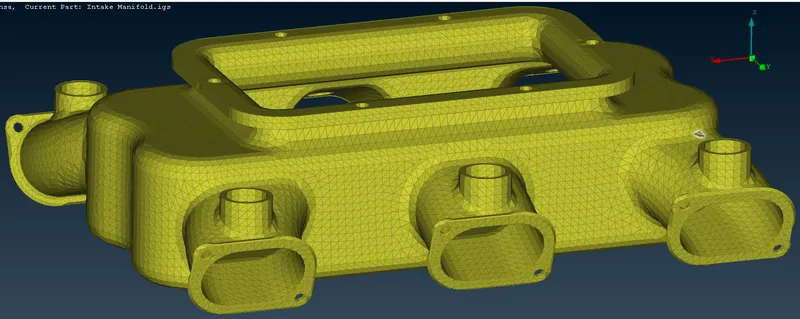

To Do 3d Solid meshing of given component

procedure:

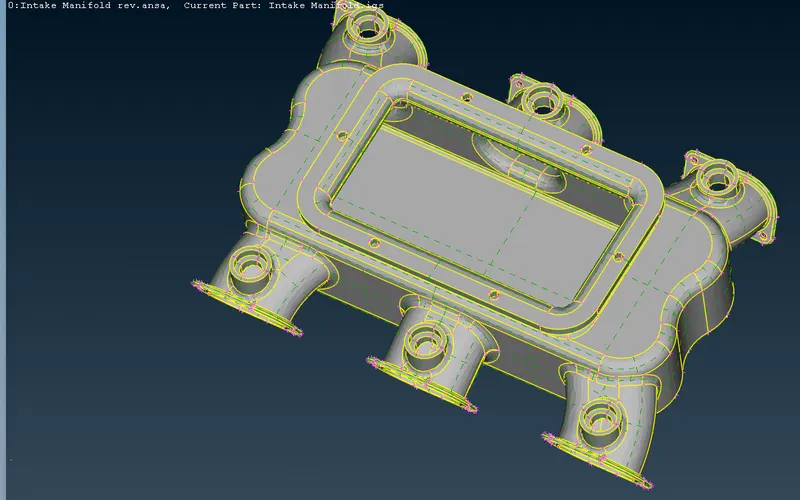

1)Geometry clean up and Topo error check

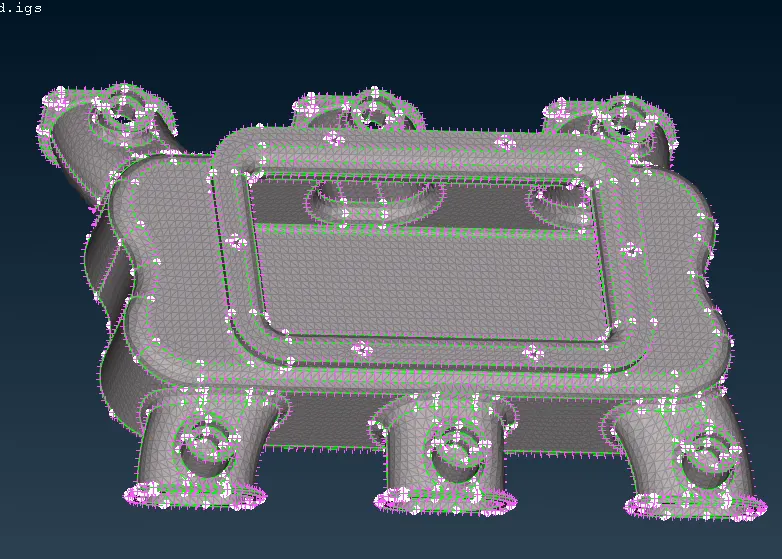

2)2D ortho tetra Shell meshing

Min len:1

Target length:3

max length:5

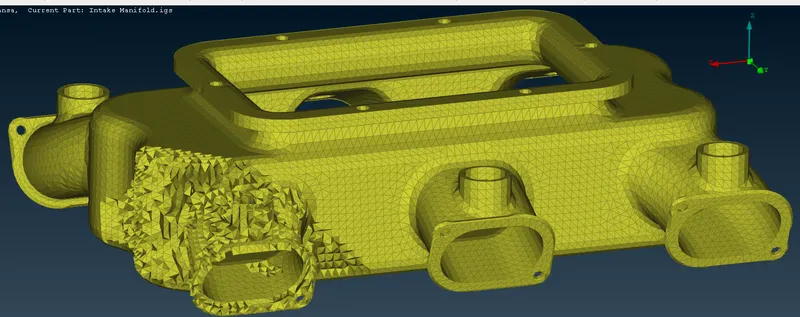

3)3D solid meshing

tet collapse:0.2

4)cut section of 3D solid meshed part

File attached:Intake manifold rev.zip
