Tool Test-2

Aim:

To solve the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

Given data:

S.No

Quality Criteria Value

1.Target/Average length 3

2.Minimum Length 1

3.Maximum Length 5

Given CAD:

Procedure:

¬ Initially import geometry into ANSA.

¬ Clen up the geomertry or else correcting errors.

¬ Then Assign the target value as take a perimeter value.

¬ Then define the mesh parameter and quality criteria.

¬ Now start meshing the fillet and curve faces using ortho tria.

¬ Then flat surfaces are meshed with tria.

¬ A good mesh flow used reconstruction option.

¬ After check the element quality errors and its correction.

¬Now define the volume using define option in volume mesh

¬ After defining volume mesh generate mesh on the volume using tetra rapid.

¬Then check the TET collapse error and correct them

¬ After complete volume take cross section view to get unstructred mesh.

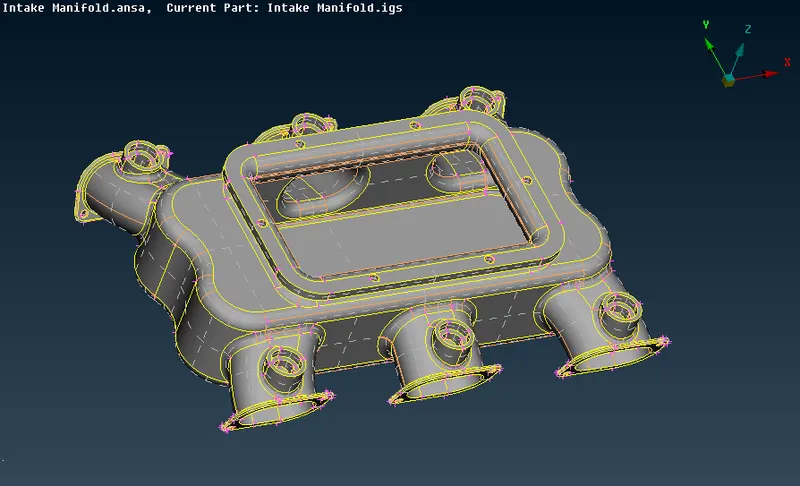

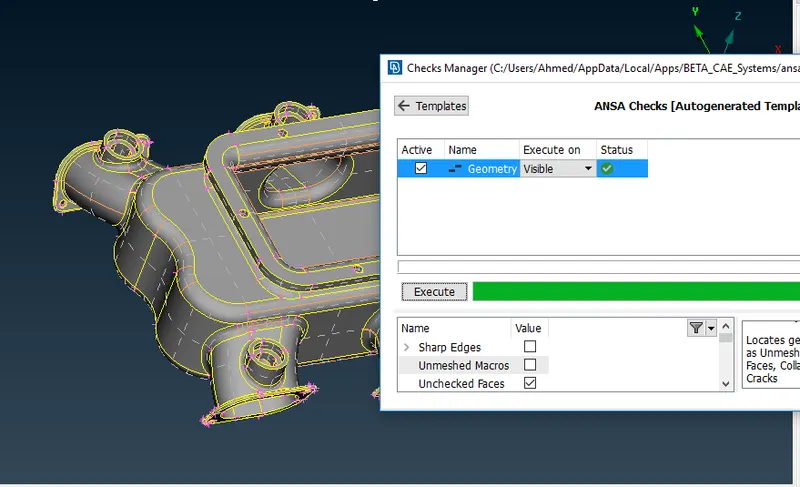

Geometry clean up:

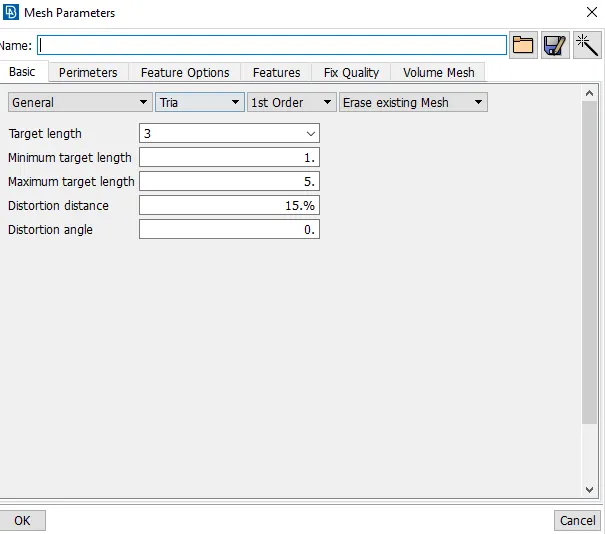

Defining Mesh parameter:

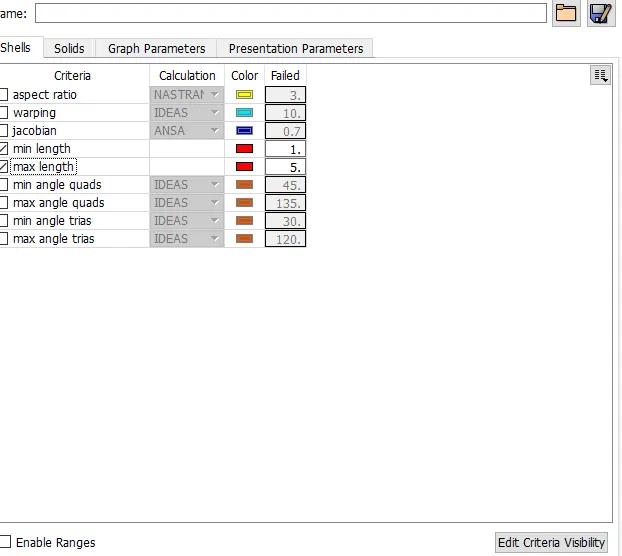

Defining Quality Criteria:

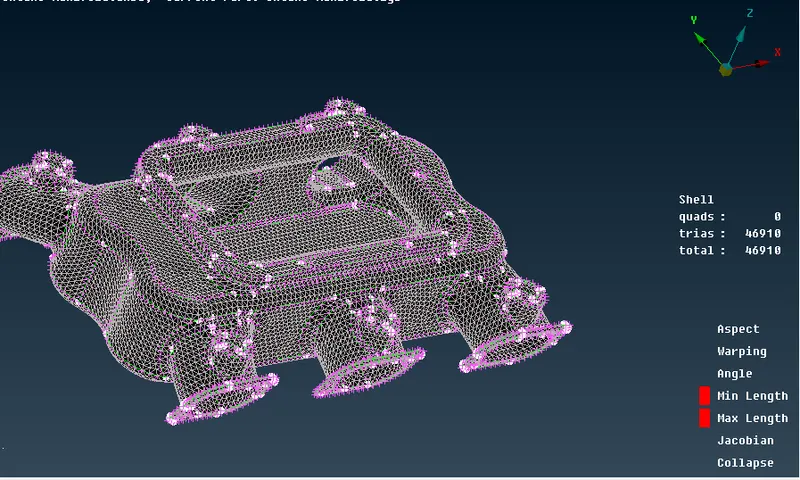

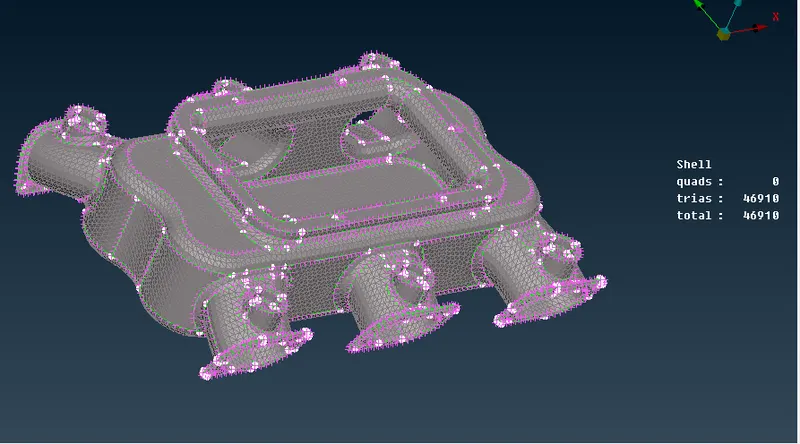

Meshing shell element using ortho /tria

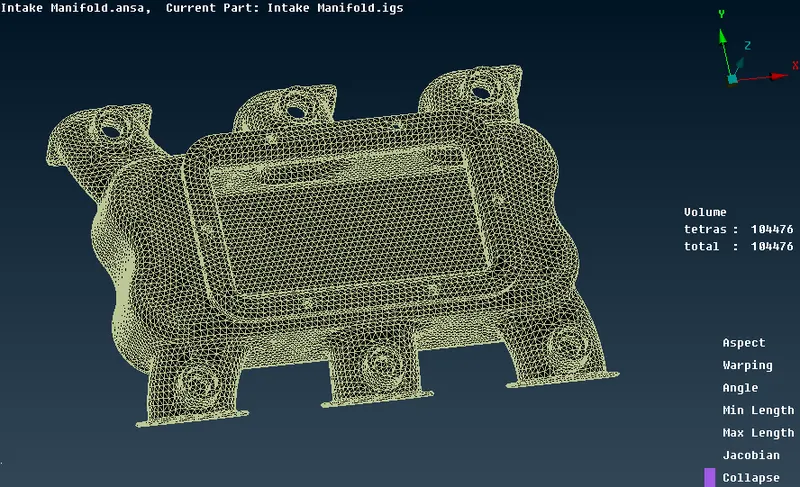

Checking Quality for shell element

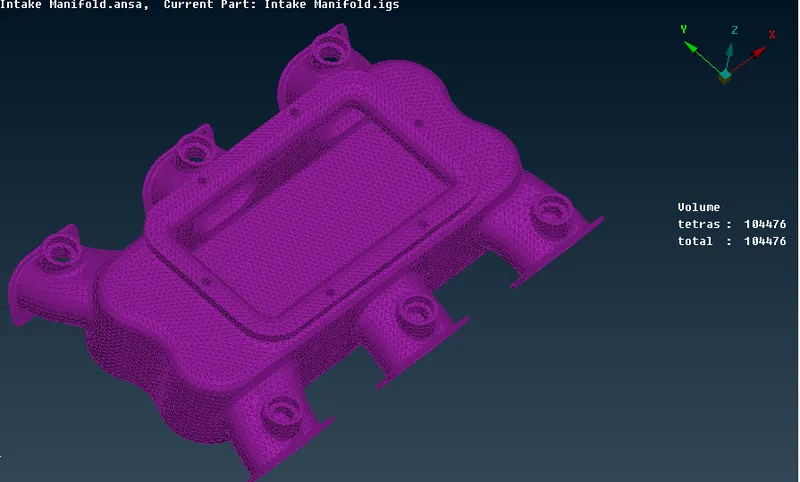

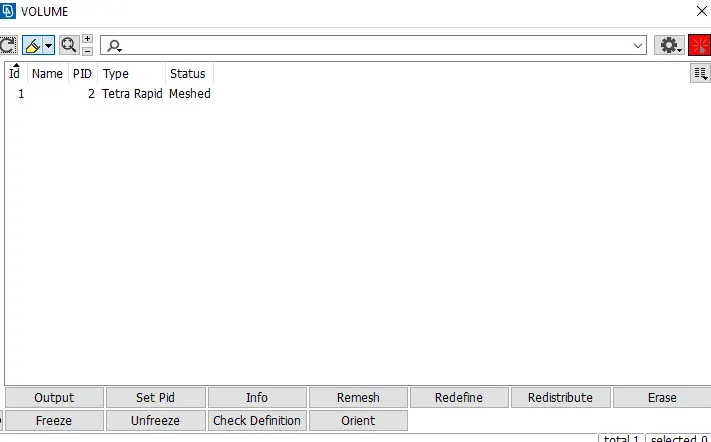

Defining the volume to perform solid meshing;

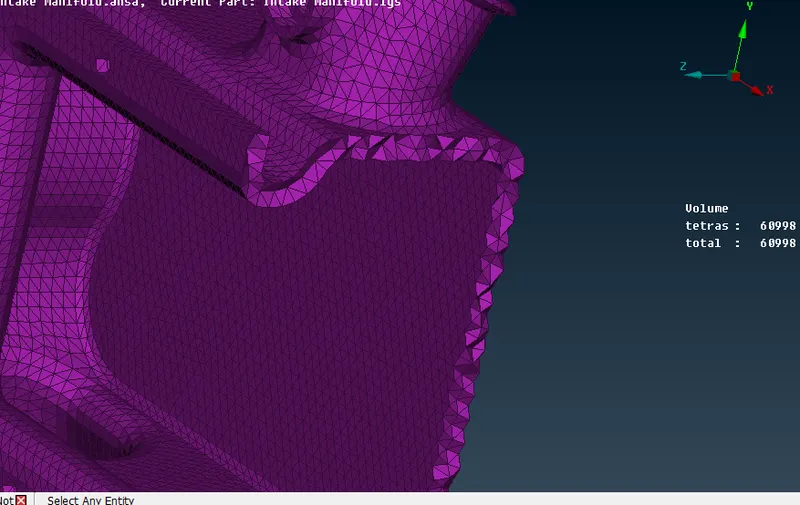

Cross section view:

Conclusion:

¬ Sucessfully complete the shell mesh using ortho/tria option.

¬ extract volume for intake manifold.

¬ Clear all the quality criteria.
