Tool Test-2

For the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

S.No	Quality Criteria	Value
1	Target/Average length	3
2	Minimum Length	1
3	Maximum Length	5

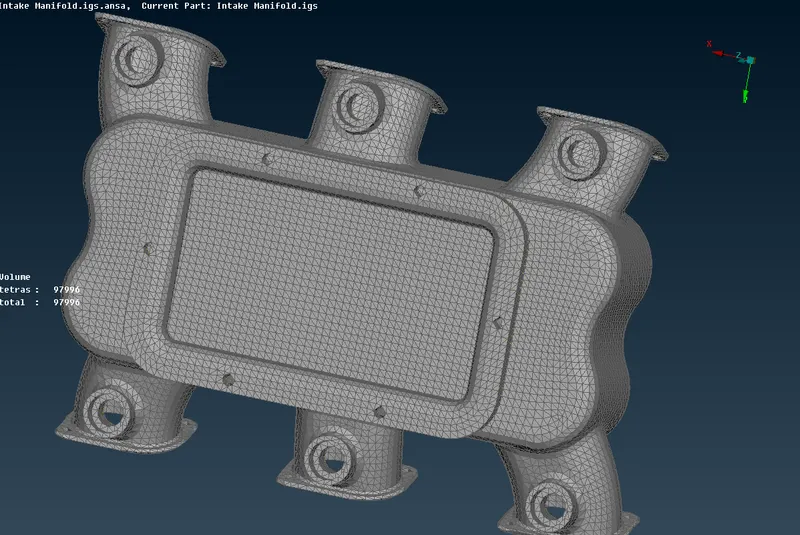

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

S.No	Quality Criteria	Value
1	Tet collapse	0.2

Geometry Checks

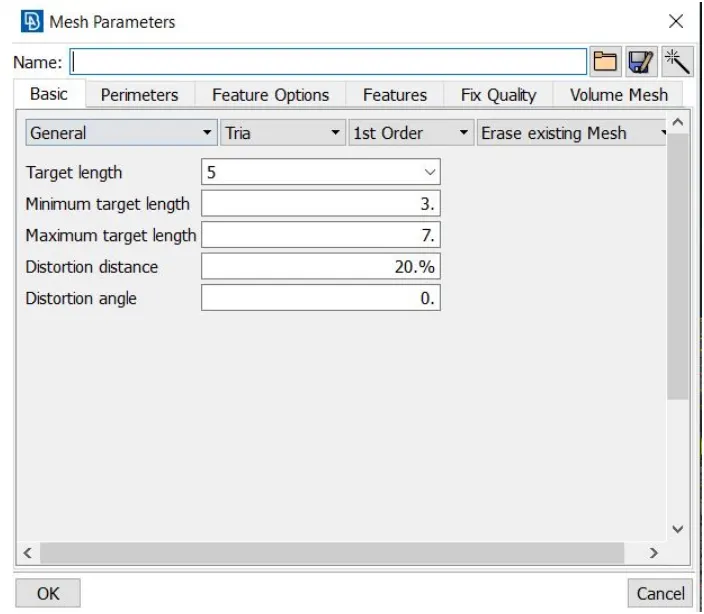

Provide Meshing Parameters

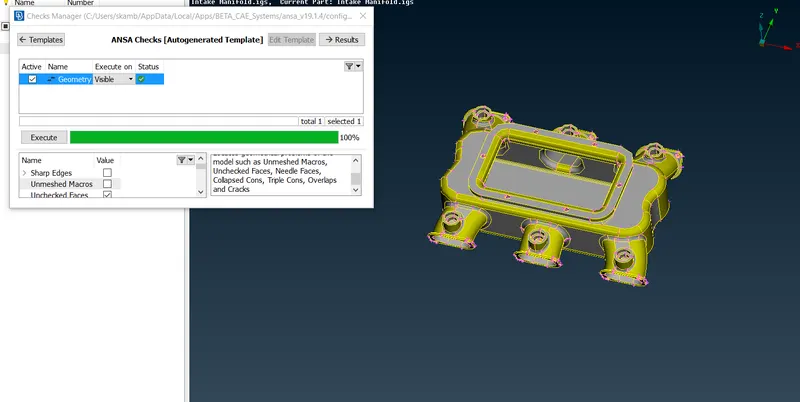

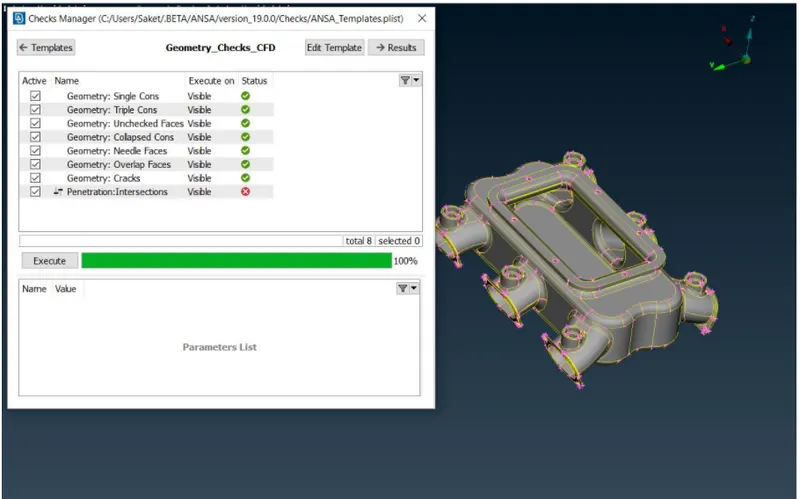

To make sure we have a close volume we have to clean up the geometry by identifying the geometrical errors listed under the checks manager such as single con, triple cons, unchecked faces, Collapsed cons, Needle faces, Overlap faces, cracks and peneteration errors which should be avoided. Cleaning the geometry will help in avoiding errors in meshing.

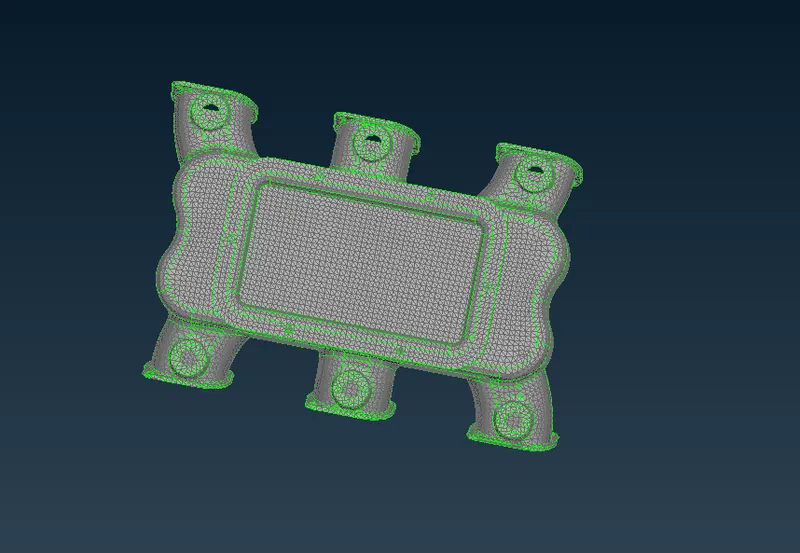

Meshing.

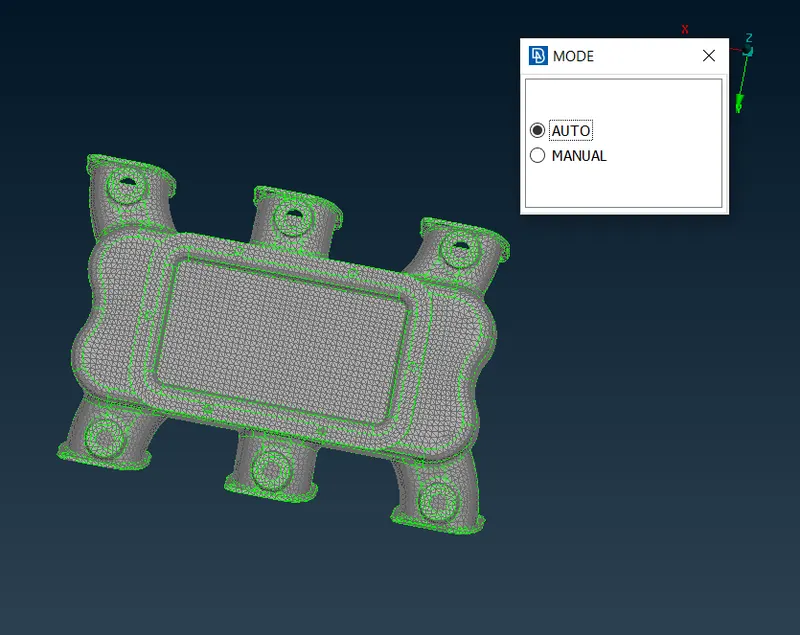

Defining volume

Please see the attached model.
