Tool Test-2
AIM:-

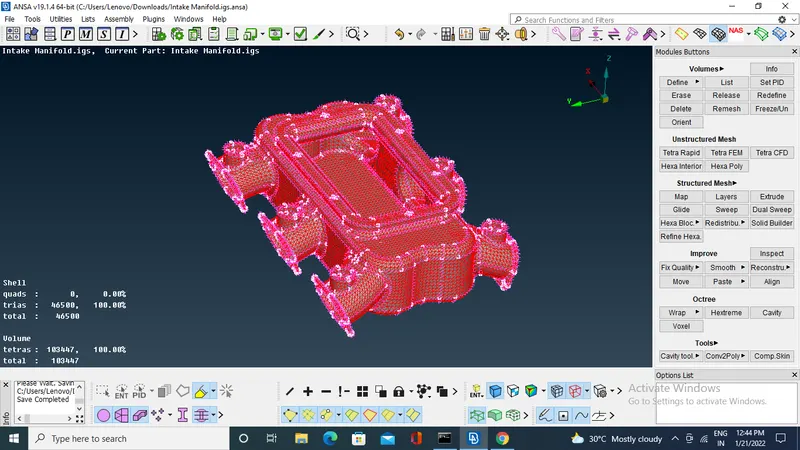

To check for the geometrical errors and mesh the Surfaces of Intake Manifold component and create volume mesh.
Quality criteria for shell mesh
|
S.No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
3 |
|
2 |
Minimum Length |
1 |
|
3 |
Maximum Length |
5 |
Quality criteria for solid mesh
|
S.No |
Quality Criteria |
Value |
|
1 |
Tet collapse |
0.2 |
Conclusion:-
solid mesh is done on the given component.
