Tool Test 1
FIRST MODEL

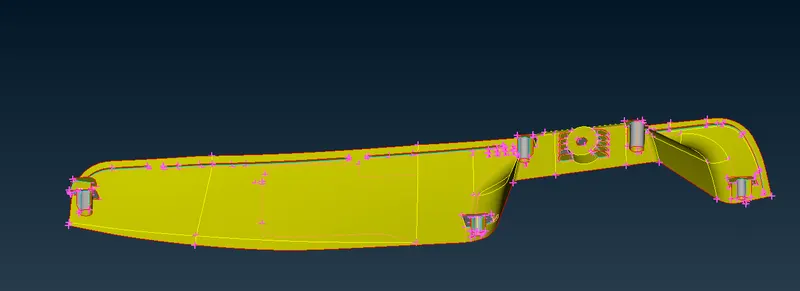

- Given Model
- Quality criteria
|
S.No |
Quality Criteria |
Value |
|
1. |
Target/Average length |
4 |
|
2. |
Minimum Length |
2 |
|
3. |
Maximum Length |
6 |
|
4. |
Aspect |
3 |
|
5. |
Warpage |
15 |
|
6. |
Skewness |
45 |
|
7. |
Jacobian |
0.7 |
|
8. |
Minimum Quad Angle |
45 |
|
9. |
Maximum Quad Angle |
135 |
|
10. |
Minimum Tria Angle |
30 |
|
11. |
Maximum Tria Angle |
120 |
|
12. |
Tria Percentage |
15 |

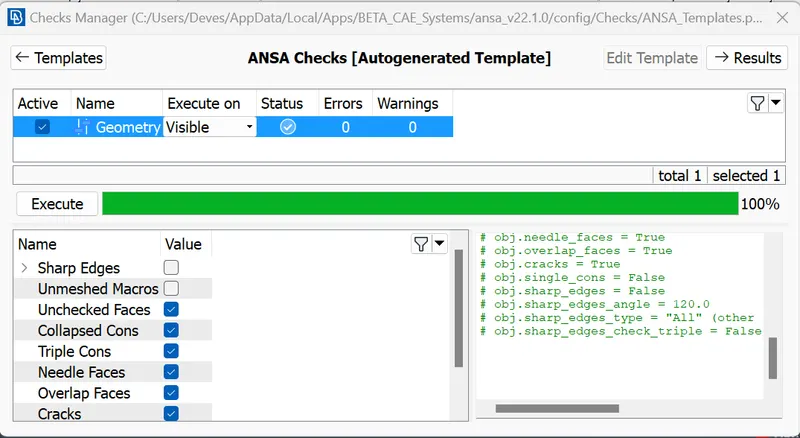

- Geometry check

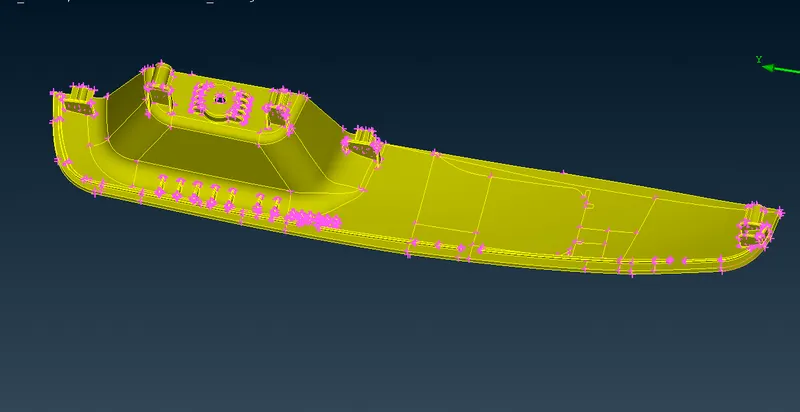

- Mid surface

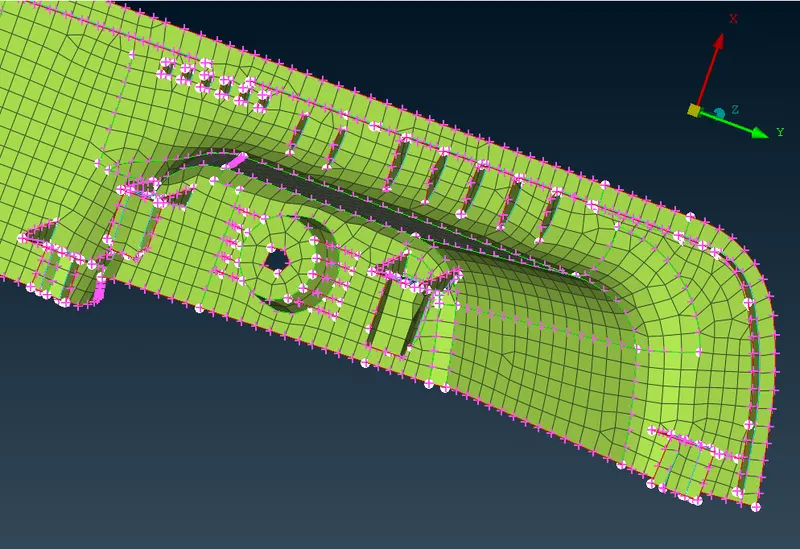

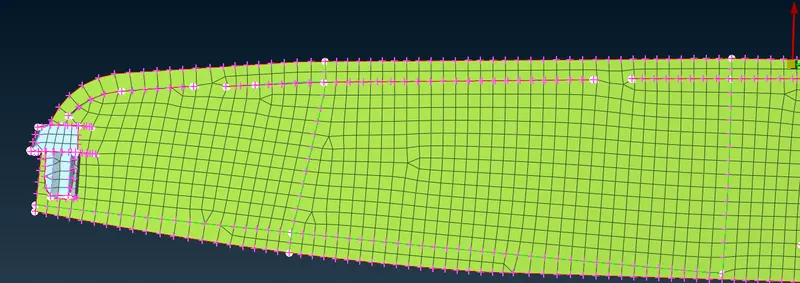

- Mesh

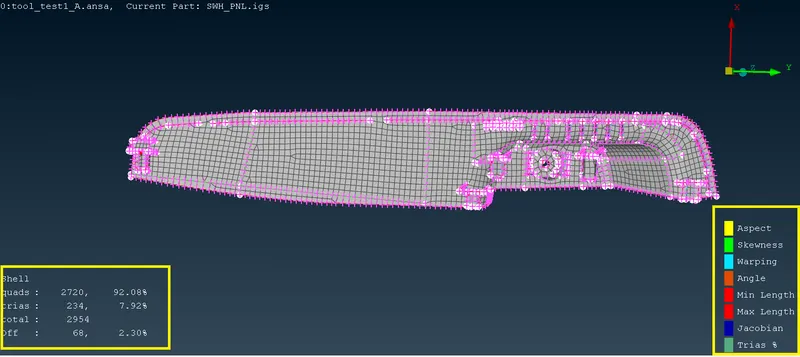

- Result
Time taken by me:- 8hrs.
SECOND MODEL

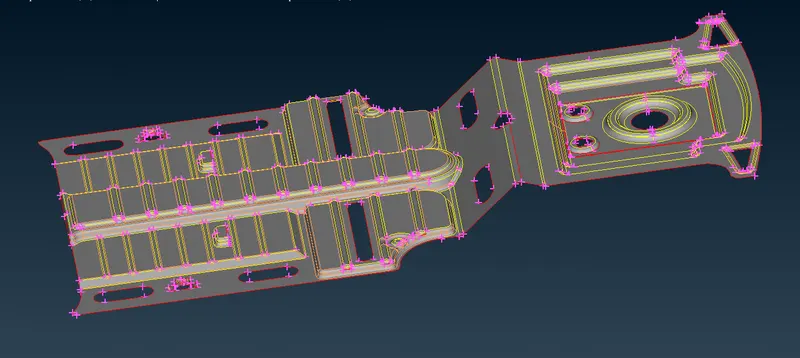

- Given Model
- Geometry check

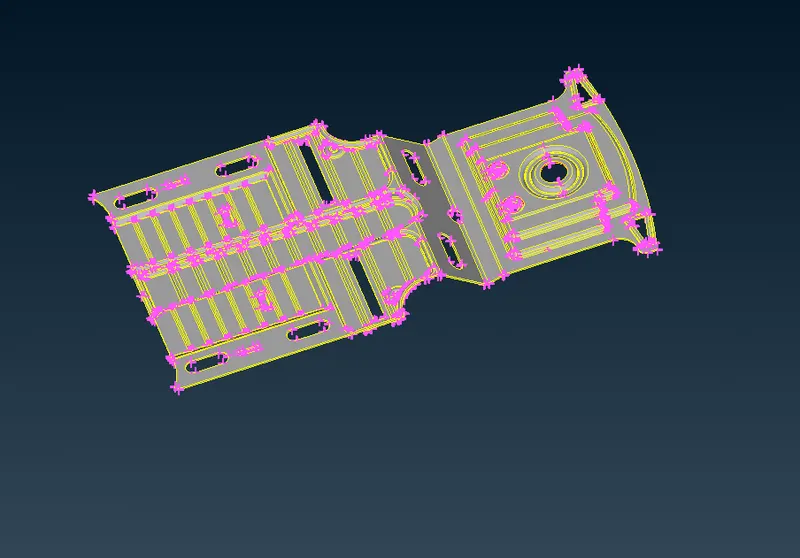

- Mid surface

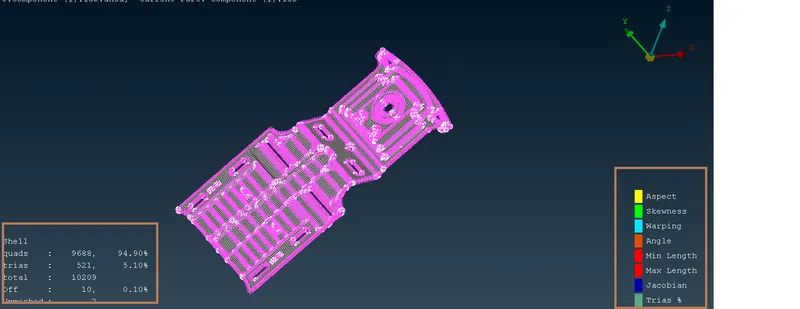

- Mesh & Result
Time taken : 5hrs
CONCLUSION: For Model 1 & Model 2 we Extract mid plane and able to mesh with given quality criteria successfully. Very less number of Elements are fail in Quality criteria.
