Tool Test 1

AIM:-

To generate mid surface and mesh on it of both plastic and sheet metal models.

Quality Criteria:

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

MODEL:-1

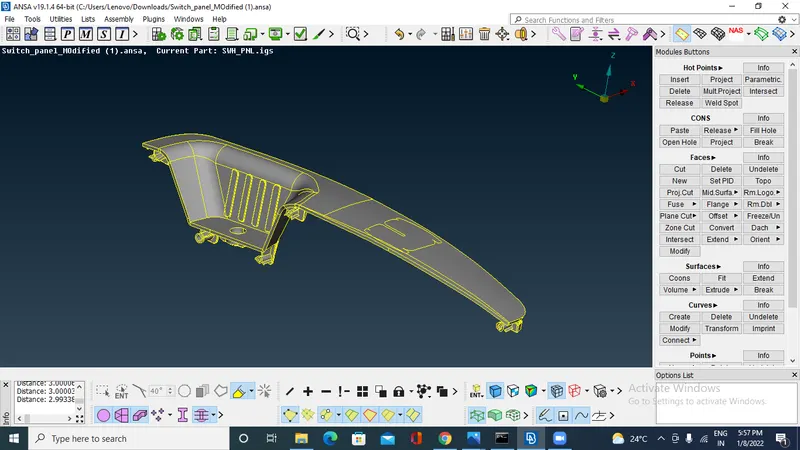

Open the model in ansa.

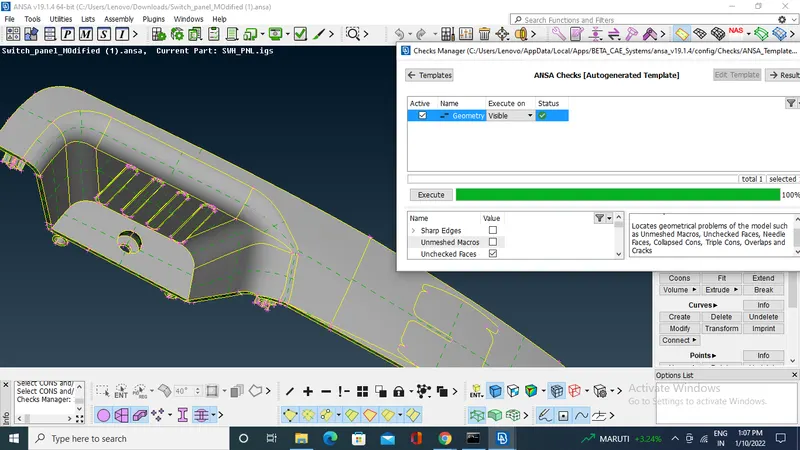

Geometry check for the model.

if have any issues,solving them using autofix

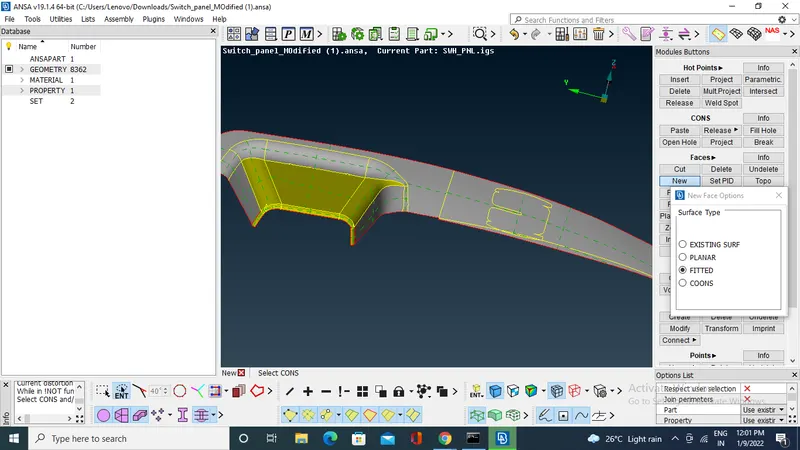

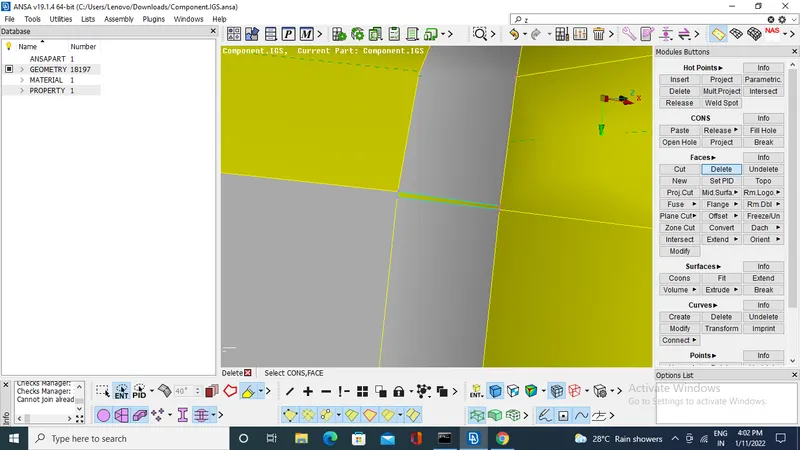

start generating mid surface

using commands offset ,middle .

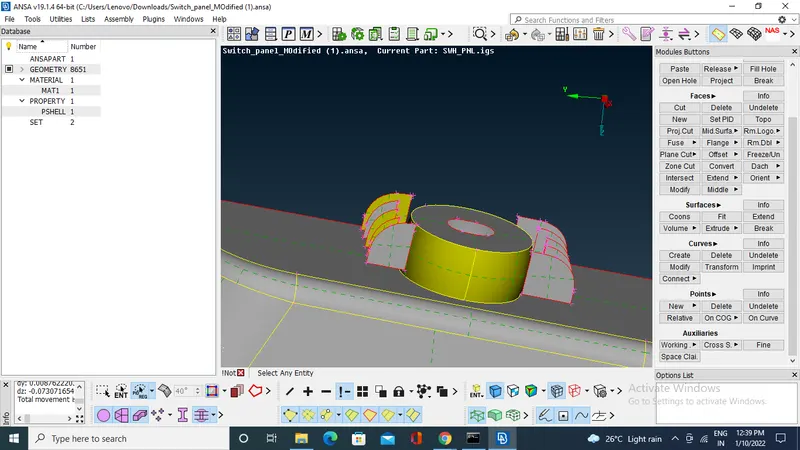

generating mid surface for locators

by middle command and curves generating mid surface for ribs .

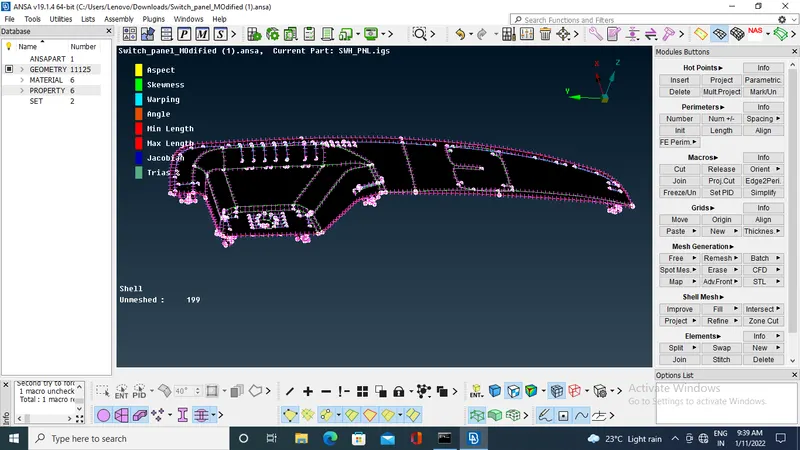

Give the Quality criteria and mesh parameters.

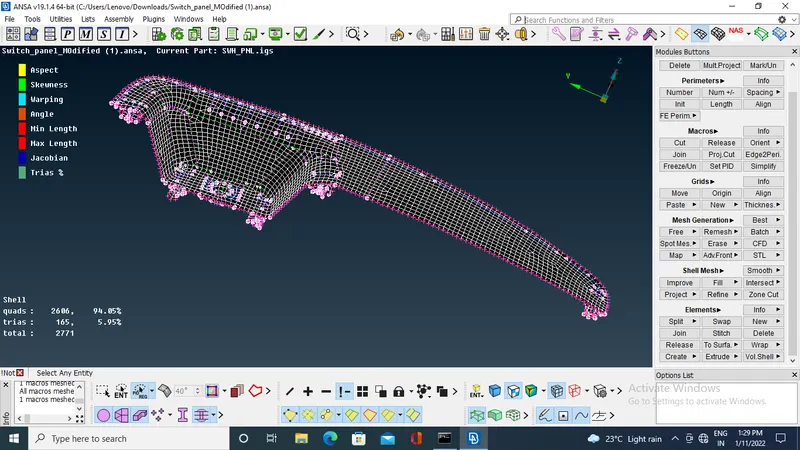

start mesing with best mesh one by one entity

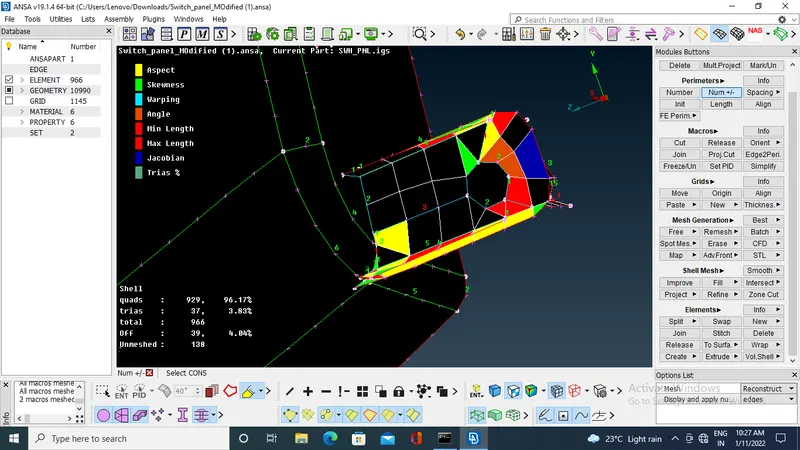

solving the off elements

Time take to complete this model -approx 5 hrs

MODEL:-2

Open the model

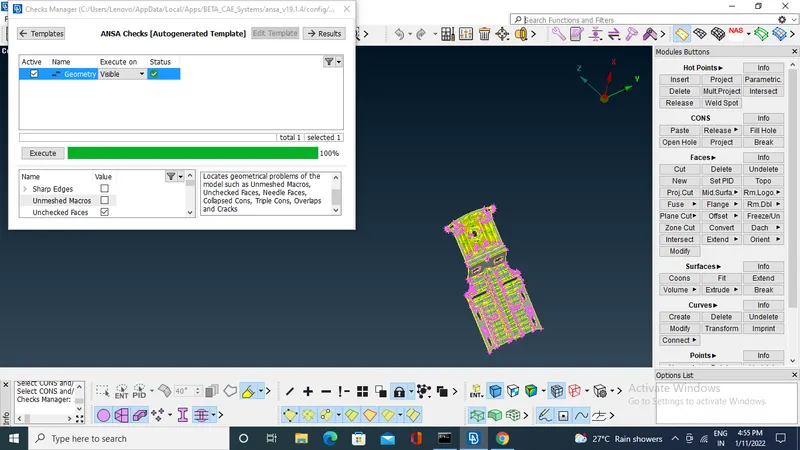

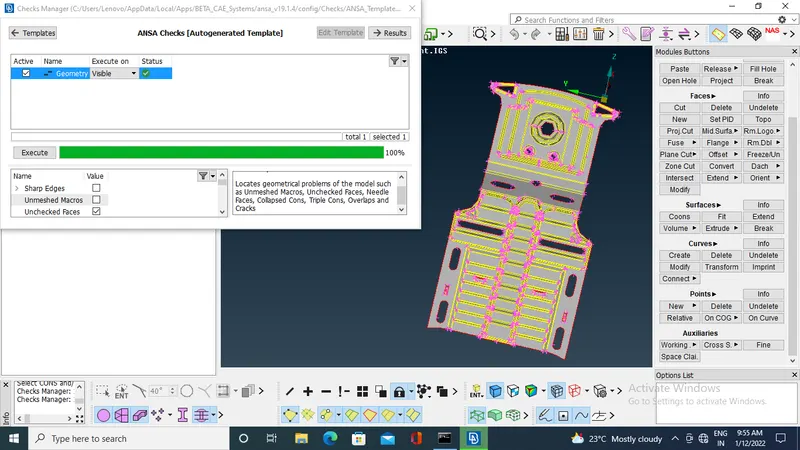

do topo and geometry check

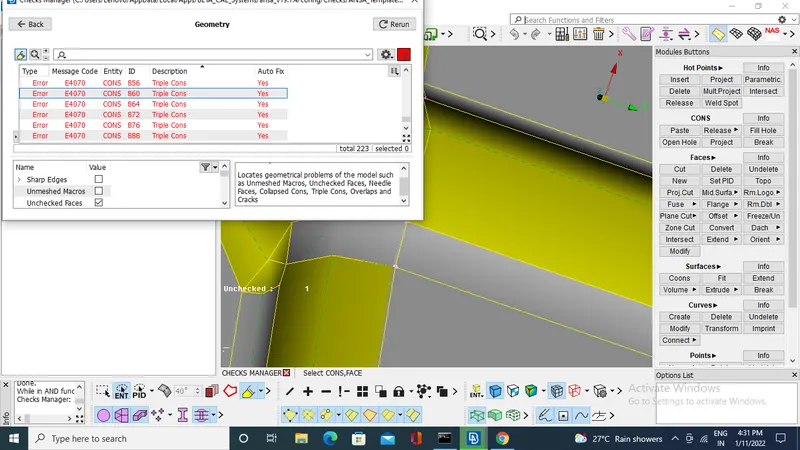

solving the triple cons

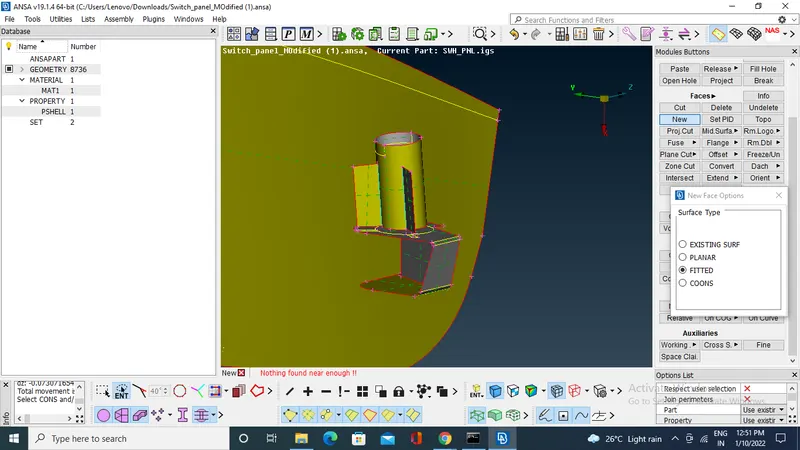

start generating midsurface after completing geometry clean up.

by using offset+feature line.

and do geometry clean up to mid surface .

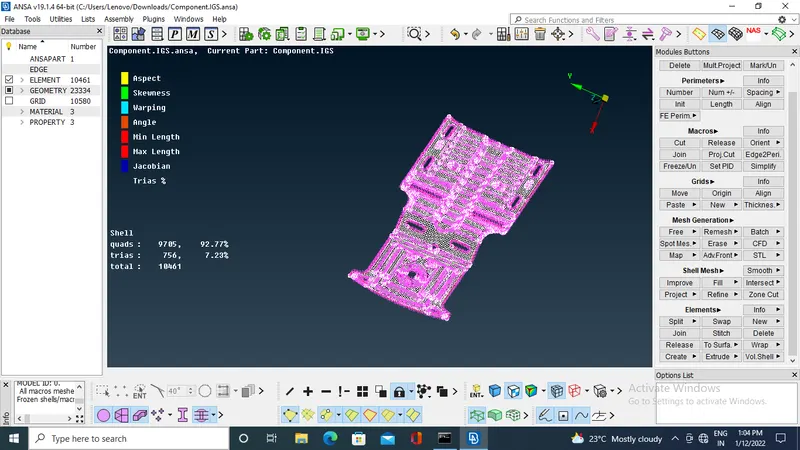

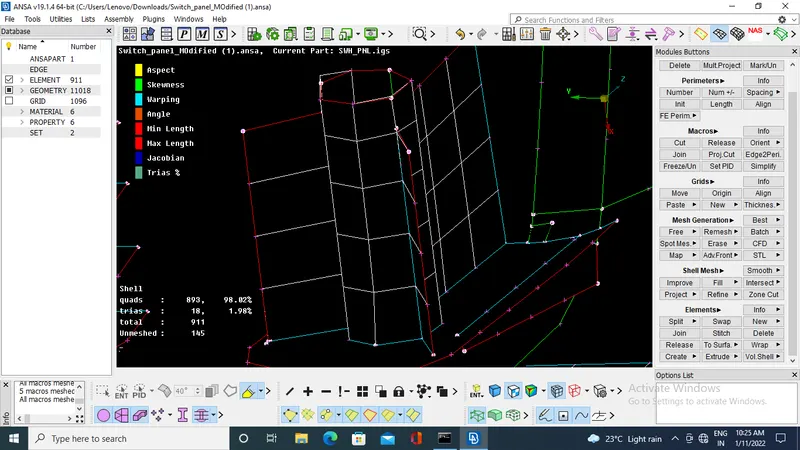

start meshing by using best mesh and bacth mesh

to get proper mesh use smmoth ,reconstruct ect

Time taken to complete this model approx 3.5hrs
