To plan a structural layout and to create grids using TSD

.

• AIM: To summarize the user interface in TSD

• PROCEDURE:

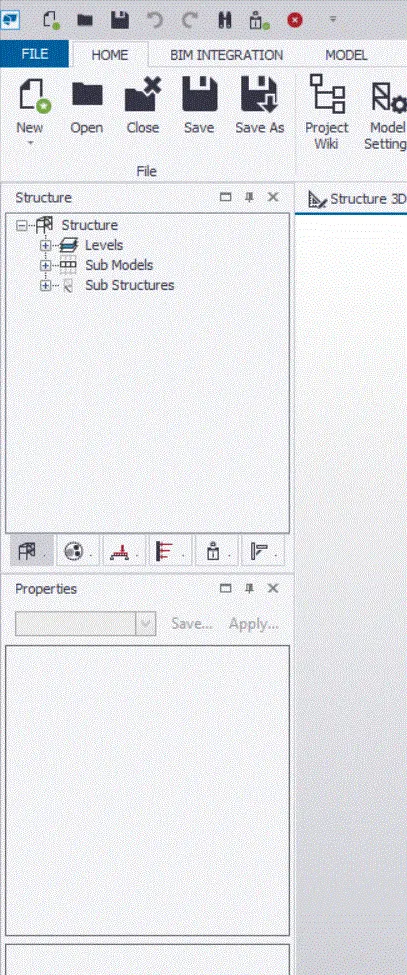

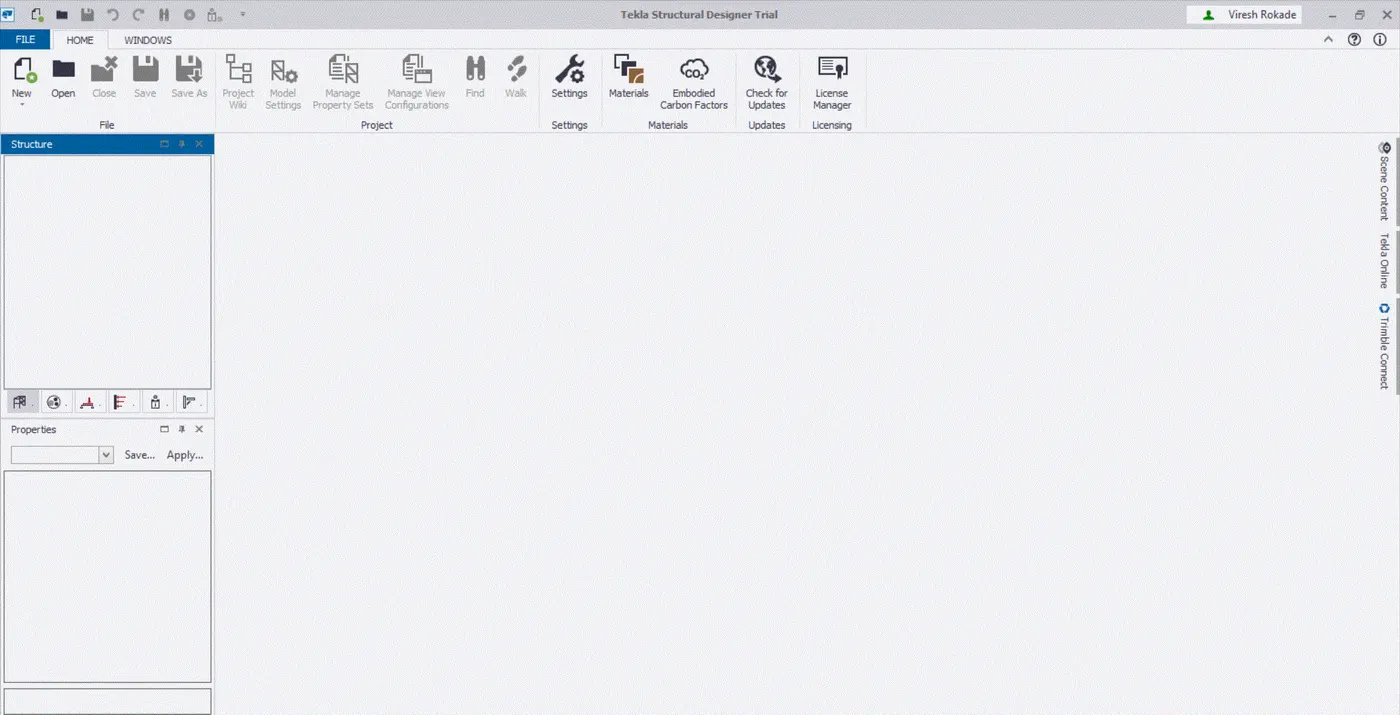

1. Open the tekla software and click on the new option
2. Now project workspace will be visible

• Now demostrate the use of scene content

1. Open the tekla software and click on the new option
2. Now project workspace will be visible

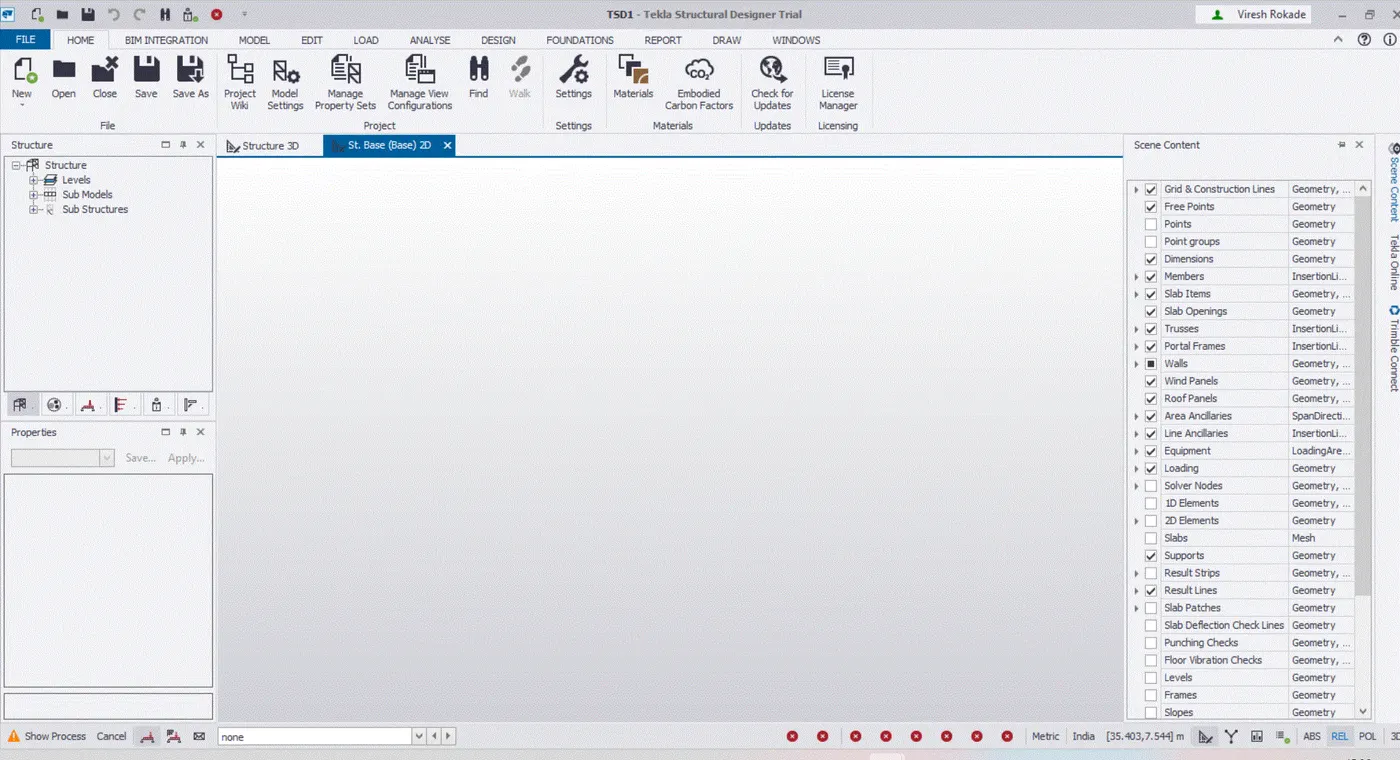

3. Now click on the scene content
4. With the help of scene content we can enable or disablwe the that is applied to the model

• Create two scene views

1. Two scene views can be created with help of isometric cube

• Loading drop down list - How to access

1. Loading drop down list can be seen on left side on the prioject interfence

• Properties windowows - How to acces and usage

1. Select the properties on the left side of the windows

• AIM: To create a new file on TSD and set up the settings for steel building to have member grade FE410 and concrete grade of M30 as per IS  codes

• PROCEDURE:

1. Open the tekla software

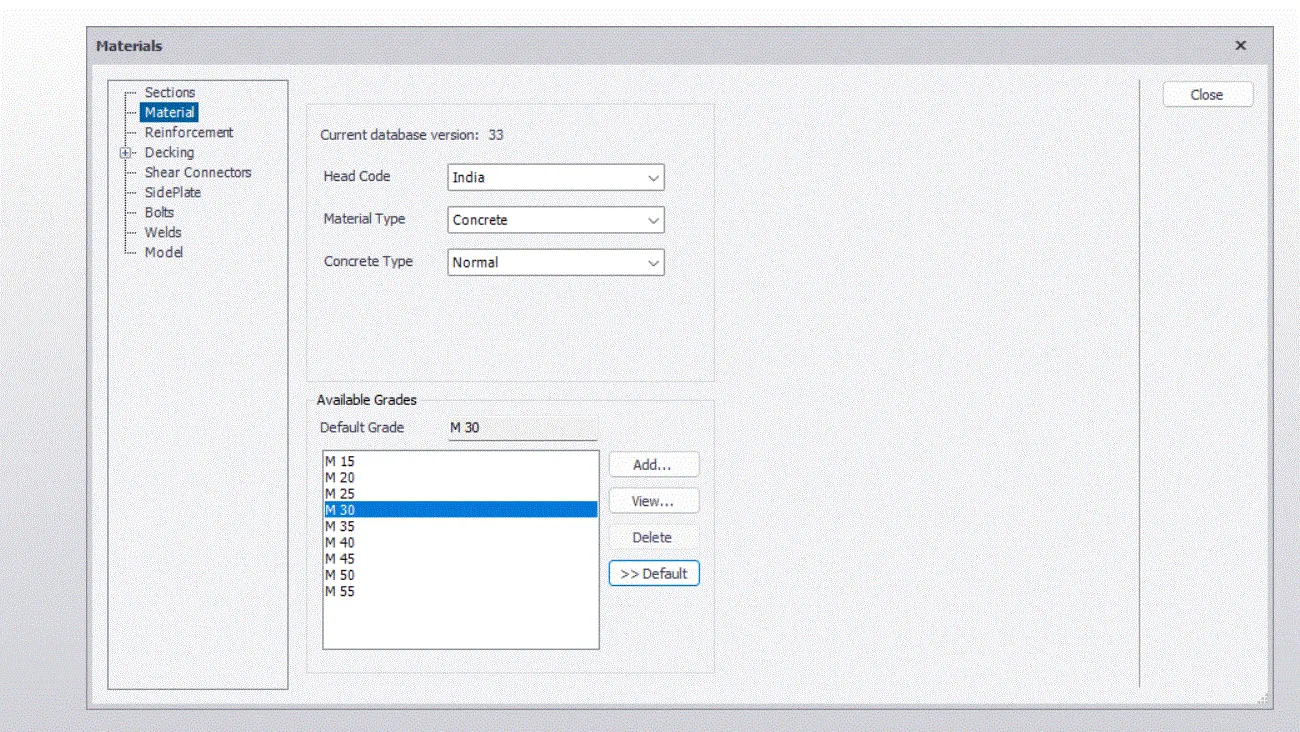

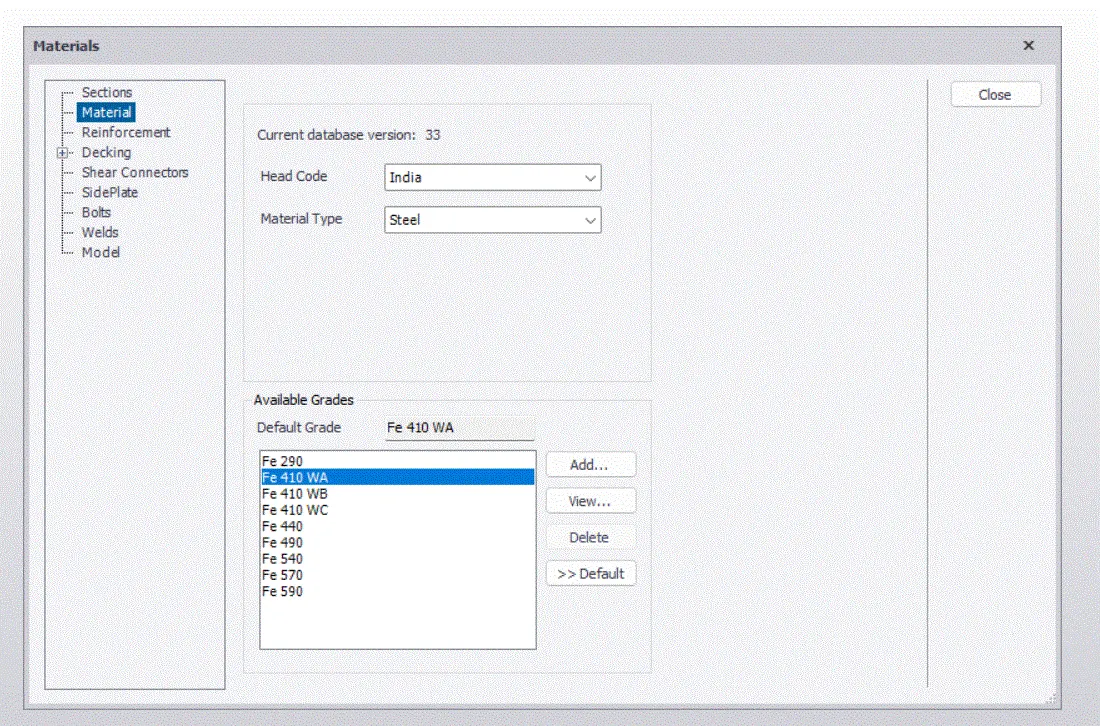

2. Choose the material M30  and FE 410

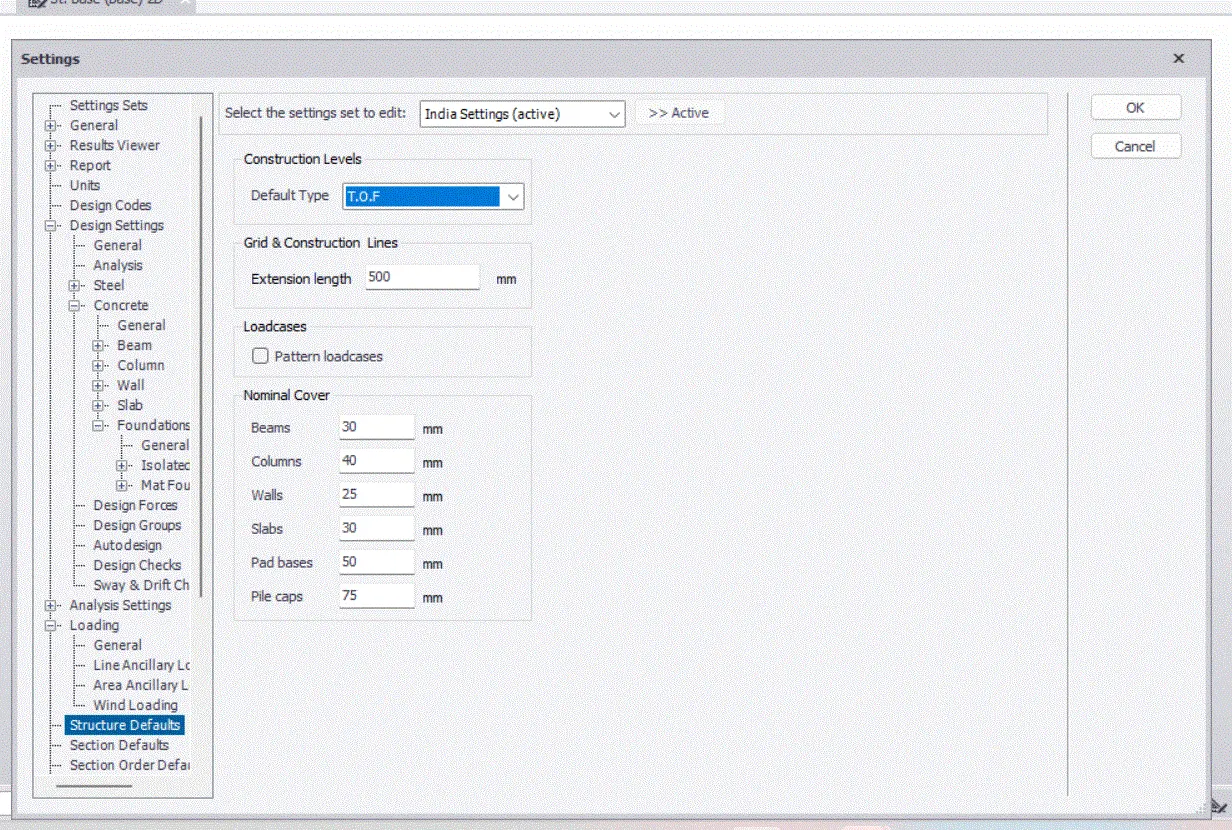

• Now open the settings and set the nominal covers for given member in contact with ground and above ground

• AIM :  To summarize the understanding the plan

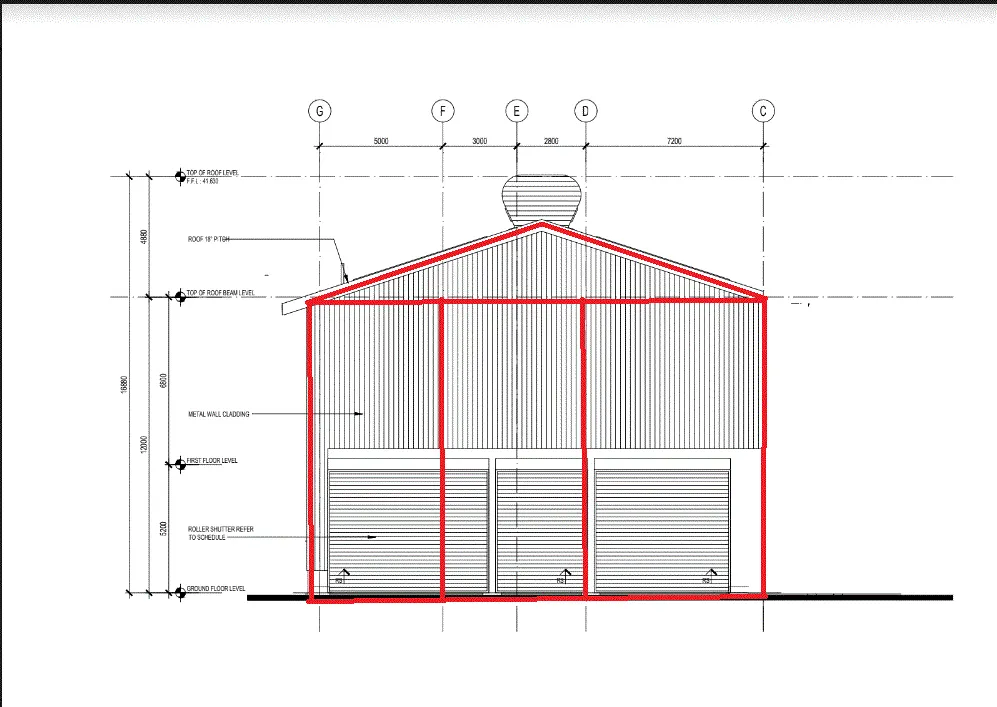

•  Attachment :

•  ATTACHMENT 1.1



•  ATTACHMENT 1.2

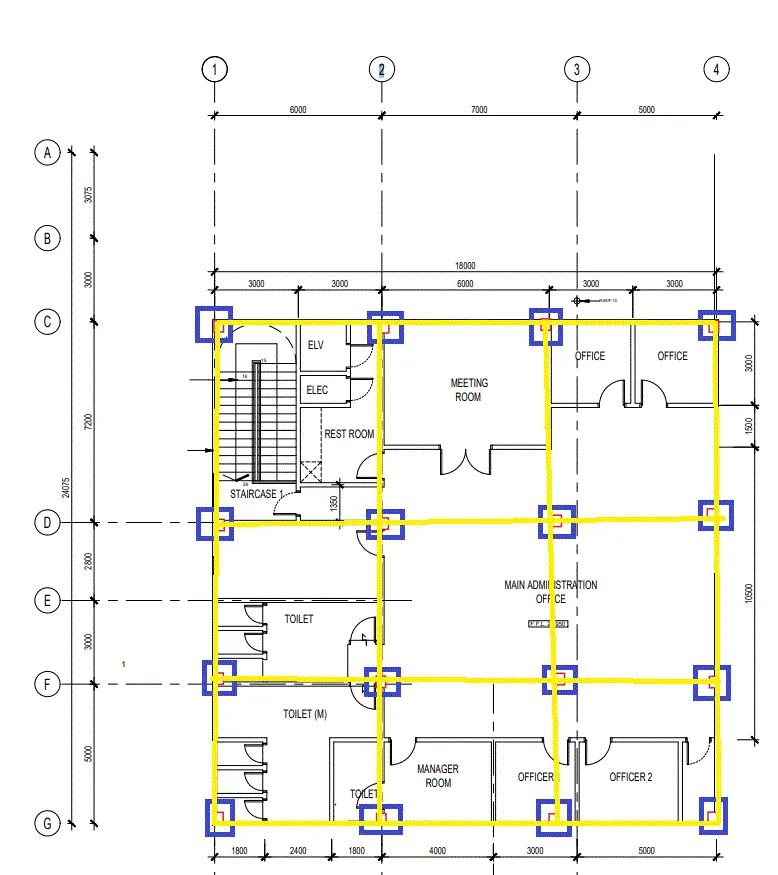

• AIM: To model grid lines and construction levels as per attachment 1.1 and 1.2

• PROCEDURE:

1. OPen the tekla software

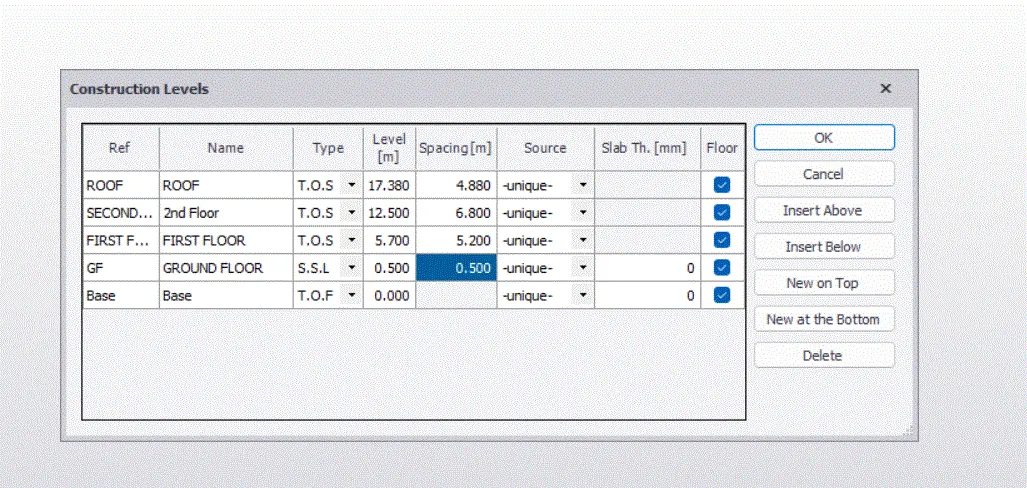

2. Now set levels using construction levels and grid levels

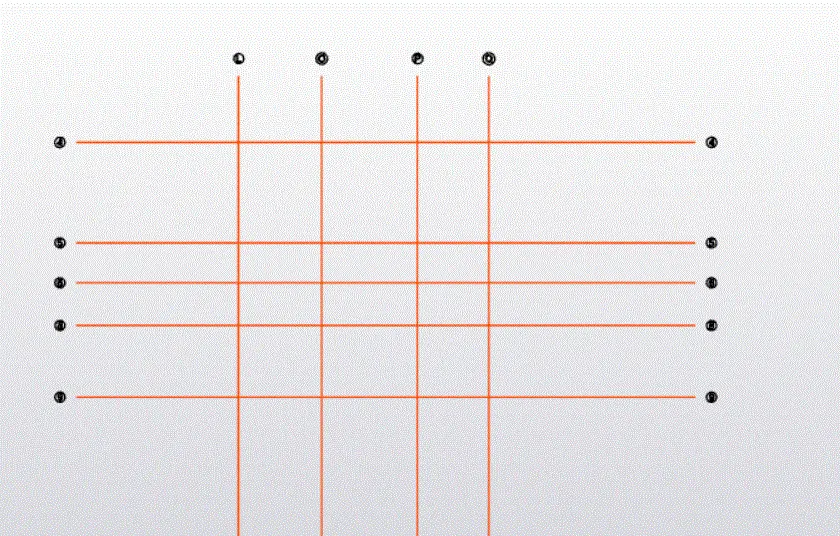

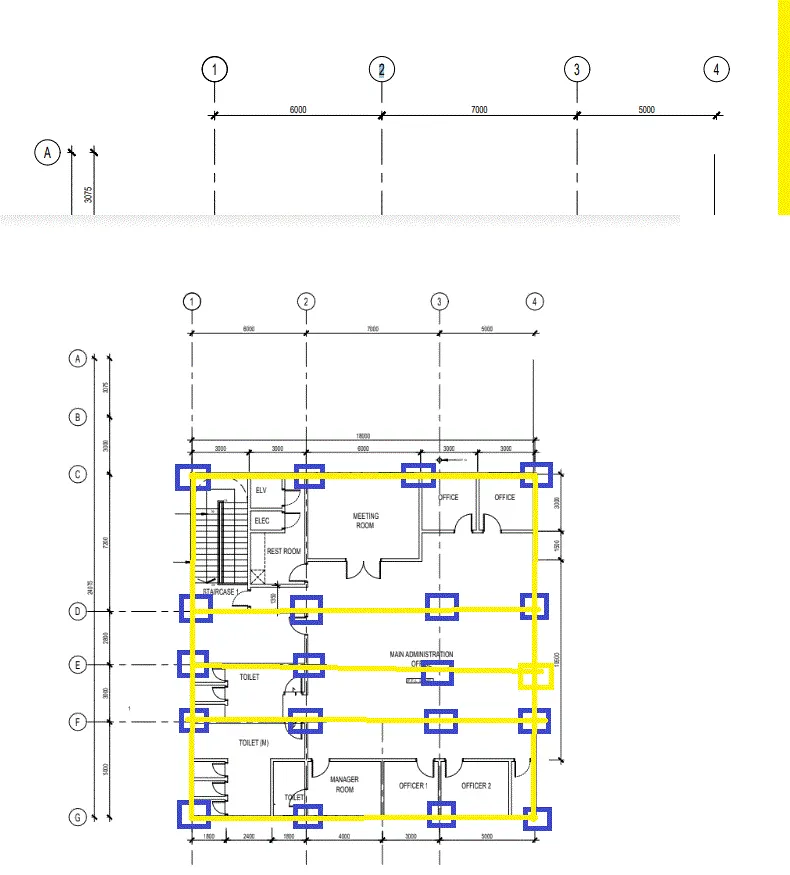

•  Now using grid line and quick parallel  draw the vertical and horizontal grids
