Challenge

To plan a structural layout and to create grids using TSD

Aim: -

Project Workspace: -

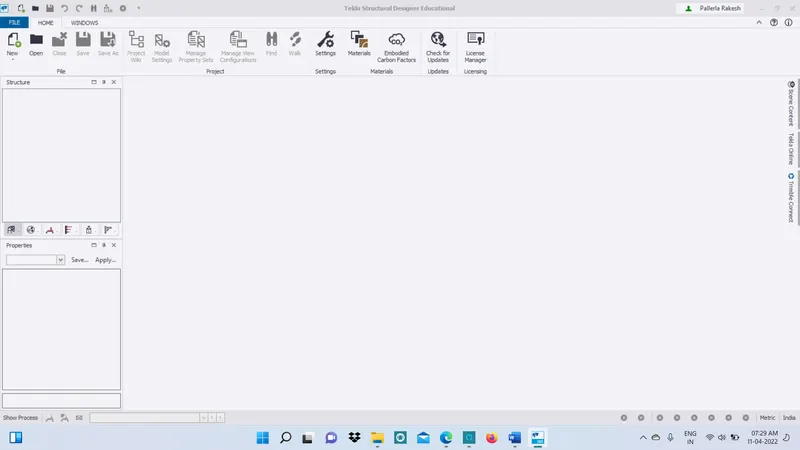

Open the Tekla Structural Designer Software and the Software will Open as follows.
Now Click on New Option to Create a New Model Work Space

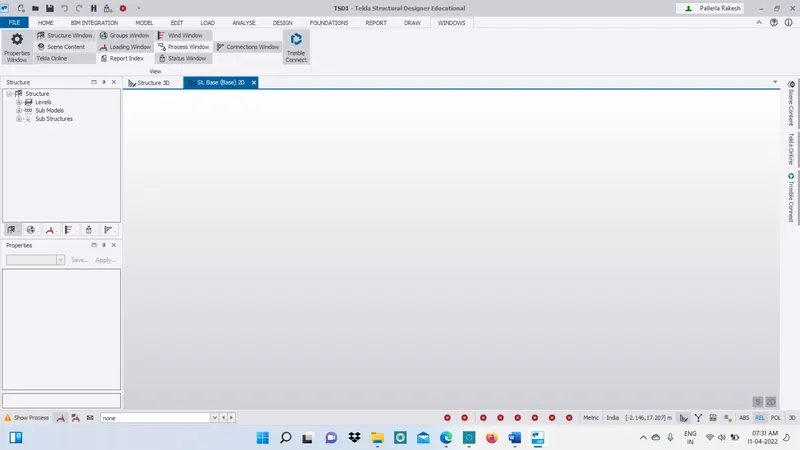

The Project Work Space is Now active as Shown and all the ribbons and Menu bars are Visible now

Scene Content: -

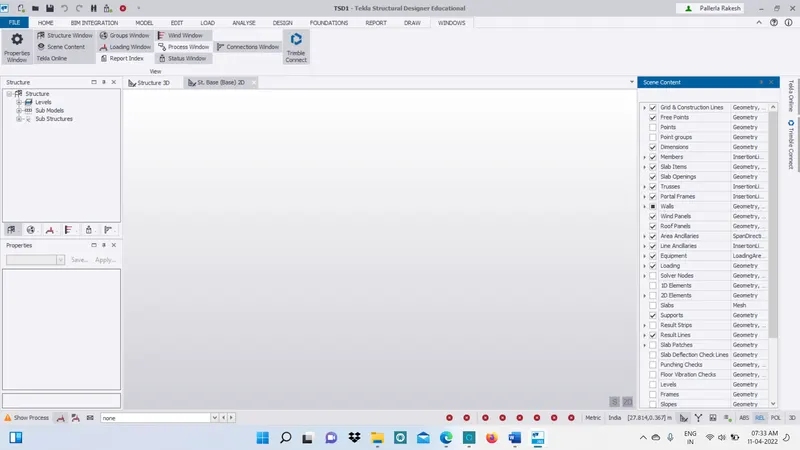

To access Screen Content menu, Click on Windows tab and then Click on Screen content Option
Screen Content Check box Appears will open now and it Consist of Check box to Select which all elements ate to be made visible and hidden

Create two scene views: -

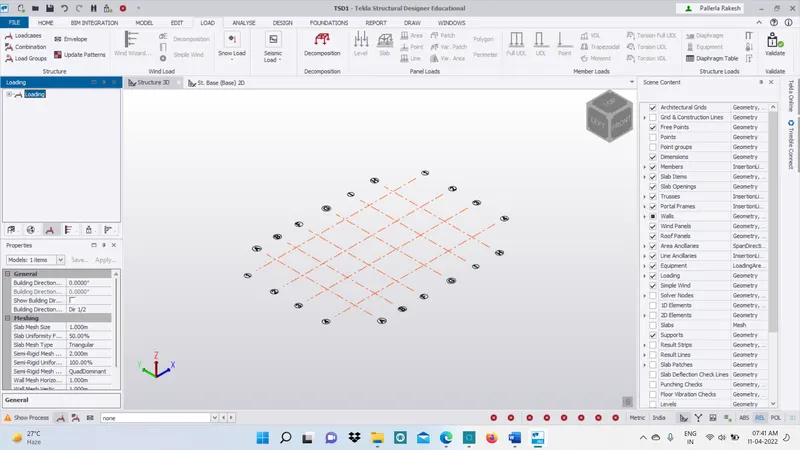

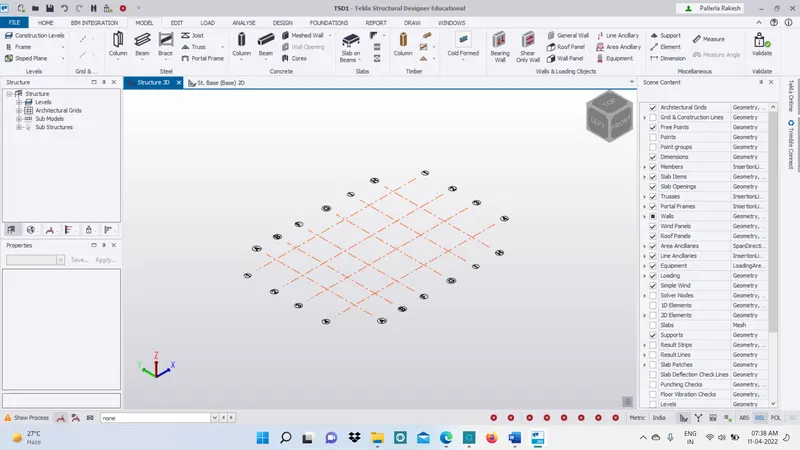

While Creating a New Tekla File Itself , the Software automatically Creates two Default Views Like 2D & 3D

Loading drop list: -

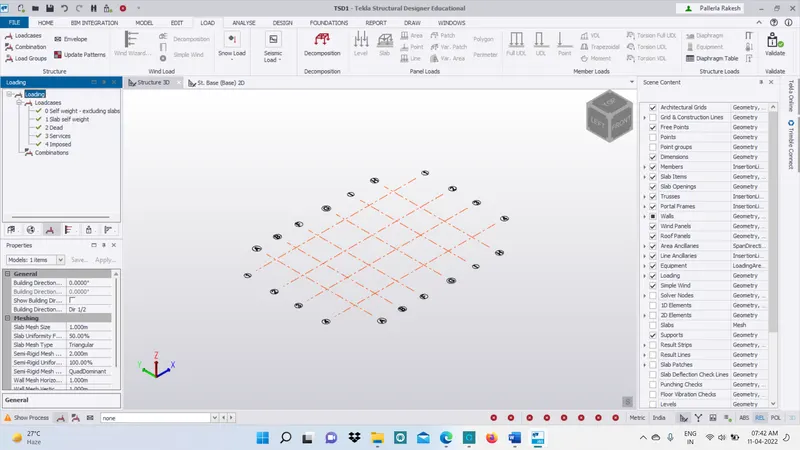

On the Left Side Near to Workspace Click on the Icon Near to Loading to Open the Loading Drop List
Here Various Load Cases and Combinations which are Created will be Displayed here

Properties Windows: -

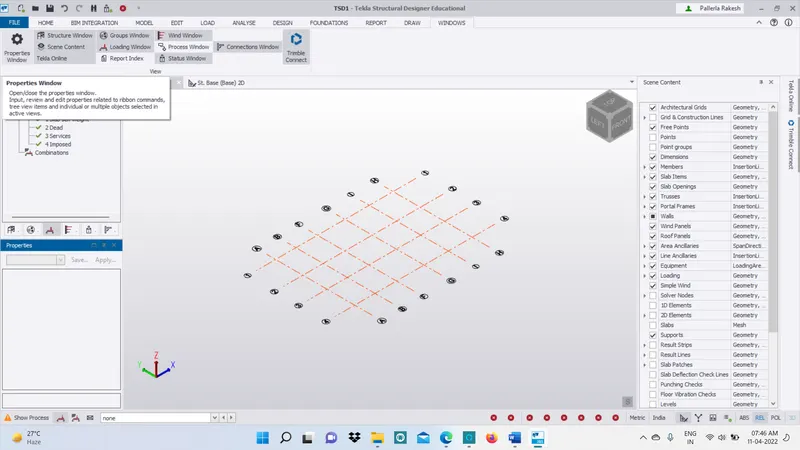

In Order to Open and Close the Properties Window, go to Windows tab and Select the Property Window Option to Open or Close it

Results: -

Qn 2: -

Aim: -

Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and concrete grade of M30 as per IS codes. The covers for the members to be as per the following input

Procedure: -

Open the Tekla Structural Designer Software and the Software will Open as follows.

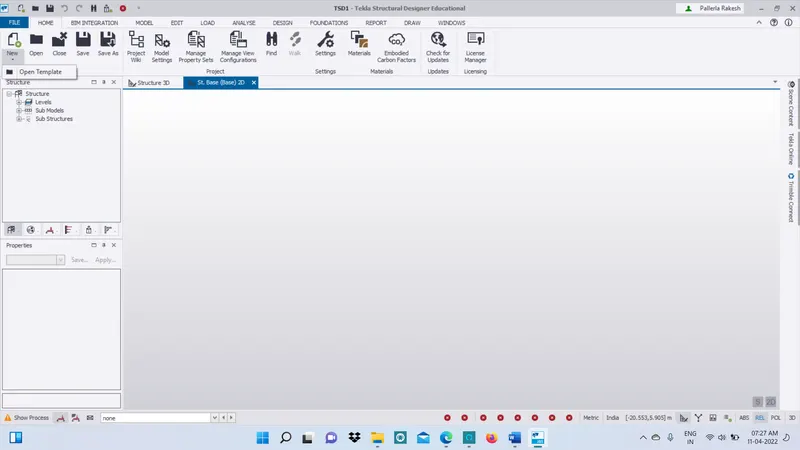

Now Click on New Option to Create a New Model Work Space
The Project Workspace is now active as shown and all the ribbons and menu bars are visible now

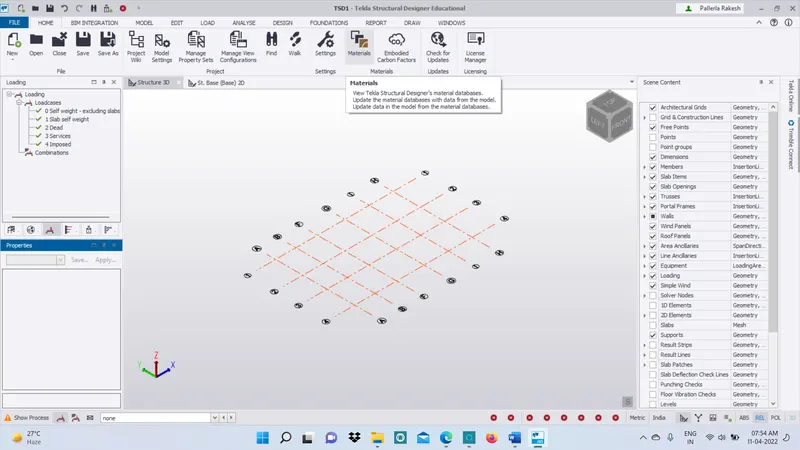

Click on Materials icon on the Ribbon now

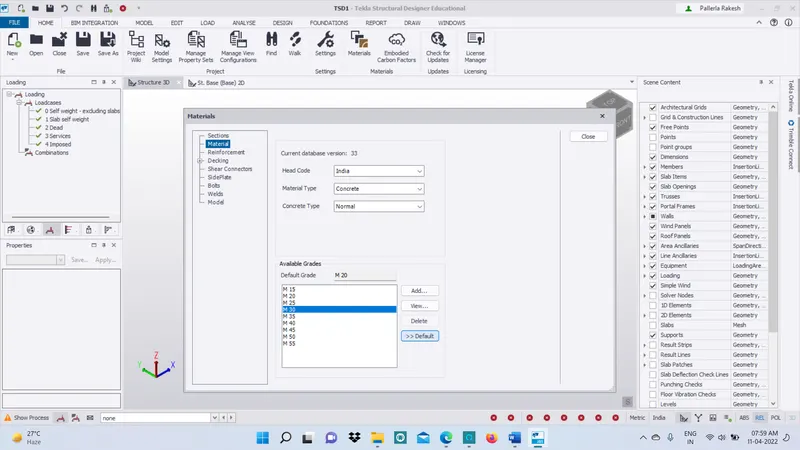

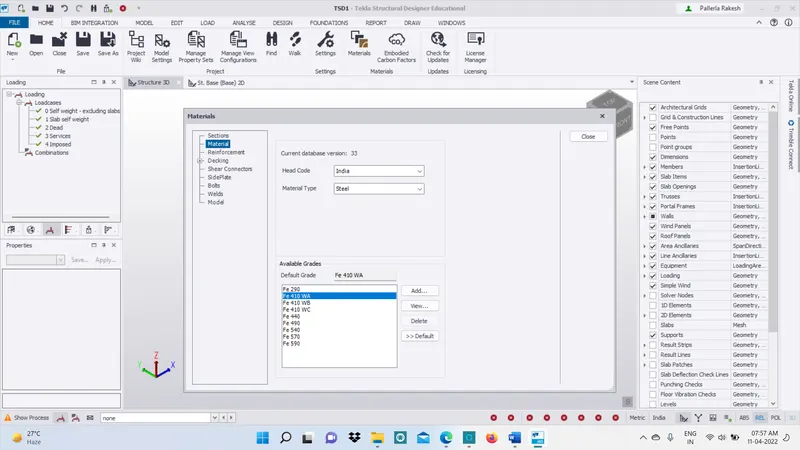

The materials dialogue box appears and select the second option that is the materials. Now under the material type drop down list select steel and desired steel as given in qn Fe410
Now Select material type as concrete and select the required grade that is M30 and Click on Default

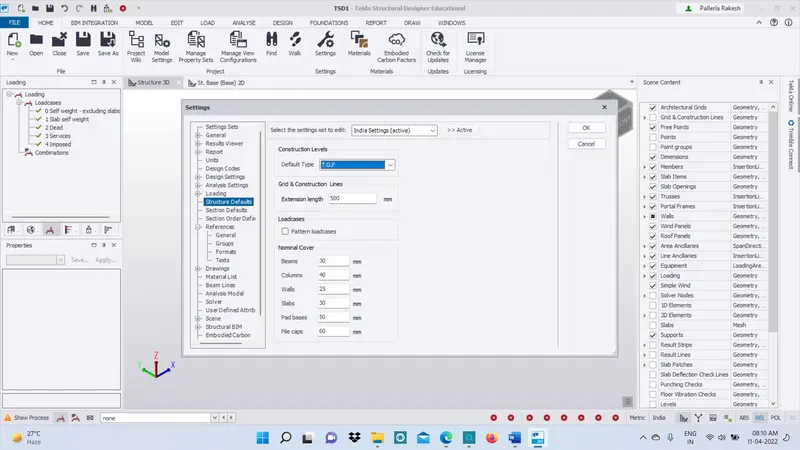

In order to Change the Cover thickness click on the settings option in the ribbon and then under the loading section select structure defaults
Select ssl and apply the cover values corresponding to contact with ground

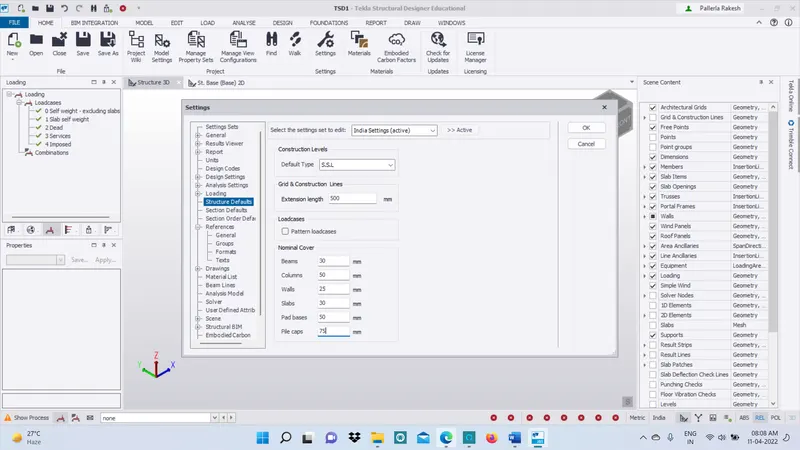

Select TOF Option and apply the corresponding Cover Values

Qn3: -

Aim: -

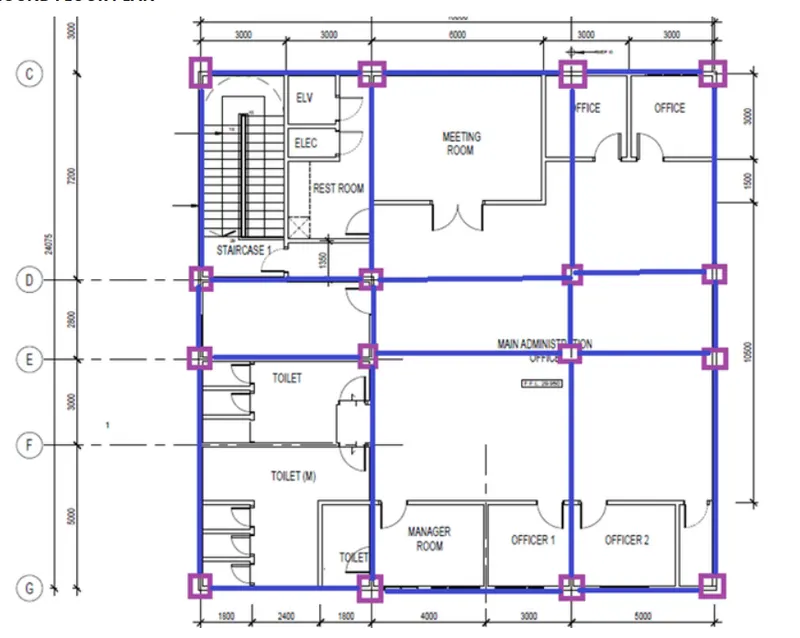

Summarize your understanding of the plan. Based on study assume and explain the location of columns and beam and develop a hand sketch for each plan

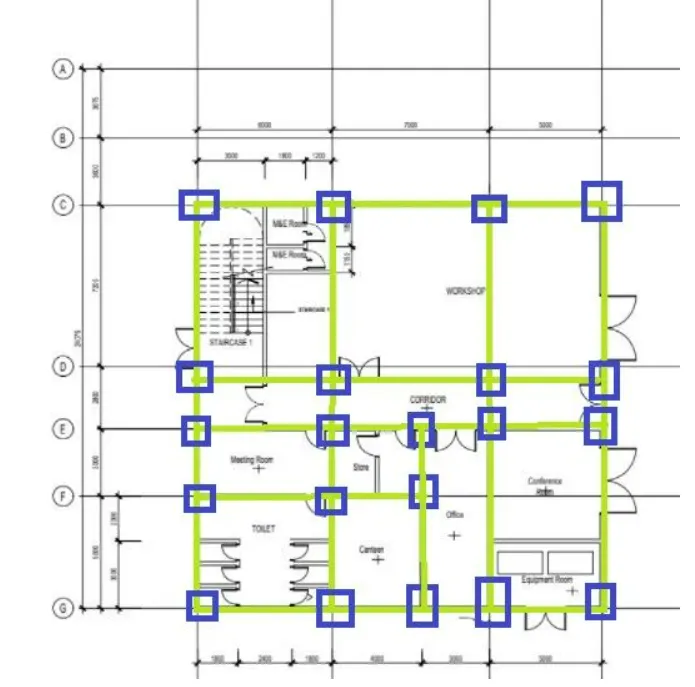

Columns Should be Placed at
Corners of the Building

Intersection of Beams

Select Positions so as to avoid BM in Beam

Avoid longer span of Beams

Avoid Larger Centre to Centre Distance Between Columns

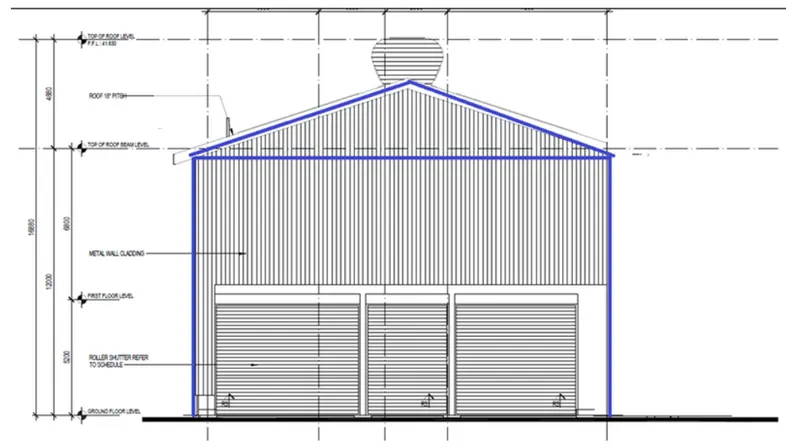

Attachememt 1

Attachment 1.1

Attachment 1.2

Qn4: -

Aim: -

Model grid lines and construction levels as per Attachment 1. 1.1 and 1.2. All dimensions are in mm
The base level to be 500mm below ground level.

Procedure: -

Open the Tekla Structural Designer Software and the Software will Open as follows.
Now Click on New Option to Create a New Model Work Space
The Project Work Space is Now active as Shown and all the ribbons and Menu bars are Visible now

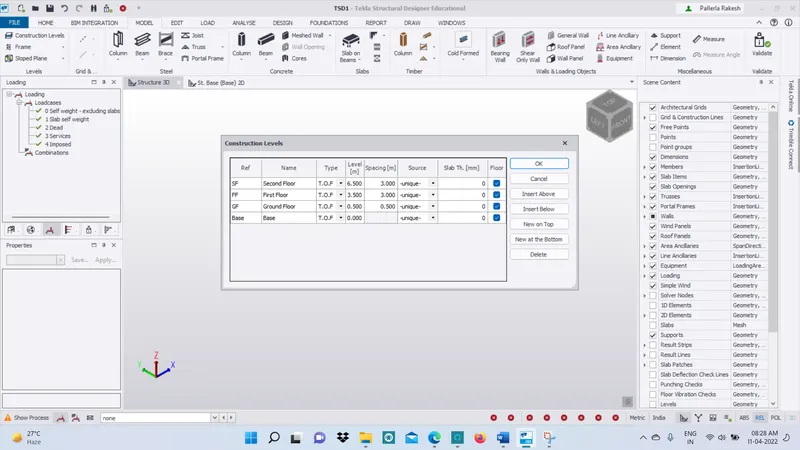

Go to Model tool Bar Select Construction Levels

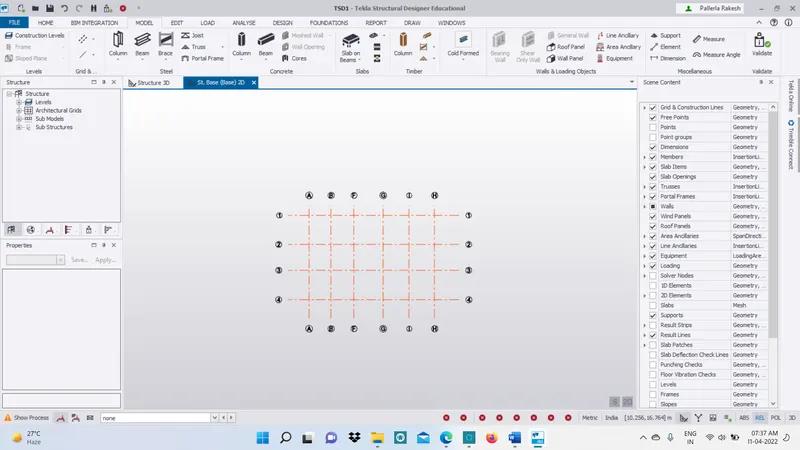

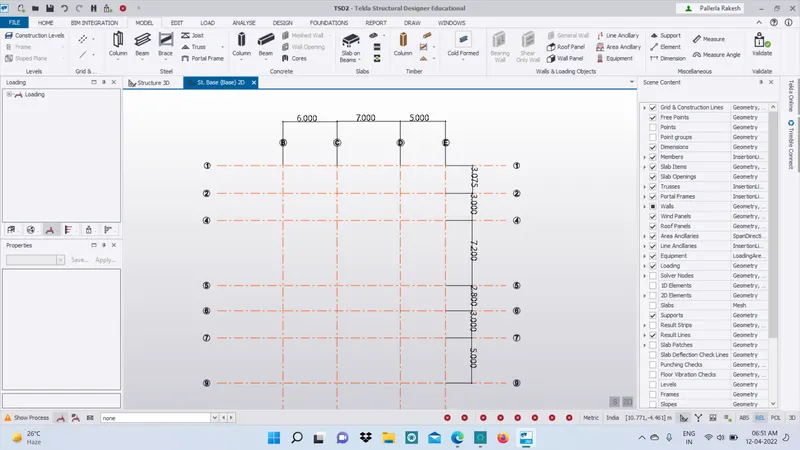

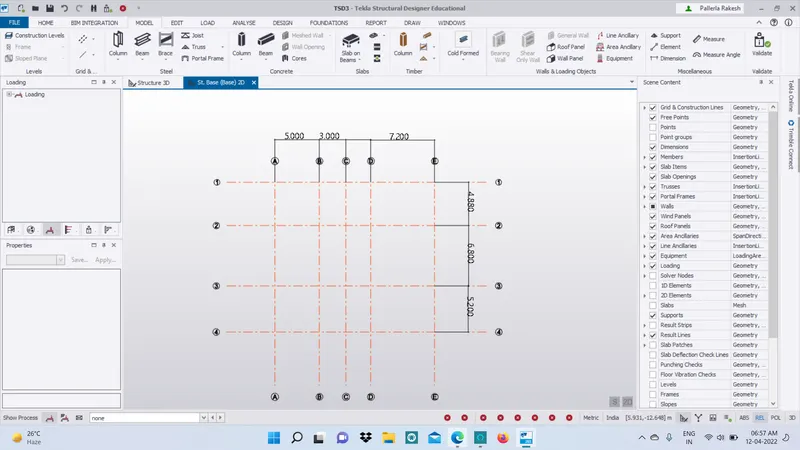

Use Grid line Option Select Quick Parallel Grid Line Option Draw as per Dimensions
Attachment 1
Attachment 1.1
Attachment 1.2

Result:-

The Construction Levels & Grid lines are Drawn Corresponding tp the Given Attachment
