To plan a structural layout and to create grids using TSD

Q1-

AIM-To Summarize the user interface in TSD

PROCEDURE-

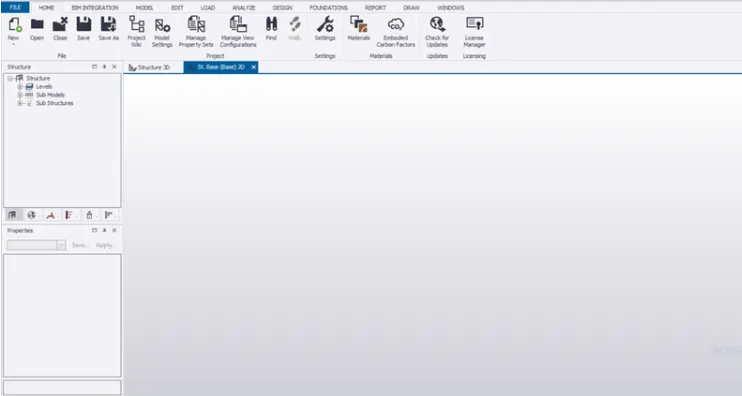

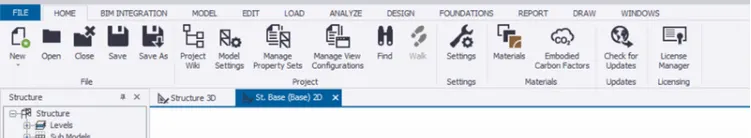

1.Project Workspace – How to access and usage

• Open the tekla structure designer software and click on new option
• and the new model workspace will appear now all the rebbons and Menu are visible

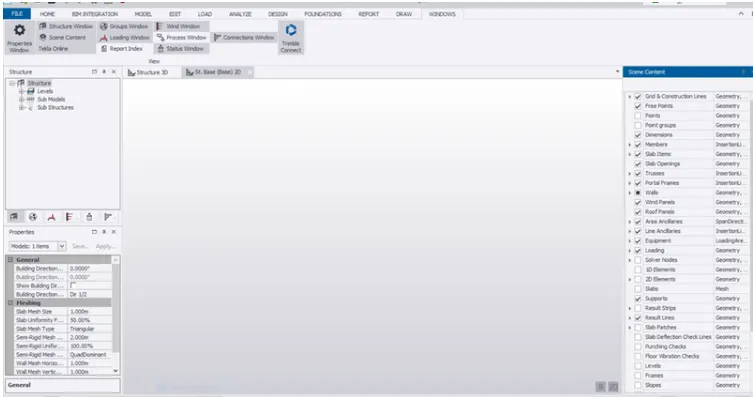

2. scene content

• Select window tab and then click on scene content the Scene content checkbox will appear and it shows tick and untick element in the box

3.TWO VIEW PLANE

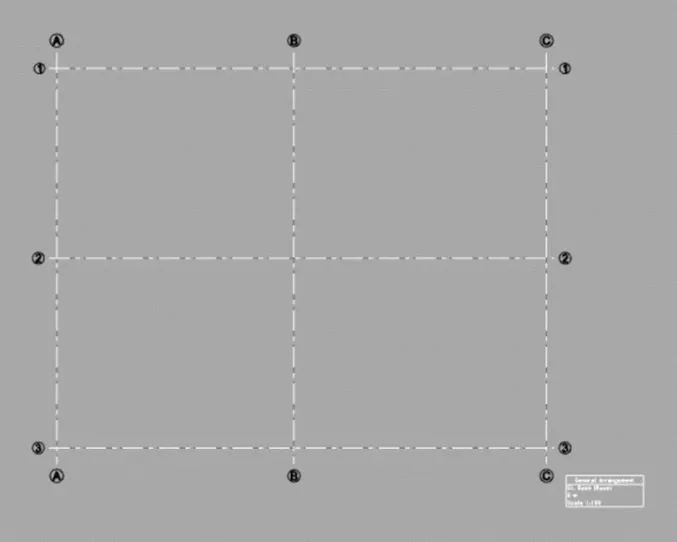

2D view of grid line

scene plan view

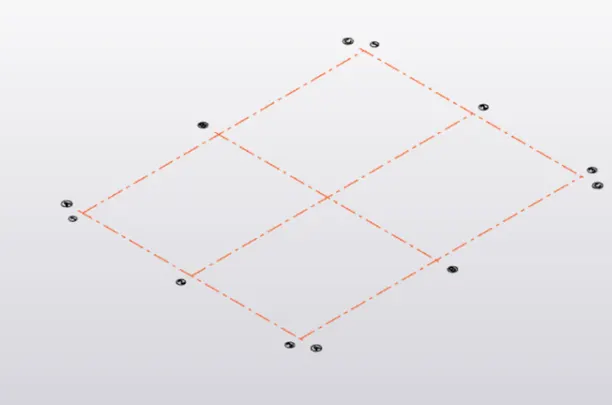

3D view

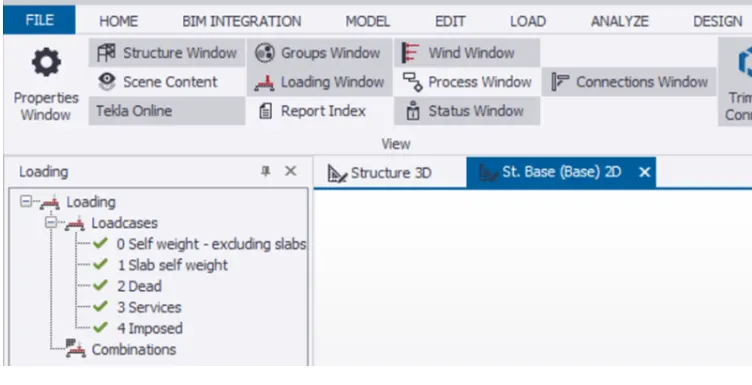

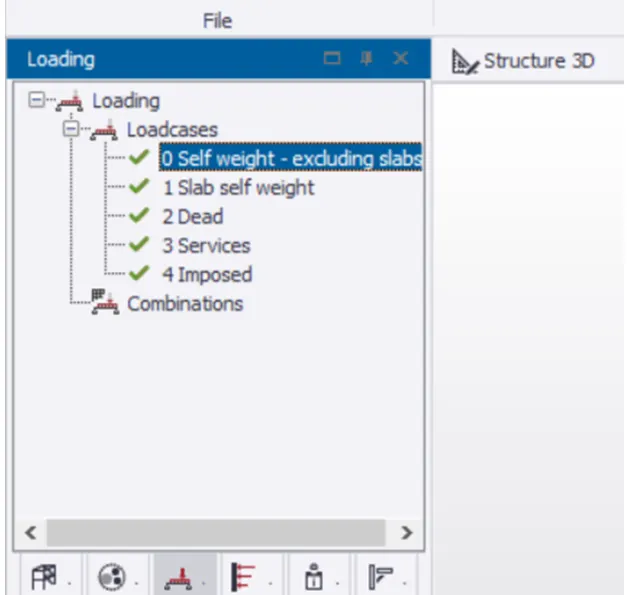

4.loading drop list

• Left side of work space there is a loading option and click on it
• we get loading drop list and below that there is a loadcases box appear

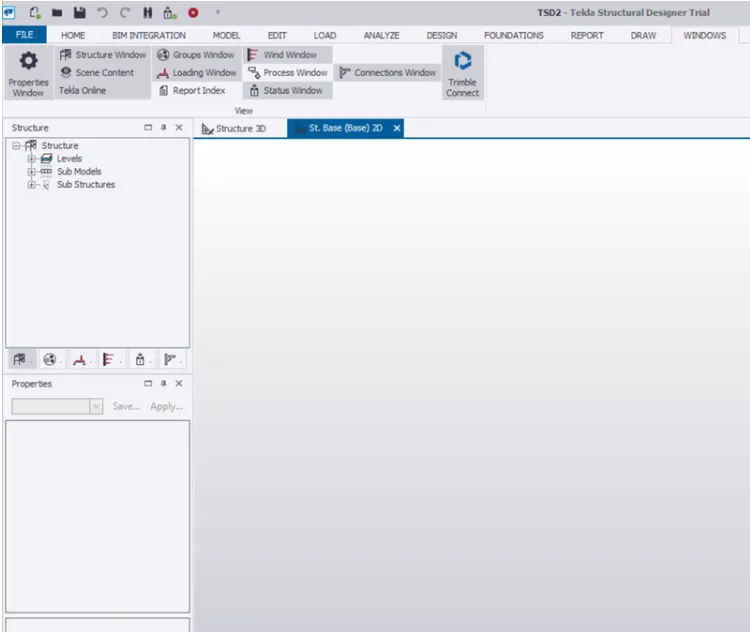

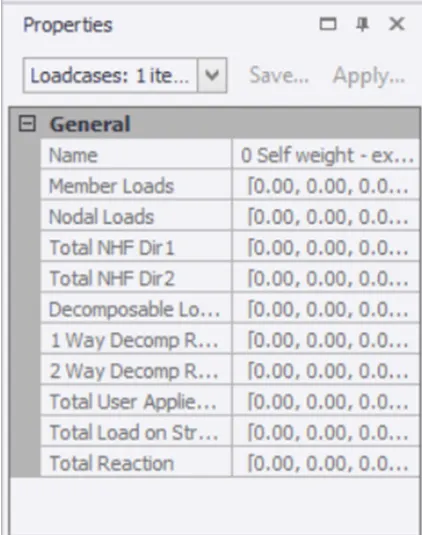

5.Properties Windows

• select window tab and in that select properties window

result-Summarizing the user interface in TSD is done successfully

Q2-

aim-To Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and concrete grade of M30 as per IS codes.

procedure-

• Open the tekla structure designer software and click on new option to create new model

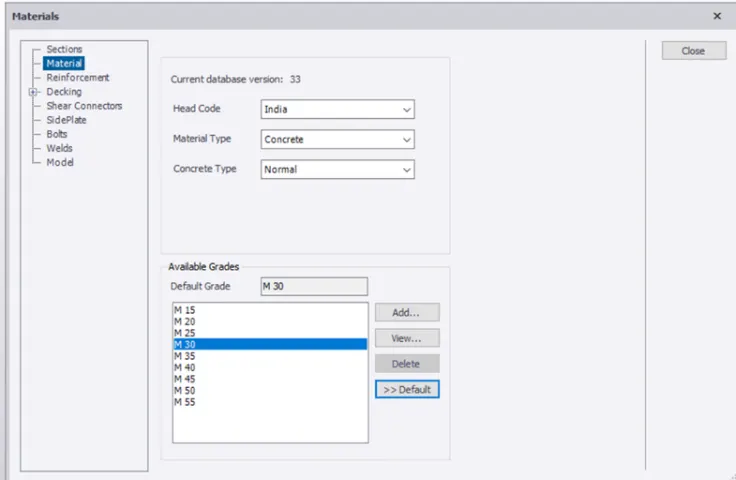

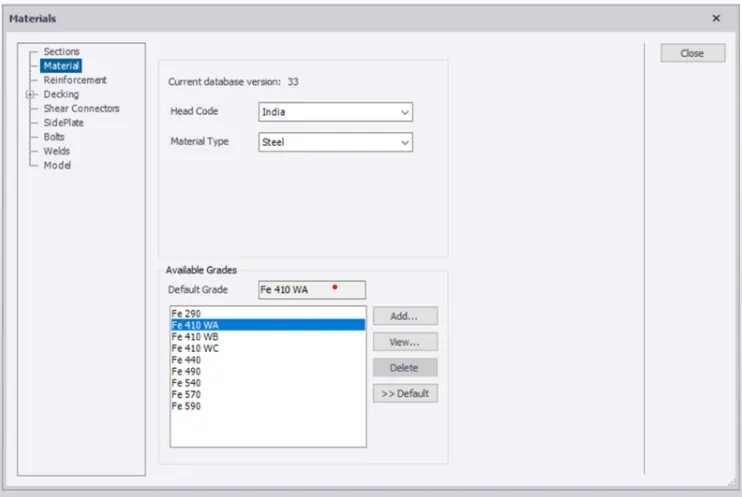

• Select material option from home tab click on material option and the material dialogue box appear and select the option material
• under material drop down the list and select the material type aS steel and grade as fe 410

• Select material type as concrete and also select grade as M30

• To change the cover tickers click on sitting option and under the loading section

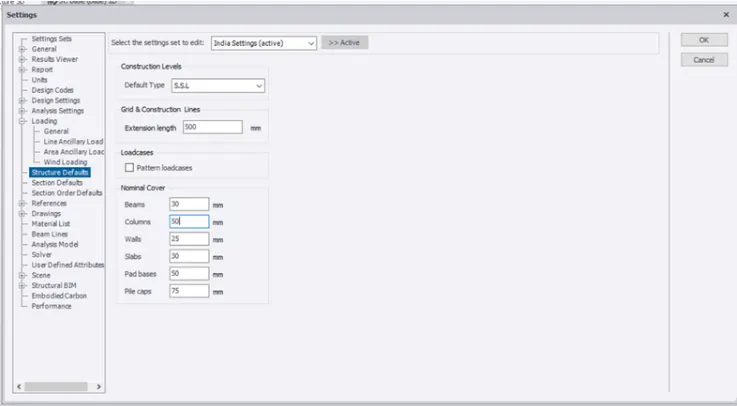

• select a structure default select SSL as defaulter type and column cover as 50 mm ,slab as 30 mm and pile cap as 75 mm

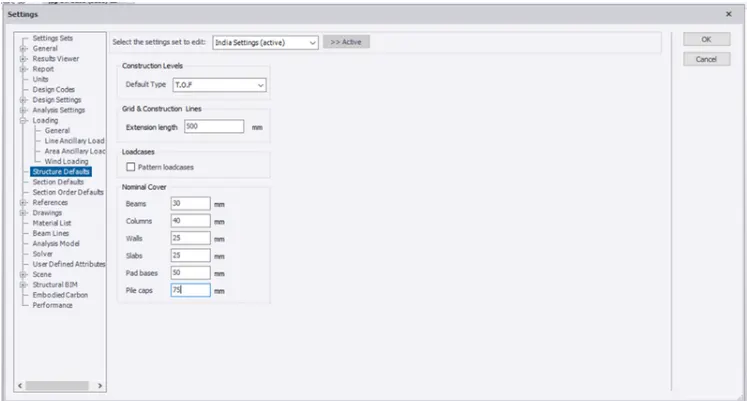

• Select TOF DEFAULT type and cover type and cover for column as 40 mm ,slab as 25 MM and pile cap as 75 mm

result-creating of new file in TSD is done succesfully

Q3-'

AIM=To study the steel building plan and summarize understanding of the plan With reference to the input drawing as per Attachment 1, 1.1, and 1.2

INTRODUCTION=

Colum position

• columns are placed at the corners of the building and intersection of beam
• suppose the distances larged, divide into half and place the column at centre
• column should not be placed at opening of door
• for placing of column avoid small space

PROCEDURE=

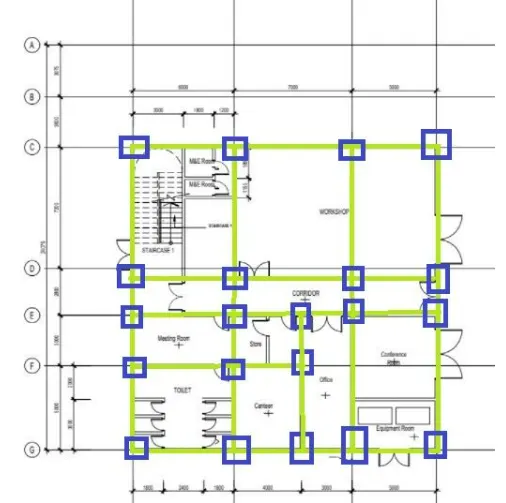

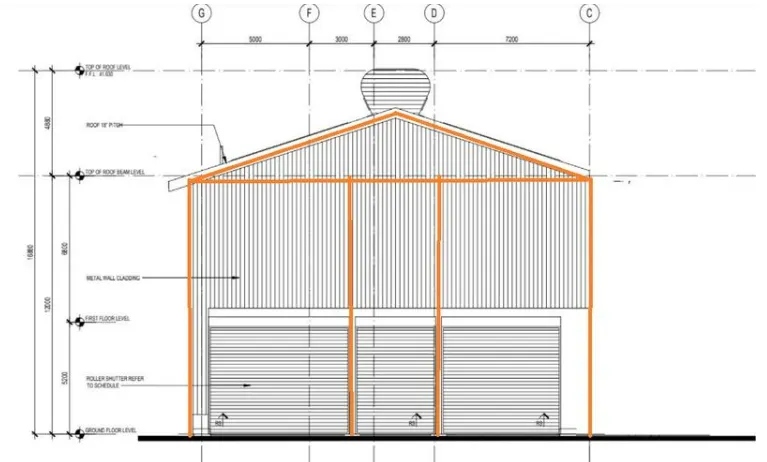

attachment 1-

As per my understanding of plan ,i have highlighted places by blue squares where beams and columns require

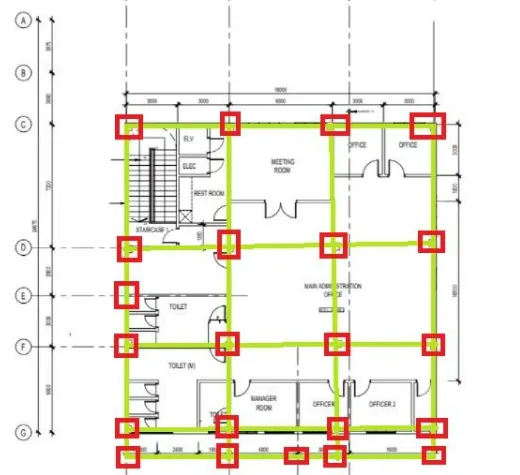

attachment 1.1-

As per my understanding of plan ,i have highlighted places by red squares where beams and columns require

attachment 1.2-

As per my understanding of plan ,i have highlighted places where beams and columns require

result- summarizing understanding of the plan With reference to the input drawing is done successfully

Q4=

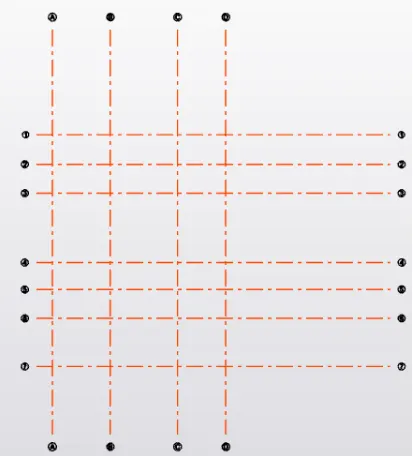

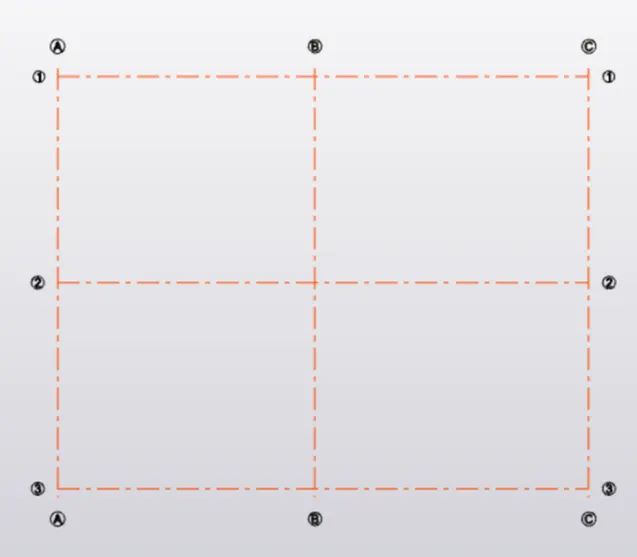

AIM- TO Model grid lines and construction levels as per Attachment 1. 1.1 and 1.2.

procedure-

• Open the tekla software

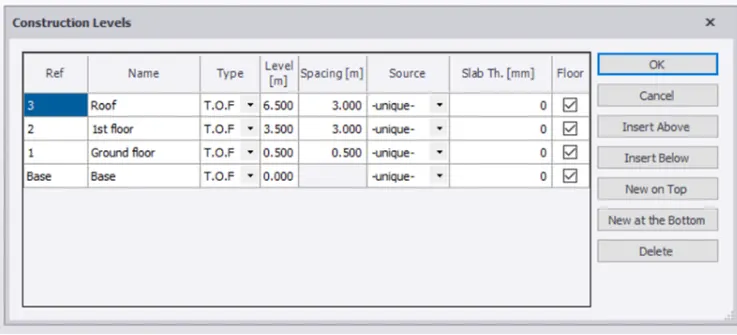

• now set the levels using construction line and draw the grid line according to the measurements in the question

attachment 1

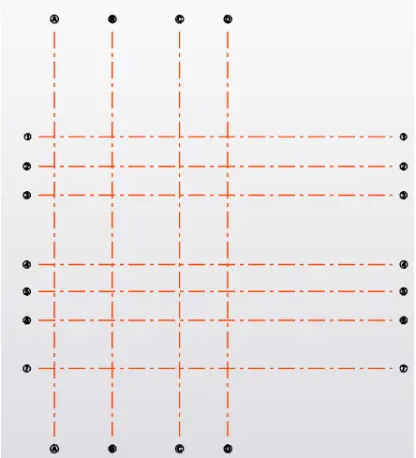

attachment 1.1

attachment 1.2

results-

grid lines and construction levels as per Attachment 1. 1.1 and 1.2. is modeled successfully
