To model beams and bracings for industrial steel structures using TSD
1.
AIM: Create beam properties for First floor and model the beams
PROCEDURE:
- we open the tekla structural file that we were working on

- Now to make the beam properties, first we have to make the beams types
- Go to Home tab->Manage property sets

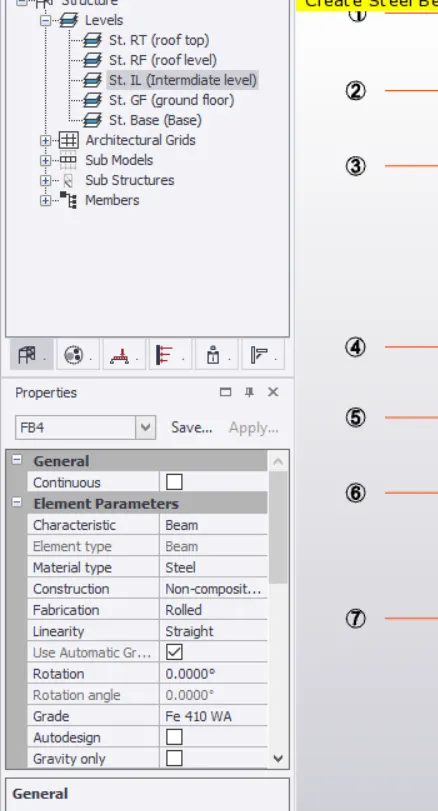

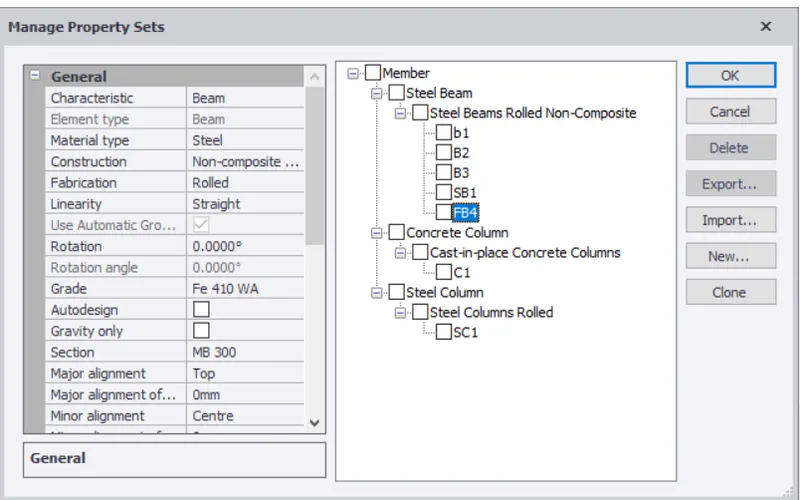

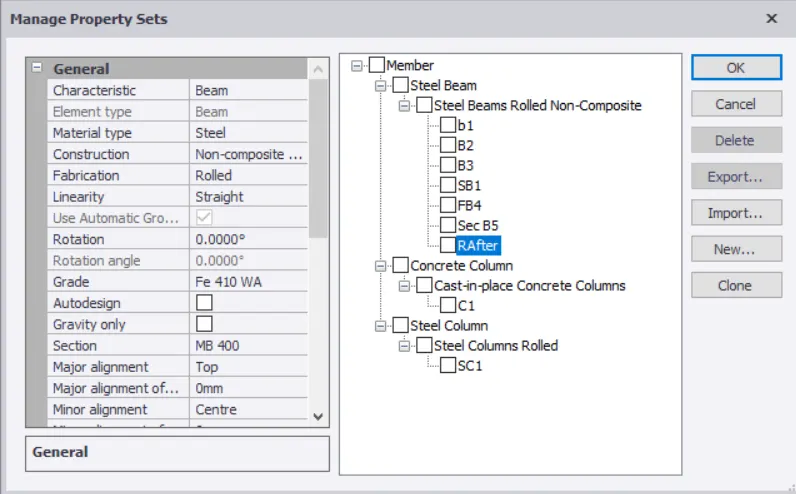

- property sets tab will open->Click on New ->steel beam
- Edit the properties you want in that beam

- Edit the name of the beam as per your convinience
- Now go to the first floor/Intermediate floor level.

- No beams will be seen initaly on this level as all were given on the ground floor.
- Now go to model tab->Steel beams->select the beam property set you made for the first floor.

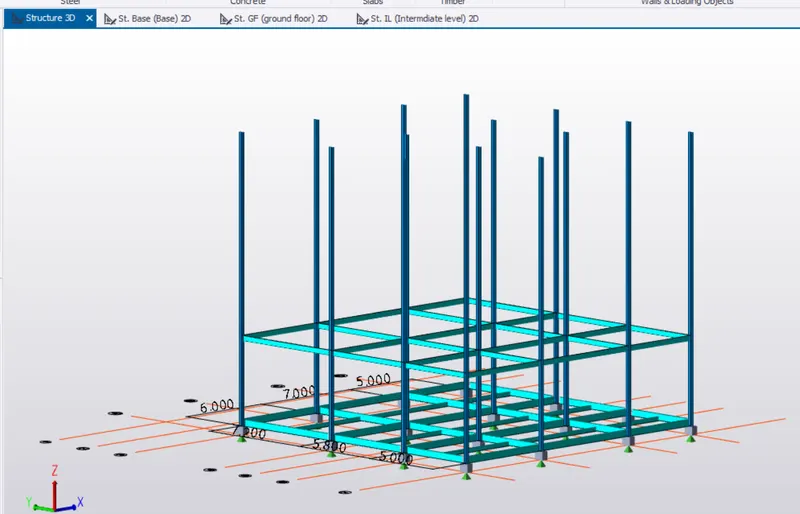

- Apply the beams on the top of the columns

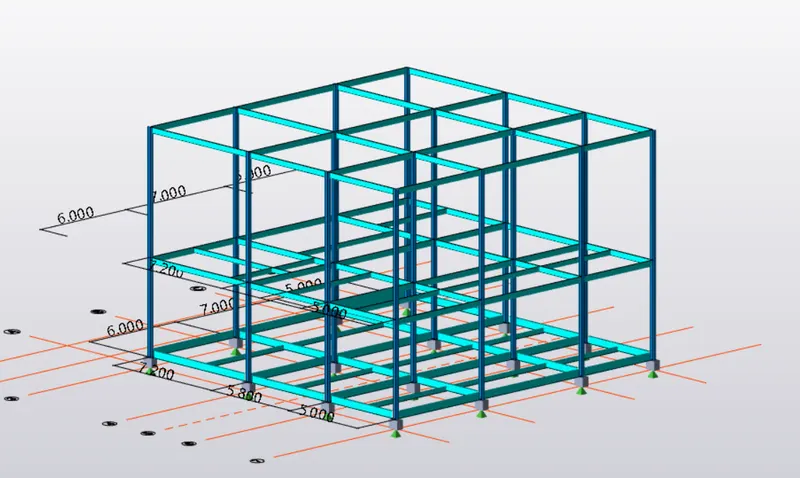

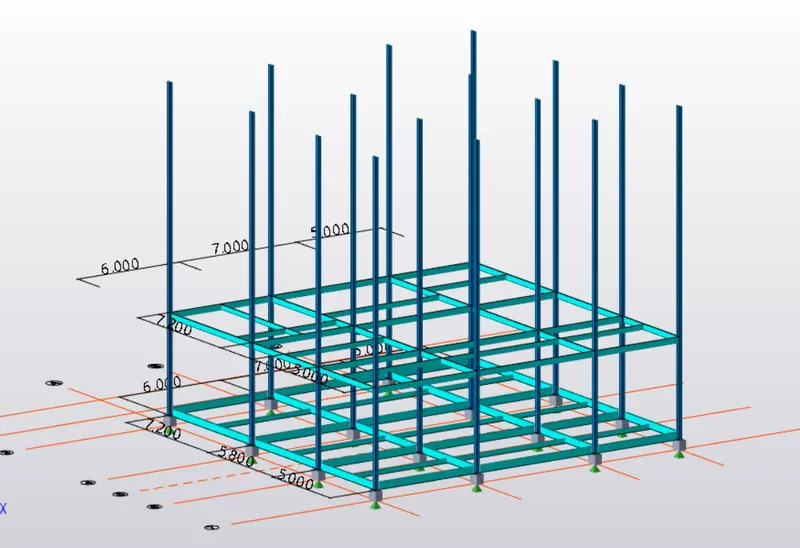

- Now go to the Structure 3D view to see the model.

- Now to create Secondary beam at first floor/intermediate floor
- First we create property sets for the secondary beams at first floor

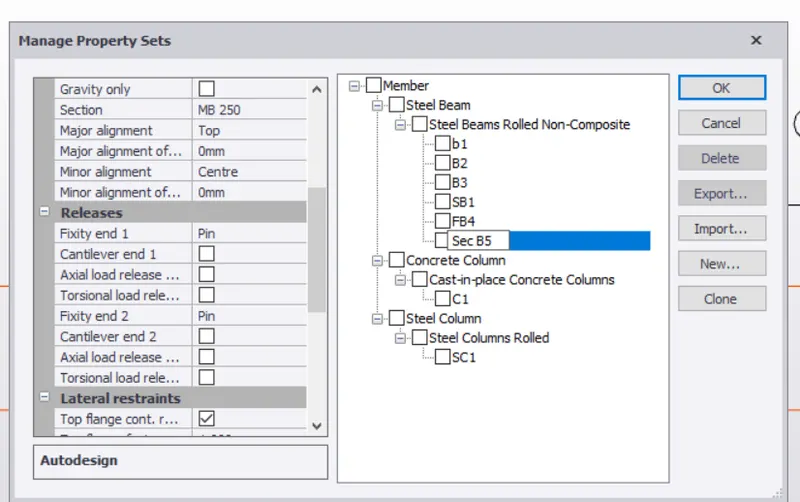

- Go to home tab->manage property sets->New ->Members ->steel beams
- Create materials for the property.

- Now go to the levels->Open the intermediate floor

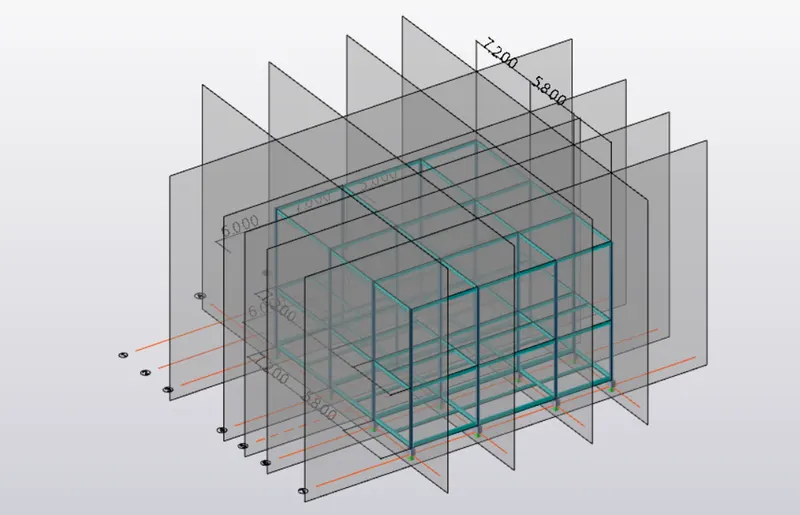

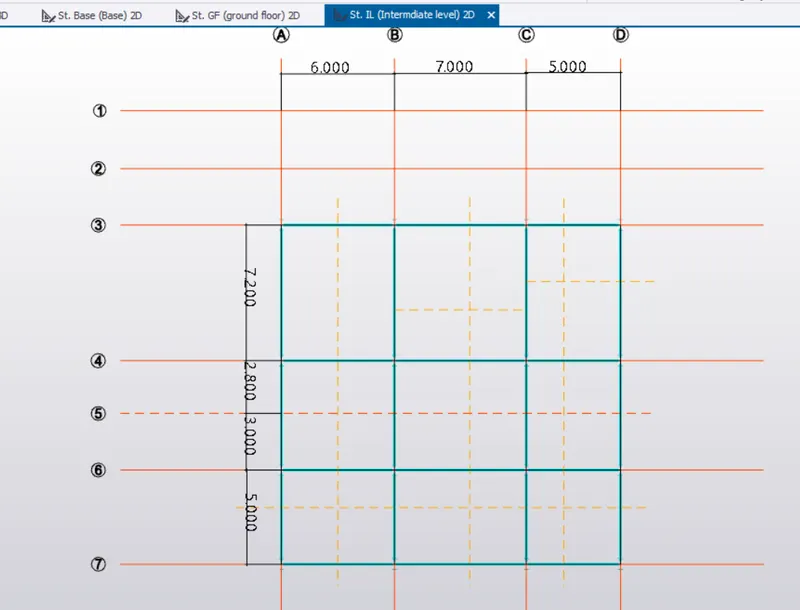

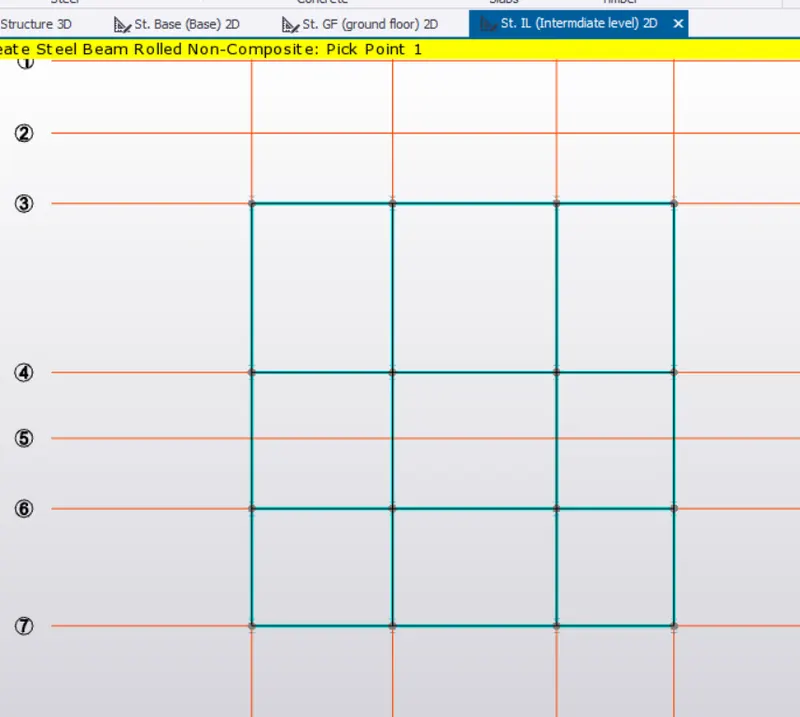

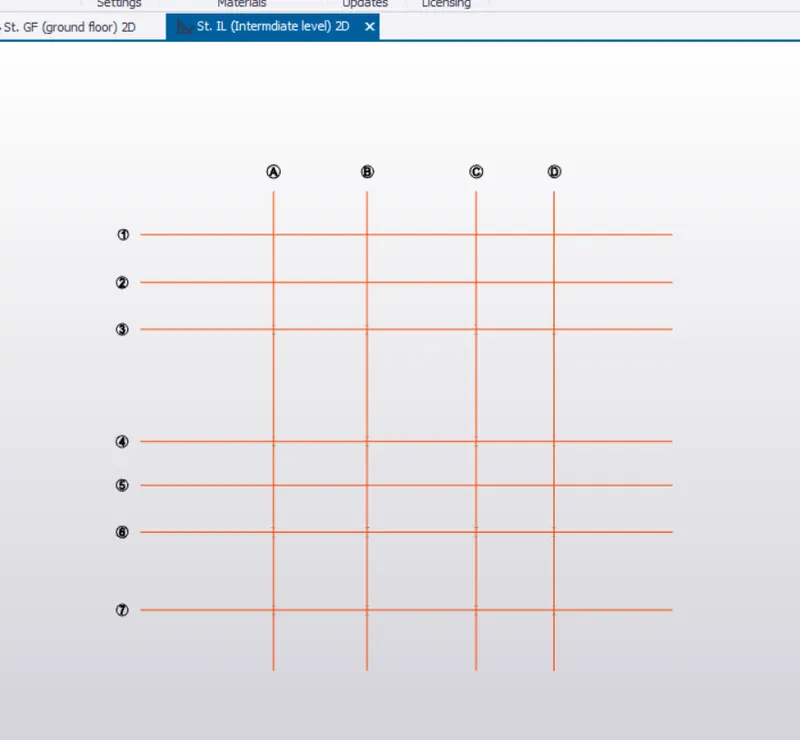

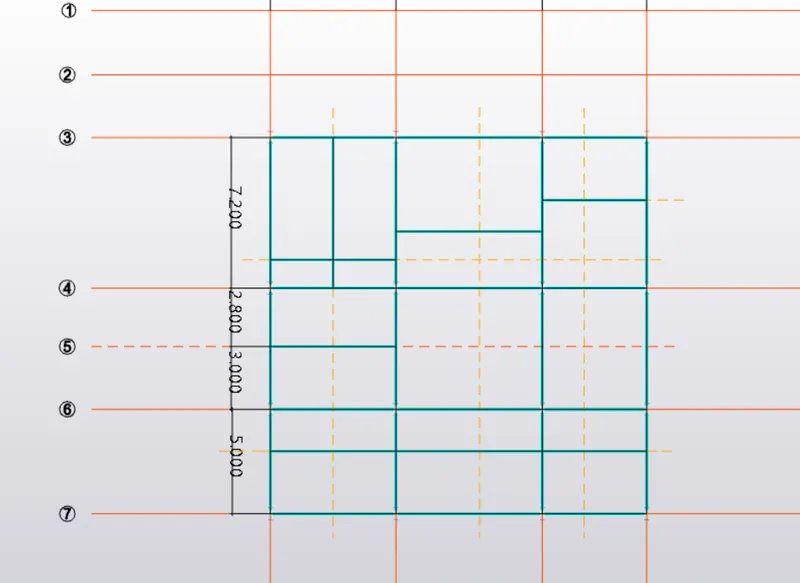

- create construction lines according to the places you want the secondary beams
- The construction lines showing is the places we will place the secondary beams on the intermediate floors

- After applying the secondary beams on the first floor.

- In structure 3D

2.
AIM: Create rafter beam on second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent
PROCEDURE:
- For the roof level->Open the roof level
- since the roof level won't support high load therefore only primary beams are designed at roof level
- check the beam used on the first floor and use the beams on the roof level
- To check the beam types you used in the first floor
- Go to review view->Click on property sets->change the characteristics to beams
- It'll show the beams types used according to the colors.
- Now use the beams on the roof level

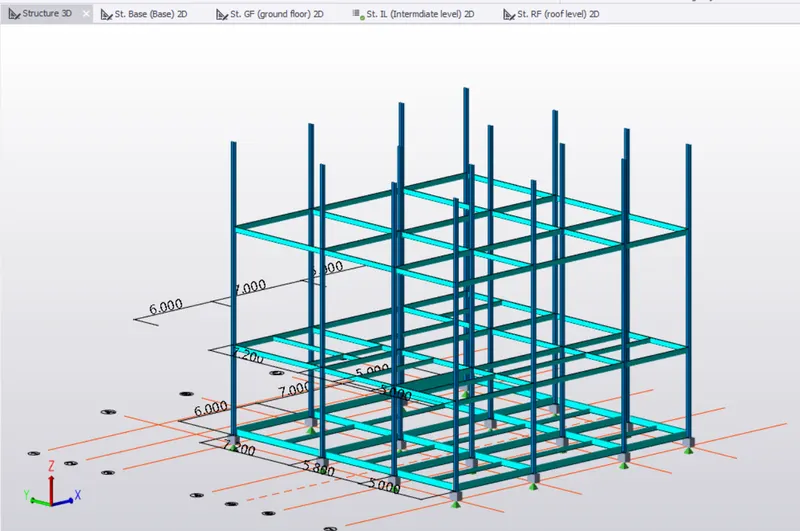

- Go to 3D view to view the same in 3D

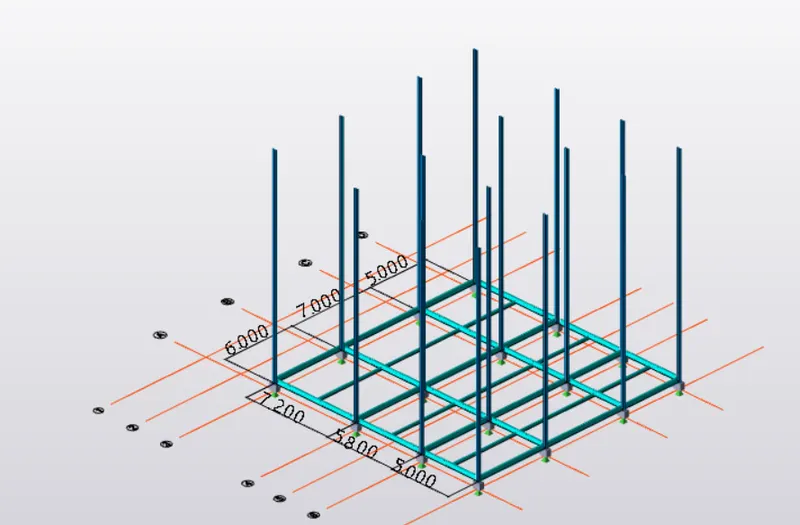

- First we adjust the column heights to the roof level.
- Go to the roof level->scene content->uncheck the grids and beams (to only see the columns)
- select all the columns ->go to properties panel
- set the top level to Roof level(all the columns will be adjust to the roof lvl height)

- To make the rafter beams->Go to Home panel
- Manage property sets->Steel beams
- input the proprties you want in it

- Now frames are created->Go to model panel
- Click on Frames->then select the grids lines where you want to create the frames

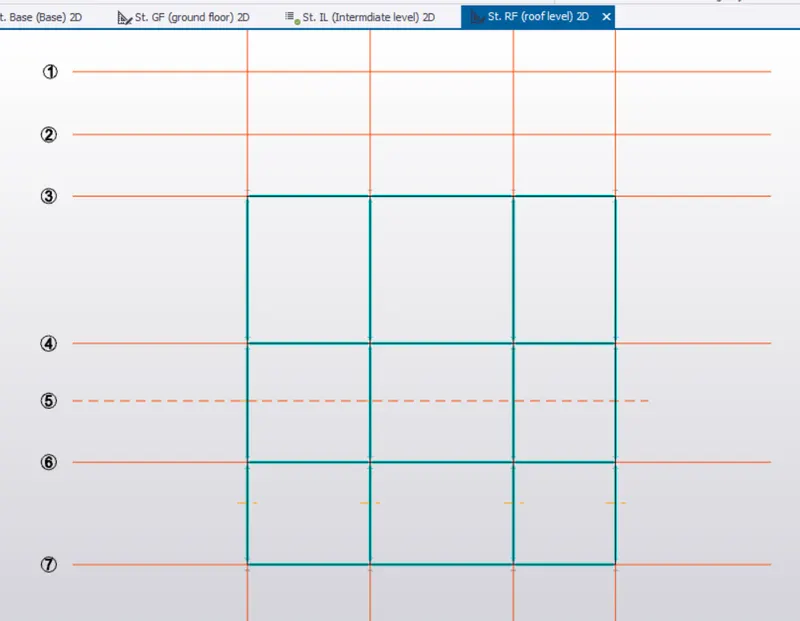

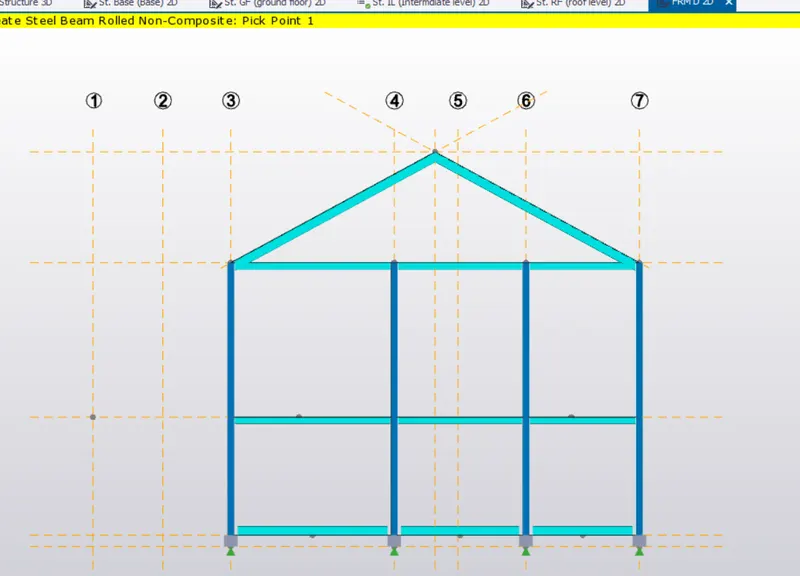

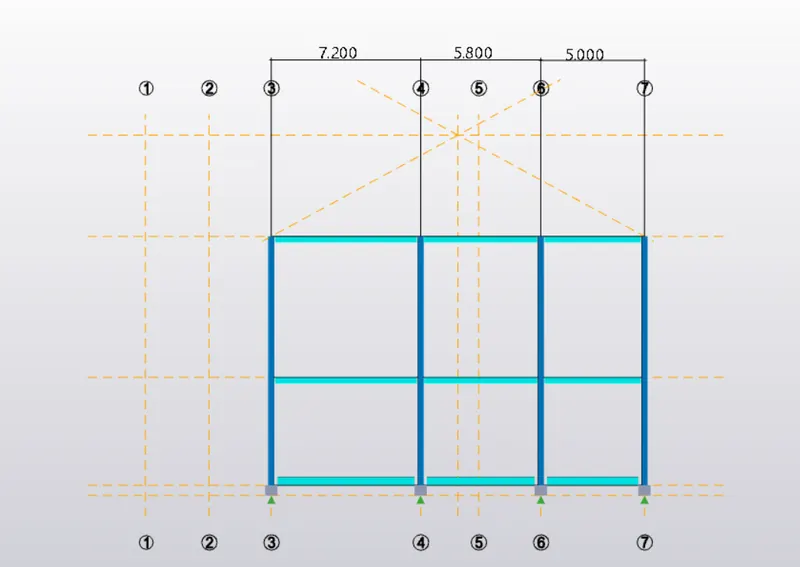

- Now go to frame D->Create a construction line for the rafter intersecting at mid height

- Now go to model panel->beams->select rafter beam and draw the rafter beam at the level

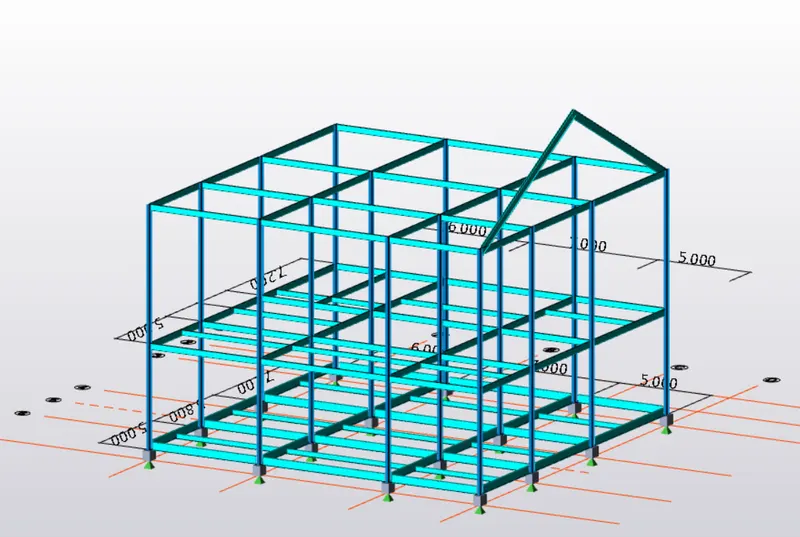

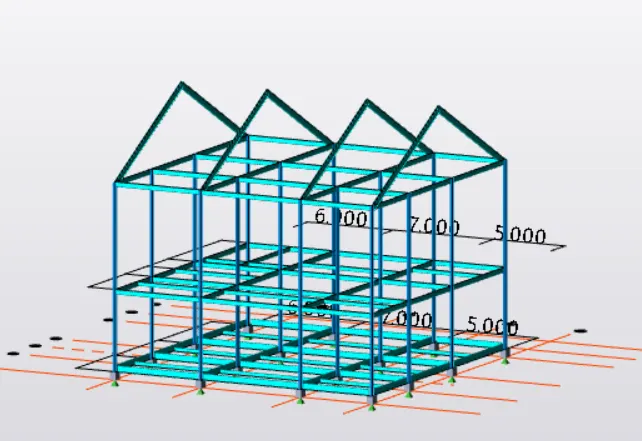

- Now go to 3D view to see the same

- Now we copy the same rafter over the other columns
- select the rafter->Go to Edit->Copy
- Select the reference point->then select the New point where you want to copy the points

- Now we design the steel bracing for the structure

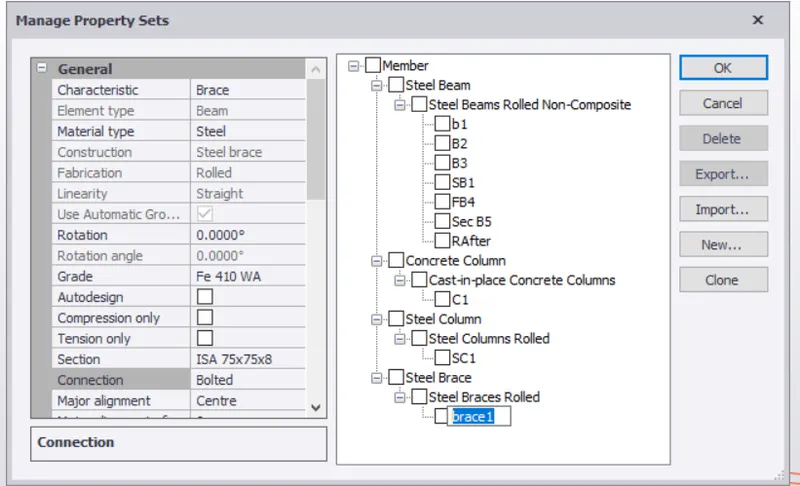

- Go to Home tab->manage property sets->New->Steel braces

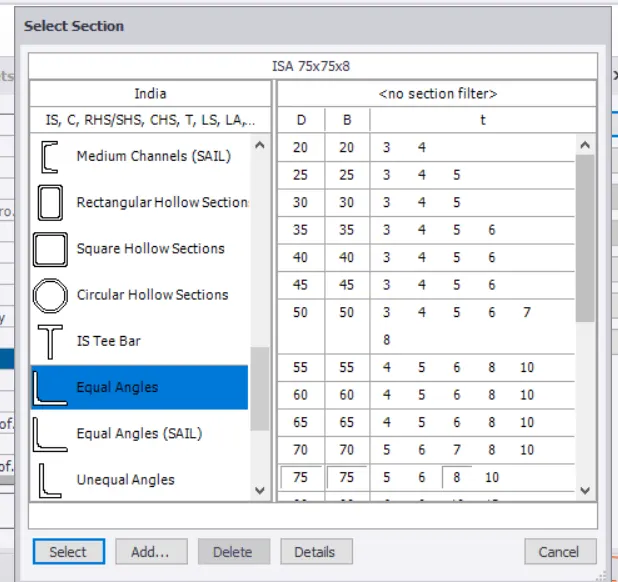

- select the section->Equal angles(75x75x8)


- Now go to the model tab->Braces and select the Brace1 from the properties browser
- From the braces panel select the X brace

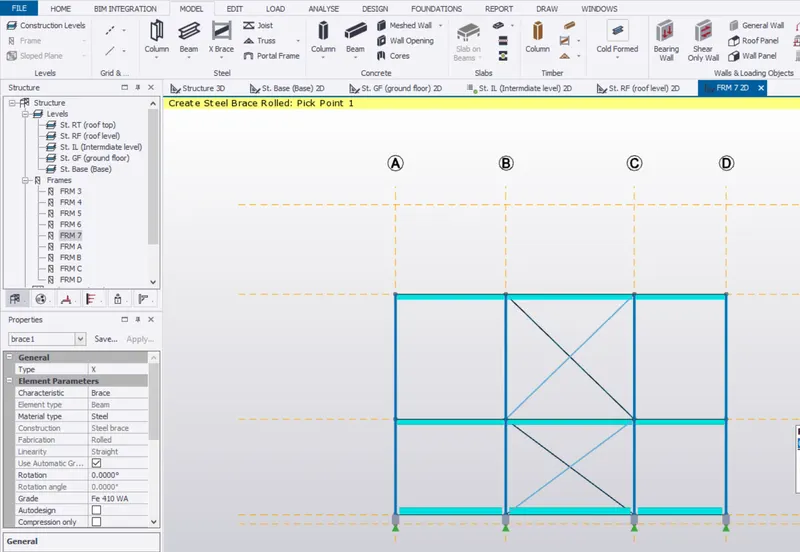

- Now open the Frame 7 to view the section and draw the braces on the frame

- Now similary put the brace where ever required

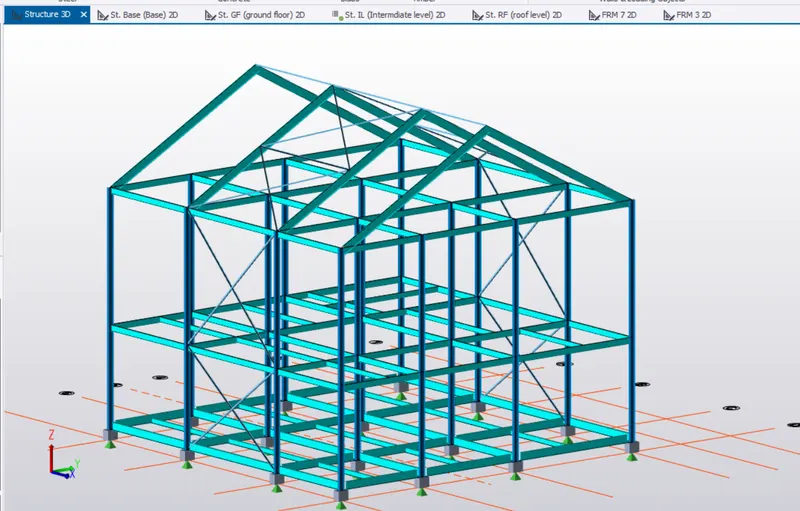

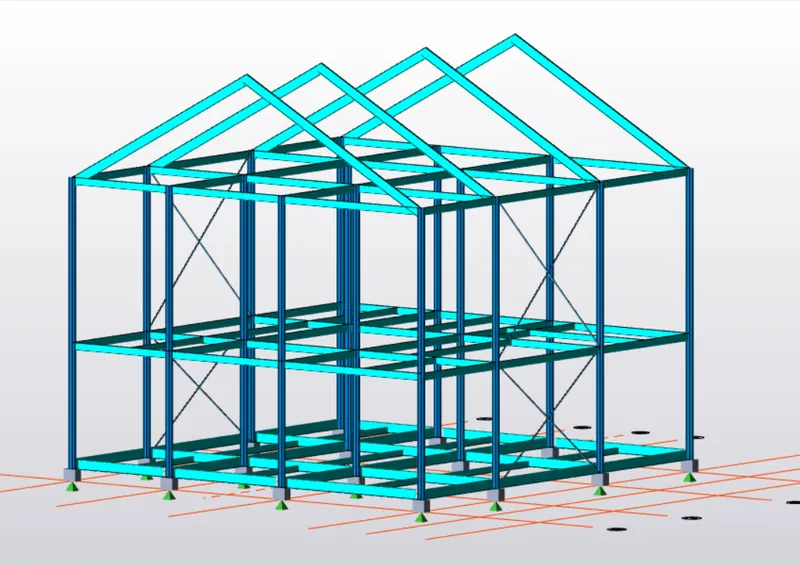

- Go to 3D view to see the braces in 3D

- Now the braces on the roof to be done
- in the 3D view->Go to model panel
- select the brace panel->select brace1 from the properties browser and draw the brace on th top roof
