To Generate seismic loading based on IS code and to run the analysis using TSD

1.

Aim: To generate seismic loading based IS codal provisions and zone II.

Procedure:

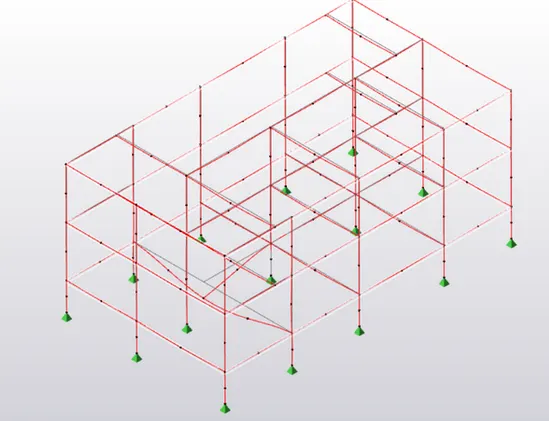

• Open the previously save Tekla model

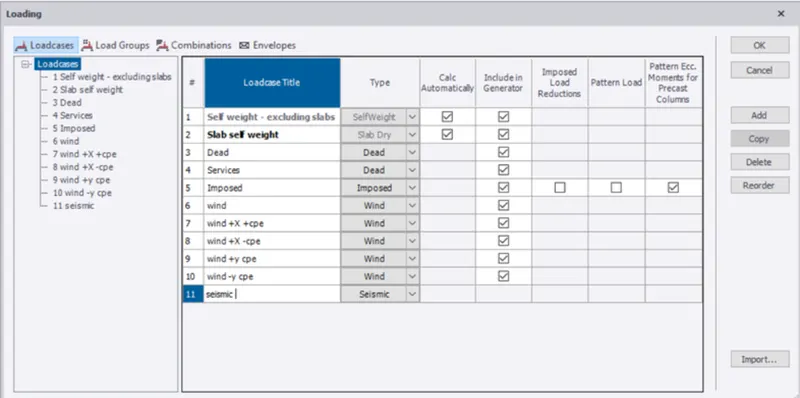

• Now go to the load cases and add the seismic load case, and click ok
•

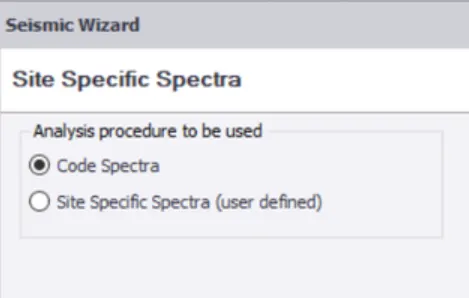

• Now go to the seismic wizard and select code specta and click Next.
•

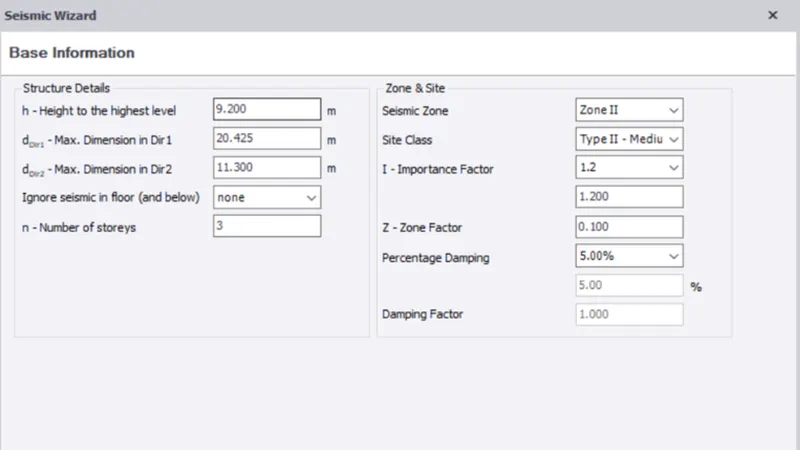

• Now enter the zone and click Next
•
•

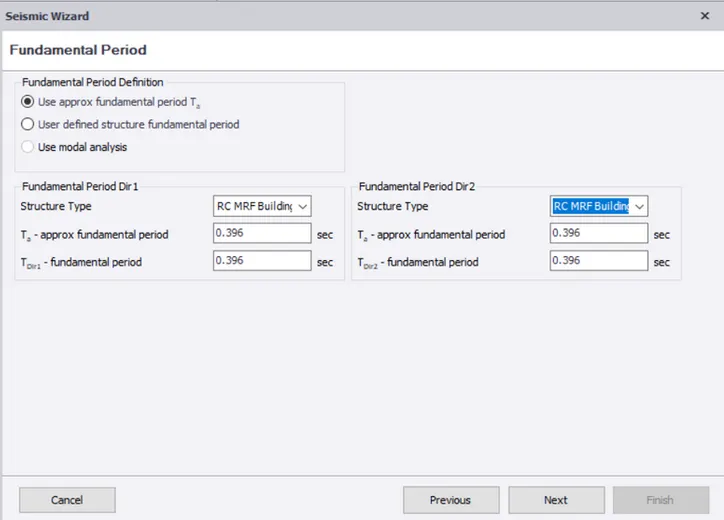

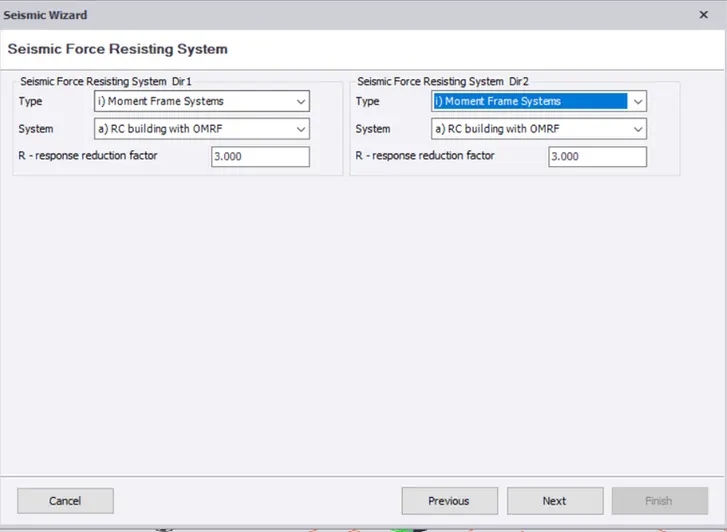

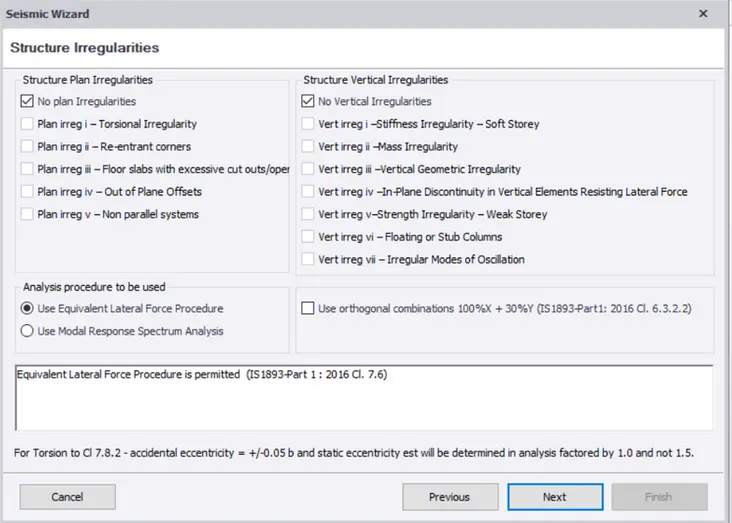

• Now we have to enter the structure type as RC MRF building, and click Next.
•
•

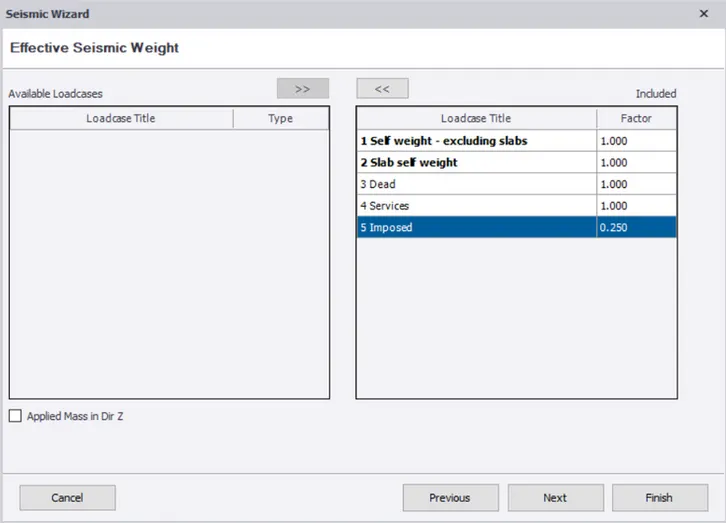

• Now include the load cases and click Next.
•

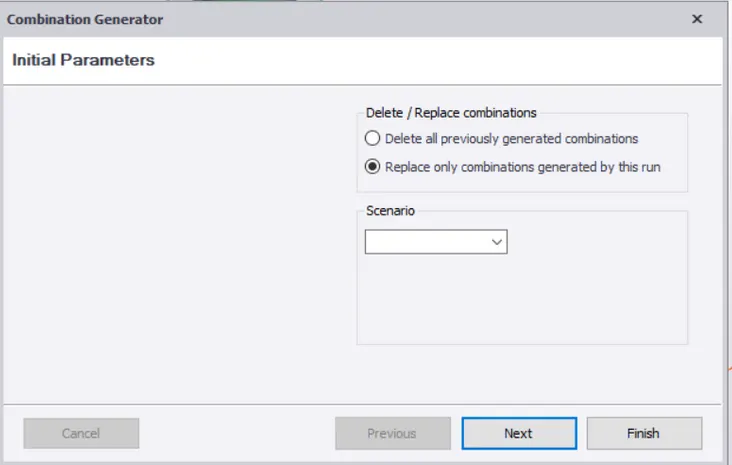

• Select "Replace only combinations generated by this run" and click Next
•
• Now all the load cases are generated.

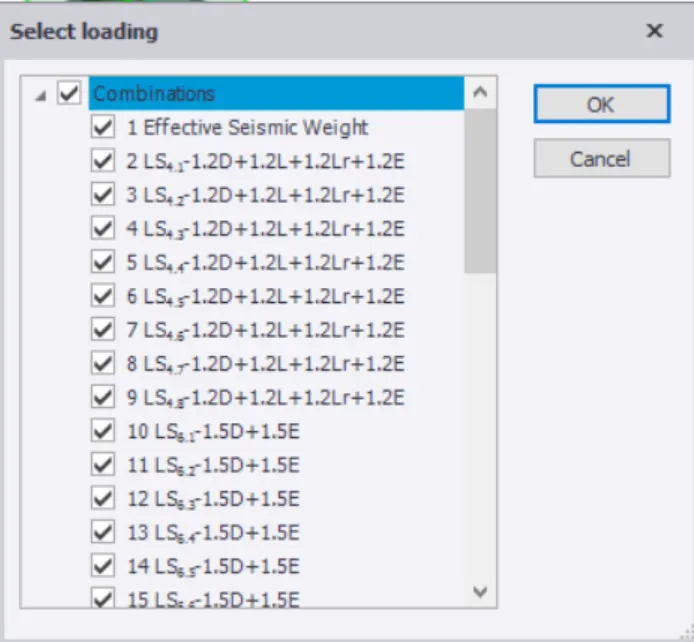

• Suitable load cases can be selected and applied on the model, and click Next.
•

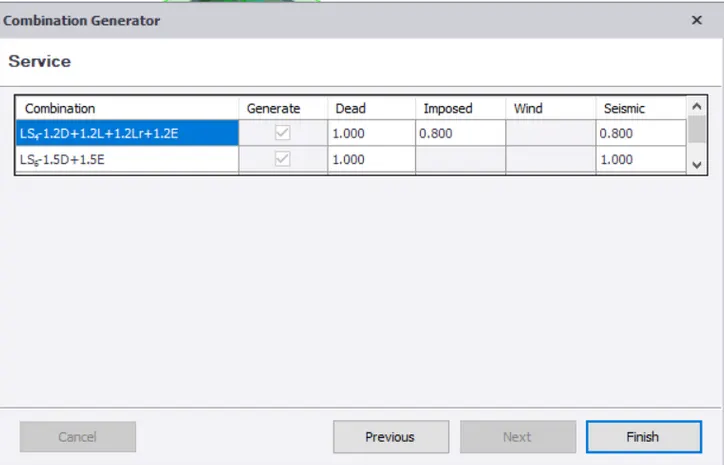

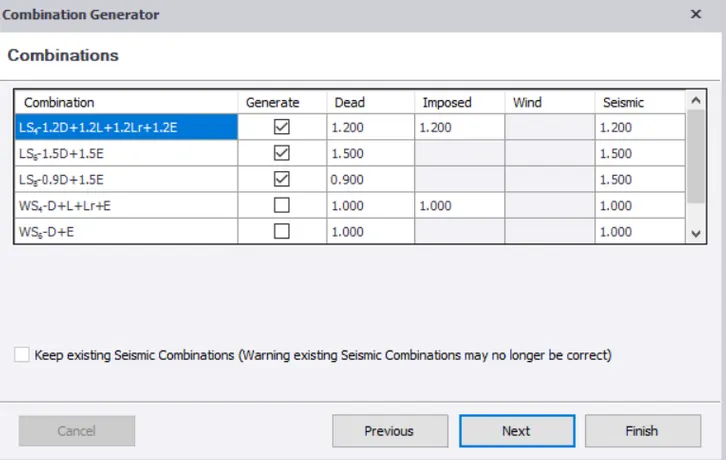

• Now provide the combinations and click Finish
•

2.

Aim: To run analysis and understand the analysis.

Procedure:

• After providing the loads and load cases, click on analyse and select first order linear.
•

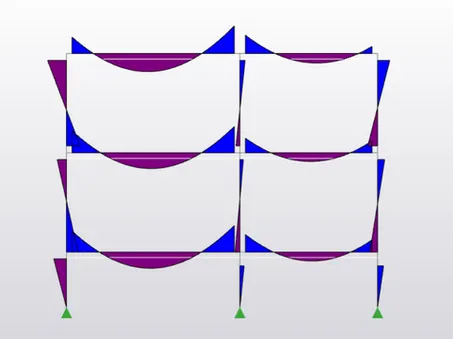

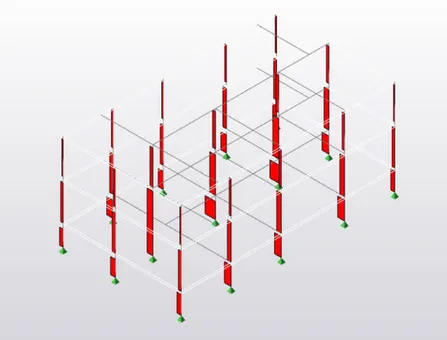

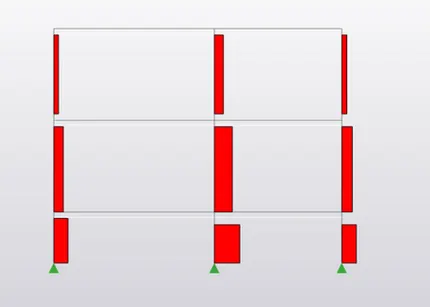

• After the analysis, go to the results and select shear force and check the results.
•
• We got a descending ascending value from bottom to top, which embarks it to be correct.

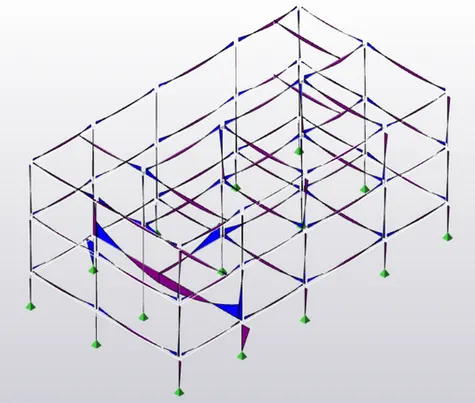

• Now we have to check the moment, and here we can find the member moment major as -40.98/28.03 KNm
•
• From the moments, we can say that, this is correct.
• Now we have to check for deflection.
•

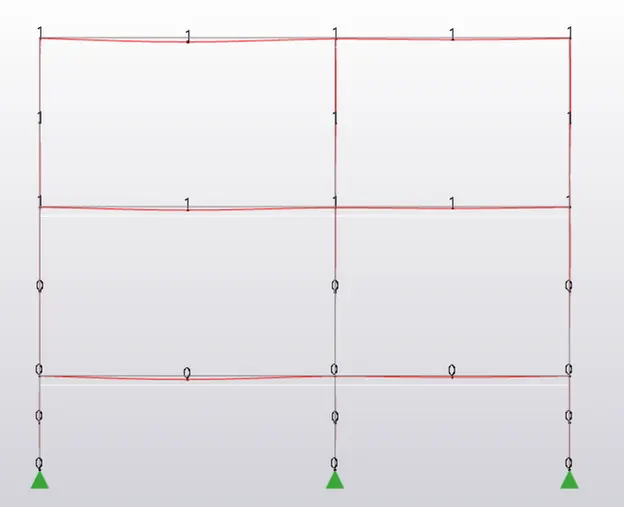

• When checking the deflection, we can see that the second beam at the ground floor is undergoing more deflection as compared to the others.
• This can be corrected by improving the concrete grade.
