Challenge

To Design slab and foundation for an RC residential building using TSD

Aim -to design the slab and foundation of the model
procedure -
1.open saved tekla model
2.generate the same load combination again

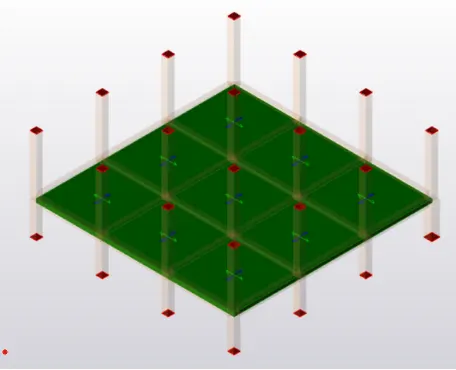

designing slab -
1.click any one slab and change its properties like rib,rib type bar spacing and bar size

Now right click on any one slab and select the design member

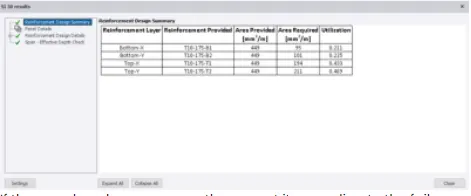

If the member shows and error the correct eat according to the failure if the member passes it will show green then proceed with the design

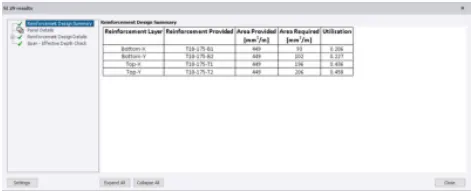

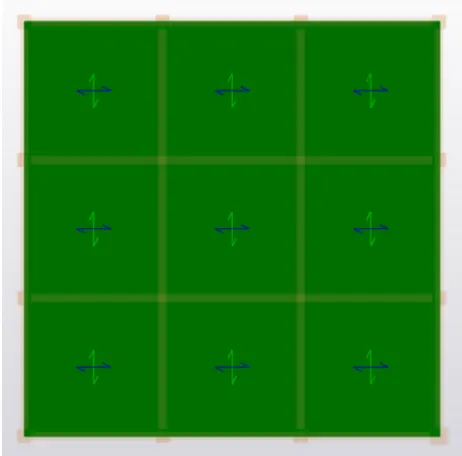

Now repeat this procedure for all slabd and click on the review

designing of foundation -

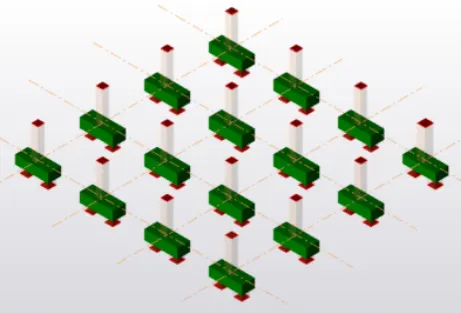

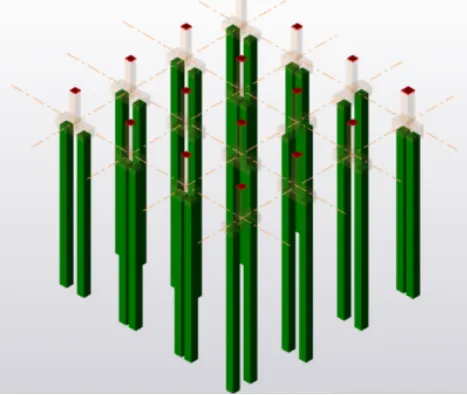

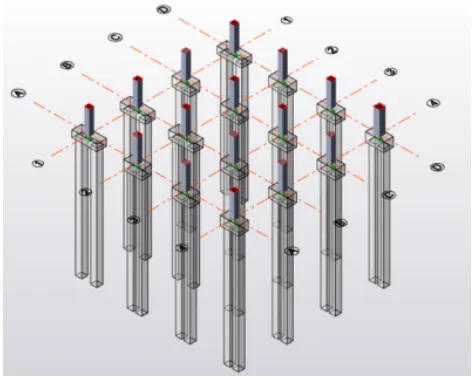

here pile foundation is used

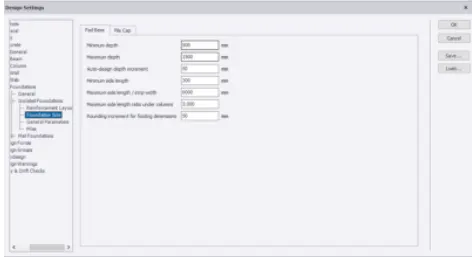

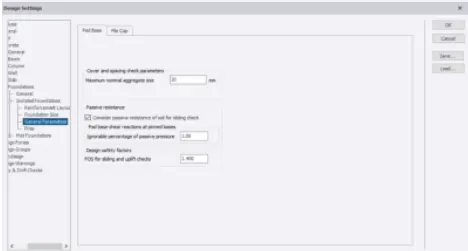

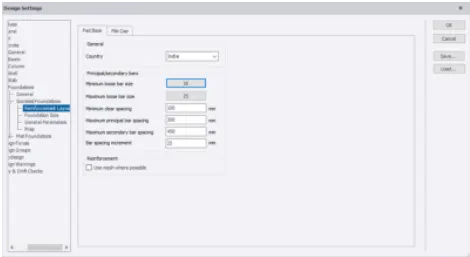

go to the settings and make changes in setting for foundation like further enforcement foundation size general parameter etc

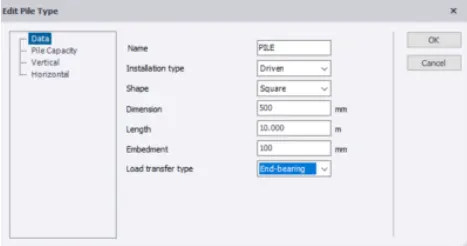

Now we have to edit the pile type shape and the load transfer type

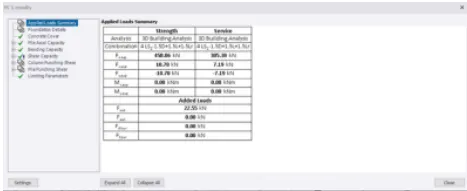

Now right click on the member we have to design and click ok.design.

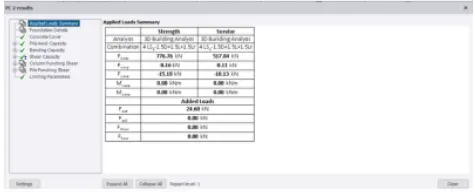

if it shows in green then the design is correct and we can proceed
