To Design slab and foundation for an RC residential building using TSD

Q1:

Aim: To provide the design for slab

Procedure:

Step:1)

Analyse >1st order linear >Load combinations >ok (Or provide Anlayse > Analyse all (static))

Step:2

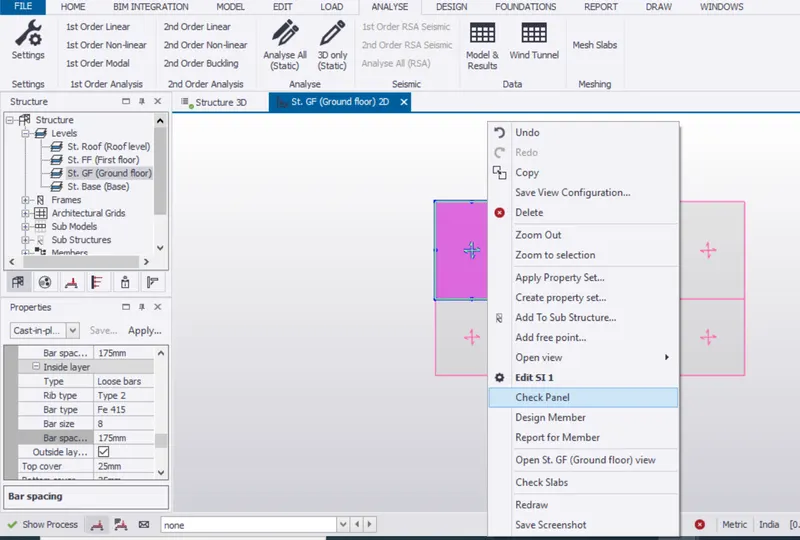

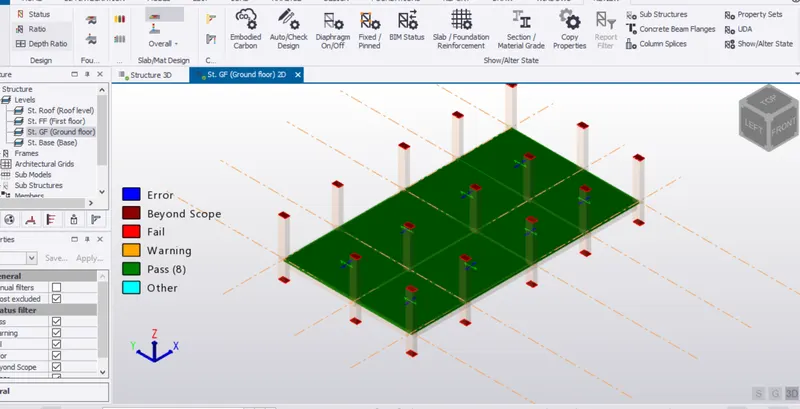

Select the slab > check panel

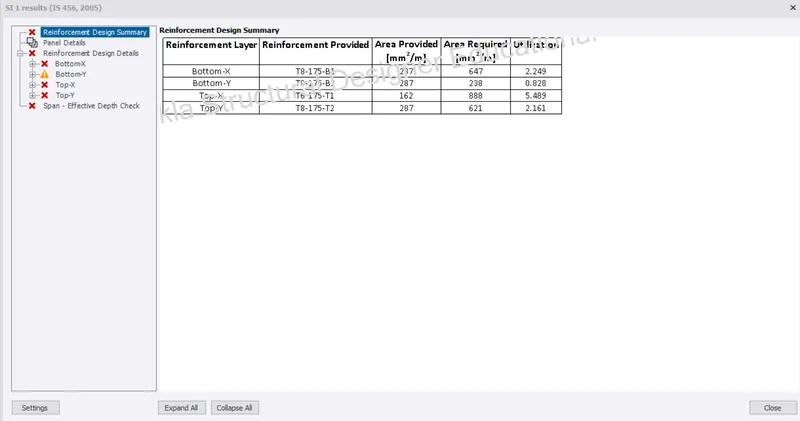

Slab showing errors

Step:3

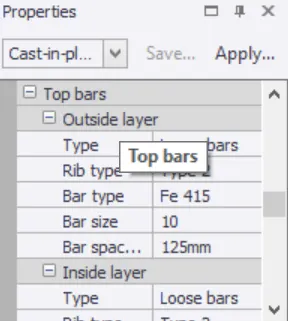

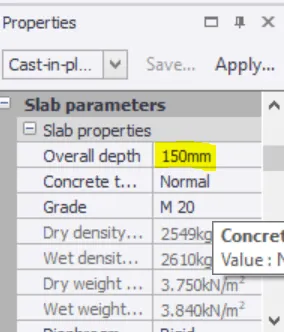

Change the depth of slab

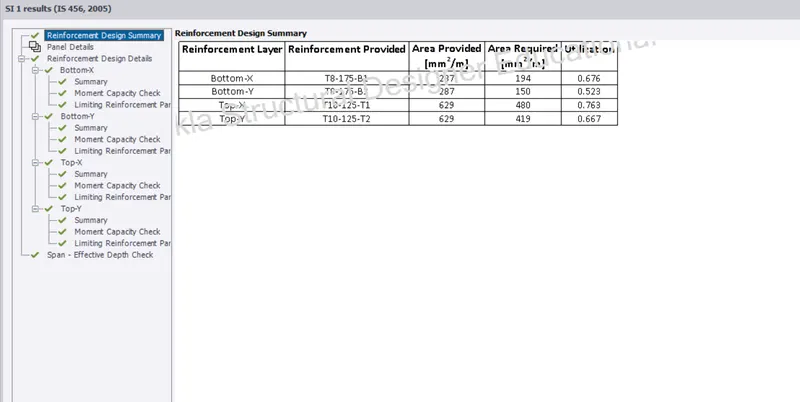

Reinforcement size increased

Result:

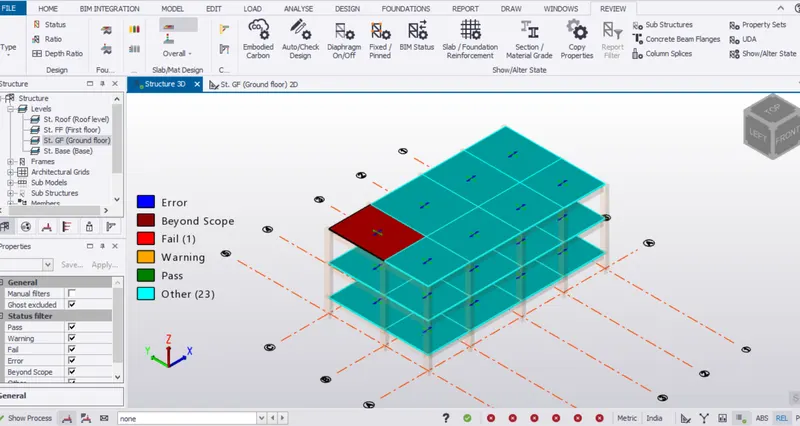

Slab passes the code design check

Q2:

Aim: To provide the design for foundations

Procedure:

Step:1)

Create the properties for pile

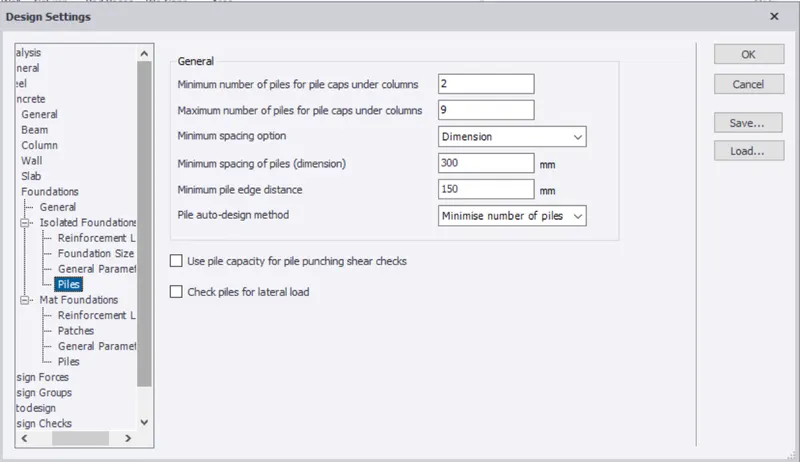

Foundations > Settings

Foundations > Catalogue

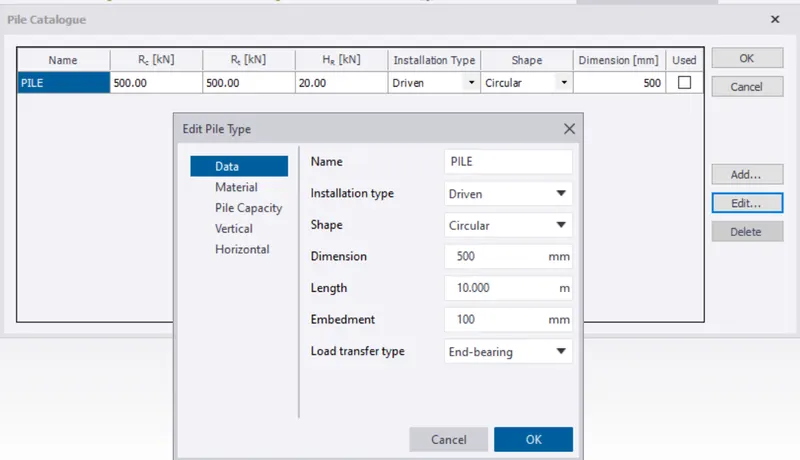

Creating a pile profile

Step:2)

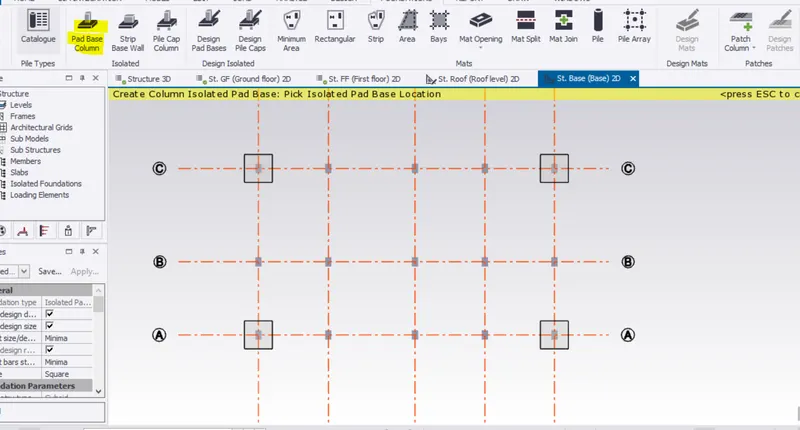

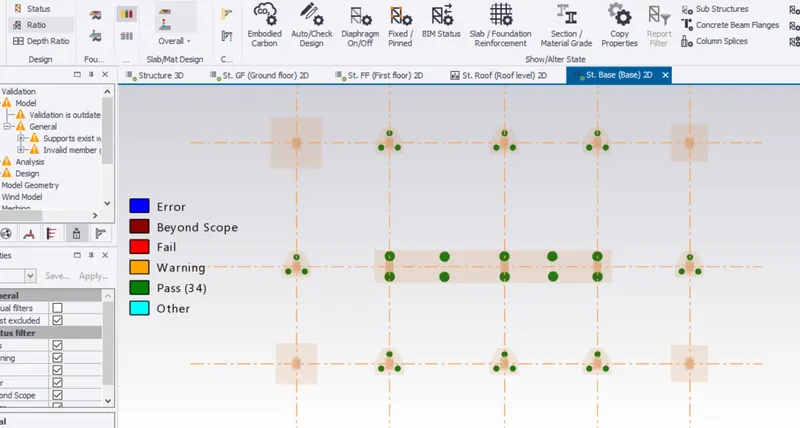

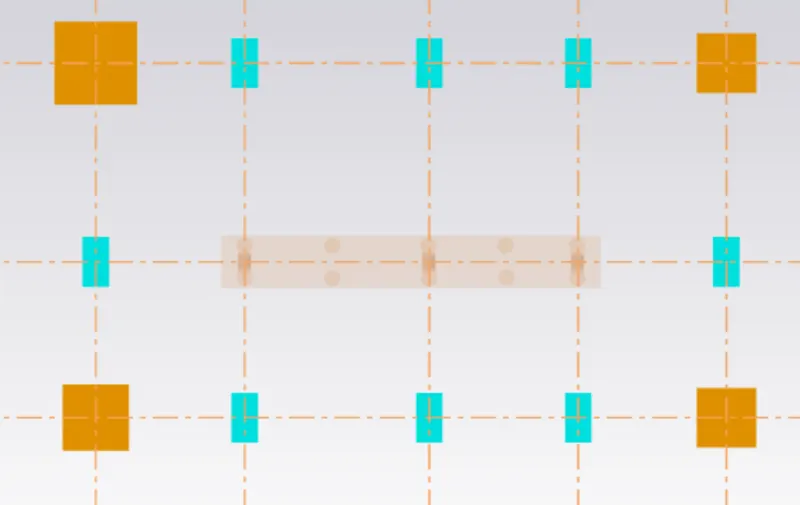

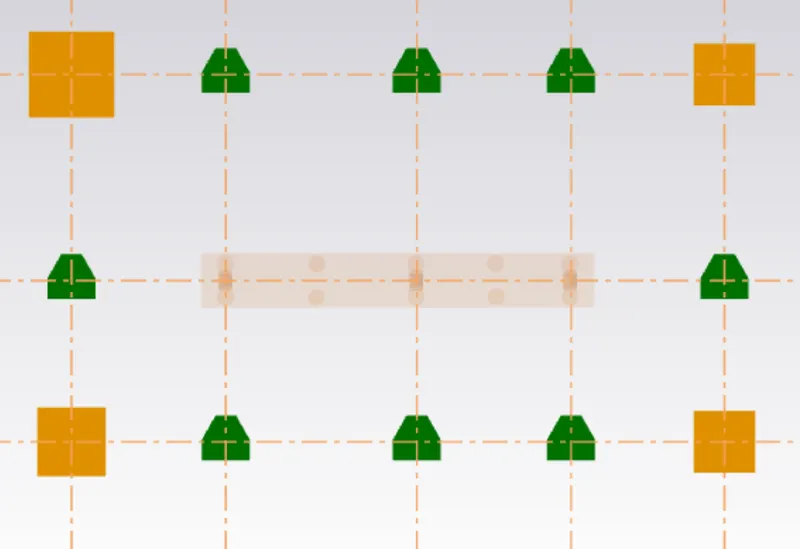

Provide Pad base for corner columns

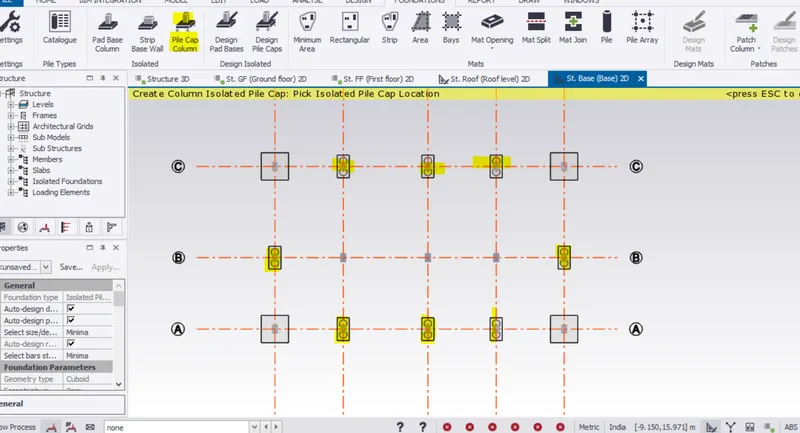

Provide pile foundation for columns

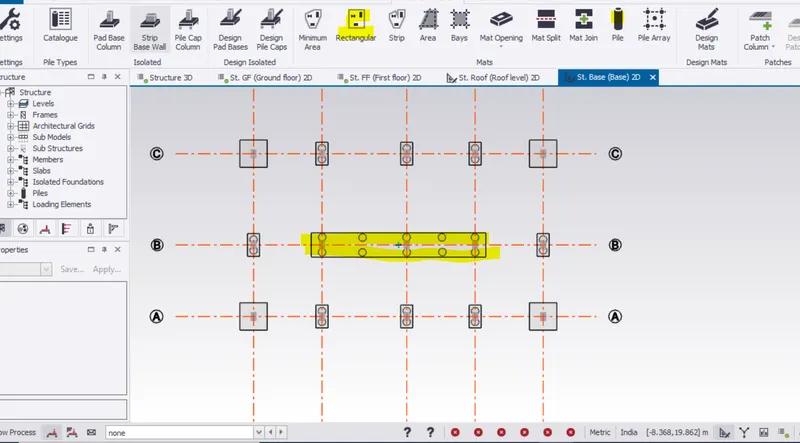

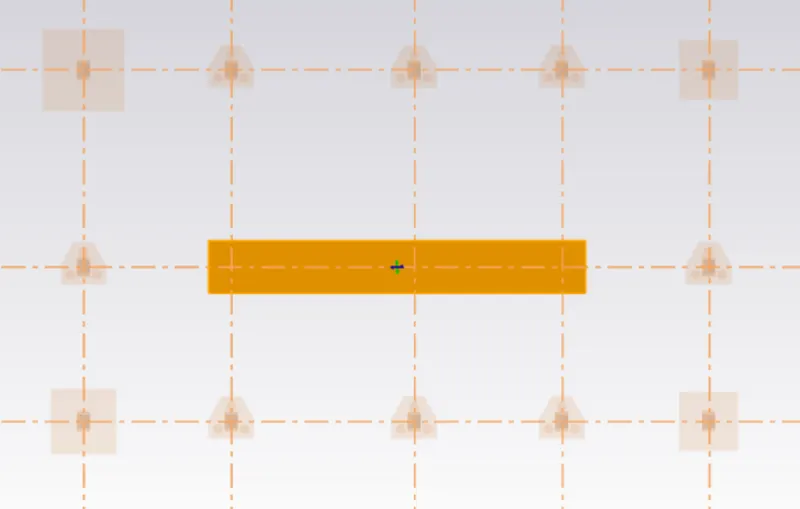

Provide mat with pile foundations

Step:3)

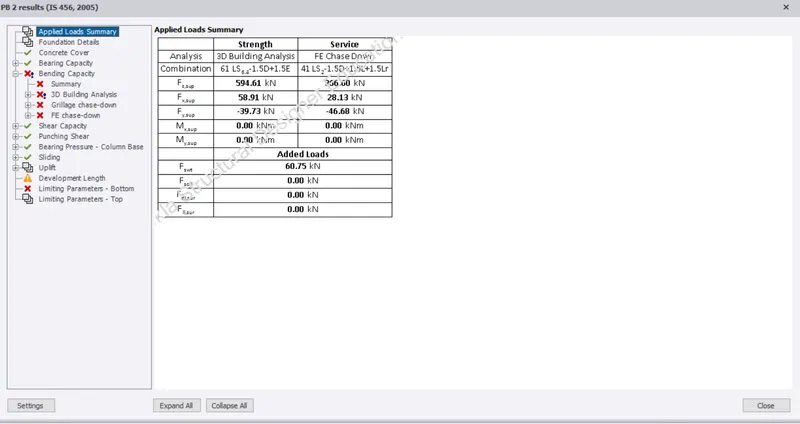

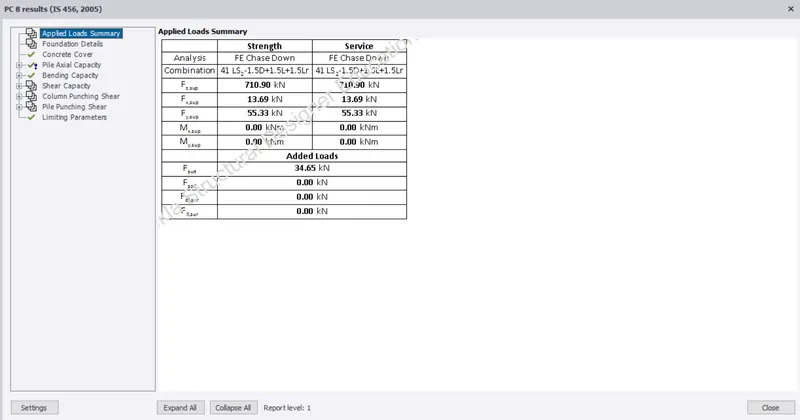

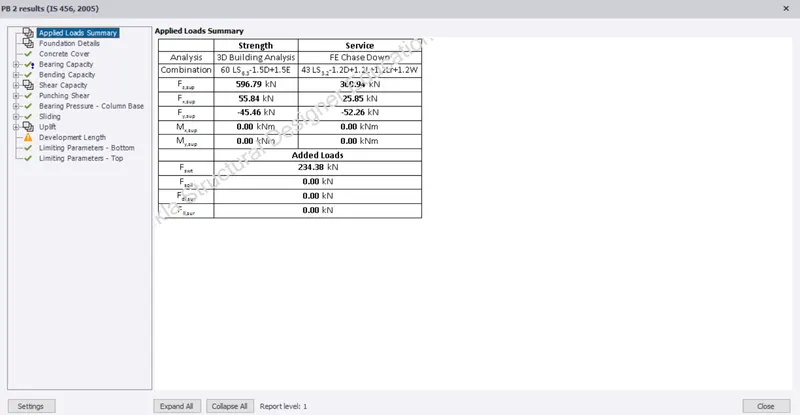

Pad base design

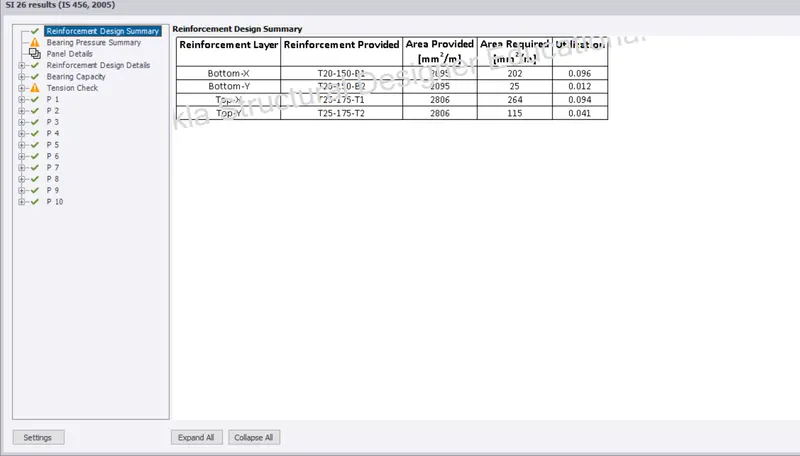

Pile cap design

Mat with pile cap

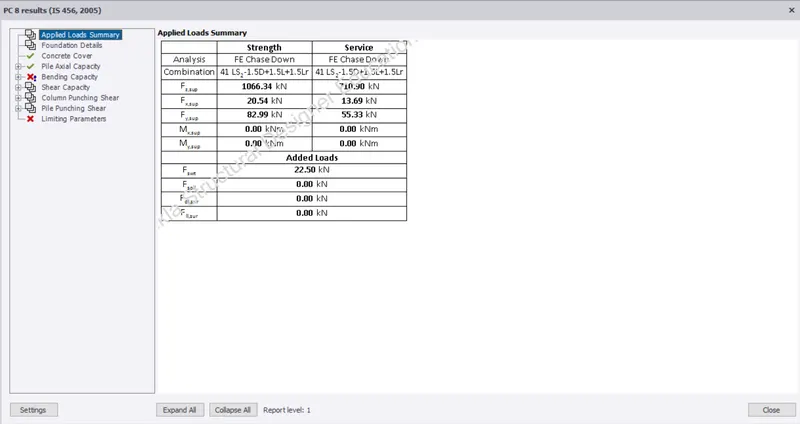

Result:

Isolated footing, Pile footing and Mat with pile is designed
