To Design RC column and beam for RC residential structure using TSD

1.) Based on the analysis design RC column and beam.

AIM:

To Based on the analysis design RC column and beam.

PROCEDURE :

COLUMN DESIGN:

• Open the tekla software and open previous file
• After analysis the model

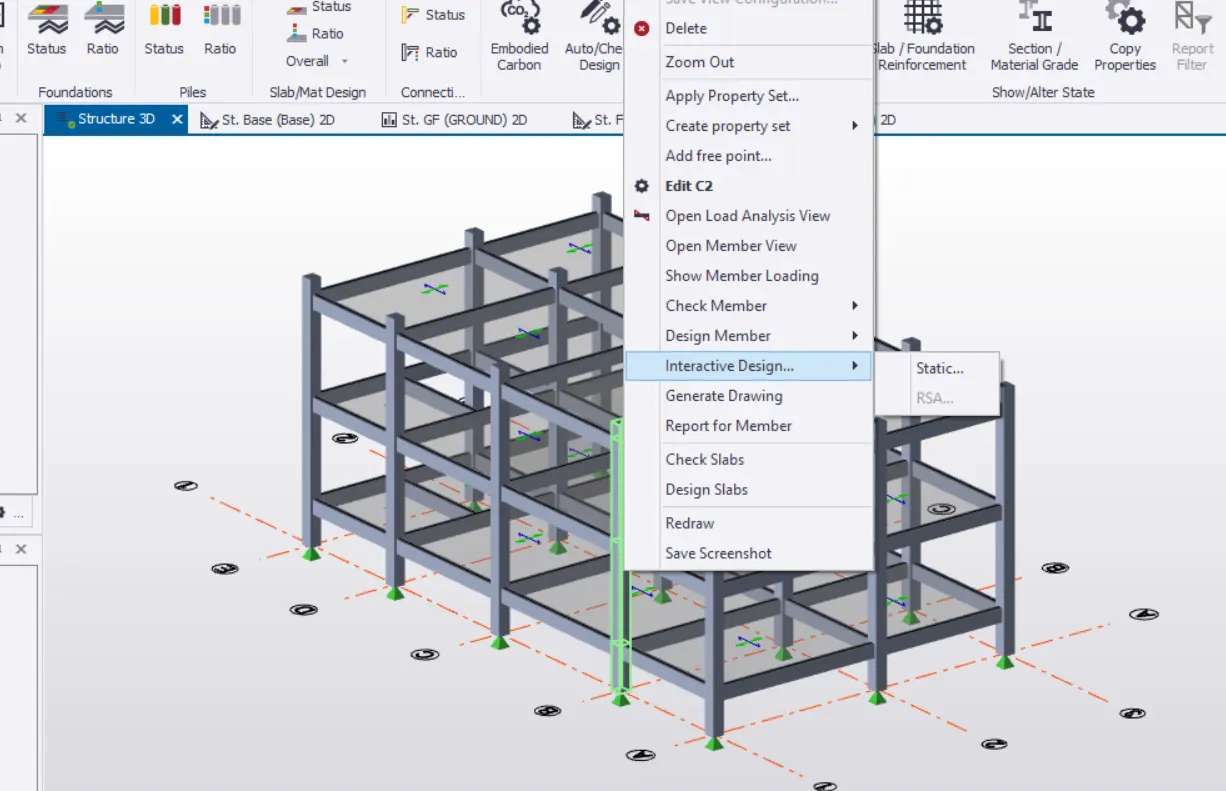

• Select the column and right click

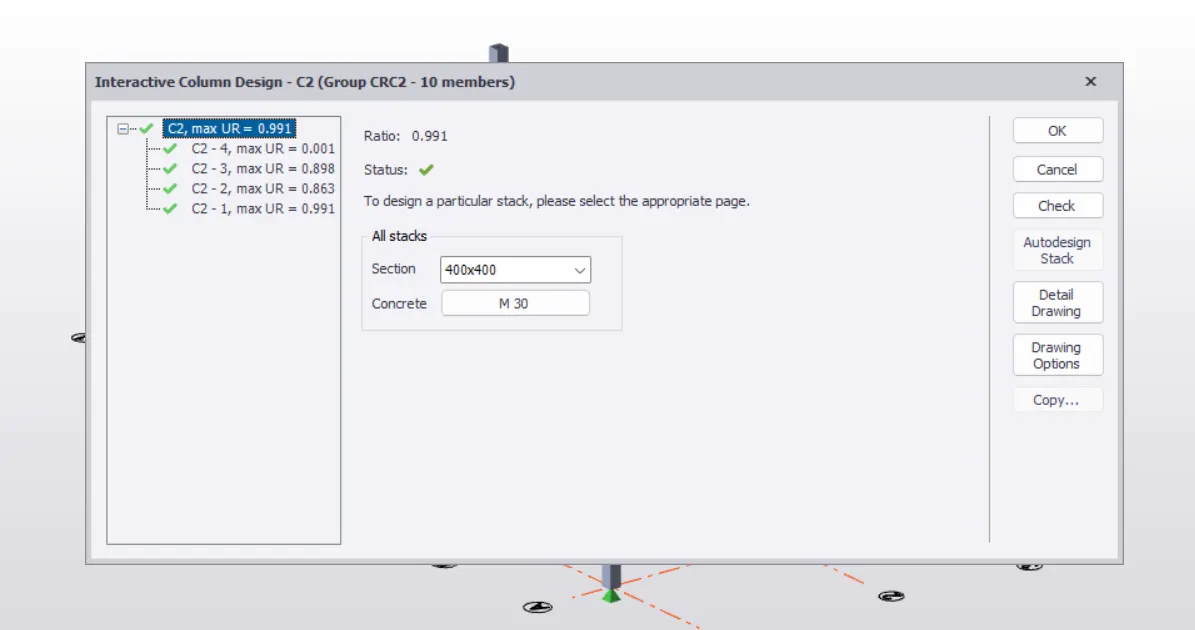

• select the interactive design --> static
• First we need check the errors
• And they have any errors shown

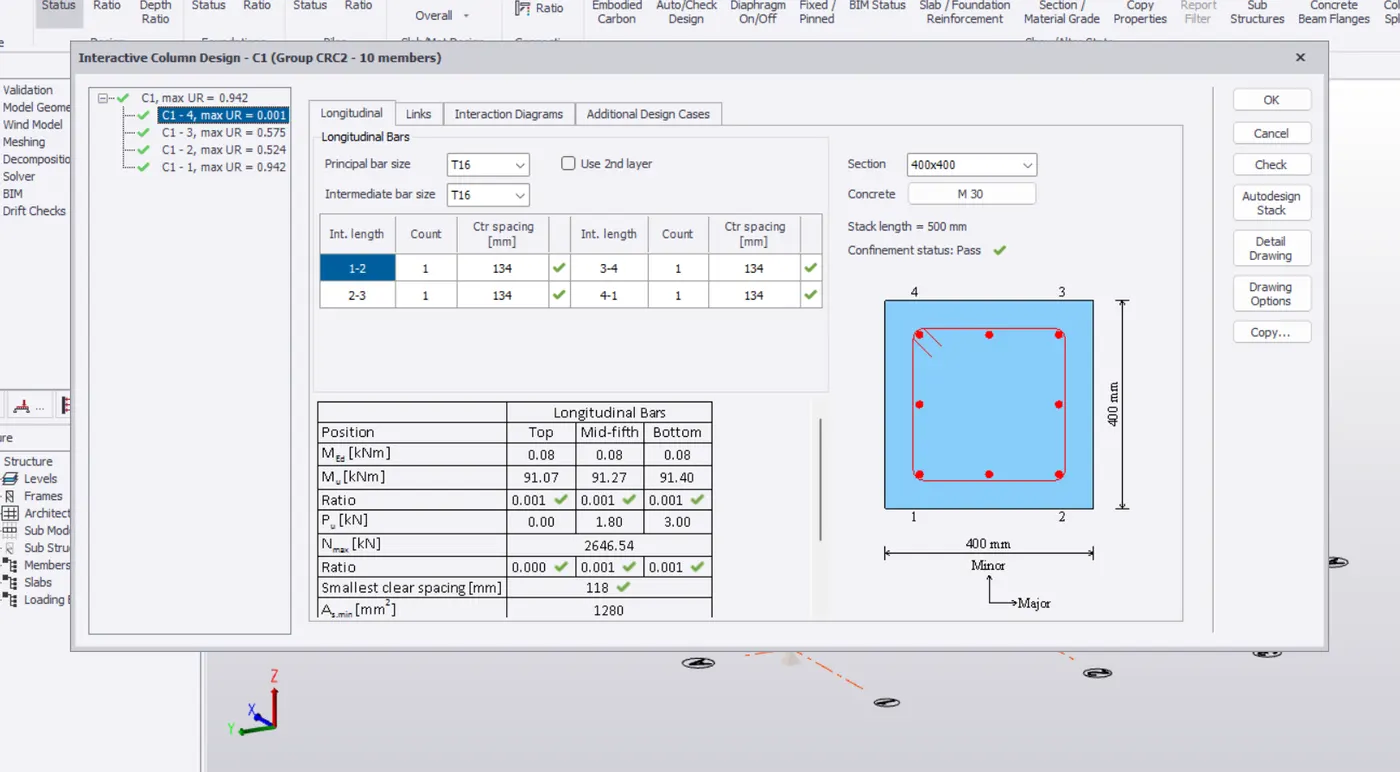

• First change the principle bar size and intermidetate bar size
• Again shows errors means just change the counts
• And again shows errors change the section size
• Repeat the same procedure for all the columns
• The procedure process image as been given below

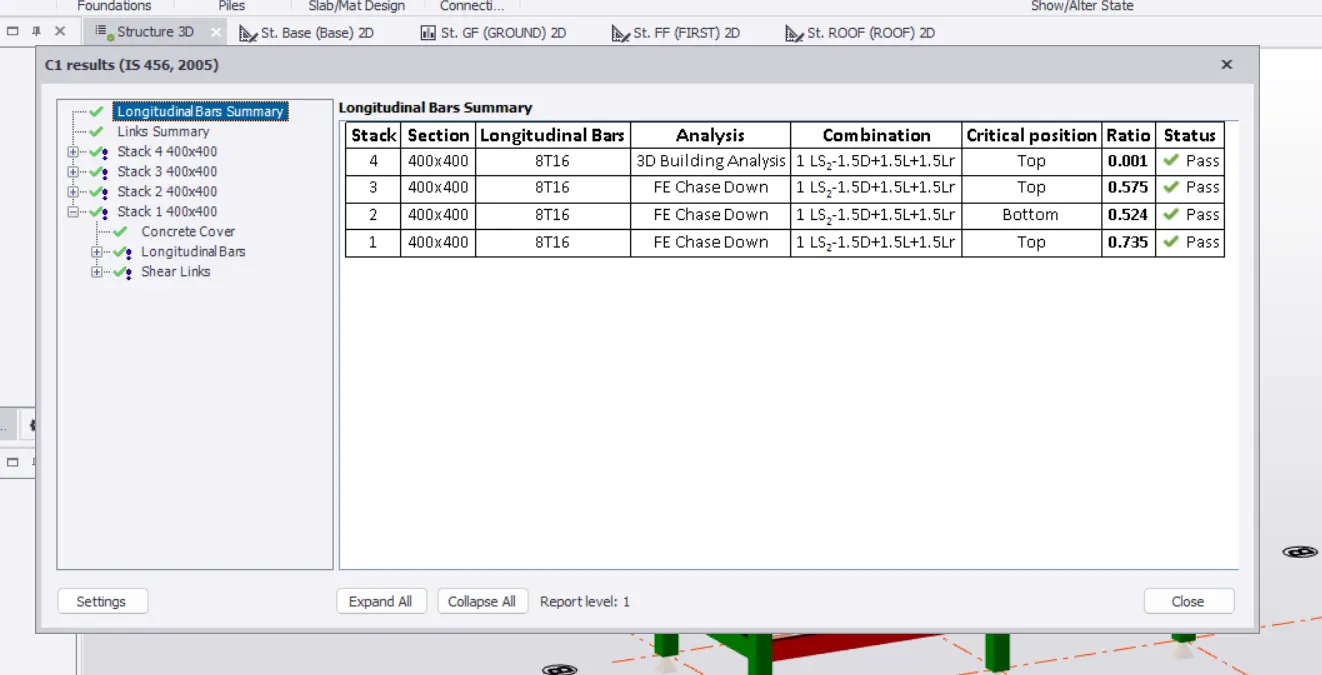

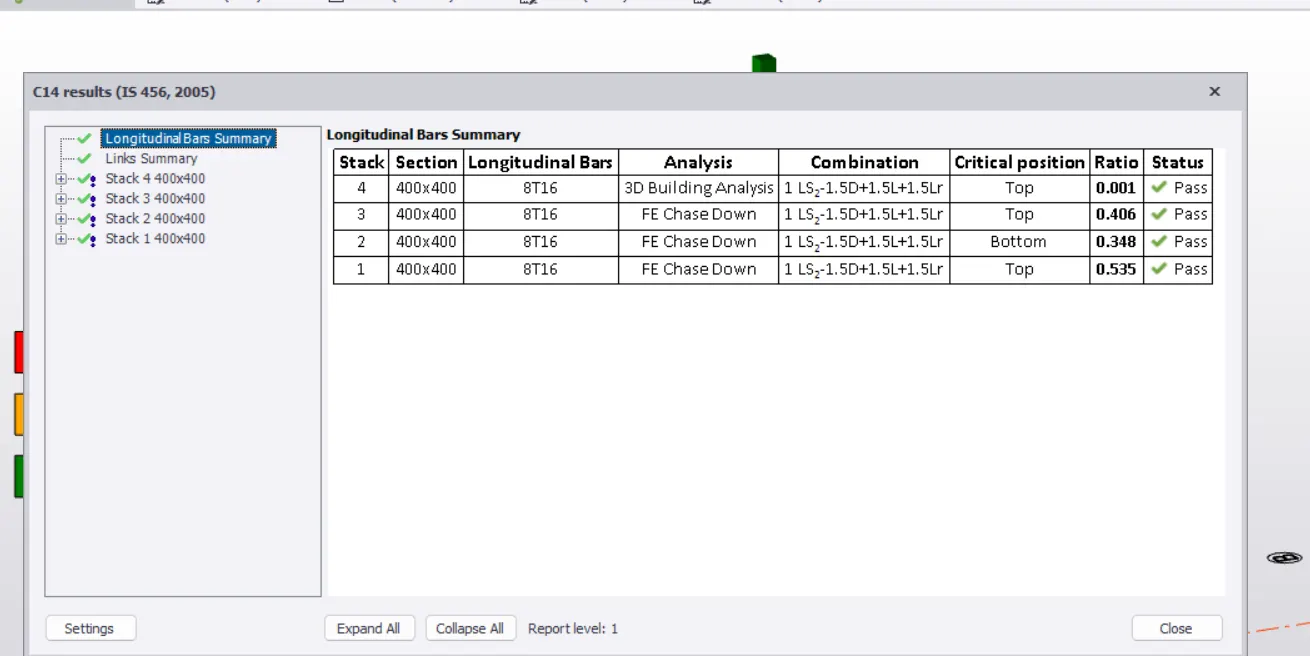

• Here the all columns are passed in design and analyse

BEAM DESIGN:

• Here we want to adjust the beam designs
• First go to the design setting under the design tab

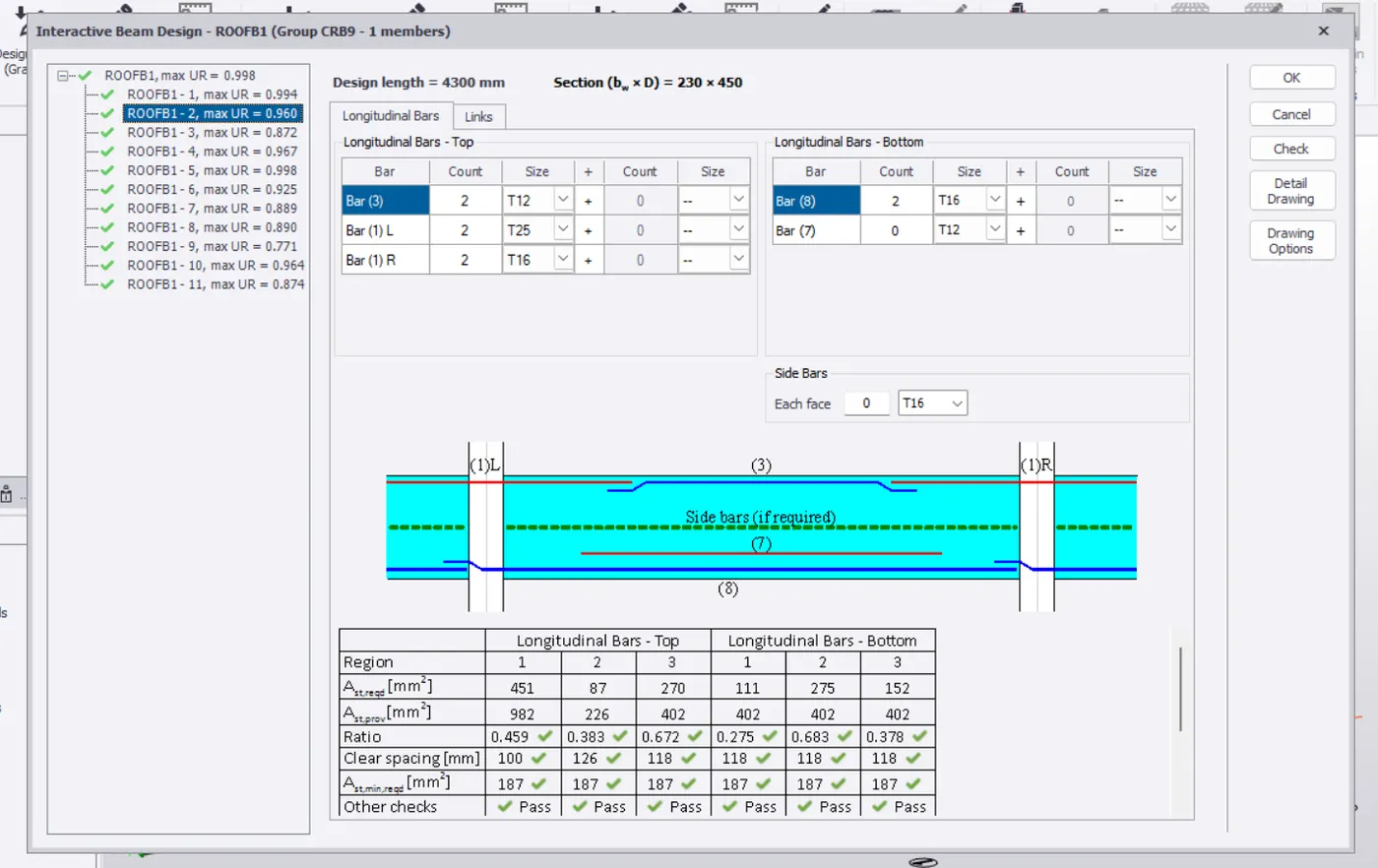

• Go to the concrete --> Beam --> Top longitudinal bar --> select the (Bar 2)
• Select the beam and right click

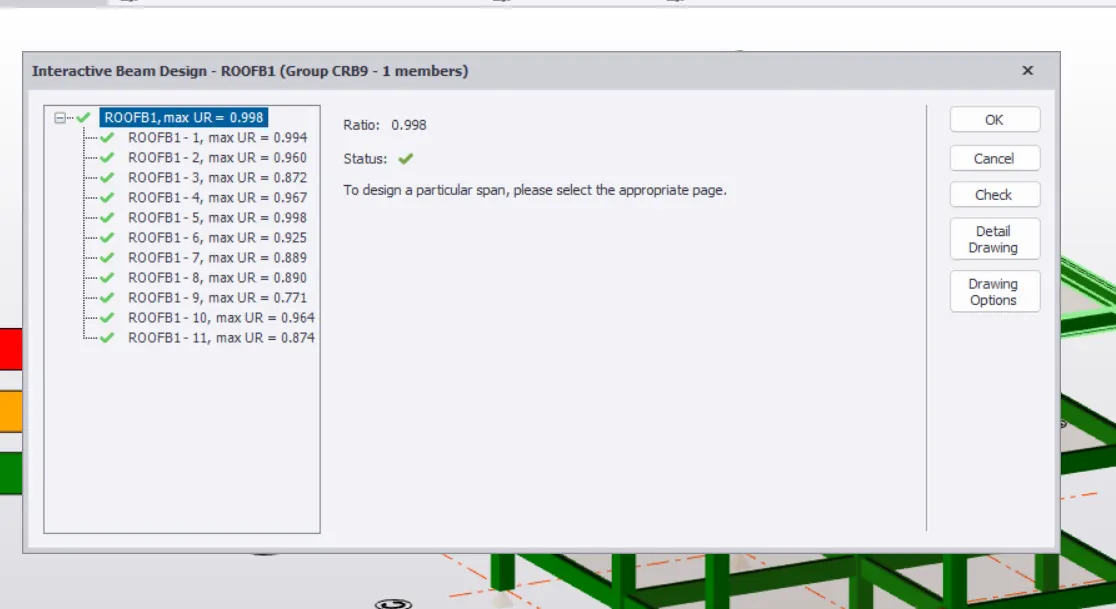

• select the interactive design --> static
• First we want to check the errors
• And they have any errors shown

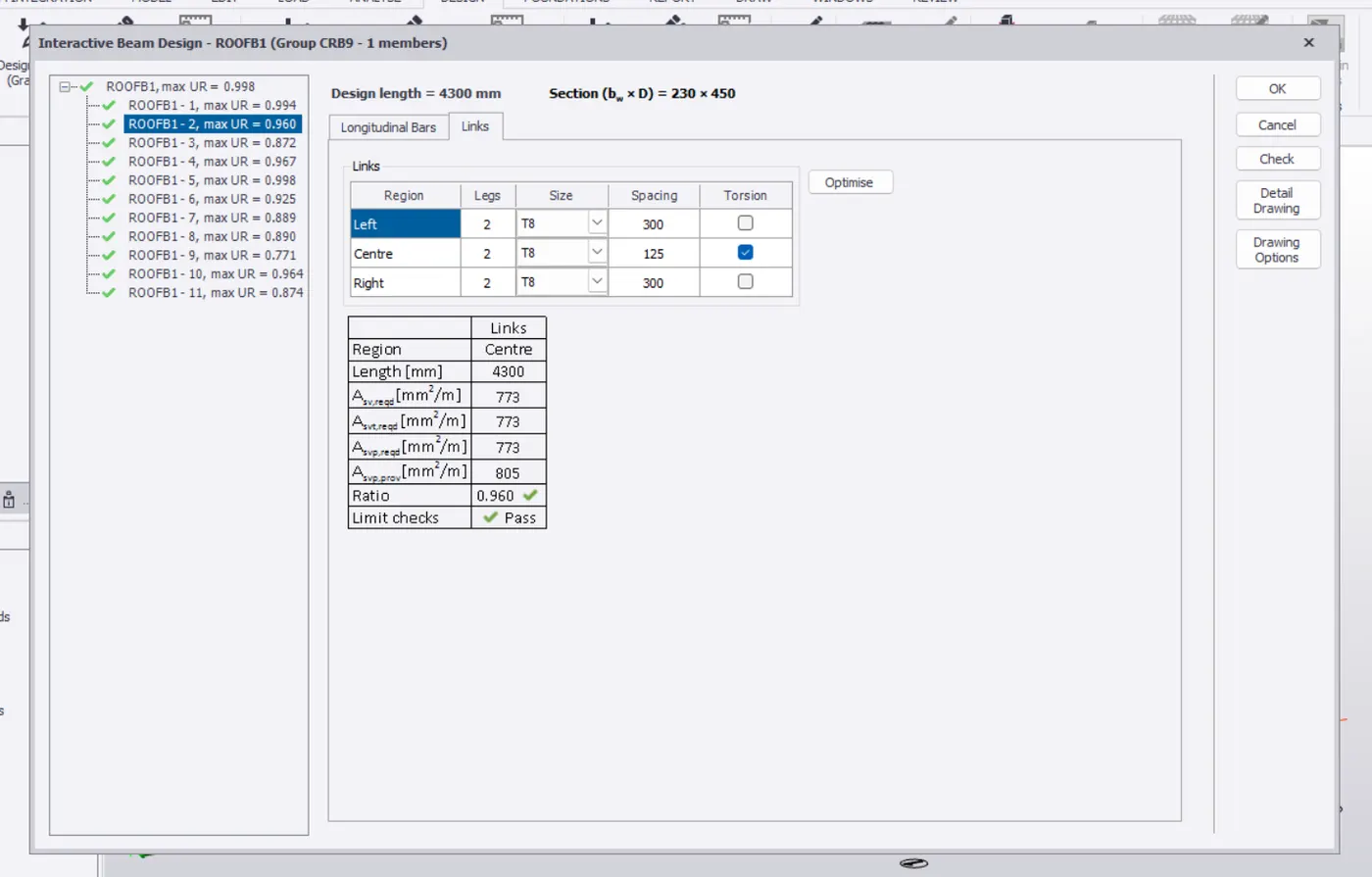

• First adjust the size and count still the beam as been passed
• Repeat the same procedure for all the beams

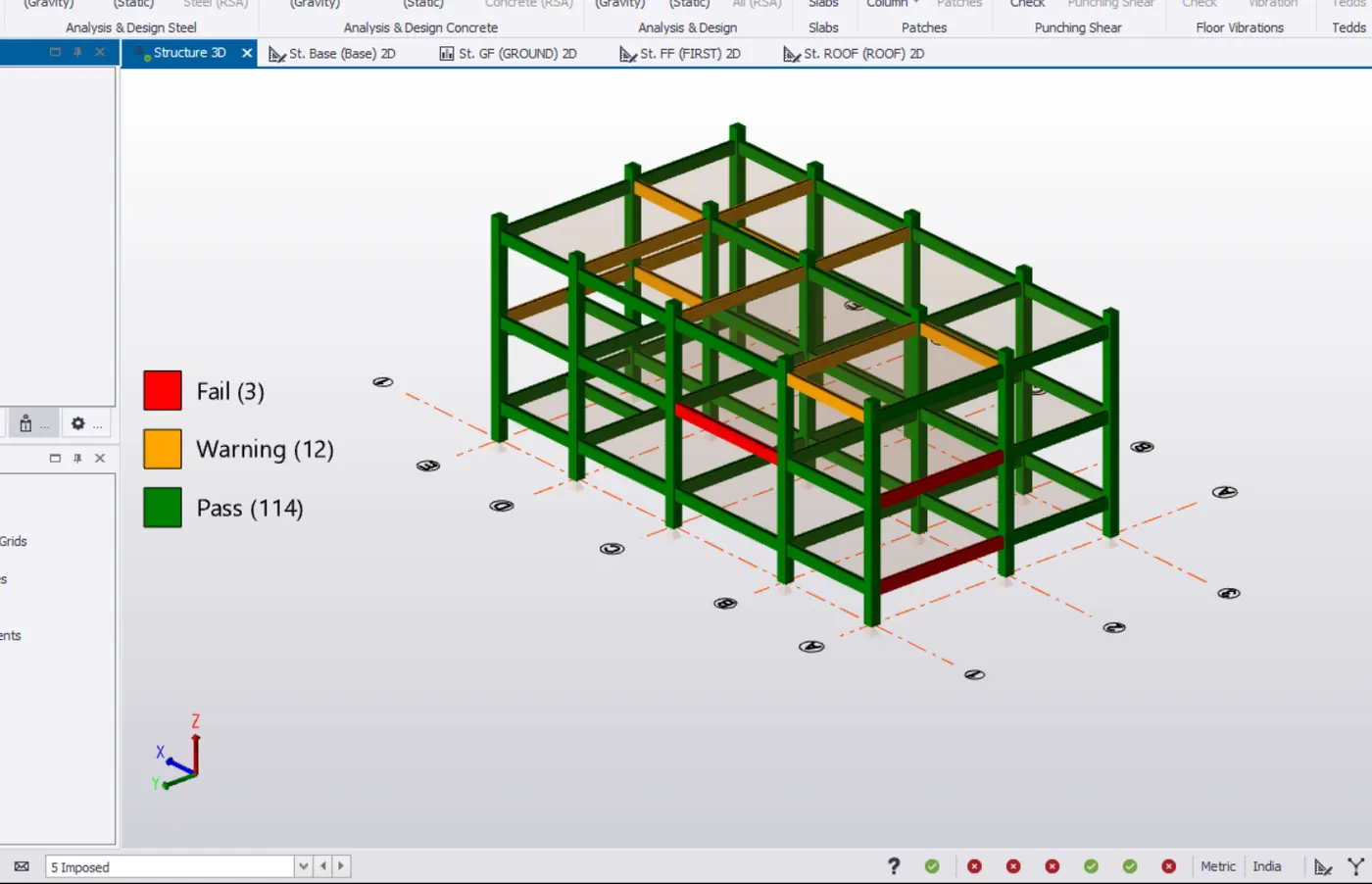

• After finish all the beams we want select the status and we check the member are all passed

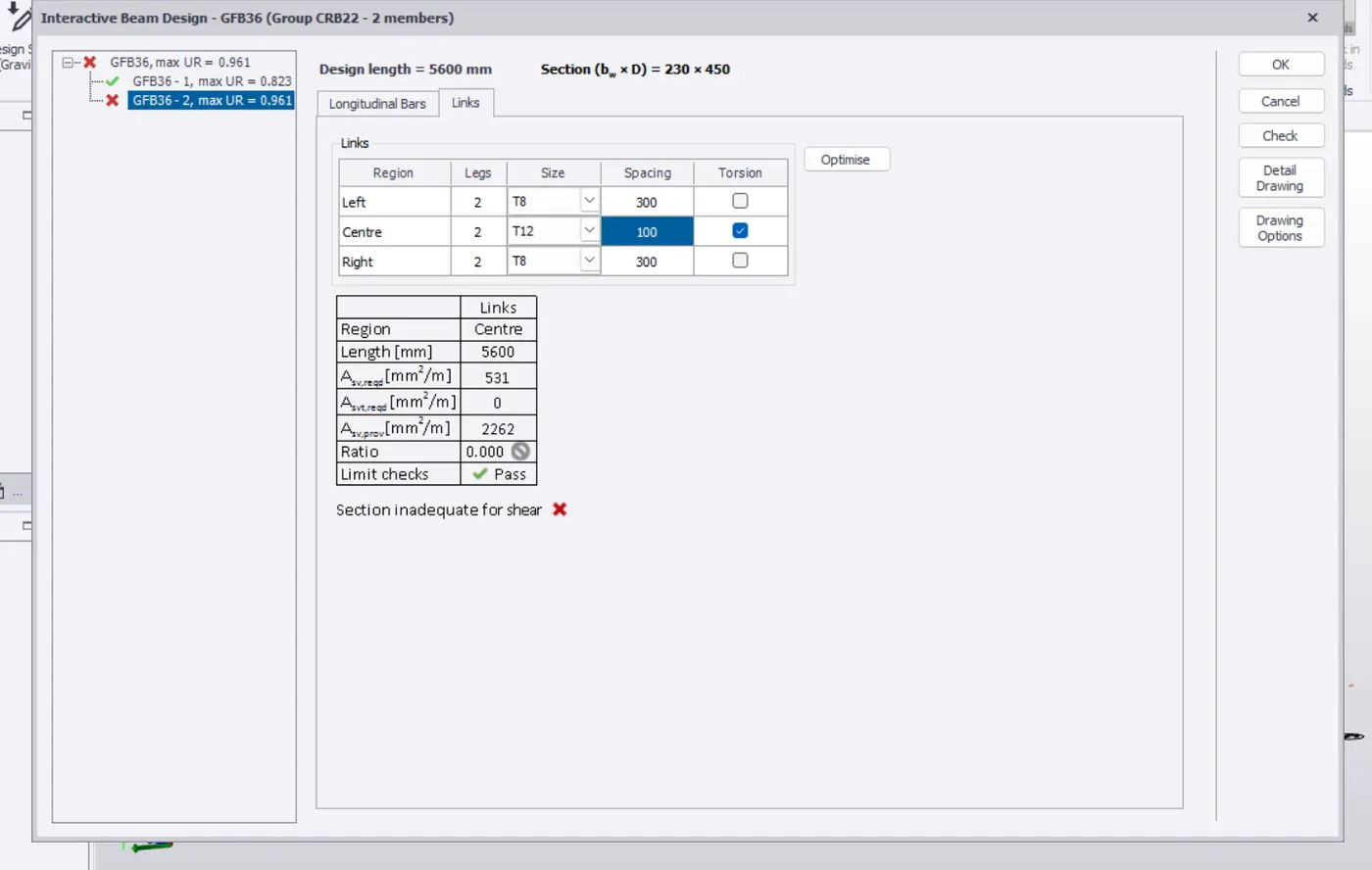

Here totally three beams are faild dueto shear links,

RESULTS:

As per the question

To Based on the analysis design RC column and beam as completed.
