To calculate the dead , live and wind load for RC residential structure and to apply them using TSD

Q1

Aim:- to calculate the dead load as per the design and IS code specifications

Given data:-

• thickness of the floor finish is 50mm
• assume the thickness of the exterior wall as 230mm
• assume the thickness of the interior wall as 150mm

Calculation of dead load

• dead load due to floor finish

thickness of the floor finish is 50mm

assume the unit weight of the material as 24kn/m^3

dead load = 0.05 x 24 =1.2 kn/m^2

• dead of the slab due to its self weight is taken directly by the model
• dead load of the brick wall

assume the unit weight of the brick material as 20kn/m^3

height of the floor level is 3.5m

dead of the exterior brick wall is 0.23 x 3.5 x 20 =16 kn/m

• dead load of the roof is taken as 1.5kn/m^2

dead of the interior brick wall is 0.15 x 3.5 x 20 =10.5kn/m

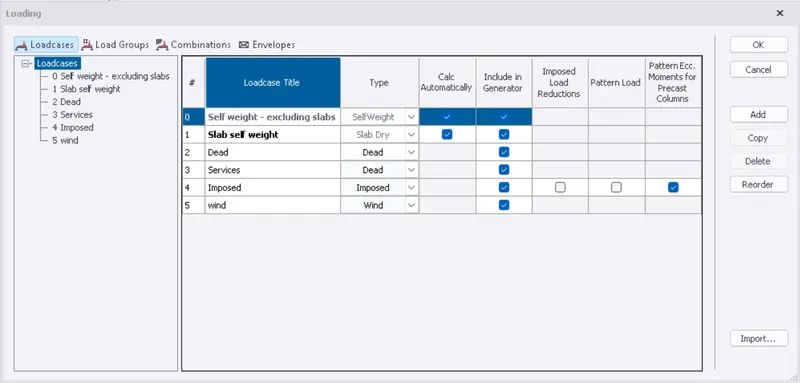

To define the load cases

• go to load from the tool bar
• click on the loadcases
• add the loadcases in the given dialogue box

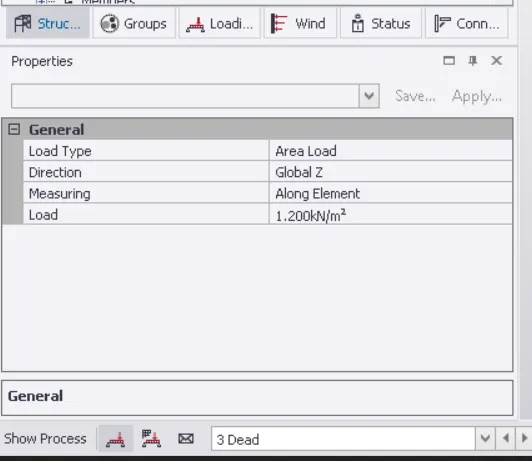

To assign the loads to the model

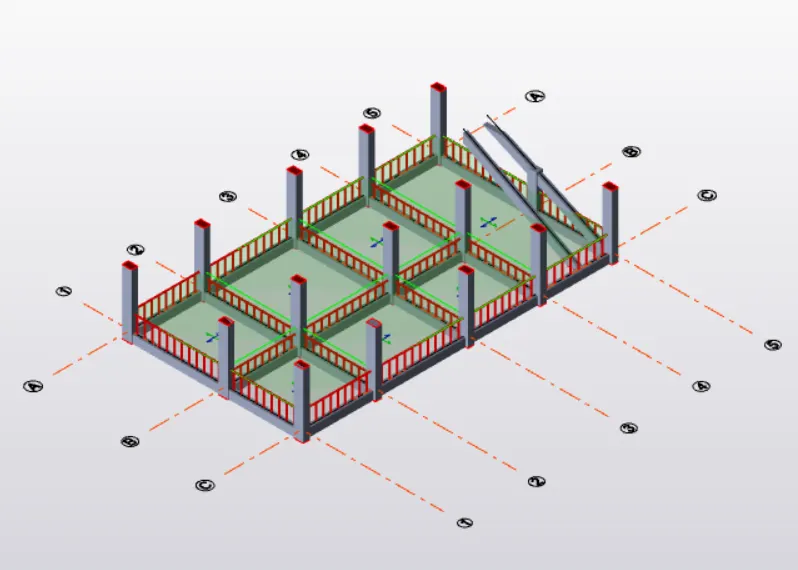

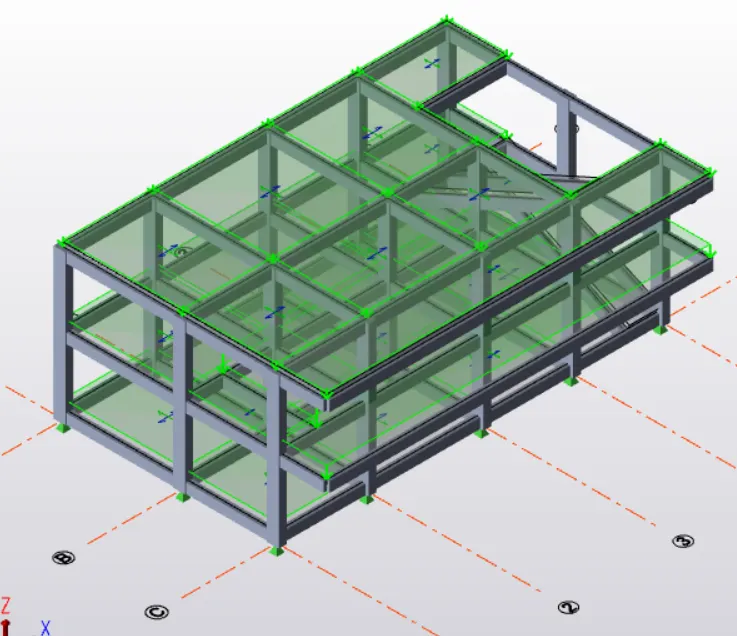

Floor finish and brick wall load applied at the ground floor level

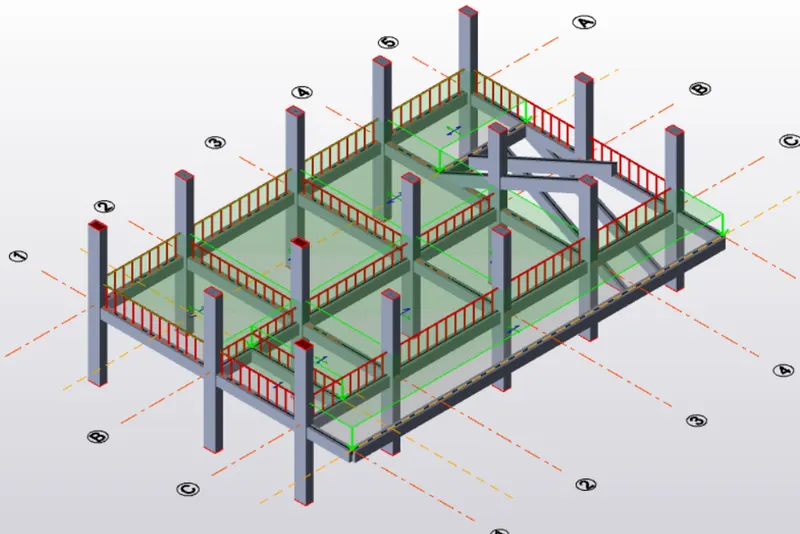

Floor finish and brick wall load applied at the first floor level

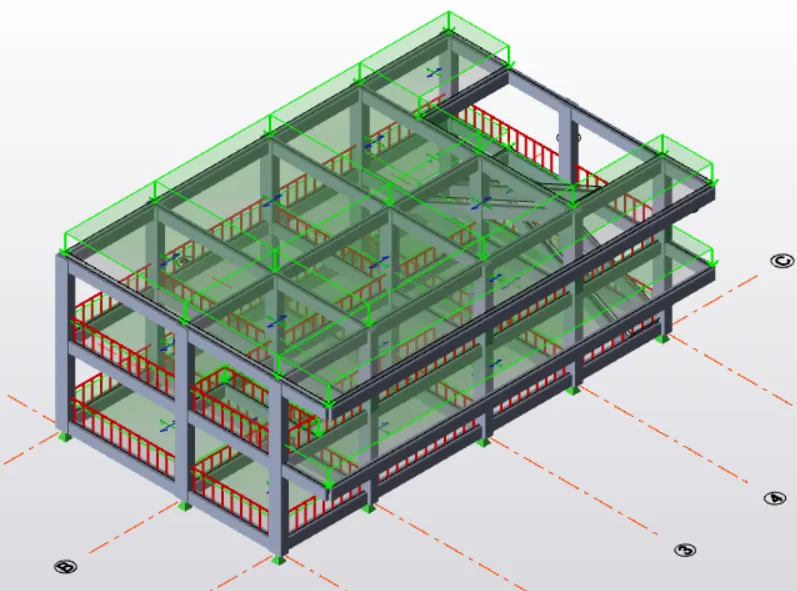

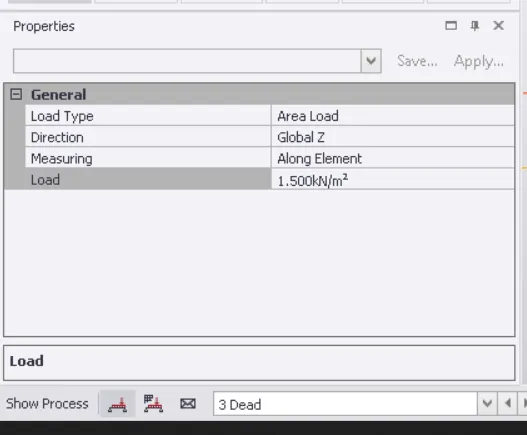

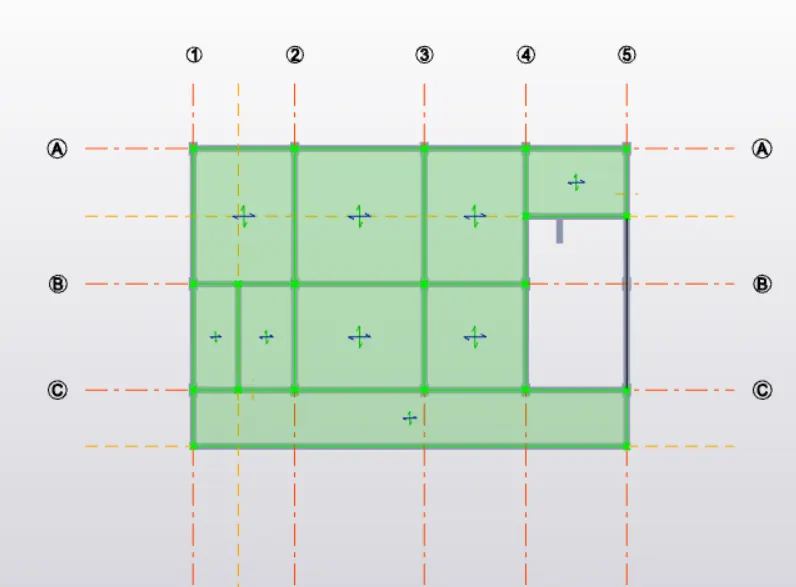

Loading applied at the roof level

Q2

Aim:- To calculate the live loads and apply them on to the model

Live loads are obtained from the IS code 875 part 2

• office room 2kn/m^2
• toilets 2kn/m^2
• commom area 3kn/m^2
• staircase 3kn/m^2
• conference room 5kn/m^2

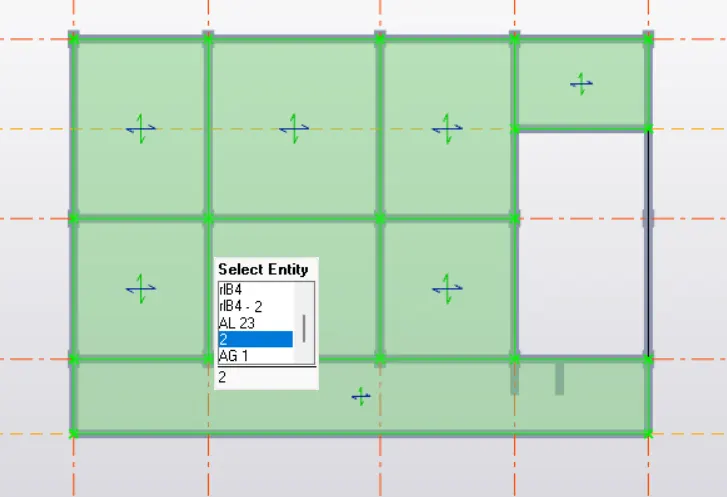

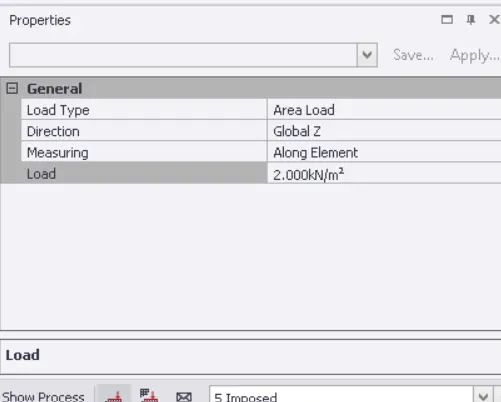

To apply these loads on to the model

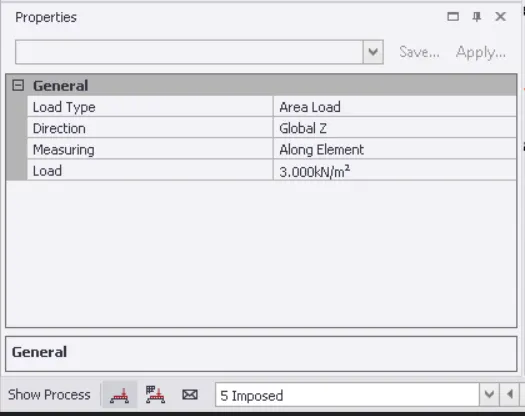

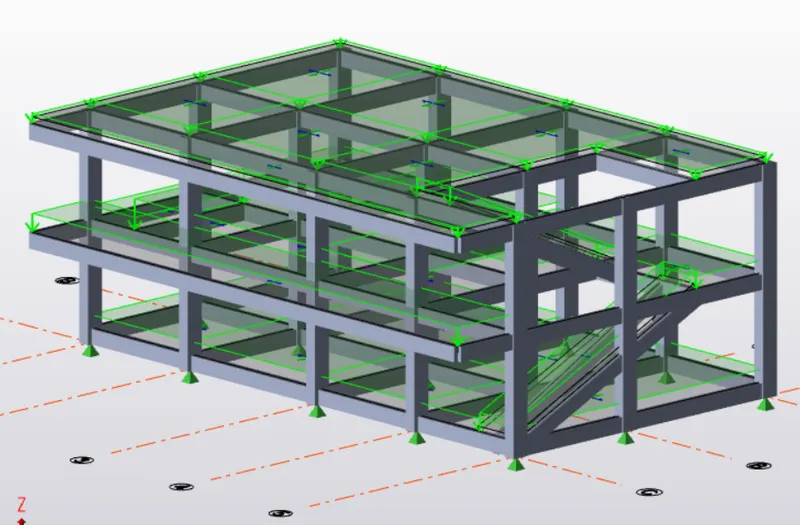

Live load applied on the staircase

Q3

Aim:- to calculate the wind loads and apply them on to the model

Given data:-

• basic wind speed is given as 50m/s
• assume the design period as 50years
• consider the terrain category as 2
• length of the structure is 19.225
• width of the structure is 13.32
• height of the structure is 7.5

ratio of wall and roof coefficients

wall coefficient l/w = 19.225/13.32 = 1.44

roof coefficient = h/w = 7.5/ 13.32 = 0.56

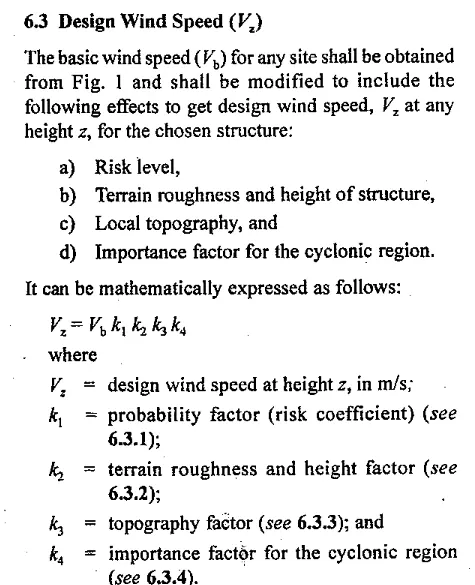

design wind speed

• Vb is given as 50m/s
• risk coefficient = 1 (for design life of 50 years with basic wind speed as 50m/s)
• terrain roughness = 1 ( for catergory 2 structures below the height od 10m)
• topography factor = 1 ( for roof slope of less than 3 degrees)
• importance factor = 1 ( for other structures)

Vb = 50 x 1 x 1 x1 x 1= 50

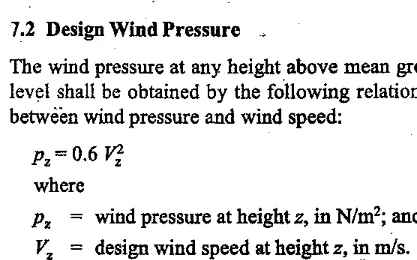

Design wind pressure

Pz = 0.6 x 50^2= 1500 n/m^2

Pz = 1.5 kn/m^2

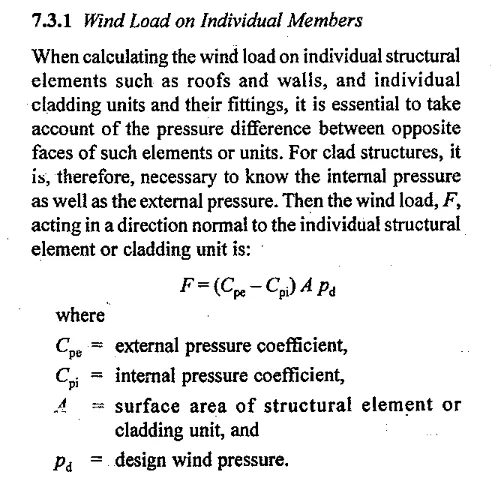

Wind load calculations

internal pressure coefficients

for a buildings with a openings between 5% to 20% are taken as 0.5 and -0.5

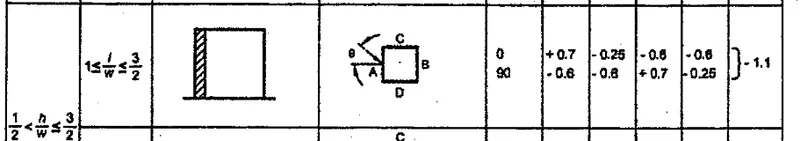

external pressure coefficients

wind load ( + Y direction face A)

	+ Cpi	- Cpi
external pressure coefficients	0.7	0.7
internal pressure coefficients	0.5	-0.5
net pressure	0.2	1.2
load factor	1.5	1.5
wind load	0.3	1.8

wind load ( + Y direction face B)

	+ Cpi	- Cpi
external pressure coefficients	-0.25	-0.25
internal pressure coefficients	0.5	-0.5
net pressure	-0.75	0.25
load factor	1.5	1.5
wind load	-1.125	0.375

wind load ( + X direction face C and D)

	+ Cpi	- Cpi
external pressure coefficients	-0.6	-0.6
internal pressure coefficients	0.5	-0.5
net pressure	-1.1	-0.1
load factor	1.5	1.5
wind load	-1.65	-0.15

Roof load calculations

wind load ( + Y direction )

	+ Cpi	- Cpi
	h/w = 0.78 h/w =0.78	h/w= 0.78 h/w =0.78
external pressure coefficients	-0.88 -0.4	-0.88 -0.4
internal pressure coefficients	0.5 0.5	-0.5 -0.5
net pressure	-0.13 -0.9	-0.38 0.1
load factor	1.5 1.5	1.5 1.5
wind load	-0.195 -1.35	-0.57 0.15

RESULTS:- wind loads are calculated manually

Q4

Aim:- to apply the above calculated wind loads on to the model

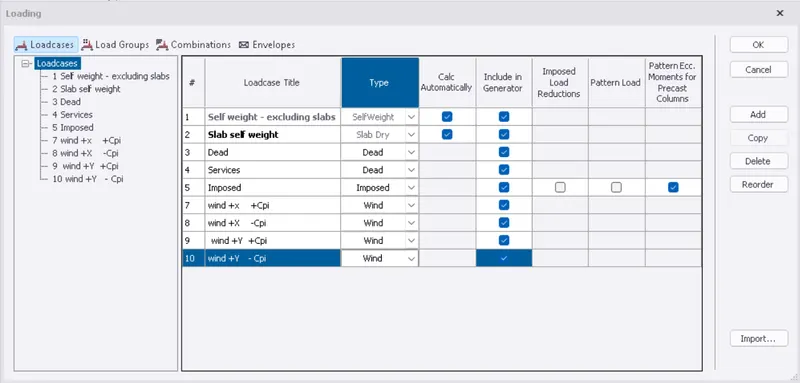

To define the load cases

• go to load from the menu toolbar
• select on the load cases
• then add all the above wind load cases

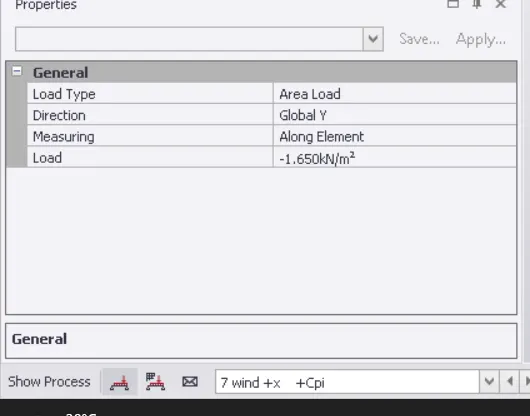

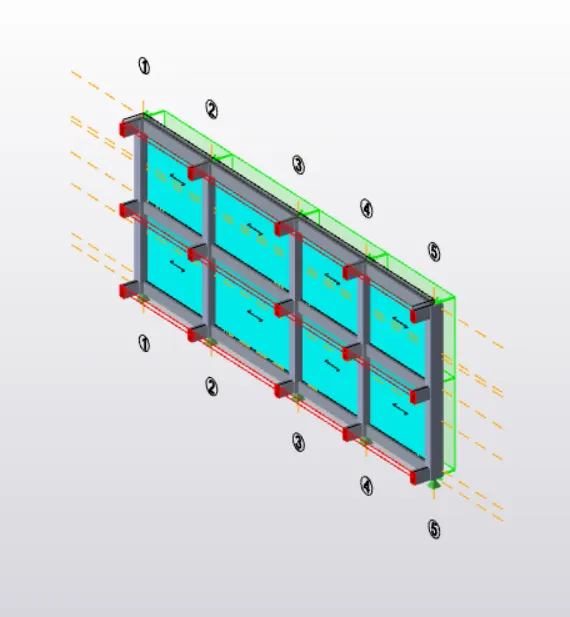

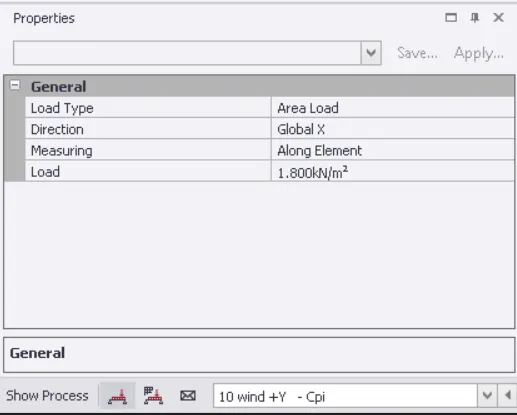

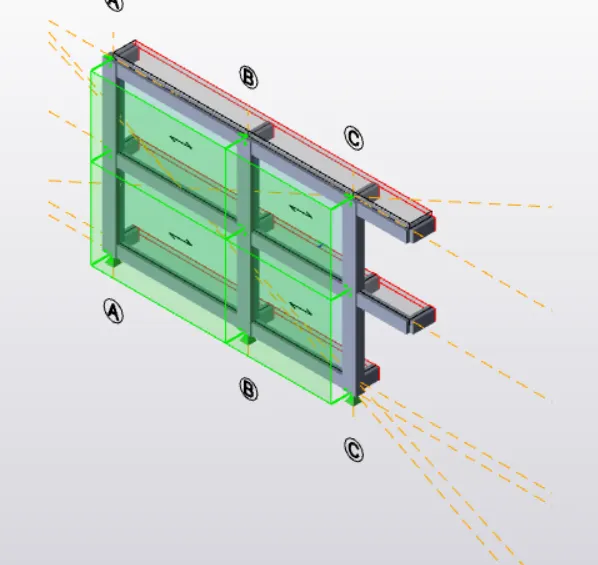

To assign the loads on the model

RESULTS:- wind loads have been applied to the model
