To Analysis and Design of Steel Structures using TSD
Q1
Aim- to analyse the structure and summarise study for bending moment of shear force and deflection diagram for element of the model and also display this parameter for our model
procedure-
1.to open the preview model of our creation.
2. Before we analyse the model to prepare and check the road properties load cases and loading combination about structure

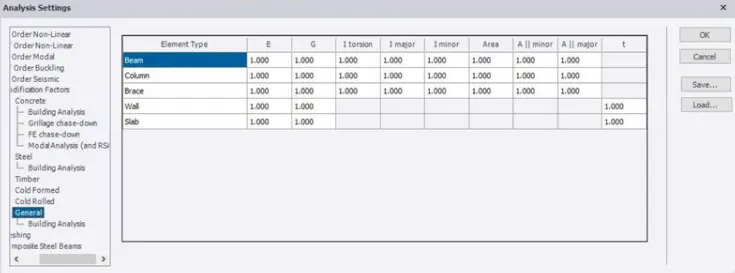

3. and then to check the setting in analysed tab for all characteristic of element factors

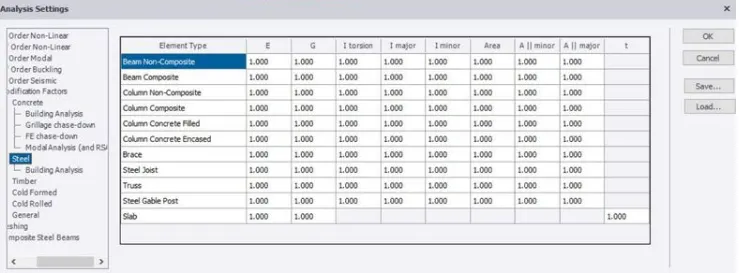

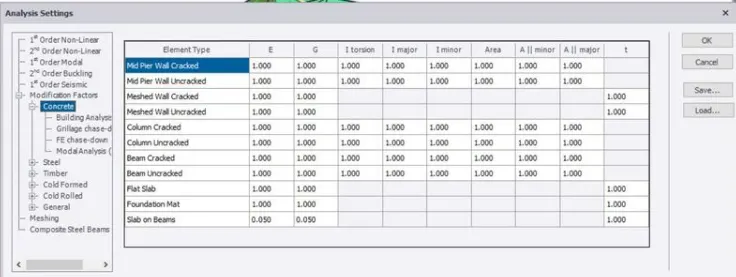

4.to check the modification factor by defaulter these are in one but there is any other factor change it to one and finally ok
5. to open the model in a 3D structure
6. go to analyse> choose the option first order linear> check the loading factor then >click ok

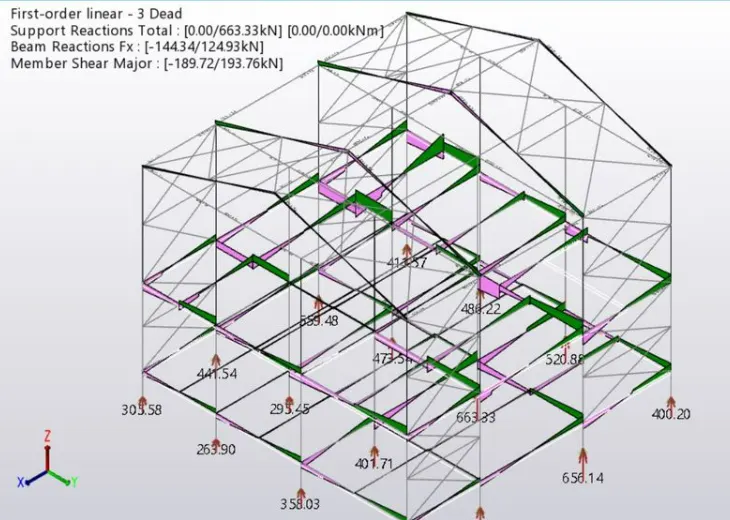

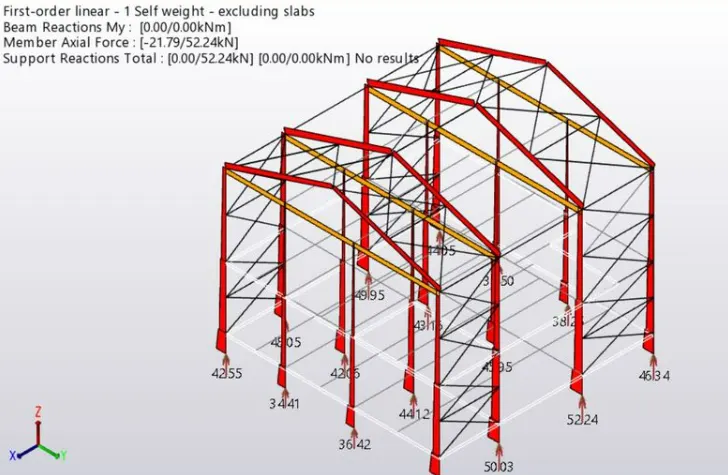

7.after that we analyse with the model then functionally we got the result views and we will get all type parameter share minor Moment minor ,moment major can be accessed and also we check it for all direction categories.
8.For here we analyse the structure simultaneously we finding the maidening action where got huge on their we want to change appropriate material on that particle .

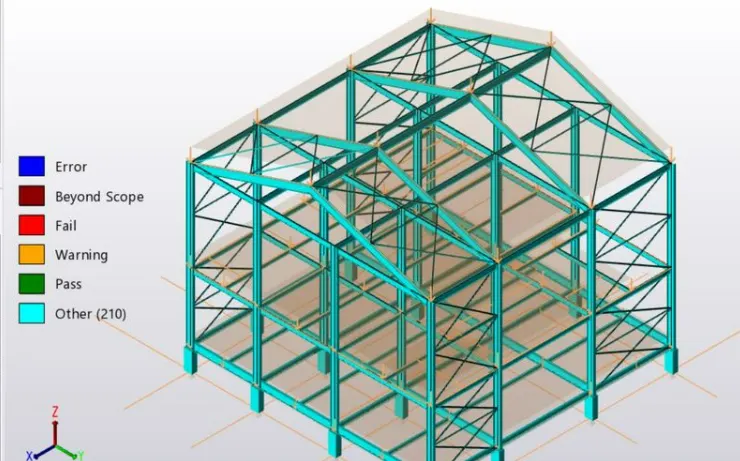

9.we consider all categories and then to change all in perfect design required stage for our consideration

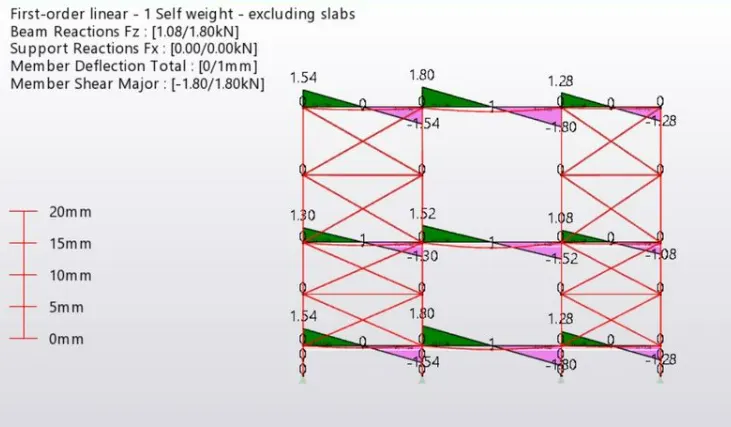

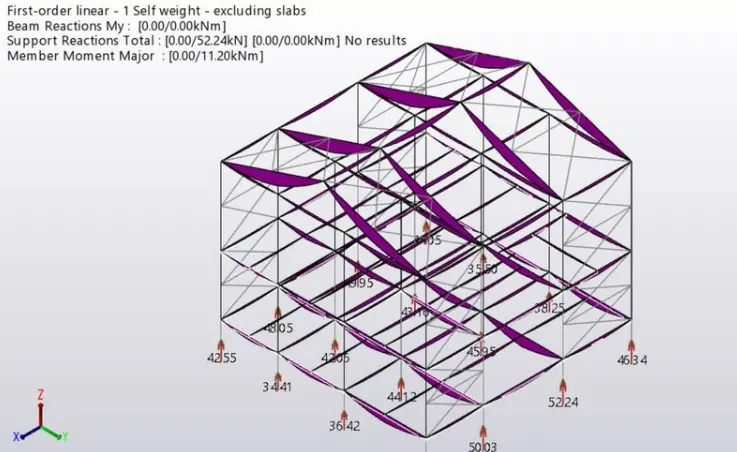

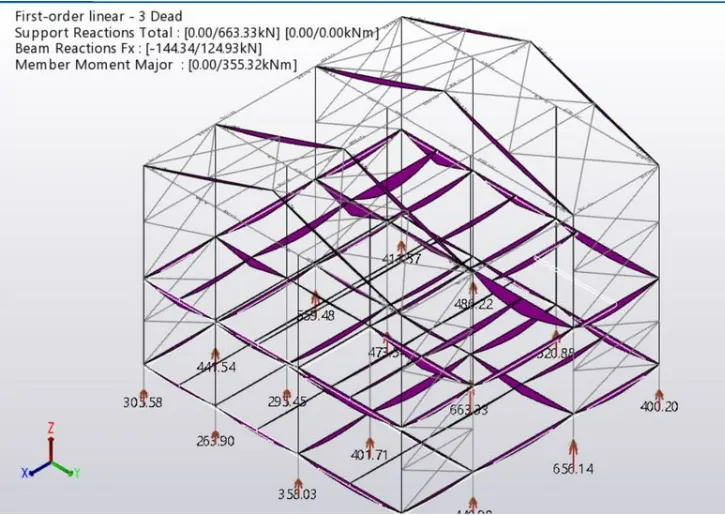

Bending moment-
1. bending moment is defined as depending reaction about structure due to action of vertical forces.
2. it is one of the most important parameter to be considered in the design .
3.we analysing the bending moment for all variant load cases and considered the deflection of the structure and to change the member for where any meeting more bending action.

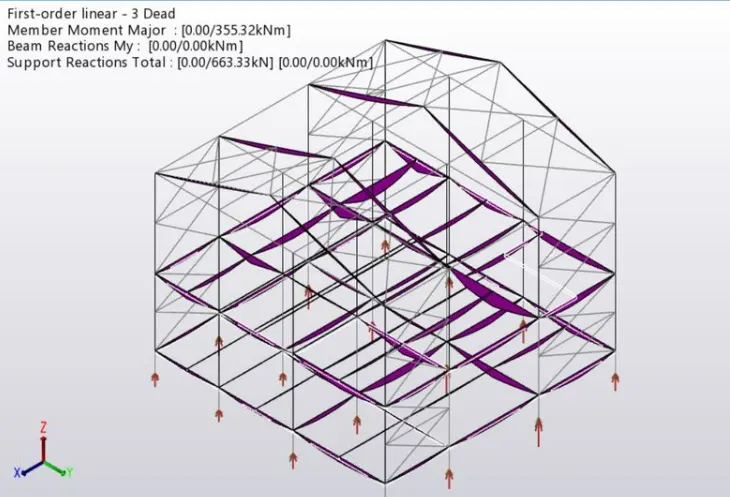

4. in a tekla structure view to find accurate bending moment at all member add different pending loading action .
5.a beam may failure sure at before cause in the building

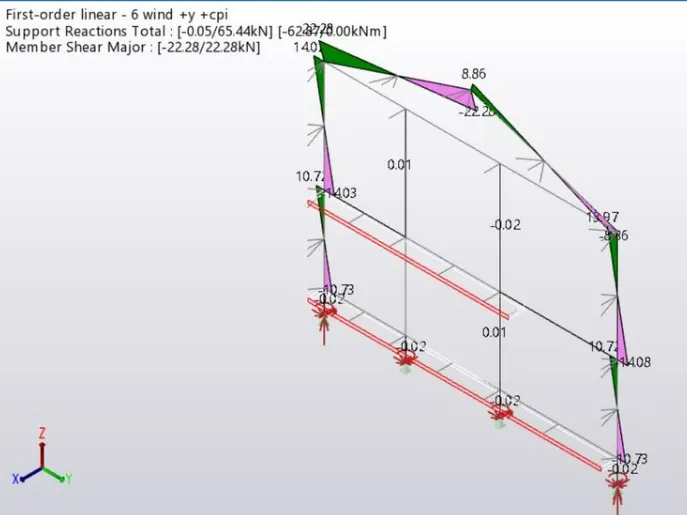

Shear force-
1. share forces defined as force that acts in a direction parallel to a processional of a body for failure at end of the beams in vertical forces .
2.in tekla software to finding the bending share action about structural frames .
3.after analysed to check in result a view including the factors of share major and minor due to varing the loading combination
Deflection diagrams -
1.deflection diagram could be explained at the painting action of a member due to acting the load on structure .
2.for this diagram can be used to understand the given member could with stat capacity of loading action.
3. and more used to change the member should proper structure frame
Result- successful analysed our model and to check the all load combination and result of bending moment and deflection diagram
Q2
AIM- to analyse the design of a member and to outline the thought process in selecting the member sizes along with the foundation design.
procedure-

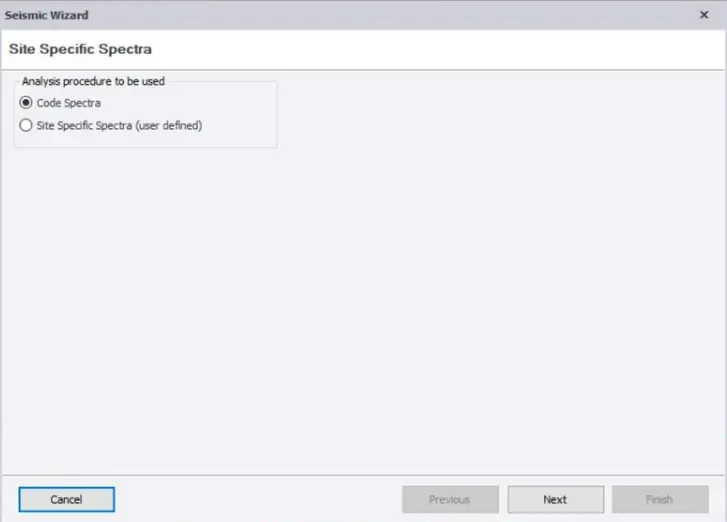

- to open the load>seismic load >site specific spectra

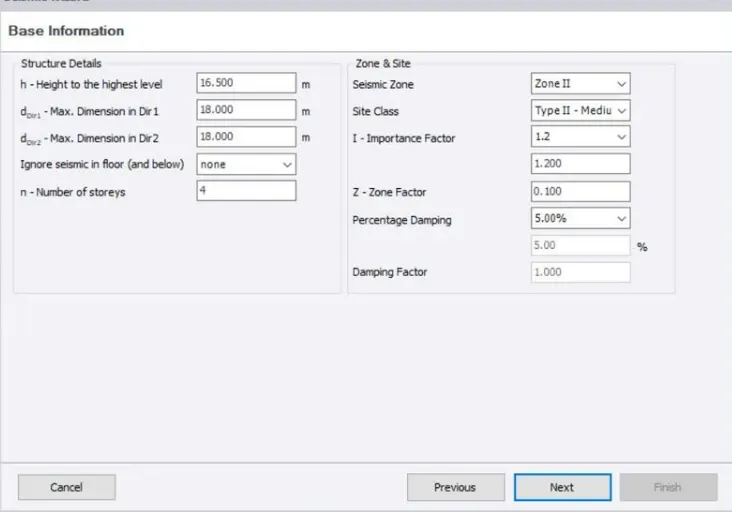

Next to under the load cases to define the base information

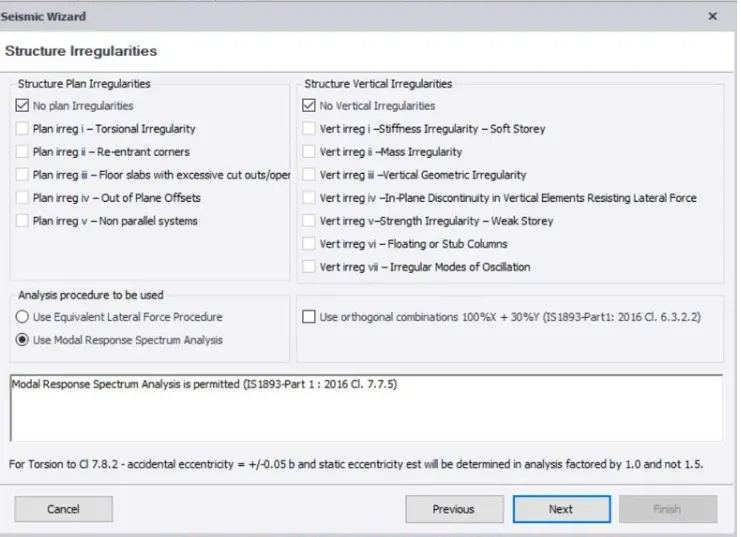

Next to considering the structure integration

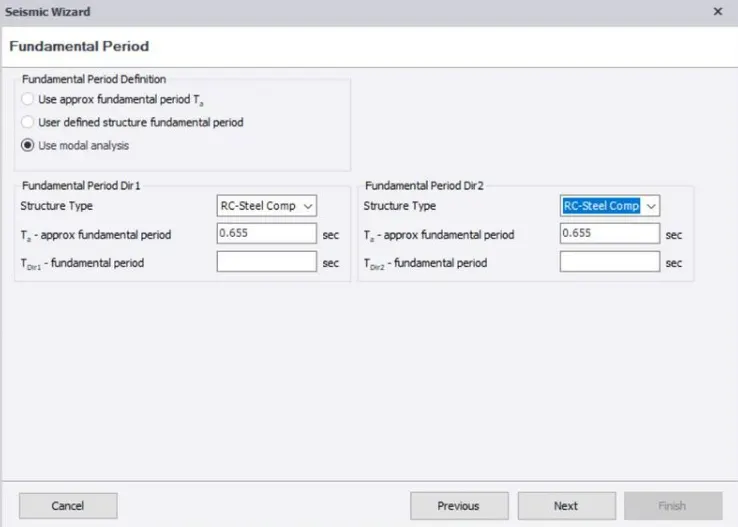

NEXT to giving the data of fundamental period to access the direction 1 and 3 of structure type

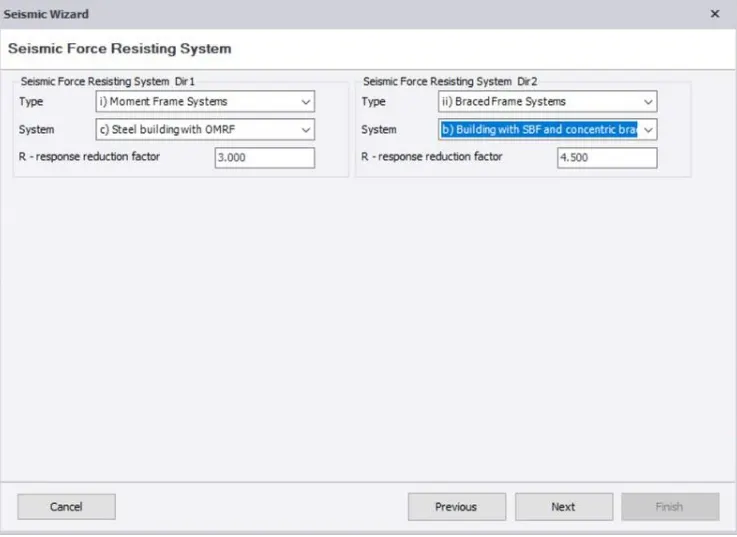

Next to considering sysmic force a resisting system

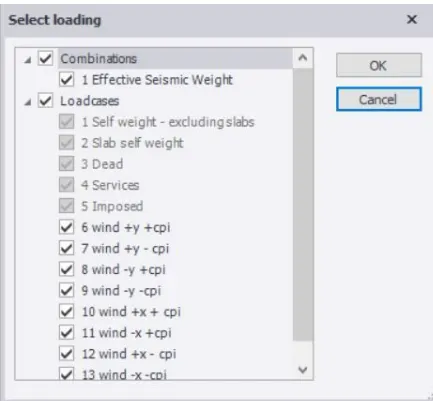

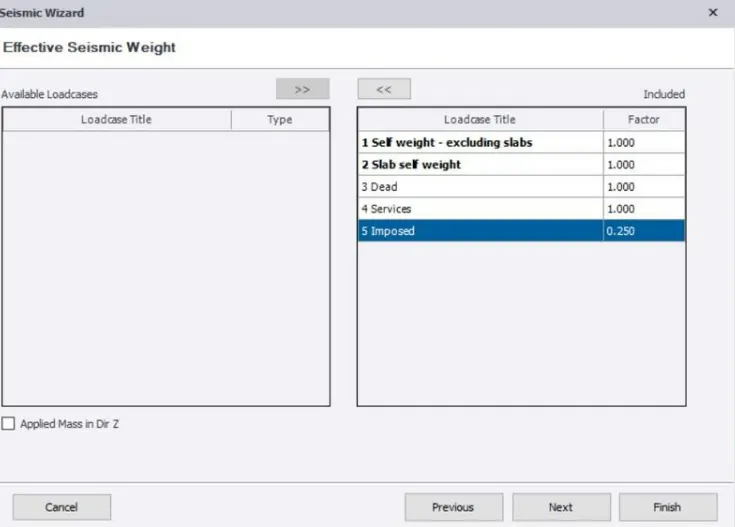

Similarly we added seismic effective weight at all load cases

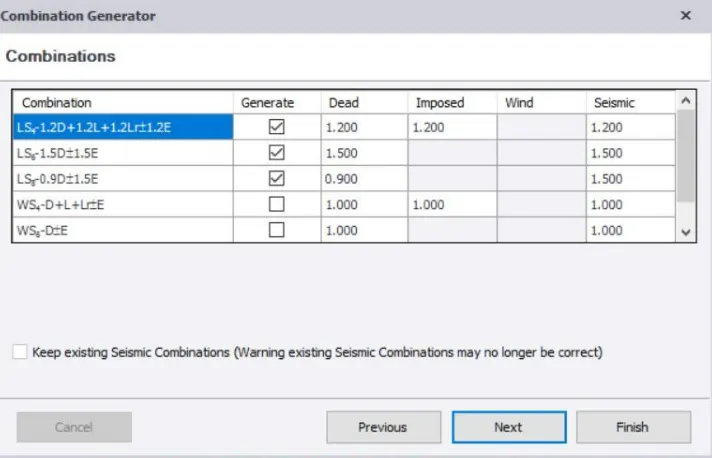

Next to check the value of combination factor whether the value are equal in 1.0 0

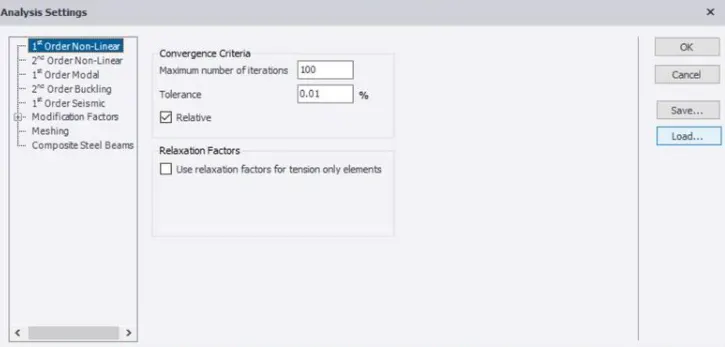

Next to finding the analysing structure of first order linear condition with including criteria of minimum number if iteration and tolerance
]
After that to check all load cases and combination
Finally click ok then to validate and analyse the structure to get all Desired factors value to check the design of foundation

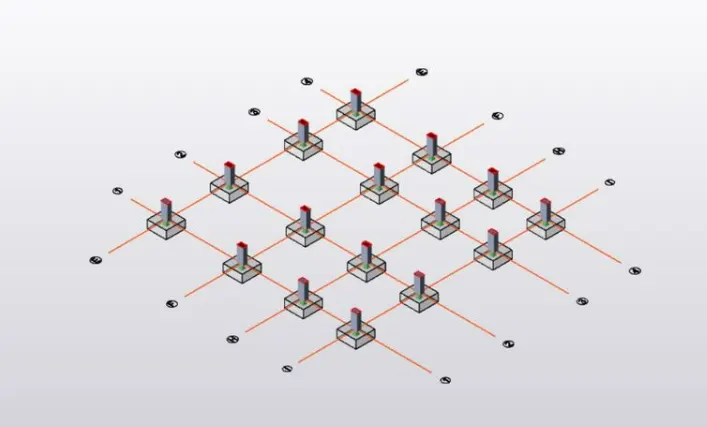

Result -to analyse the structure and make required correction and also to add and designed the foundation of structure
