Structural Modelling using Etabs 2018

Aim: To model a apartment with all seismic consideration, based on the given architecture inputs.

Procedure:

Defining the material properties and section properties

Step 1:

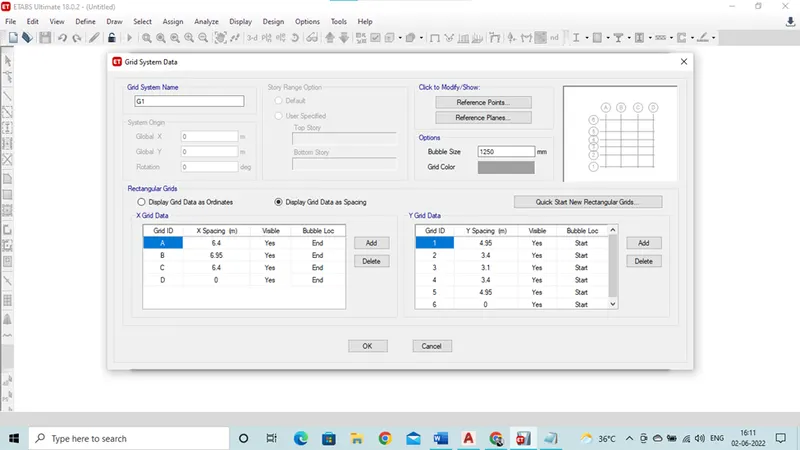

By using to edit grid data horizontal and vertical gride have been created as per required data

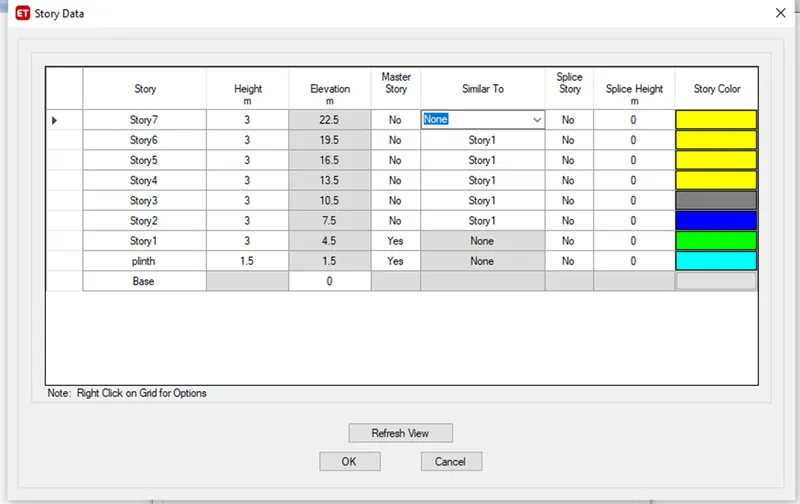

From the edit story custom height of building is created using the above toll consider as base is 1.5m and 3m for G+7 floors is added.

Define > material

Concrete M25 is assigned

Define > material

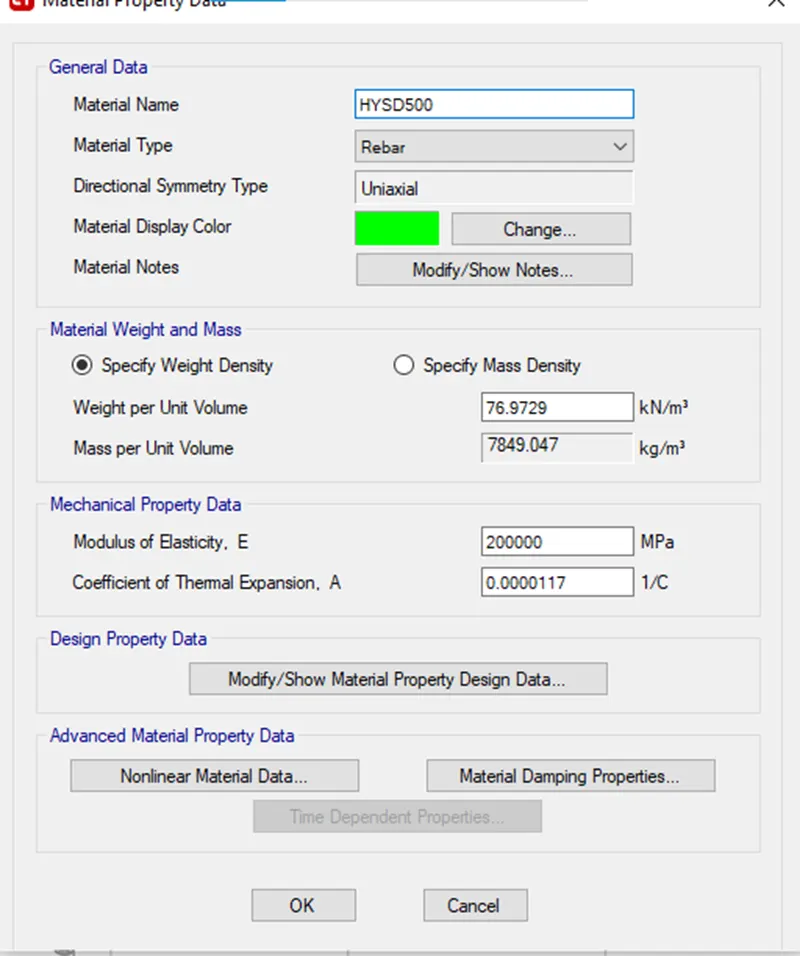

Rebar Fe = 500 for flexural reinforcement and Fe 415 for shear reinforcement is assigned

Define > section property > frame section

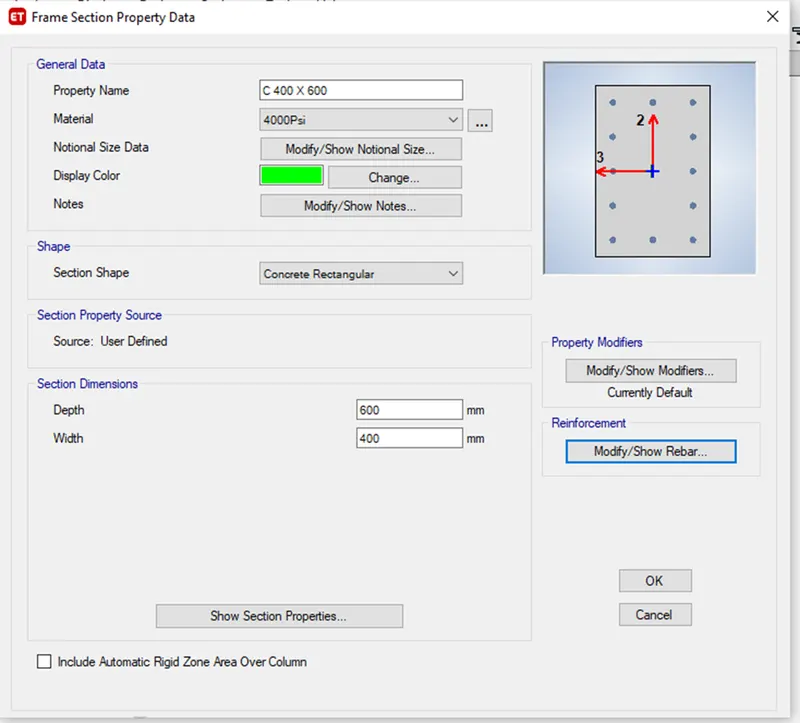

Column 400x600 is assigned

Define > section property > slab section

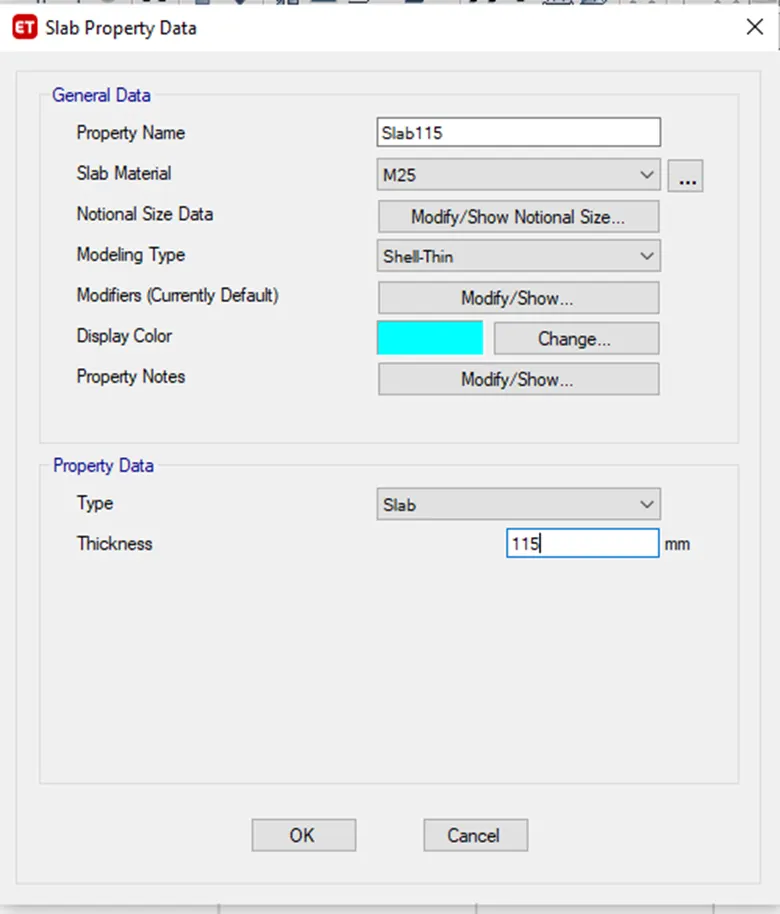

Slab 115 is assigned

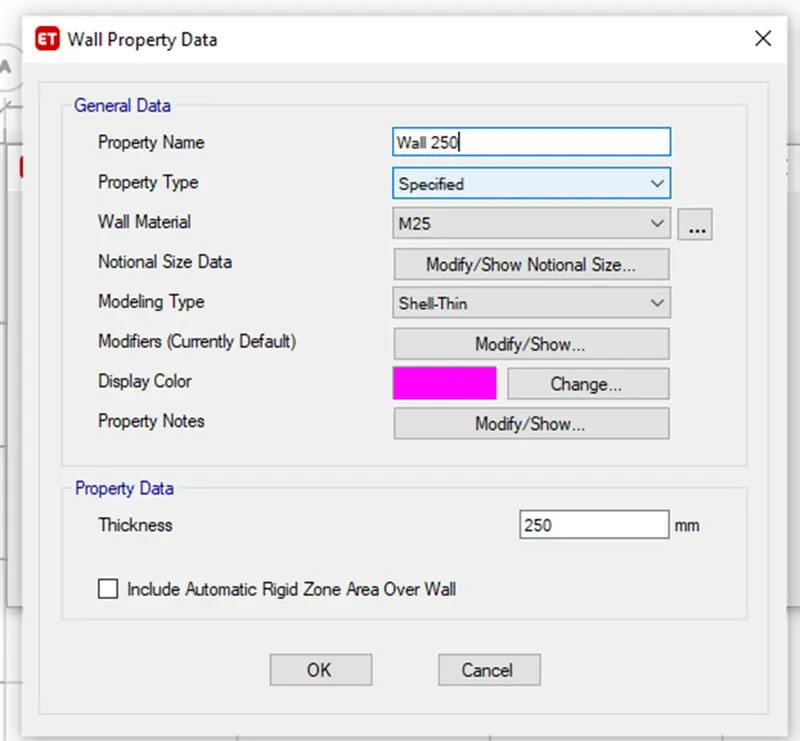

Define > section property > wall section

Wall 250 is assigned

Step 2:

To create a geometric structure as per the given architecture plan

Creating of columns.

We already define the property of columns.

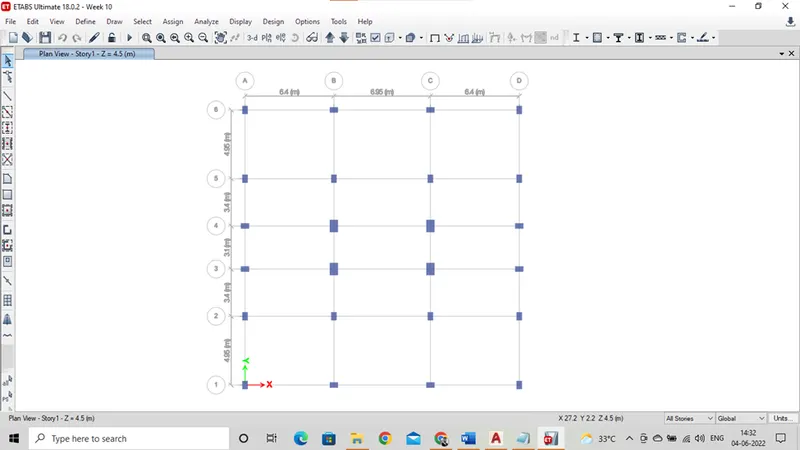

From the quick draw column option place the columns at the center of each grid

Next change the orientation of the columns as the architecture plan

Creating the primary Beams

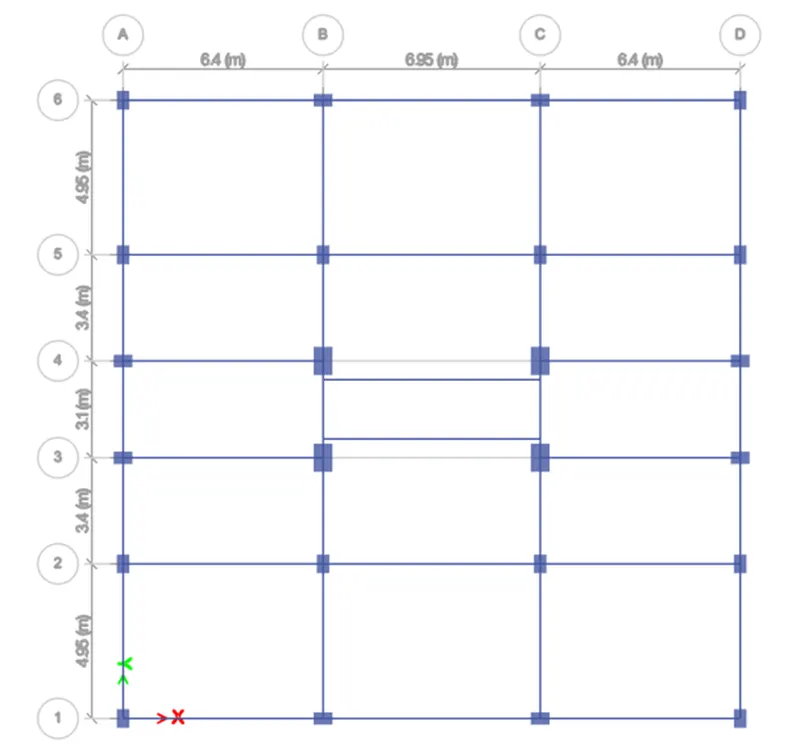

Take the quick draw beam and draw beams from column to column

Creating the secondary Beams

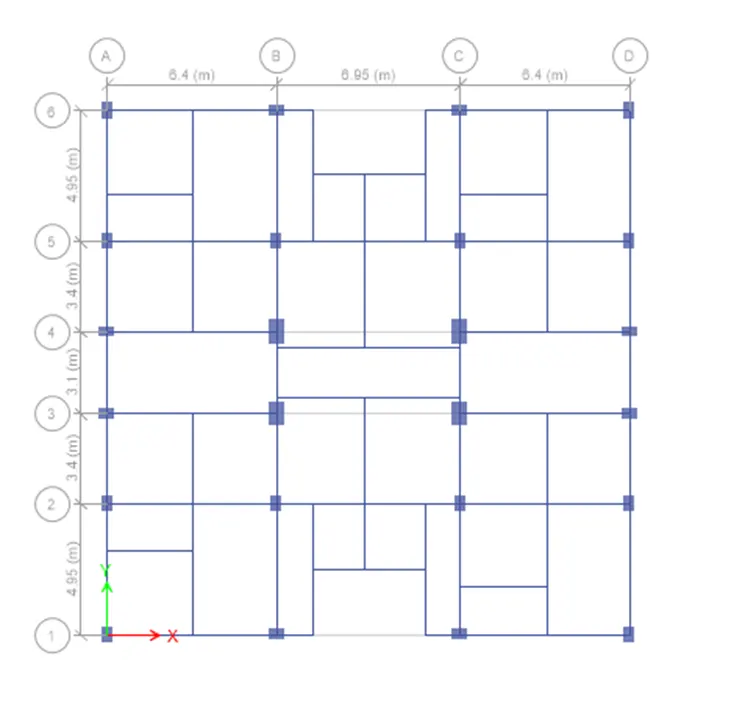

Take the replicate option crt+r select the beam set the distance to create the secondary beam

Repeat same process to create all the secondary beams as per given architecture plan

Creating of shear walls

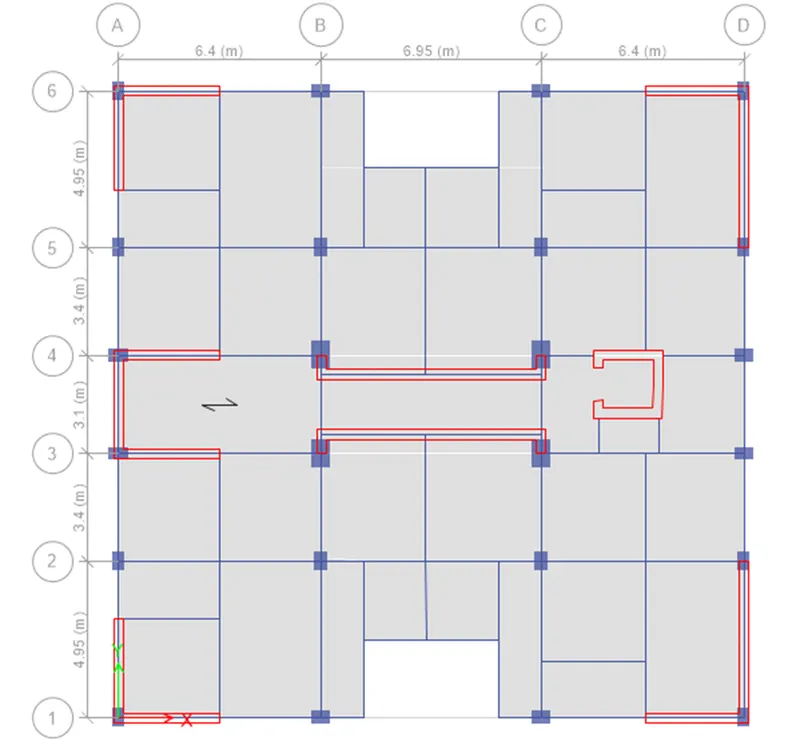

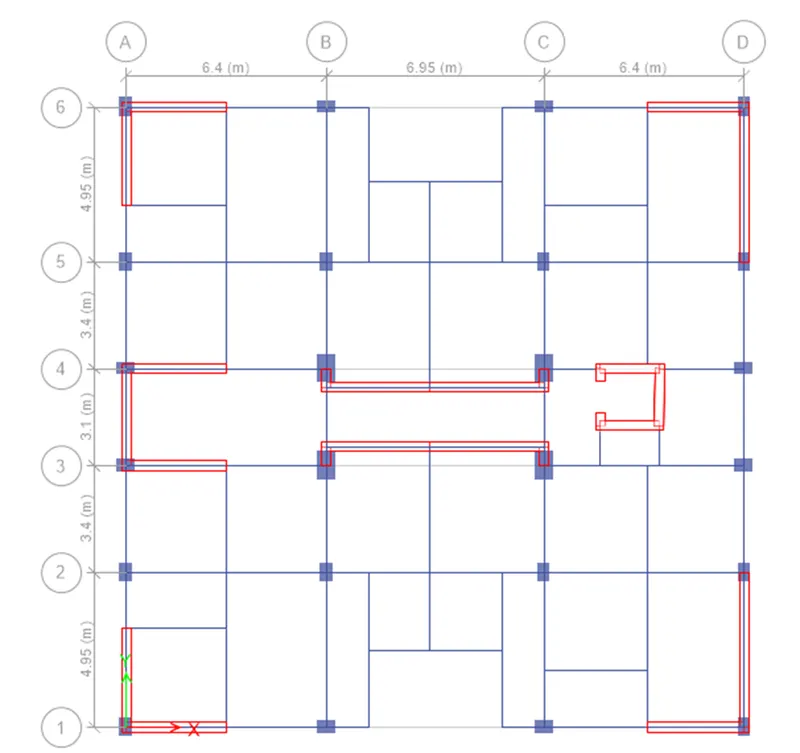

Similarly we have take the cerate wall option and create shear walls at the edge of the building and core of lift and staircase

Adding slab property to model

Similarly quick draw floor option and create all the floors

Step 3:

To create the loads pattern and assigning the loads to frames and shall

Frame loads

First create the dead load which is the self weight of the building

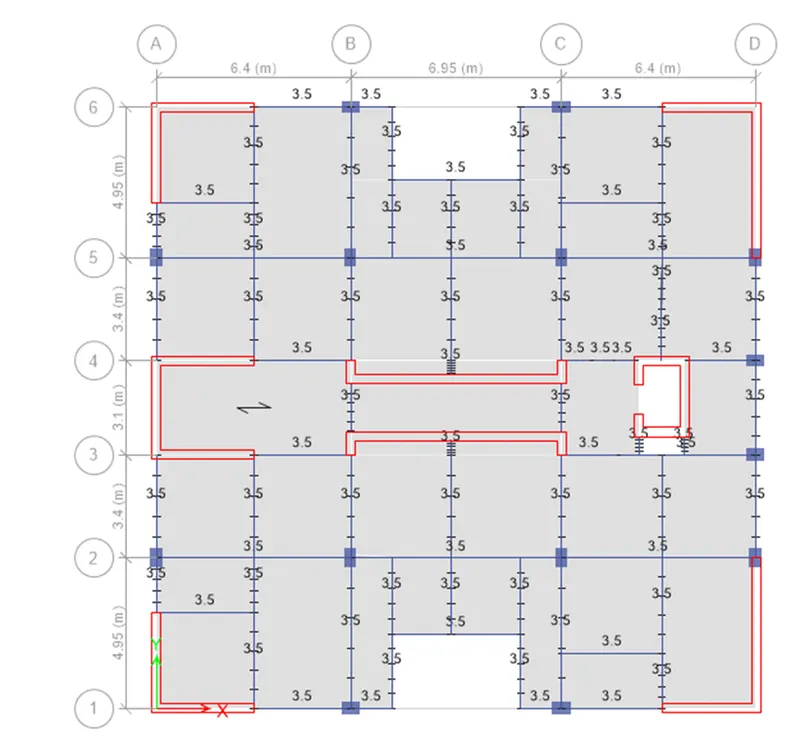

Next add the brick wall load as consider as 3.5 kn/m assigned to all Rcc beams



Shall loads

Create the live load as pr IS 875 part 2

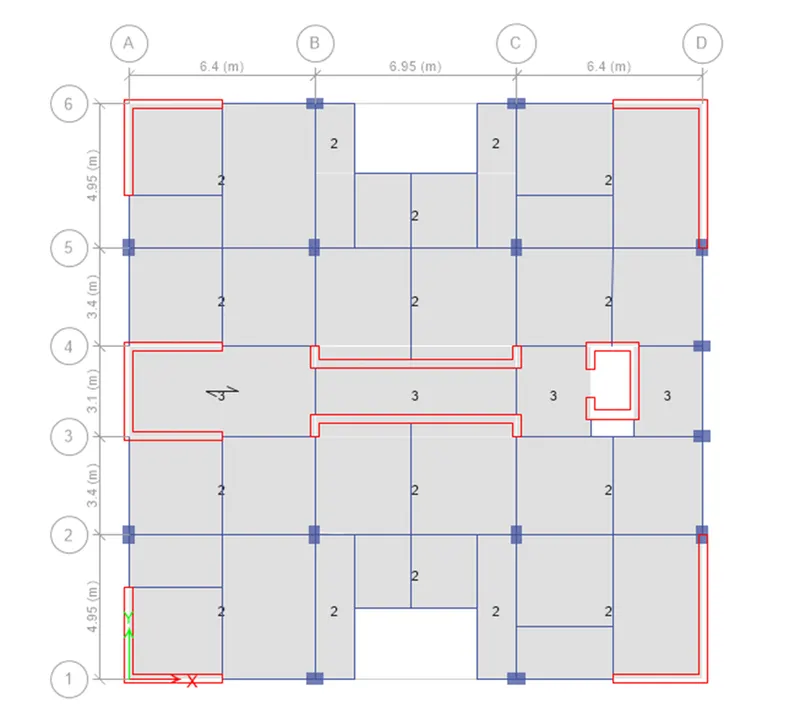

Staircase, lobby area , lift and store room is consider as 3KN. Then all the room floor as assigned to 2 KN.

Floor finish load is consider as 1.5 KN to all floors

Seismic loads

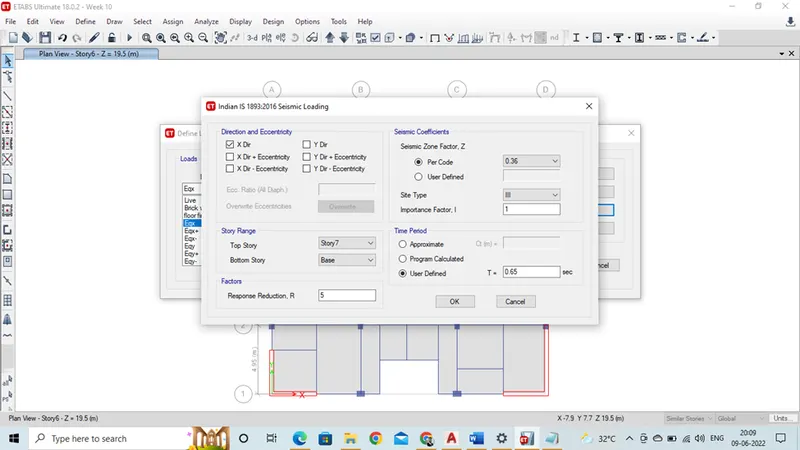

Creating the seismic loads as per IS 13920 – 2016

Add the six seismic load pattern as eq,eq+,eq- and eqy,eqy+,eqy-

Consider the seismic zone factor as 3.6 site type is iii and time period is 0.65 response reduction 5

Step 4:

Run analysis

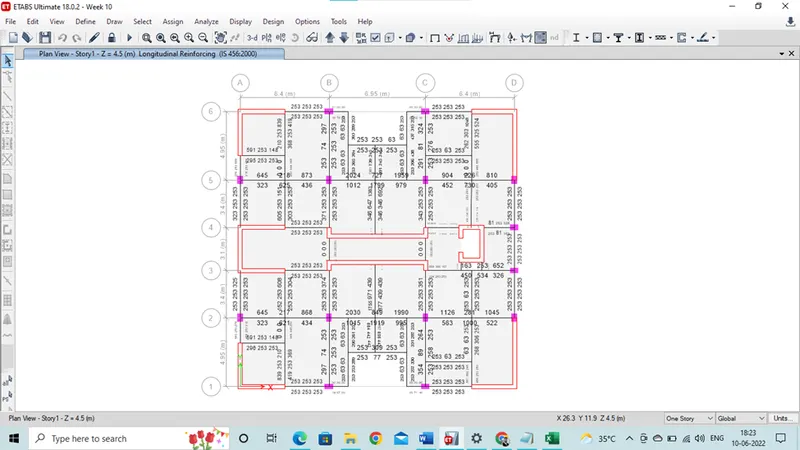

Design > concrete frame design > check for design

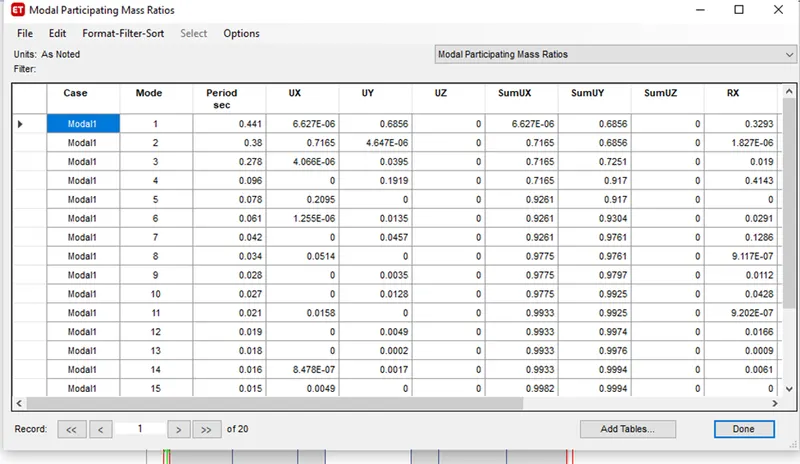

Display > analysis result > table> model information > mass participation ratio

Model mass participation ratio is achieved as code

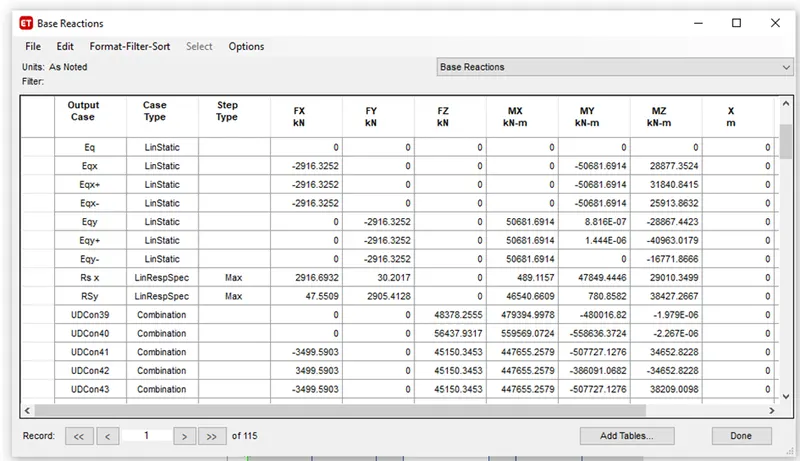

Now check for the base rection

The base rection checked as per IS 1893 – 2016 keeping eqx and eqy mim the scale factor for response spectrum is calculated

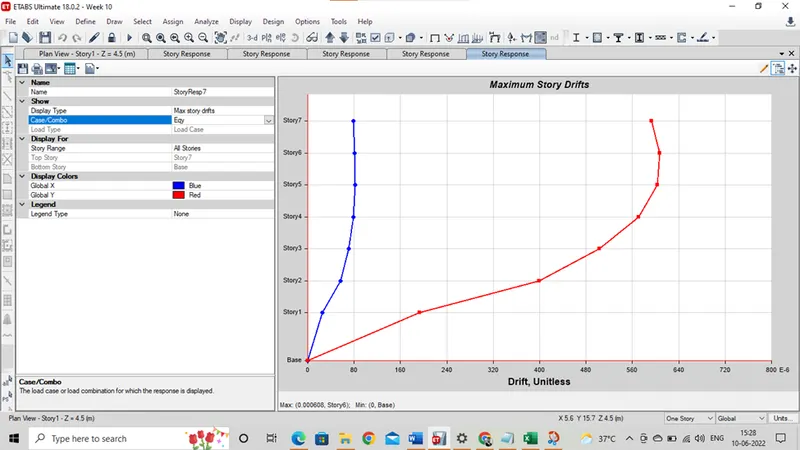

Now check for the story drift

The story drift is checked for eqx and eqy as IS 1893 – 2016 with the value of 0.004
