Structural Modelling using Etabs 2018
- Open Etabs software

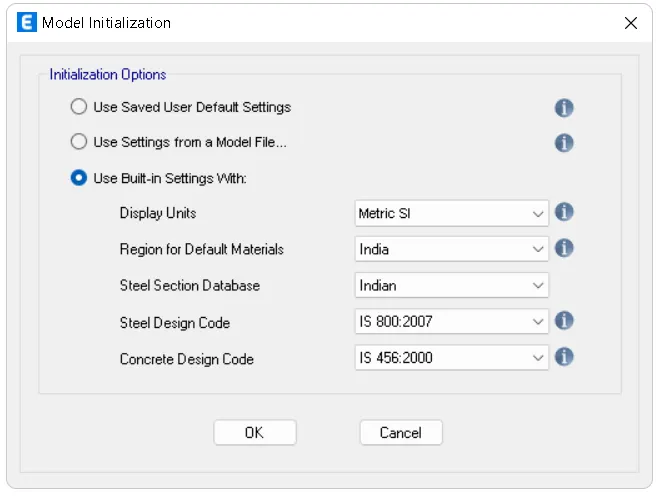

- Enter the details by selecting user built-in setting

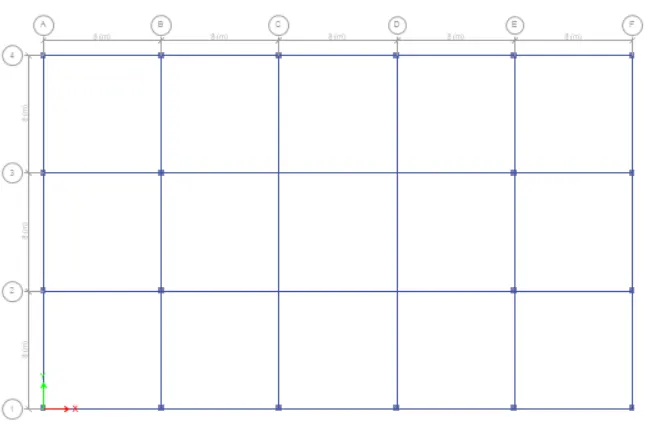

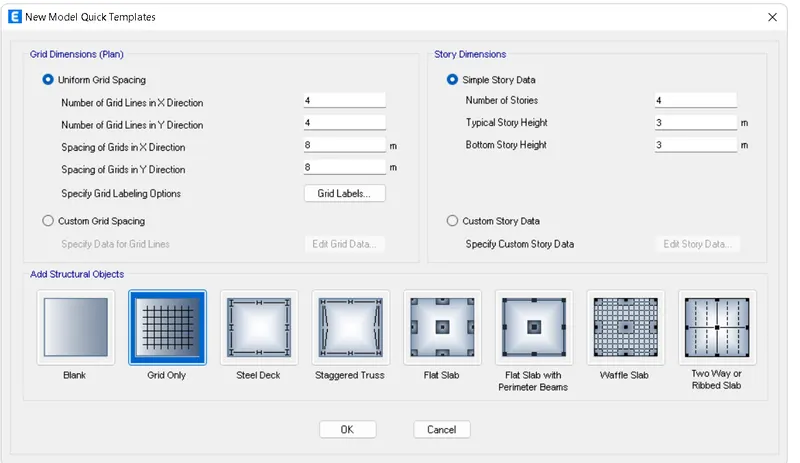

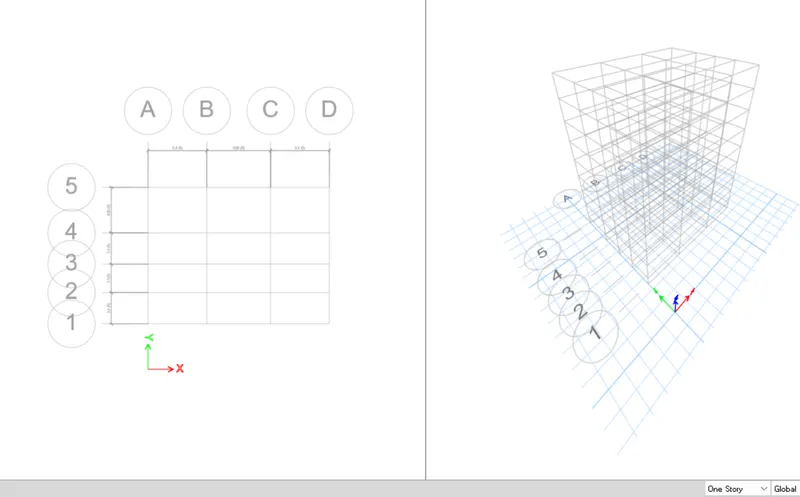

- Select grid only option and enter the grid date

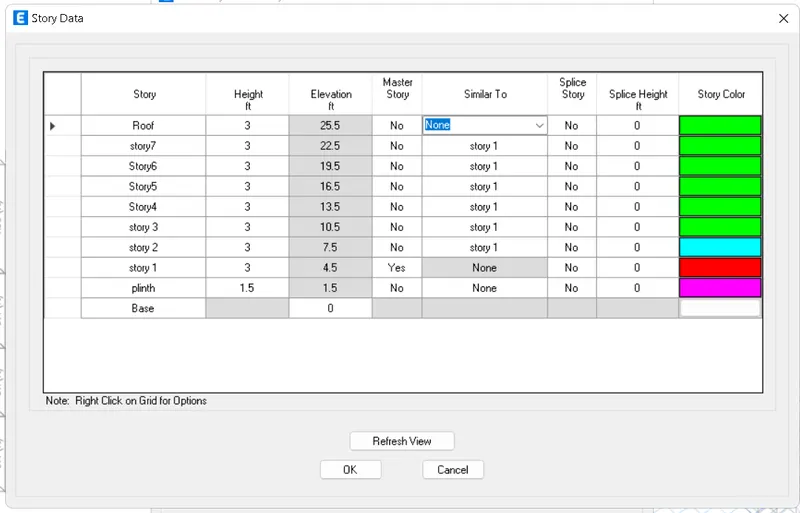

- Edit the story data as shown below

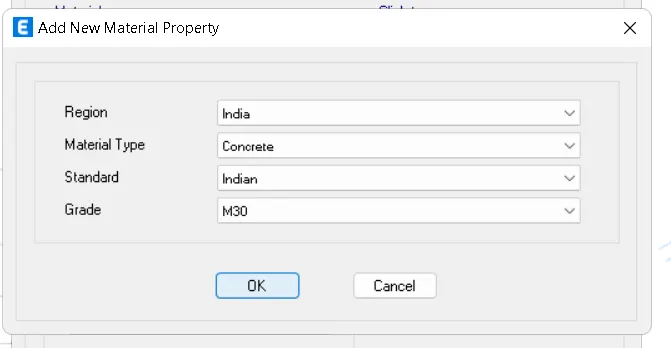

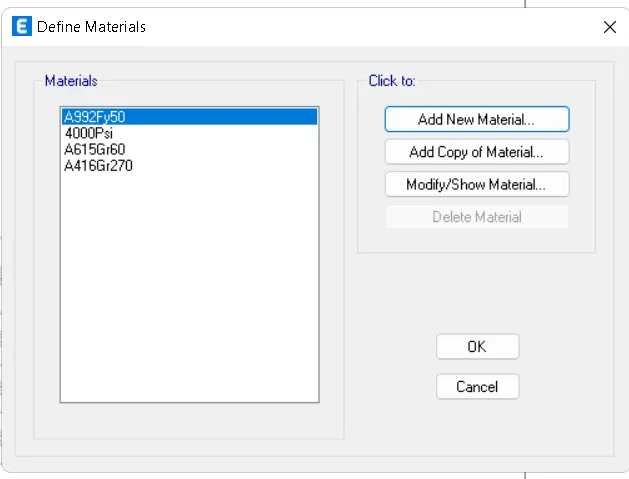

- Define materials
- M30 Concrete

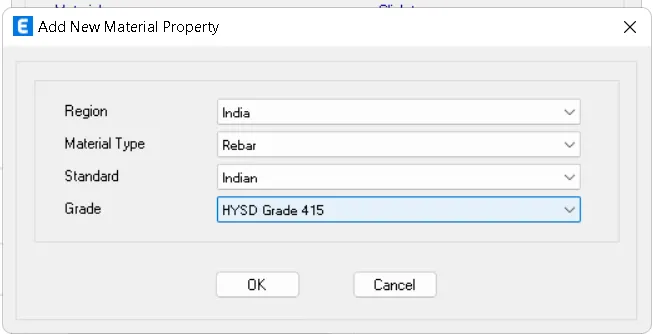

- HYSD 415 Shear Reinforcement

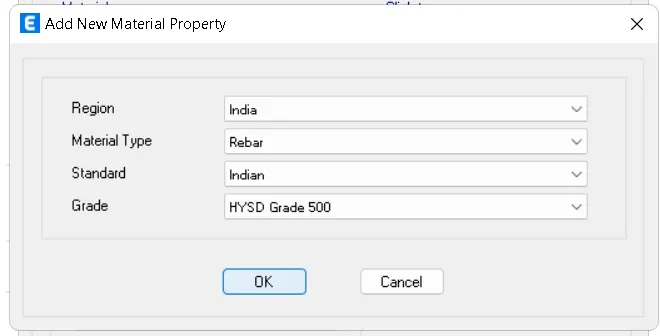

- HYSD 500 Shear Reinforcement

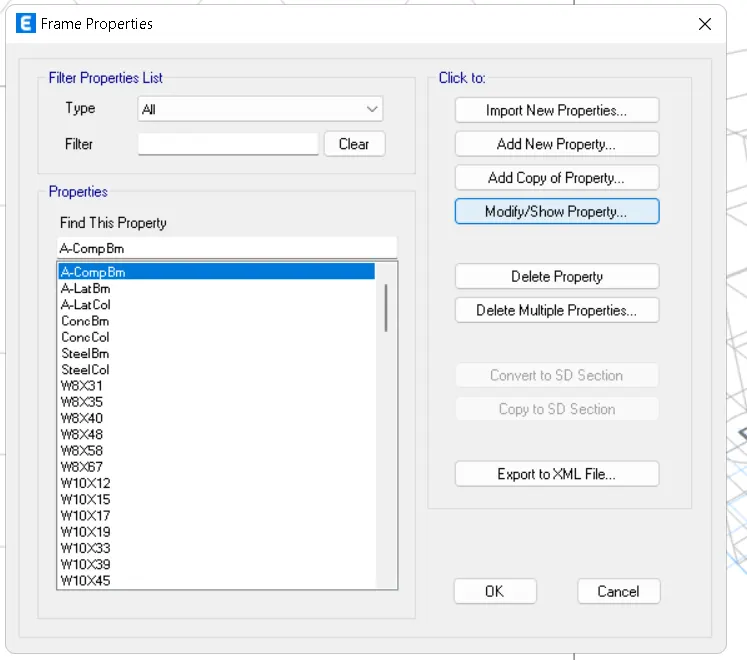

- Define Frame properties

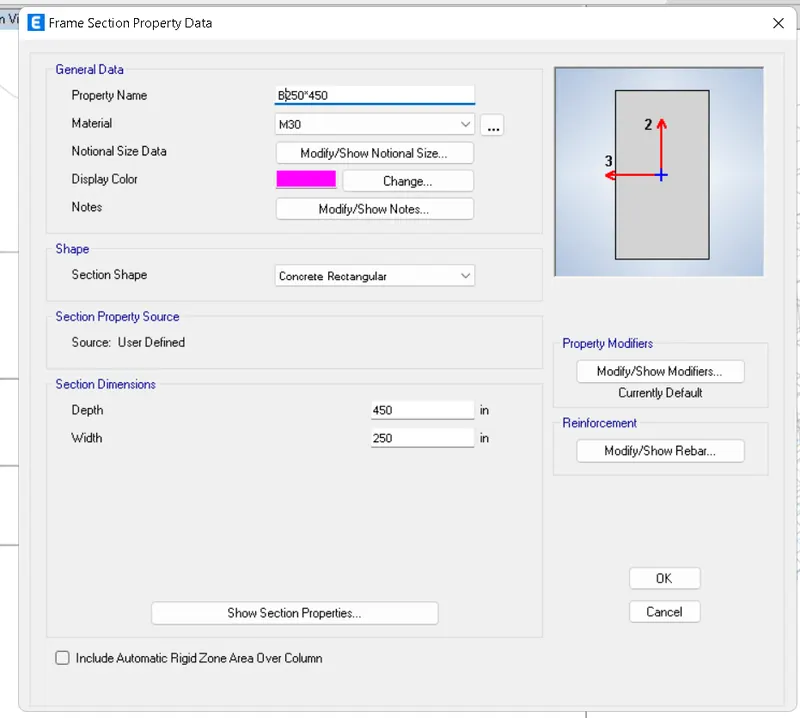

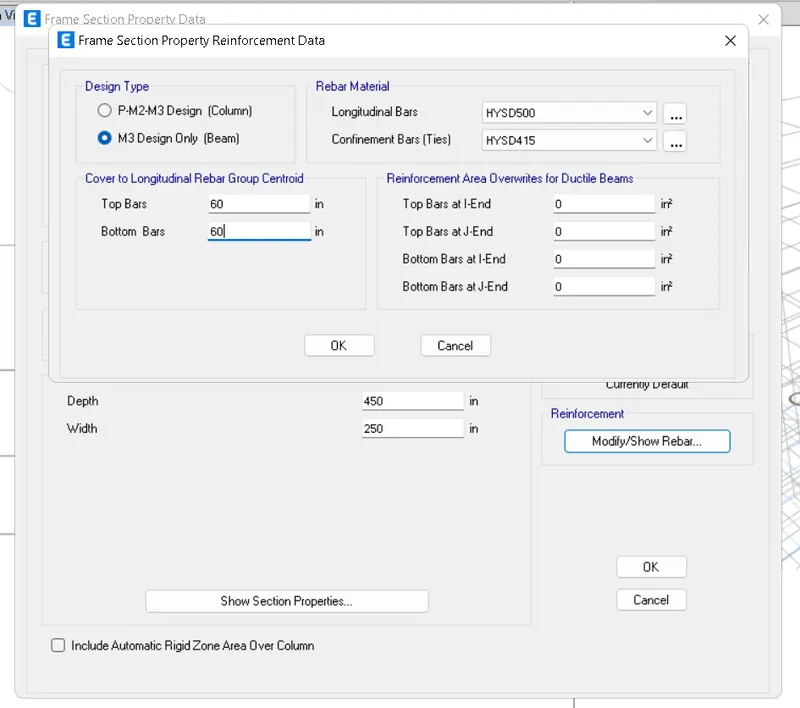

- Beam 250*450

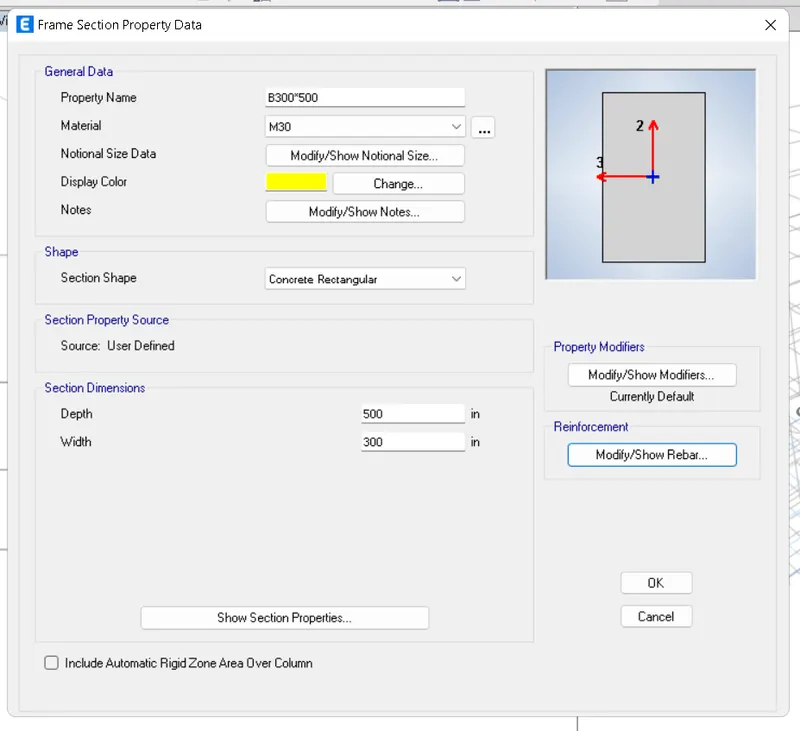

- Beam 300*500
- Column 400*400

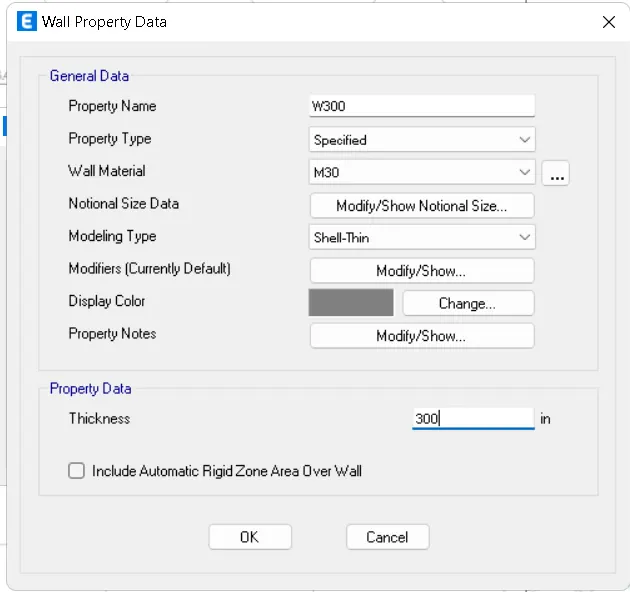

- Enter the details of wall in wall property data

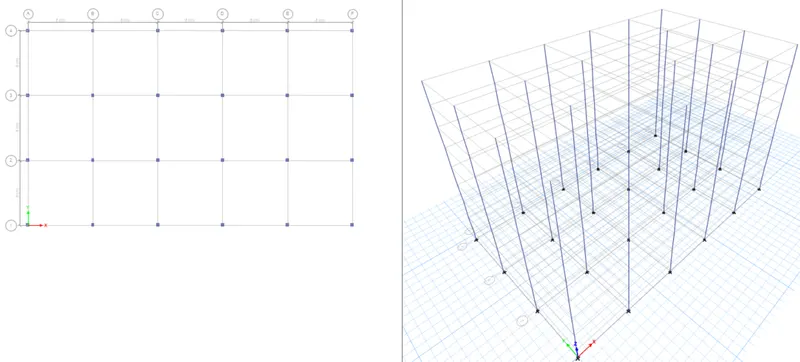

- Add columns using quick draw column option
- Add beams using quick draw option

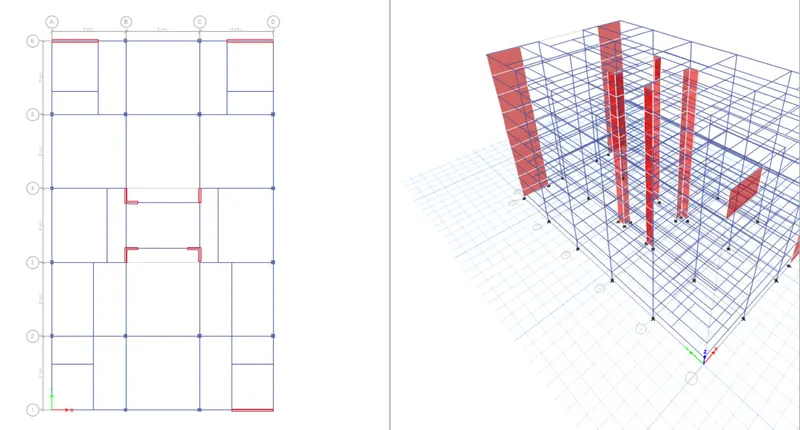

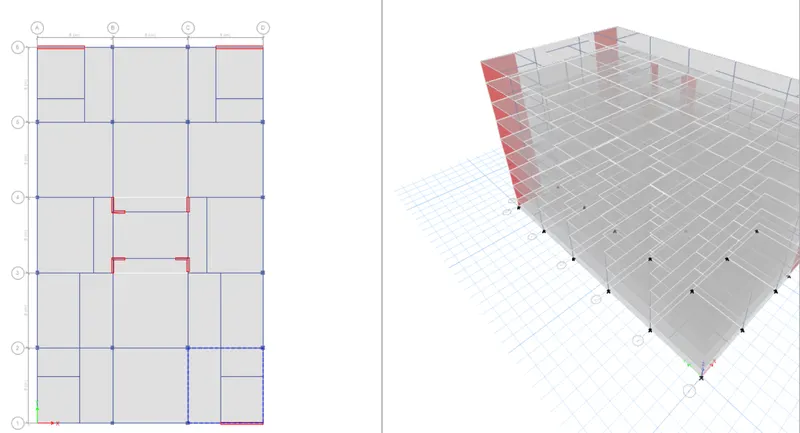

- To draw the shear wall select the draw wall option
- Add floor using Quick draw floor option

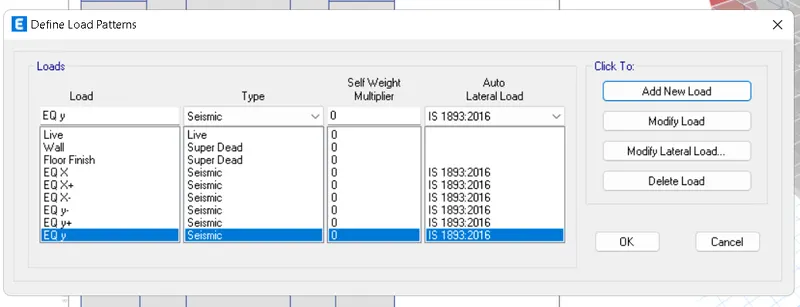

- Define load patterns

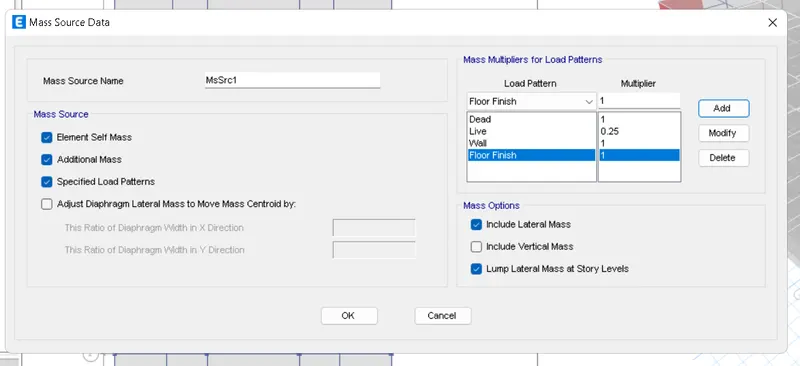

- Define Mass source

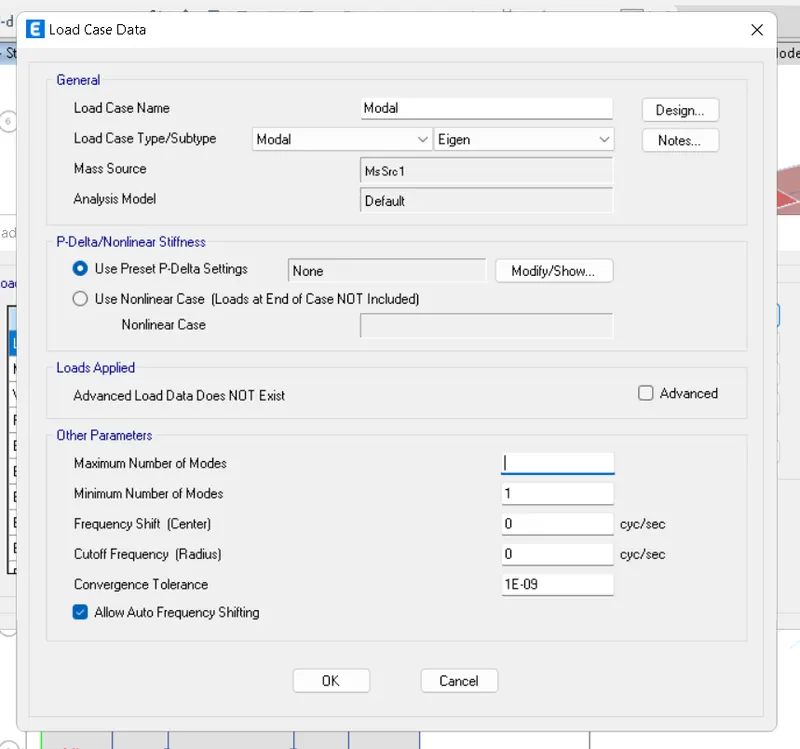

- Add the modal case

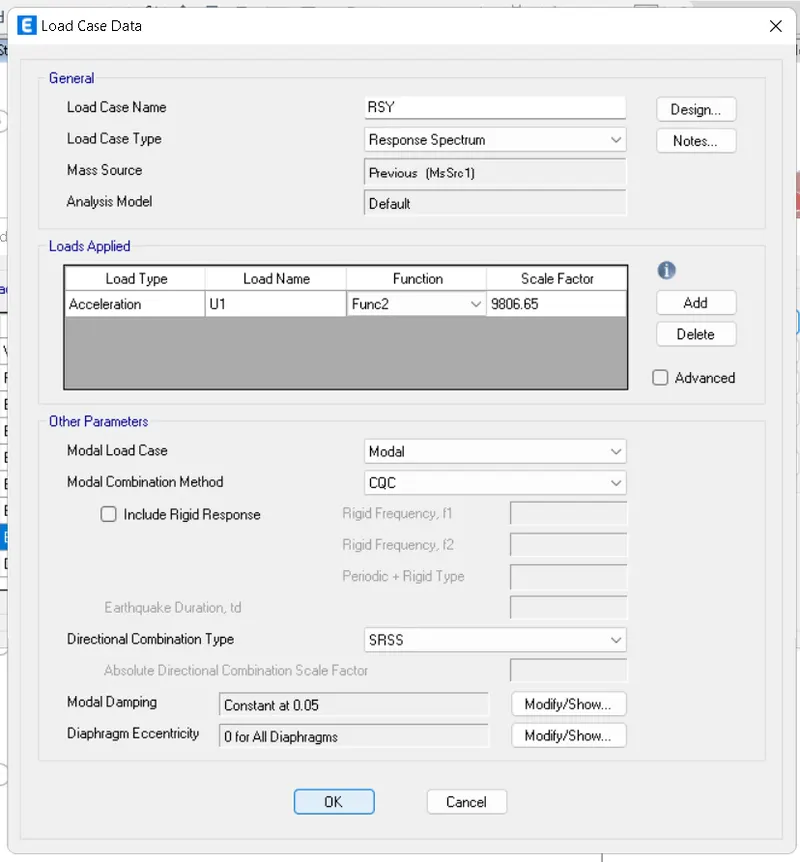

- Response spectrum in Y direction

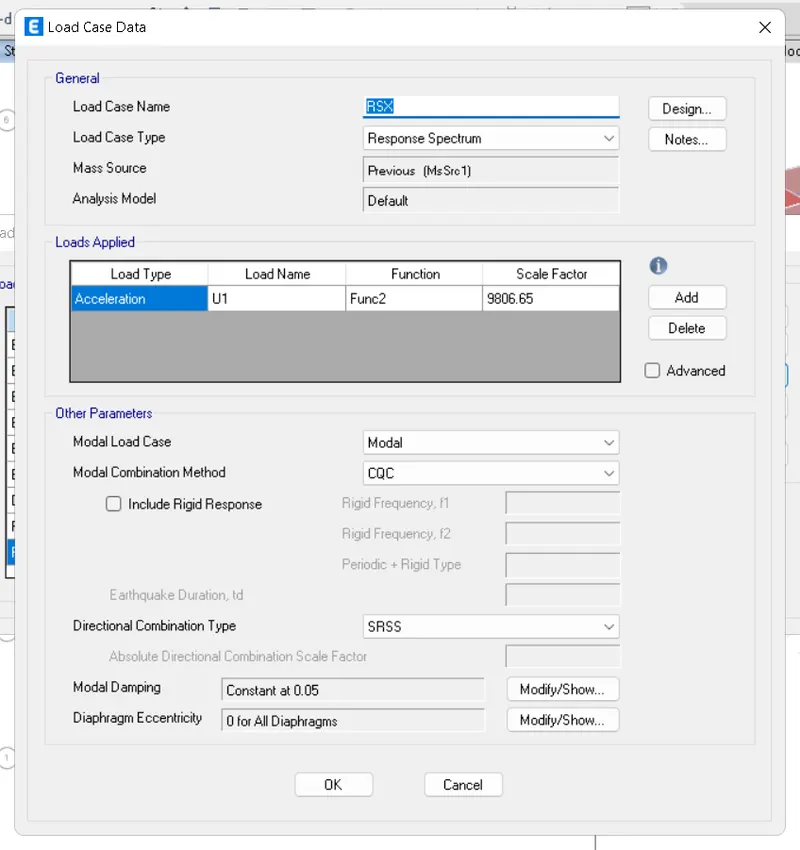

- Response spectrum in X direction

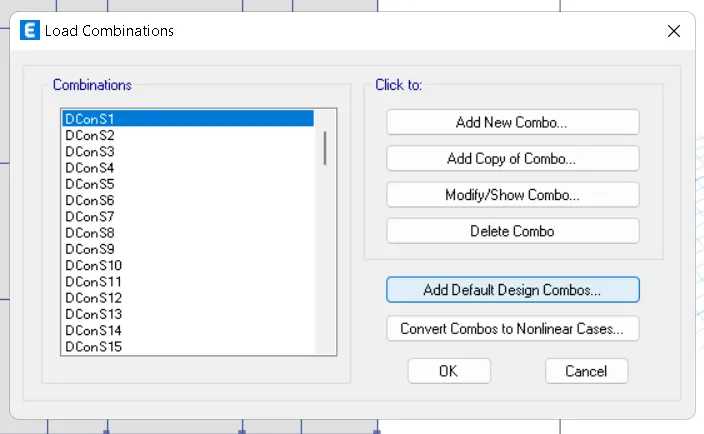

- Generate Load combinations

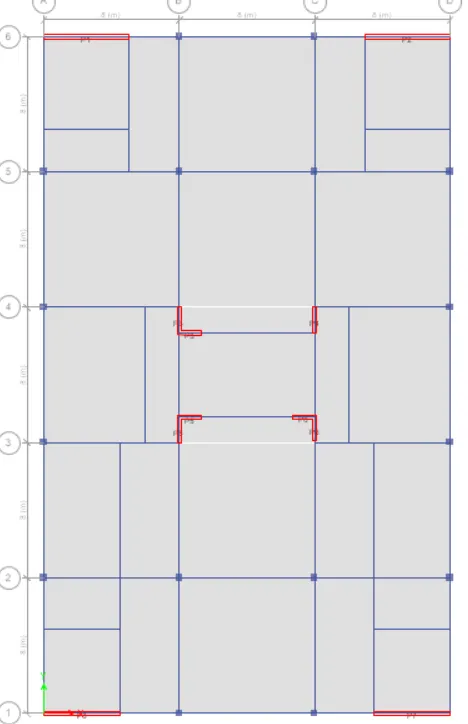

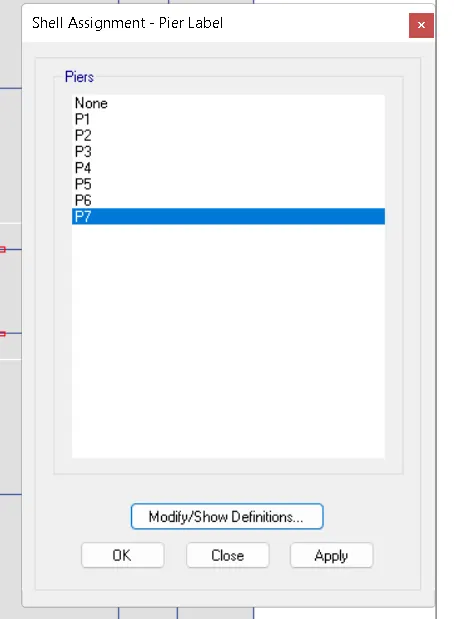

- Assign pier labels to the shear walls

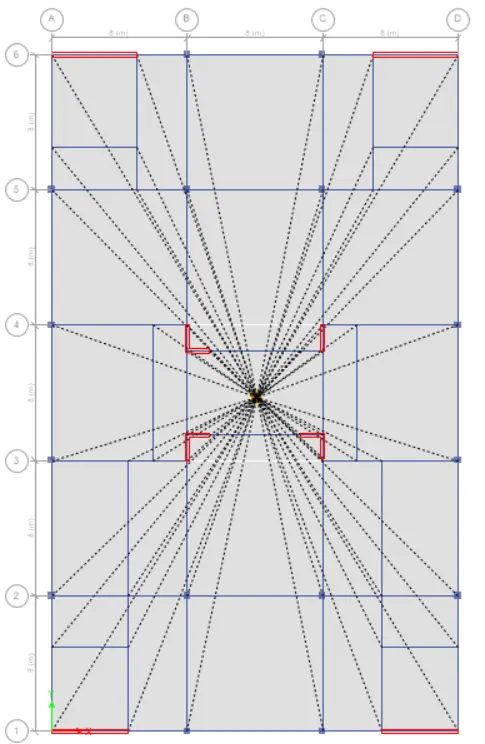

- Assign diaphragm
- Check and run the analysis of the model

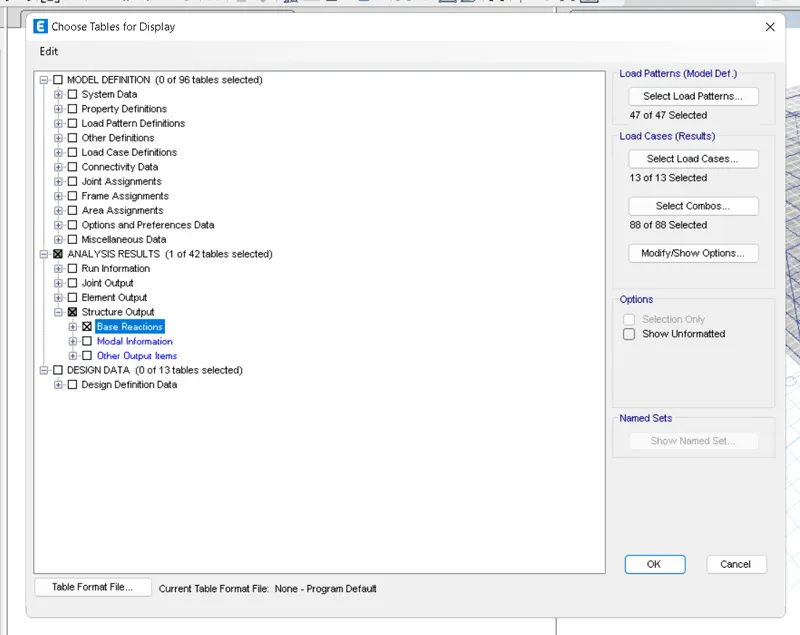

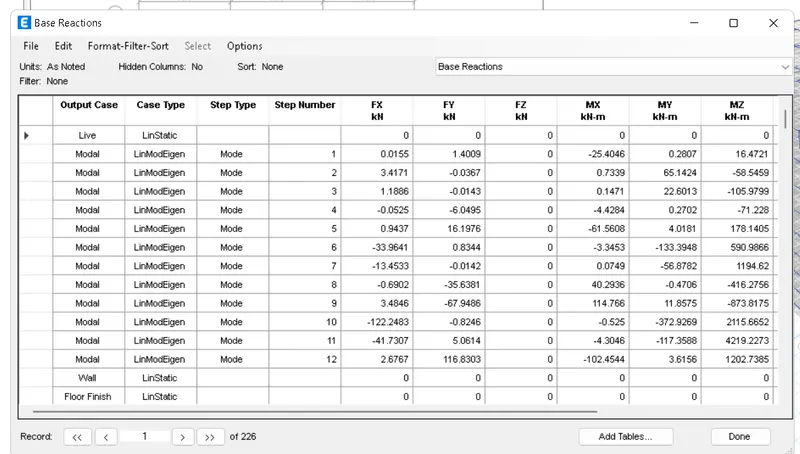

- After analysis of the model click on Display and select show tables and select base reaction in that
- To check Modal participating mass ratios, select the display options click on the show table, and select mass ratios
Result:
The G+7 Residential building has been modeled and analyzed successfully using ETABS
