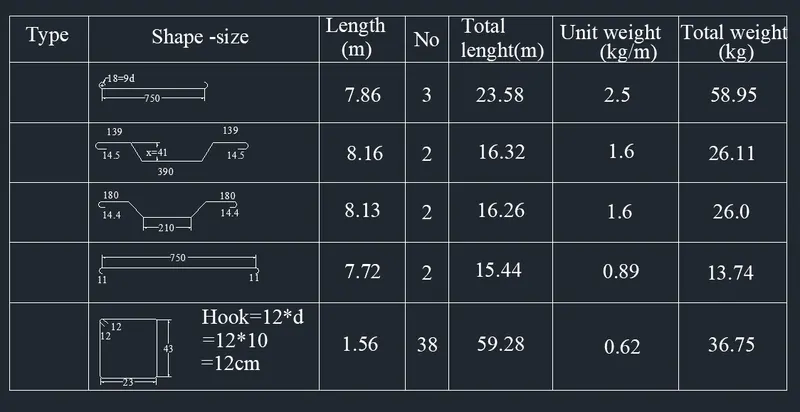

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

Aim: To create the template as per as the industrial size

Procedure:

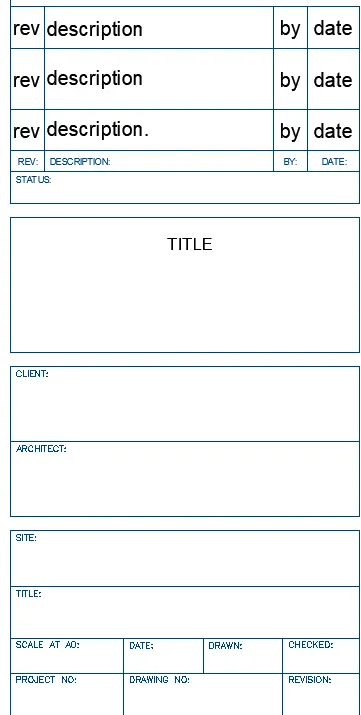

• Create the title boxas shown in the figure using line command
• Add the text in the title box using dt command
• After creating the title box set it as a block
• Enter "B" in the command bar and set it as a block

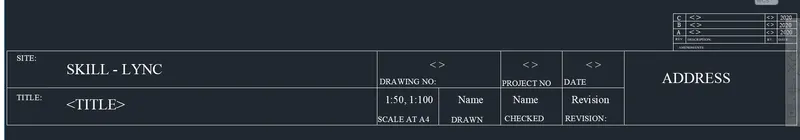

• Save the block as Custom1_titleblock, save another as Custom2_titleblock

Result:

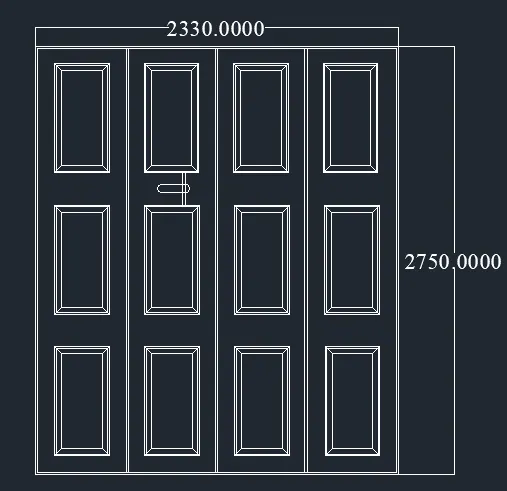

Aim: To create the doors type for warehouse

Procedure:

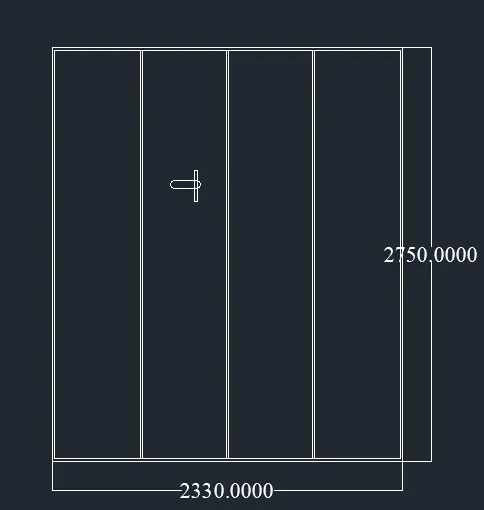

• Draw the rectangle of 2330 in x and 2750 in y
• Use offset option for offset
• Use array for copy of rectangle in certain distance.

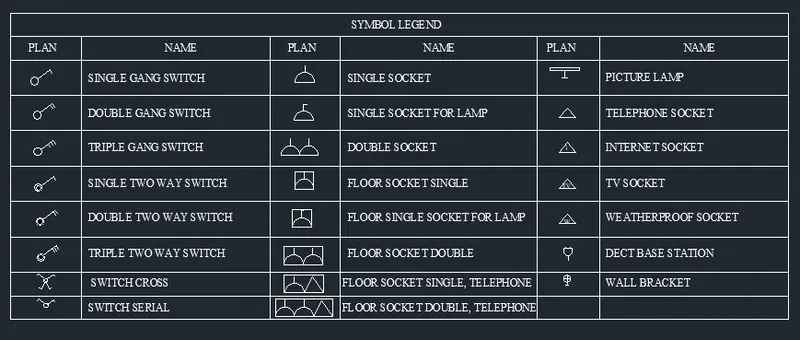

Aim:To create each symbol as a block with the name given in the legend

Result:

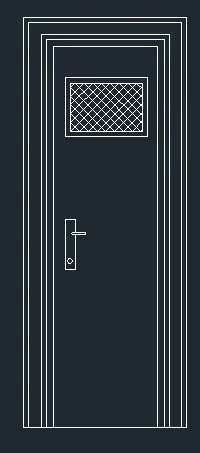

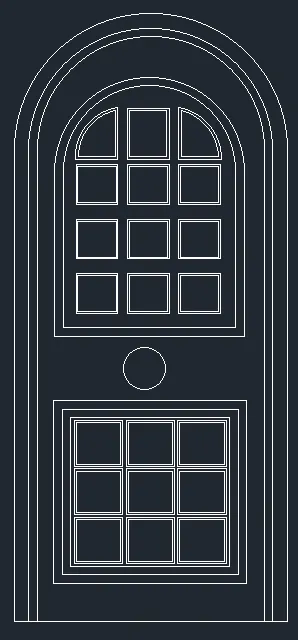

Aim: To create door for residential building as a block

Procedure:

• Create the door using rectangle, arc, line, circle command
• Enter the command "b" in the command bar
• Select the object to create it as a block
• Create the block in the name of D1, D2, D3, D4, D5, D6.

Result:

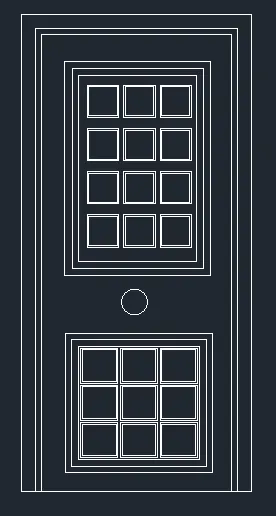

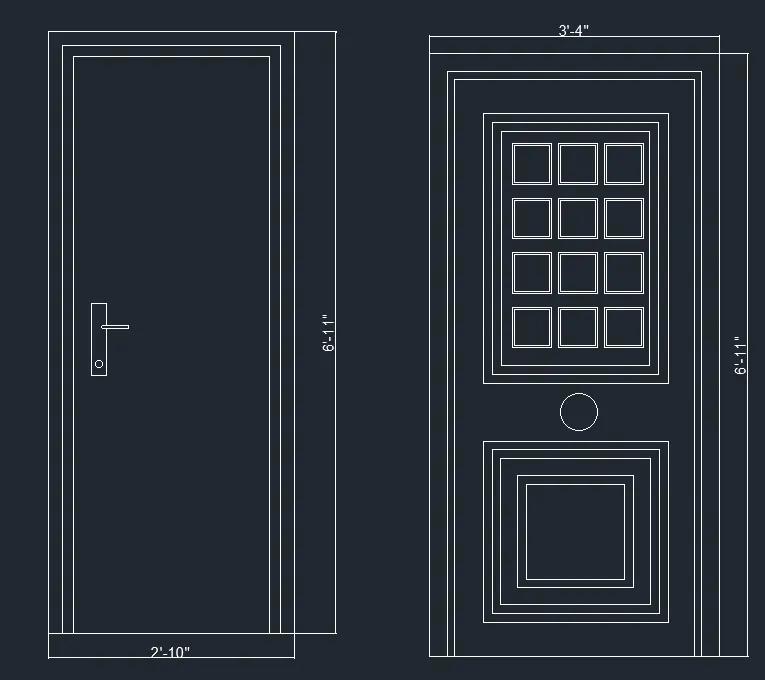

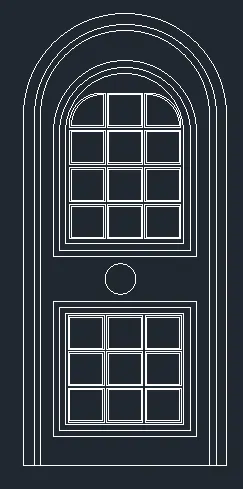

D1 D2

D3 D4

D5 D6

Aim: To create a shape block and insert them on table

Procedure:

• Draw the table using line command
• Create the shapes using line, arc, rectangle command
• Convert each shape as block
• Enter the text using "dt".
