Structural analysis of a buidling using Robot Structural Analysis

1.

HVAC system:

• Heating Ventilation and Air Conditioning
• It is a technology of indoor environmental comfort.Its goal is to provide thermal comfort and acceptable indoor air quality
• Important part of structure

Essentials in building modelling:

• Controlling the overall climate of the building
• It enhances the productivity
• It improves the air quality
• Achieving the energy efficiency

2.

Aim:

To draw the mechanical templates using in Revit

Procedure:

Step 1

Go to the new file

select the mechanical templates

Step 2

select the wall option

draw the wall at 150'

draw the wall at 100'

draw the wall at 150'

draw the wall at 100'

Step 3

draw the partition wall at 75'

draw the another partition wall at 50'

Step 4

Select the door

pick the door at wall

Step 5

go to the system tab

select the Air terminals

drop it by the rooms

Step 6

select the mechanical equipment

drop it by the room

Step 7

select the terminals

select the equipment

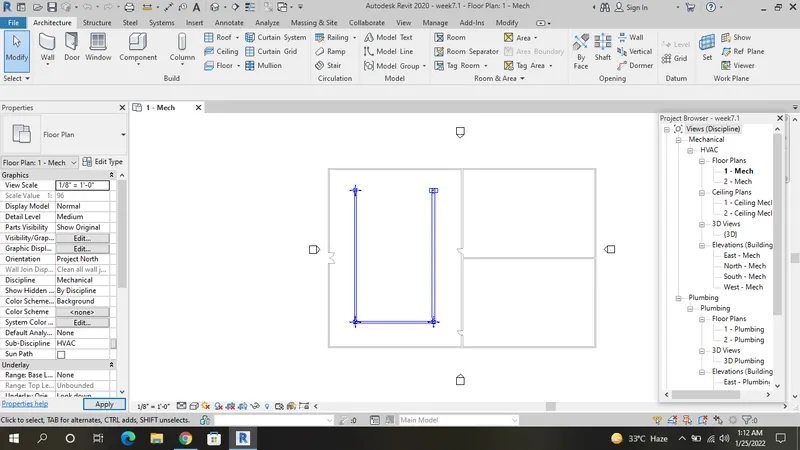

Step 8

select the duct

select the generate the layout

select the tick button

Step 9

select the 3d view

3.

Aim:

To draw the templates using in Revit

Procedure:

Step 1

Go to the revit software

select the top cornor

Step 2

select the cart/purches option

go to the autodesk web page

search the robot structure analysis professional 2020

Step 3

go to see the win 64

and download

Step 4

install the application

select the agree button

Step 5

select the product key

pick out by the product key

activate the application

4.

Building/Analyze while modeling element:

• It helps to calculating loads and internal forces
• It helps to cross check the engineering design
• Can perform during design
• Can analyse each and individual element

5.

Aim:

To draw the structural templates using in Revit

Procedure:

Step 1

Go to the new files

select the structural templates

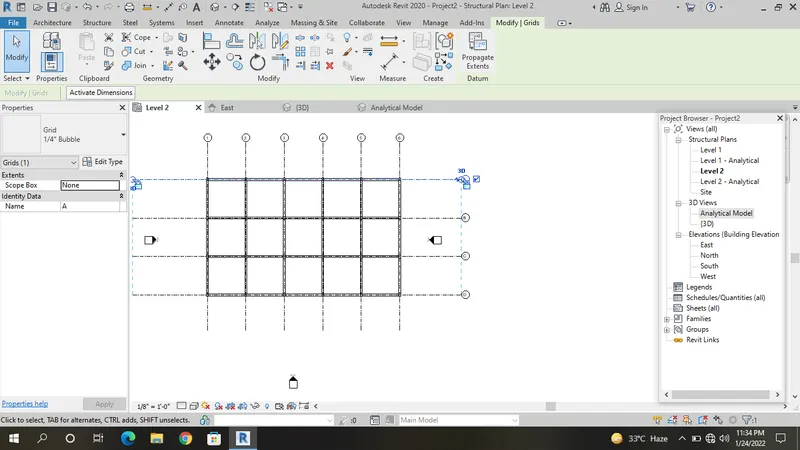

Step 2

select the grids

each grid distance at 20'

number of grids at 4

select and mention the name

Step 3

select the grids

each grids distance at 20'

number of grids at 6

select and mention the name

Step 4

select the column

select the on grids

drop down it

select all the grids to assign

Step 5

select the beams

select the on grids

drop down it

select all the grids to assign

Step 6

go to the analyze tab

select the load

select the area load

Step 7

select the load assign

select the dead load

select the live load

Step 8

select the load combination

select the dead load 1.5

select the live load 1.5

Step 9

select the boundary load

select the fixed load

drop down by the column

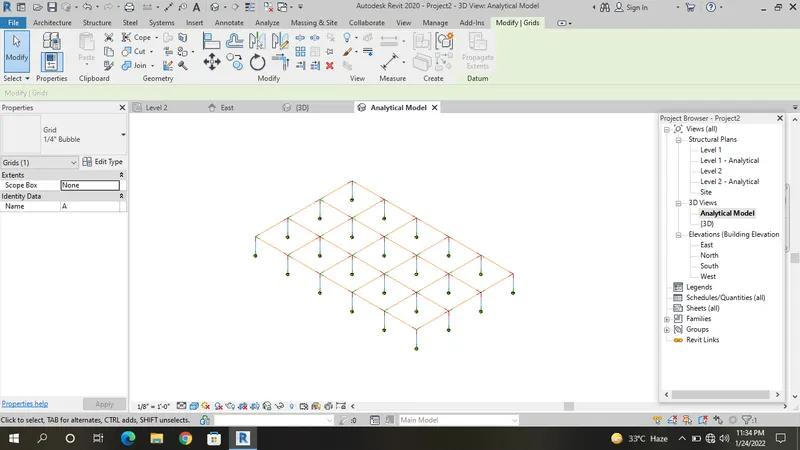

Step 10

select the analyatical view

Step 11

select the robot structural analysis

progressive the analysis

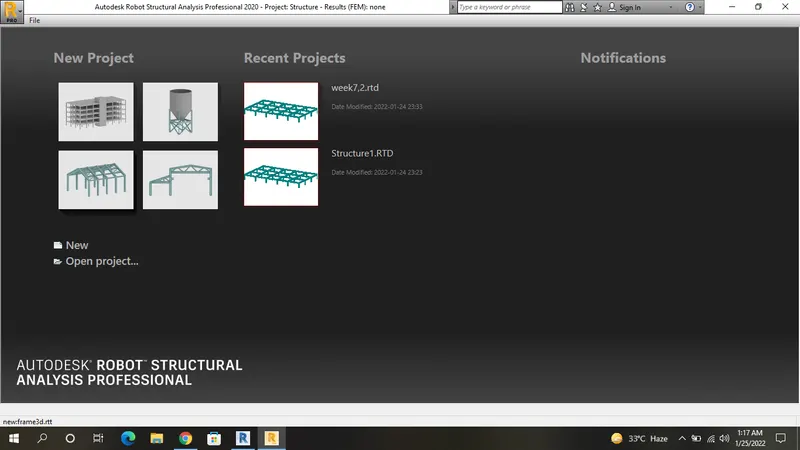

Step 12

open with robot structural analysis

go to file option

all the files are selected

Step 13

go to the view option

select the load combination

apply the load

Step 14

go to the analysis option

select the calculation

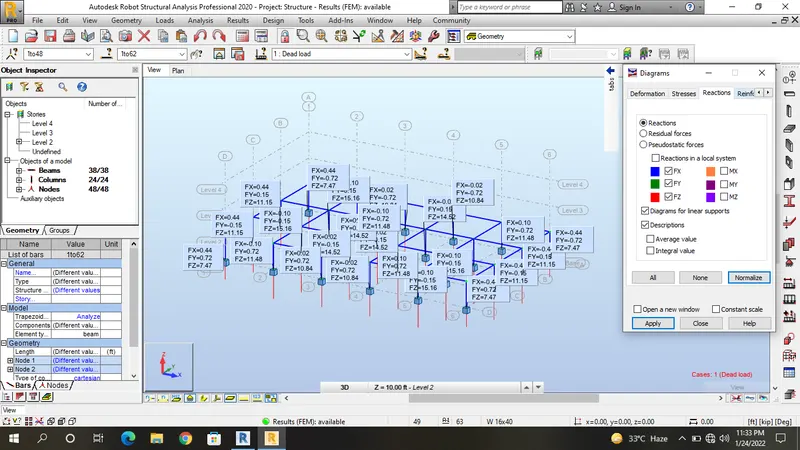

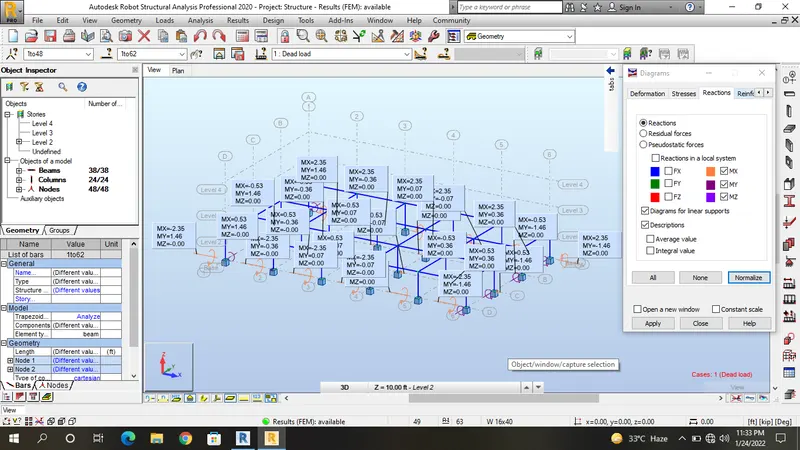

Step 15

go to the result option

select the bar determination

6.

Energy analysis while modeling in Revit:

• It is the traditional method of assessing the way the energy is used in an operation involving the physical or chemical processing of materials and the transfer and conversion of energy

Four General Principles:

• Calculating heat loss and gain
• Calculating the energy
• Determining the fuel requirement
• Evaluating the costs

Improve the quality of your design:

• Lower energy
• Impact of climate change
• Resource consumption
• Quality and durability of price
• Non toxic materials
