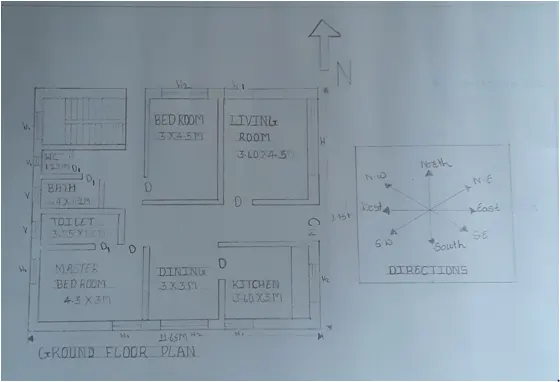

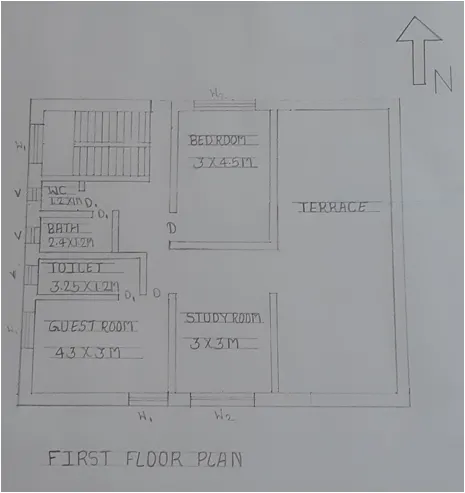

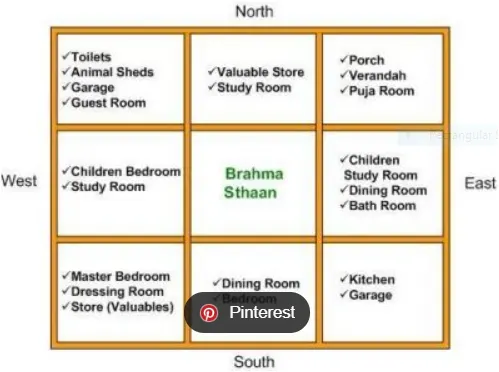

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

QUESTION:-1 Generate manual wind loading in the design report based IS code as per the following input Basic wind speed = 39m/s Terrain category 2   ANSWER: AIM: To generate manual wind loading in the design report based IS code. INTRODUCTION: Wind Load is directly related to wind speed. The higher…

QUESTION:-1 1. Create beam properties for First floor and model the beams 2. Create rafter beam on second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent   ANSWER:  AIM:  To define steel beam and model for intermediate level. To define rafter…

QUESTION:1 1Calculate dead load in design report based on IS code and apply dead load on the model Finishes of 50mm Slab as per design Brickwall 150mm thickness Roofing load based on purlin size Ceiling loading 0f 0.3KN per sq m  ANSWER: AIM: To calculate dead load in design report based on IS code and apply…

QUESTION1: 1.Column properties for different types of pedestal members and model in the grids created as per the assignment 1 2.Create column properties for steel columns and model columns in the grid created as per assignment 1. 3.Create beam properties and model primary and secondary beams on the ground floor ANSWER:…

QUESTION1. Summarize the user interface in TSD with the for the following items: -   Project Workspace – How to access and usage    Scene Content – Demonstrate the use of scene content    Create two scene views   Loading drop list- How to access    Properties windows…

PROJECT-2 Questions:  1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:      Width  30m Length 50m Eave Height 9m Bay spacing 6m Soil type Medium Safe Bearing Capacity 200 kN/m2 Roof slope 1 in 12 Assume suitable sections…

PROJECT-1 1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:      Building floors G + 6 + R Plan dimension B = 25m ,  L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing Capacity…

QUESTION:-1. 1. State the primary load cases to be considered for design. ANSWER: The primary load cases that are to be considered for design are listed below: Dead Load (IS 875: Part I). Live Load (IS 875: Part II). Wind Load (IS 875: Part III). Snow Load (IS 875: Part IV). Seismic Load (IS 1893: 2016).…

QUESTION:-1  1. How will you assign Circular section to column? ANSWER: AIM: To assign Circular section to column INTRODUCTION: Columns are defined as vertical load-bearing members supporting axial compressive loads chiefly. This structural member is used to transmit the load of the structure to the foundation. In…

QUESTION:-1. 1. Write the steps involved to upload a .std file through web mail? ANSWER:- Steps involved to upload a .std file through web mails are as follows; Open the STAAD pro software and locate the share option available on the introduction screen. After clicking on the share button, select send mail option. Then,…

Project 2_Design & Analysis of a Hostel building at Guwahati, Assam In this project, participants will get to experience the entire design process from modelling, analysis, design, and preparation of construction drawings. The architectural drawings of a G+3 RCC building is provided. The following information on the…

  Foundation Design using SAFE QUESTION:-1. Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. ANSWER: AIM:- To  model the isolated footing provided in week 11 challenge on SAFE. To Analyze and design it to…

DESIGN OF SHALLOW FOUNDATION  (ISOLATED FOOTINGS ) QUESTION:-1 Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either…

Structural Modelling of Residential Building using Etabs 2018   QUESTION:- The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model…

Analysis & Design of RCC shear walls in the model using ETABS   QUESTION:- The ETABS file for a G+6 building is provided. Run the analysis and design the RCC shear walls (show in the etabs model). The following challenge deals specifically with the shear wall of size 300x1500 at grid A-11 in the structural…

Reinforcement detailing of columns in Etabs 2018. QUESTION: The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections. 3A 3B Provide details of longitudinal reinforcement for…

Reinforcement Detailing of Beams from ETABS output   QUESTION:- Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame. The following challenge deals specifically with two continuous beams in the 1st floor.      …

Project 1 Comparative study of different storey buildings for Seismic forces Factors influencing the dynamic characteristics of a building Buildings oscillate during earthquake shaking. The oscillation causes inertia force to be induced in the building.   The intensity and duration of oscillation, and the amount…

 ETABS modelling of a 25 storey building QUESTION:-1 Model a 25 storey building on ETABS 2018 with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres. Structural Element…

QUESTION:-1The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account…

QUESTION:-1 Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility. ANSWER: In the above given plan there are multiple dots and the lines.…

Question 1: A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived. The fundamental period of vibration (T1 = 2 seconds) and…

Structural dynamics QUESTION:-1  Differentiate Static analysis and Dynamic analysis with proper representing pictures  ANSWER:  Aim: To differenciate about Static analysis and dynamic analysis with proper representing pictures.  SrNo. Static Analysis Dynamic Analysis 1. Load is not variable with time and neglected due…

QUESTION:-1  What is the mode of failure or damage of the beams in the figure above? Would you characterize the case as damage or as a failure? Are the damages repairable? Elaborate. a) OBSERVATIONS: Reinforcement at the bottom portion of the beam is exposed due to the crushing of concrete. The beam top is intact…

Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork   QUESTION:-1 Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class ANSWER AIM:- To…

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo   QUESTION:-1 Using Dynamo, create a set of sinusoidal points, a curve, and a surface out of the curve.  ANSWER  AIM:To create a set of Sinusoidal points,  a curve, and a surface out of the curve using dynamo  INTRODUCTION:…

QUESTION:-1 Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School ANSWER  My project is to built the Multi-unit residential apartments from the given three options.   QUESTION:-2 Assume reasonable assumptions for…

QUESTION 1:-  Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level. ANSWER: AIM:  To model a Ceiling from the architecture tab above the walls at the first-floor level. INTRODUCTION:  A ceiling…

PROJECT-2: QUESTION:-1 Create a 3 dimensional model of the residential building with a rendered view. ANSWER: AIM:- To create a 3D rendered model for a residential building in AUTOCAD. INTRODUCTION: The main objective of this project is to understand about to create a plan in 2d then convert it into 3D using AUTOCAD 3d…

QUESTION-1: Create a 3D isometric View of the building with plan and elevatio given. ANSWER: AIM: To create a 3D isometric view of the given building with plan and elevation. INTRODUCTION: An isometric drawing is a 3D representation of an object,room building or design on a 2d surface. One of the defining characteristics…

QUESTION-1: Create a 3D Furniture element as shown in the figure.Assume dimensions that arw missing. ANSWER: AIM: Create a 3D Furniture element as shown in fig. INTRODUCTION: In given challenge create a 3D Furniture element using 3D modeling. 3D modeling in AUTOCAD includes 3D soilds surfaces meshes ans wireframe objects.…

QUESTION-1: Create a layout of the Plan and section A of the project in challneges7 using the template Tutorial-march.dwt in a scale as given in the Viewport of the size as shown in fig .Also use attedit command to edit the information in the title block Use A1 size for the layout. Take a polt. ANSWER: AIM: To create the…

QUESTION-1: Create the layout of the Kitchen and provide Hatches pattern as shown.Also ,use blocks wherever required.Provide appropriate dimensions in the plan.Assume the size of doors,appliances and others as per the standards. ANSWER: AIM: To create a layout of kitchen and provide hach pattern as shown in challenge question.…

Question1- Create the templates as shown in figures.Take the size of the title block as per industry standards or you can assume it as per the size of the paper.Use text and attributes wherever required .After creating the title block you need to save it as a block with names :Custom1-titleblock and Custom2-titleblock,respectively.…

PROJECT-1: Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings. Design and draft a layout of a residential building with the following details. Plot size :60'*20'(18.3m*6m) Orientation -Facing East. Develop the following : 1-Architectural Drawings (Floor plan, Elevations,…

QUESTION-1: A).Create the plan as shown in the figure.Use proper dimension techniques and dimension styles to document the project.Assume the sizes of the doors and wimdows as per construction standards. Refer to sections for stair details if required.   ANSWER: AIM: To draw the floor plan and give dimensions as per…

QUESTION-1: Draw the elevation and details of a wardrobe as shown in the figure below.After skectching,you need to provide the dimensions and text with the use layers.Use proper text styles and dimensions methods to document is .Also ,assume dimensions,whereever needed. NOTE: All dimensions are in mm. ANSWER: AIM: …

QUESTION-1: Create a Column as shown in the figure. Note: Create a Column Schedule with the help of lines.Also ,insert text  with the help of Dtext command or single line text. Hint: Use font name :romans.shx: Height: 8",Justify: Left. ANSWER: AIM: To Creat a column schedule as shown in drawing by using autocad. INTRODUCTION:…

QUESTION-1. 1.Residence Plan: Skech the layout of a residence as shown in the figure 1.Consider all dimensions as reference to skech the unit plan.Also the text in the layout are only for reference.Assume the missing dimensions.Also ,refer the schedule for size of the doors.  AIM  : TO DRW THE LAYOUT OF…

     Drafting of various geometries using Chamfer,Fillet tool in AutoCAD. AIM:          Drafting of various geometries using Chamfer,Fillet tool in AutoCAD. INTRODUCTION: AutoCAD consist of a number of drawing and modification tools.Among the modification tools are the Chamfer,Fillet,Offset,Object,Snap,Rotate,Copy,Move,Mirror,Trim,Extend,and…

Q1:Creating a Floor plan,Footing detail and Isometric View using AutoCad Aim: To create a Floor Plan,Footing Detail and Isometric view of Steps and Gable Wall in Autocad. Introduction: Autocad is adrafting software that is used to draft drawings in the present case we are using Autocad to create various drawings using…

Q1.Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool  to create the geometries. Where required you need to use the circle tool.Please read the drawings and find out the missing dimensions before working on the sketches. Note: Use the Imperial Template and the…

Q1. Sketch a G+1 floor residential plan,according to Vaastu Shastra ,and list down the names of the structural drawings required to be provided to the site for construction.Also ,assume the sizes of the structural elements (Column,Beam,slab,etc)and accordingly calculate the individual corresponding loads the members as…

Q1.Calculate the concrete mix design for M35 grade of concrete with fly ash &M50 grade concrete without fly ash. Ans: Mix design for M35 grade of concrete with fly ash.     Aim: Mix design for M35 grade of concrete with fly ash.     Procedure:     Step1: stipulations for concrete design…
