Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
AIM:
Sketch a G+1 floor residential plan, according to vastu shasyra, and list down the names of the structural drawings required to be provided to the site for construction.
Also, assume the sizes of the structural elements (column,beam, slab, etc) and accordingly calculate the individual corresponding loads from the members as per IS code.
(All dimensions are in M )

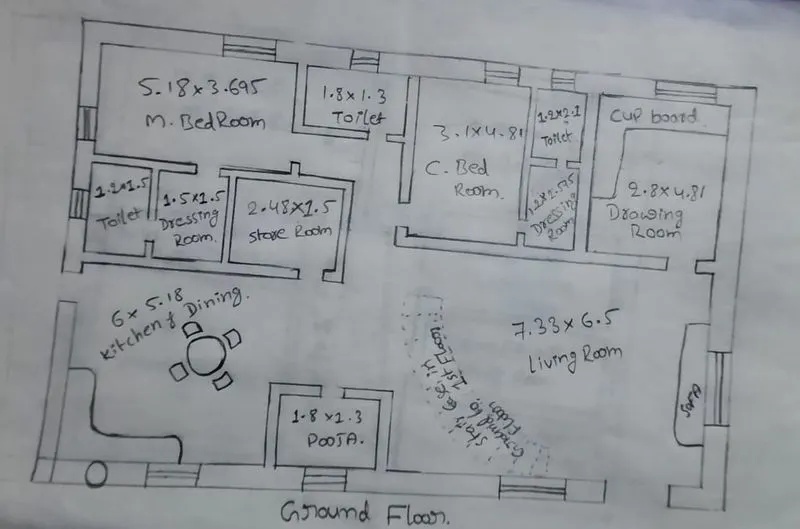

GROUND FLOOR PLAN DIMENSIONS:
Living room-7.33 x 6.5
Pooja-1.8 x 1.3
Kitchen/Dining-6 x 5.18
Drawing room- 2.8 x 4.81
C bed room-3.1 x 4.81
Dressing room-1.2 x 2.575
Toilet-1.2 x 2.1
M bed room-5.18 x 3.695
Dressing room-1.5 x 1.5
Toilet-1.2 x 1.5
Store room-2.48 x 1.5
Common Toilet-1.8 x 1.3

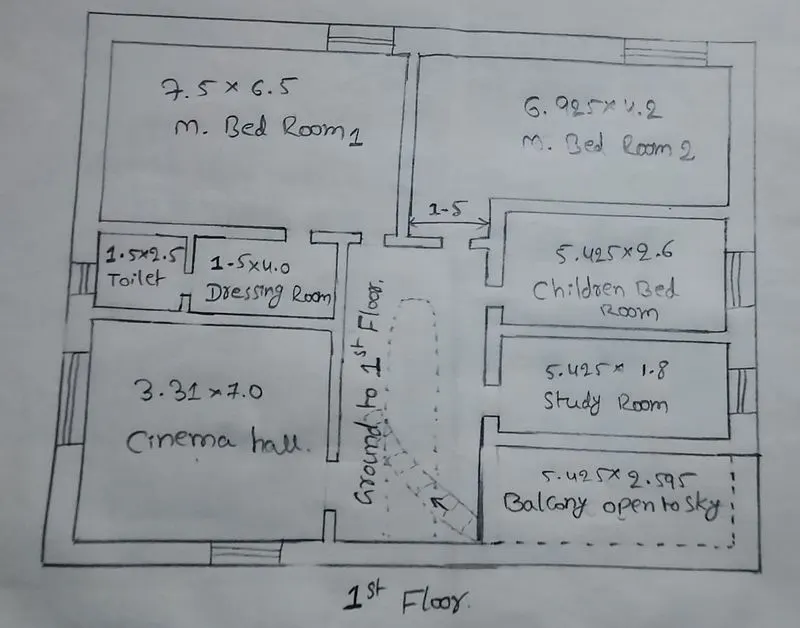

FIRST FLOOR PLAN:
FIRST FLOOR PLAN DIMENSIONS:
Cinema hall-3.31 x 7.0
M bed room 1-7.5 x 6.5
Dressing room-1.5 x 4.0
Toilet-1.5 x 2.5
M bed room 2-6.925 x 4.2
C bed room-5.425 x 2.6
Study room-5.425 x 1.8
Balcony to open to sky-5.425 x 2.595
OTHER DIMENSIONS:
Thickness of internall wall-0.115 m
Thickness of external wall-0.23 m
Thickness of slab-0.25 m
Dimensions of column-0.3 x 0.3 m
Dimensions of beam-0.3 x 0.45 m
height of the wall of each floor-3 m
Vastu shastra followed during planning
1 Entrance of the house is provided in the east direction which is the symbol of progress in life.
2 Living room is placed in north east direction.
3 Master bedroom is placed in south west position this direction brings good health and prosperity.
4 Kitchen is placed in south east direction.
5 Study room is placed in east and north direction.
6 Staircase is placed at north west corner.
7 Bathroom, WC and toilet is placed in west direction.
List of drawings provided at the construction project:
- Centre line drawing.
- Footing and column layout with reinforcement details.
- Column schedule with reinforcement details.
- Plinth beam layout with reinforcement details.
- First floor beam layout with reinforcement details.
- Lift pit and head room reinforcement details.
- Centre line drawing.
- Floor plans.
- Foundation plan.
- Design drawings.
- Block plan.
- Roof slab layout.
- Column layout.
- Site plans.
- Column sections.
- Septic tank design.
- Overhead water tank design.
- Plinth beam sections.
- Flooring plan.
- Furniture plan.
- Road drainage plan.
- Setting out plan.
- Section drawings of buildings.
- Plumbing details.
- Electrification details.
CALCULATION OF LOADS:
A) DEAD LOAD CALCULATIONS:
1) Dead load of columns:
Height of column=(slab thickness x 2) + (Height of wall for each floor x 2)
=(0.25 x 2) +(3 x 2)= 6.5 m
Total volume of concrete=0.3 x 0.3 x 6.5=0.585 cu m
Unit weight of RCC =25 kn/cu m
Unit weight of building mateials usedin construction works as per IS875( part-1)
Dead load of column =25 x 0.585 =14.62kn
2) Dead load of beams:
Dimension of beam =0.3 x 0.45 (300 x 450 mm)
Total volume of concrete =0.3 x 0.45 x 1=0.135 cu m
Unit weight of RCC =25kn/cu m
Unit weight of building materials used in construction works as per IS 875 (part-1)
Dead load of beam =25 x 0.135=3.375kn
3) Dead load of slab:
Slab is always designed for the span of (1m)
Hence assume size of slab as 1m x 1m
Thickness of slab=0.25m
Density of RCC=25 kn/cu m
Self weight of slab =1 x 1 x 0.25 x 25=6.25kn
4)Dead load of walls:
Dead load of external wall
thickness of external wall =0.23m
unit weight of brick wall=20kn/cum
unit weight of building materials used in construction works as per IS 875(part 1)
Height of wall=3m
Load of wall on beam=3x0.23x20=13.8kn
Dead load of internal wall
Thickness of internal wall=0.115m
Unit weight of brick wall=20kn/cu m
Unit weight of building materials used in construction works as per IS 875 (part 1)
Height of wall=3m
Load of wall on beam=3 x 0.115 x 20=6.9 kn
B) LIVE LOAD CALCULATIONS:
(According to IS 875(part2)
Bed room=2kn/sq m
Living room=2kn/sq m
Bath room=2kn/sq m
Terrace =3kn/sq m
Toilet=2kn/sq m
Staircase=3kn/sq m
Study room=2km/sq m
Kitchen =2kn/sq m
C) Wind load calculation:
Wind load is designed only when the height of the building exceeds 10m
The height of designed buildings is 6.5m which is less than 10m
So, the calculation of wind load is not required.
References and IS codes ued for the design:
IS 875:1987,part 1 for dead load.
IS 875:1987,part 2 for dead load.
IS 875:1987,part 3 for wind load.
IS 456:200, for reinforcement concrete.
Results:
The plan is prepared by the vaastu shastra concept considering all the principles and considerations of vaastu shastra.
The load calculations are done as per the IS code considerations.
