Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction.

Aim: To Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction.

To assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and to calculate the individual corresponding loads from the members as per IS code.

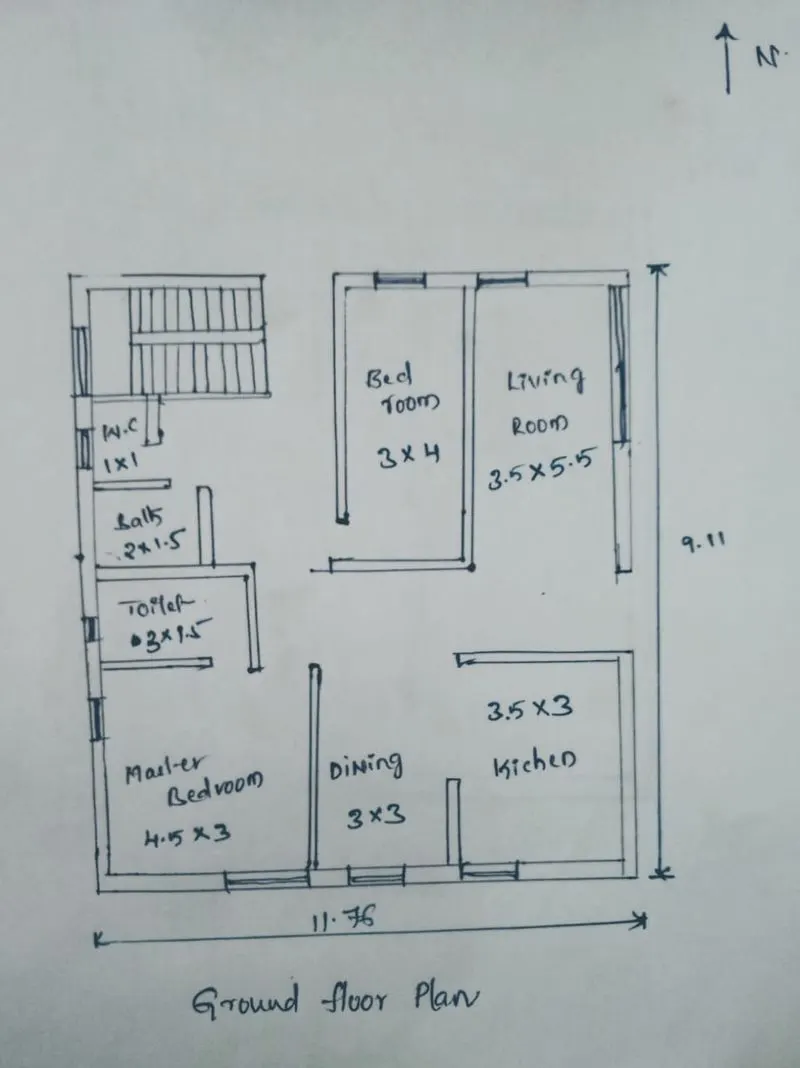

Ground floor plan

DIMENSION OF GROUND FLOOR PLAN

• Bed room:3m*4m
• Living room:3.5m*5.5m
• Master bed room:4.5m*3m
• Dining room:3m*3m
• Kitchen:3.5m*3m
• Bathroom:2m*1.5m
• Toilet:3m*1.5m
• wc:1m*1m

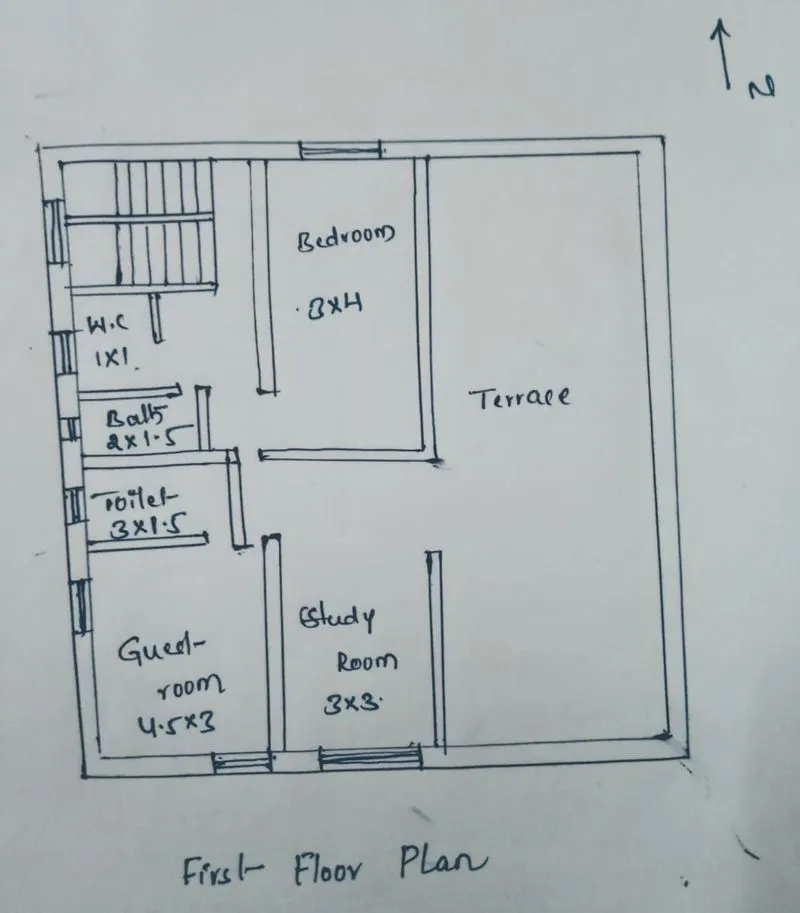

First floor plan

Dimension of the first floor plan

Guest room:4.5m*3m

Study room:3m*3m

Bedroom:3m*4m

Toilet:3m*1.5m

Bath:2m*1.5m

wc:1m*1m

Bem dimension:0.3m*0.4m

Column dimension:0.3m*0.3m

Tickness of slab:0.25m

Height of the wall of each floor:3m

Thickness of internall wall:0.15m

Thickness of external wall:0.23m

Vastu shastra followed by during the plan:

• Entrance of the house is provided in the east direction which is the symbal of progress in life
• Living room is placed in north east direction
• Master bed room is placed in south west position this direction brings good health and prosperity
• Kitchen is placed in south east direction
• Study room is placed in east direction
• Staircase is placed at north west corner
• Bathroom,wc,and toilet is placed in west direction

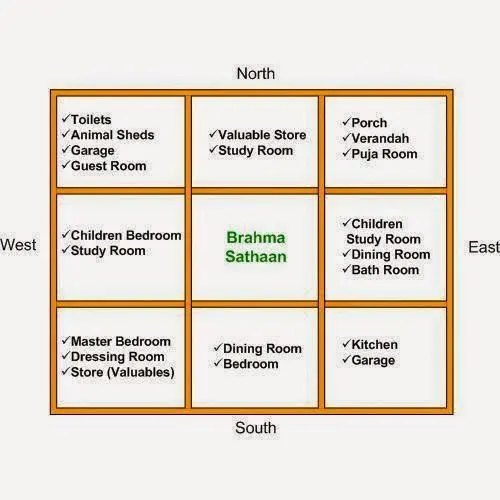

Concepts of vastu:

List of drawing provided at the conctruction project:

• Cetre line drawing
• Footing and column with layout with reinforcement details
• Column schedule with reinforcemenyt details
• Plinth beam layout with reinforcement details
• First floor beam layout with reinforcement details
• First floor slab layout with reinforcement details
• Lift pit and Headroom reinforcemet details
• Site plans
• Foundation plans
• Column layout
• Roof slab layout
• Design drawings
• Block plans
• Septic tank design
• Over head water tank design
• Plingth beam section
• Furnature plan
• Road drainage plan
• Setting out plan
• Section drawing building
• Plumbing details
• Electrition details

Calculation of loads:

Calculation of dead loads

Dead load of the column:

Dimension of column=0.3m*0.3m

Height of column=Slab thickness*2+height of the wall *2=0.25*2+3*2=6.5m

Unit weight of rcc=25 kn/m3

Total volume of the concrete=0.3*0.3*6.5=0.585m3

Dead load of the column=25*0.585=14.62KN

Dead of the beams:

Dimension of the beam=0.3m*0.4m

Volume of the concrete=0.3*0.4*1=0.12m3

Unit weight of the rcc=25kn/m3

Dead load of the beam=25*0.12=3KN

Dead load of slabs:

Slab is always designed for the span of 1m

Hence assume size of the slab is 1m*1m

Thickness of the slab=0.25m

Self weight of the slab is=0.25*25=6.25KN

Dead load of wall:

Dead load of external wall:

Thickness of the external wall=0.23m

Unit weight of the brick wall=20kn/m3

Height of the wall=3m

Load on wall of the beam=3*0.23*25=13.8 kn/m

Dead load of internal wall:

Thickness of internal wall=0.15m

Unit weight of brick wall=20kn/m3

Height of the wall=3m

Load on wall of the beam=3*0.15*20=9Kn/m

Live load calculation:

According to IS 875 (part2)

Bed roomm=2kn/m2

Living room=2kn/m2

Bathroom=2kn/m2

Terrace =3kn/m2

Tailet=2kn/m2

Staircase=3kn/m2

Studyroom=2kn/m2

Kichen=2kn/m2

Wind load calculation:

wind load is designed only height of the building is more than 10m.The height of designed building is 6.5m which is less than 10m.So calculation of wind load is not required

IS code used for the design

IS 875:1987,part1 for dead load

IS 875:1987,Part2 for live load

IS 875:1987,Part3 for wind load

IS 456-2000 for reinforced concrete

Results:

The plan is prepare by vastu shastra concepts considering all the principles and consideration of vastu shastra.The load calculation is done as for the IS code consideration.
