Challenge

Section Modulus calculation and optimization

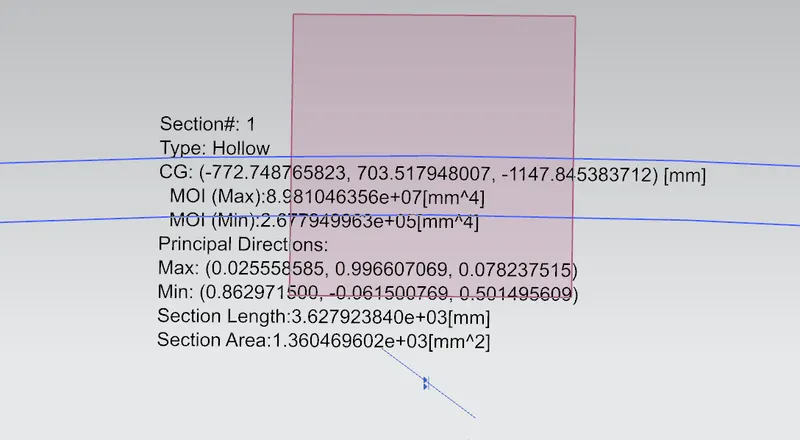

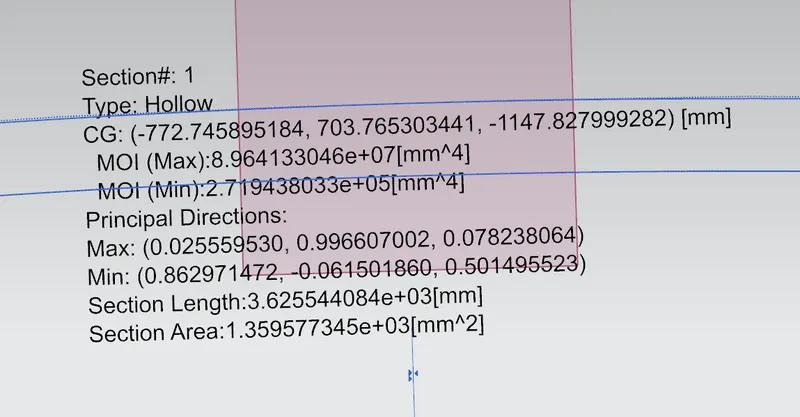

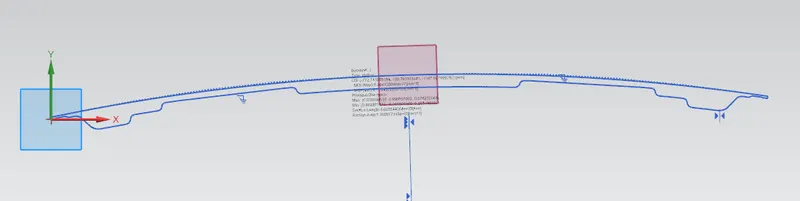

Section 1

Here I = 2.67x10^4

Y = 0.088x10^4 (879.8288mm)

There for Z1 = I/Y

=2.67x10^4/0.088x10^4

= 30.34

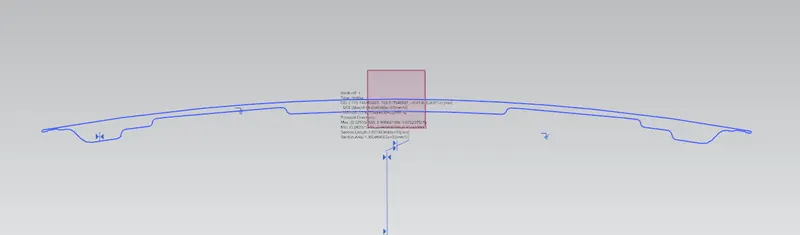

Section 2

Here I = 2.71x10^4

Y = 0.088x10^4

There for Z2 = I/Y

= 2.71x10^4/0.088x10^4

= 30.79

While comparing Z1 & Z2

Z2 > Z1

by offseting a 0.5mm if inner hood pannel the section moduless of the hood is incresed.
