Roof Design

Aim:

To a given roof styling, create essential flanges and reinforcement.

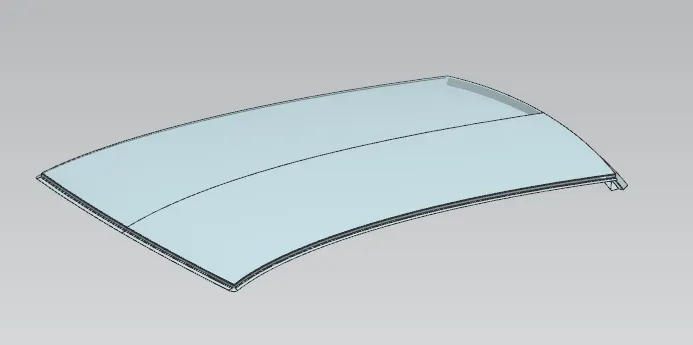

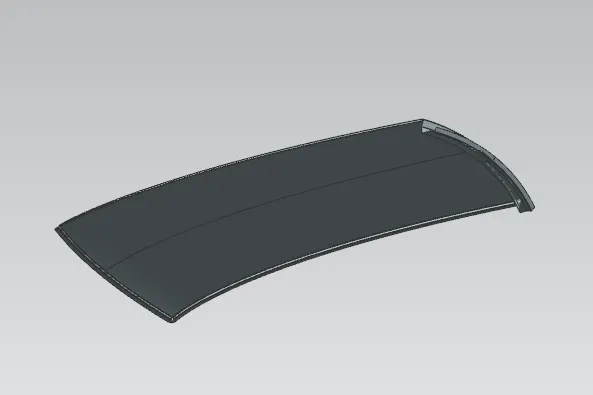

Roof Introduction:

An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. Because the earliest automobiles were designed in an era of horse down carriages early automobile roofs used similar materials and designs.

The roof also ensures the safety of the passengers from the obstacle or during the collision by imposoing proper roof rails.

Types of Car Roofs:

1. Convertible roofs.
2. Hard Tops
3. Sun roofs.
4. T- Tops.
5. Target tops.
6. Vinyl roofs.

Design Consideration of roof:

• Visibility Criteria
• Head Clearance
• Heat Distortion and snow load criteria
• Draft(7') Analysis

Roof Crush test for passenger car:

• Of the 6,000 to 7,000 of people seriously injured or killed by roof crush every year, NHTSA
  officials have said that only a small number of lives (between 50 and several hundred) would be
  saved by the new standard.
• A slight upgrade of the one-sided test would, in fact, be very ineffective in saving lives.

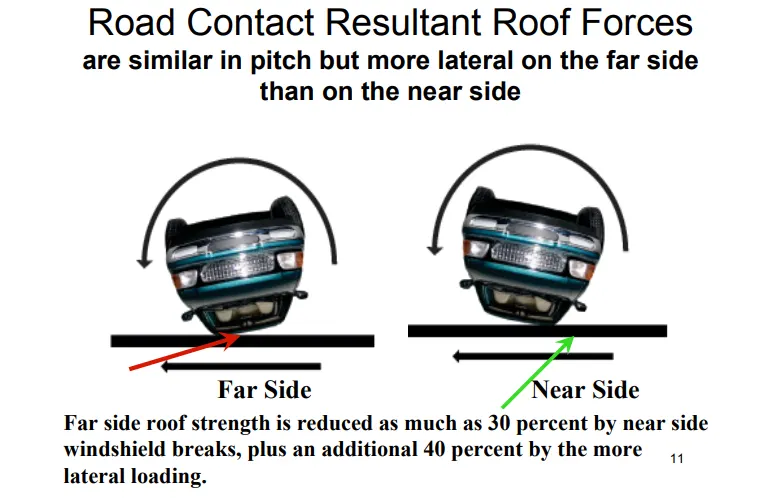

• The second, far side impact in a rollover crash is different from the first impact in a number of
  ways. It has a different and more severe pitch angle and greater roll angle. The strength
  provided by the windshield and its bonding is gone after the first impact when both break,
  meaning that the roof is substantially weakened when the second or far side impact occurs.

For the test, the passenger shall be rigidly placed or positioned on a horizontal surface with the doors locked and the window closed. Furthermore, a flat, rigid block with a lower surface a rectangle measuring 30 inches wide by 72 inches long (762mm x 1829 mm) shall not move more than 5 inches (127mm), measured as the distances between the original location of the lower surface of the test device and its location as the specified force level is reached, when it is used to apply a forces of 1.5 times the unload vehicle weight (UVW) or 5000 lbs. (22224N), whichever is less. To either side or forward edge of the vehicle.

This test can be conducted on either side of the roof structure, the front left or the front right side but not on the both sides in one single test and still meet the requirement of the test. The rigid plate shall not move faster than 0.5 inches/second and the force applied on the plate shall not exceed the lesser of 1.5 times the unloaded vehicle weight (UVW) expressed in kilograms multiplied by 9.8 or 5000 lbs (22240N).

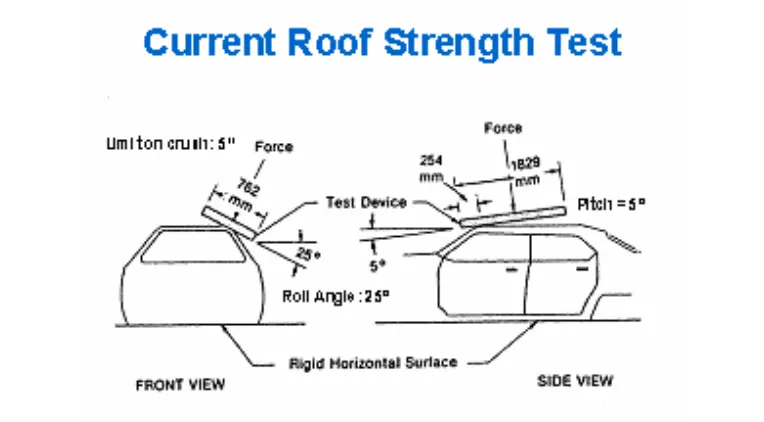

Also, the direction of the force shall be downward and perpendicular to the lower surface of the rigid plate and such that it moves in a straight line without rotation. The duration of the test shall not exceed 120 seconds. The longitudinal axis of the plate is pitched forward at a 5’ angle as viewed from the side of the passenger car as shown,

The lateral axis or the roll of the plate is such that it forms a 25’ outboard angle with a horizontal surface as viewed from the front of the passenger car as shown in below, fig

Master Sections:-

Joining Process:

Mastics are introduced between the roof outer panel and the reinforcements for joining. Where ever the mastics are introduced there is remarkable strength. Spot welding is also introduced to join the reinforcement and the outer panel.

Reinforcement and its types:

If the roof is flat, it is weak and cannot able to with stand the external load like snow load, roll over and etc. so in order to increase the strength of the roof, reinforcement like front roof rail, central roof rail, rear roof rail and the bow roof are introduced and joined in the flat surface of the roof with different joining process. In general, there are four types of reinforcement are used in the hard roof top they are,

• Front roof rail
• Central Roof rail
• Rear roof rail
• Bow roof rail

Front roof rail:

Front roof rail is the one which joins the wind shield glass, body side outer and the inner panel also. Here the front roof rail is designed based up on the master section given.

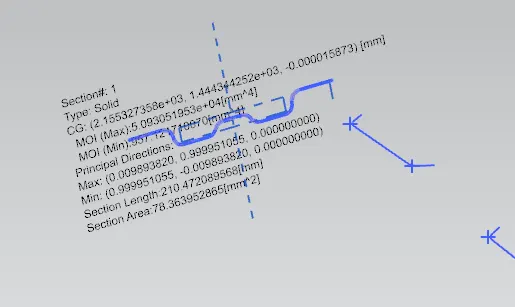

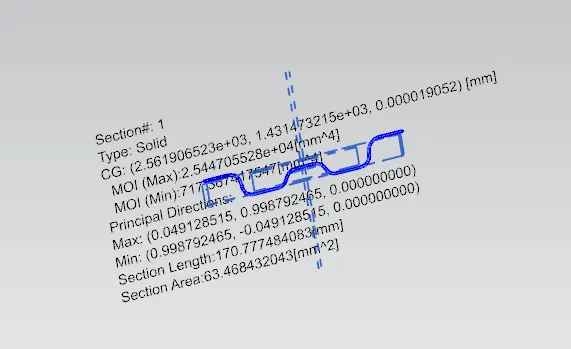

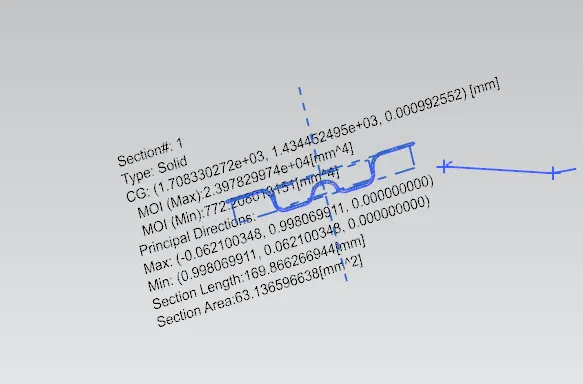

Master Section for FFR:

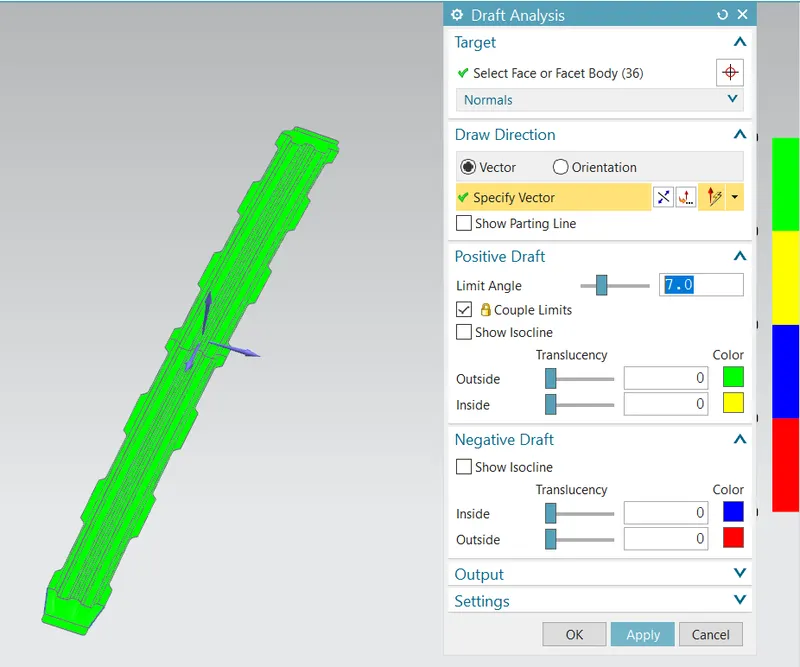

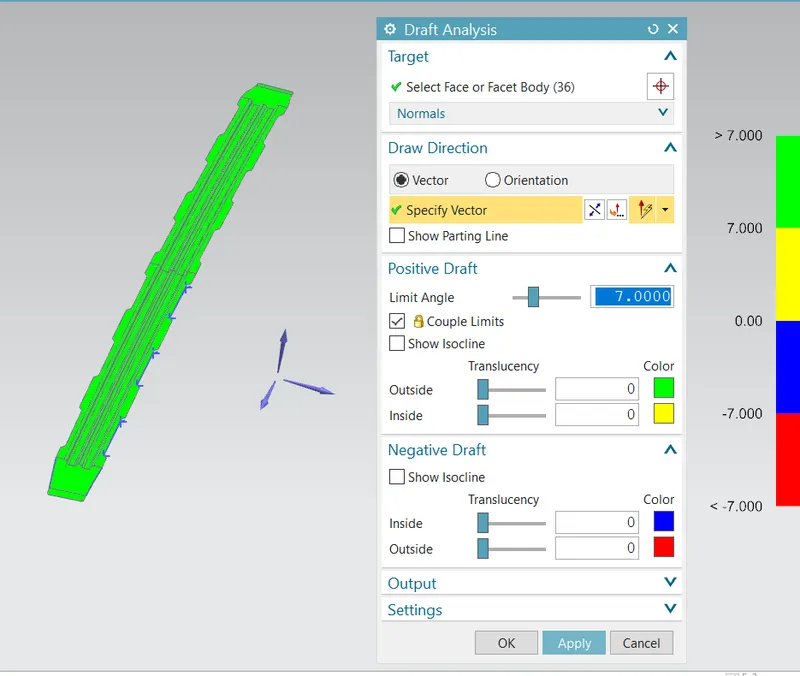

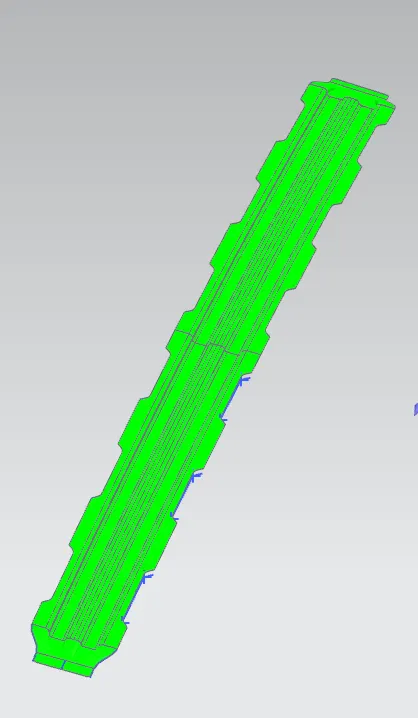

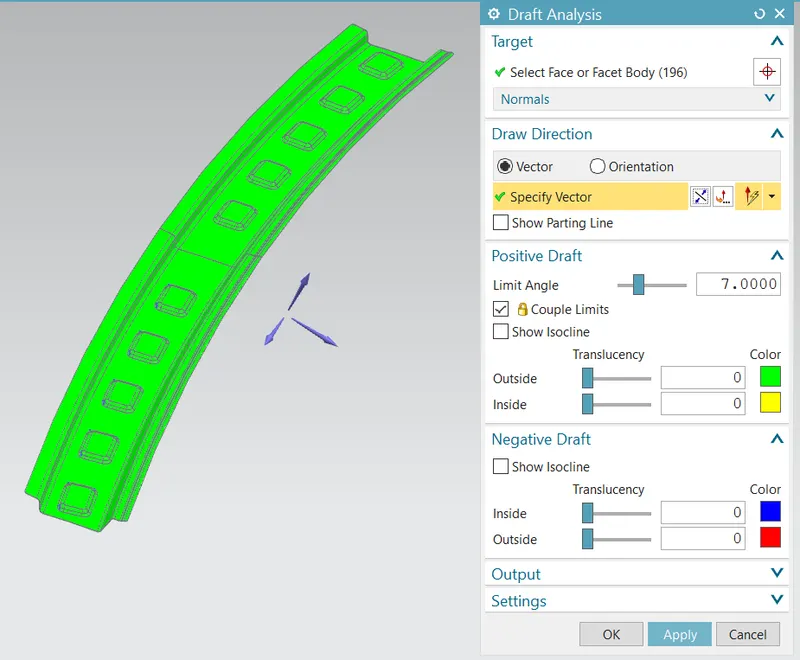

Below Shows the Draft analysis of FFR:

Rear Roof:

Just as the front rail roof, the rear rail roof provides reinforcement to the rear part of the car roof. Similar to the front rail roof, the rear roof rail is to be designed considering the rear visibility criteria and the rear passenger’s headroom clearance.

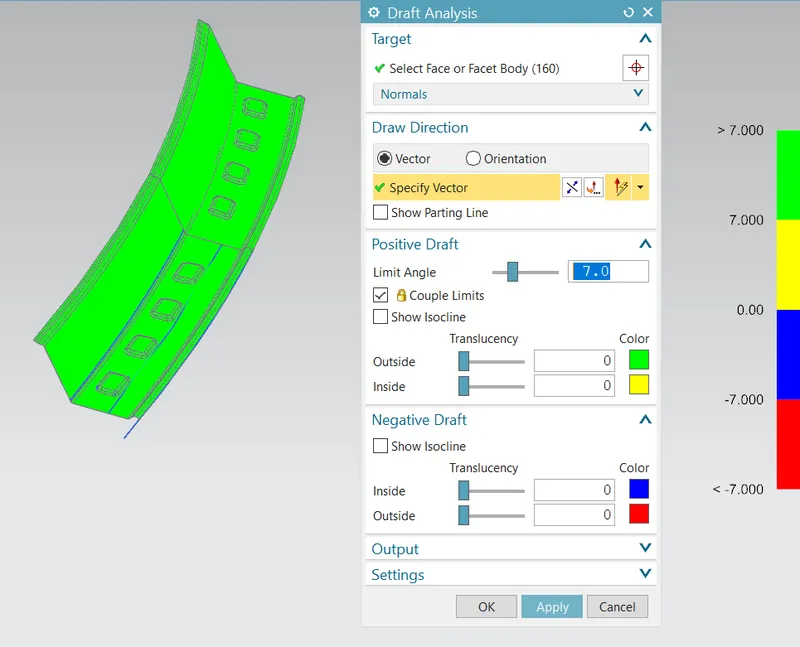

Below Shows the Draft analysis of RRR:

Center Rail Roof:

Central roof rail helps in providing effectively support to the flat area of the roof as it is more susceptible to failure under the action of load. Generally central roof rail is placed at the center of the roof which is connected to the B-pillar support structure. This central roof rail helps in the strength to the roof during the roll-over test.

Below Shows the Draft analysis of CFR:

Below Shows the Draft analysis of BRR:

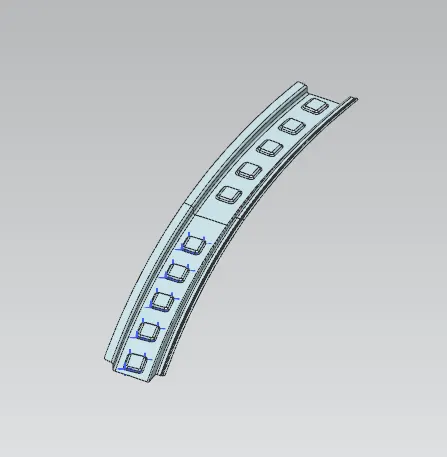

The bow roof are given to improve the torsional stiffness and load bearing capacity of the roof structure. The number of roof presented is depends on the overall size of the roof. Presently in this project two bow roofs are calculated.

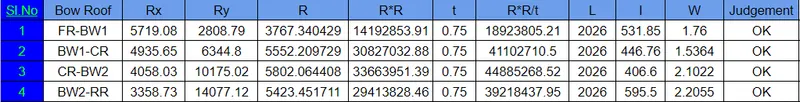

Bow–Roof Prediction Formula

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

Where,

L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)

R = Roof curvature

R = 2(Rx*Ry)/(Rx+Ry)

Rx = X curvature

Ry = Y curvature

t = Roof plate thickness [mm]

l = Bow Roof Span [mm]

Judgment Condition

OK< 2.7

Procedure:

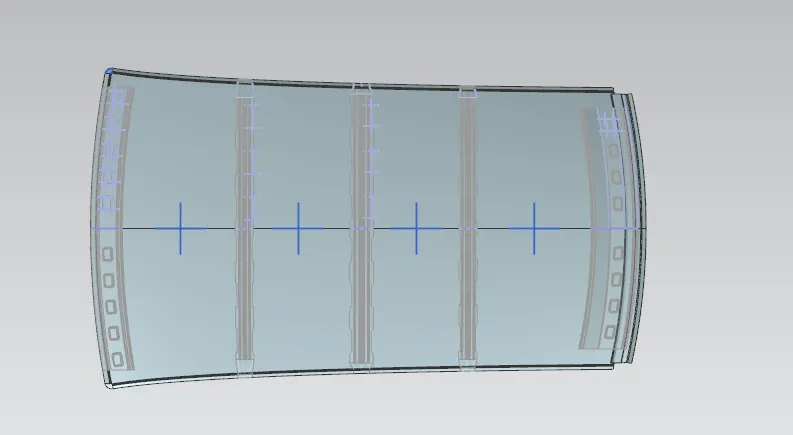

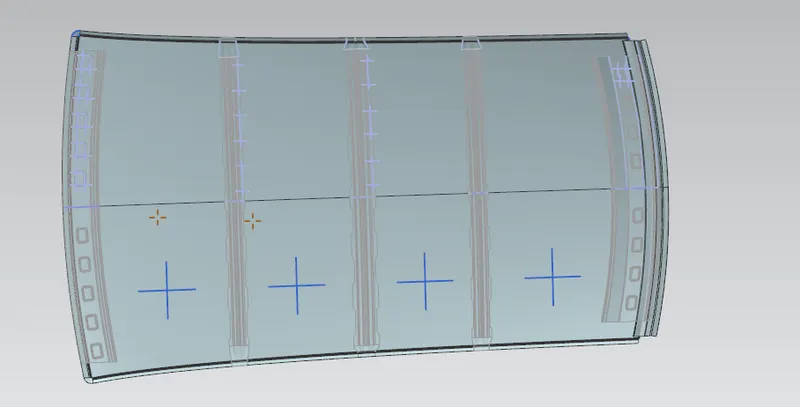

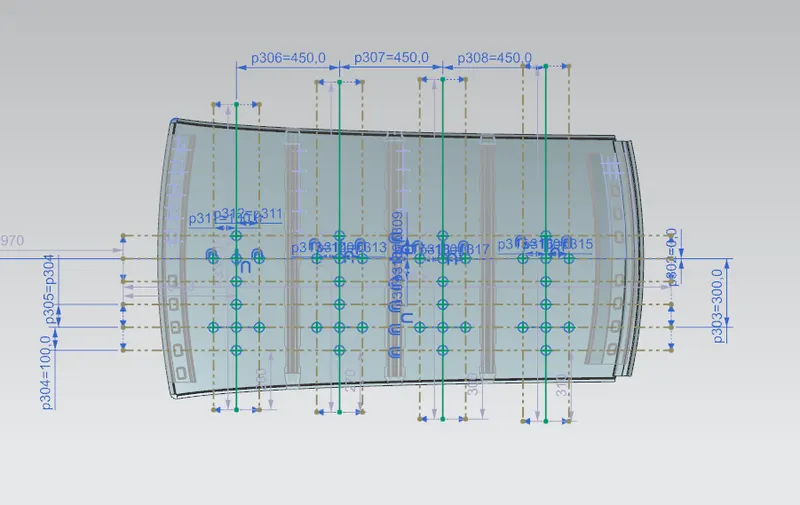

• Create a sketch on Top roof and draw a horizontal line at a center.
• Then offset this line below 300mm and called it as _3y line.
• From the _3y line offset 100 mm above and below and convert all these line into reference line.
• Draw the vertical lines at the middle of each reinforcements and offset it at 100 mm both sides.
• Intersection point is created where the lines are met.
• Project there points the outer roof panel.

Found All Ok With Heat load criteria

Snow Load Prediction Formula

This test is done to know how the roof is behaving when there is a snow over. Normally due to the snow weight the dent will happen. But the roof should be designed in such a way that when the snow is removal the roof should go it its original position. This basic requirement for snow load criteria.

Procedure:

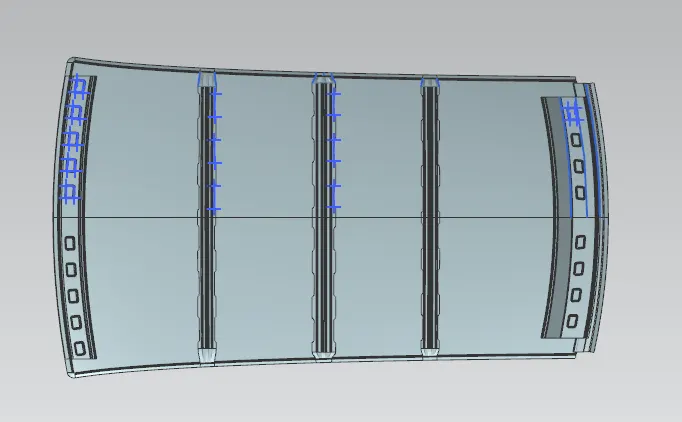

• Create a sketch on Top roof and draw a horizontal line at a center.
• Offset this line to 100 mm on both sides. Convert all these line into reference line.
• Draw the vertical lines at the middle of each reinforcements and offset it at 100 mm both sides.
• Intersection point is created where the lines are met.
• Project there points the outer roof panel.

Qr = [Iy x t²] / [α x s x [(Rx + Ry)/2]² x 10^-8]

Note: The Qr value given over here is correct. There was a typo error in the formula given in the video.

Where,

α = My x Lx² x 10^-12 , My = Y(Ly-Y)

t = Roof plate thickness [mm]

Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]

Length of Roof panel with the center point between Roof rail Front /Rear as the front and rear reference point.

Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]

The width of the roof panel is exposed on the surface.

Y = Distance front Front Roof Rail to Roof BOW[mm]

s = Distance for which Roof BOW bears divided load [mm]

s = L1/2 + L2/2

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]

Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]

Roof panel curvature Radius of the Length Lx in Front view

Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]

Roof panel X curvature radius of length s in Side view

Judgment condition

Qr ≥ 3.1

250 ≤ s ≤ 380

→ CR-BW2 is not satisifying the creteria so that increasing the thickness of sheet metal for BW2 will make it Qr=3.56.it will satisfy the creteria.

BW 1

CRR

BRR2

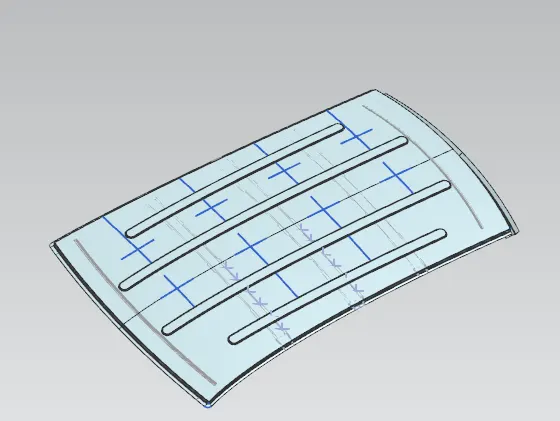

However Also adding Emboss to roof increases the strength
