Roof Design
AIM:
TO the Given Roof styling, create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements.
|ROOF DITCH AREA CREATED|
|FRONT ROOF RAIL CREATED|
|REAR ROOF RAIL CREATED|
|BOW ROOF REAR CREATED|
|BOW ROOF FRONT CREATED|

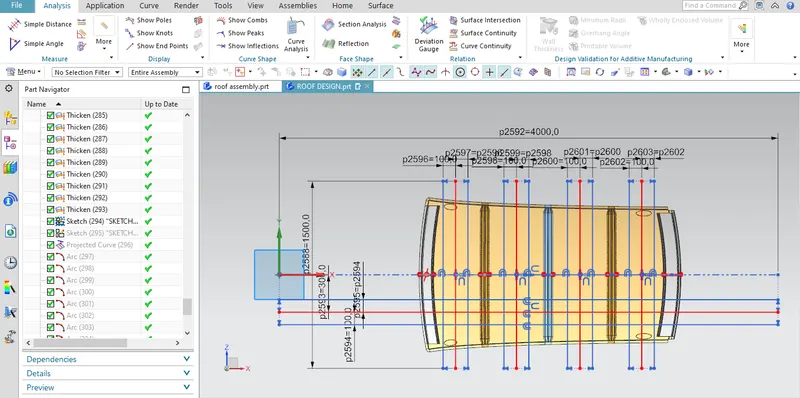

|CALCULATIONS|

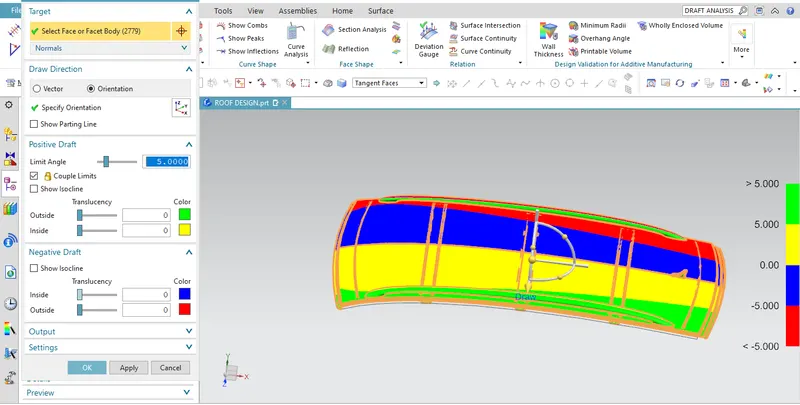

|DRAFT ANALYSIS|
|CAR ROOF MANUFACTURING PROCESS|
Car roof anabolic process : The first step, by a plurality of m6 muts of side spot welding of ring-shaped component;by two two m6 nuts of bar shaped asembly the opposite side of the corresponding nut of ring-shaped assembly two ends spot weldging; second step,spots weld bar shaped assembly the opposite side of the circular groups and the corresponding nut of ring-shaped component; And circular groups and the punching of bar shaped assembly are aimed at; The 3rd step, welded to the ring-shaped component the inner side od outside plate; the 4th step, spots weld roof can't rail the inner side of outside plate; fianlly cat roof integral body is carried outto sanding thron and ending.
Trimming and punching in described outside plate process can replace by radium art.
RESULT:
Finally the roof styling is created, assembled and developed by essential flange of the outer roof, Then reinforcement are created.
