Week 8 - Challenge 1 - Base Bracket Design

To design the 'plastic part' of 'Base Bracket' from performing the advanced surface domain options, and designing the plastic part from class A to class B & class C, finally created plastic part of 'Base Bracket' using class A, class B & class c, Also Draft analysis is perfomed.

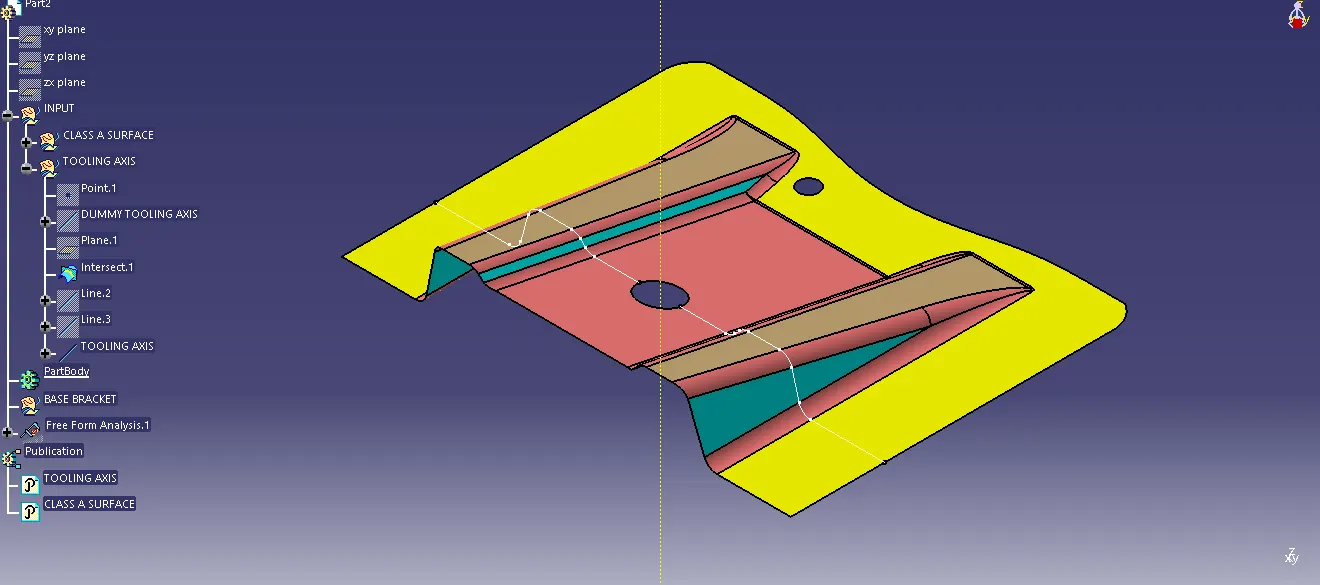

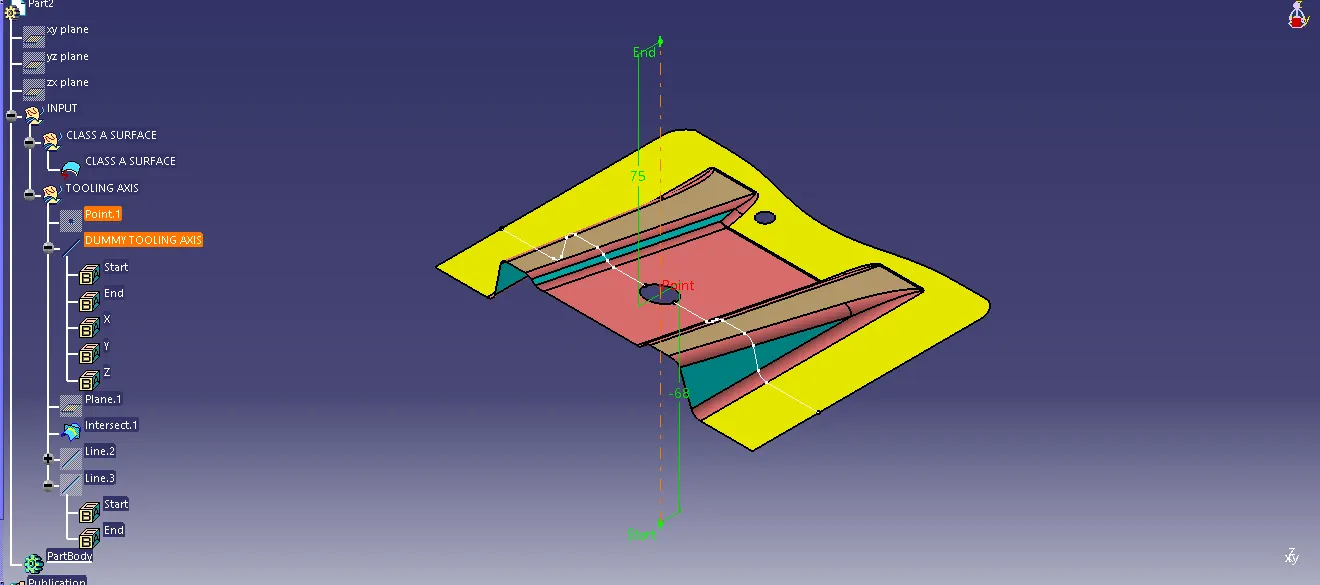

BASE BRACKET TOOLING AXIS

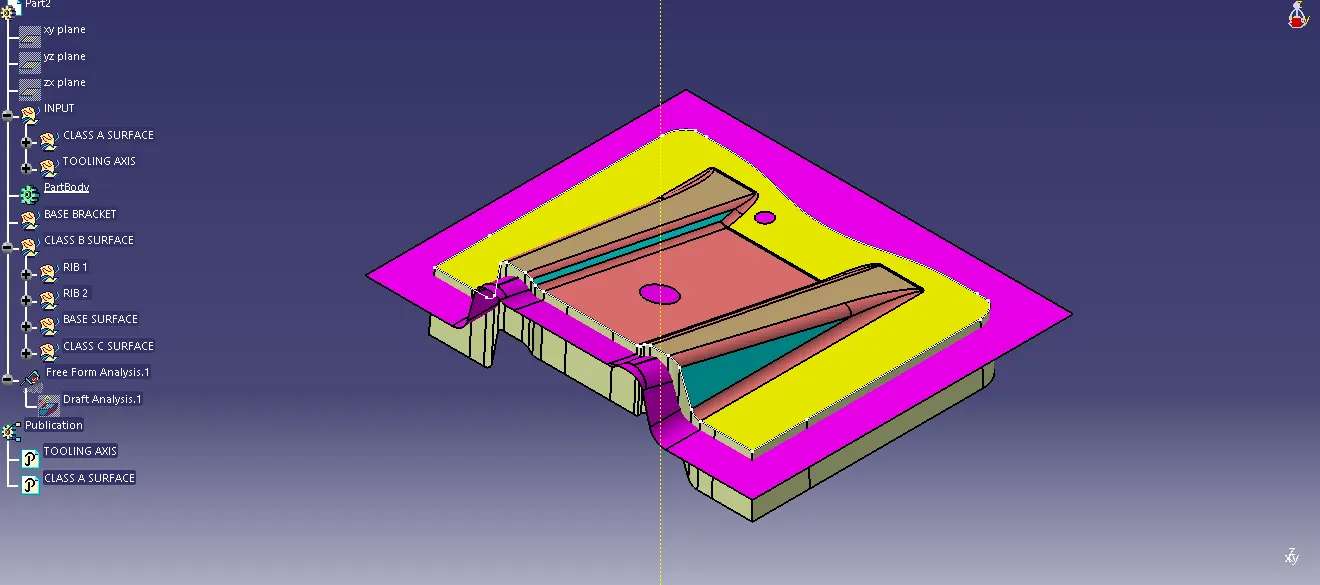

ANALYSIS

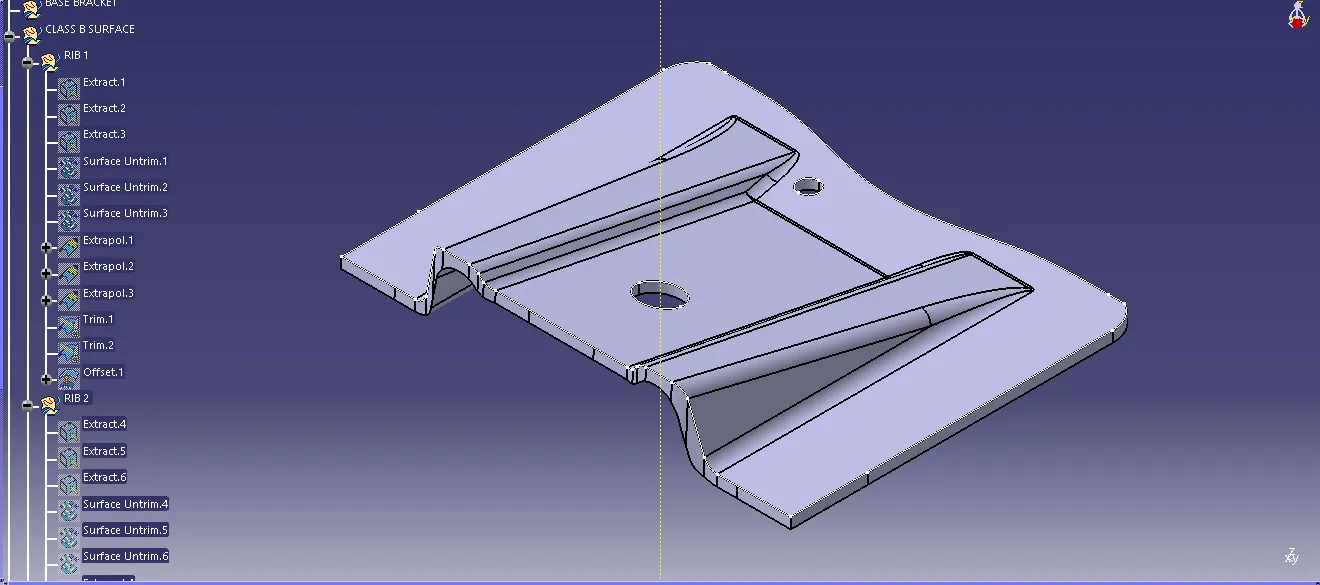

CLASS B SURFACE

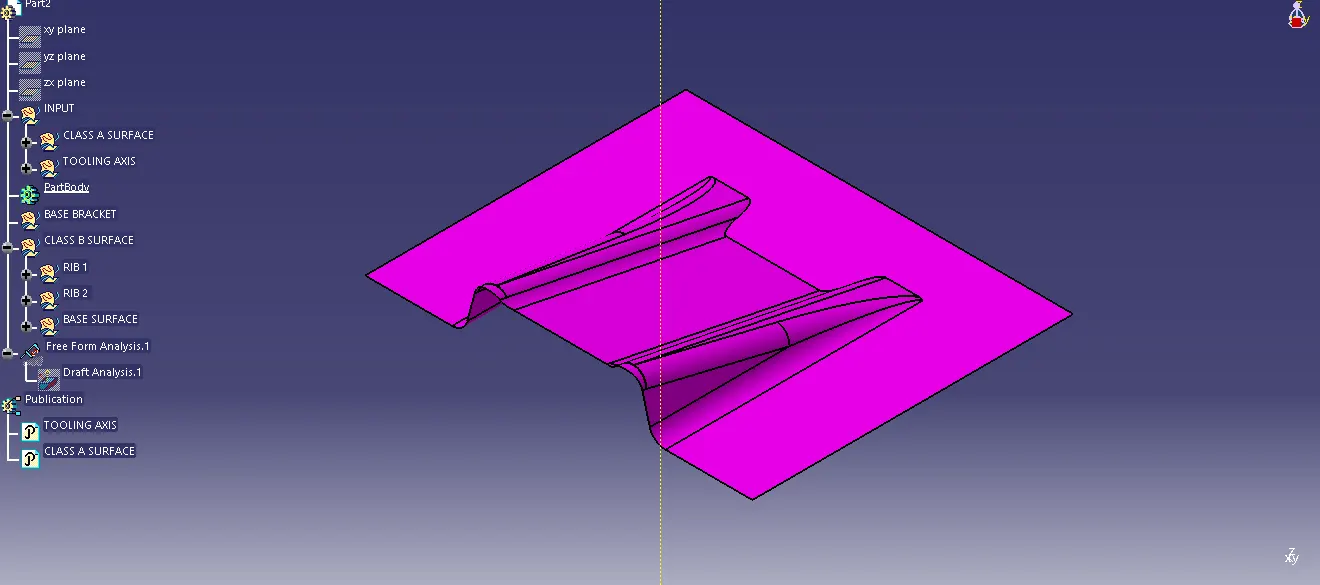

CLASS C SURFACE

CLASS B & C FROM CLASS A

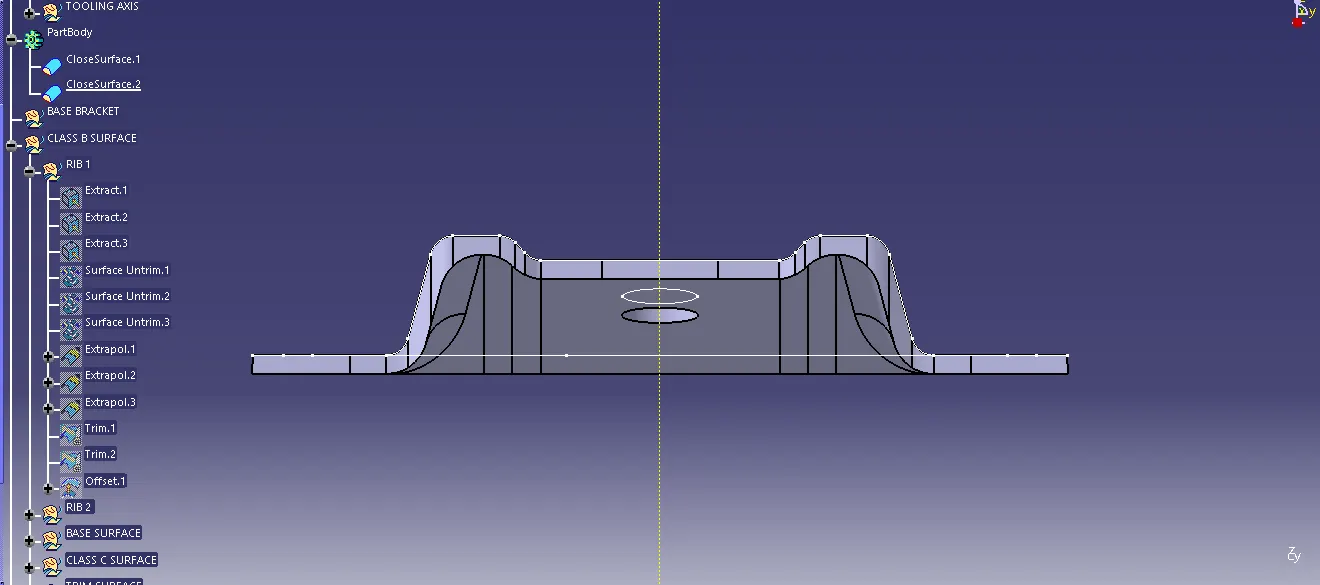

FRONT VIEW

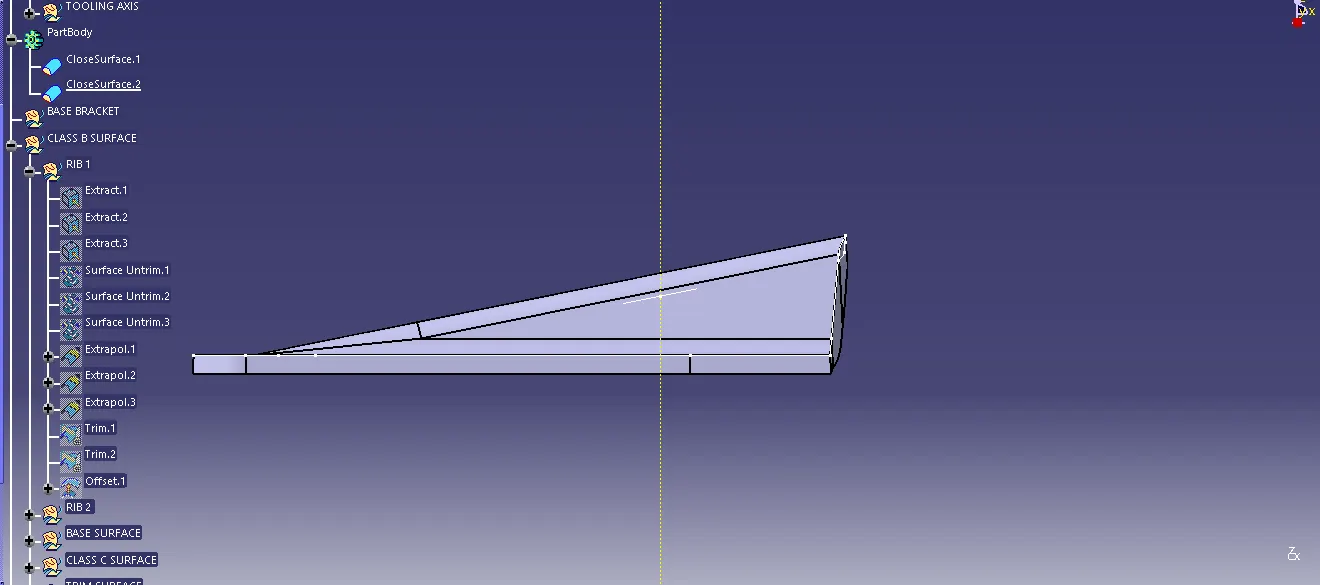

SIDE VIEW

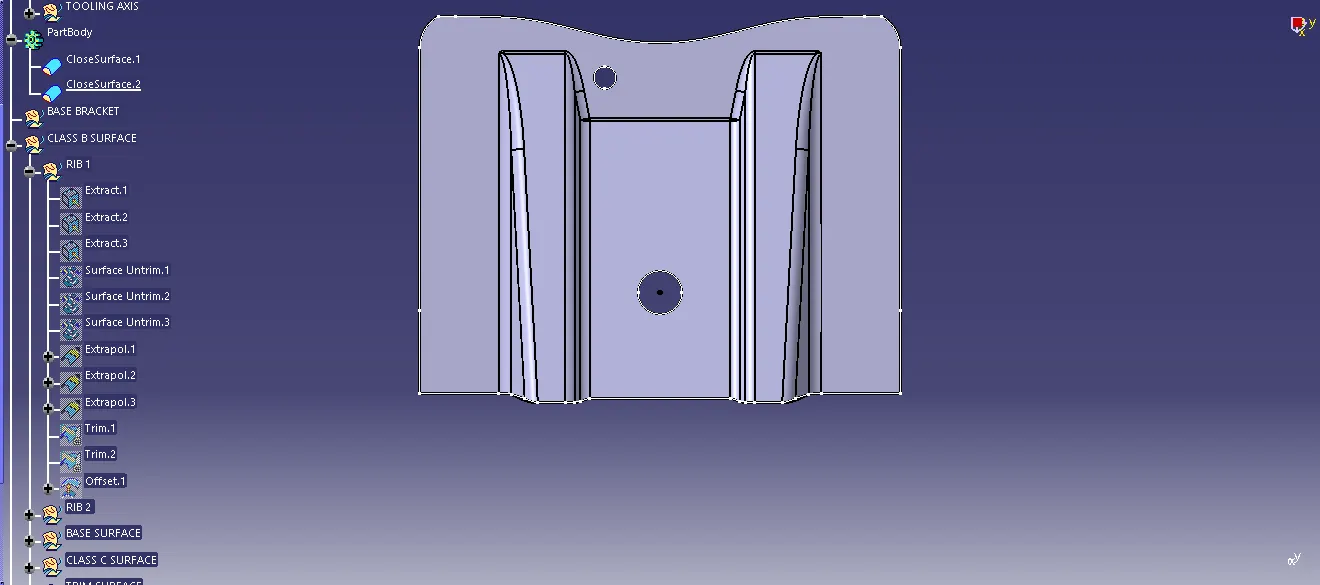

TOP VIEW
