Roof Design

AIM: To a given roof styling, create essential flanges and reinforcements.

Objective: To develop the essential flanges and reinfocements with appropriate dimensions and checking draft by using draft analysis. Calculating the Heat distortion, Snow load and section inertia on roof.

Introduction:

An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external element

Types of roofs:

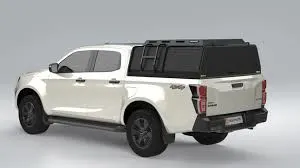

• Hardtops:A hardtop is a rigid form of automobile roof, which for modern cars is typically constructed from metal. A hardtop roof can be either fixed (i.e. not removable), detachable for separate storing or retractable within the vehicle itself

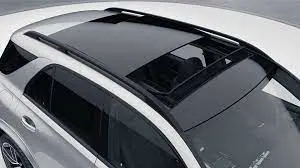

• SUNROOF: A sunroof is a movable panel that opens to uncover a window in an automobile roof, allowing light and fresh air to enter the passenger compartment. Sunroofs can be manually operated or motor driven, and are available in many shapes, sizes and styles. While the term "sunroof" is now used generically to describe any glass panel in the roof, the term "moonroof" was historically used to describe stationary glass panes rigidly mounted in the roof panel over the passenger compartment. A moonroof has a glass panel that is transparent and usually tinted. Previous terms include Sunshine Roof, Sliding Head and Sliding Roof.

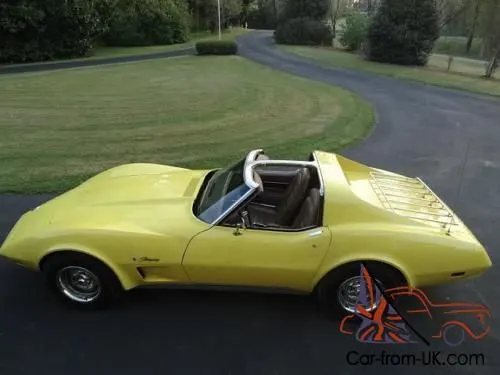

• T-top : A T-top (UK: T-bar) is an automobile roof with a removable panel on each side of a rigid bar running from the center of one structural bar between pillars to the center of the next structural bar. The panels of a traditional T-top are usually made of auto grade safety glass.

Front Roof Rail

Bow Roof

Reinforcement:

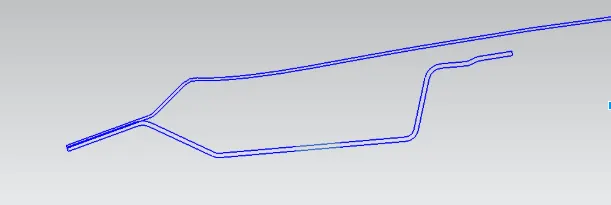

Back Roof Rail

Procedure:

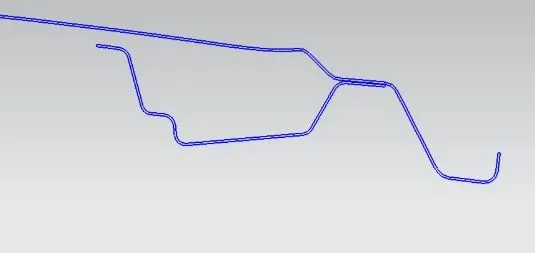

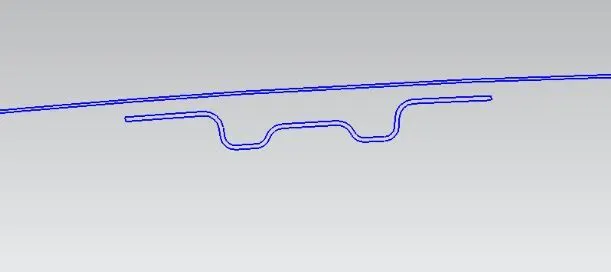

1. Front Roof Rail:

I designed a front roof with proper dimensions and creataed a embosses to strengthen the part and brackets are given for mounting.

Here are the images of Front roof Rail

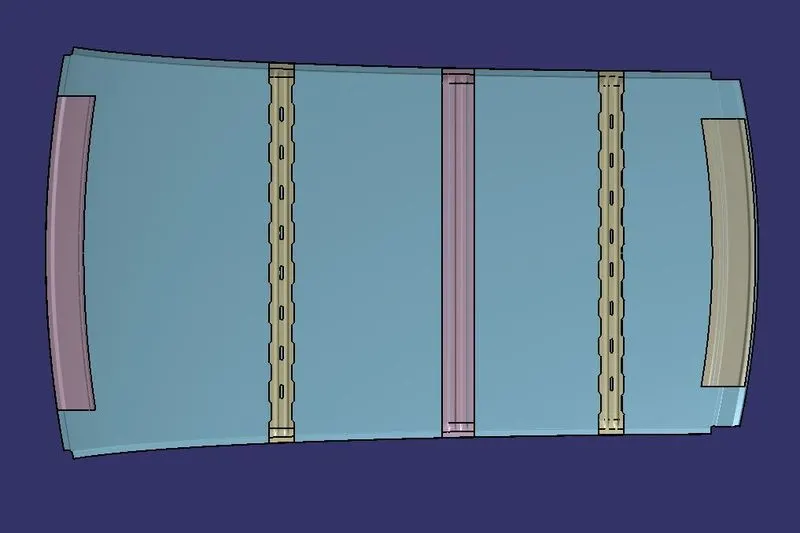

Bow Roofs:

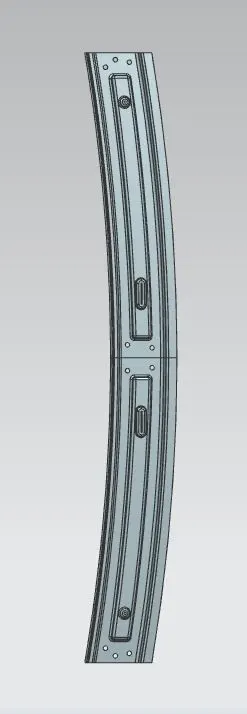

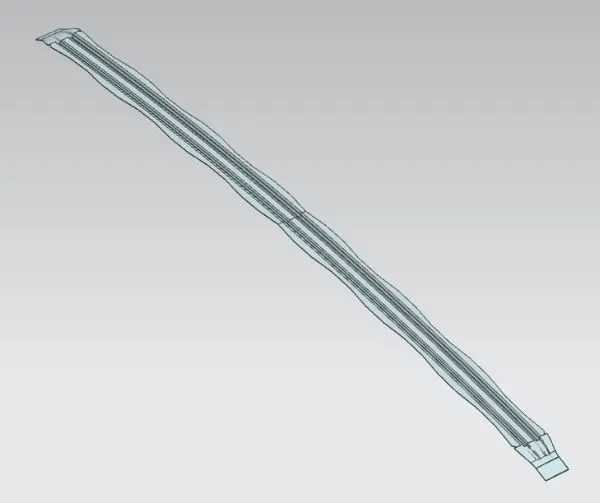

Bow roof 1

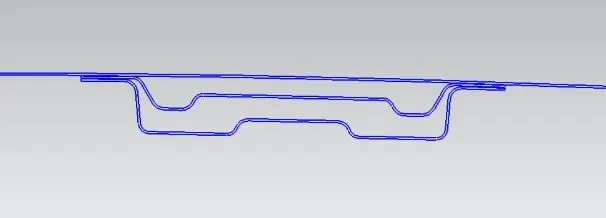

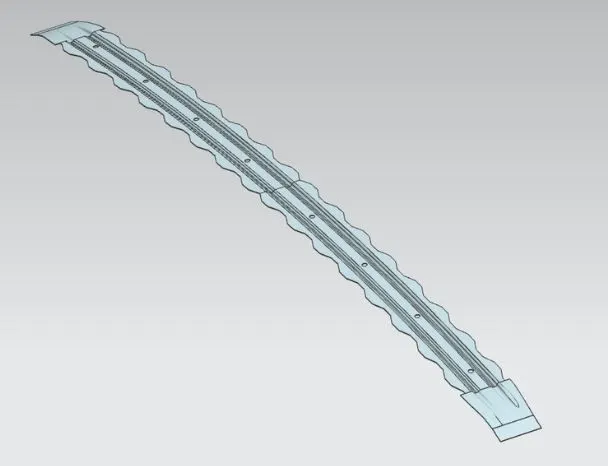

Bow Roof 2:

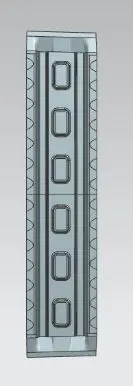

Centre Reinforcement:
