Week 3 - Solving second order ODEs

Aim: To solves the ODE which represents the equation of motion of a simple pendulum with damping.

Objective:

To write a program that solves the following ODE which represents the equation of motion of a simple pendulum with damping and create an animated video of output obtains by solving this ODE.

Theory:

The motion of a simple pendulum is a basic classical example of simple harmonic motion, consisting of a small bob and a massless string. Movement of the pendulum depends on Newton's second law. When this law is written down, a second-order Ordinary Differential Equation is formed that describes the position of the end of the pendulum w.r.t time.

Equation of motion is:

In the above equation,

• g = gravity in m/s^2.
• L = length of the pendulum in the meter.
• m = mass of the ball in kg.
• b = damping coefficient.

Since the given function is in the second-order differential equation we will convert it into first order to solve the ODE.

Let
θ=θ1

dθ1/dt=θ2

dθ^2/dt^2=dθ2/dt

Input :

• L=1 metre
• m=1 kg
• b=0.05
• g=9.81 m/s^2
• Time span= 0-20 sec
• angular displacement=0
• angular velocity=3 rad/sec2 at time t=0

  %program to simulate the transient behaviour of a simple pendulum
  clear all
  close all
  clc

  %inputs
  b = 0.05;
  g = 9.81;
  l = 1;
  m = 1;

  % initial condition
  theta_0 = [0;3];

  % time points
  t_span = linspace(0,20,500);

  % solve ODE
  [t, results] = ode45(@(t,theta) ode_func(t,theta,b,g,l,m),t_span, theta_0);

  % ploting
  plot(t,results(:,1))
  hold on
  plot(t,results(:,2))
  ylabel('Plot')
  xlabel('Time in sec')

  % Iteration using for loop to create animation of simple pendulum
  ct=1;
  theta_1 = results(:,1);

  for i= 1:length(results(:,1))

      % initial co-ordinates
      x_start= 0;
      y_start= 0;
      theta_2 = theta_1(i);

      % final co-ordinates
      x_end = 1*sin(theta_2);
      y_end = -1*cos(theta_2);

      % ploting for animation
      figure(2)
      % base of pendulum
      plot([-1,1],[0,0], 'linewidth',4,'color','black')
      hold on
      % string of pendulum
      line([x_start x_end],[y_start y_end],'linewidth',6,'color','b')
      hold on
      % bob of pendulum
      plot(x_end,y_end,'marker','o','markersize', 28,'markerfacecolor','r')
      axis([-2 2 -2 2])
      pause(0.03)
      hold off
      M(ct)=getframe(gcf);
      ct=ct+1;
  end
  % creating movie from captured frames
   movie(M)
   videofile = VideoWriter('simple_pendulum.avi','uncompressed AVI');
   open(videofile);
   writeVideo(videofile,M);
   close(videofile);​

Detail explanation each step of the program:

1. In the first step Input and initial condition of a simple pendulum are fed.

2. Then the program is written to solve the ODE in which Matlab inbuilt function (ode45) is used with constant theta, t, and another function is used, which is defined separately in function program.

3. In the next step result of solved ODE is plotted w.r.t time using plot command.

4. Now iteration of co-ordinate is fed using for loop to create animation.

5. Then plot command is used to plot pendulum string and bob.

6. In the next step, the move command is used to create an animated video of the oscillating pendulum.

Output:

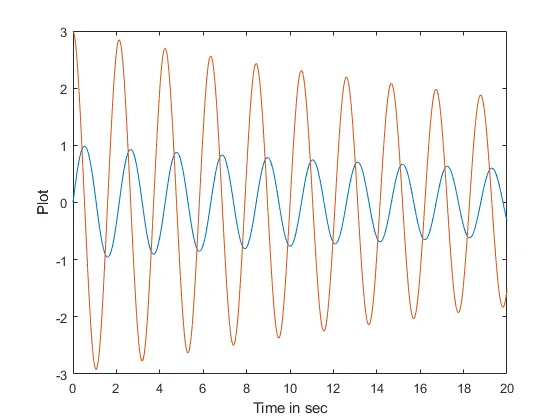

1. The output obtained is graphical representation velocity curve and displacement curve w.r.t Time.

• Angular Displacement and Angular Velocity plots were generated for a time range of 20 secs.

Conclusion:

The simulation of the transient behavior of a simple pendulum is successfully created by using a program in MATLAB.
