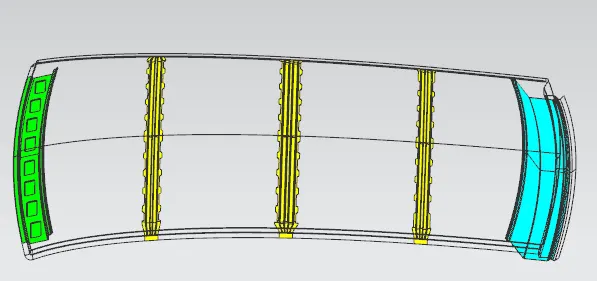

Roof Design

Rear Roof

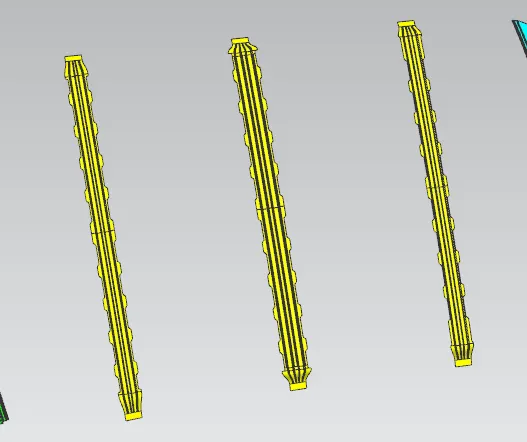

Bow Roof

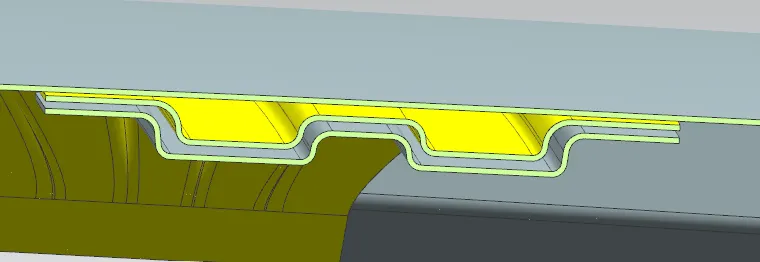

Center Bow Roof when sunroof is present

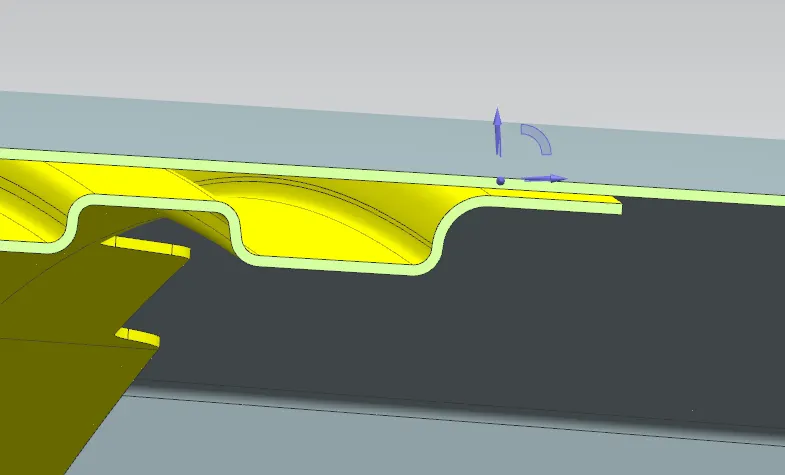

Front Roof

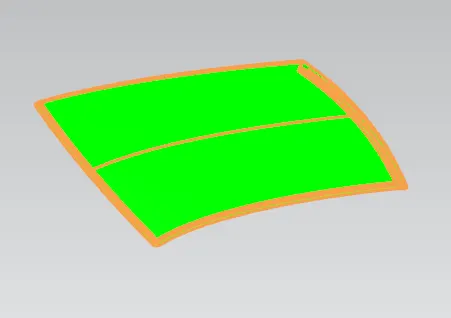

Overall Roof Surface

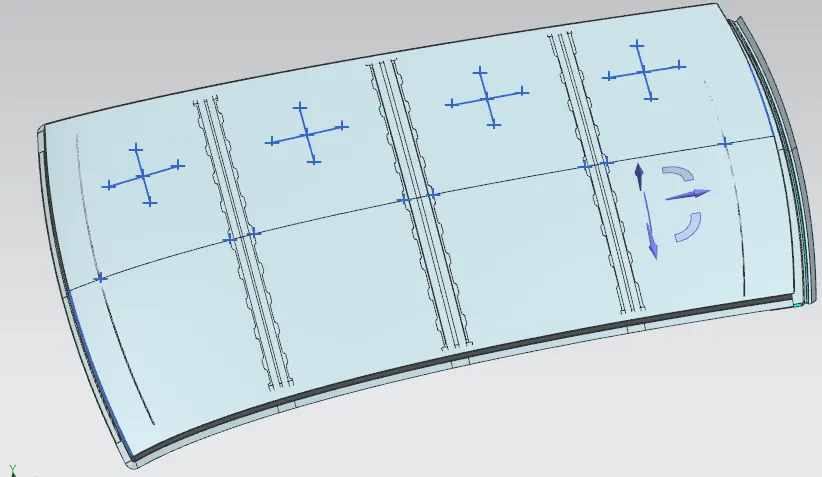

Points marked for Heat Distortion calculations

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [1.10x10^(-3) x l] - 2.68

Judge mental Condition: OK< 2.7

Were,

L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)

R = Roof curvature

R = 2(Rx*Ry)/(Rx+Ry)

Rx = X curvature

Ry = Y curvature

t = Roof plate thickness [mm]

l = Bow Roof Span [mm]

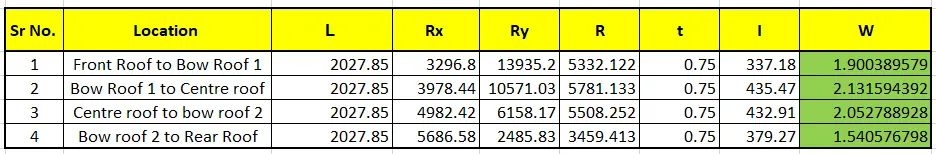

Above are the calculation for Heat distortions which are OK< 2.2

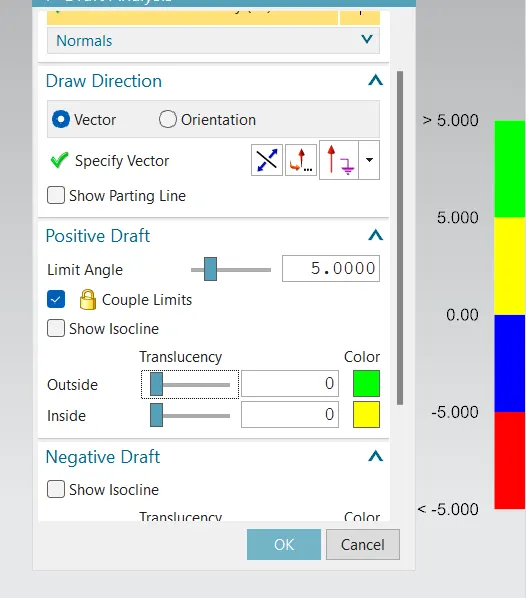

Upper Roof Draft analysis
