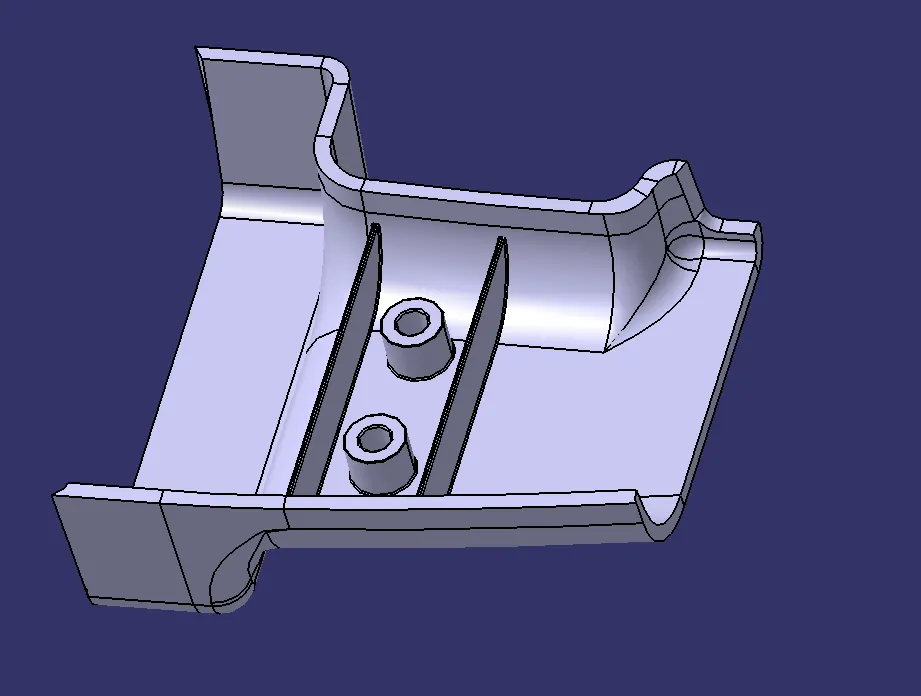

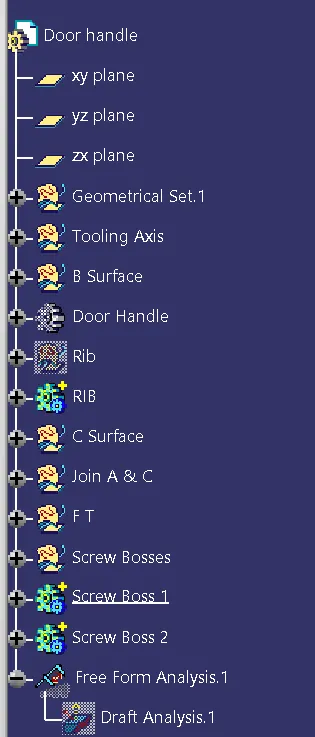

Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Tooling Axis is formed by bisecting the line method by taking projection and then drawing 2 lines coinciding the projection and then bisecting this lines to form Main Tooling Axis .

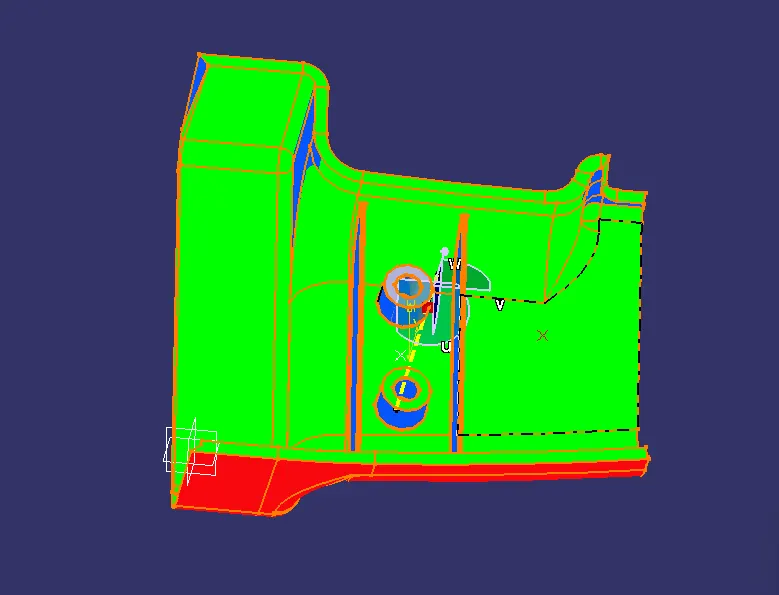

Ribs and bosses are not clearing the draft analysis as draft given to them is 0.5 degrees. Classs A is not clearing draft analysis at some places.
