Roof challenge

ROOF DESIGN

OBJECTIVE-

To create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements. Provide appropriate dimensions and check for Draft analysis. And to Do a curvature study on the roof and perform calculations to determine the position of the Bow-roofs.

The mian objective of this project is to understand the design process to design the roof with all the roof rails and to understand the calculations behind it. We also get to learn about the different tools used in NX cad for designing.

DESIGN CONSIDERATION:-

• Visibility criteria
• Head clearance
• Curvature study
• Hear distortion and snow load criteria
• Draft analysis.

COMPONENTS OF ROOF:-

1. Roof outer panel
2. Front Roof Rail
3. Bow roof-1
4. Center Reinforcement Roof rail
5. Bow roof-2
6. Rear Roof Rail.

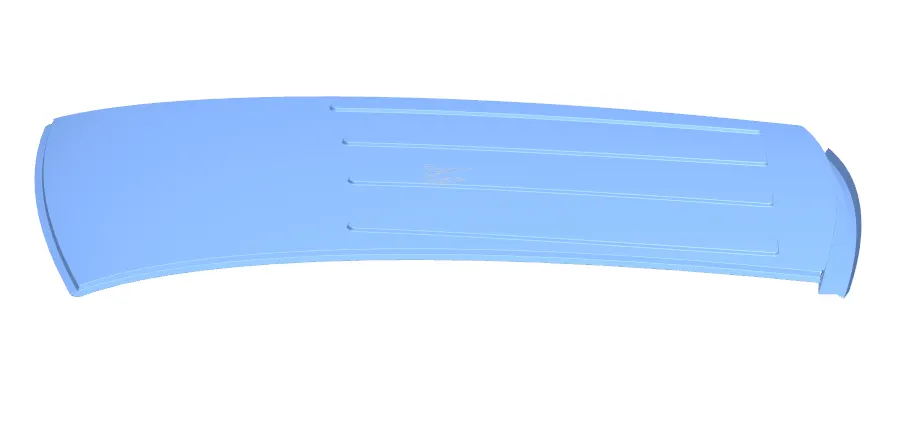

1.) Roof outer panel-

It is the outer part of roof.

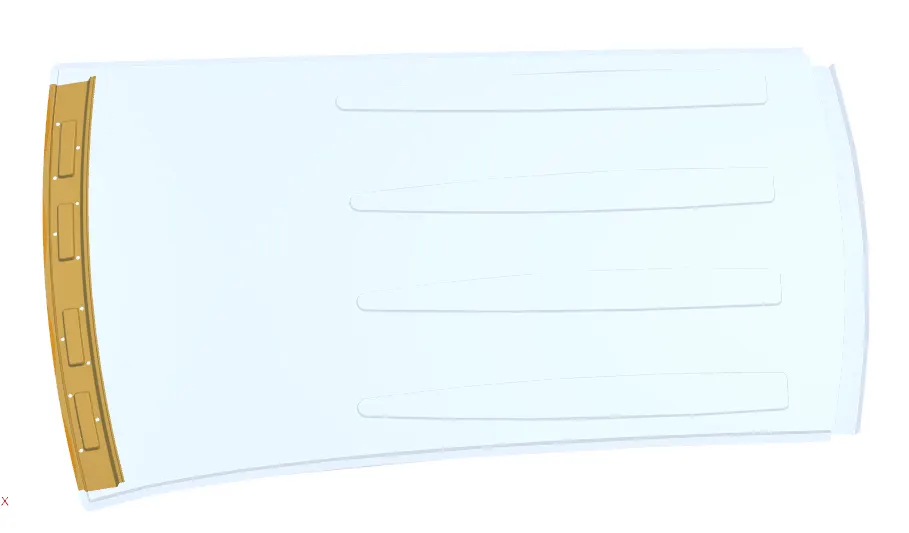

2.) Front Roof Rail:-

The front roof rail is located on the front of the roof where the wind shield joins with the roof. The visibility criteria and the head room clearance of the passenger are taken into consideration for the bottom flange. One end of the rail is joined using spot welding while the other end is joined with the roof using mastic sealants for increased strength.

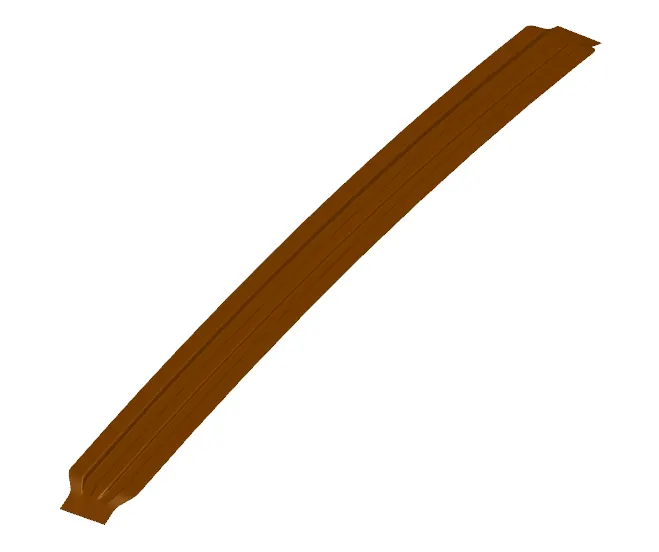

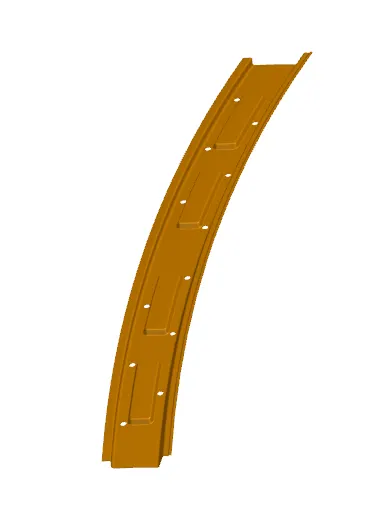

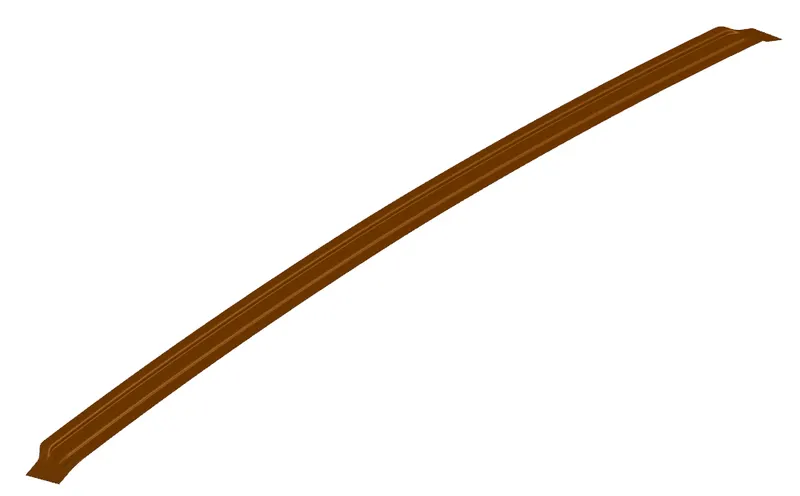

3.) Bow roof-1:-

Bow roof is an additional siffening member for the roof to increase the strength and so that it can satisfy the norms. Both the ends are joined together using mastic sealants to increase strenght and also since this would not affect the styling of the roof.

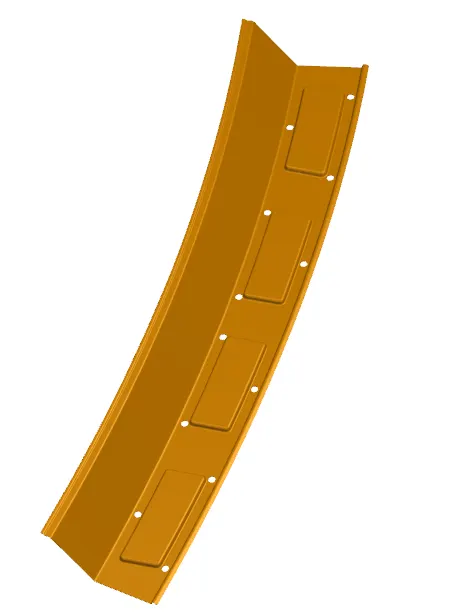

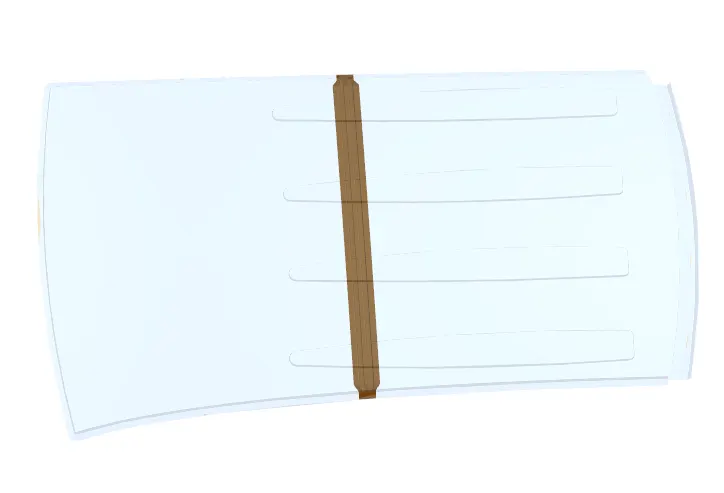

4.) Center Reinforcement Roof rail:-

Centre Roof rail or the reinforcement centre is located at the centre of the roof . The cross section of this is more since it needs to provide more strength to the roof. Here both are ends are joined together using mastic sealants.

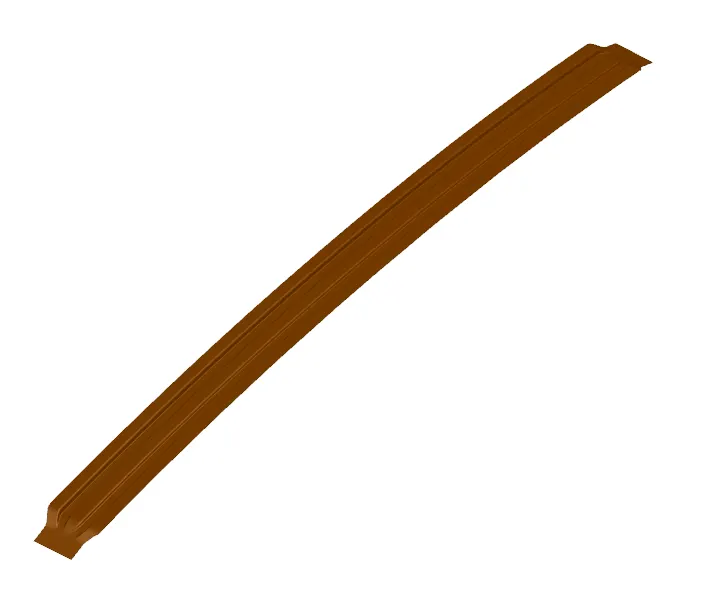

5.) Bow roof-2:-

This bow roof also have the same purpose as that of the first one. This one is located between the centre bow roof and rear roof rail.

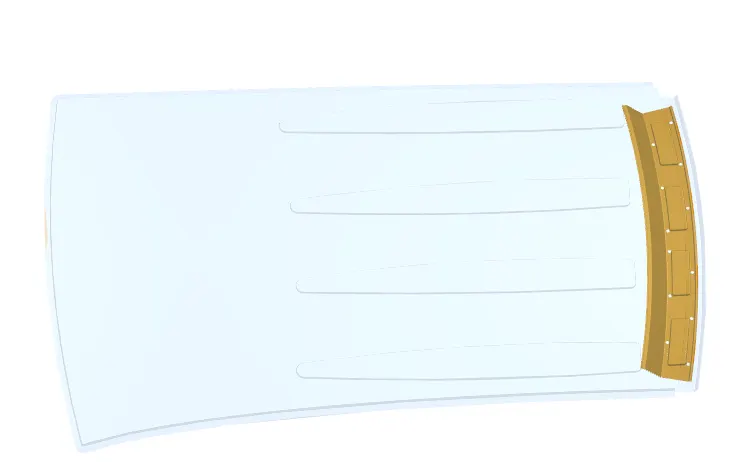

6.) Rear Roof Rail:-

This roof rail joins with the back door and the roof. Inputs from the backdoor are taken into consideration for designing this roof rail. Here one end is joined using spot welding while the other end is joined using mastic sealants.

CALCULATIONS:-

Bow–Roof Prediction Formula

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

Where,

L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)

R = Roof curvature

R = 2(Rx*Ry)/(Rx+Ry)

Rx = X curvature

Ry = Y curvature

t = Roof plate thickness [mm]

l = Bow Roof Span [mm]

RESULT-

S.NO.	BOWS	Rx	Ry	R	L	l	t	R^2/t	W	OK/NG
1.	FR & BW-1	5740.0012	2383.1092	3367.9339	1927.1214	359.1	0.75	15123971.6730	1.3286	OK
2.	BW-1 & CTR	3638.6147	4176.8154	3889.1837	1927.1214	429.2	0.75	20167666.4697	1.4991	OK
3.	CTR & BW-2	10094.2198	4049.6486	5780.3200	1927.1214	414.5	0.75	44549465.7365	1.9339	OK
4.	BW-2 & RR	3272.7324	6982.7825	4456.6808	1927.1214	382.3	0.75	26482671.6707	1.5643	OK

Snow Load Prediction Formula

Qr = [Iy x t²] / [α x s x [(Rx + Ry)/2]² x 10^-8]

Note: The Qr value given over here is correct. There was a typo error in the formula given in the video.

Where,

α = My x Lx² x 10^-12 , My = Y(Ly-Y)

t = Roof plate thickness [mm]

Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]

Length of Roof panel with the center point between Roof rail Front /Rear as the front and rear reference point.

Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]

The width of the roof panel is exposed on the surface.

Y = Distance front Front Roof Rail to Roof BOW[mm]

s = Distance for which Roof BOW bears divided load [mm]

s = L1/2 + L2/2

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]

Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]

Roof panel curvature Radius of the Length Lx in Front view

Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]

Roof panel X curvature radius of length s in Side view

RESULT-

S.NO.	BOWs	Iy	α	Lx	Ly	Y	s	Rx	Ry	t	Qr	Determination
1.	FR & BW-1	350.4659	0.8670	1141.3762	1923.7657	452.3	479.4	4634.9654	2457.1977	0.75	3.77	OK
2.	BW-1 & CTR	834.9949	0.8495	1087.8766	1923.7657	506.5	499.2	3760.1869	5991.6761	0.75	4.65	OK
3.	CTR & BW-2	357.3208	0.7906	1059.4728	1923.7657	491.9	495.8	4251.7830	10777.6460	0.75	0.90	NG
4.	BW-2 & RR	-	-	1043.9458	1923.7657	499.7	-	3994.3008	16464.1570	0.75

Now since we these values for the snow load values it does not satisfy the condition.

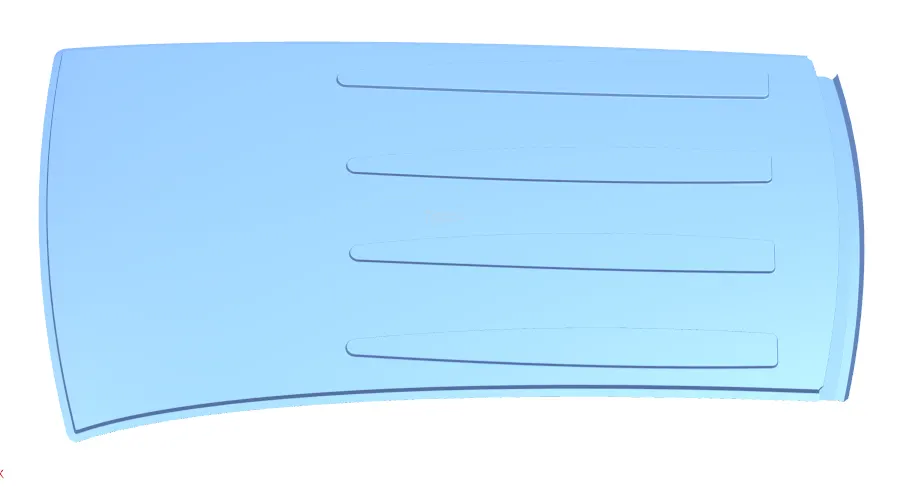

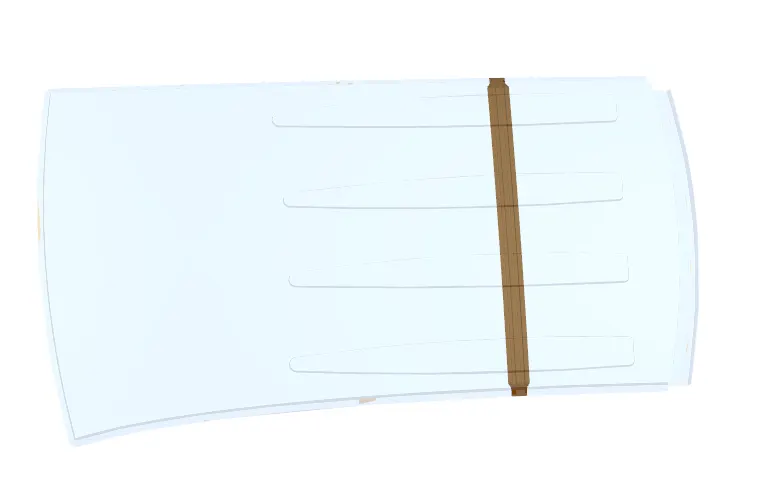

So to make the roof stronger we create embossses on the roof to strengthen the roof.

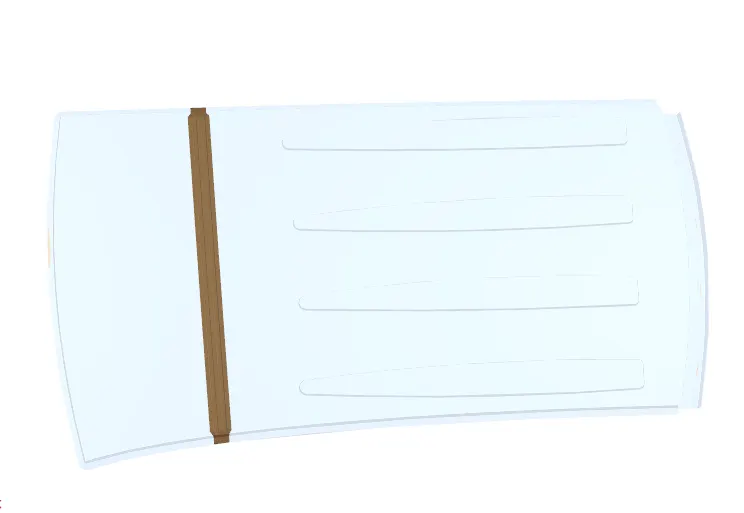

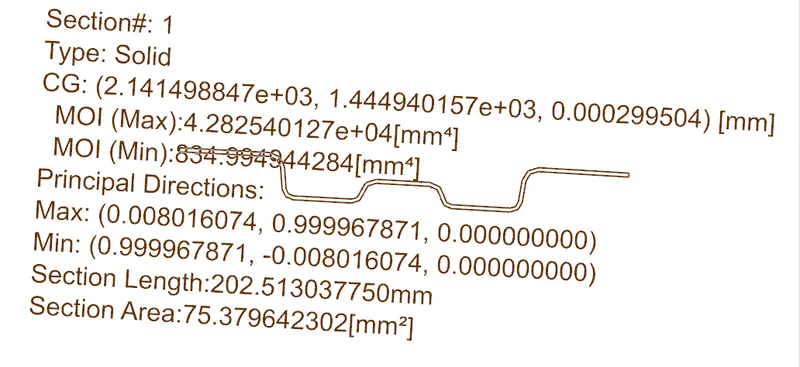

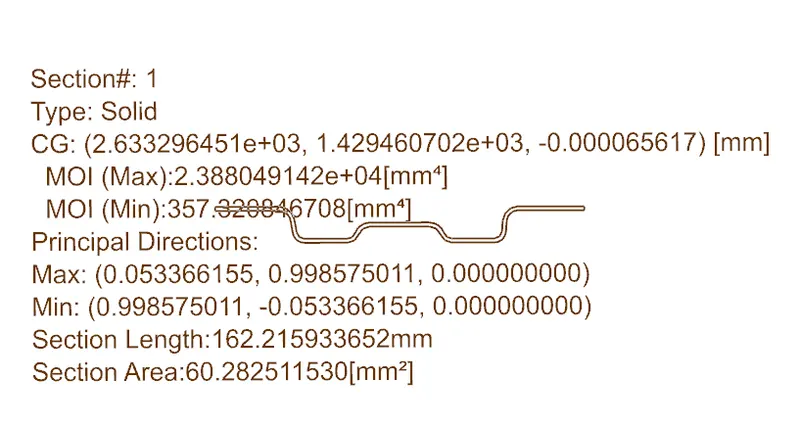

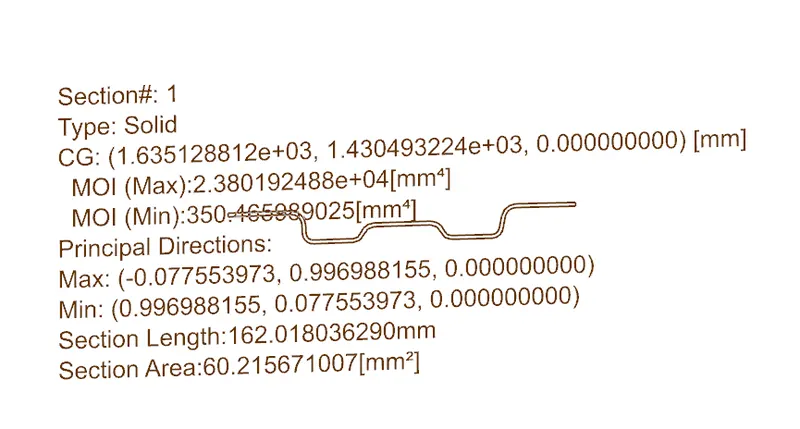

Moment of inertia:-

FR & BW-1

BW-1 & CTR

CTR & BW-2

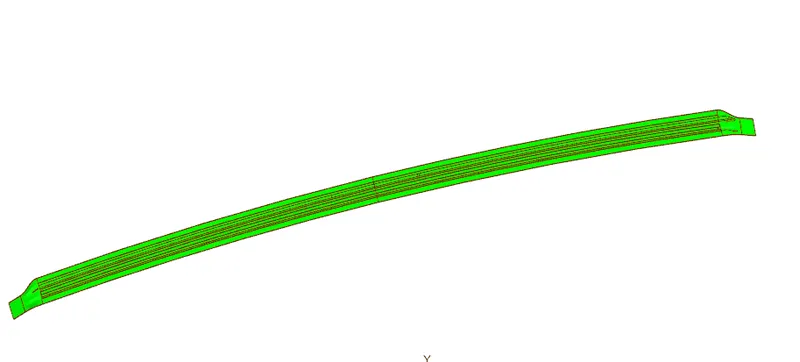

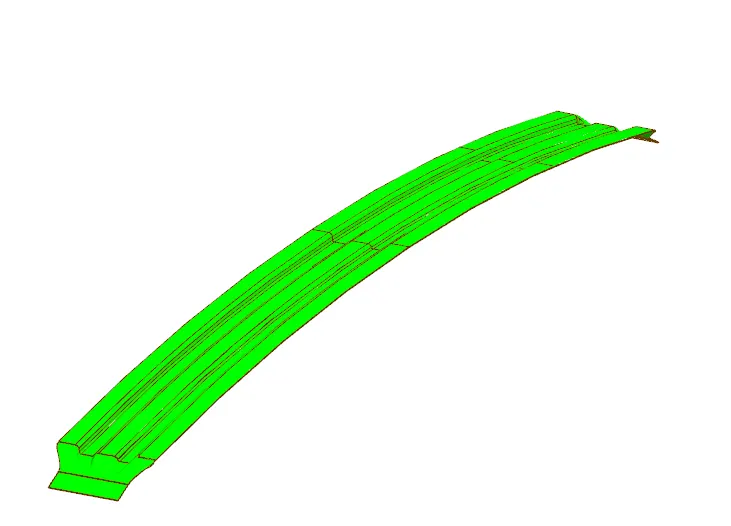

Draft analysis:-

Before we give the part for manufacturing we have to some analysis ourself to check all the constraints and to check if we have any negative draft on a part .

We have a tool called draft analysis in NX Cad to check the following.

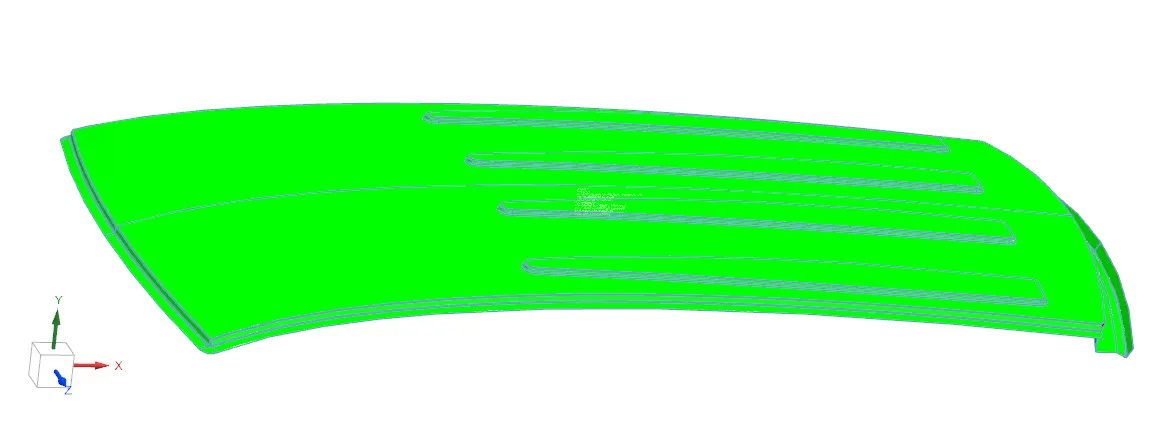

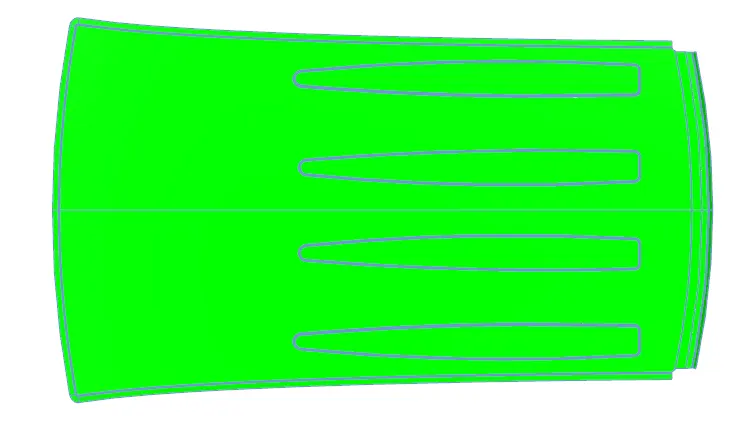

Roof outer panel-

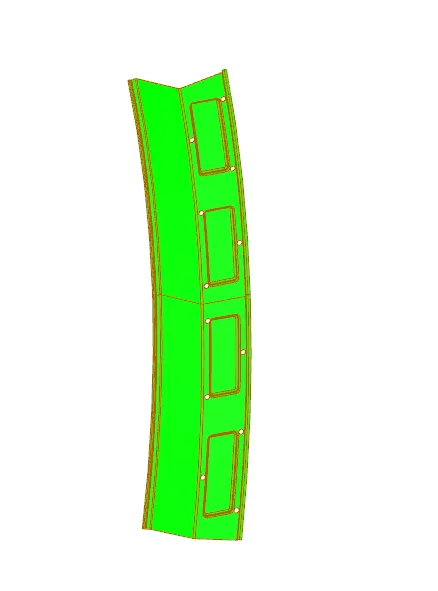

Front Roof Rail:-

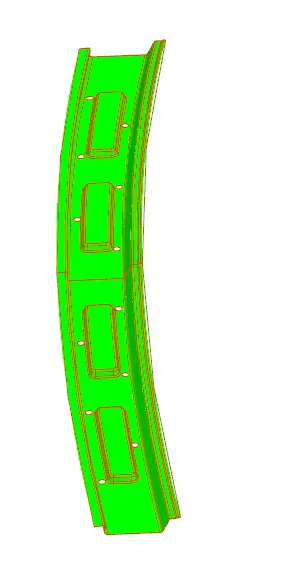

Bow roof-1:-

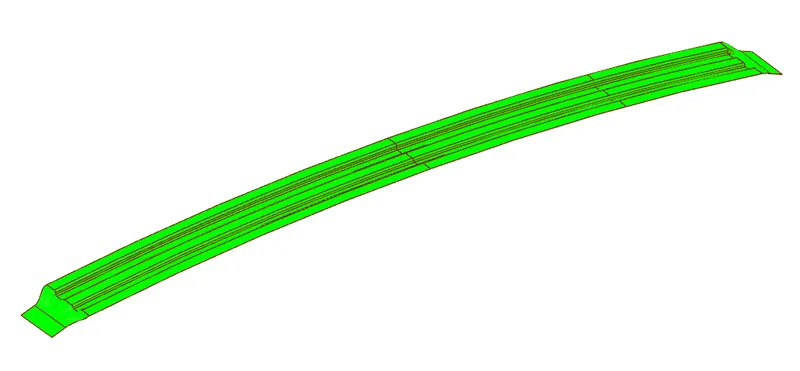

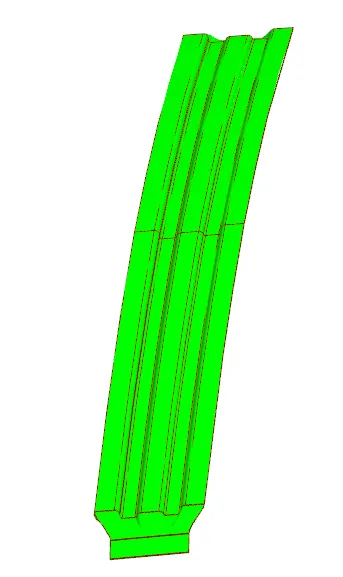

Center Reinforcement Roof rail:-

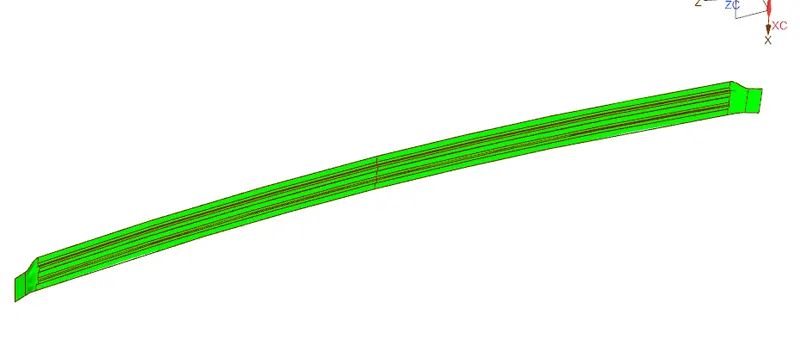

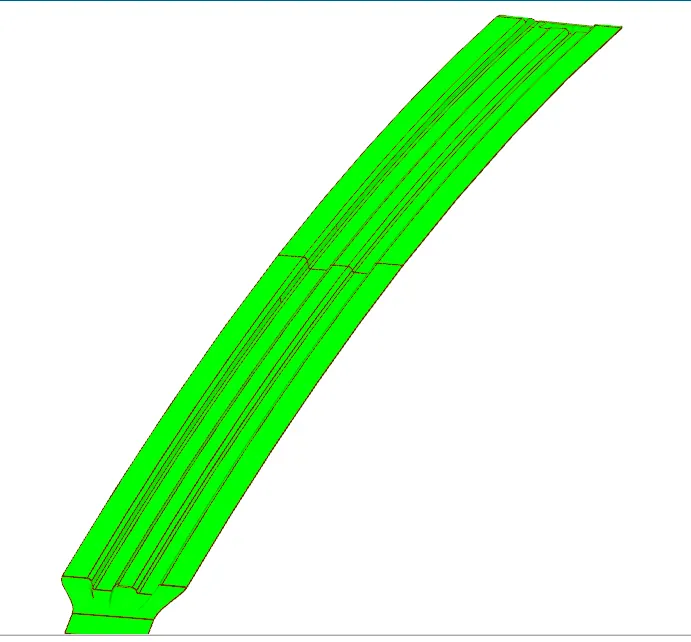

Bow roof-2:-

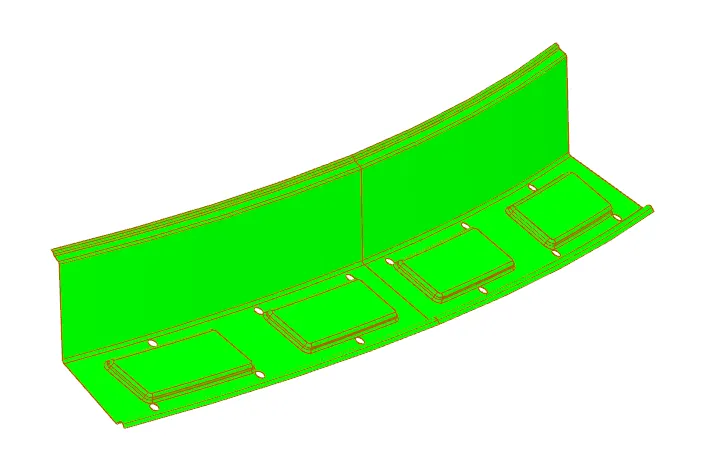

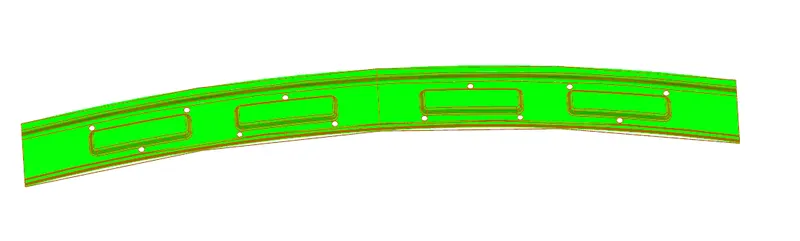

Rear Roof Rail:-

CONCLUSION:-

We were successfully able to design the roof with all the roof rails for better support and strength. We saw that between center bow roof and bow roof-2 the snow load result was not ok according to provided conditions so we created emosses on outer roof for additional strength. We designed it so as to satisfy the norms and regulations by calculating the heat distortion criteria and the snow load critera. While doing this we also understood about the methodology behind designing the roof of the car and what all we take into consideration while designing so.
