Roof challenge
Roof Design
Aim: Create the essential flanges and reinforcements for the given styling and also measure the draft analysis and section modulus study for each section.
Roof: This is the important part of the automobile which protects occupants from environmental conditions like heat, rain, and winds. The roof is the assembly of the front roof rail, back roof rail, center bow reinforcements, bow 1, and bow 2. These reinforcements depend on the size of the car.

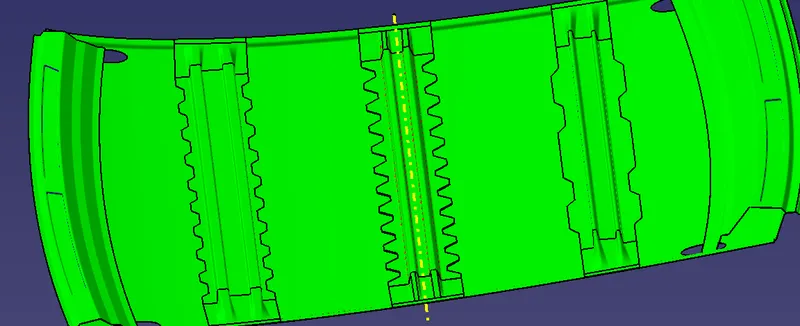

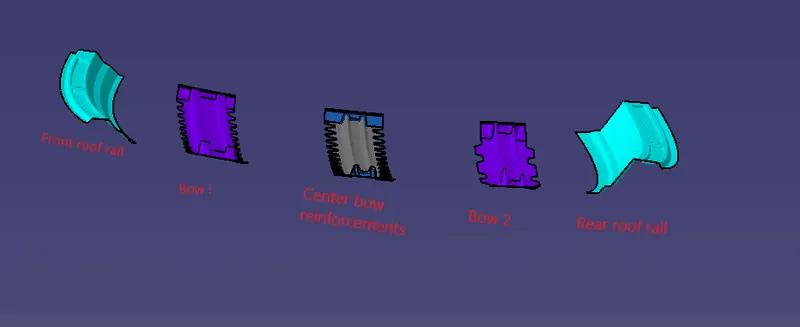

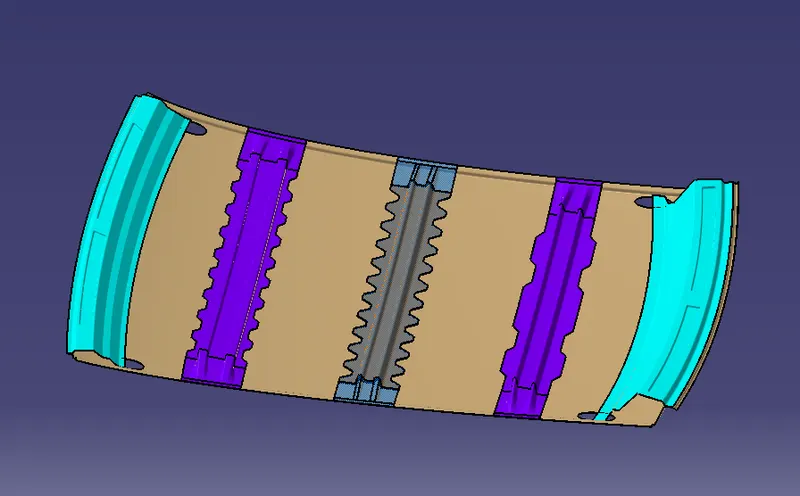

Roof Assembly:
The Master section is followed for the designing of the reinforcements.
Roof

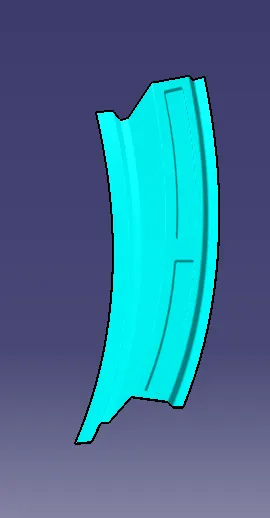

front and rear roof rails

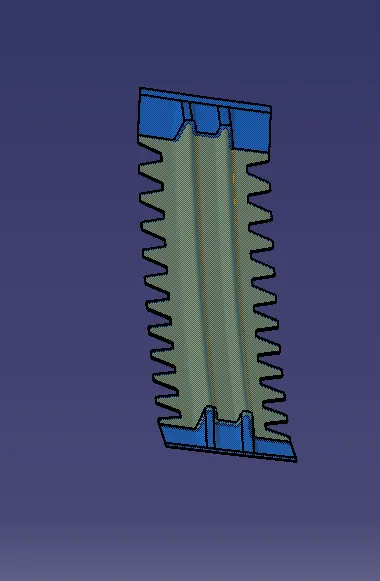

Center bow reinforcements

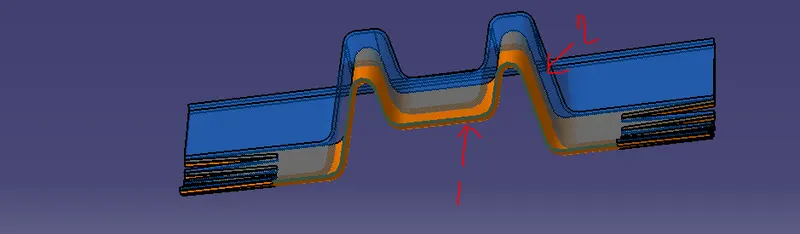

- Center Bow Inside
- Center bow reinforcement

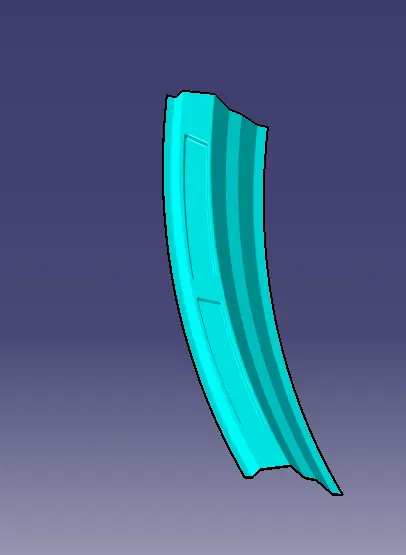

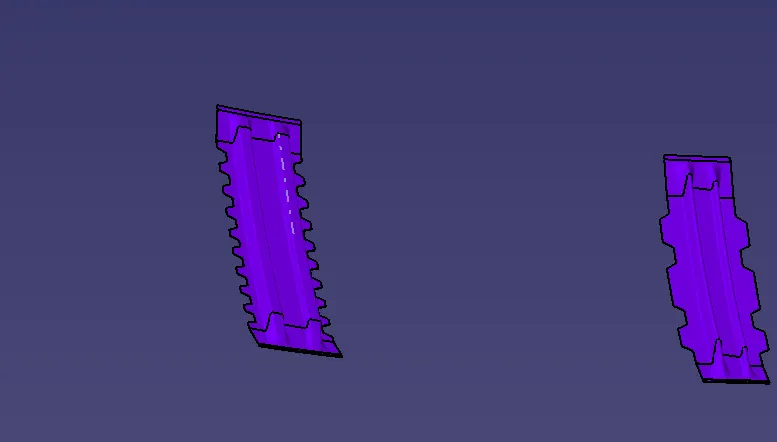

Bow 1 and 2

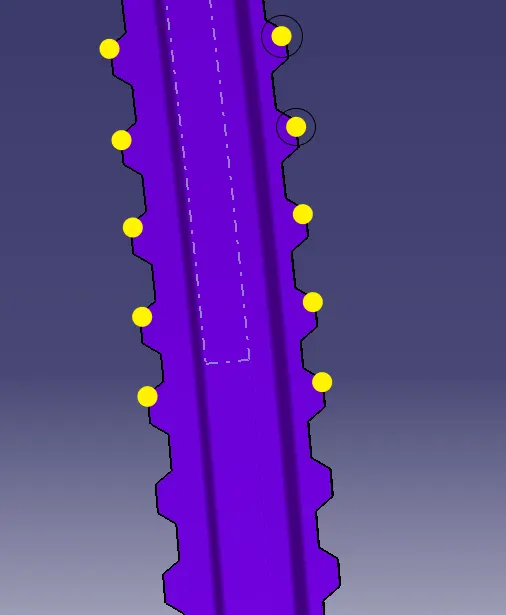

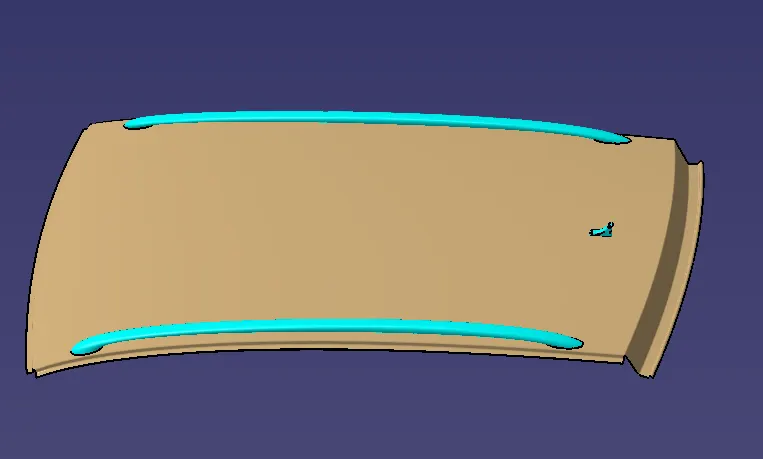

Mastics placement
Draft Analysis for each component:
Heat distortion calculation:
The roof is the only component that is exposed to the sunlight all the time. This is done to check whether the roof can sustain the heat or not. This study helps to determine the positions of the bow roof to provide strength to the bow roof.
prediction formula:
W = 1.73*10^-3*L + 1.85*10^-8*(R^2/t)+1.10*10^-3*I -2.68
L = Roof length in X direction = 2033.7mm
R = Roof curvature = 2(Rx*Ry)/(Rx+Ry)(mm)
t = thickness of surface = 0.75mm
I = Bow roof span(mm)
| S.no | Bow's | Rx(mm) | Ry(mm) | R(mm) | I(mm) | L(mm) | t(mm) | R^2/t | W | OK/NOT |
| 1 | FRR - B1 | 2540.415 | 5790.403 | 3531.47 | 236.009 | 2033.7 | 0.75 | 16628373.81 | 1.405 | OK |
| 2 | B1 - CRR | 6198.398 | 4972.32 | 5518.07 | 310.663 | 2033.7 | 0.75 | 40598795.37 | 1.931 | OK |
| 3 | CRR - B2 | 10547.702 | 3989.92 | 5789.73 | 310.864 | 2033.7 | 0.75 | 44694631.3 | 2.007 | OK |
| 4 | B2 - RRR | 14687.337 | 3281.873 | 5364.95 | 205.229 | 2033.7 | 0.75 | 38376918 | 1.77 | OK |
Snowed criteria calculation:
This is mainly performed in cold regions where snow occurs. So this is done to check whether the snow roof passes the criteria or not.
prediction formula:
Qr = [Iy x t2] / [α x s x [(Rx + Ry)/2]2 x 10-8]
Where
α = My x Lx2 x 10-12 , My = Y(Ly-Y)
Judgement condition = Qr ≥ 3.1
250 ≤ s ≤ 380
t = Roof plate thickness [mm]
Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]
Length of Roof panel with the center point between Roof rail Front /Rear as the reference point of the front and the rear.
Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]
Width of the roof panel exposed on the surface.
Y = Distance front Front Roof Rail to Roof BOW[mm]
s = Distance for which Roof BOW bears divided load [mm]
s = L1/2 + L2/2

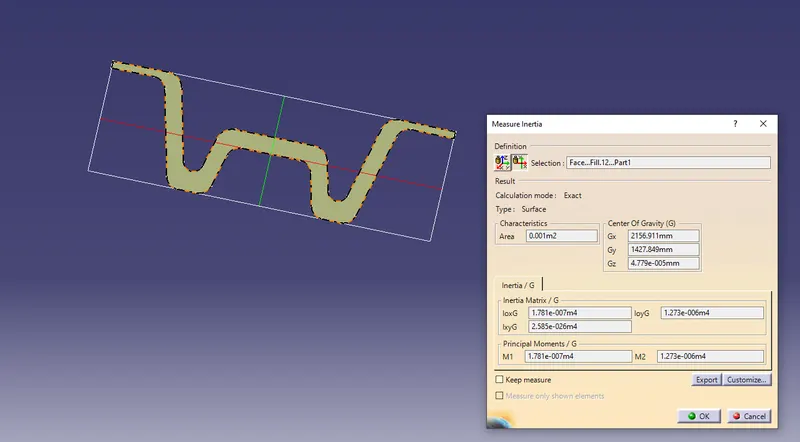

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]
Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]
Roof panel curvature Radius of the Length Lx in Front view
Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]
Roof panel X curvature radius of length s in Side view
| S.No | Bows | Iy | α | Lx | Ly | Y | S | Rx | Ry | [(Rx+Ry)/2]^2 | t | Qr | OK/NOT |
| 1 | FRR - B1 | 8.535*10^4 | 0.901 | 1138.447 | 2033.705 | 435.086 | 472.97 | 2589.153 | 4585.523 | 6434496.96 | 0.75 | 1750.87 | |
| 2 | B1 - CRR | 1.486*10^5 | 0.924 | 1090.279 | 2033.705 | 510.807 | 357.62 | 6105.155 | 3765.629 | 24358094.19 | 0.75 | 1038.49 | |
| 3 | CRR - B2 | 1.781*10^5 | 0.877 | 1061.872 | 2033.705 | 510.917 | 478.35 | 11041.655 | 4275.511 | 58653893.57 | 0.75 | 407.14 | |
| 4 | B2 - RRR | 1047.166 | 2033.705 | 445.774 | - | 16528.75 | 3993.397 | 0.75 |

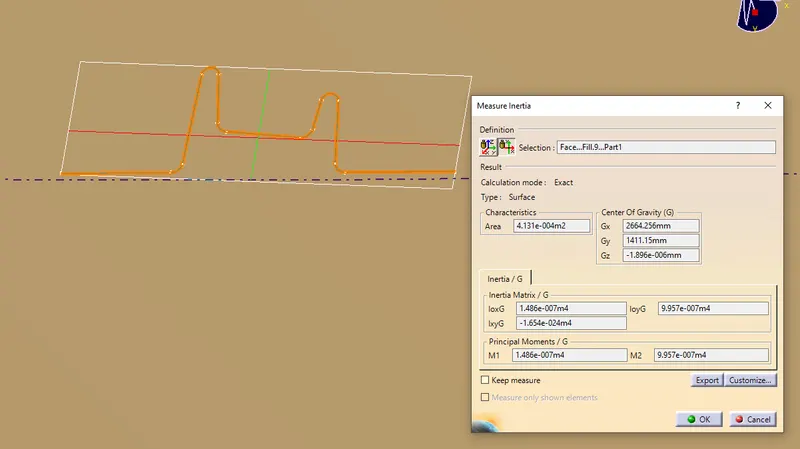

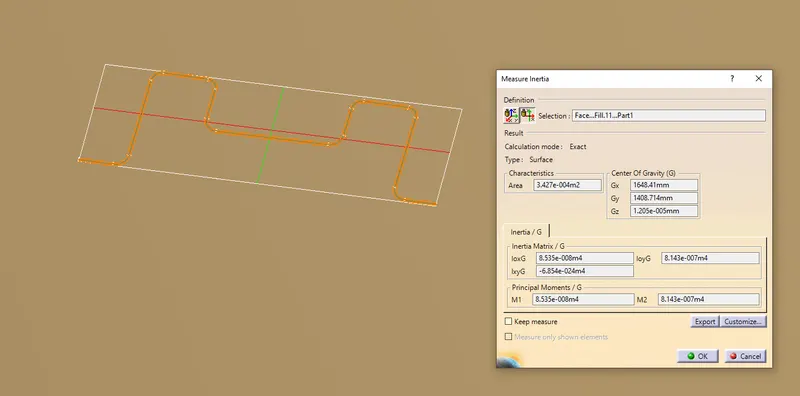

Section modulus study:
