REVIT_Naviswork_Project- 4
1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class
AIM : To export architecture and structure model of residential building developed in week 6 to 8 to Navisworks Cache file.
TOOLS USED : Revit software,Open, Export, Navisworks Manage, Open.
PROCEDURE :

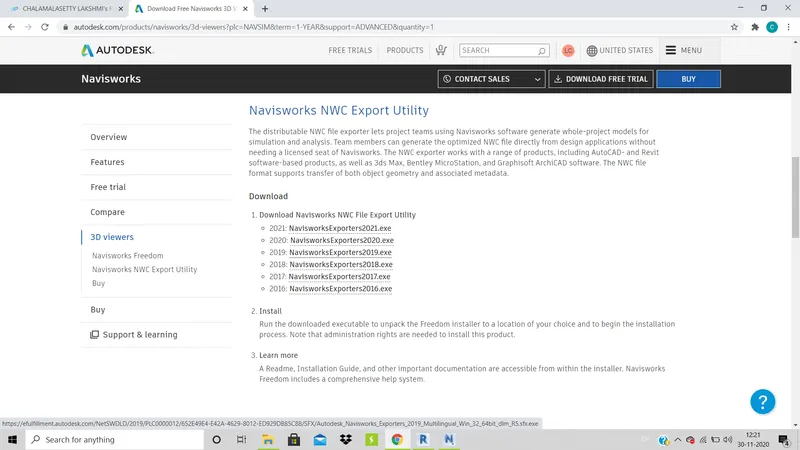

1. Firstly If you dont have Navisworks, download a suitable version of Navisworks Manage from Autodesk and also download Navisworks NWC File Export Utility.

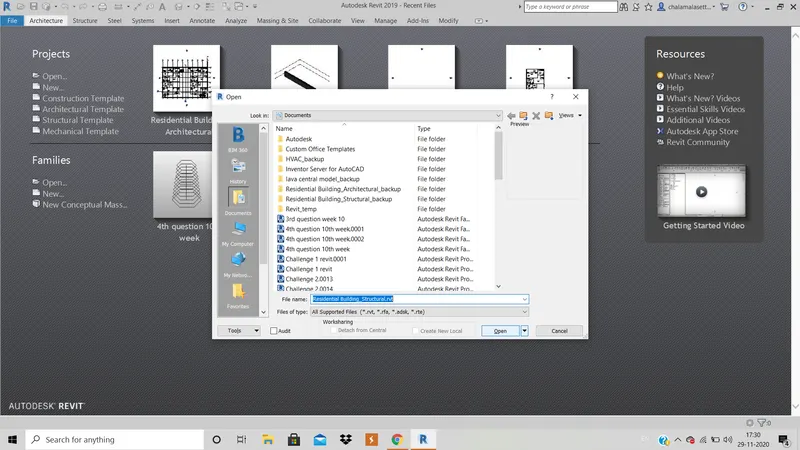

2. In the Autodesk Revit open, the project file that is developed in week 6 to 8 .

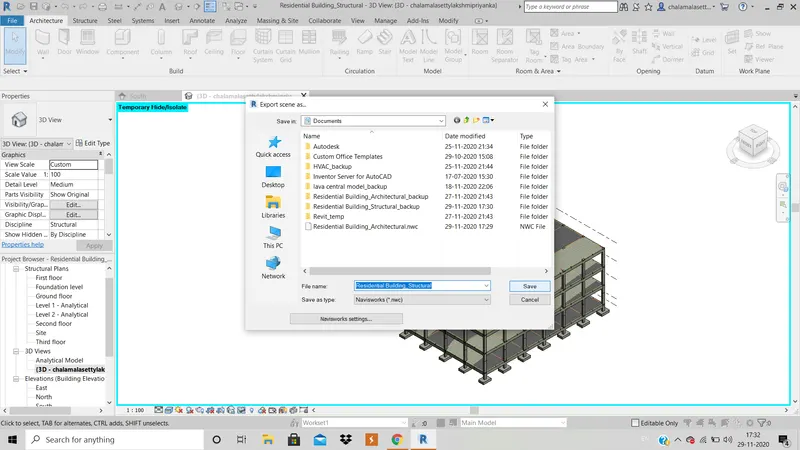

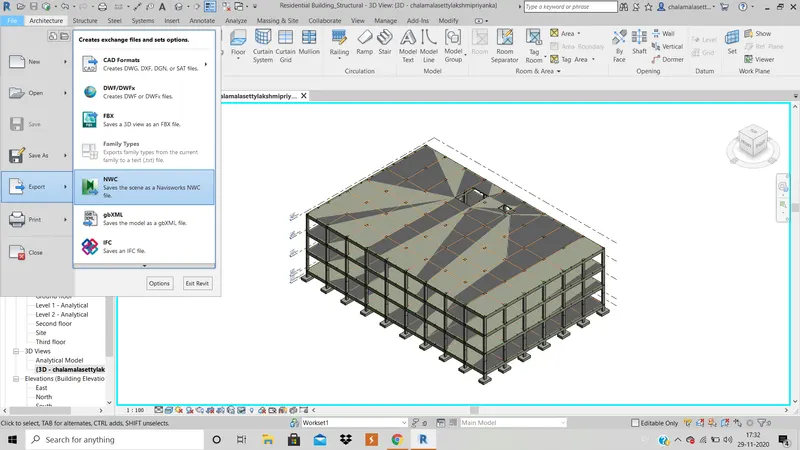

3. In the file option Click on export and in the options we get, choose NWC.
4. In the dialogue box that apperas,Choose .nwc extension and name it as required and click ok.

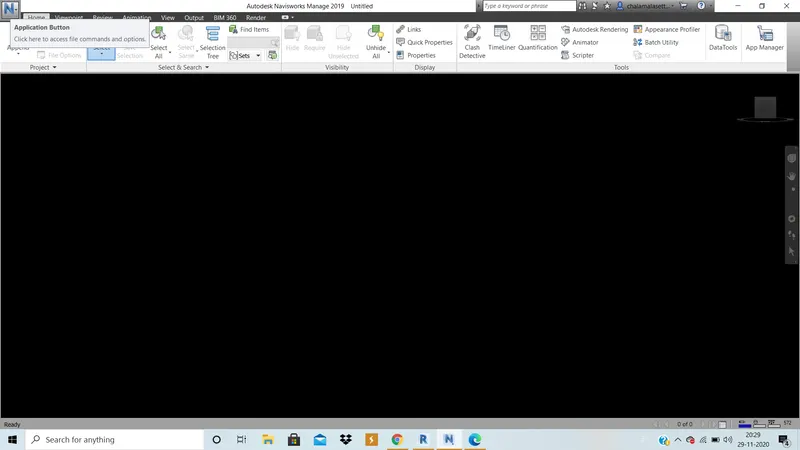

5. Now , open Navisworks Manage and go to N symbol that appears on top left side.

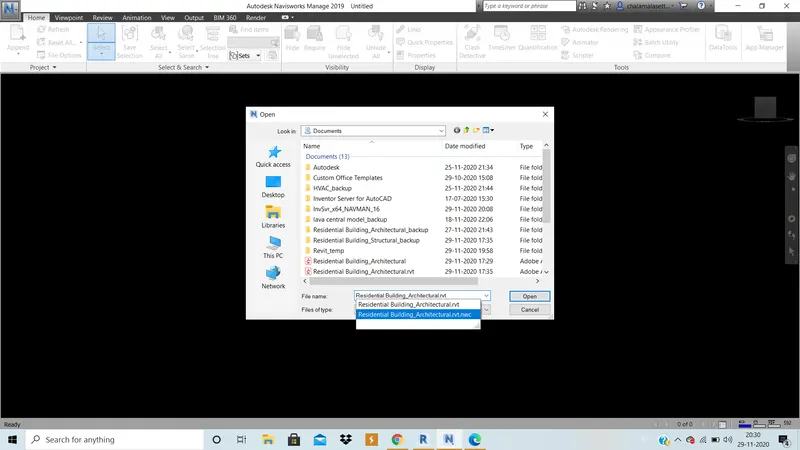

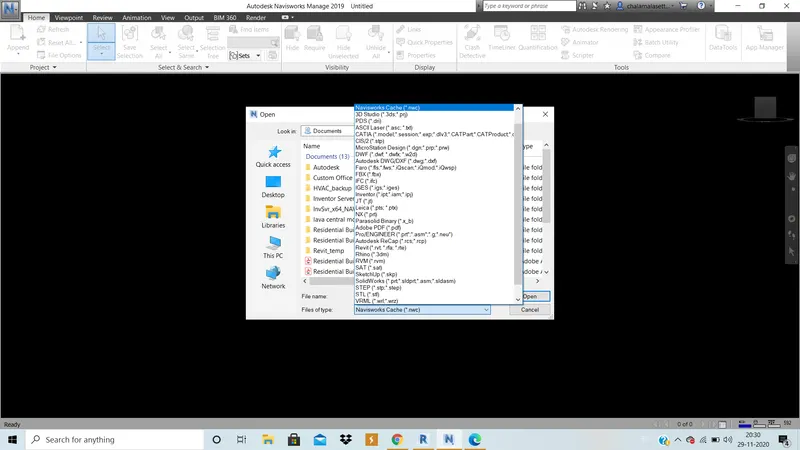

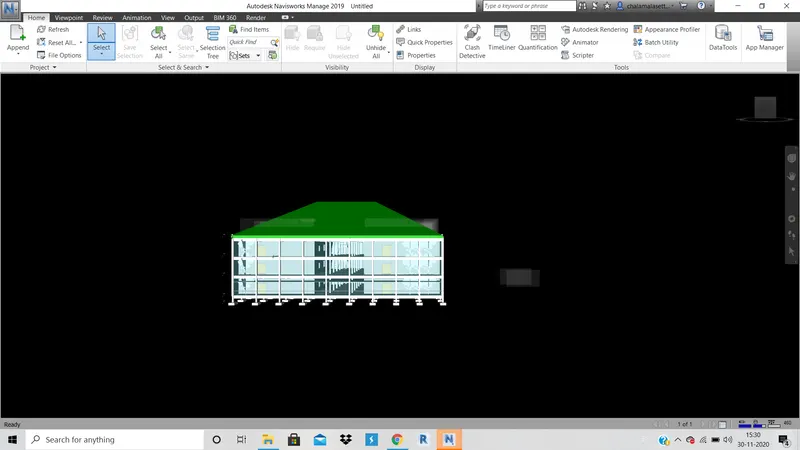

6. Click on Open and then search the file name that is exported and click ok.( remember to select .nwc extrension)
7. Repeat the same process for architectural file.
RESULT : The architectural and structural model are exported to Navisworks and opened in Navisworks Manage.
2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
AIM : To use navigation tool to walk around the model and walk through rooms created are record moving as animation.
TOOLS USED : Architecture file, walk , navigate tab, record, animation tab, save viewpoint, Viewpoint tab.
PROCEDURE :
1. Open the architecture file in Navisworks Manage.
2. Click on Walk tool in the Navigate tab and drag the mouse in the direction you want to move.

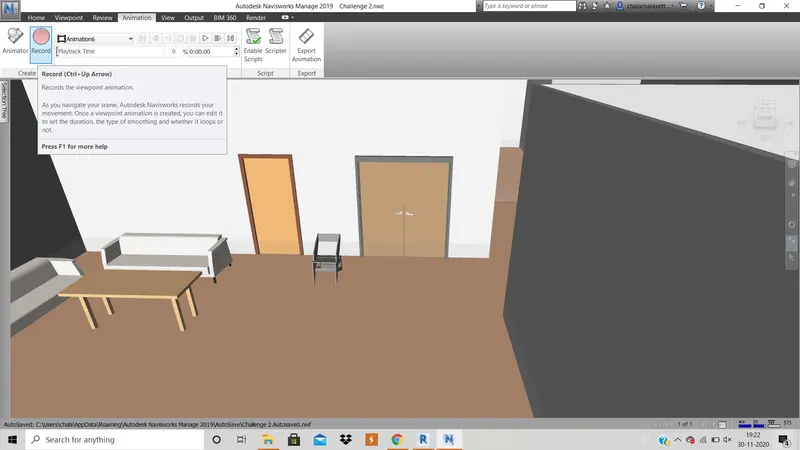

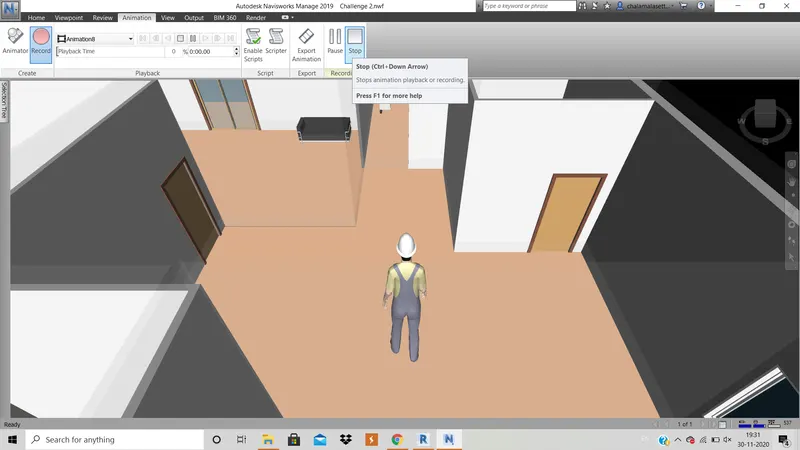

3. Click on Record in Animation tab to record the walking animation.

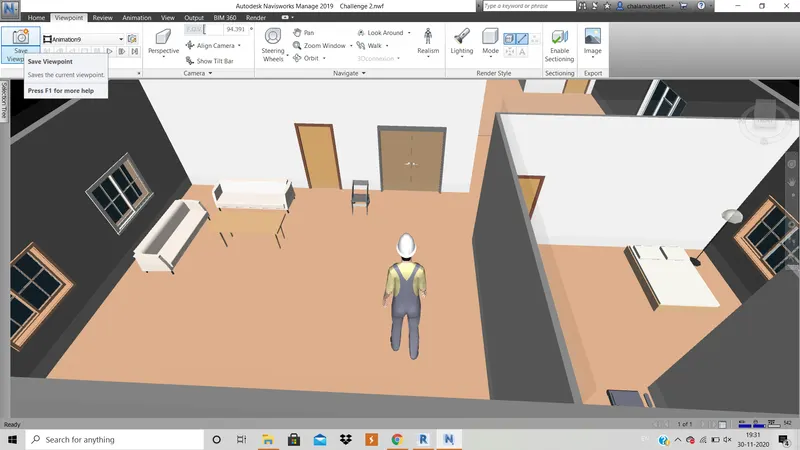

4. Click on stop in animation tab and click on save viewpoint in Viewpoint tab and name it suitably.

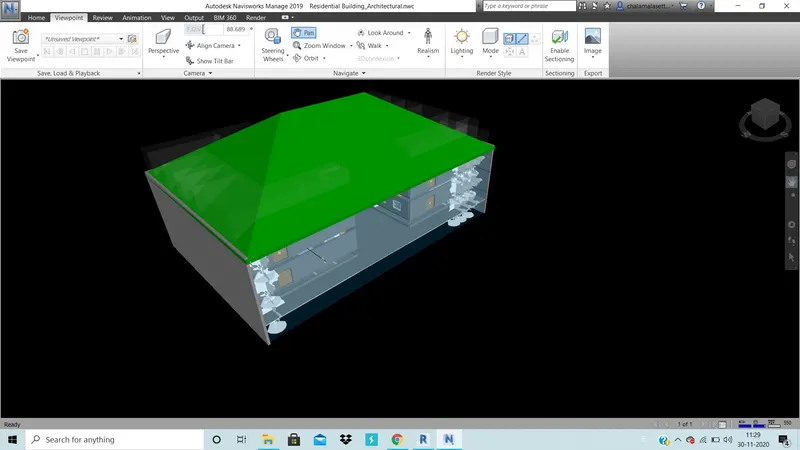

RESULT : The Walk tool is used and whole house is viewed and it is recorded.

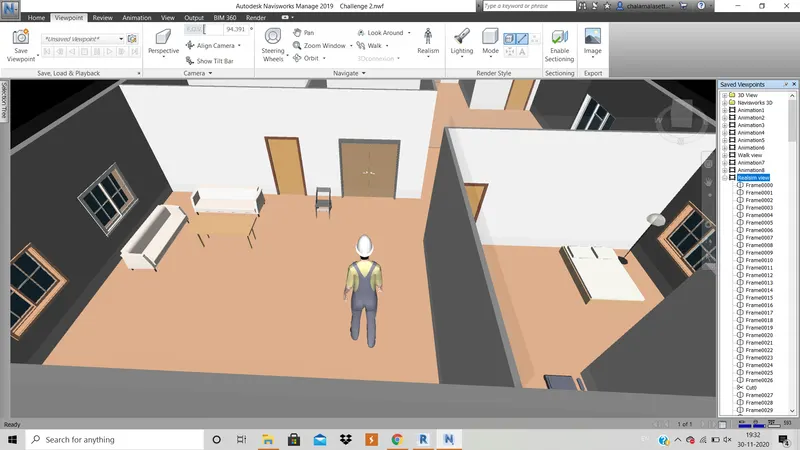

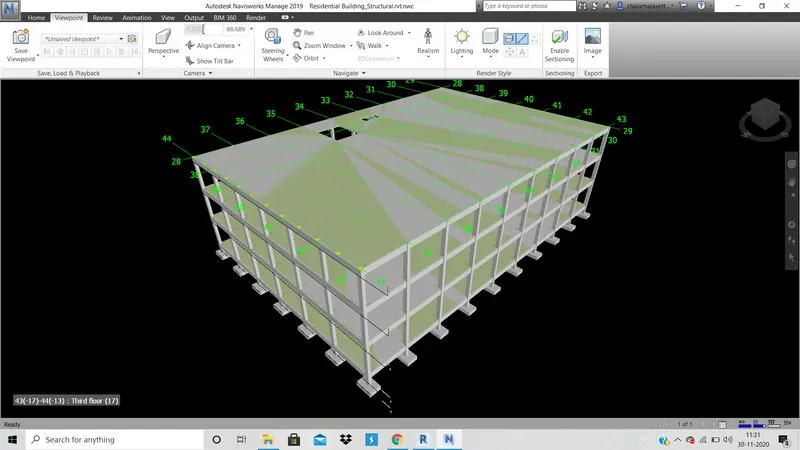

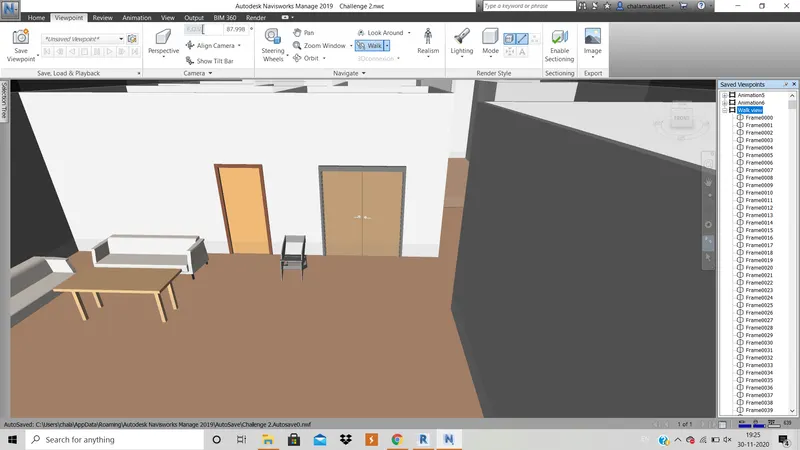

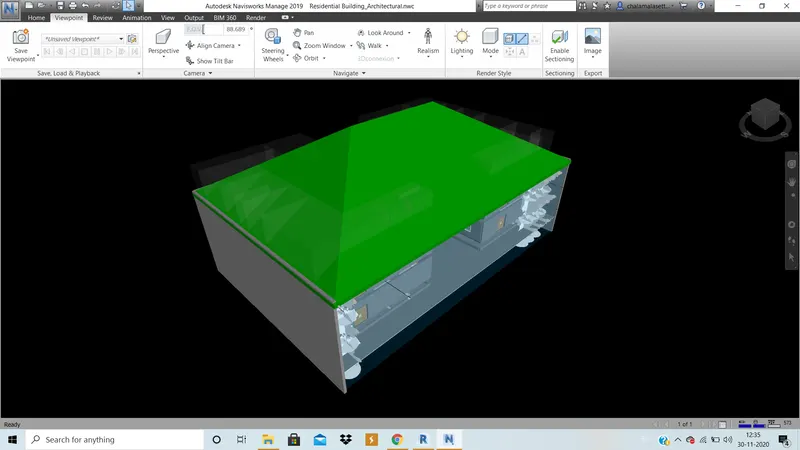

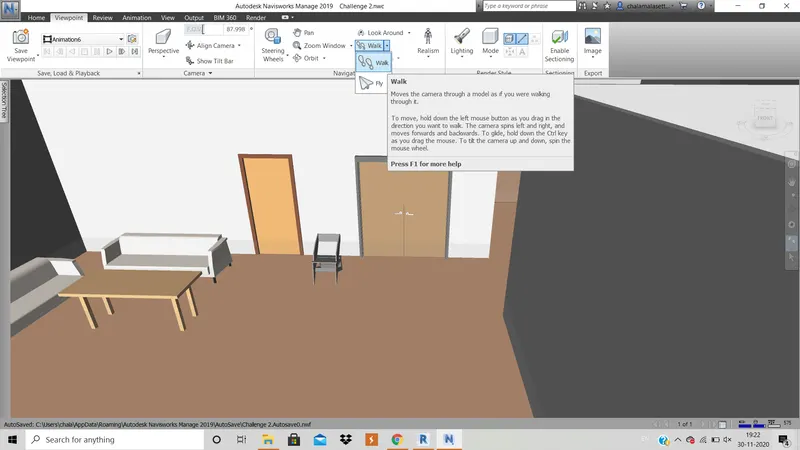

The frames of walk view is shown below:
3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
AIM : To use realism feature to walk through model and record moving as animation.
TOOLS USED : Architecture file, Realsim , navigate tab, record, animation tab, save viewpoint, Viewpoint tab.
PROCEDURE :
1. Open architectural file in navworks manage.
2. Click on Realism tool in the Navigate tab and drag the mouse in the direction you want to move.

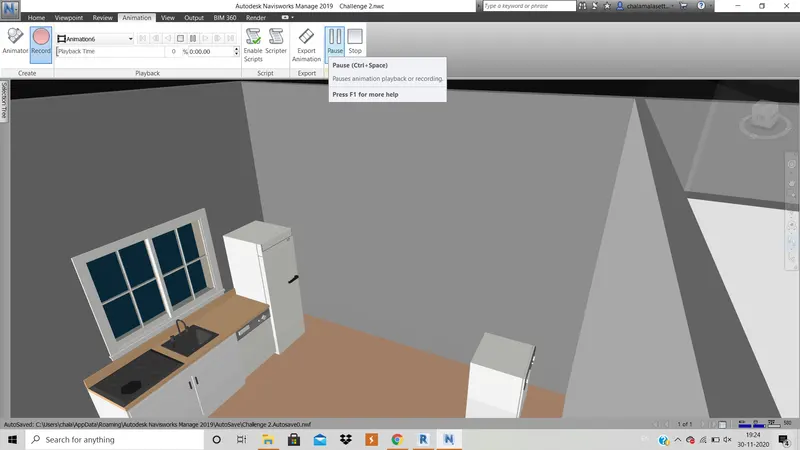

3. Click on Record in Animation tab to record the realism movement animation and Click on stop in animation tab.
4. Click on save viewpoint in Viewpoint tab and name it suitably.
RESULT : The Walk tool is used and whole house is viewed and it is recorded.

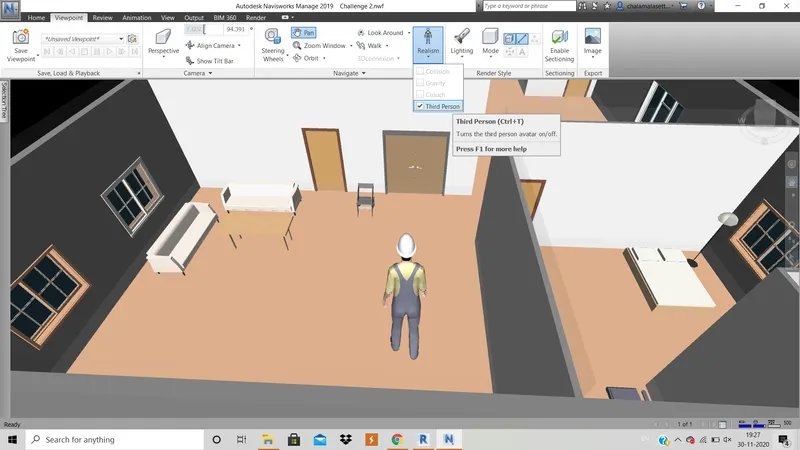

The frames of walk view is shown below:
4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks
AIM : To embed both files and run clas detection test , study and list clashes that could be approved,neglected and resolved and save the results, annotate and save the view in navisworks.
TOOLS USED : Append, architectural, structural files, Clash Detective, Resloved, approved, reviewed , comment, save viewpoint , save.
PROCEDURE :

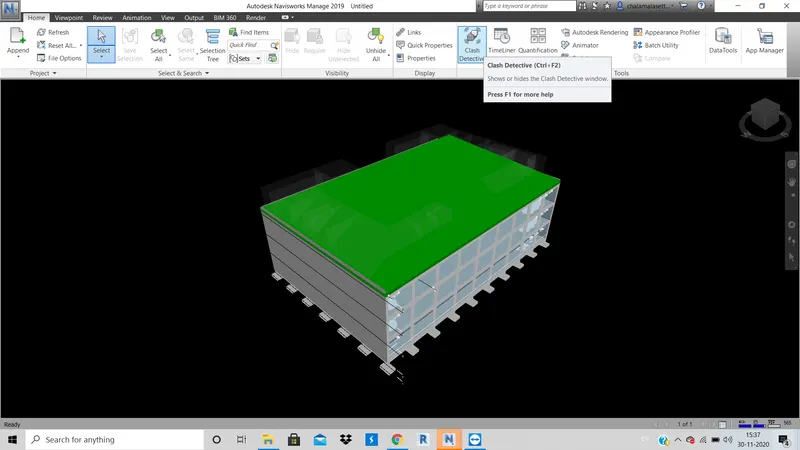

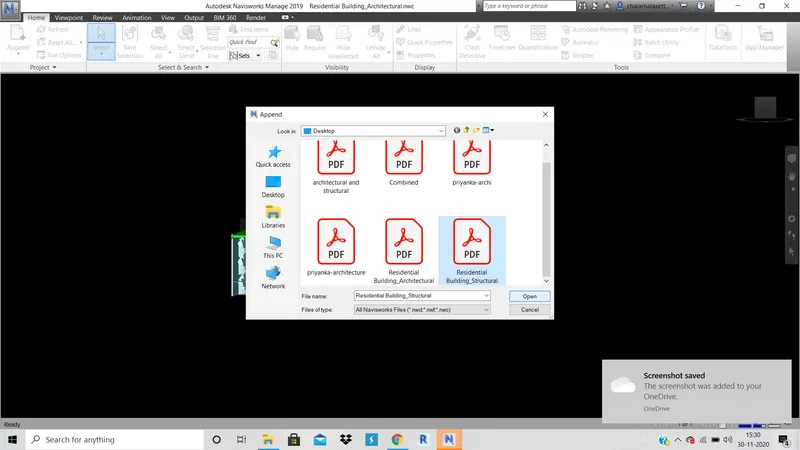

1. Open the navisworks and open Architectural view in it.

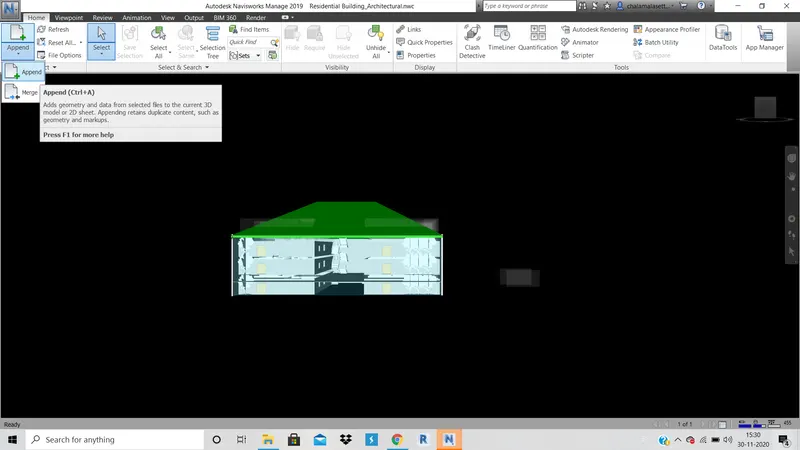

2. Click Append in the home tab and open structural file and click ok.

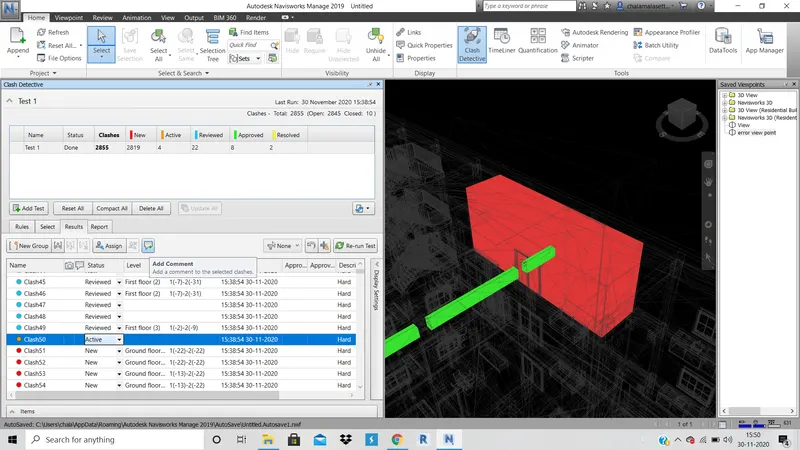

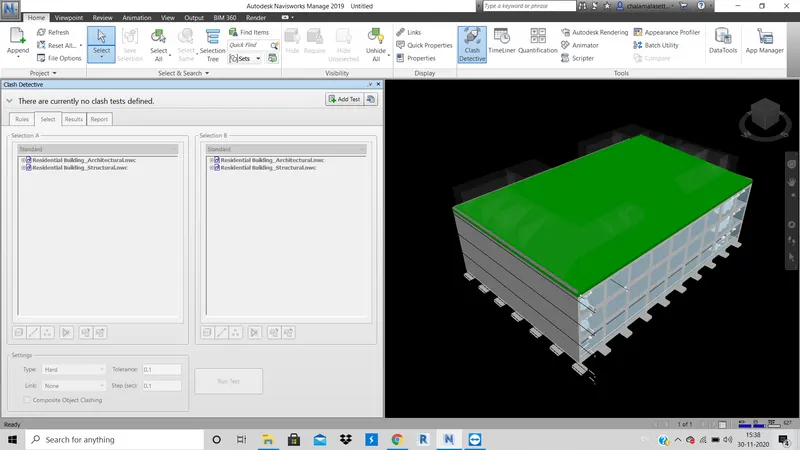

3. Now, click on clash detective tool in Home tab.

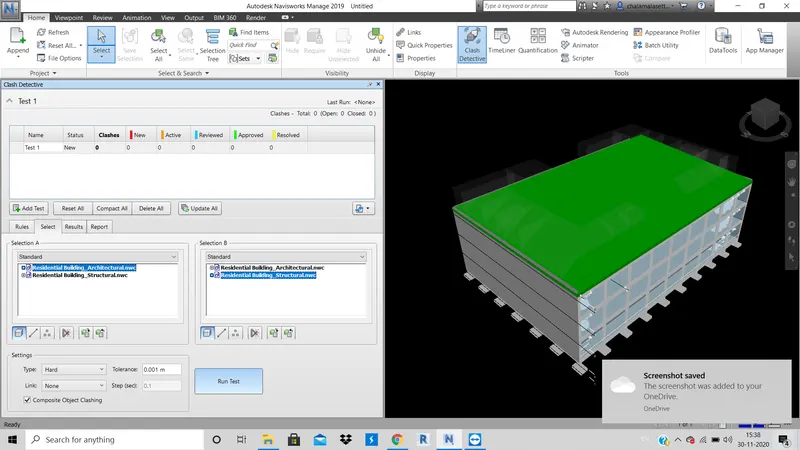

4. In the dialogue box that appears, select Architectural in Selection A and Structural in Selection B.

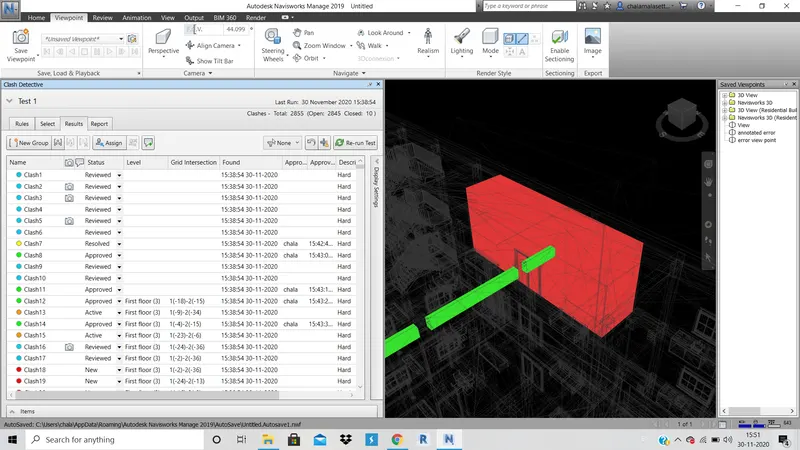

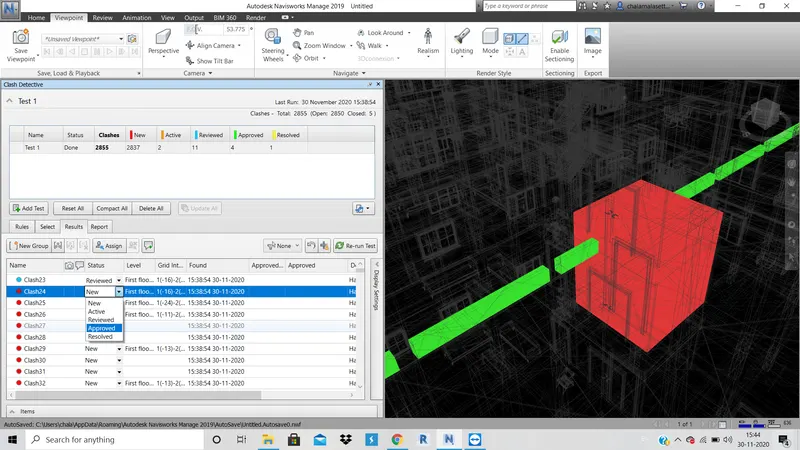

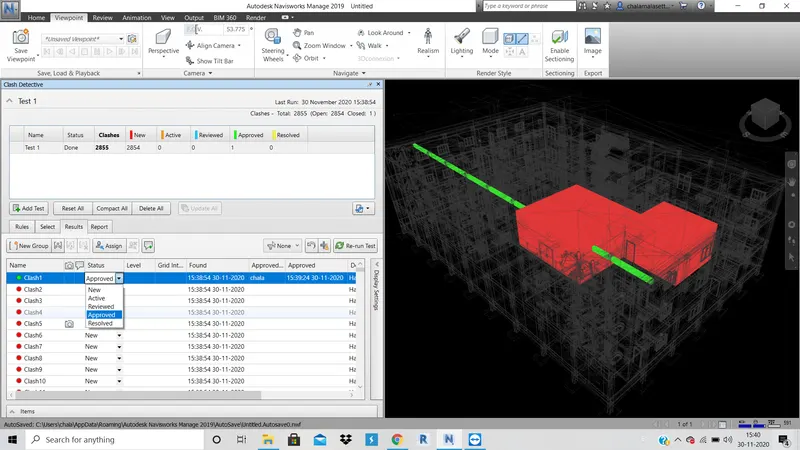

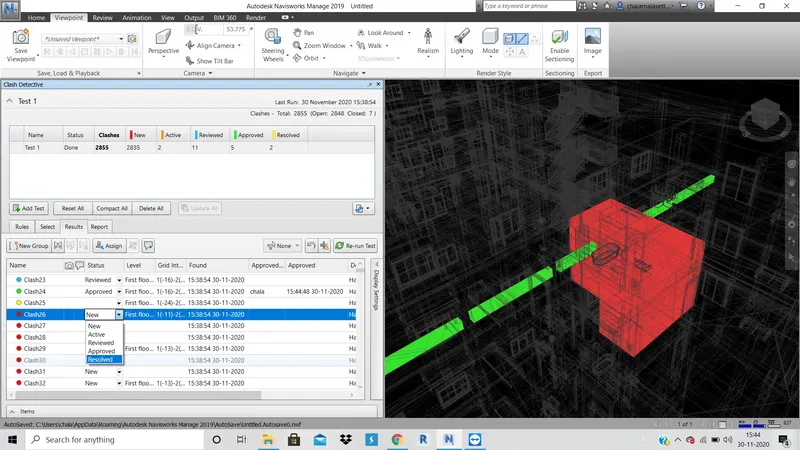

5. In the test results that appear, read the clash properly and mark them as resolved or approved or reviewed according to the clash.

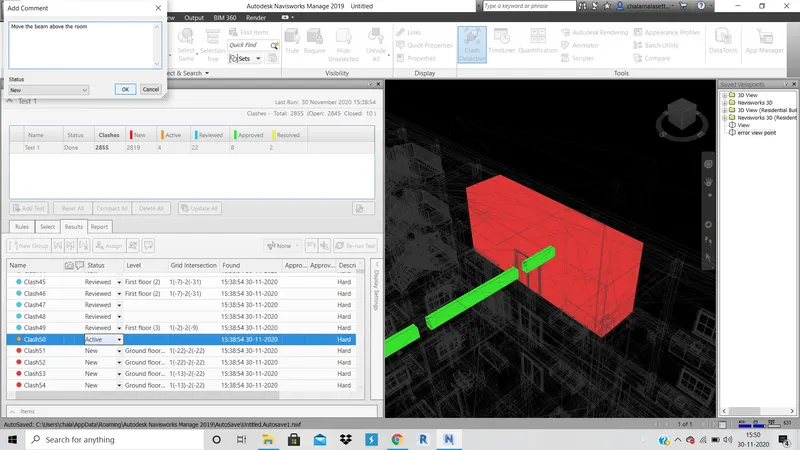

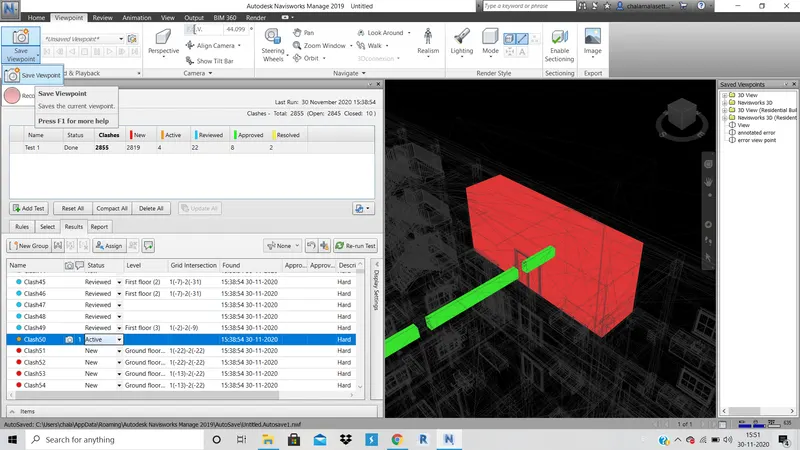

6. Now, using the comment tool available annotate the resolution for the clash and click on save the view point and name it suitably.

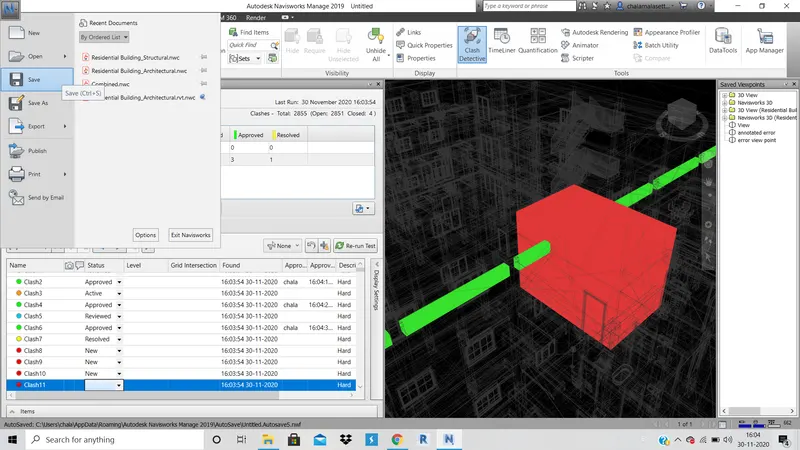

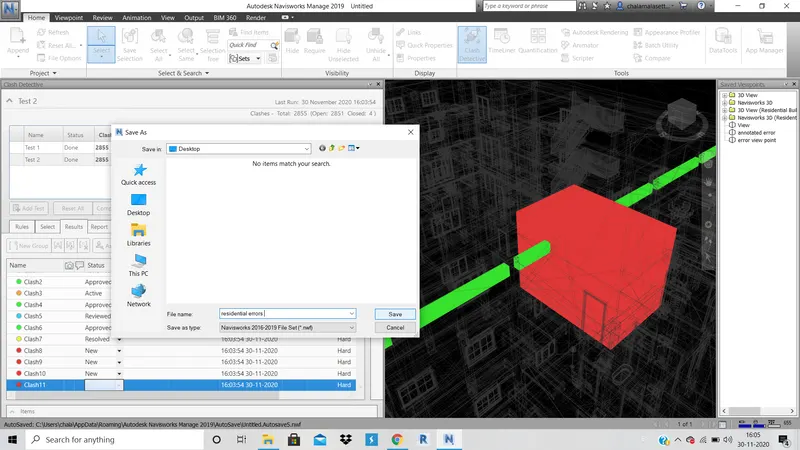

7. Save the navisworks manage file and name it suitably to save the test results as well.
RESULT : The above mentioned operations a,b,c,d,e,f,g are done succesfully.
5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
AIM : To use timeliner feature and prepare a schedule for project developed in week 6 to 8, simulate the task as visual simulation and record it and save the timeline simulation to navisworks file.
TOOLS USED : Structural file, timeliner, Selection tree, Simulate, record.
PROCEDURE :

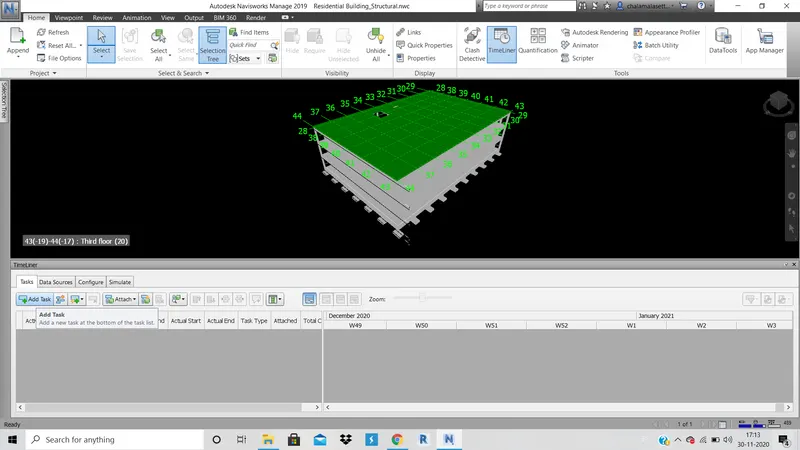

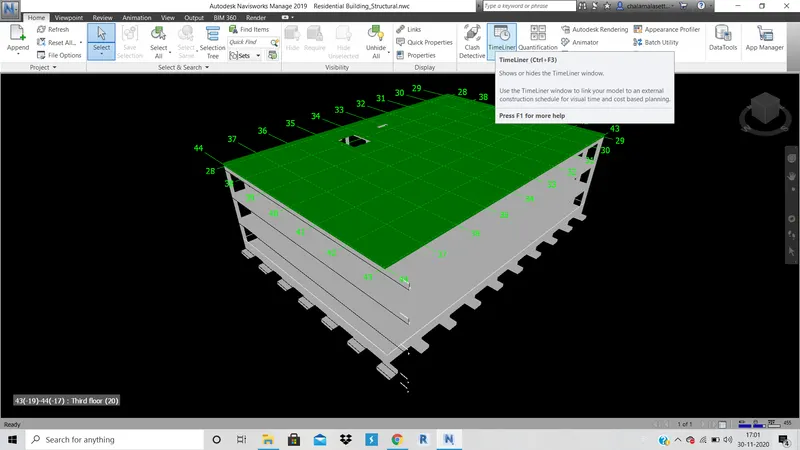

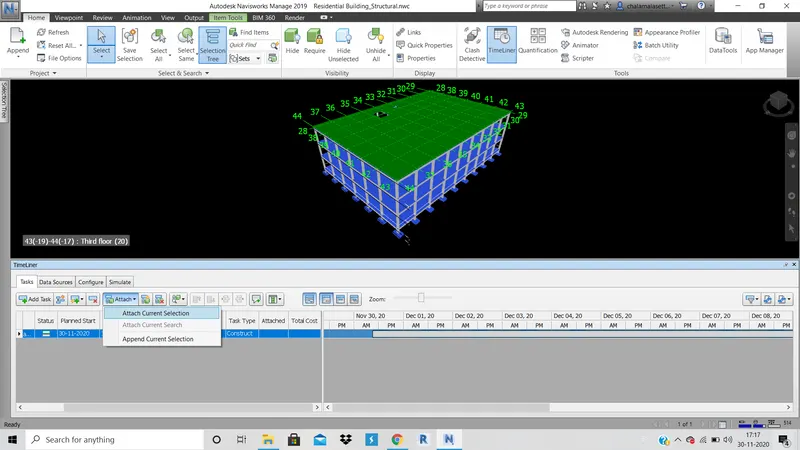

1. Open the structural file and click on Timeliner tool.

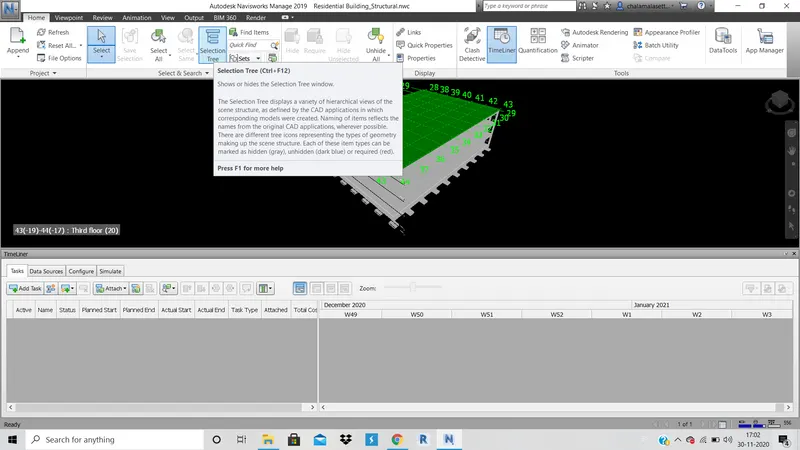

2. Click on selection tree and we can view what all are need to be constructed or need to be scheduled.

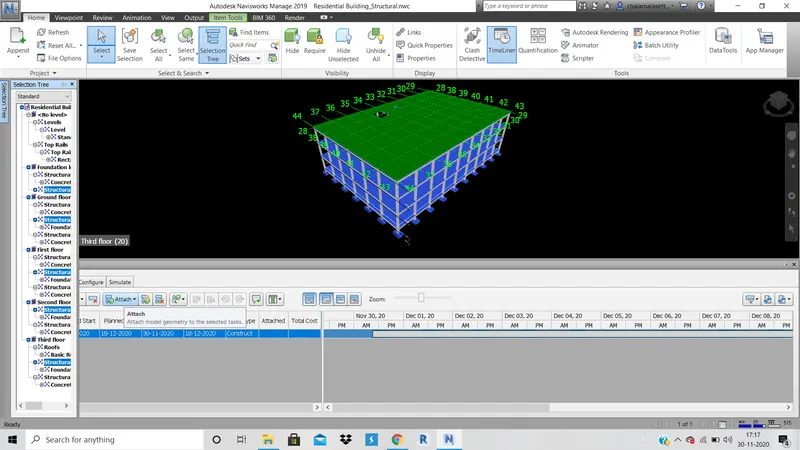

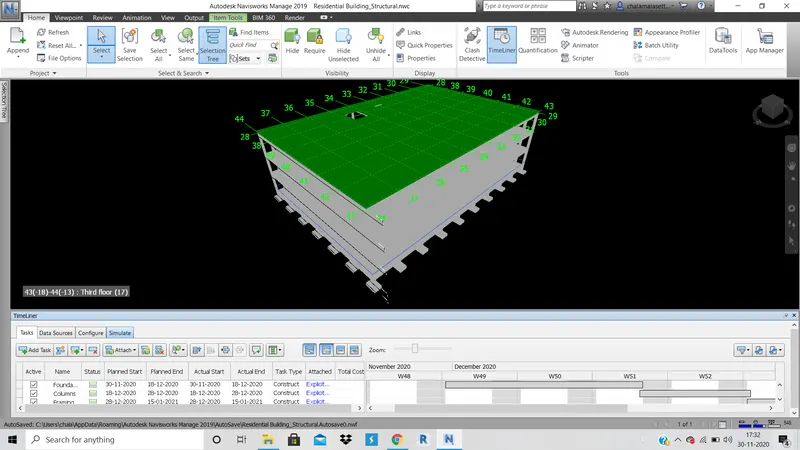

3. Now in the timeline dialogue box, Click on add task and name it properly and add start date, end date, actual start, actual end, task type.
4. Now select the members needs to be added to the attach in timeliner and select the task and click on attach to the current task. Continue to complete all the members to be constructed and do the schedule same as done above.

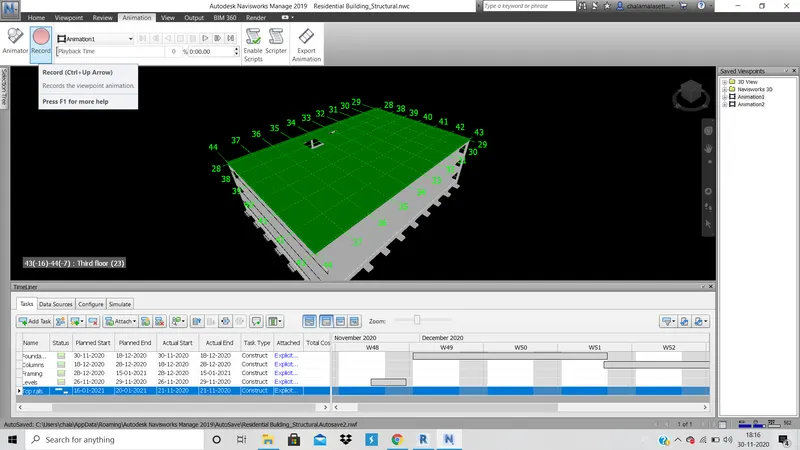

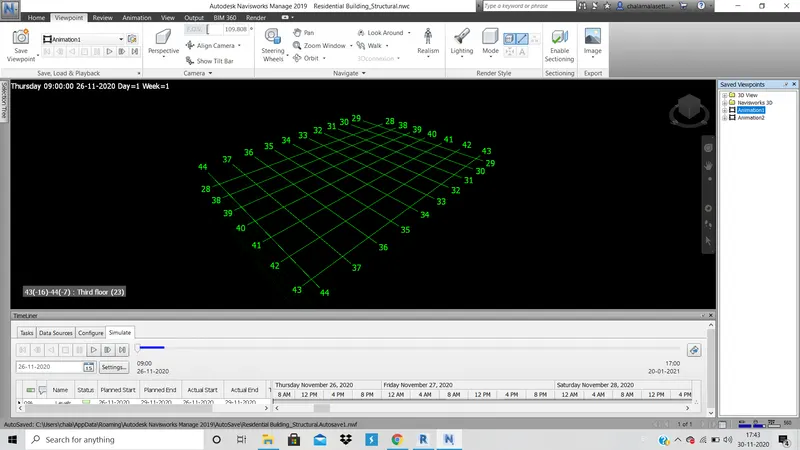

5. Now after completing the schedule, Click on simulate and click on record to record the progress of project stage wise according to the timeline we have set.
RESULT : The timeline is set successfully and the animation of simulation is also recorded.

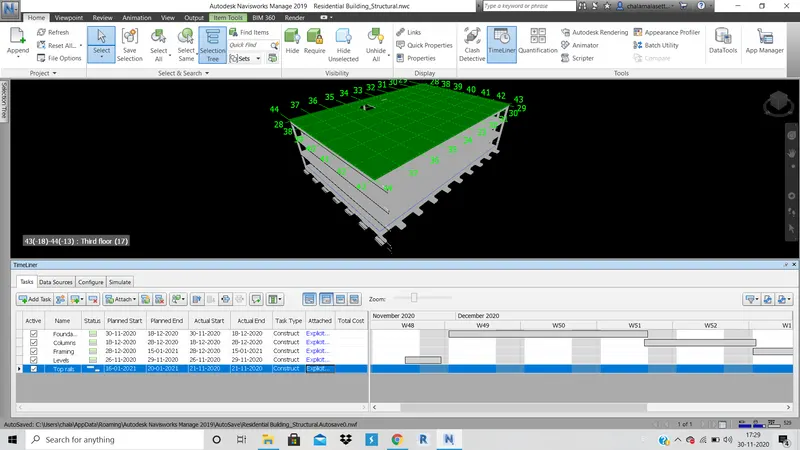

The recording is saved right side in the saved viewpoints.
