REVIT_Naviswork_Project- 4

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

Aim: Export the Revit architecture and structure model to Navisworks Cache file following the export settings

Tools Required: File, select, export and NWC.

Procedure:

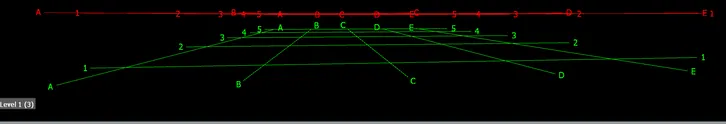

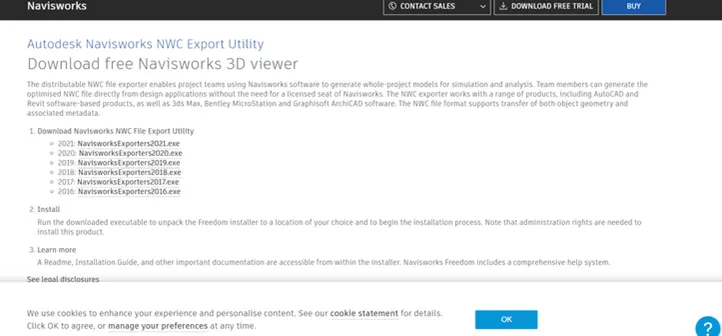

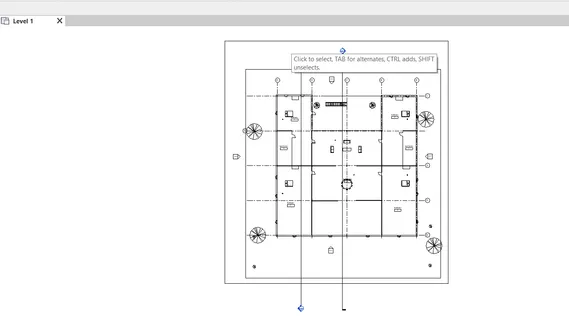

1)Open autodesk website, download 2019 naviswork software and run it.

2)Open architectural project in week 6.

3)Click on file, select export and click on nwc.

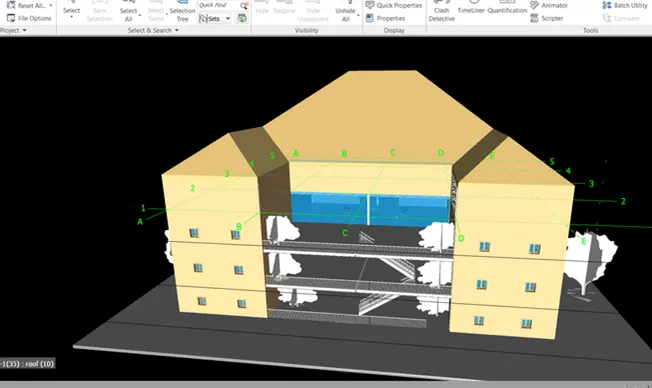

4)Open naviswork manage and open exported file.

Result: Architectural and structural files are exported to naviswork successfully.

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file.

Aim: Use Navigate Tool to walk around the model and walk through the rooms created and record your moving.

Tools Required: Viewport and record.

Procedure:

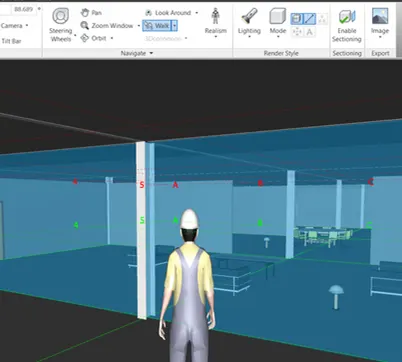

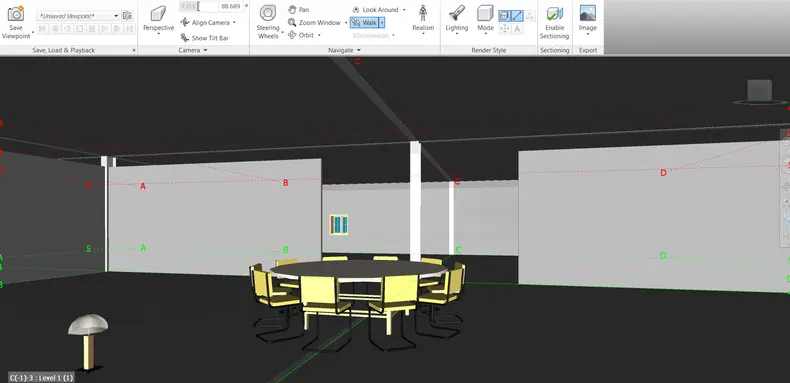

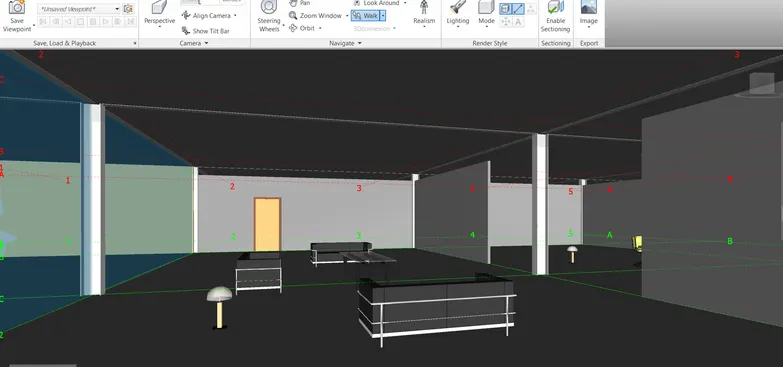

1)Open viewport toolbar, Click on walk tool.

2)By using mouse move the screen.

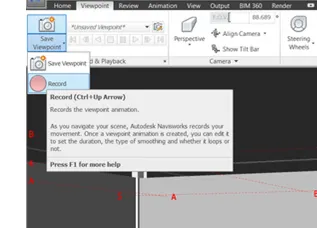

3)Click on record and save the recorded file.

Result: Walk through the rooms recorded successfully.

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file.

Aim: Use Navigate tool to use Realism feature to walk through the model and record your moving

Tools Required: View, Realism and third person.

Procedure:

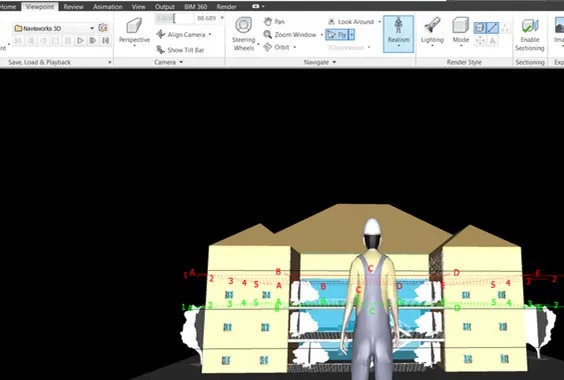

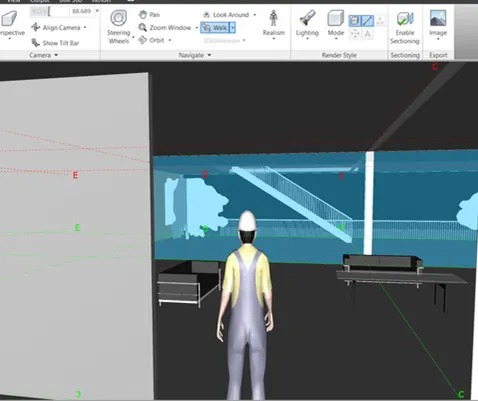

1)Click on view toolbar and select realism.

2)Select third person.

3)Use mouse and keyboard to move the screen.

Result: Realism feature to walk through the model and record your moving completedsuccessfully.

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

Aim: Create a clash detection test between the two models and run the clash detection test.

Tools Required: Append, Clash detection and run test.

Procedure:
1)Click on append and import structural file.

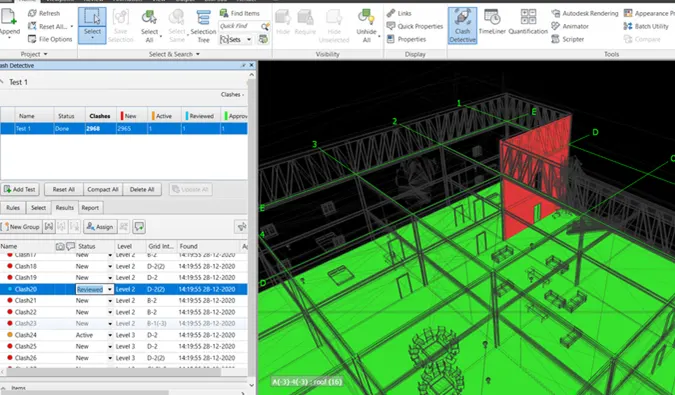

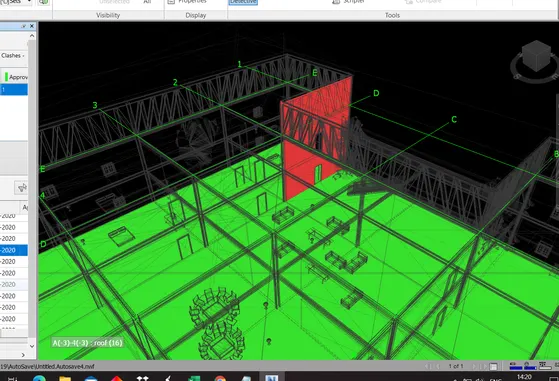

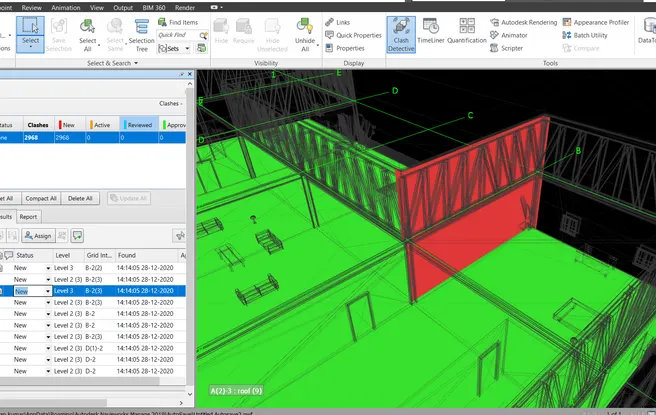

2)Click on clash detective and run test.

3)Click on clash and switch it into approved it turns as green, yellow for reviewed.

Result: Clash detection test between the two models completed successfully.

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file.

Aim: Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 .

Tools Required: Home, start end date amd simulate tool.

Procedure:

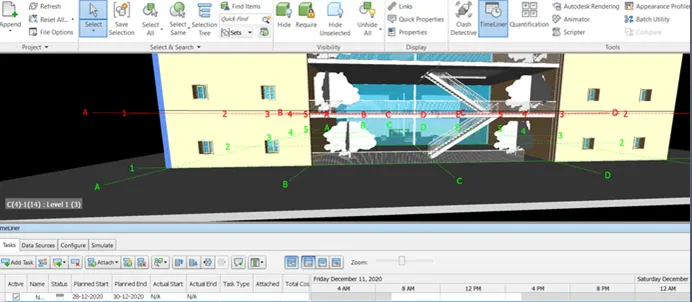

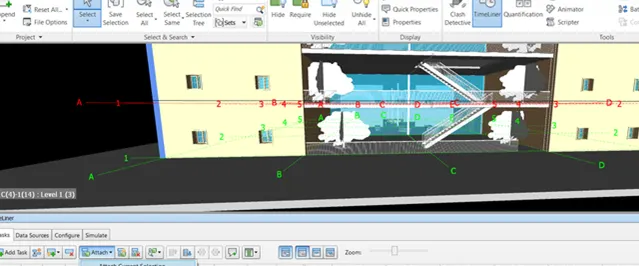

1)Click on hometool bar and select timeliner.

2)Enable the selection teen and click on add task option.

3)Assign start end task and assign it.

4)Click attach, select current selection.

5)Click on simulate tool and play option.

 Result: Using the Timeliner feature in Navisworks prepare a schedule completed successfully.
